Product Description
1. NOTE
Due to page limitations, some configurations may not be listed. Please contact us or leave a note during checkout for special requests.
Default Configuration Includes:
Sensor Type: PT100 / PT1000
Temperature Range: -200°C to +260°C

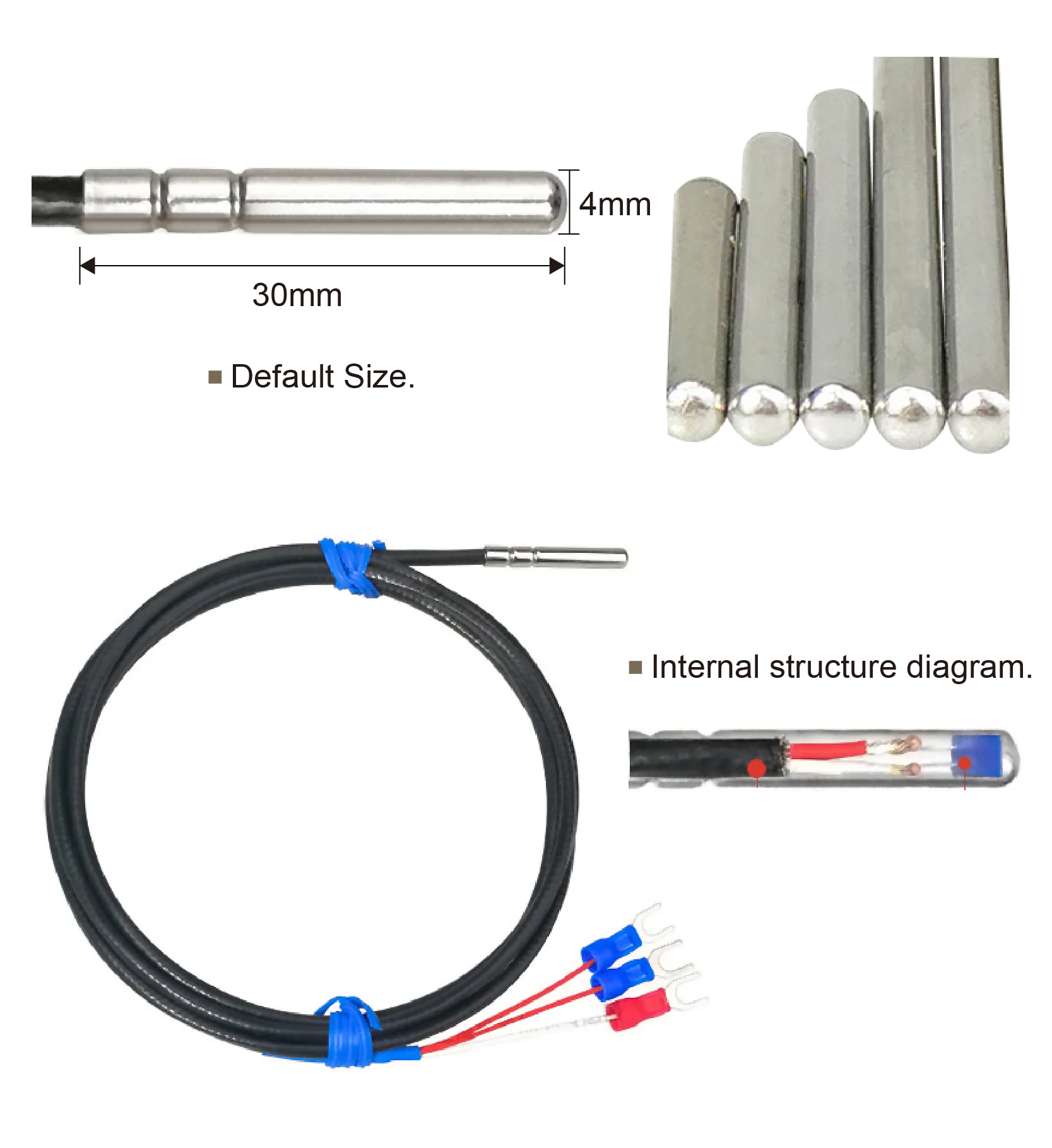

Probe Size: Φ4×30mm
Probe Length: 30mm
Cable Length: 1–5M (Optional)
Wiring Style: 3-wire
Terminal Connector: U-Type Terminal
Optional Configurations Include:
Sensor Type: PT100, PT1000

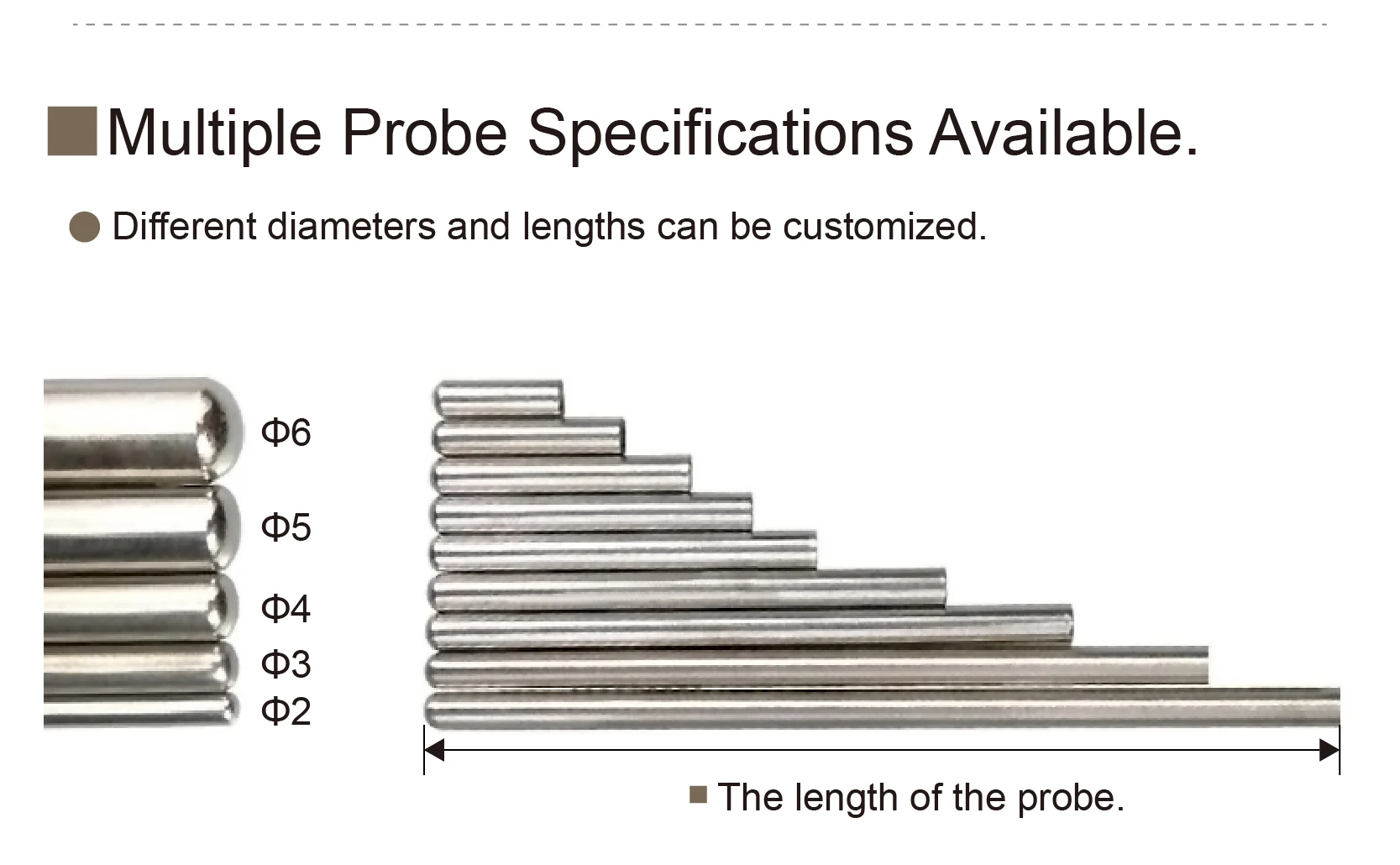

Probe Diameter: Customizable (e.g., Φ2mm, Φ3mm, Φ4mm, Φ5mm, Φ6mm)
Probe Length: Customizable (e.g., 10mm, 50mm, 100mm, 200mm)
Cable Length: Customizable (e.g., 10m, 15m, 20m)
Terminal Connector: U-Type Terminal (Default), Aviation Plug, Pin Terminal (Customizable)

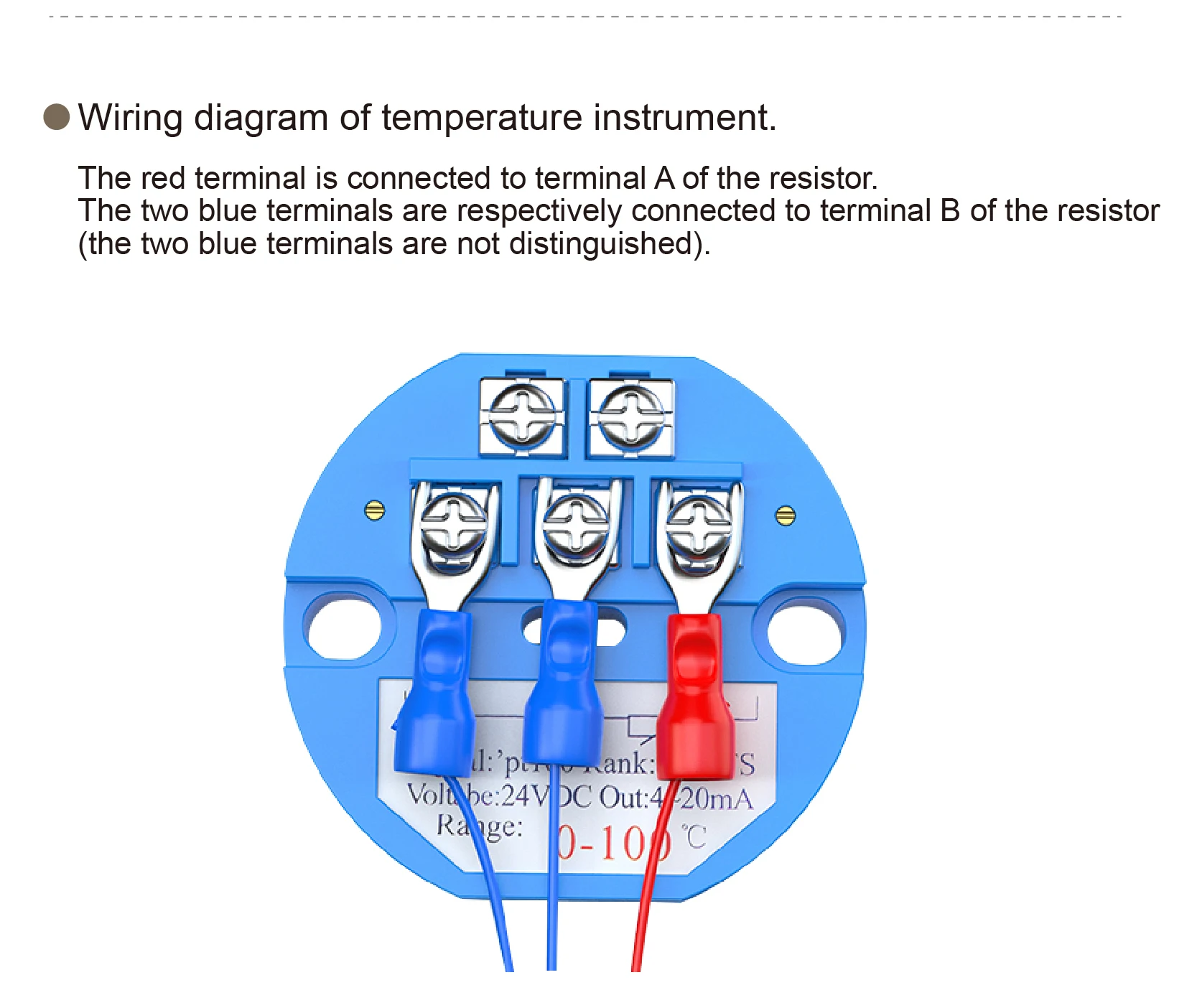

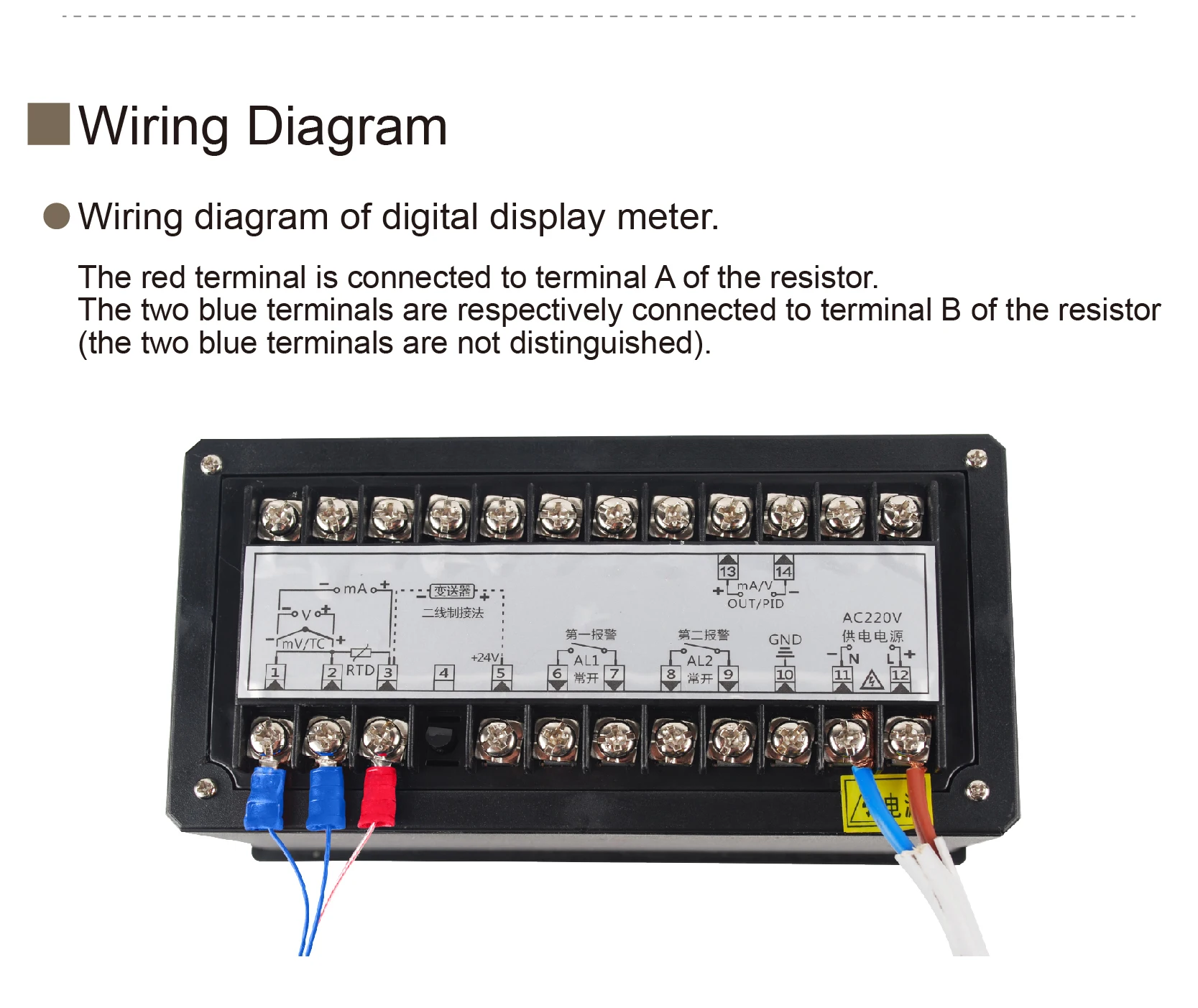

Ensure the sensor type matches your temperature controller input (e.g., a PT100 sensor must match a PT100 controller).
Default package includes only the sensor probe; temperature controllers must be purchased separately.
Confirm the required temperature range and cable length before placing an order.
For customization, please contact us.
2. PARAMETERS
Parameter Name | Default/Customizable Options |
Brand | CERTEON |
Model | WZPT-035 |
Origin | Mainland China |
Sensor type | Pt100 (Default)/PT1000 |
Protection Tube Material | SS304/316L |
Measurement Range | -200°C -260°C |
Resistance Type | 1/3B, A, B (Selectable) |
Protection Tube Diameter | 4mm (Default), options include 3mm, 5mm, 6mm, etc. |
Protection Tube Length | 30mm (Default), customizable to 10mm, 15mm, 20mm, 40mm, 50mm, 60mm, 100mm, 150mm, 200mm |
Cable Length | 0.5m, 1m, 1.5m, 2m, 3m |
Cable Material | PTFE Teflon silver-plated twisted shielded wire, customizable to any length |
Connector Type | U-type terminal (Default), customizable to pin terminals, small yellow plug, aviation plug |
Product Craft | Imported double-slot crimping and glue sealing, excellent waterproof and oil-proof performance |

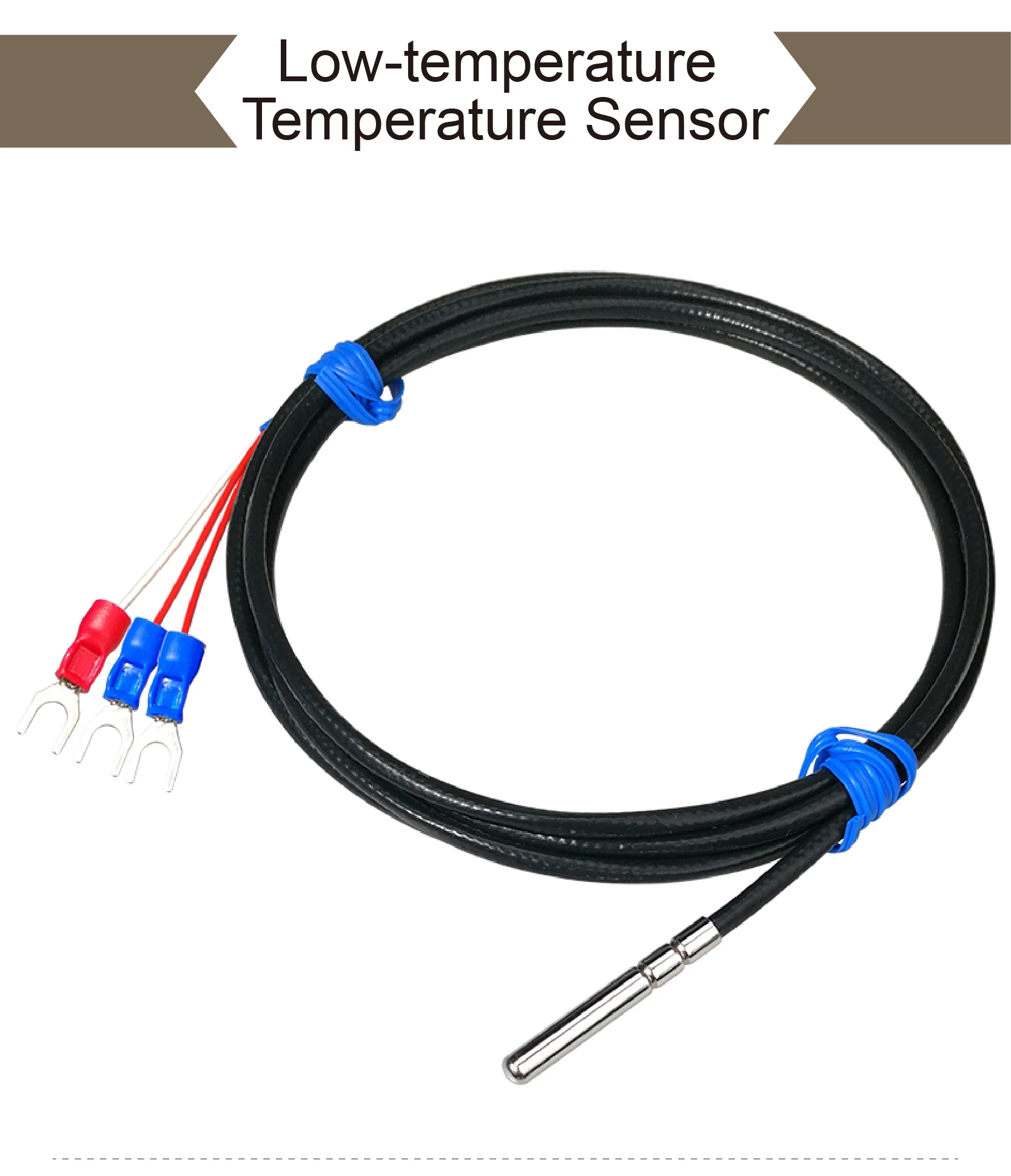

Application Scope | Suitable for temperature measurement in liquid nitrogen, dry ice, and other low-temperature environments |
3. APPLICATION
Widely used for temperature measurement in liquid nitrogen, dry ice, and other low-temperature environments.
Applicable for liquid, gas, and solid temperature measurements.

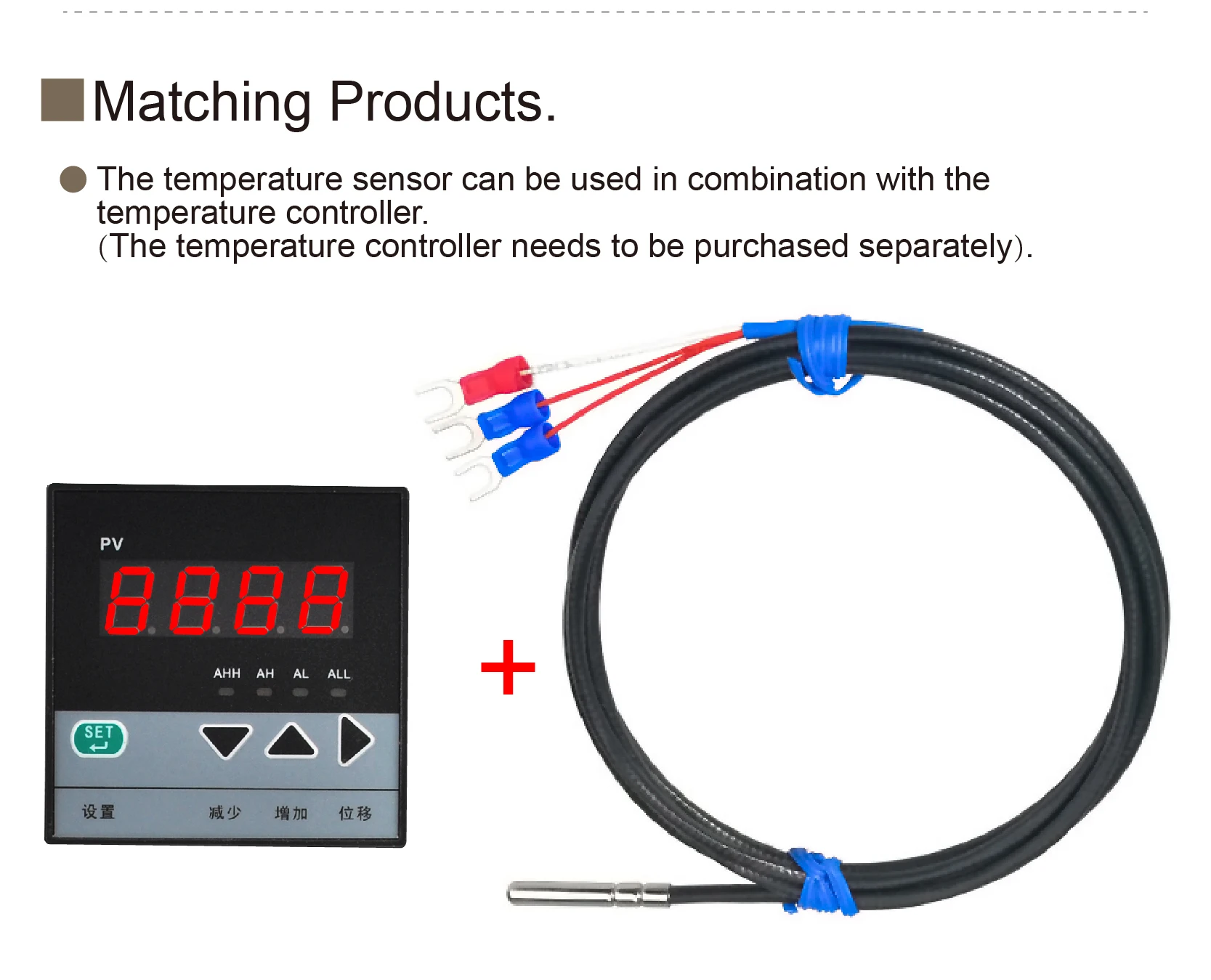

Compatible with temperature controllers and digital display meters; suitable for laboratories, cold chain logistics, and other applications.
4. FEATURES

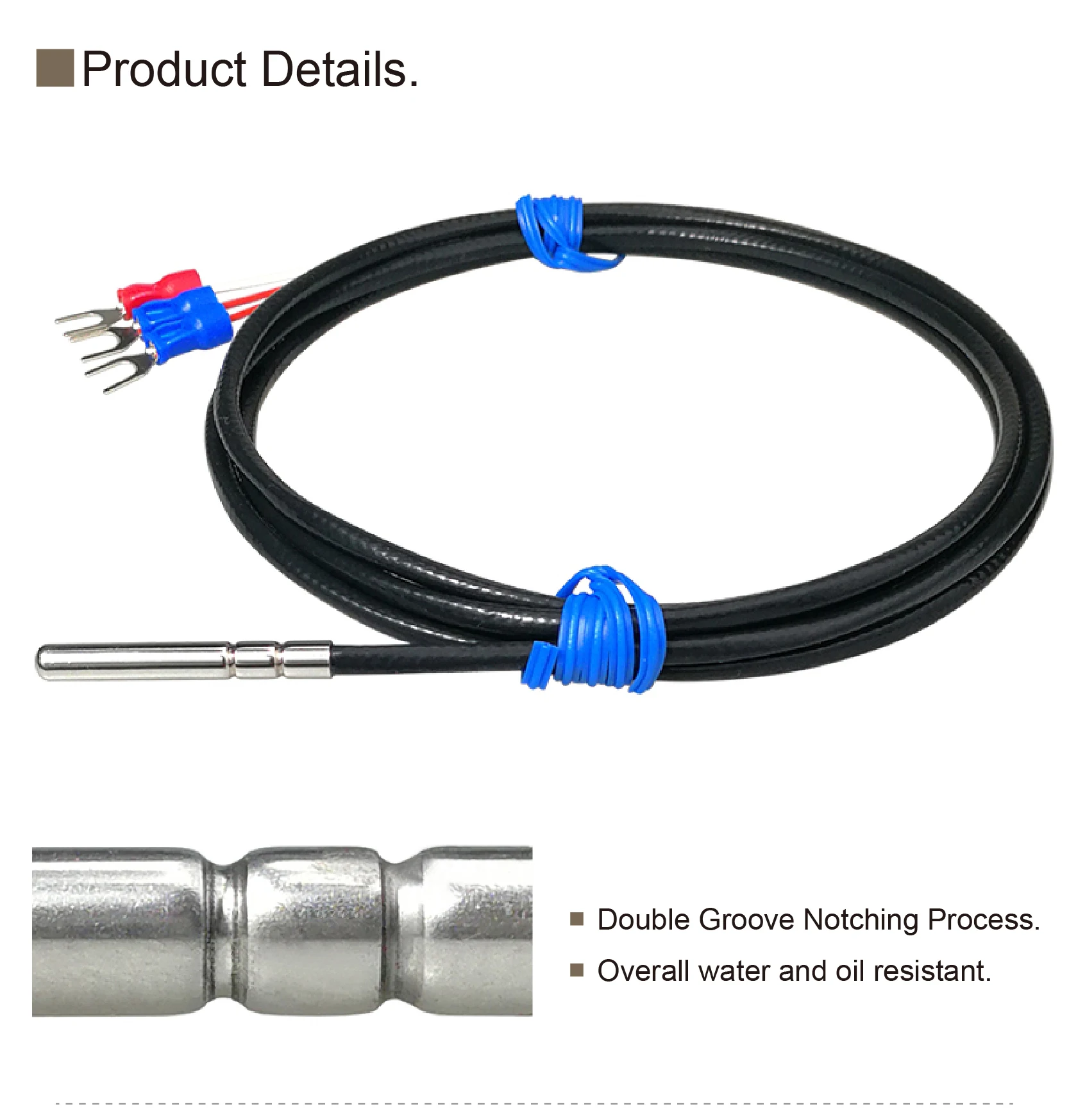

Industrial-grade Craftsmanship: Double-slot crimping design with waterproof and oil-proof construction, ensuring durability.
High-Precision Measurement: Thin-film resistor technology for more accurate and sensitive temperature detection.
Extreme Temperature Resistance: Operating temperature range from -200°C to +260°C, suitable for harsh environments.
Premium Materials: Seamless 304 stainless steel tube with epoxy resin sealing; smooth and durable welding.
5. FAQ
Q: Is customization supported?
A: Yes, options such as diameter, length, cable material, and connectors can be customized.
Q: How do I select a temperature controller and sensor?
A: Ensure the input type of the temperature controller matches the sensor type, e.g., both should be PT100.
Q: Can it be used in high-temperature environments?
A: This product is mainly designed for low-temperature environments, with a maximum temperature resistance of 260°C.
