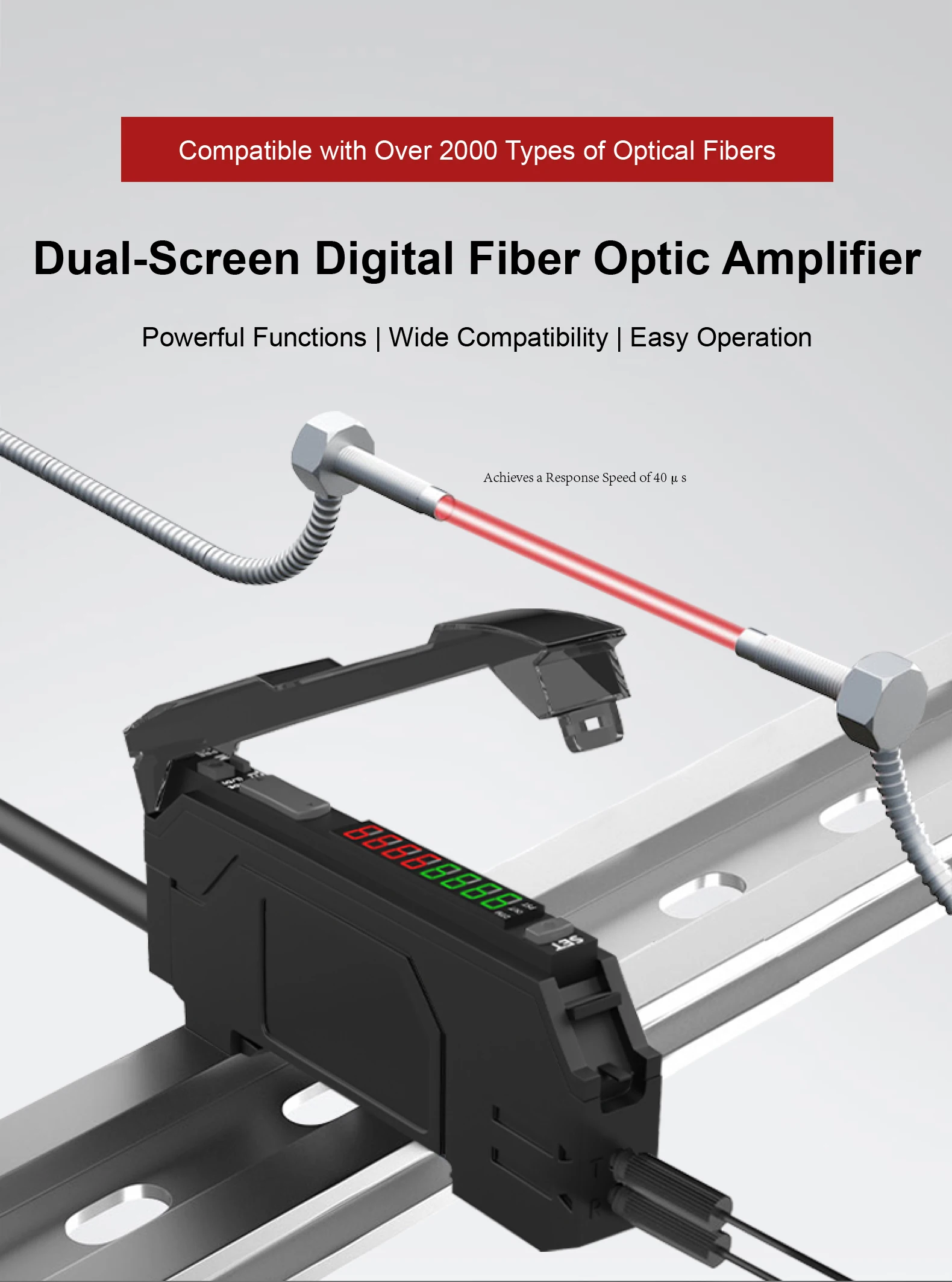

Product Description
1. Note
Default Parameters:
Amplifier
Power：DC12-24V
Display: Dual LED screen
Model: F05-TN, F05-TP (optional)
Output: NPN, PNP (optional)
Amplifier Cable Length: 2 meters
Amplifier Functions:Off-delay timer/On-delay timer/One-shot timer
Fiber Optic Cable
Type: Reflective fiber, Through-beam fiber (optional)
Thread Size: M3, M4, M6 (optional)
Length: 1 meter (default)
Customizable Parameters:
Model: F05-TCN, F05-TCP
Fiber Types:
Elbow diffuse reflection series: M3 / M4 / M6
Elbow through-beam series: M3 / M4 / M6
Connection Method: M8 connector
The amplifier must be used together with a fiber optic cable. Compatible with over 2,000 fiber types. Due to page limitations, some parameters are not fully listed. For customization, please contact us.
2.Parameters
Parameter | Description |
Model | F05-TN（NPN）、F05-TP（PNP）、F05-TCN（NPN）、F05-TCP（PNP） |
Cable/Connector | Cable / M8 (optional) |
Light Source | Red LED emitter |
Response Time | 40μs (HIGH SPEED) / 250μs (FINE) / 1ms (SUPER) / 16ms (MEGA) |
Output Mode | LIGHT-ON / DARK-ON (selectable) |
Delay Functions | OFF-delay / ON-delay / One-shot timer |
NPN Output | Open collector 24V, max 100mA, residual voltage ≤1V |
PNP Output | Open collector 24V, max 100mA, residual voltage ≤1V |
Protection Circuits | Reverse polarity protection (power), overcurrent & overvoltage protection (output) |
Power Supply | 12–24 VDC ±10%, ripple (P–P) ≤10% |
Power Consumption (NPN) | Normal: Max 900mW (24V: 36mA / 12V: 48mA) |
Power Consumption (PNP) | Normal: Max 950mW (24V: 39mA / 12V: 52mA) |
High-Speed Mode Note | Increases consumption by approx. 160mW (7mA) |
Ambient Light Resistance | Incandescent: ≤20,000 lux / Sunlight: ≤30,000 lux |
Operating Temperature | -20°C to +55°C (non-freezing) |
Operating Humidity | 35% to 85% RH (non-condensing) |
Vibration Resistance | 10–55 Hz, amplitude 1.5mm, 2 hours per axis (X, Y, Z) |
Shock Resistance | 500 m/s², 3 times per direction (X, Y, Z) |
Housing Material | Polycarbonate |
Dimensions | 30.3mm (H) × 9.8mm (W) × 71.8mm (D) |
3. Features
Dual LED Display: Real-time feedback for quick adjustments.
Ultra-Fast Response: 40μs speed ensures accurate high-speed detection.
Fiber Head Compatibility: Supports over 2000 types including reflective and through-beam.
Flexible Timing Functions: Includes ON/OFF delay and one-shot timer.
Customizable Design: Optional M8 connector and multiple fiber sizes (M3/M4/M6).
4. Applications
High-speed assembly lines requiring fast object sensing
Precision positioning in automated equipment
Presence detection in quality control systems
Flexible use across industrial automation setups
5. FAQs
Q1: Can the amplifier work with all fiber optic heads?
A1: It supports over 2000 types. Contact us for customized options.
Q2: Is there an M8 connector version?
A2: Yes, models F05-TCN and F05-TCP offer M8 connectivity.
Q3: What’s the sensing range?
A3: It depends on the fiber head type used.
Q4: What outputs are available?
A4: NPN and PNP open collector options are both provided.
