Product Description
1.NOTE
Due to page limitations, some configurations may not be listed. Please contact us for specific requirements.
The default configuration includes:
Φ1.5mm/Φ2mm diameter probe (length 20mm).
Non-grounded (insulated) structure for accurate and stable temperature measurement.
0.5m fluoropolymer waterproof and oil-resistant wire.
Standard pin-type connector.
Temperature range of -50°C to +200°C.
Optional features include:
Different probe diameters (e.g., 3mm, 4mm, etc.).
Various probe lengths and wire lengths.
Alternative connector types (e.g., aviation plugs, custom terminals).

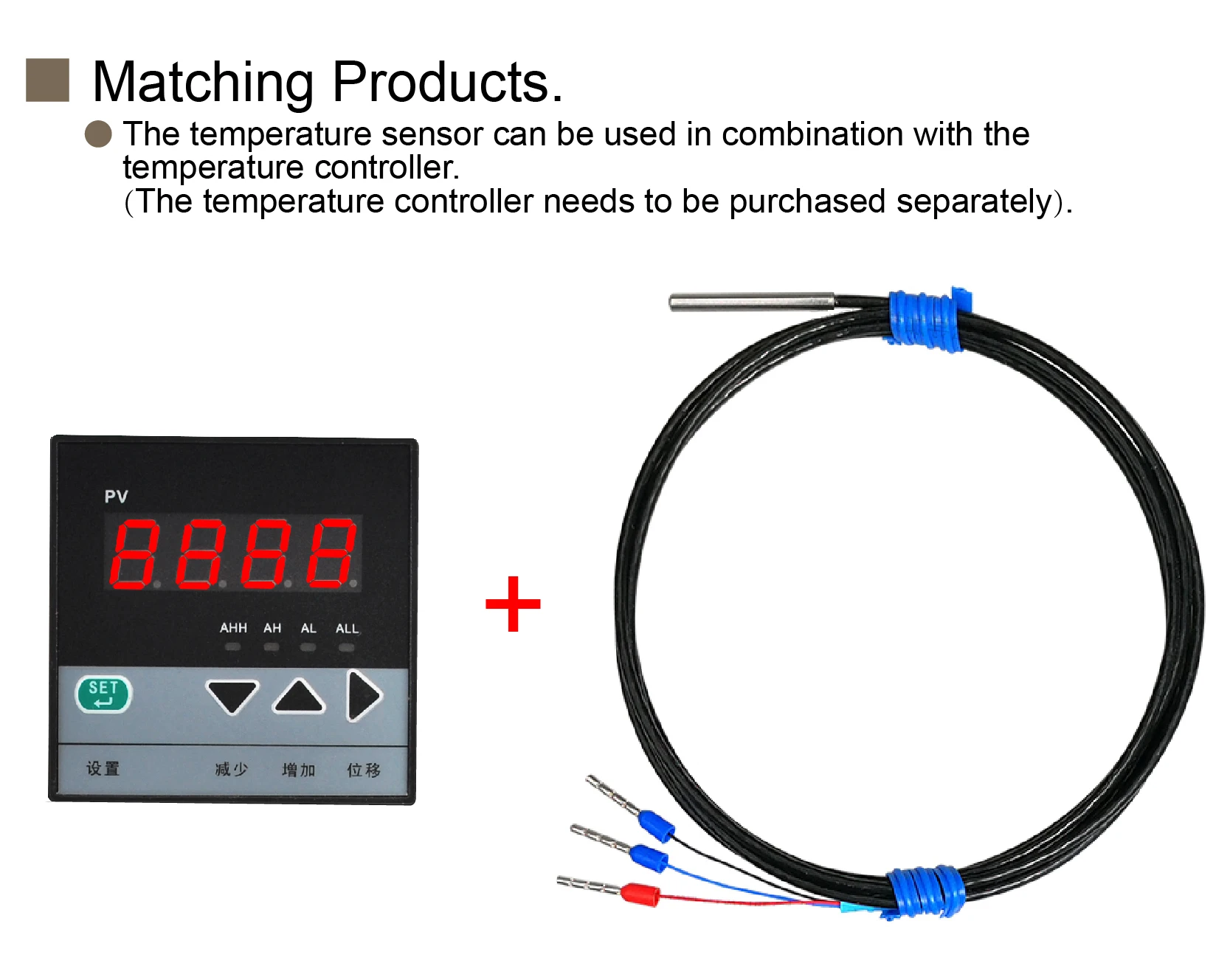

This sensor is compatible with temperature controllers, but they need to be purchased separately.
2.Parameters
Specification | Details |

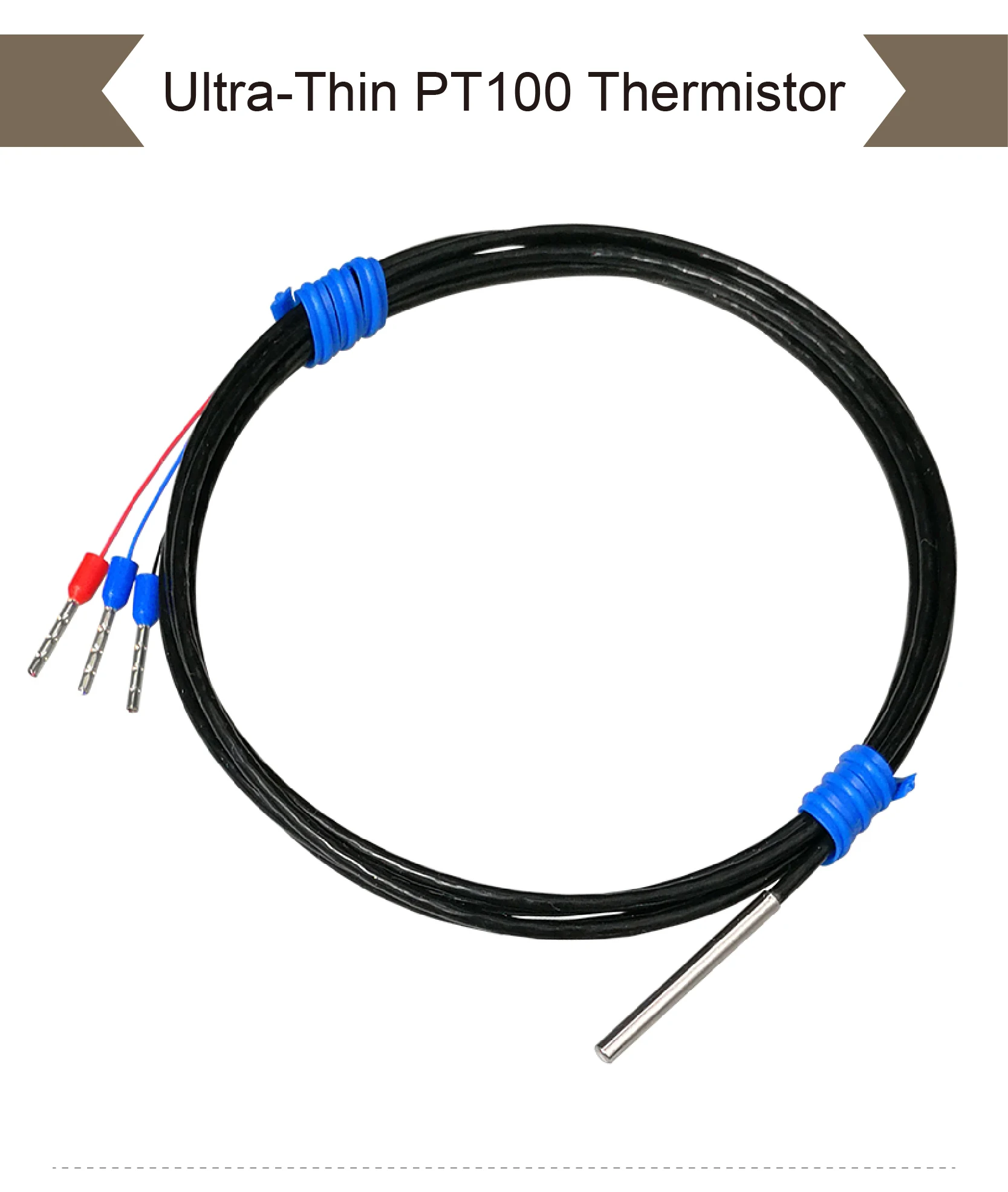

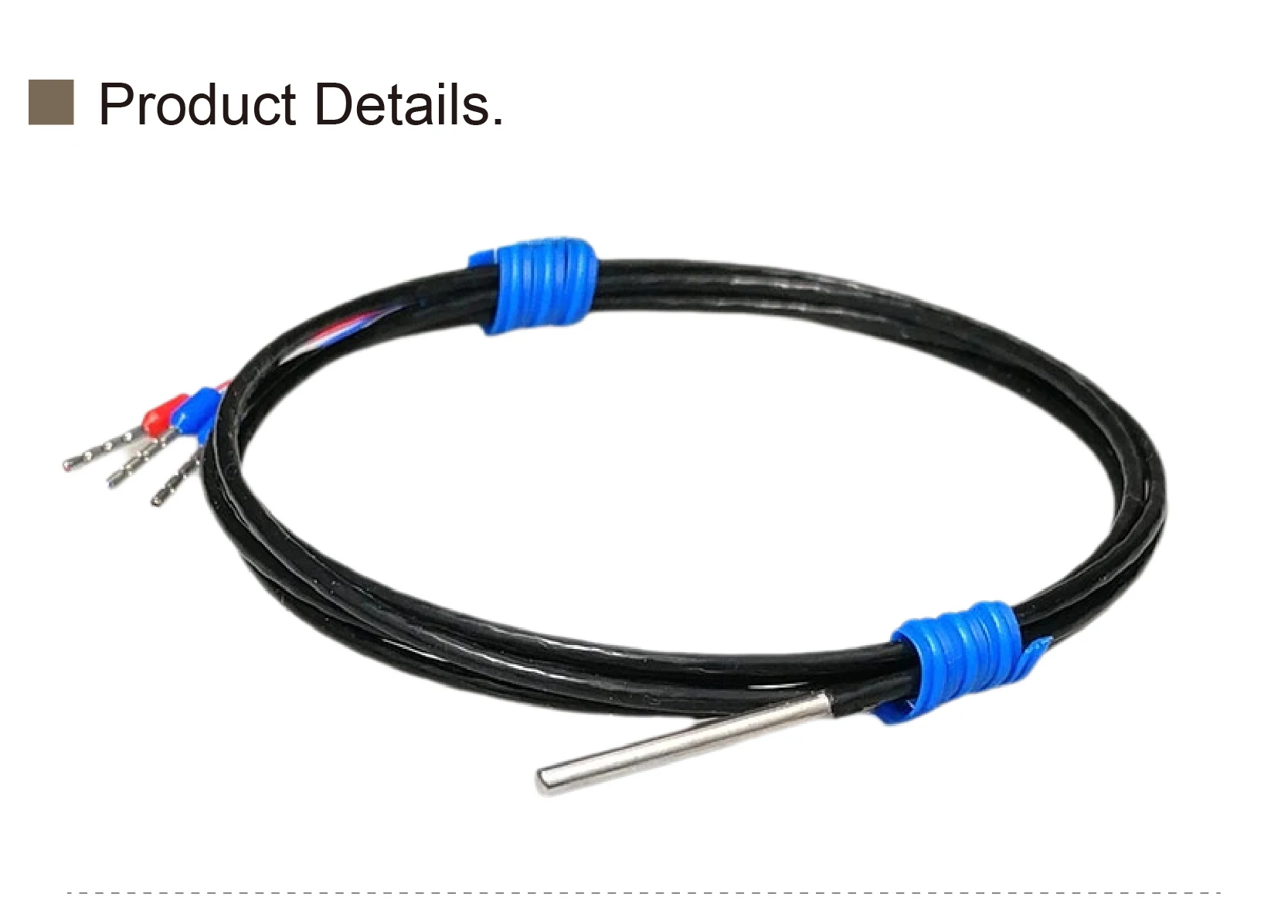

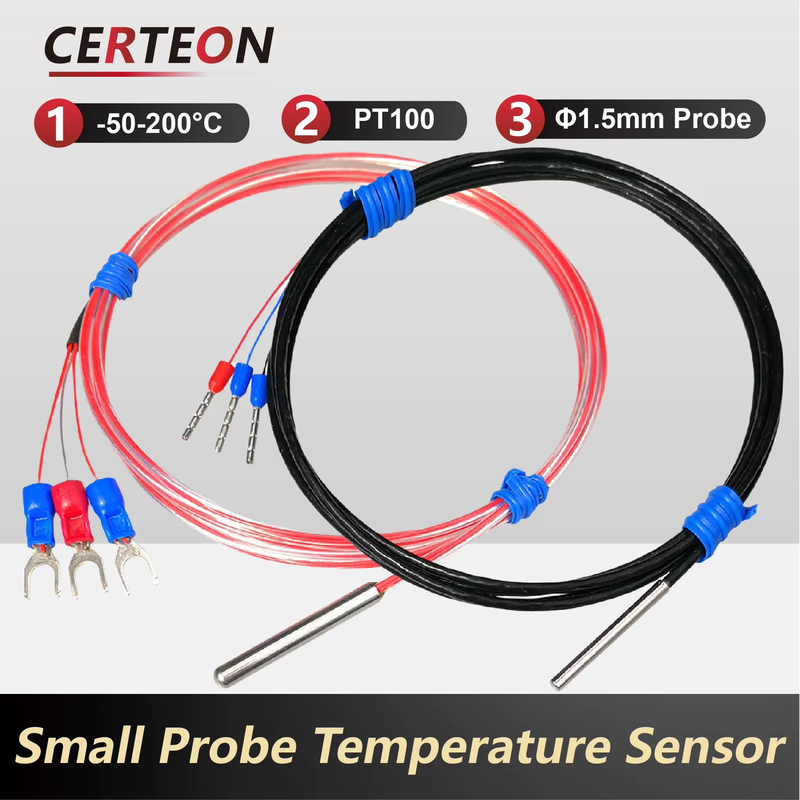

Product Name | Ultra-fine PT100 Sensor Probe |
Calibration Type | Pt100 (Standard) / Pt1000 (Optional) |
Sheath Material | 304 Stainless Steel |
Measurement Range | -50°C to +200°C |

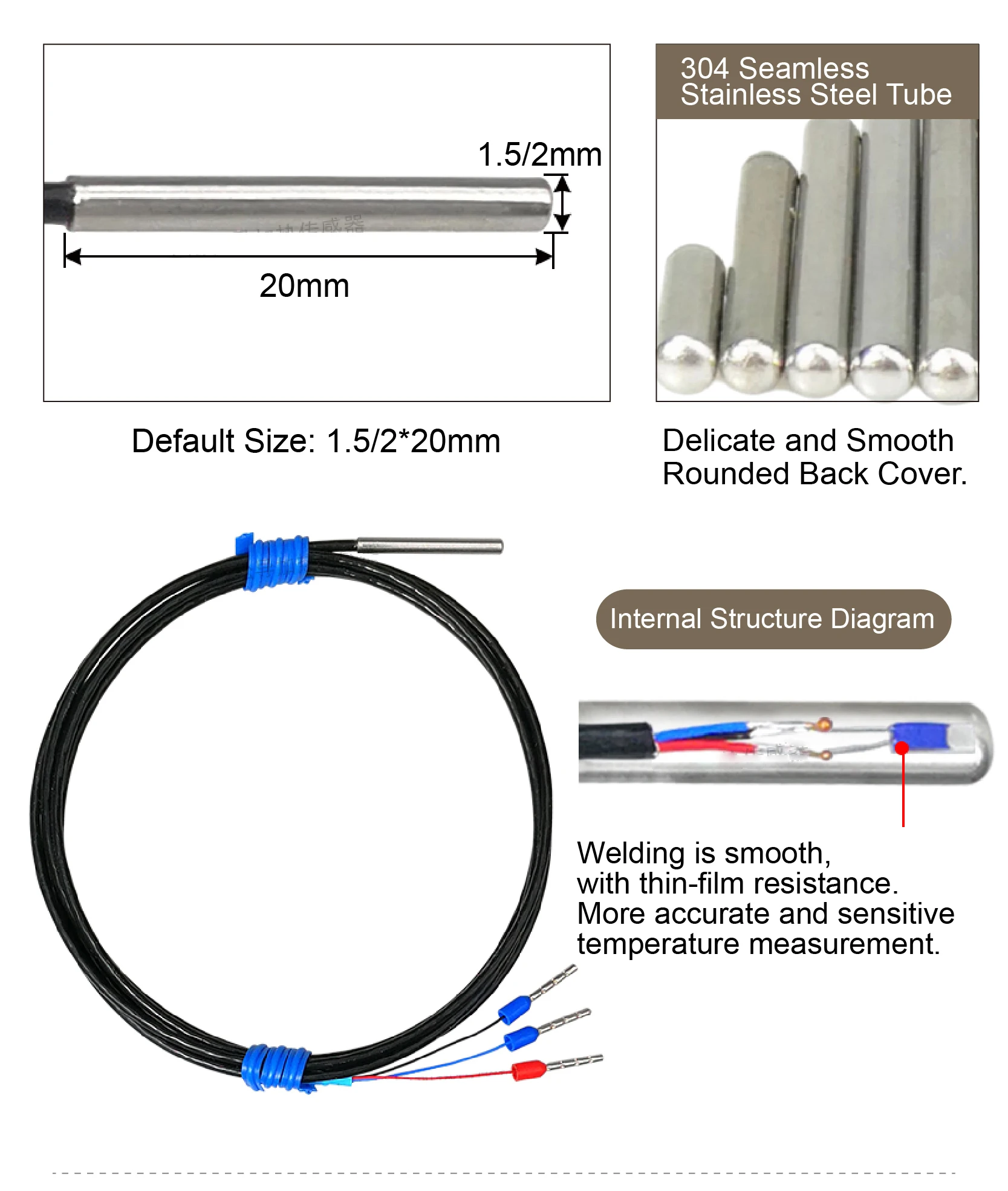

Sheath Diameter | Φ1.5mm / Φ2mm (Standard) / Customizable: Φ3mm, Φ4mm, etc. |
Sheath Length | 20mm (Default) / Customizable: 10–200mm |
Grounding Type | Non-grounded (Isolated) |
Cable Material | PTFE-insulated cable |
Cable Length | 0.5m (Default) / Customizable: 1m, 1.5m, 2m, etc. |
Connector Type | Pin Connector (Default) / Custom connectors: aviation plugs, etc. |
3.Features
Precision Measurement

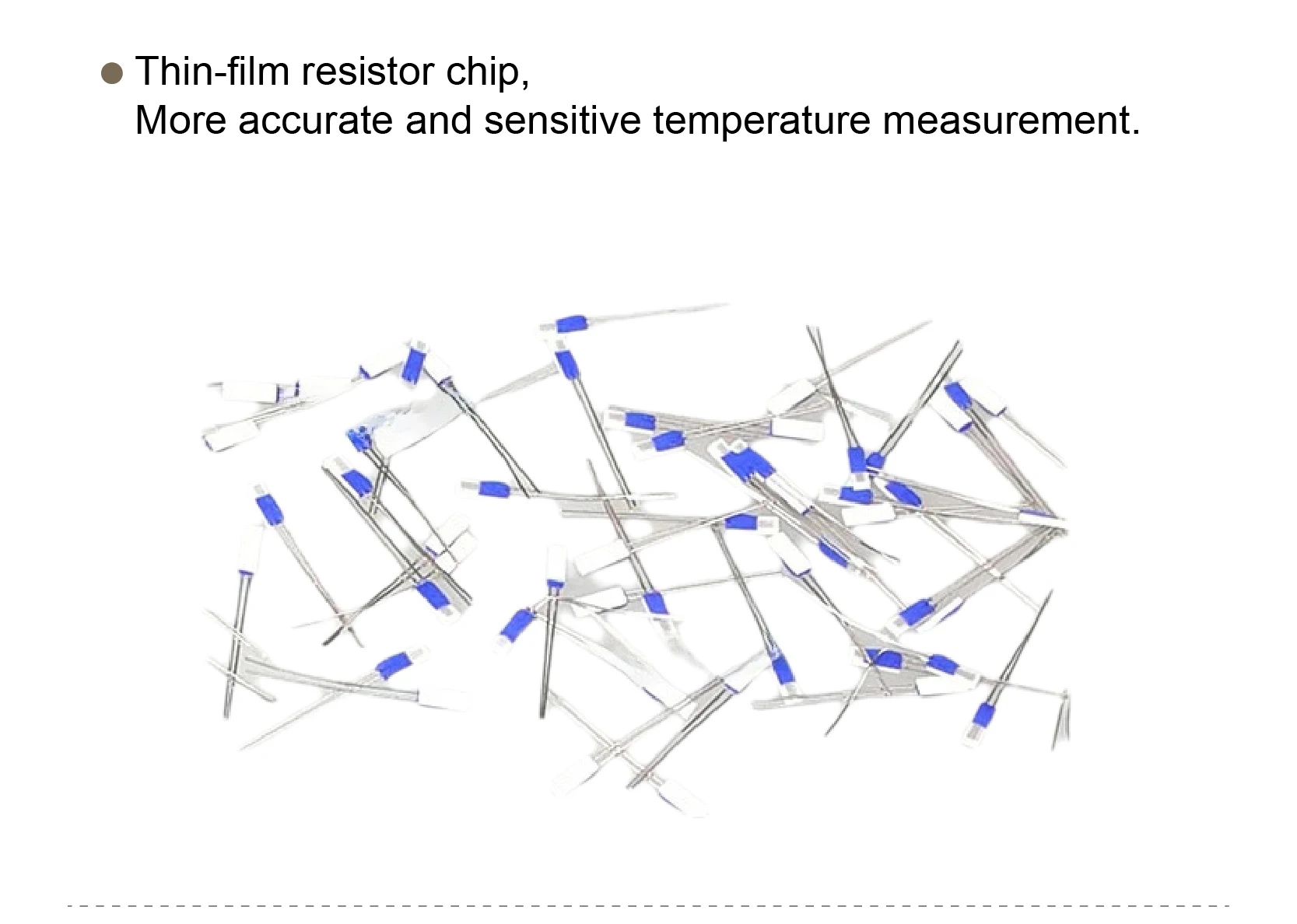

Thin-film resistance chip ensures accurate and responsive temperature readings.
Durable Construction
304 stainless steel sheath resists corrosion and ensures long-term durability.
Extreme Condition Ready

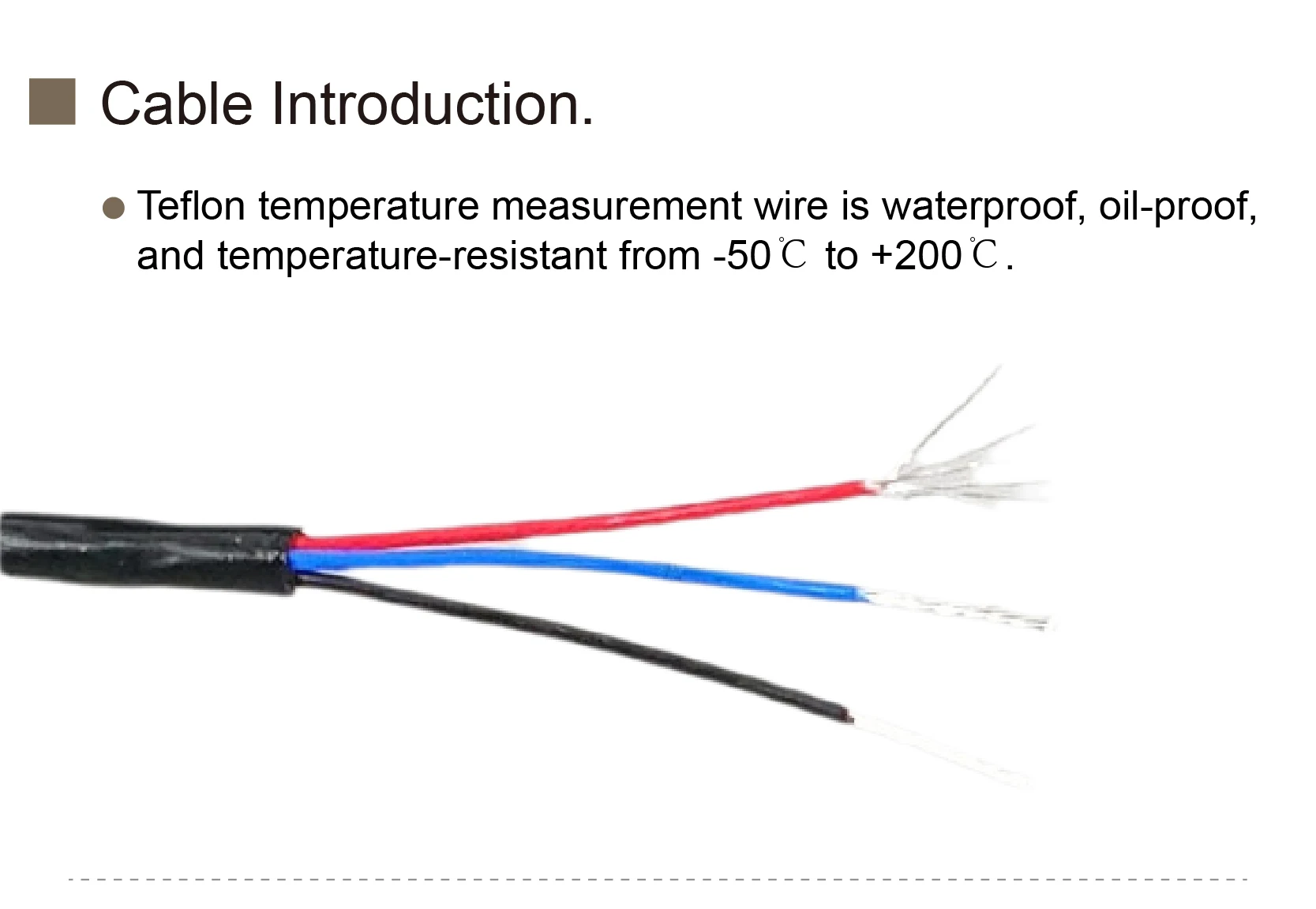

PTFE cable is waterproof, oil-resistant, and can withstand temperatures from -50°C to +200°C.
Customizable Design

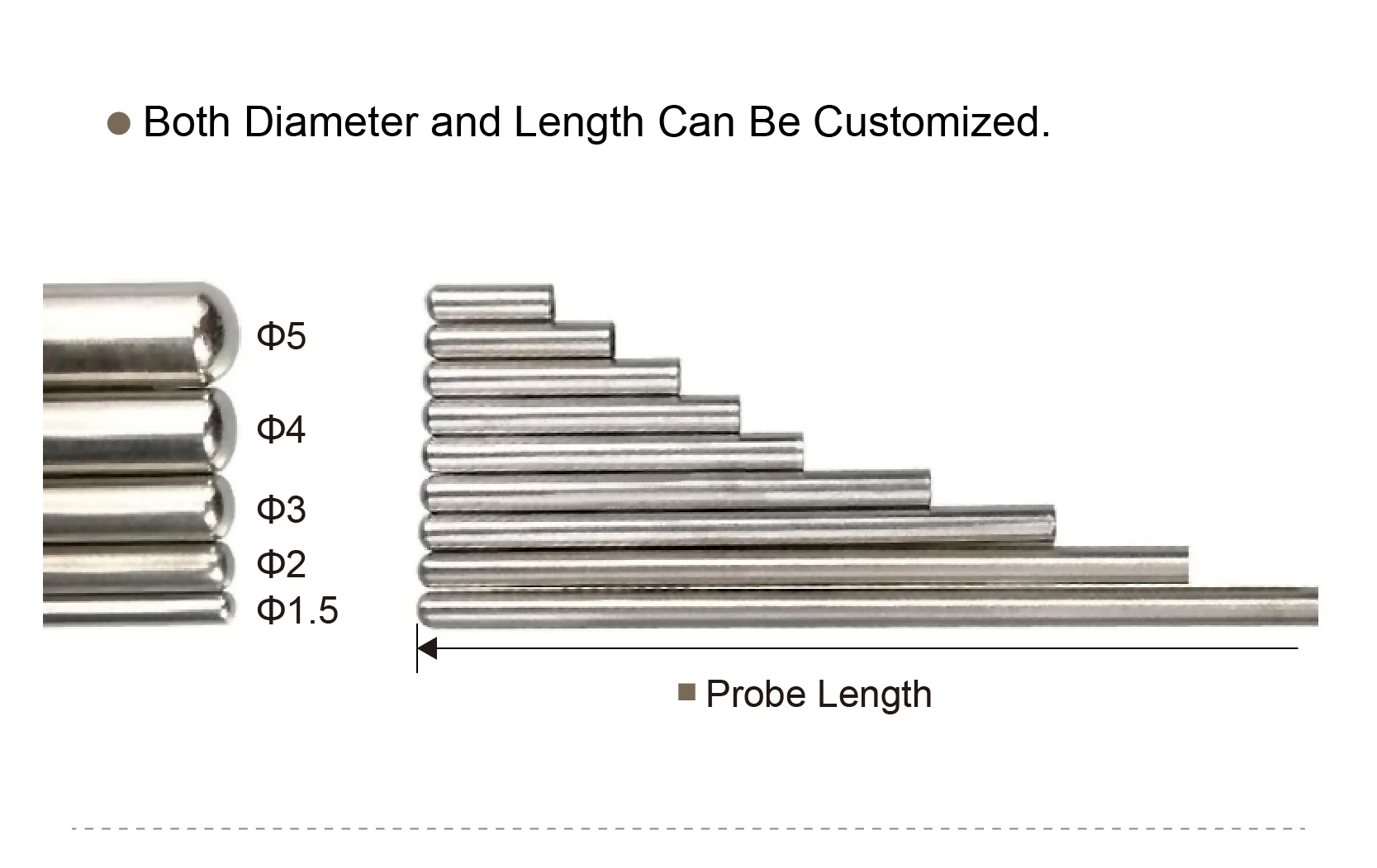

Optional probe lengths (10–200mm), diameters (Φ1.5–Φ5mm), and connectors (aviation plugs, etc.) to meet diverse application needs.
Broad Compatibility
Compatible with temperature controllers and sensors for versatile usage.
4.Applications
Suitable for industrial, laboratory, and medical applications requiring precise temperature monitoring.
5.FAQs
Can the probe length and connector be customized?
Yes, lengths (10–200mm), diameters (Φ1.5–Φ5mm), and connector types can be tailored to your requirements.
Is the probe waterproof and oil-resistant?

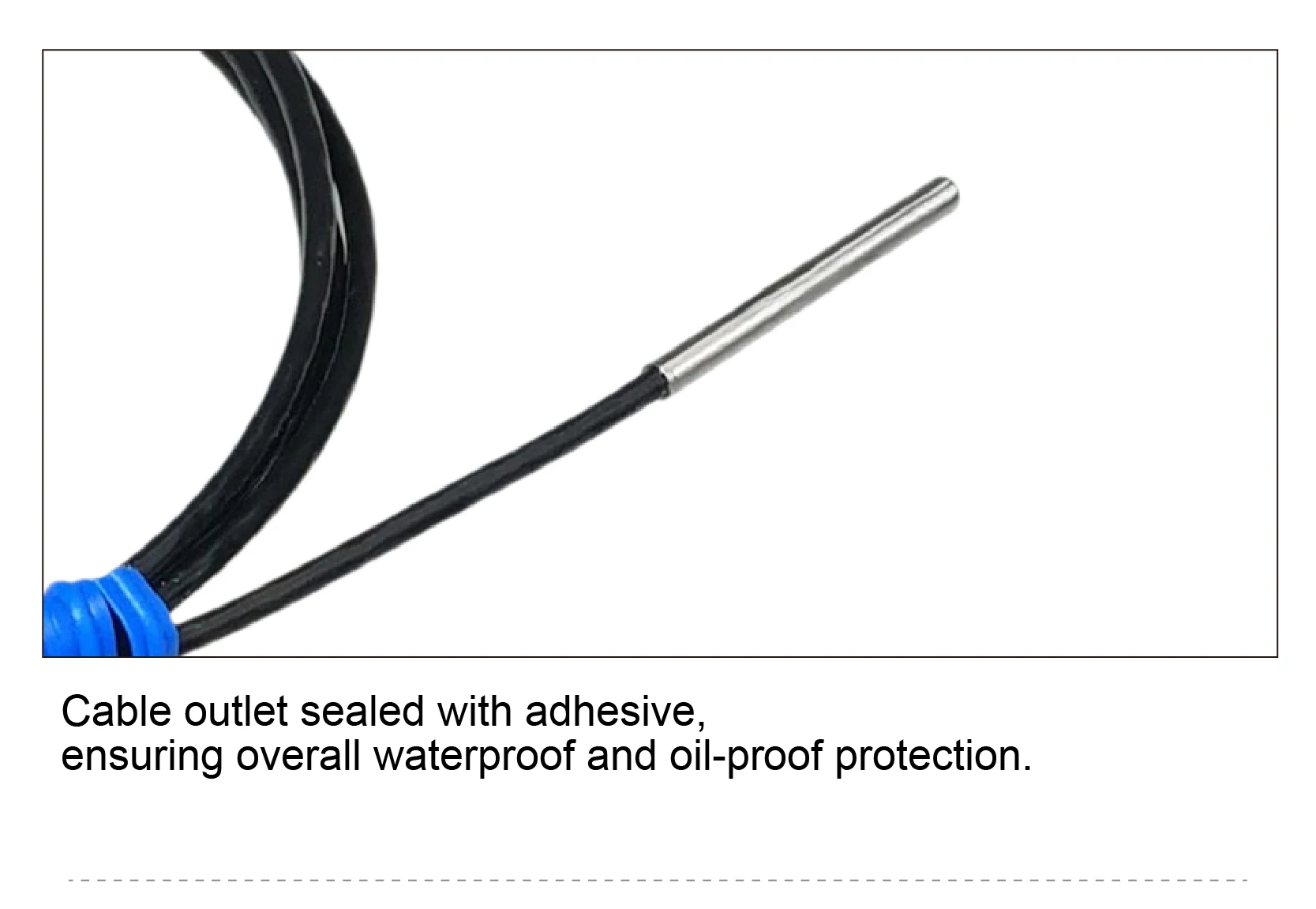

Yes, the PTFE cable and sealed design ensure water and oil resistance.
Does the product include a temperature controller?
No, the sensor probe is sold separately; the controller must be purchased additionally.
