Product Description
1.NOTE
Designed for precise measurement of liquids such as gasoline, diesel, methanol, kerosene, and water.
Default Configuration Includes:
Available Diameters: 0.75 inch, 1 inch, 1.5 inches, 2 inches
Material Options: Aluminum Alloy, Stainless Steel
Connection Types: Threaded, Hose Fittings
Flow Range: 10–500L/min
Power Supply: Two AAA Batteries (Not included due to shipping restrictions; please prepare batteries locally.)
Order Information:
Please select the appropriate diameter and connection type based on your flow requirements before placing an order.
For further customization, please contact us.
2. PARAMETERS

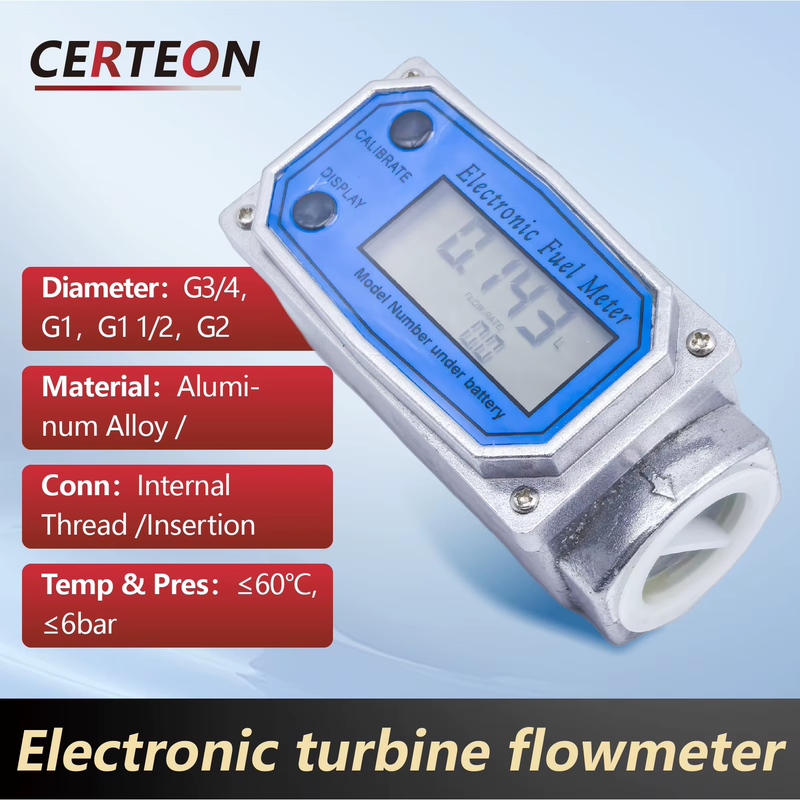

Product Name | Electronic Turbine Flowmeter |
Material | Aluminum Alloy |
Applicable Media | Diesel, Gasoline, Kerosene, Methanol, Water |
Connection Method | Threaded or Hose Fittings |
Nominal Diameter | 0.75 inch, 1 inch, 1.5 inch, 2 inch |
Flow Range | - 0.75/1 inch: 10-100 L/min |
- 1.5 inch: 40-280 L/min | |
- 2 inch: 60-500 L/min | |
Max Working Pressure | 6 bar |
Single Count Range | 0-9999.9 L |
Cumulative Count Range | 0-999999 L |
3. APPLICATION
Accurate measurement of gasoline, diesel, kerosene, methanol, and water.
Suitable for industrial, agricultural, and automotive uses.
Can be installed in pipelines or portable systems.
4. FEATURES
·Compact design, easy to install and operate.
·High accuracy and long service life.
·Versatile with multiple materials and connection options.
·Handles large flow rates up to 500L/min.
5. FAQ
Q: Does the meter include batteries?
A: No, due to transportation restrictions, batteries are not included. Please use two AAA batteries.
Q: Is this meter suitable for measuring all types of liquids?
A: This meter is designed for gasoline, diesel, methanol, kerosene, and water. It is not recommended for measuring highly viscous or corrosive liquids.
Q：How do I select the correct diameter and connection method?
A: Choose the diameter and connection method based on your required flow range. For example, a 1-inch diameter supports a flow range of 10-100L/min. Refer to the Parameters section for details.
