Product Description
1.NOTE
Default Specifications
Model Options:
JSY-H (Heating only): RT+5 to 100°C, Power Supply: 12V / 5A
M-JSY-HF (Heating + Air Cooling): RT+5 to 100°C, Power Supply: 12V / 5A
M-JSY-HL (Heating + Cooling): 10 to 100°C, Power Supply: 15V / 5A
Default Block Module: 15 × 2.0ml

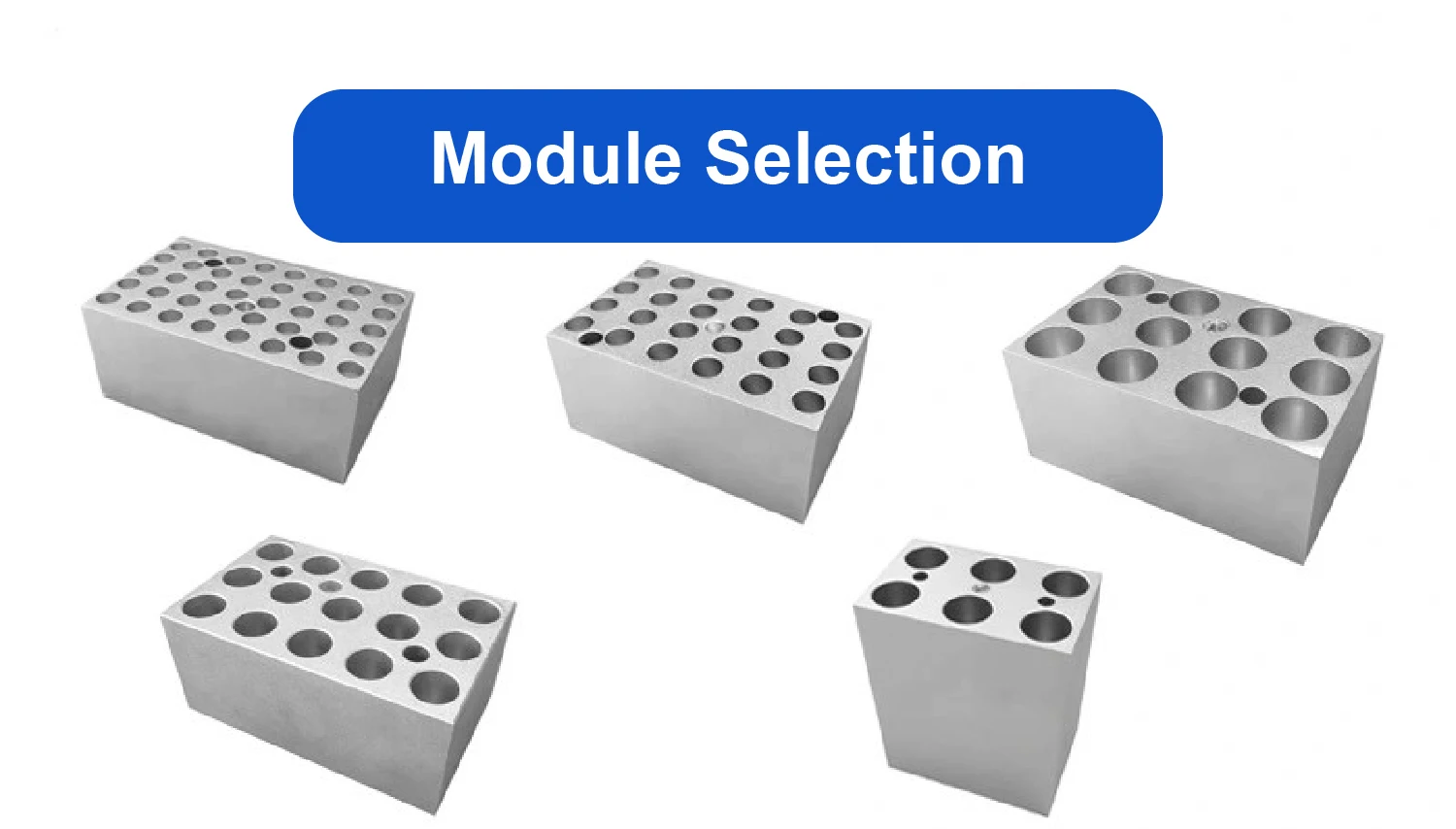

Customizable Options
Multiple interchangeable block modules available:
40 × 0.2ml
24 × 0.5ml
12 × 5.0ml
32 × 0.2ml (specialized for milk applications)

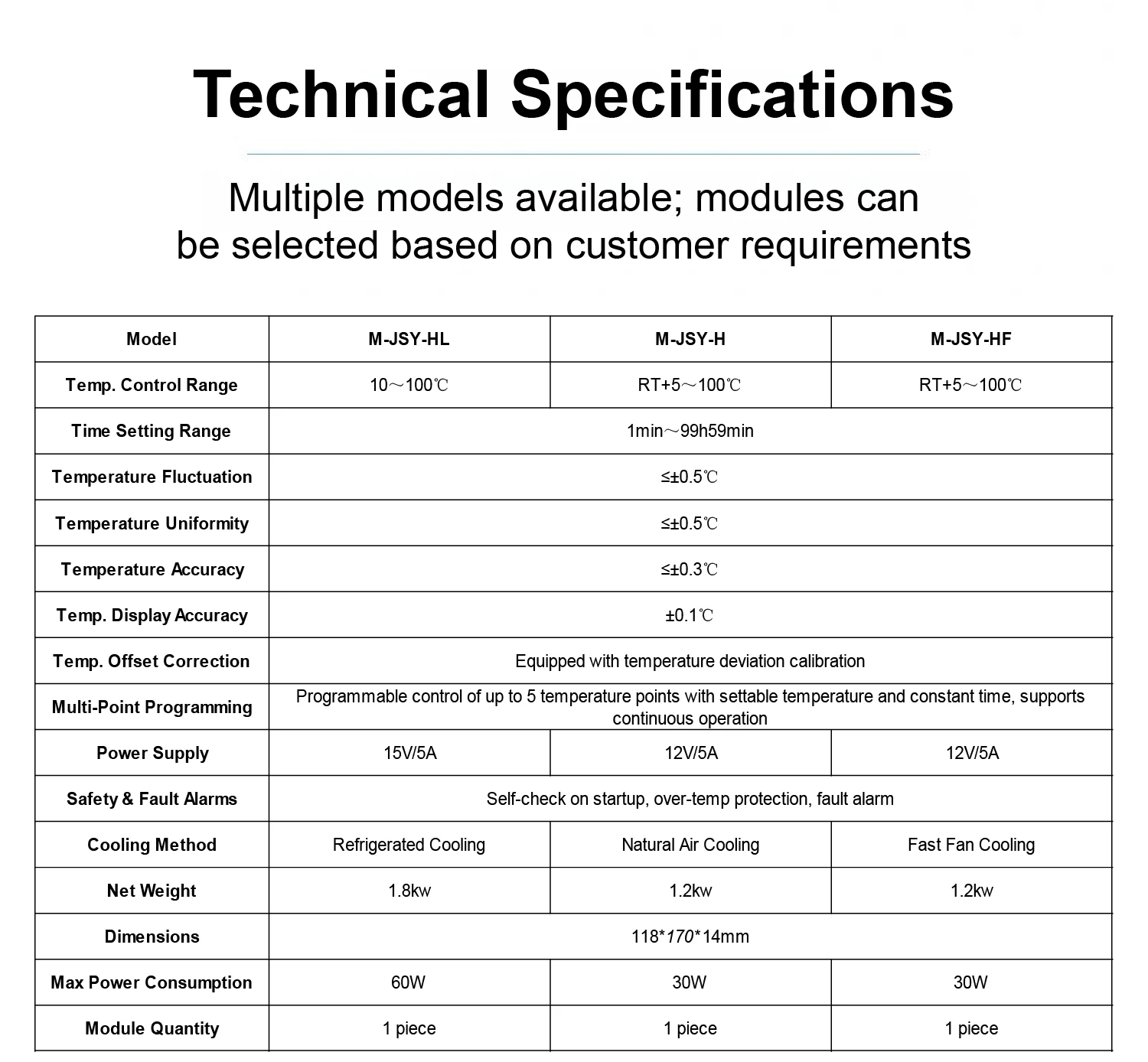

2.Parameters
Parameter | M-JSY-HL | M-JSY-H | M-JSY-HF |
Temperature Control Range | 10 – 100°C | RT +5 – 100°C | RT +5 – 100°C |
Time Setting Range | 1 min – 99 h 59 min | 1 min – 99 h 59 min | 1 min – 99 h 59 min |
Temperature Fluctuation | ≤ ±0.5°C | ≤ ±0.5°C | ≤ ±0.5°C |
Block Temperature Uniformity | ≤ ±0.5°C | ≤ ±0.5°C | ≤ ±0.5°C |
Temperature Control Accuracy | ≤ ±0.3°C | ≤ ±0.3°C | ≤ ±0.3°C |
Display Accuracy | ±0.1°C | ±0.1°C | ±0.1°C |
Temperature Deviation Correction | Supported | Supported | Supported |
Multi-point Program Control | Up to 5 temperature/time sets | Up to 5 temperature/time sets | Up to 5 temperature/time sets |
Power Supply | 15V / 5A | 12V / 5A | 12V / 5A |
Safety Features | Startup self-check, overheat protection, fault alarms | Same | Same |
Cooling Method | Semiconductor cooling | Natural cooling | Fast fan cooling |
Net Weight | 1.8 kg | 1.2 kg | 1.2 kg |

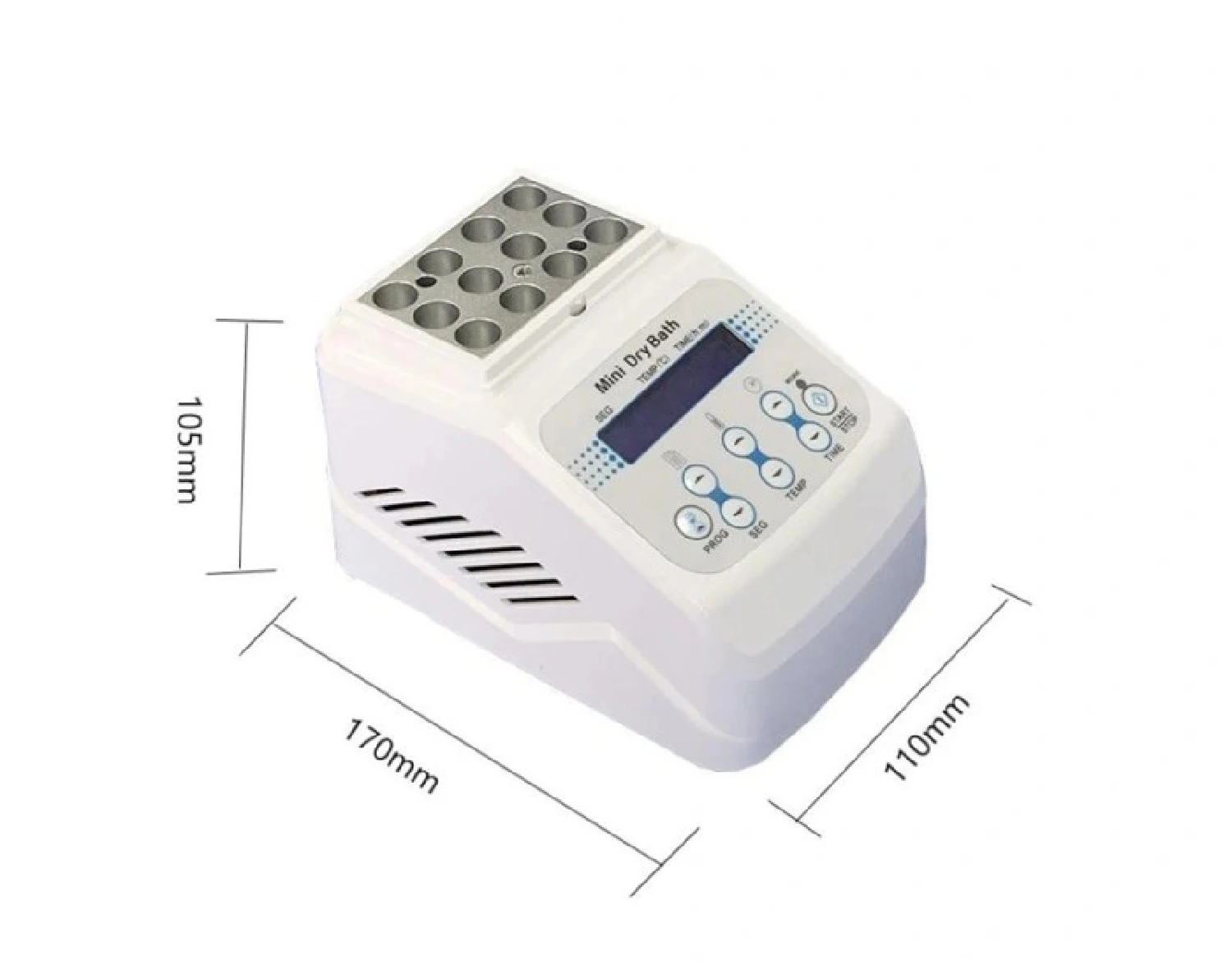

Dimensions | 110 × 170 × 140 mm | 110 × 170 × 140 mm | 110 × 170 × 140 mm |
Max Power | 60W | 30W | 30W |
Module Capacity | 1 block | 1 block | 1 block |
3.Features

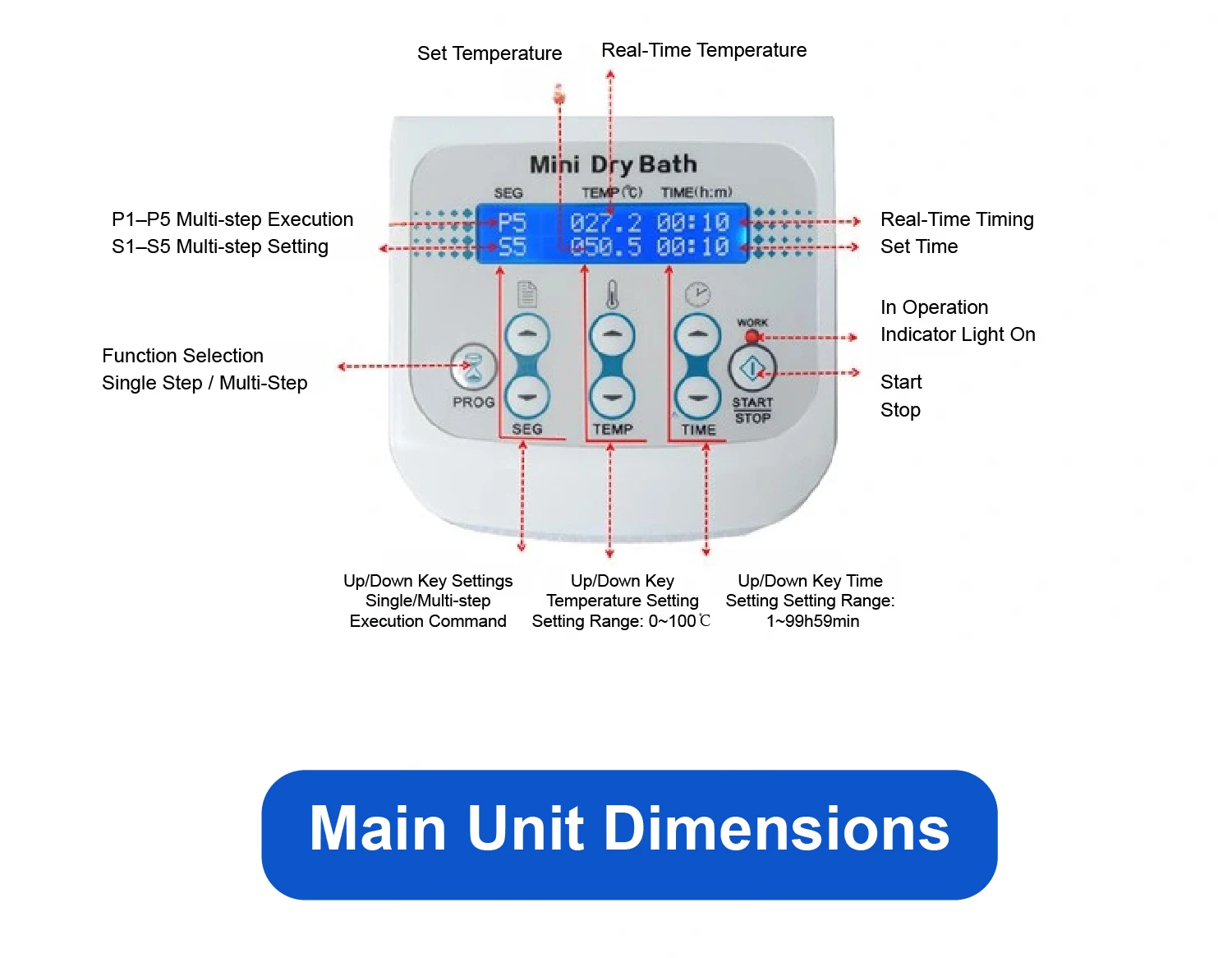

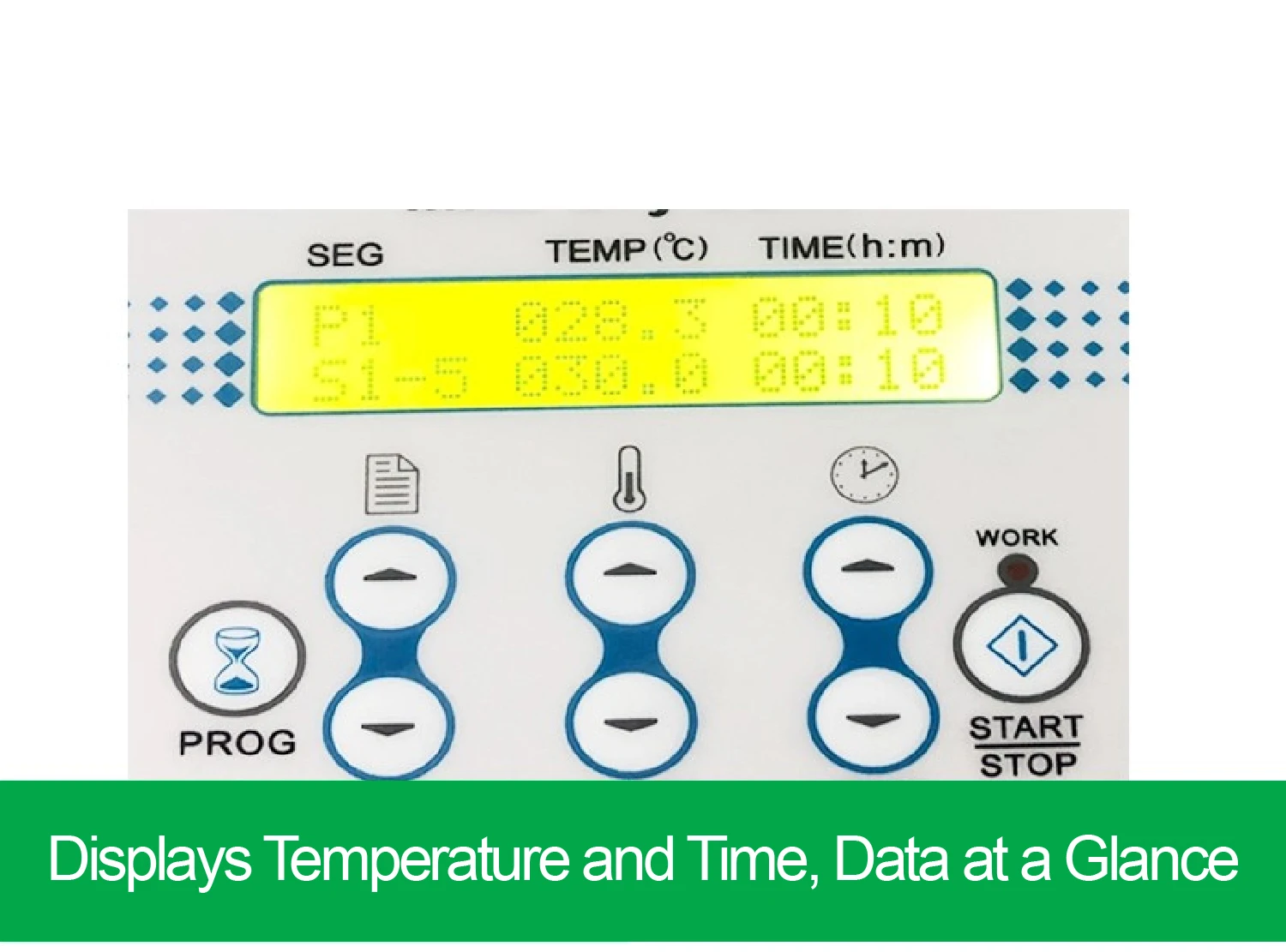

Accurate Real-Time Temperature Control
Display both real-time temperature and countdown, ensuring visibility and reliability during experiments.
Programmable Temperature Settings
Supports up to 5 programmable stages for temperature and time, ideal for complex experimental workflows.

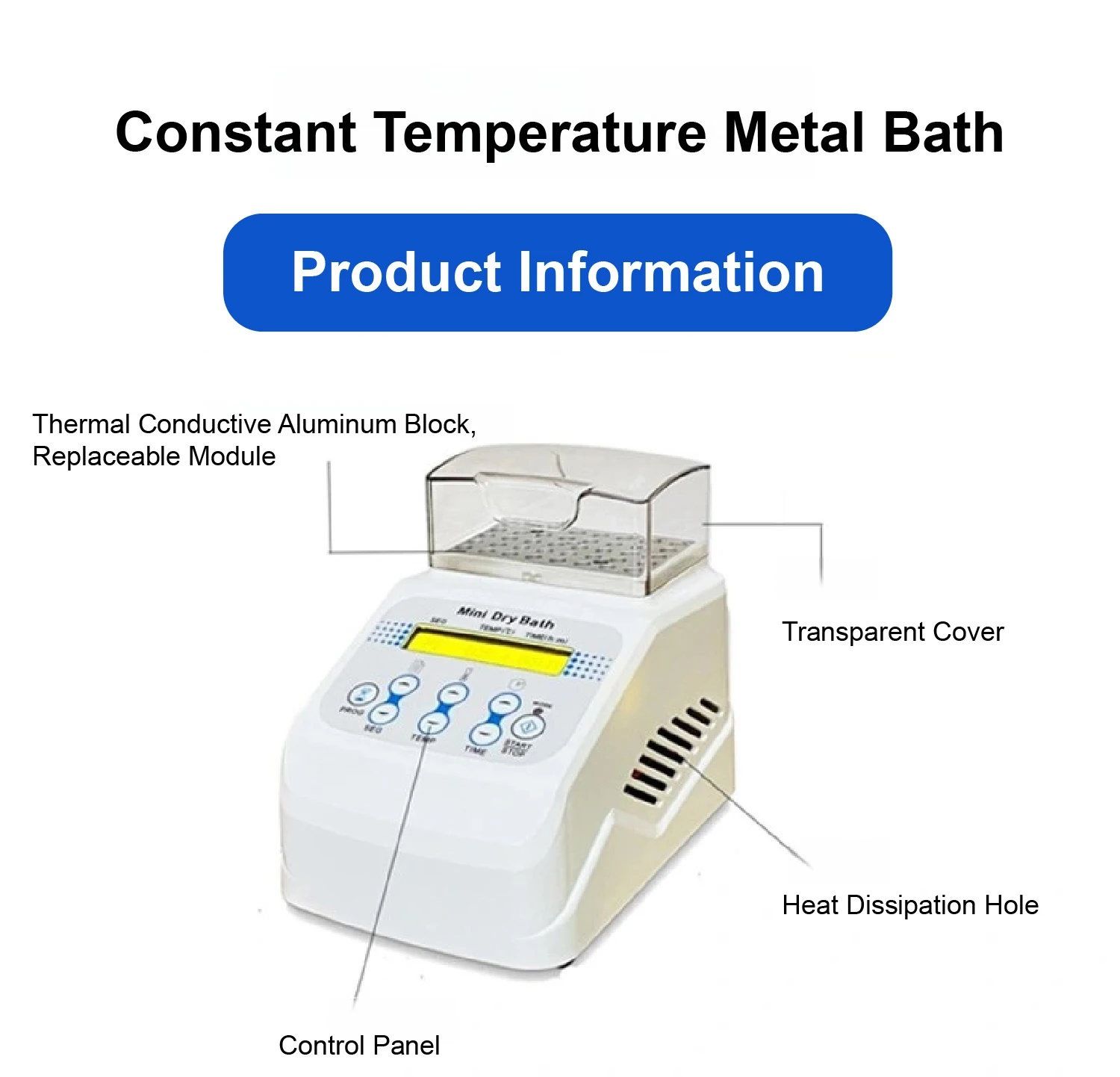

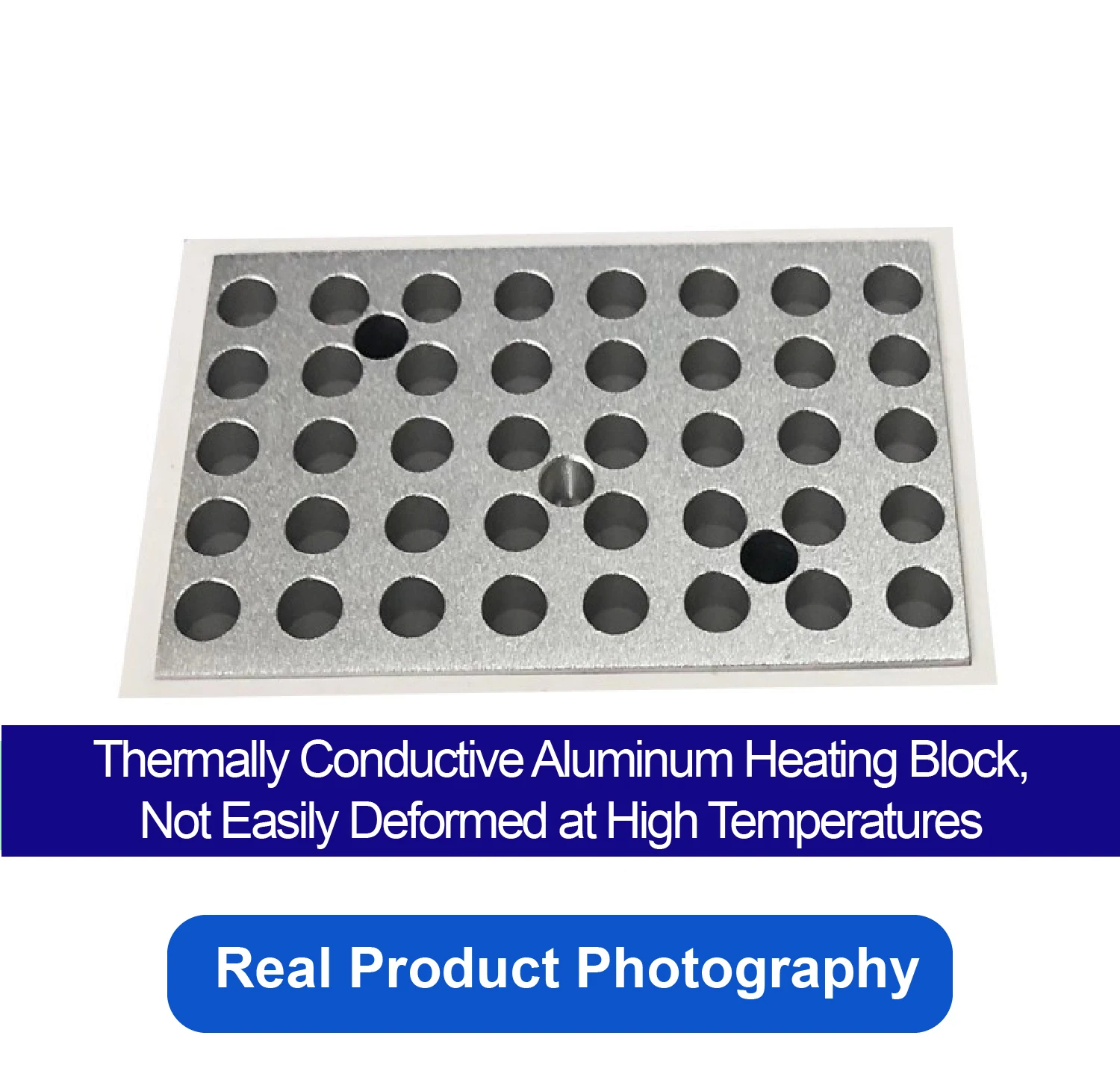

Replaceable Aluminum Heating Blocks
Easy-to-change anodized blocks ensure fast heating, excellent thermal conductivity, and simplified cleaning.
Built-in Over-temperature Protection
Safety-focused design includes self-diagnostics and automatic shutdown to prevent overheating.

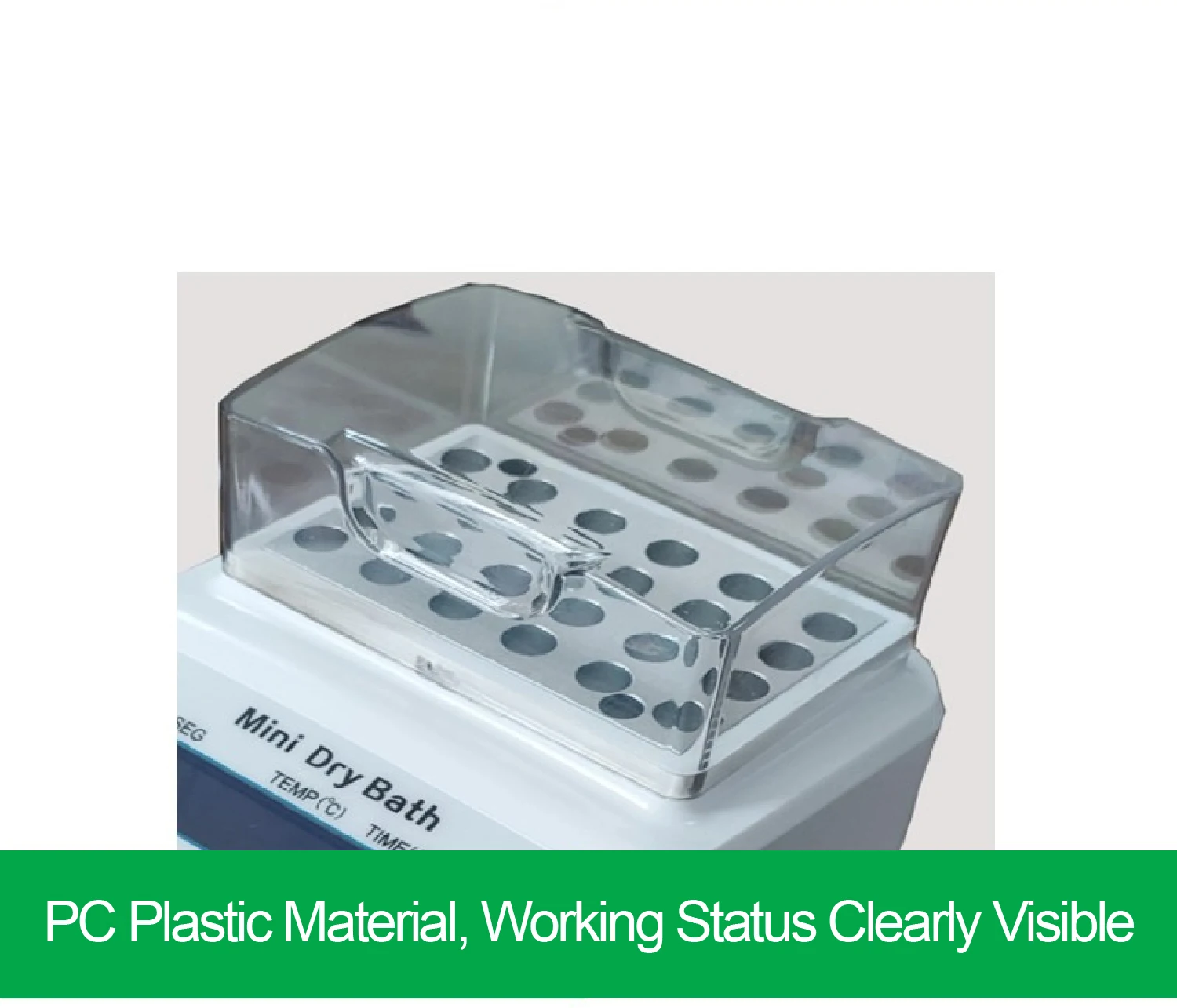

Transparent Thermal Cover
Prevents temperature drift due to air flow or water vapor interference, enhancing experiment accuracy.

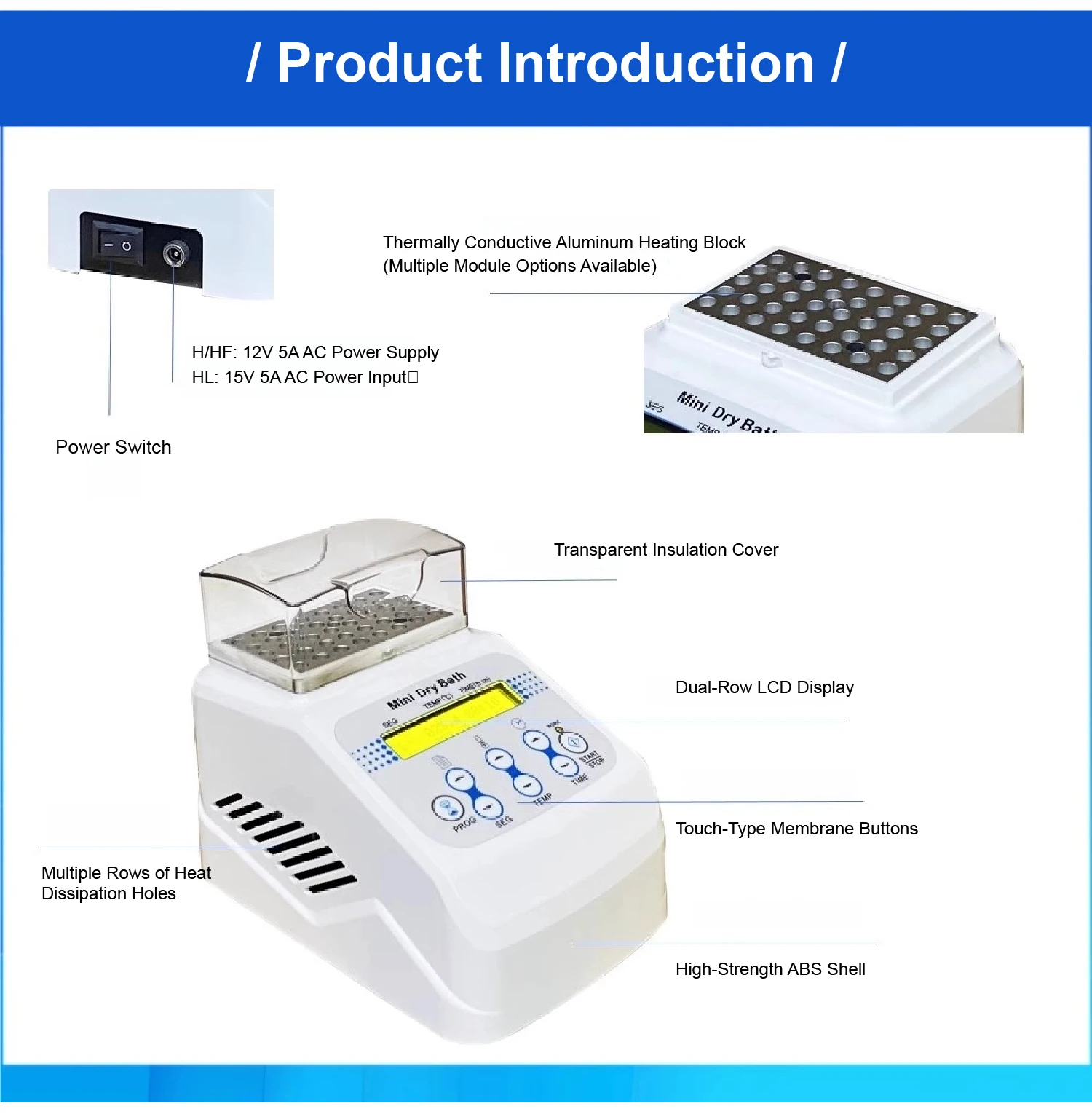

Compact and Durable Design

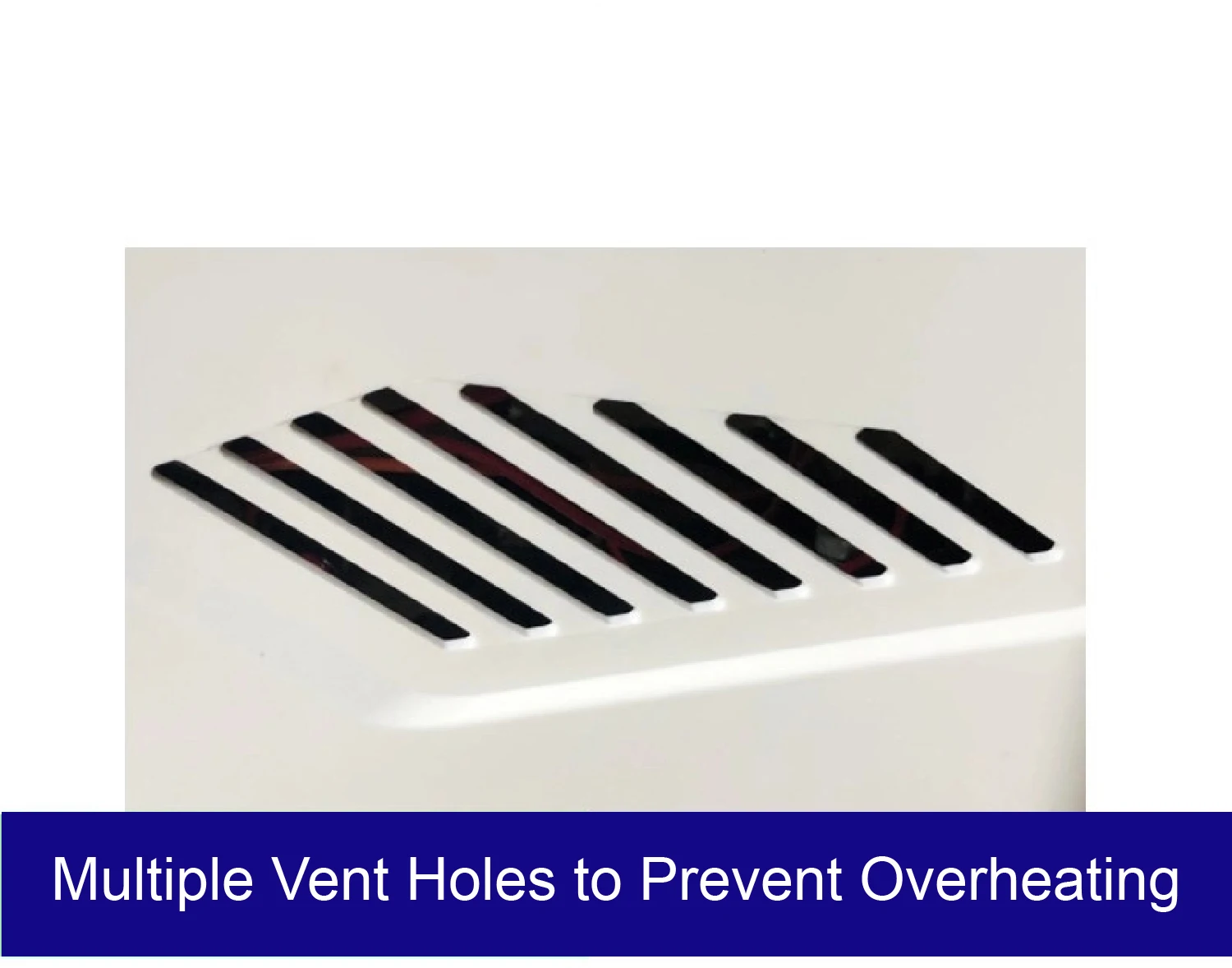

ABS high-strength casing with efficient air vents, suitable for continuous lab operation.

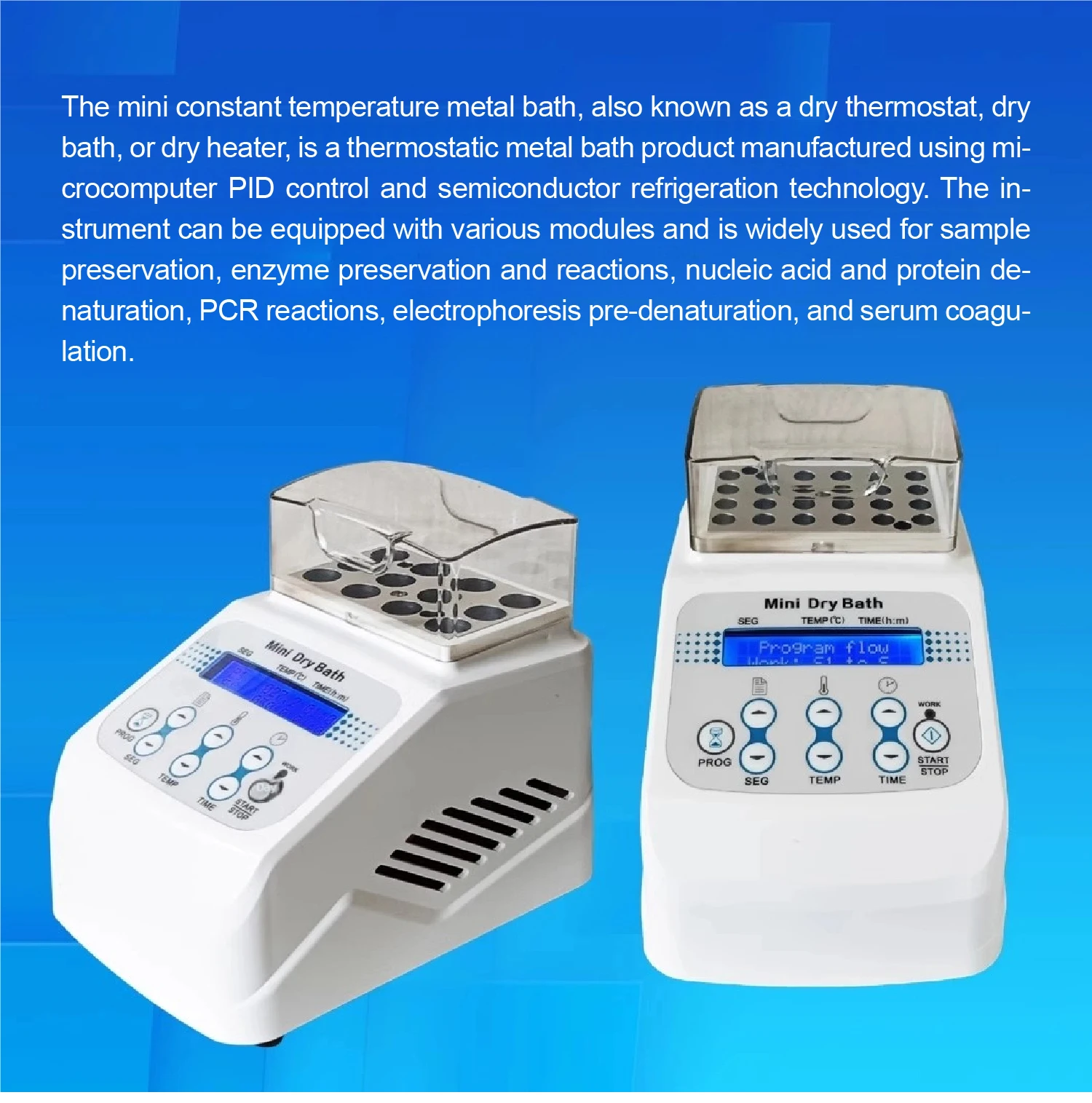

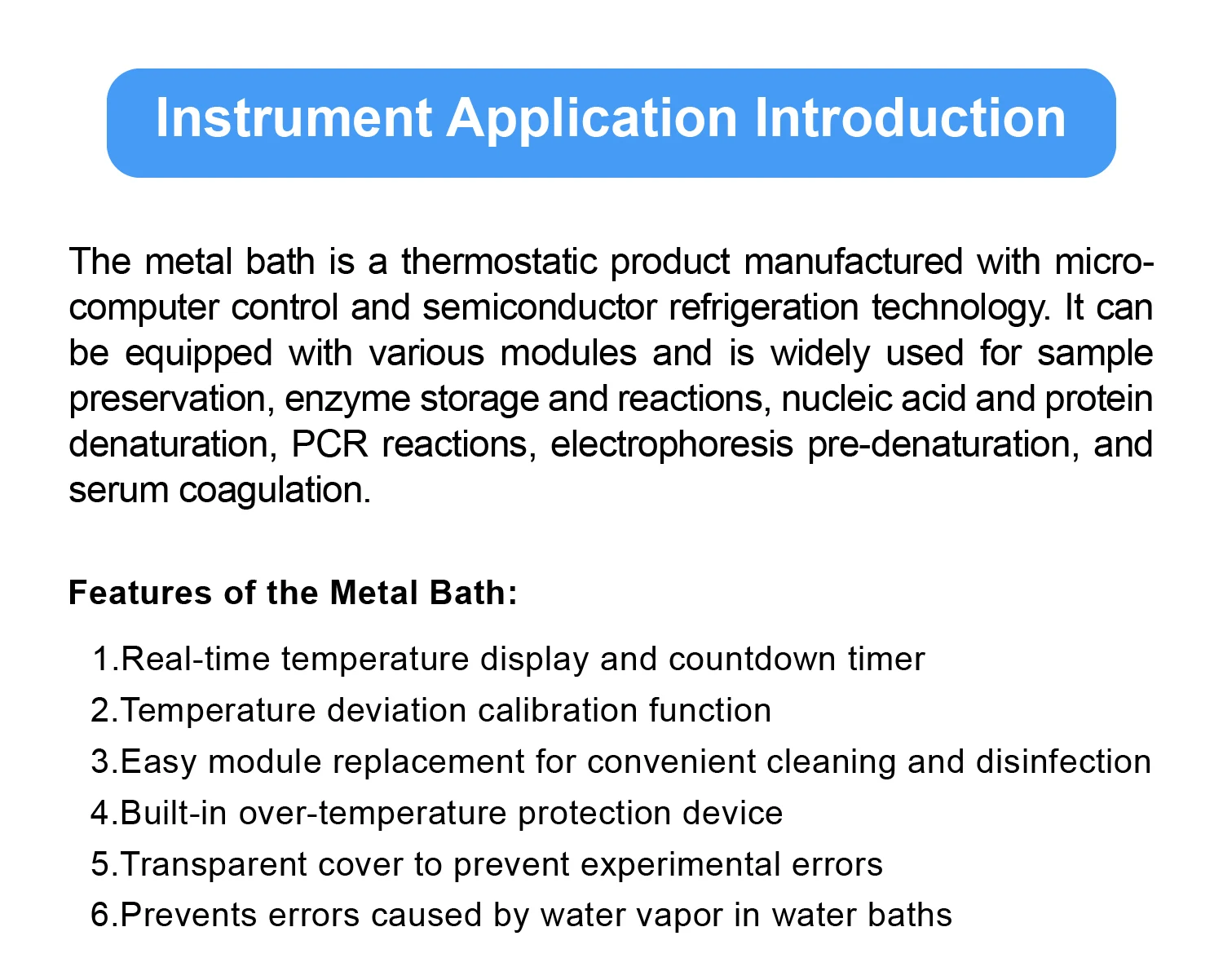

4.Applications
Nucleic acid and protein denaturation
Enzyme preservation and reaction incubation
PCR sample preparation and pre-electrophoresis treatment
Serum coagulation experiments
General laboratory sample heating or preservation
5.FAQs
Q1: Can the heating blocks be customized or replaced?
A: Yes, interchangeable aluminum blocks are available in various formats to fit different tube sizes or applications.
Q2: Does the device support cooling?
A: Depending on the model. The HL version supports semiconductor cooling, while H and HF use natural or fan-assisted cooling.
Q3: Is it suitable for time-based thermal cycling?
A: Yes. The multi-point temperature program allows you to pre-set up to 5 temperature stages and run them sequentially.
