Infrared Temperature Sensor 4-20mA 0-5V 0-10V RS485 Output Industrial Non-Contac

Product Description

Please contact the seller before placing an order and provide the specific name and diameter of the tested object to ensure its applicability.

1.NOTE

This sensor only measures non-metal surfaces. To measure metal, apply paint or high-temp tape. The target must be over 10mm in diameter and either still or moving slowly. Not suitable for fast-moving objects.

Default Configuration:

· Power Supply: 12-36VDC

· Temperature Range:0-100°C/0-200°C/0-300°C/0-500°C/0-600°C

· Signal Output:4-20MA, 2-wire system

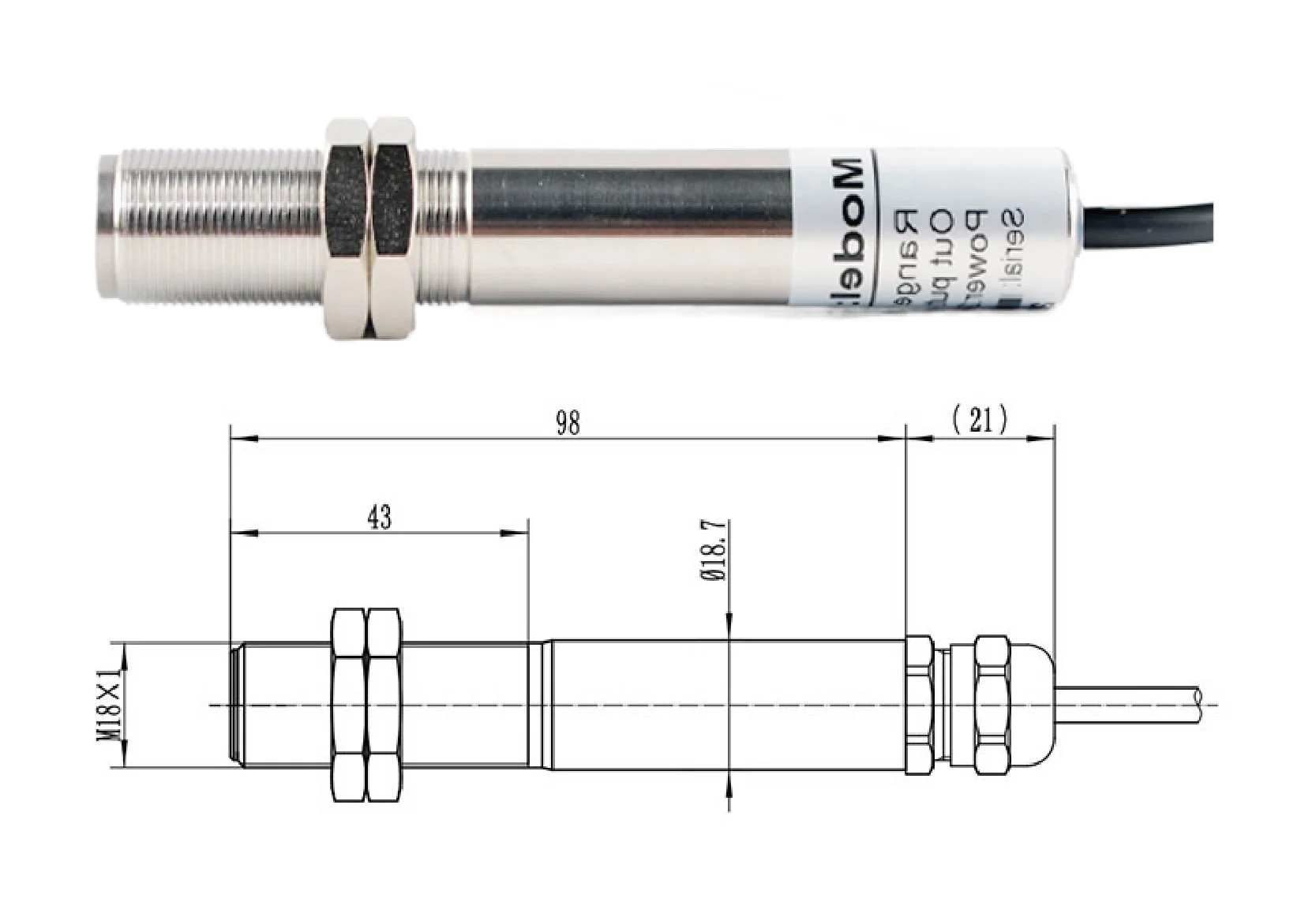

· Thread Connection: M18*1 (Thread length: 40mm)

· Product Lengths:113mm

· Housing Material: 304 Stainless Steel

· Cable Length: 1.5m (Standard)

· Protection Level: IP65

Customizable Options:

· TemperatureRange:-30~1300℃(-20-100/-20-200/-20-300/-20-500/-20-600/0-800/0-1000°C)

· Voltage: Customizable ( 5-36VDC)

· Signal Output: 0-5V, 0-10V, RS485,RS232

· Cable Length: Customizable (e.g., 5m, 10m)

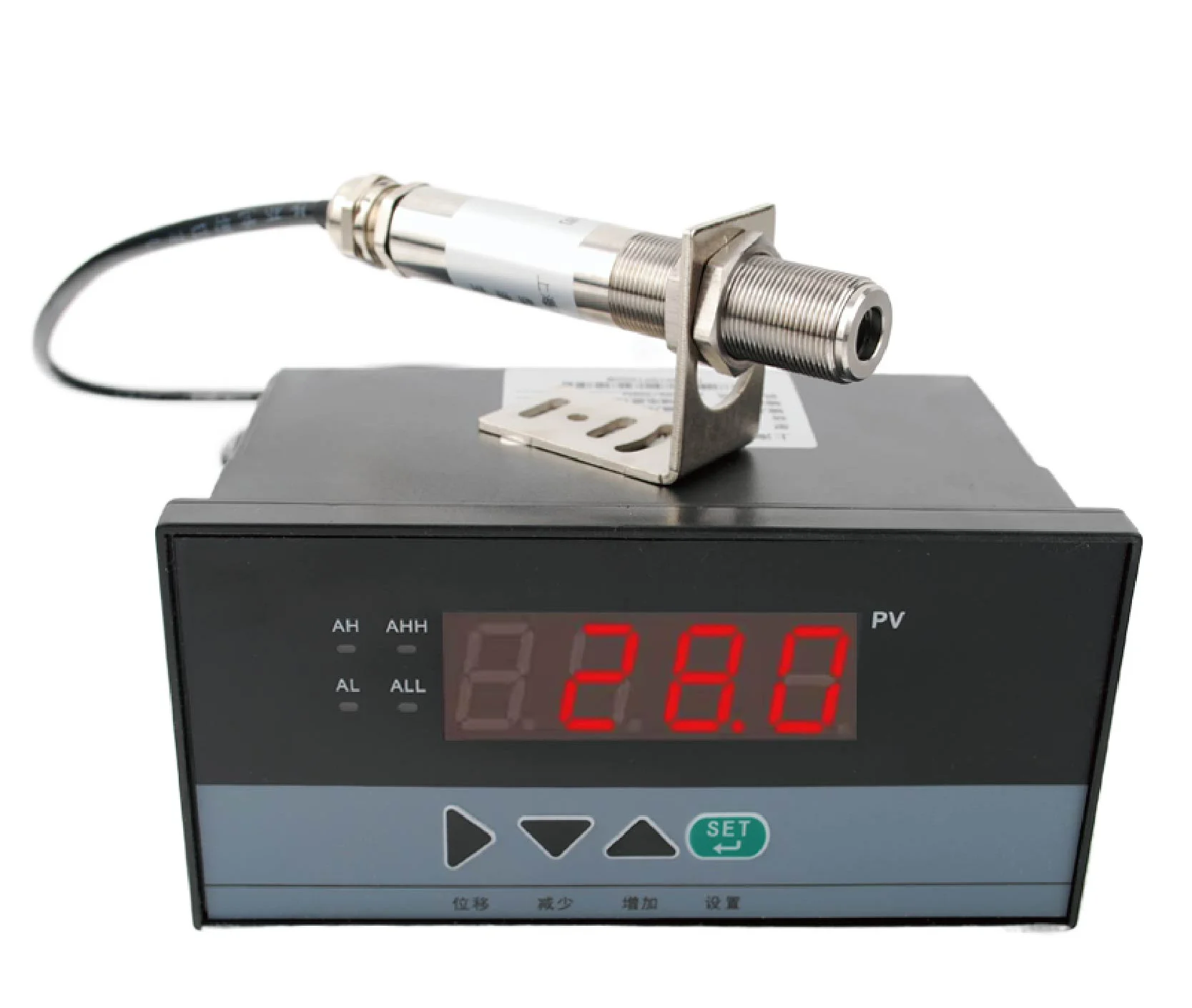

Accessories: Intelligent display, control instruments, wind-cooling shield, large screen displays, various mounts (adjustable, three-dimensional), laser aimers (single and dual), and sound-light alarms.(Accessories need to be purchased separately and are not
Please confirm the temperature range and output signalbefore placing an order.

For any customization requirements, feel free to contact us.

2.SPECIFICATIONS

3.APPLICATIONS

Suitable for industries such as food processing, textiles, plastics, ceramics, and more.

Effective for machinery like tea dryers, pancake machines, and equipment involving coal or graphite.

Can be used for surfaces like glass, water, and chemically treated metals.

4.FEATURES

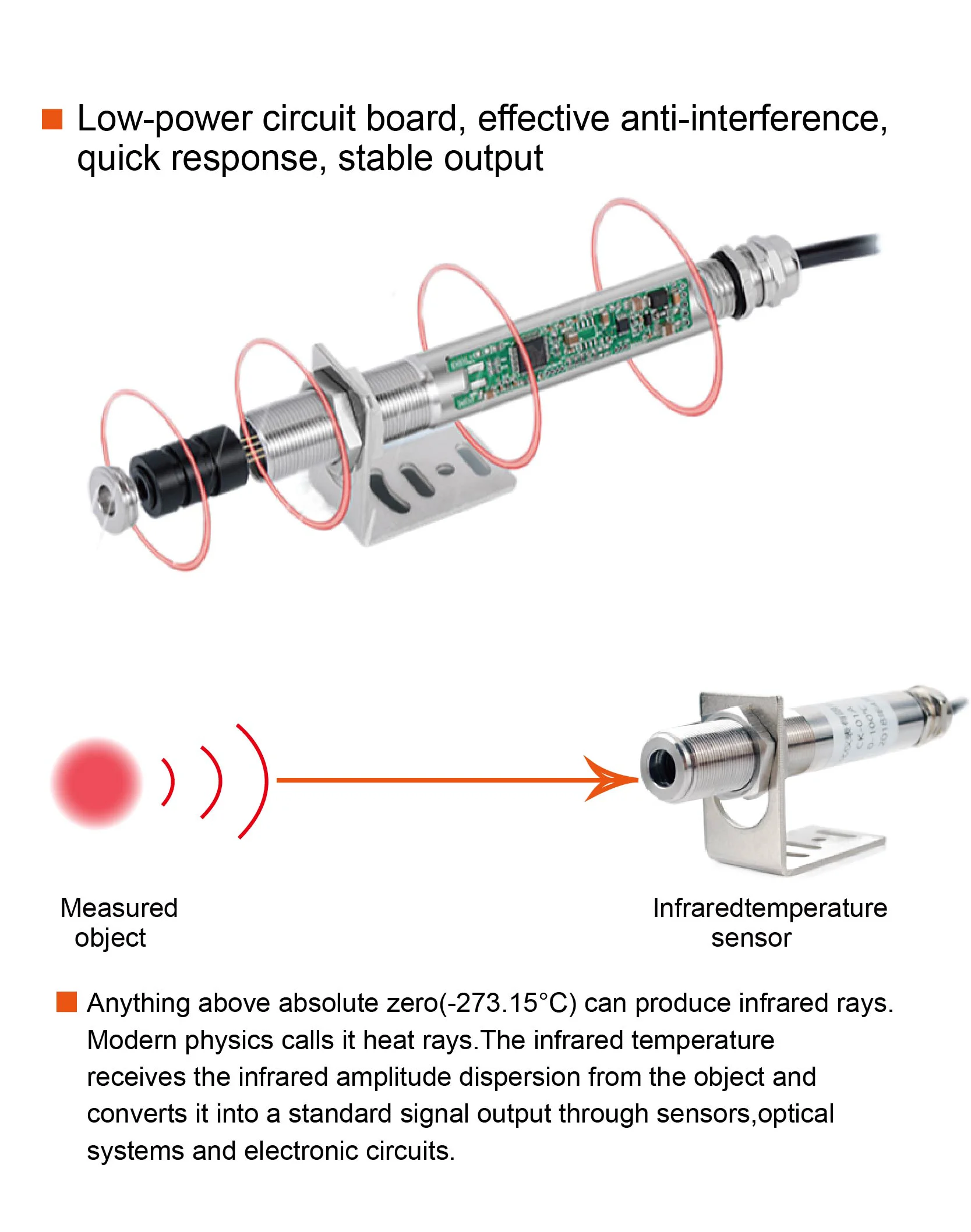

Advanced infrared optical lens for improved accuracy.

Millisecond-level response speed with multiple output options.

Non-contact design for hard-to-reach or mobile targets.

Compatible with a wide range of accessories for added functionality.

5.FAQ

Q1: Can I measure polished metal surfaces with this sensor?
A1: Not directly. Use a coated surface or consider a shortwave thermometer for polished metals.

Q2: Is the temperature range adjustable?
A2: Yes, contact us to customize the range between -30°C and 1300°C.

Q3: What accessories are available?
A3: Optional add-ons include display controllers, cooling shields, and multi-channel instruments.
