Product Description
1.NOTE
Due to page limitations, some configurations may not be listed. Please contact us or leave a note during checkout for special requests.

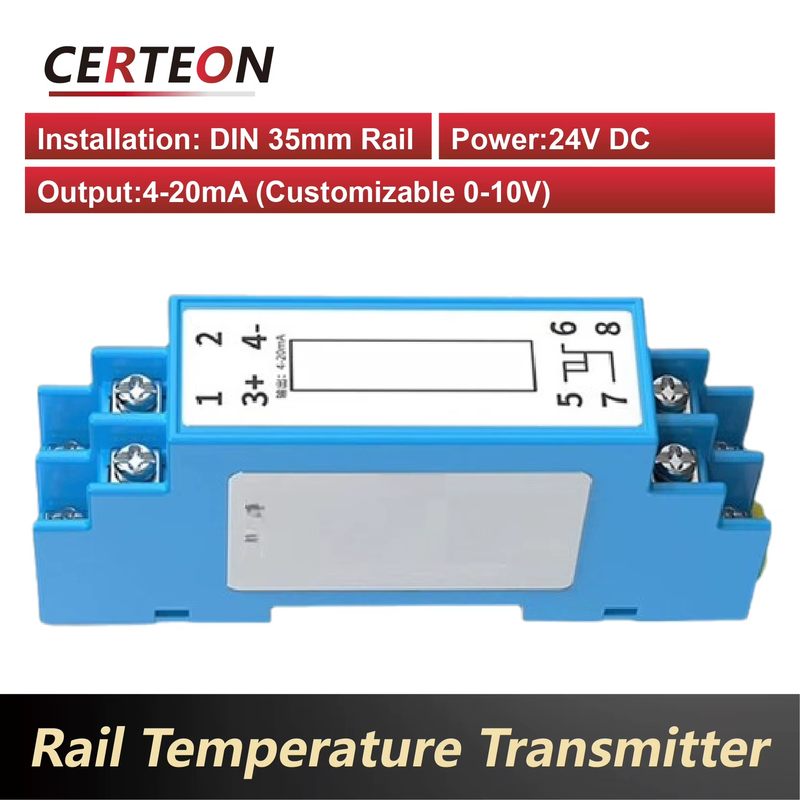

Default Configuration Includes:
Power Supply: 24V DC
Output Signal: 4–20mA
Installation: DIN 35mm Rail Mounting
Operating Temperature: -50°C to +500°C (Optional)
Optional Configurations Include:
Output Signal: 4–20mA, 0–10V, 0–5V
Input Type: Probe Input, Terminal RTD Input
Power Supply: 24–28V DC
Operating Temperature Range: Customizable
Important:
Ensure the power supply and output signal match your system requirements.
Confirm the input type (probe or terminal RTD) before placing an order.
Contact us for custom specifications or unique installation requirements.
2. PARAMETERS

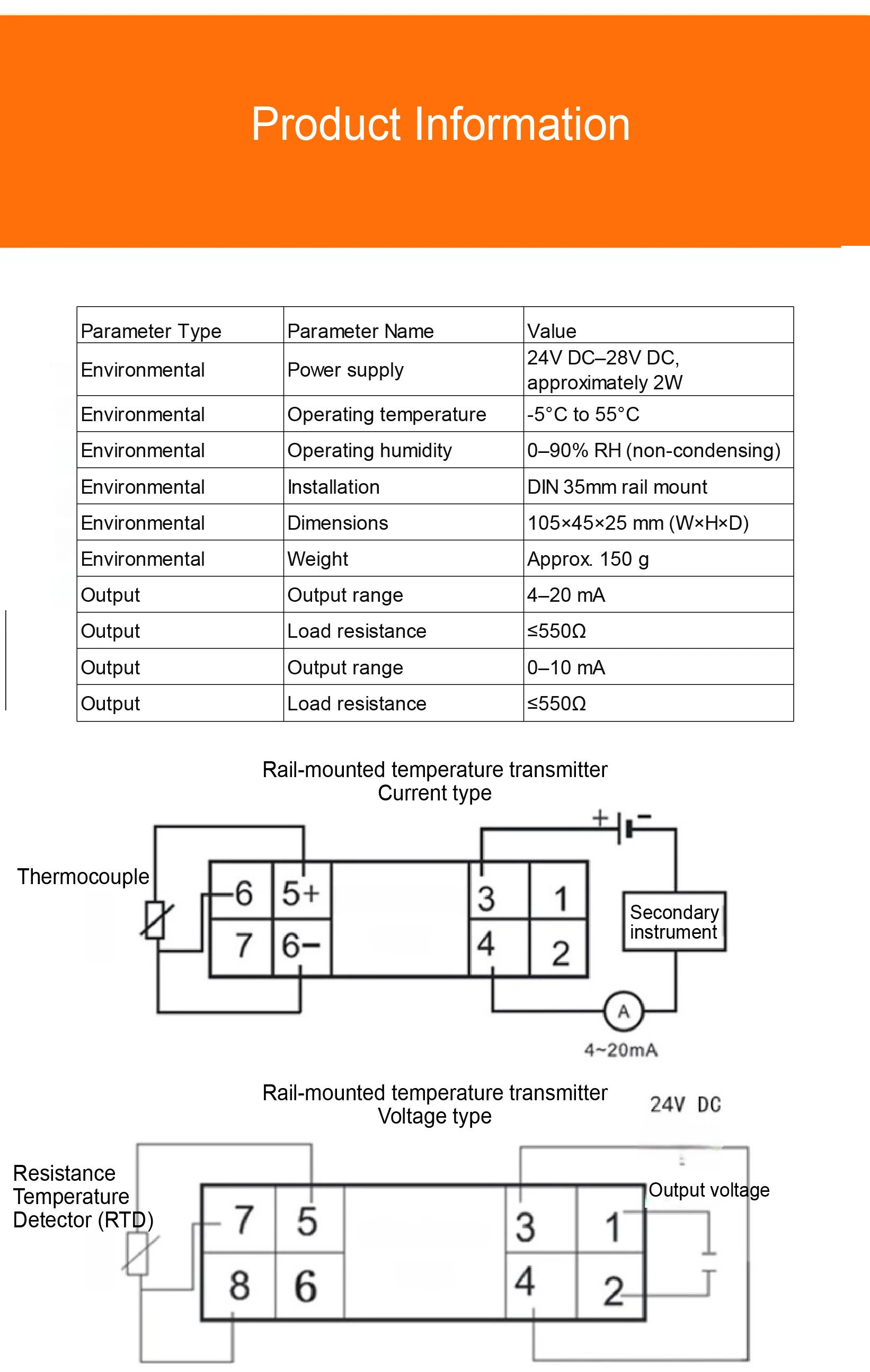

Output Parameters | |
Output Range (Current) | 4-20mA |
Load Resistance | ≤550Ω |
Power Supply | 24V ± 0.5V, Current: 30mA |
Environmental Parameters | |
Power Supply Voltage | 24~28V DC (approx. 2W) |
Operating Temperature | -5°C ~ 55°C |
Operating Humidity | 0~90% RH (non-condensing) |
Installation | DIN35mm Rail Mount |
Dimensions (WxHxD) | 105x45x25 mm |
Weight | Approx. 150g |
3. APPLICATION

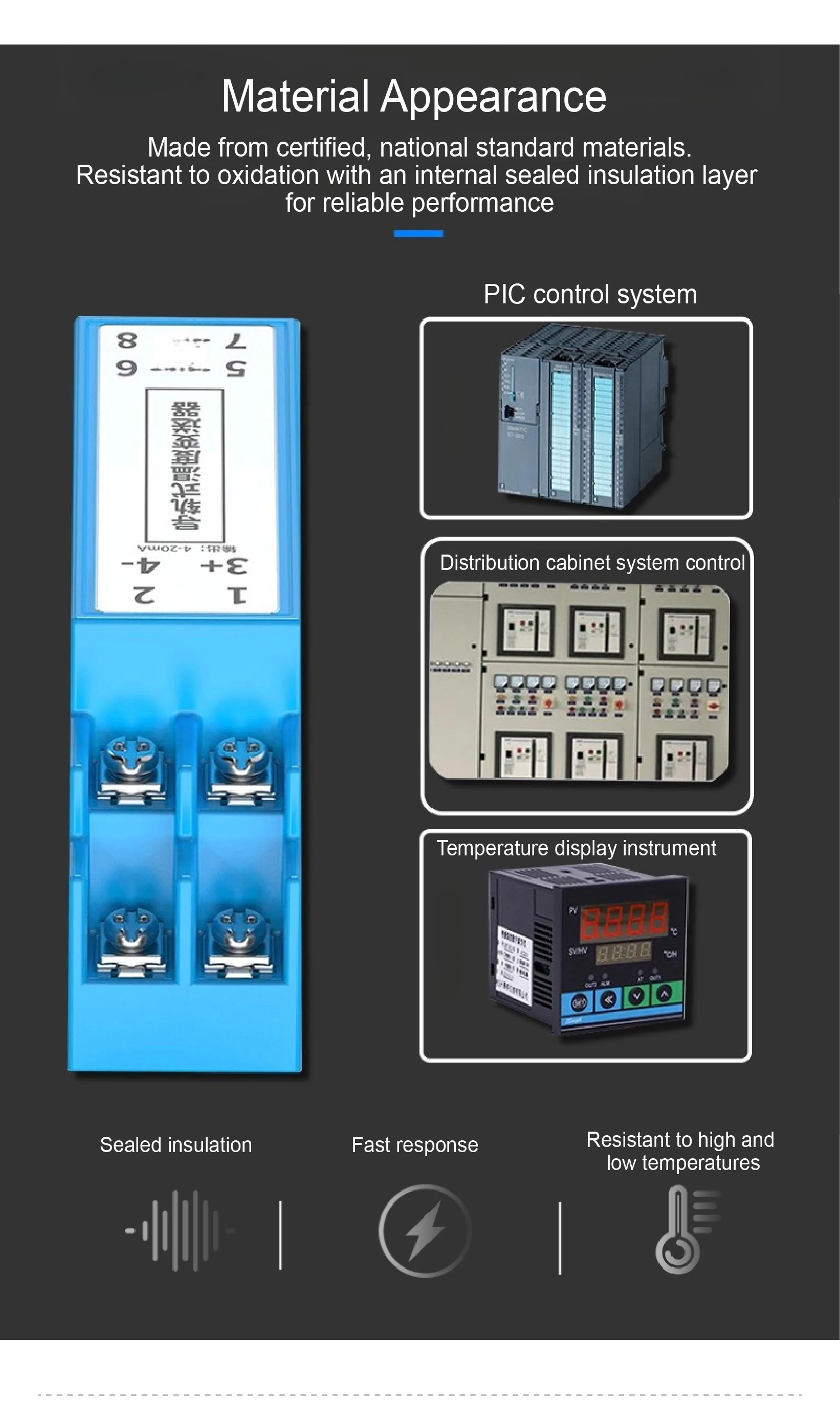

Industrial automation systems.
Temperature monitoring in manufacturing.
Integration with smart sensors.
4. FEATURES

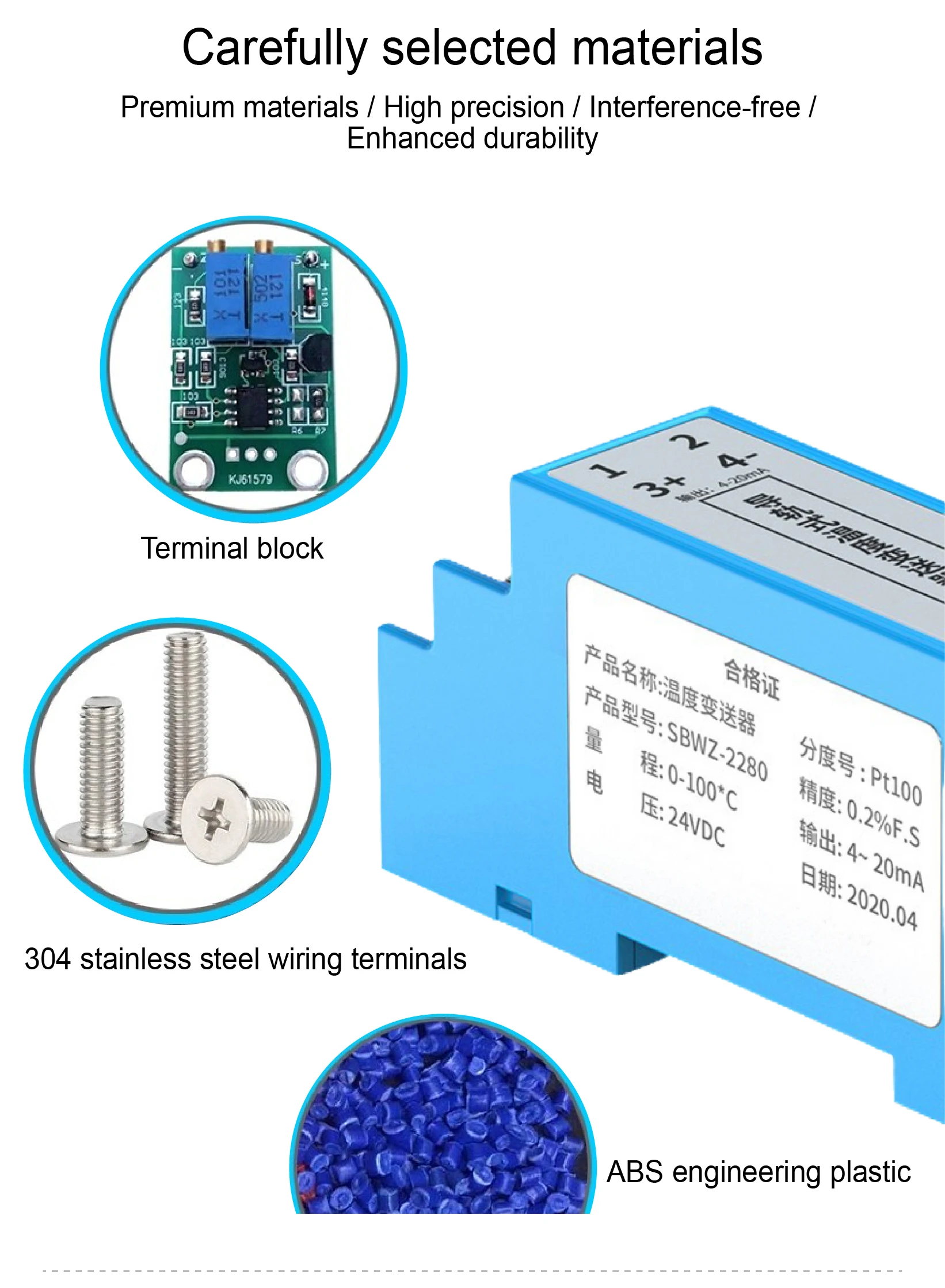

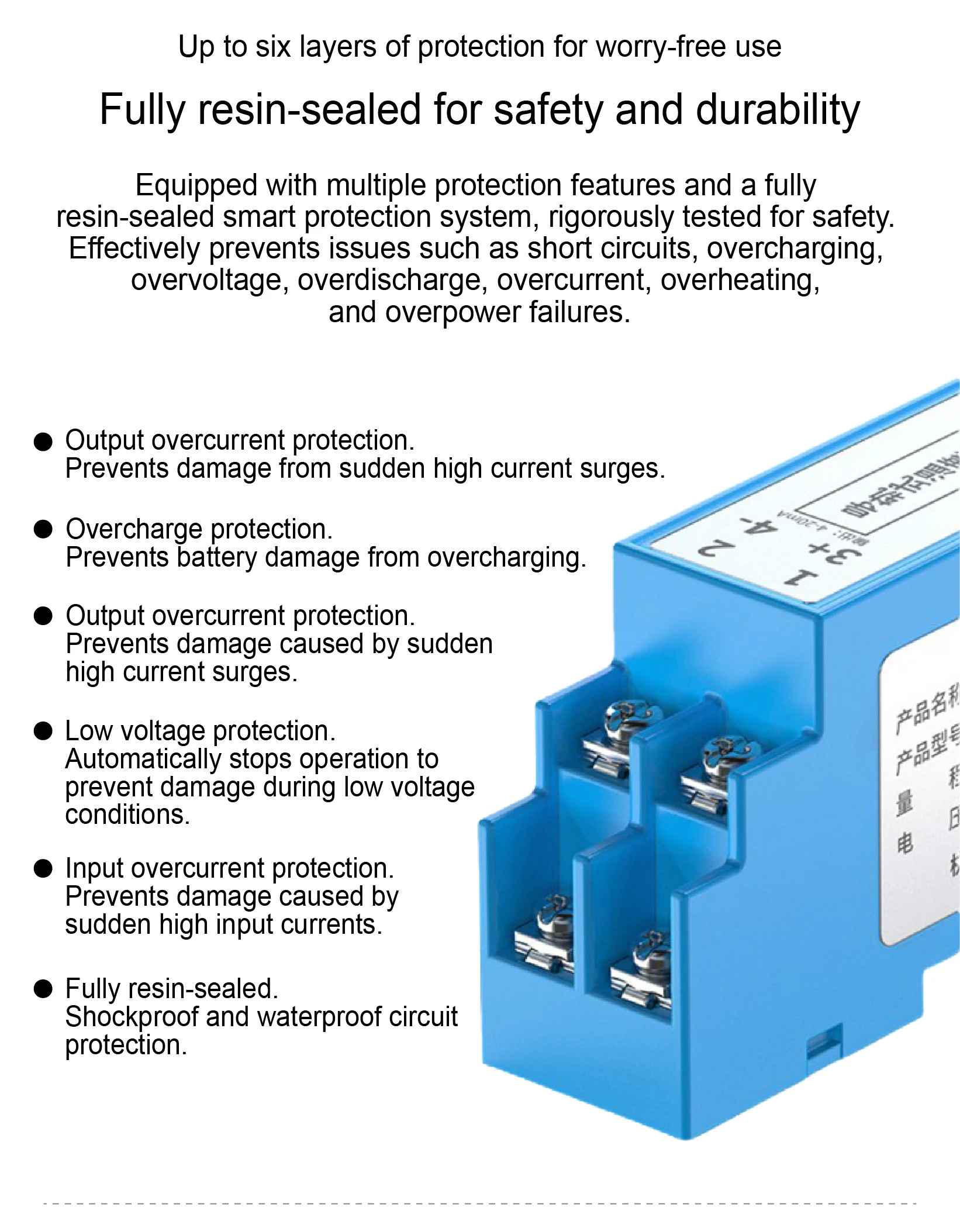

Full resin sealing for enhanced durability.
Multiple protection mechanisms, including overcurrent, overvoltage, and short-circuit protections.
Supports various probe types for compatibility.

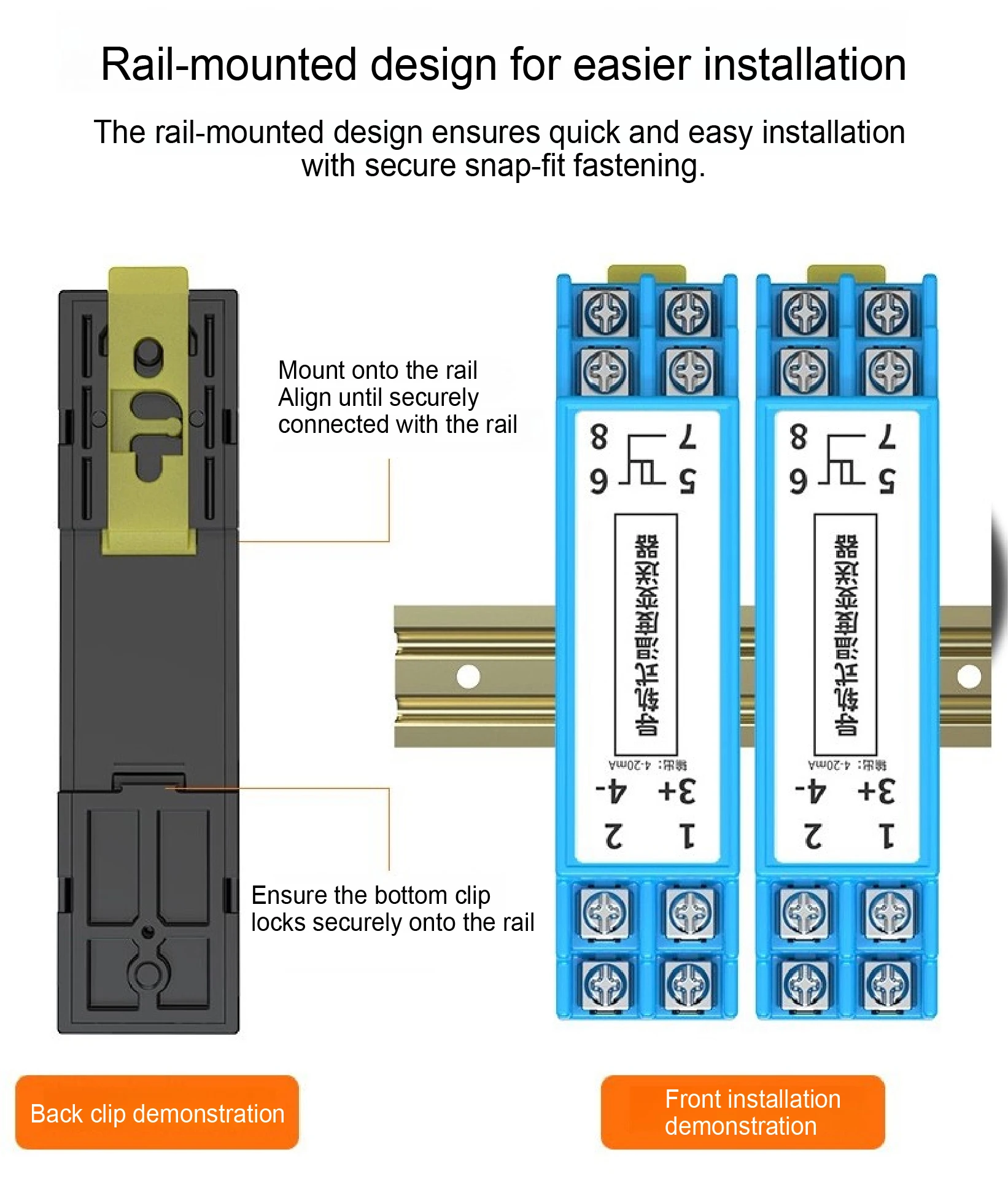

Quick and secure DIN rail installation.
5. FAQs
Q: Can this product support customized probes?

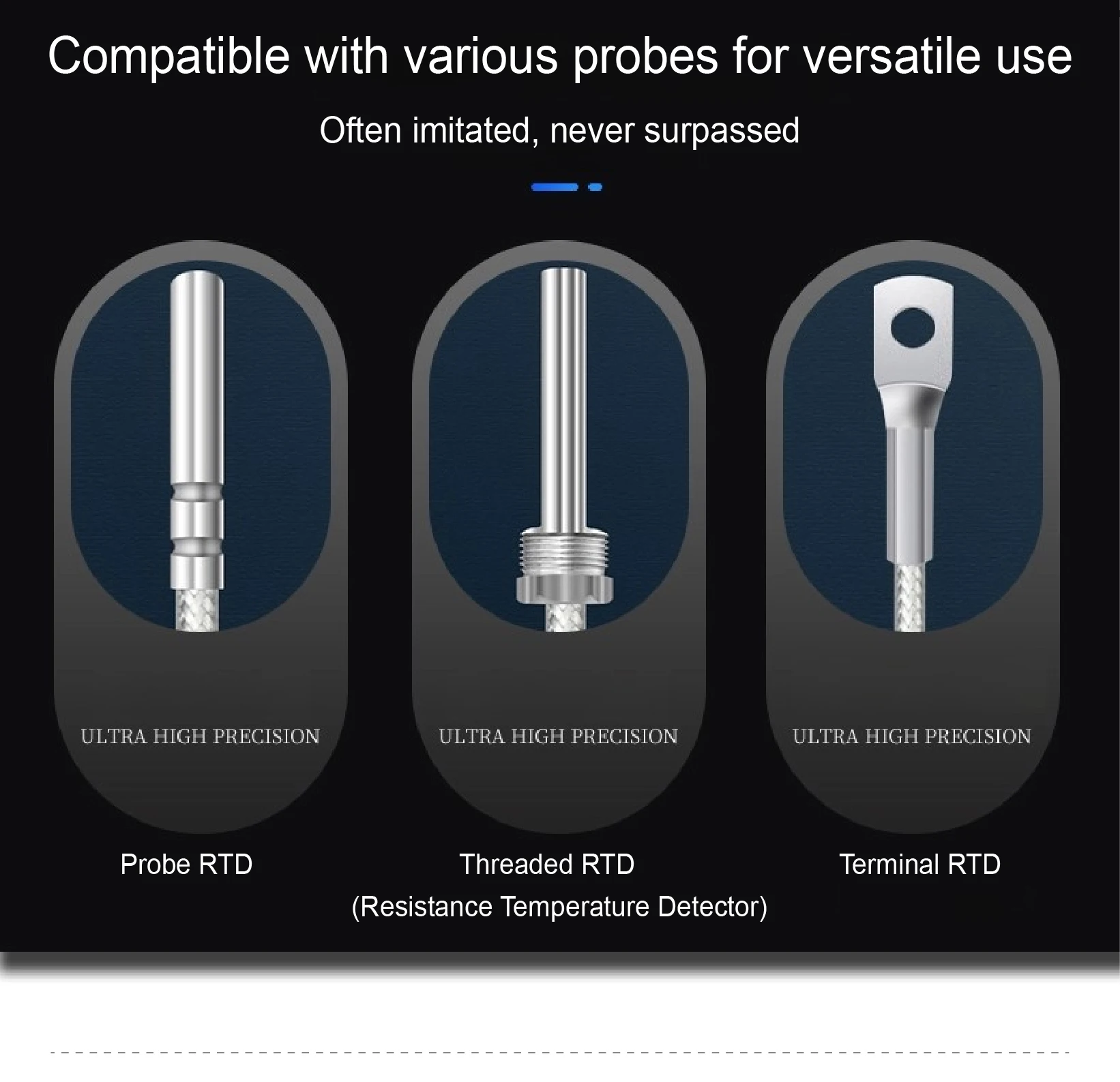

A: Yes, we offer compatibility with different types of probes, including rod-type, threaded, and terminal RTDs.
Q: Is the installation process difficult?
A: No, the device features a DIN35mm rail mount for easy and secure installation.
