Product Description
1.NOTE:
Default Configuration:

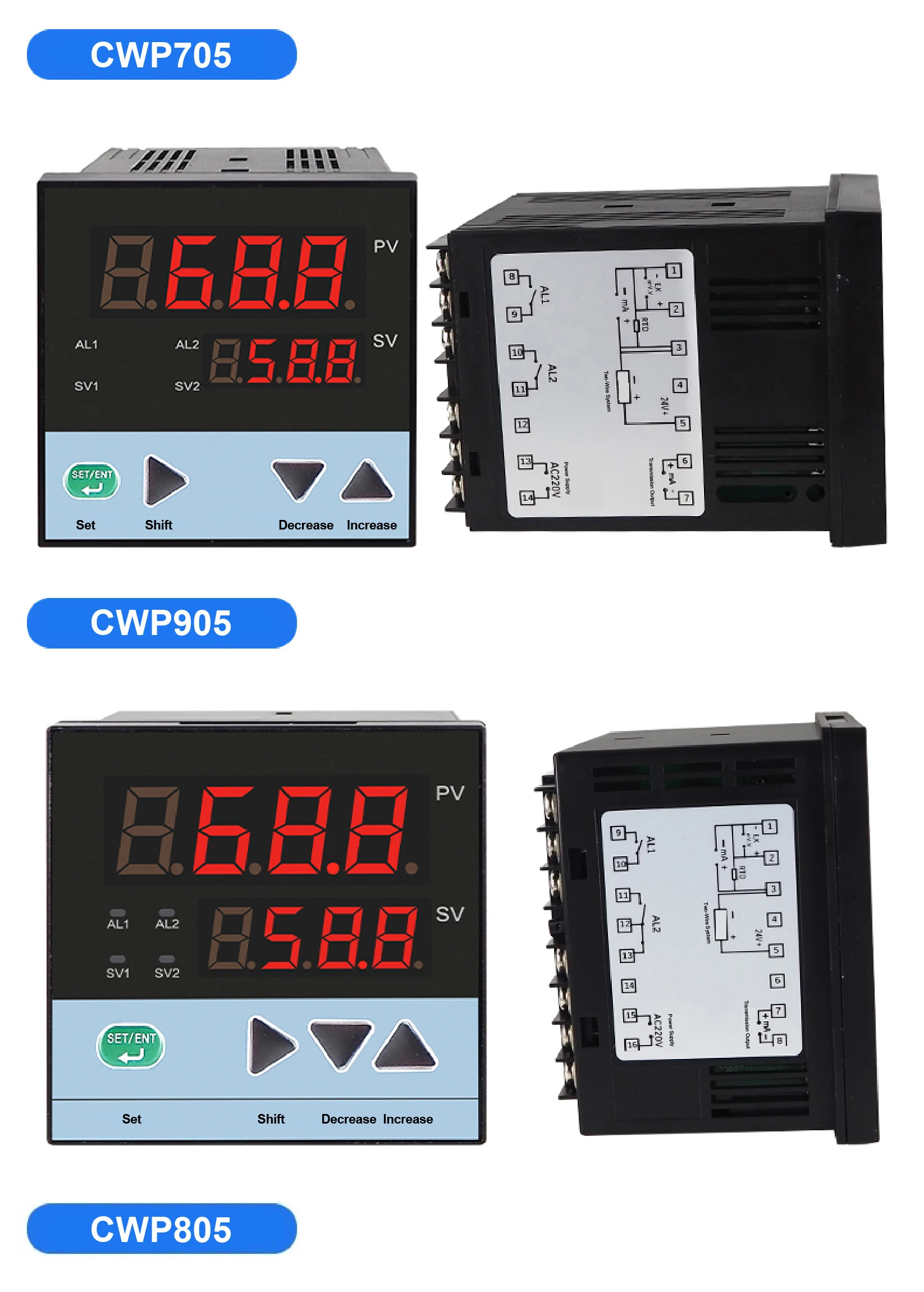

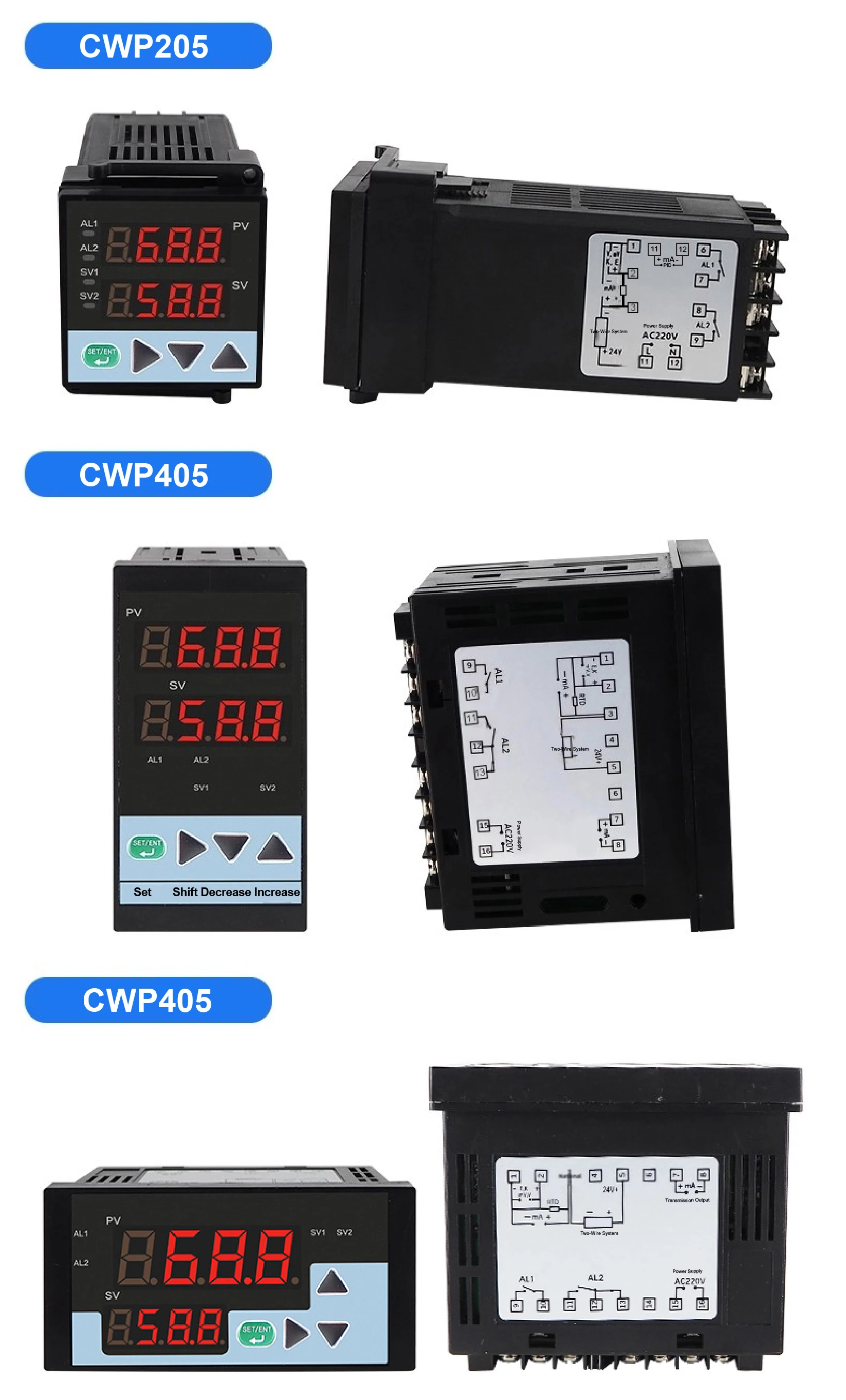

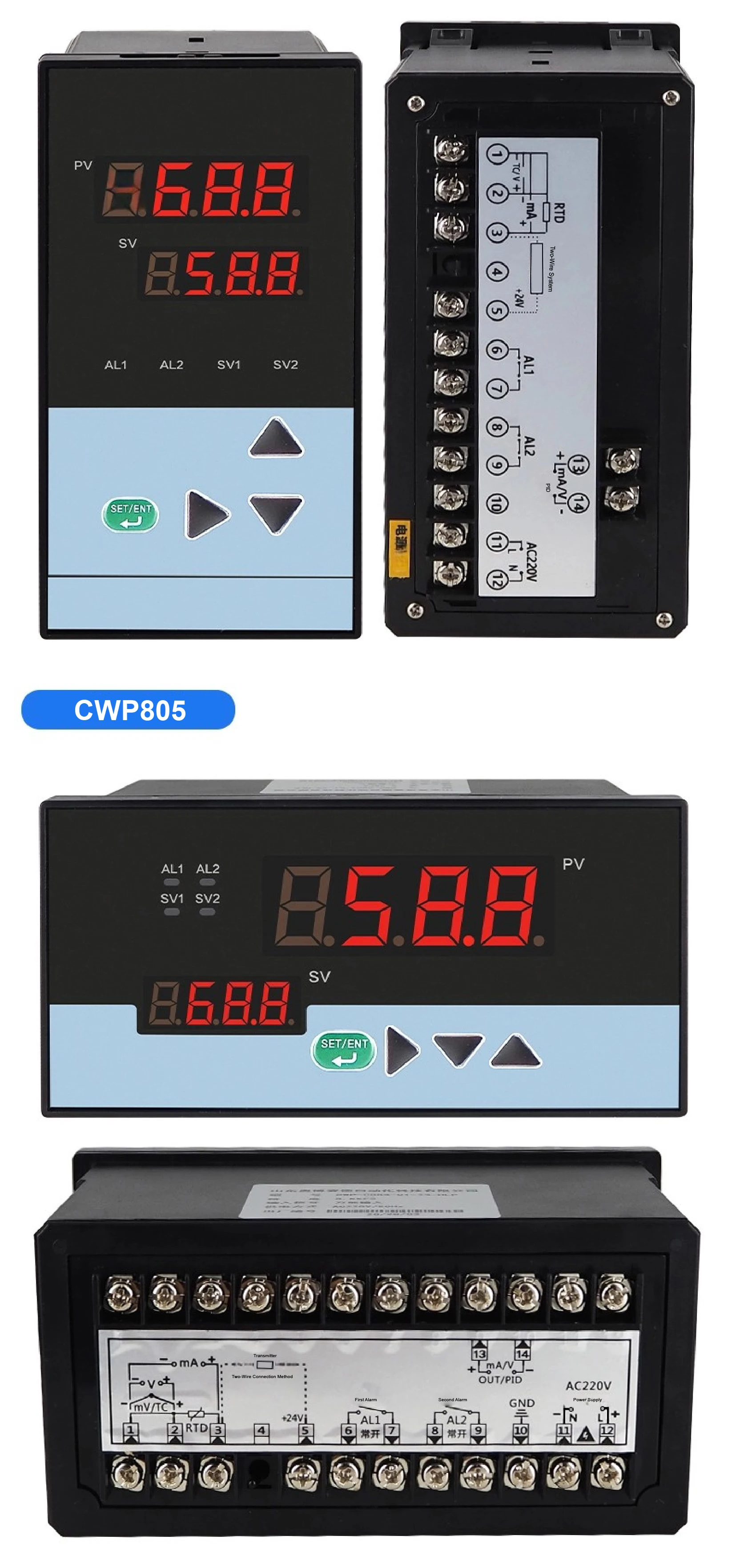

· Size options: 48×48, 48×96, 96×48, 72×72, 96×96, 80×160, 160×80
· Power supply: AC220V
· Input: Universal signal input（S，R，B，K，N，Ｅ，T，Pt100，Cu50，0~5V，1~5V，0~10V，0~10mA，0~20mA，4~20mA。ETC）
· Output: Dual alarm + PID relay output
Optional Configuration:
· Power supply: DC24V, DC12V, AC/DC 90-250V
· Output: Dual alarm + PID solid-state relay output
· Output: Dual alarm + PID 4-20mA output

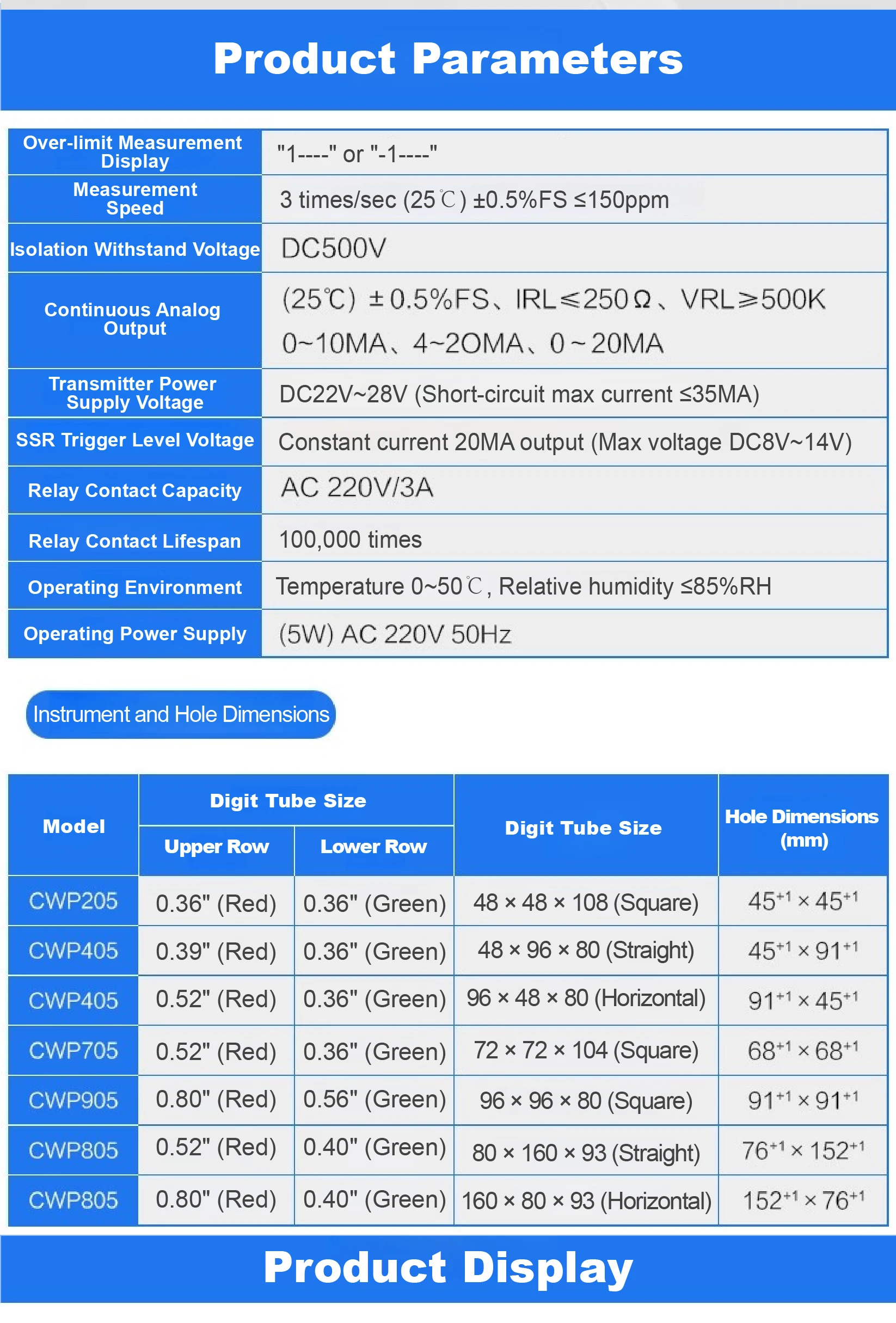

Specifications
Parameter | Specification |
Available Sizes | 48×48, 48×96, 96×48, 72×72, 96×96, 80×160, 160×80 mm |
Power Supply (Default) | AC220V |
Power Supply (Customizable) | DC24V, DC12V, AC/DC 90-250V |
Output (Default) | Dual alarm + PID relay output |
Output (Customizable) | Dual alarm + PID SSR output, Dual alarm + PID 4-20mA output |
Measurement Accuracy | ±0.5%FS (25℃), Sampling rate: 3 times/sec |
Insulation Voltage | DC500V |
Analog Output | 010mA, 420mA, 0~20mA |
Transmitter Power Voltage | DC22V~28V (Max short circuit current ≤35mA) |
SSR Trigger Voltage | Constant current 20mA, Max voltage DC8V~14V |
Relay Contact Capacity | AC220V/3A |
Relay Contact Life | 100,000 times |
Operating Temperature | 0~50℃, ≤85%RH |
Power Consumption | 5W, AC220V, 50Hz |
3. Features

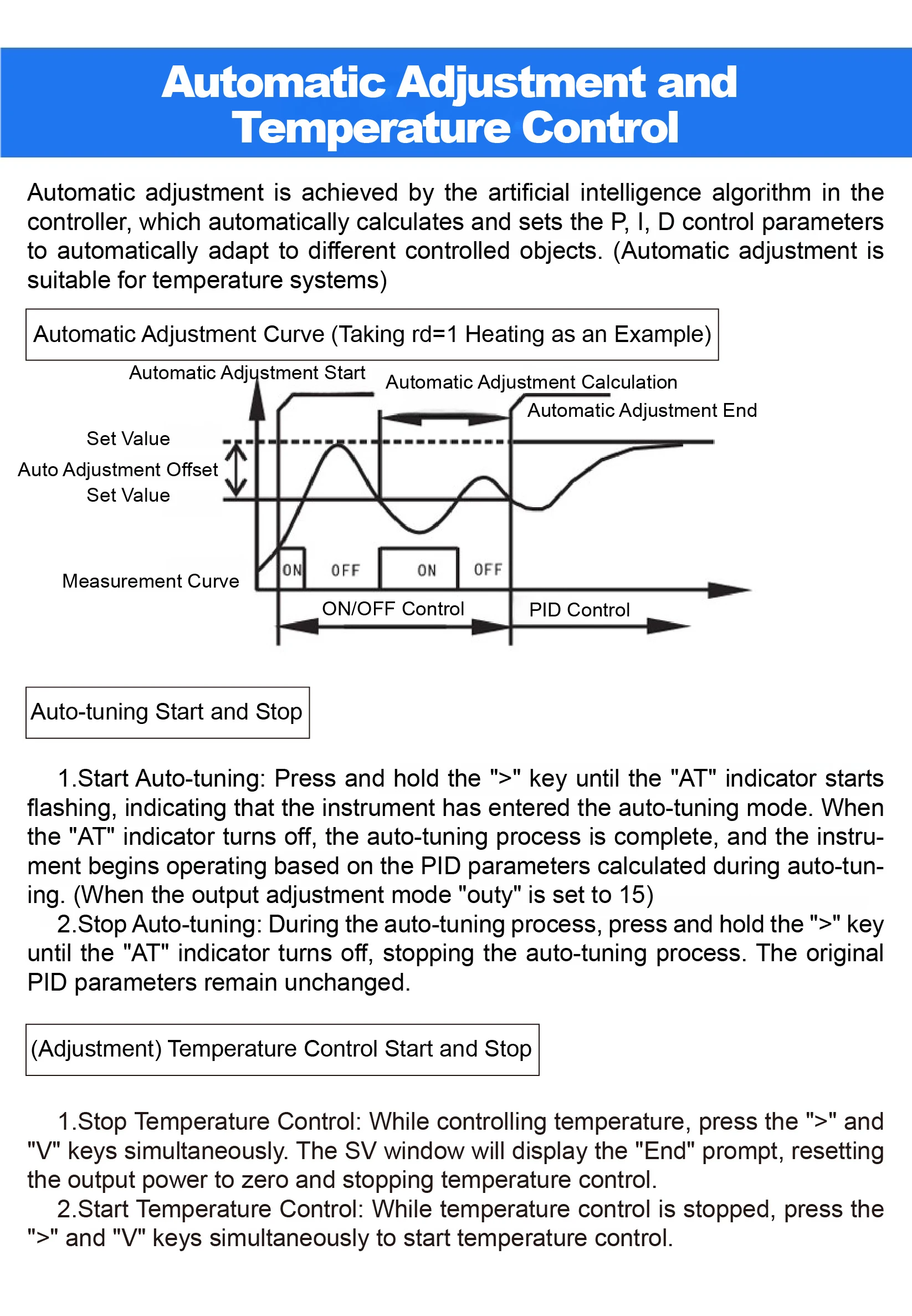

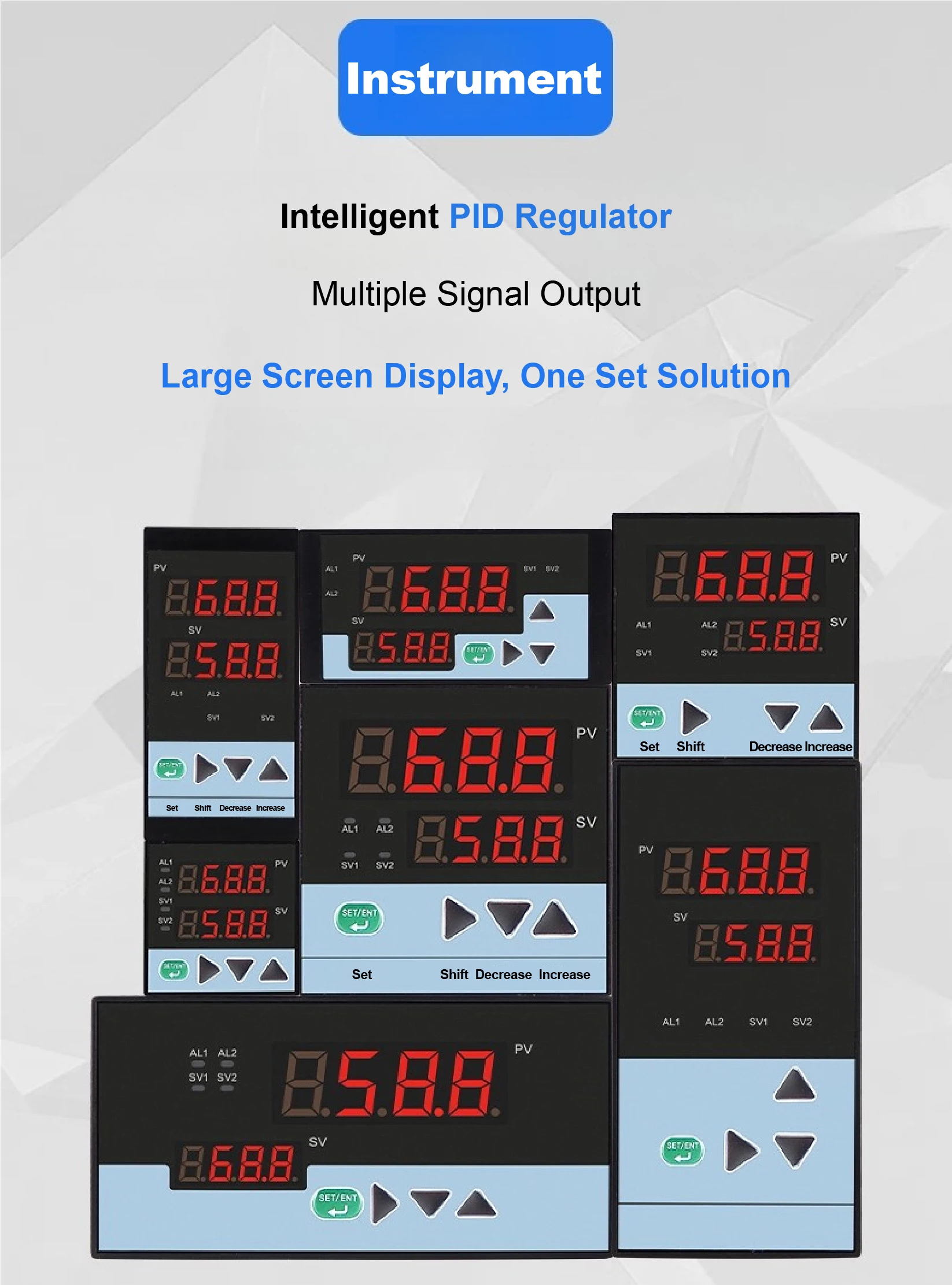

Intelligent PID Control – Ensures precise and stable temperature regulation.
Multi-Signal Output – Supports relay, SSR, and analog outputs (0-10mA, 4-20mA).
High Accuracy & Fast Response – ±0.5%FS accuracy with a sampling rate of 3 times per second.
Customizable Power Supply – Supports AC220V, DC24V, DC12V, and AC/DC 90-250V.
Industrial-Grade Durability – Designed for reliable operation in demanding environments.
4. Applications
Industrial Automation – Temperature control in production lines.
HVAC Systems – Precision temperature regulation in heating, ventilation, and air conditioning.
Laboratory Equipment – Ensures stable environmental conditions for experiments.
Food Processing – Accurate temperature monitoring for quality control.
Plastic & Rubber Industry – Optimized control for molding and extrusion processes.
5. FAQs
Q1: Can I customize the power supply?
A1: Yes, we offer DC24V, DC12V, and AC/DC 90-250V options.
Q2: What types of output does this controller support?
A2: It supports relay output, SSR output, and analog output (0-10mA, 4-20mA).
Q3: Is this suitable for industrial applications?
A3: Yes, it is designed for industrial automation, HVAC, food processing, and more.
