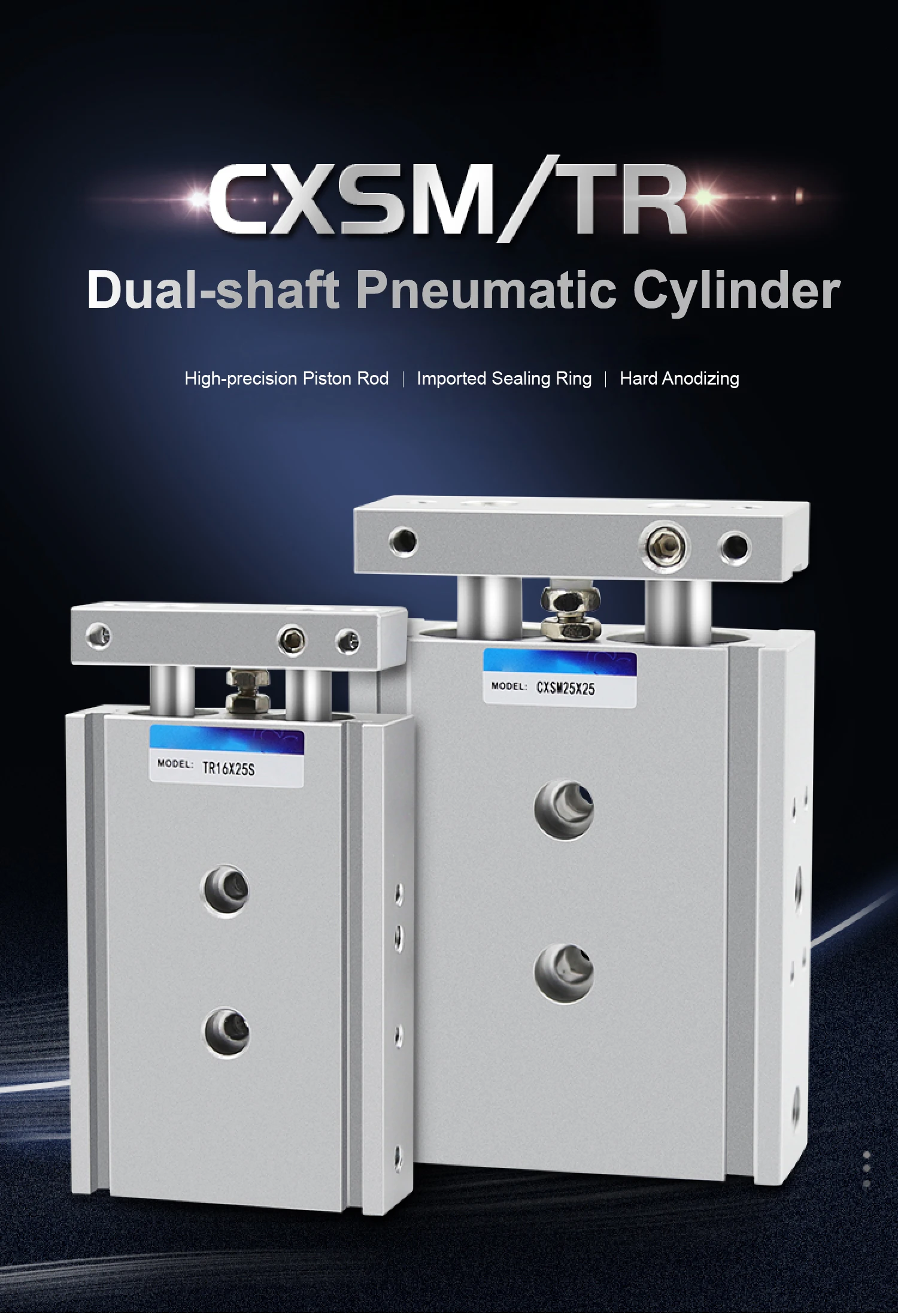

Product Description
1.NOTE

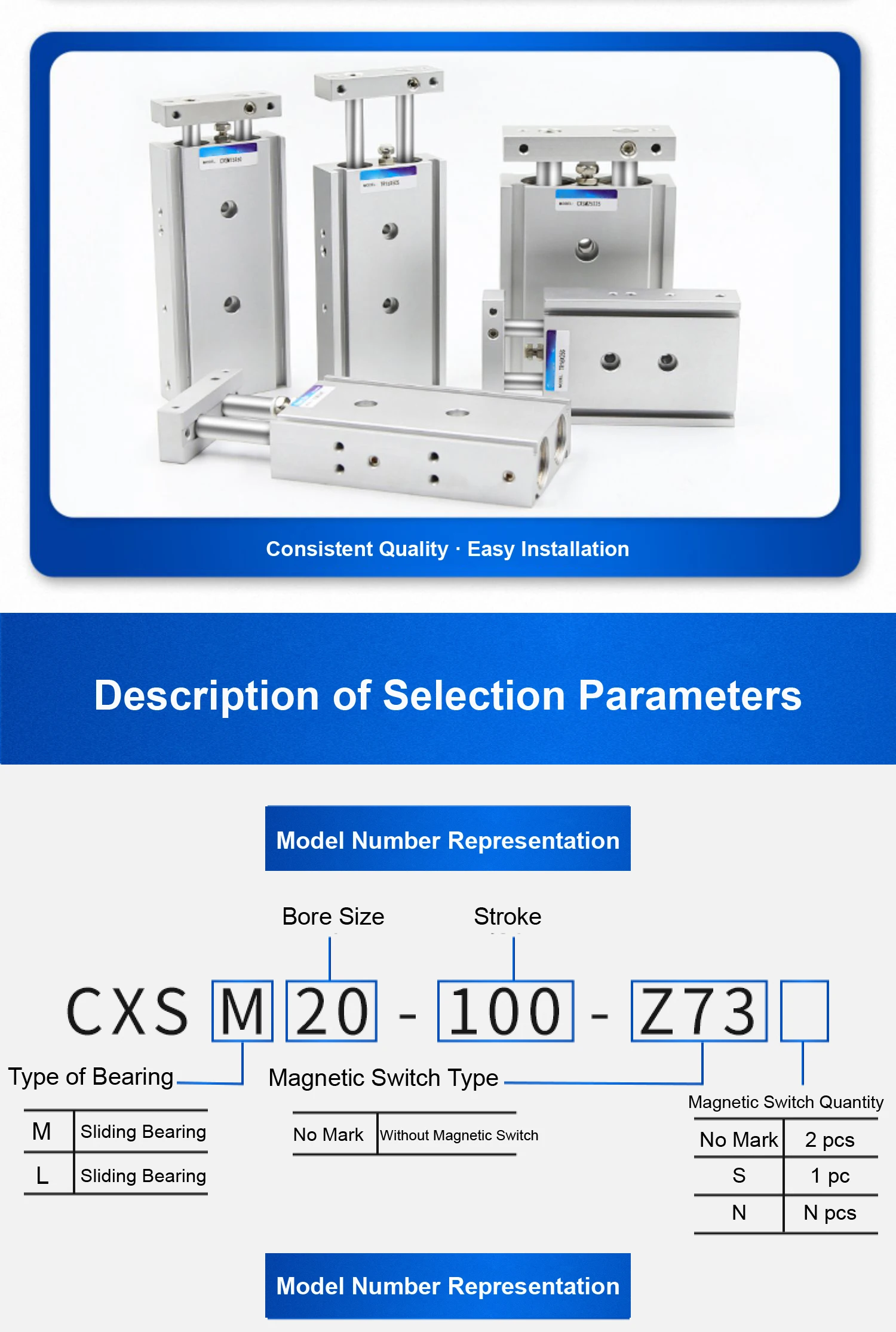

Model:CXSM6/10/15/20/25/32
Bore Size:6 / 10 / 15 / 20 / 25 / 32 mm (Optional)
Stroke Options:10 / 15 / 20 / 25 / 30 / 35 / 40 / 45 / 50 / 60 / 70 / 75 / 80 / 90 / 100 / 125 / 150 / 175 / 200 / 250 mm (Optional).
For customized specifications, please contact us.
2. Parameters

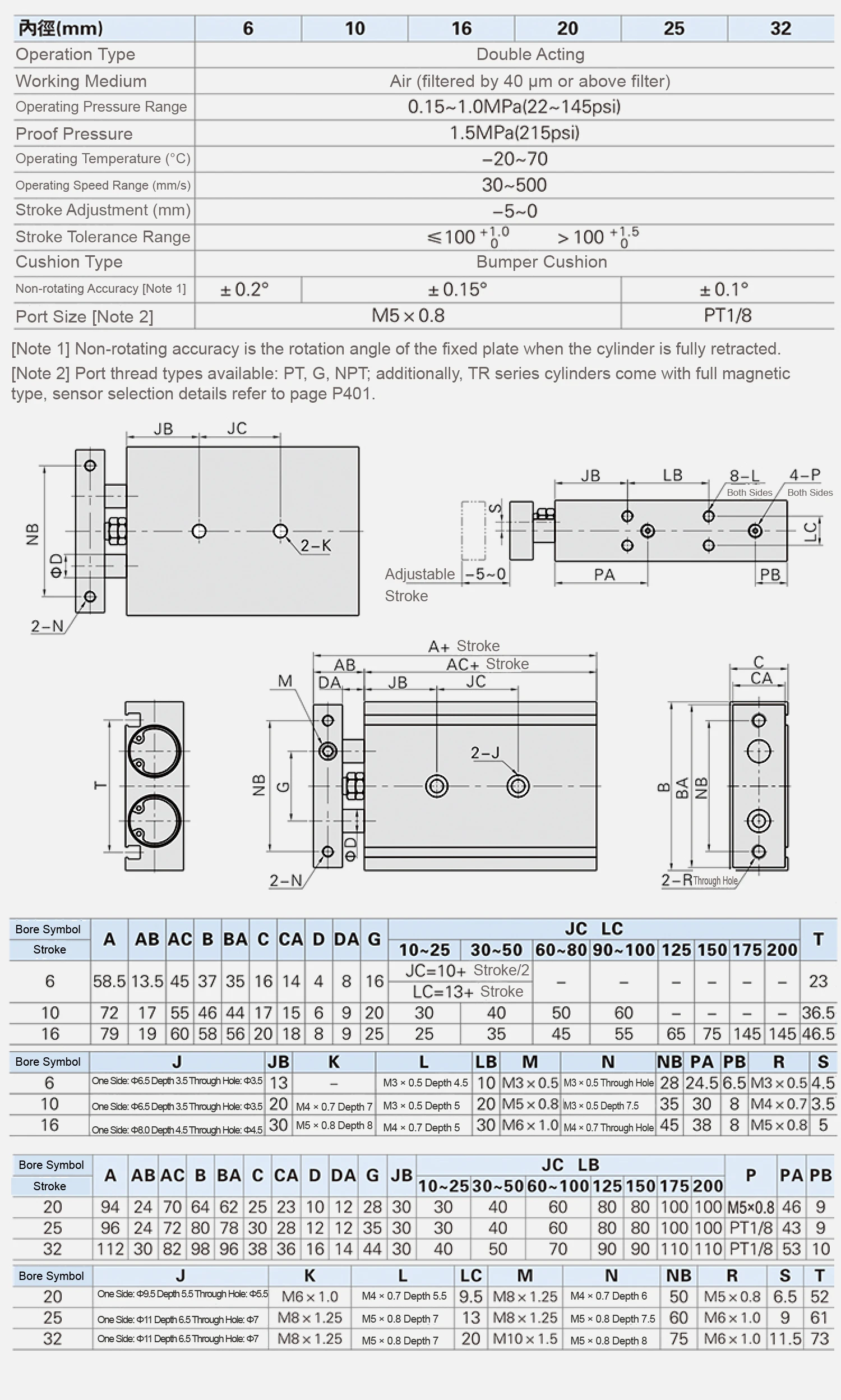

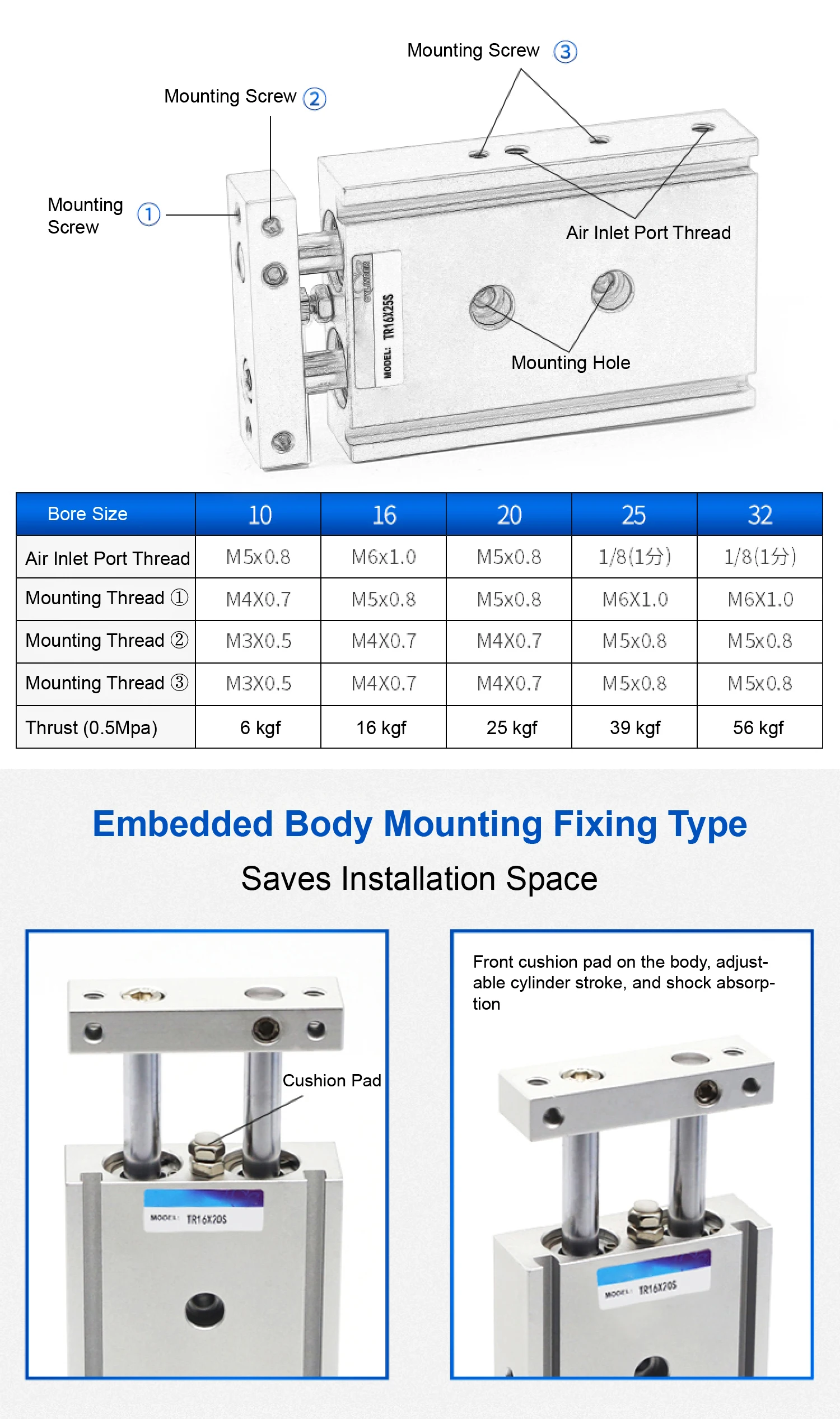

Specification | Details |
Bore Size | 6 / 10 / 15 / 20 / 25 / 32 mm |
Stroke Options | 10 / 15 / 20 / 25 / 30 / 35 / 40 / 45 / 50 / 60 / 70 / 75 / 80 / 90 / 100 / 125 / 150 / 175 / 200 / 250 mm |
Thrust (0.5MPa) | 6 / 16 / 25 / 39 / 56 kg |
Port Thread | M5x0.8 / M6x1.0 / 1/8" |
Mounting Thread ① | M4x0.7 / M5x0.8 / M6x1.0 |
Mounting Thread ② & ③ | M3x0.5 / M4x0.7 / M5x0.8 |
Cylinder Material | Hard-anodized aluminum |
Cushion Type | Adjustable front-end bumper |
3. Features

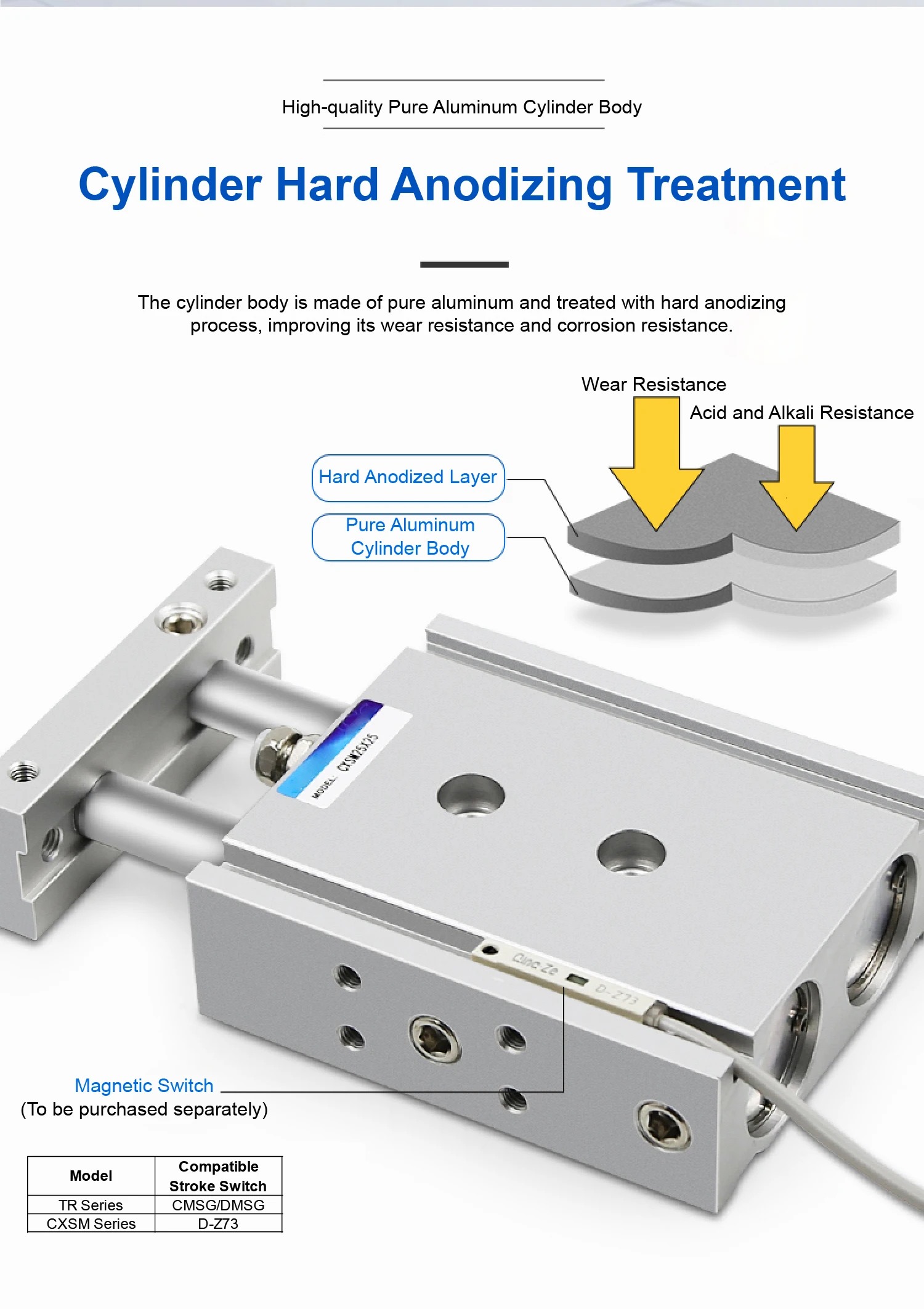

High-Strength Aluminum Body
Constructed from pure aluminum with hard anodizing for excellent wear and corrosion resistance.

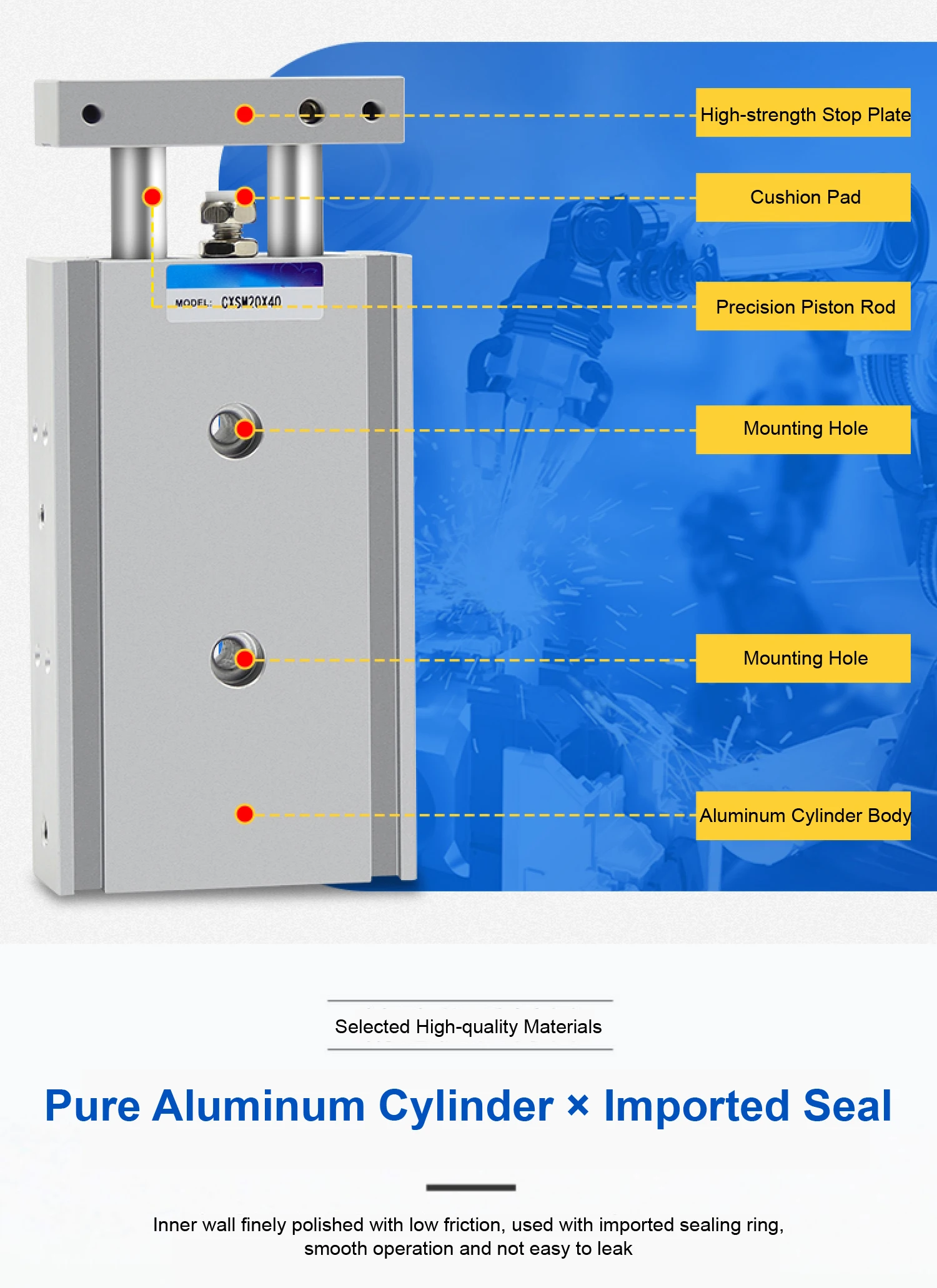

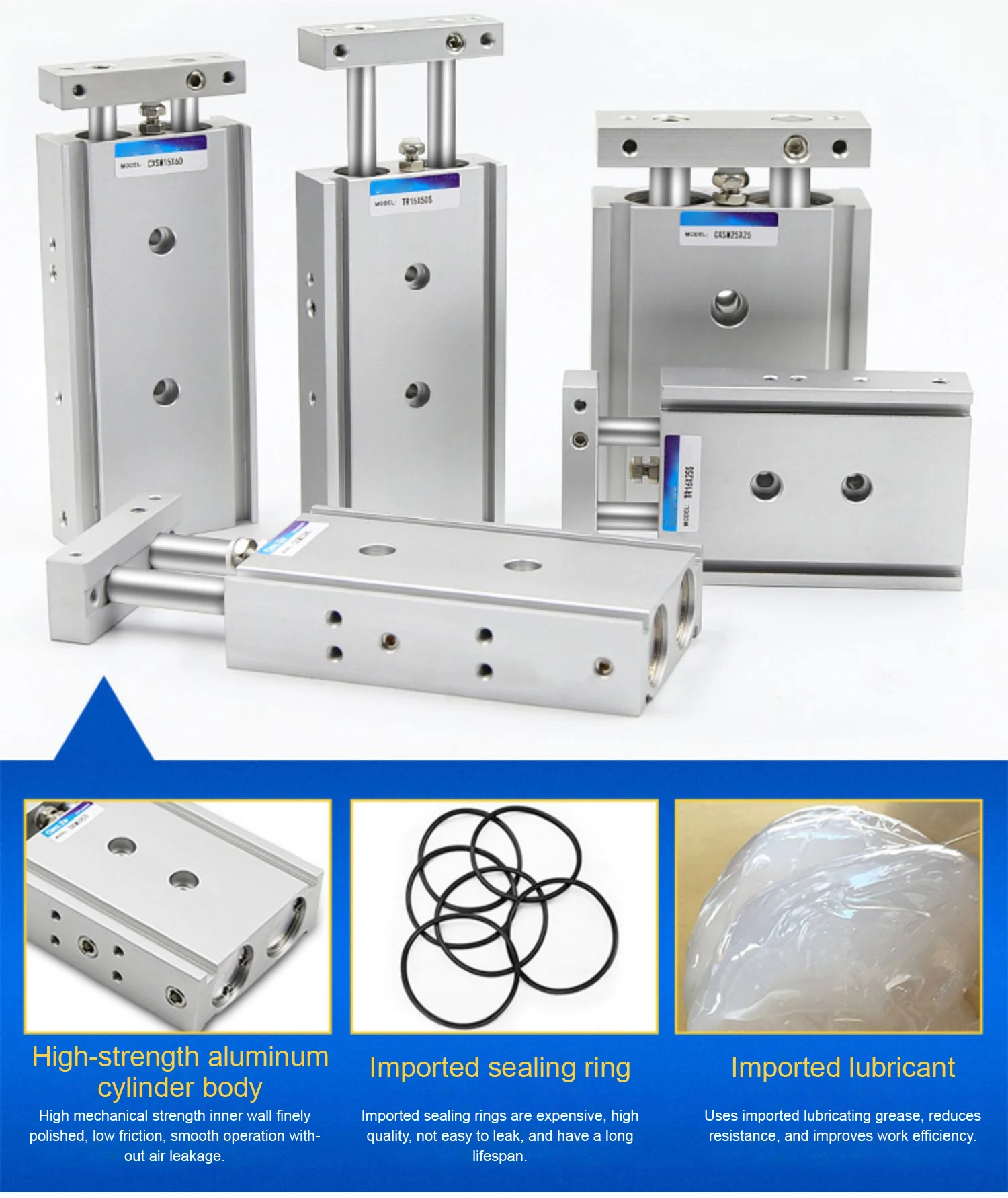

Imported Sealing System
Equipped with high-quality imported seals and grease to ensure leak-free, smooth, and long-lasting operation.
Adjustable Shock Absorbers
Built-in bumpers at the front end reduce impact and allow for precise stroke adjustment.

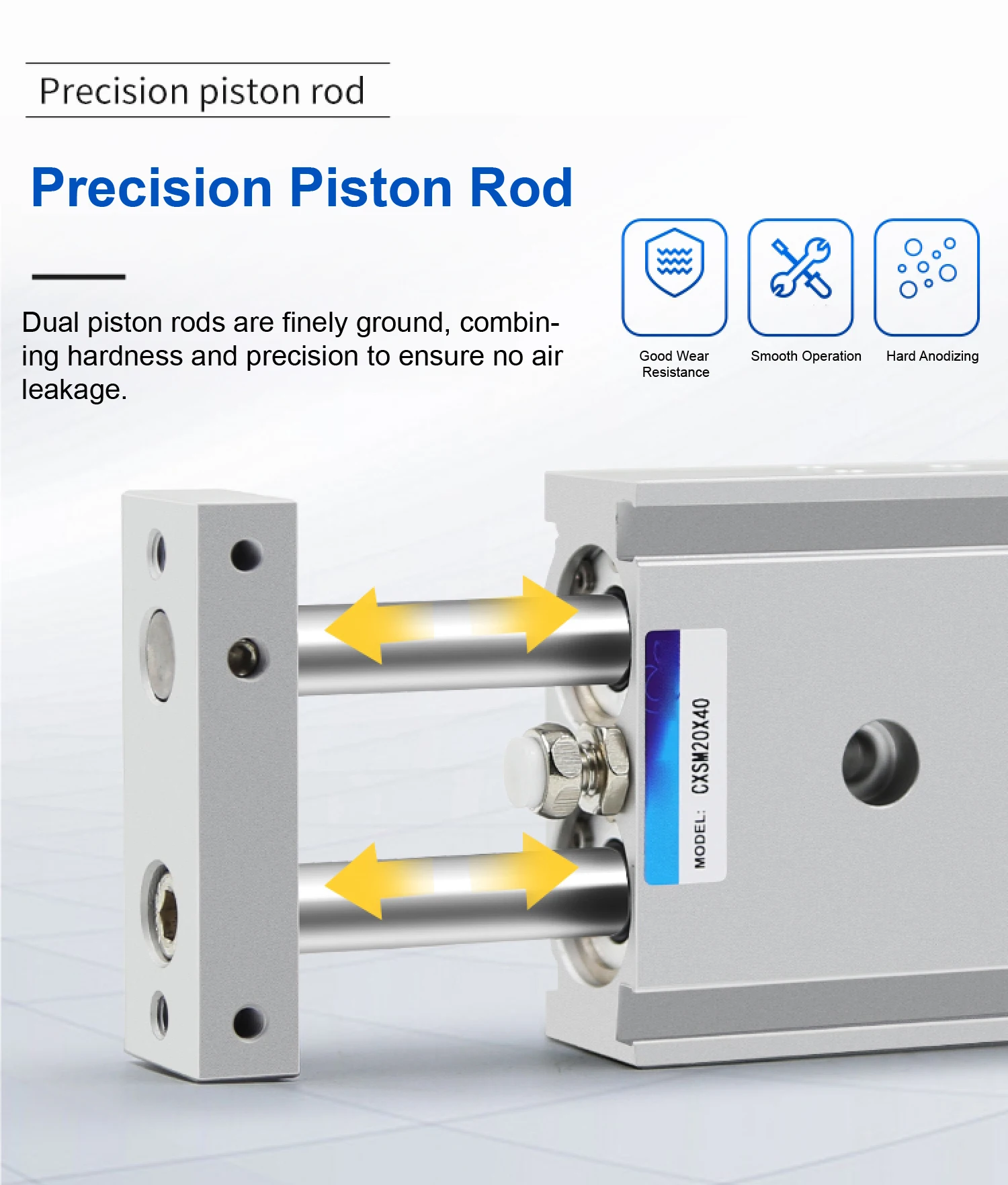

Precision Polished Bore
Inner surface is finely ground for reduced friction, ensuring higher efficiency and extended lifespan.
Compact Embedded Mounting
Space-saving design with embedded mounting holes simplifies installation in limited spaces.
4. Applications
Ideal for use in industrial automation, pharmaceutical machinery, mechanical equipment, and construction systems.
5. FAQs
Q1: Can this cylinder be mounted both horizontally and vertically?
A1: Yes, the cylinder supports both horizontal and vertical mounting options.
Q2: Is custom stroke available?
A2: Yes, customized stroke lengths are available upon request.
Q3: What is the recommended working pressure range?
A3: Recommended range is 0.1–0.7 MPa. Maximum pressure is 1.0 MPa.
