Product Description
NOTE
The fiber optic cable must be used in conjunction with a fiber optic amplifier to function properly.This link includes only the fiber optic cable and does not come with an amplifier. The amplifier must be purchased separately.
Model:FT-FR
Power Supply:DC 24V
Output Type:NPN
Sensing Width:6–120mm
Housing Material:Metal
Detection Type:Top detection / Side detection
Due to space limitations, some specifications may not be listed. For specific customization requirements, please contact us.
Parameters
Parameter | Specification |
Model | FT-FR |
Power Supply | DC 24V |
Output Type | NPN |
Sensing Width | 6–120mm |
Detection Type | Top detection / Side detection |
Spot Pitch | 0.35mm / 0.4mm / 0.8mm etc. |
Fiber Outer Diameter | Φ1.3 / Φ2.2 / Φ2.66 mm |
Fiber Inner Core | Φ0.25×8 / Φ0.25×16 / Φ0.25×32 |
Minimum Bending Radius | R15 |
Working Temperature | -55°C to +70°C |
Housing Material | Metal |
Features
High Precision Detection
Detects ultra-small objects accurately, ideal for micro-parts and fine-positioning tasks.
Stable Output with Dust & Oil Compensation
Automatic light compensation ensures reliable readings even in contaminated environments.
Long-range Through-beam Capability
Supports detection distances up to 1 meter for greater installation flexibility.
Dual Detection Configuration
Supports both top and side sensing modes for versatile system integration.
Durable & Flexible Construction
Reinforced with a soft rubber tail sleeve that resists bending, oil, and cable stress—extending product life.
Ultra-fine Light Spot Pitch
Multiple light pitch options (down to 0.35mm) allow high-resolution detection across narrow targets.

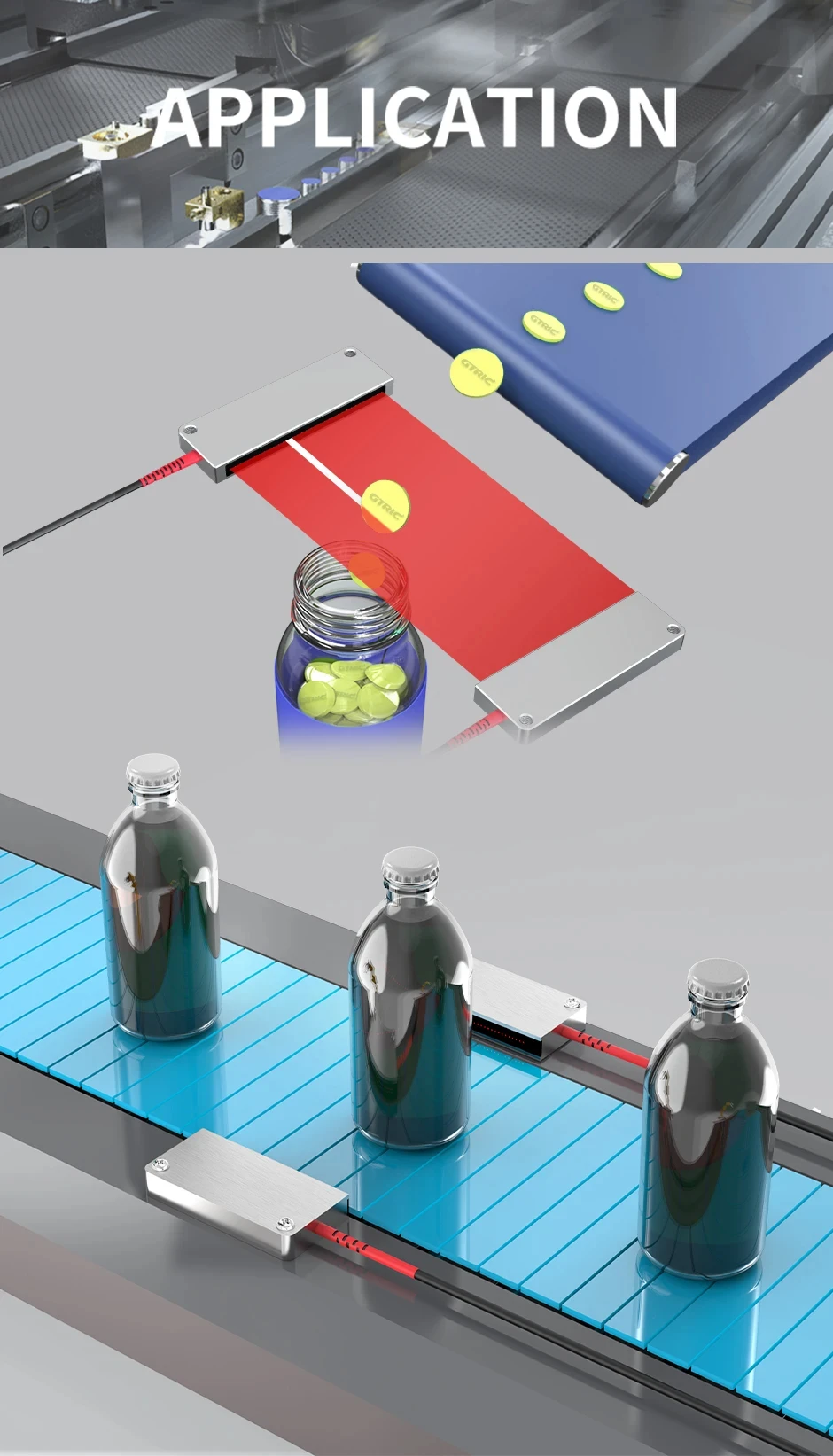

Applications
Perfect for automation systems, beverage packaging lines, and any high-speed conveyor environment where compact, precise detection is essential.
FAQs
Q1: Can this sensor detect very small or thin objects?
A1: Yes, it features fine light spot pitches (as small as 0.35mm) and high resolution suitable for small object detection.
Q2: Is the sensor durable for continuous use in oil-rich environments?
A2: Absolutely. The sensor is equipped with a protective tail sleeve and automatic light compensation, making it ideal for oily and dusty conditions.
Q3: Can I choose between different detection orientations?
A3: Yes, the FT-FR supports both top and side detection configurations for flexible integration.
