Product Description
Please select the corresponding pressure range and thread size from the options on the page and place your order directly.
If you require a custom pressure unit or connection type, please feel free to contact us.
We can customize production according to your requirements.
1. NOTE
Default Configuration:
Pressure Range: Optional
Accuracy: 0.4%
Power Supply: 4.5V (3×AA Batteries) / USB Power Supply
Material: SS304 (Stainless Steel)
Temp:-20-40°C
Thread Type: M20×1.5 / G1/4 / G1/2 / NPT1/4 / NPT1/2(Optional)
Optional Configurations:
Pressure Range: Customizable (-0.1 to 160MPa)
Power Supply: Battery (3×AA) / USB Power Supply
Thread Type: M20×1.5 / G1/4 / Customizable Thread Types
Temperature Range: Customizable High-Temperature Version (-20°C - 150°C)
Display Units: Customizable (e.g., Bar, PSI, MPa)
Due to page limitations, some pressure ranges and configurations may not be fully listed.
For special requirements or customization options, please contact us.
2. PARAMETERS

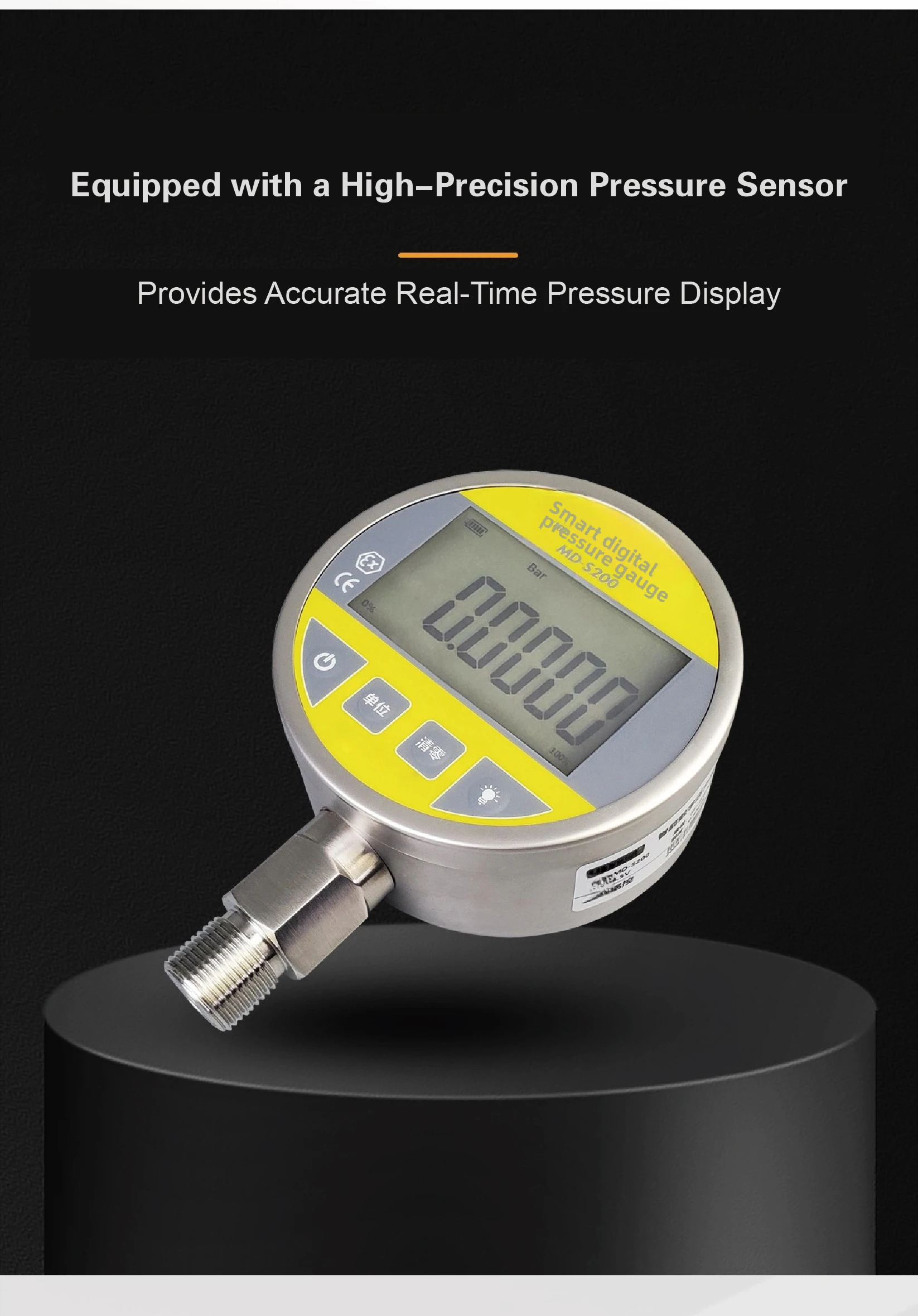

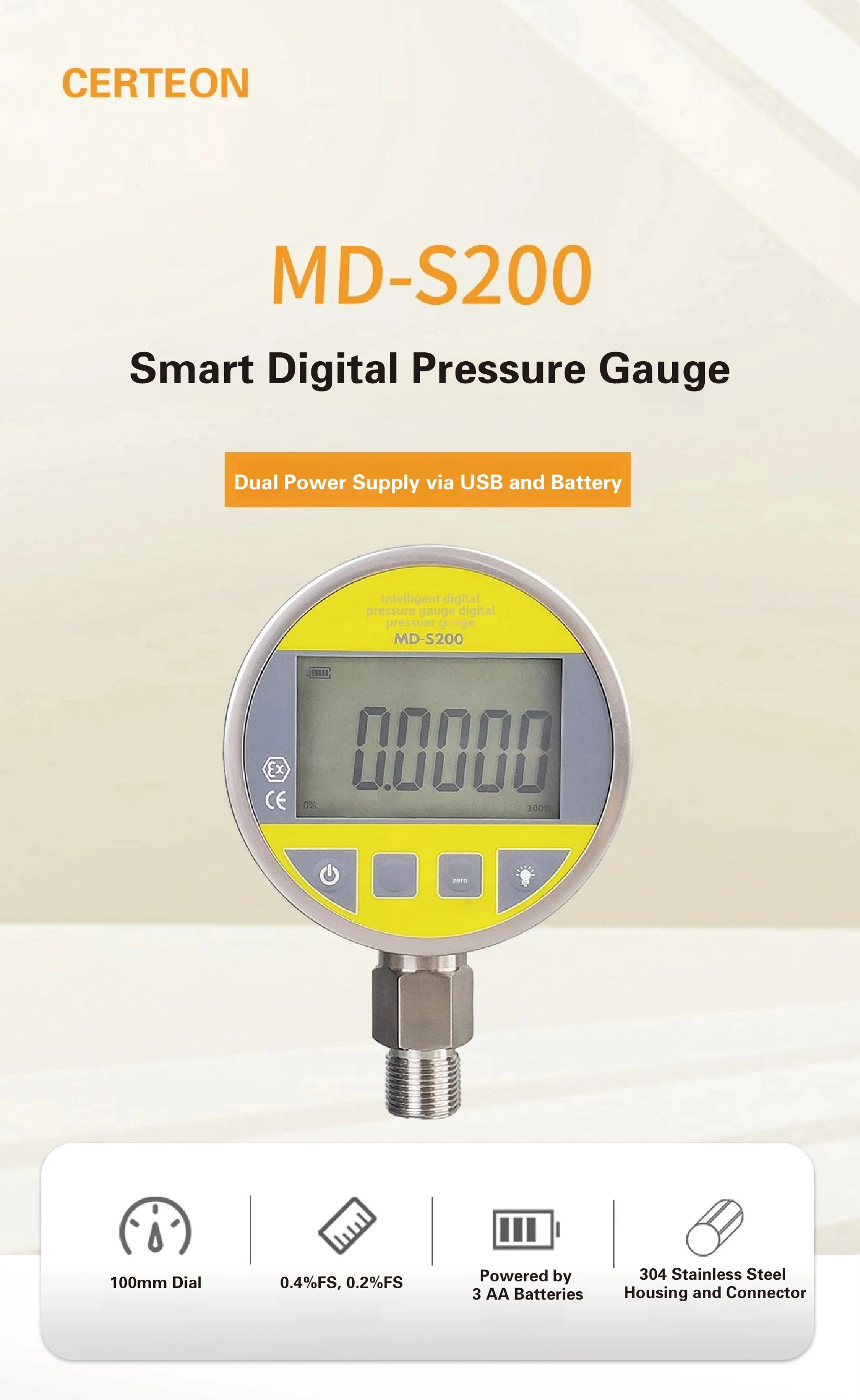

Model | MD-200 |
Pressure Range | Micro Pressure: 0-6-25kPa Low Pressure: 0-40-250kPa High Pressure: 0-6-25MPa Compound: -5-5-1000kPa Absolute: 0-100-1000kPa |
Accuracy | ±0.4% FS, ±0.2% FS |
Power Supply | 4.5V (3 AA batteries) or USB |
Display | LCD with backlight, 100mm diameter |
Material | 304 Stainless Steel Case & Fittings |
Operating Temp | -5°C to 40°C (customizable: -20°C~150°C) |
Protection | IP50 (IP54 with protective case) |
Certifications | CE, Exibl ICT4 Explosion-Proof |
3. APPLICATION
Suitable for pressure monitoring and calibration instruments.
Ideal for industrial process control and laboratory use.
Excellent replacement for pointer precision pressure gauges.
4. FEATURES
Ultra-low power design, 12+ months of battery life with 3 AA batteries.
Large LCD with 13 unit switching and white backlight.
High durability with anti-vibration and electromagnetic interference protection.
Pressure scale display showing real-time percentage values.
5. FAQ
Q: What is the maximum operating temperature?
A: Standard operating temperature is -5°C to 40°C. Custom options allow for -20°C to 150°C.
Q: Is this product suitable for measuring corrosive gases or liquids?
A: The medium must be compatible with 316 stainless steel to ensure safety and durability.
Q: What units does the device support?
A: The device supports kPa, MPa, psi, bar, and more.
