Product Description

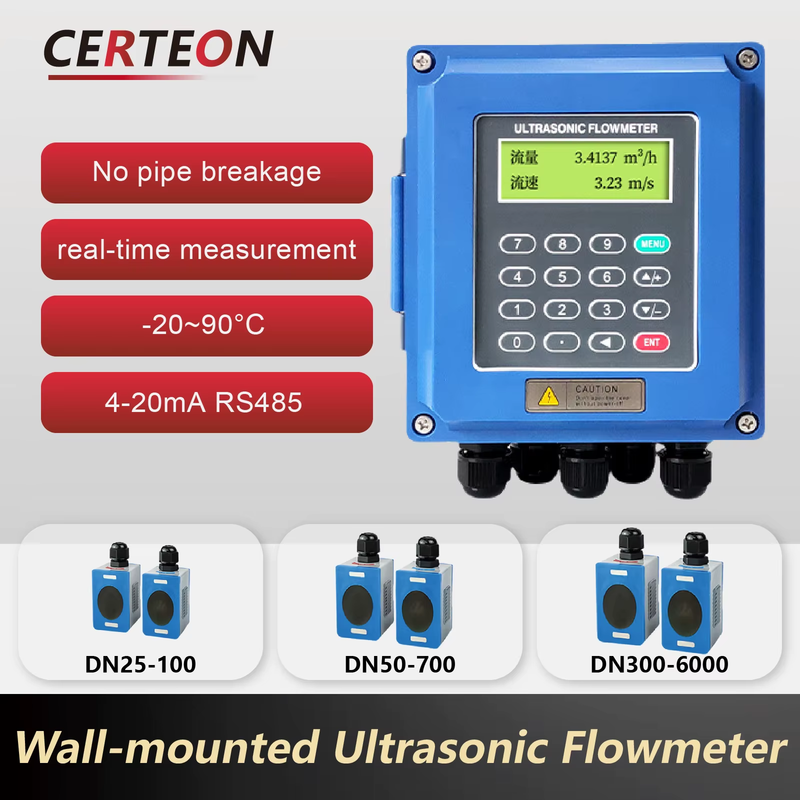

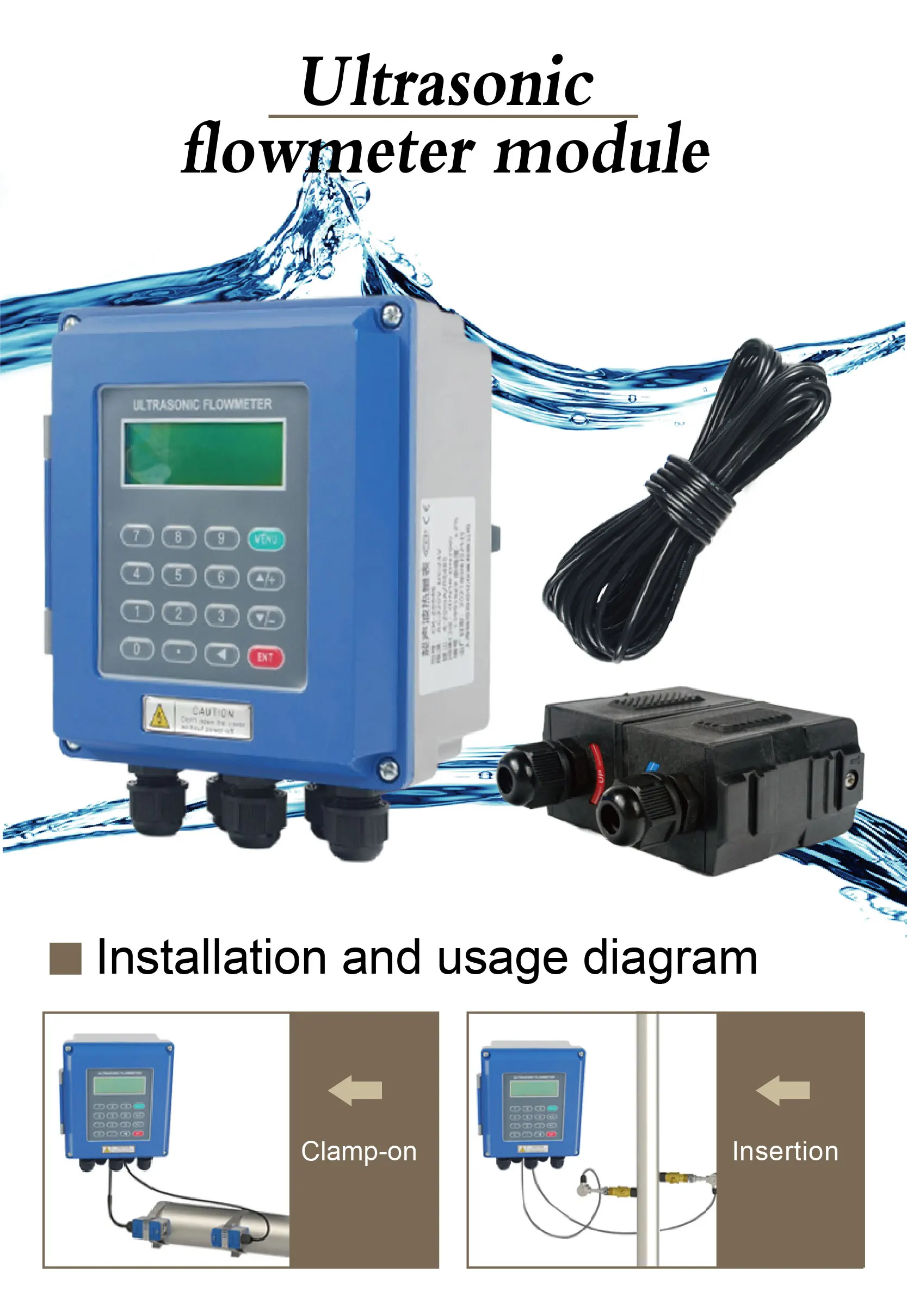

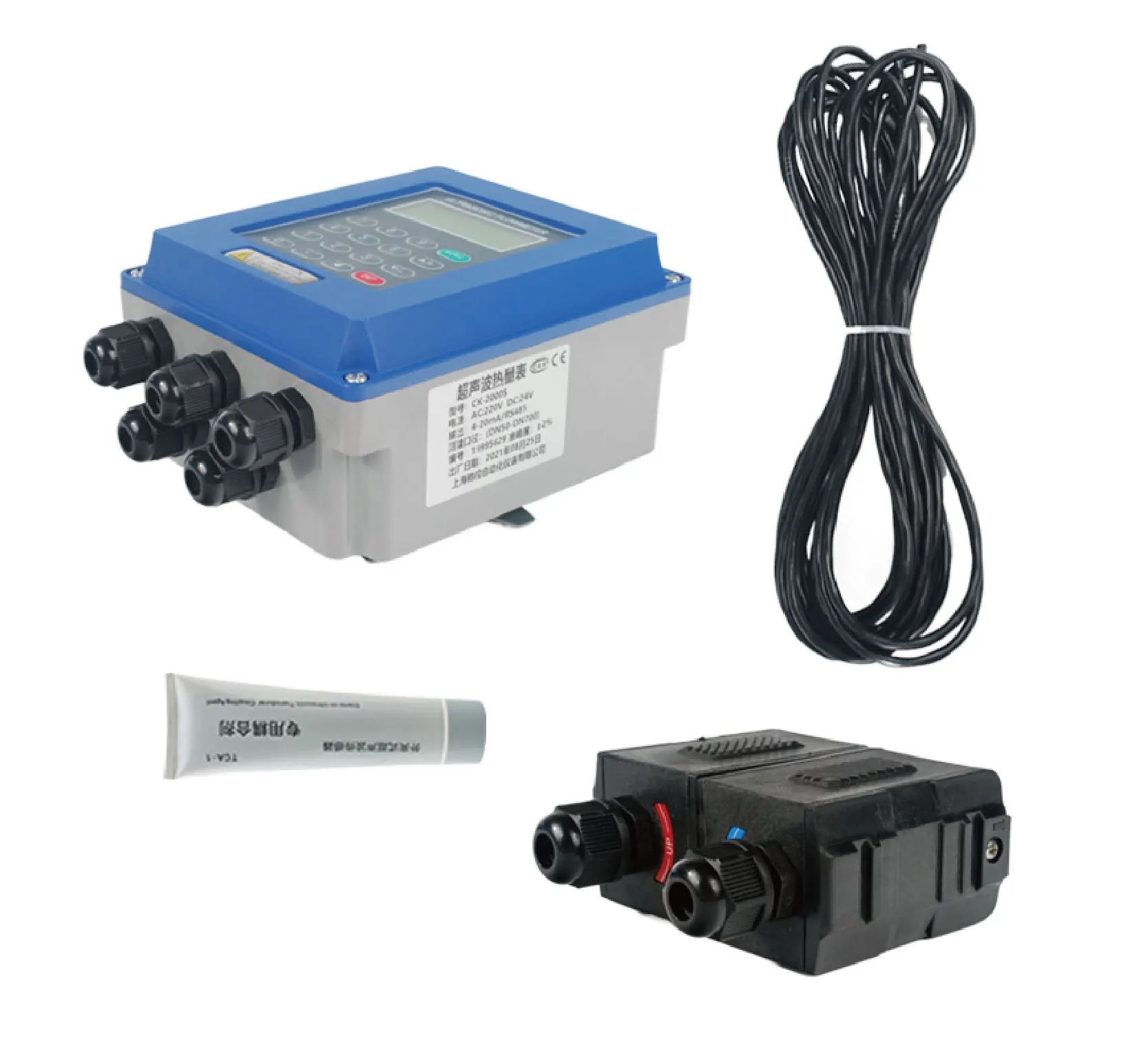

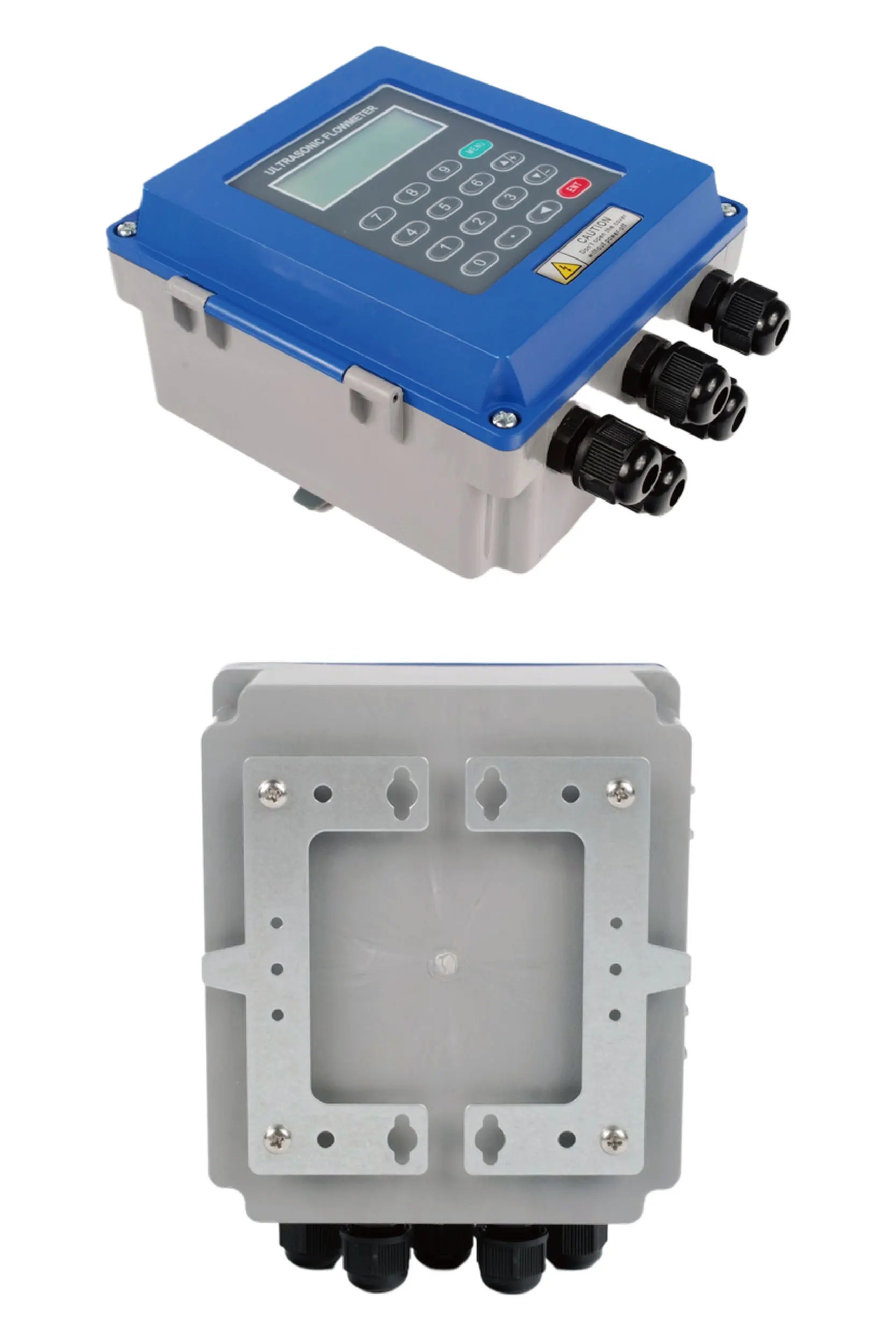

Modular ultrasonic flowmeter can be paired with three types of probes: the S-type for DN25-100 pipes, the M-type for DN50-700 pipes, and the L-type for DN300-6000 pipes. When purchasing, please ensure that the pipe diameter to be measured matches the appropriate probe!Although S, M, and L probes can all be connected to the same host, once a probe is fixed to a pipeline, it cannot be moved or detached. Therefore, it is recommended to pair each type of probe with a dedicated host. Using one host for all three types of probes is not advised.
NOTE:
"This product does not include coupling agent due to international shipping restrictions. The coupling agent is a paste-like substance that may cause shipping rejection by logistics companies.
However, the coupling agent is essential for the proper operation of the ultrasonic flowmeter. It eliminates air gaps between the sensor probe and the pipe surface, ensuring effective ultrasonic signal transmission and accurate measurements.
You may use locally available alternatives such as industrial grease, petroleum jelly, or No.2 lithium-based grease."

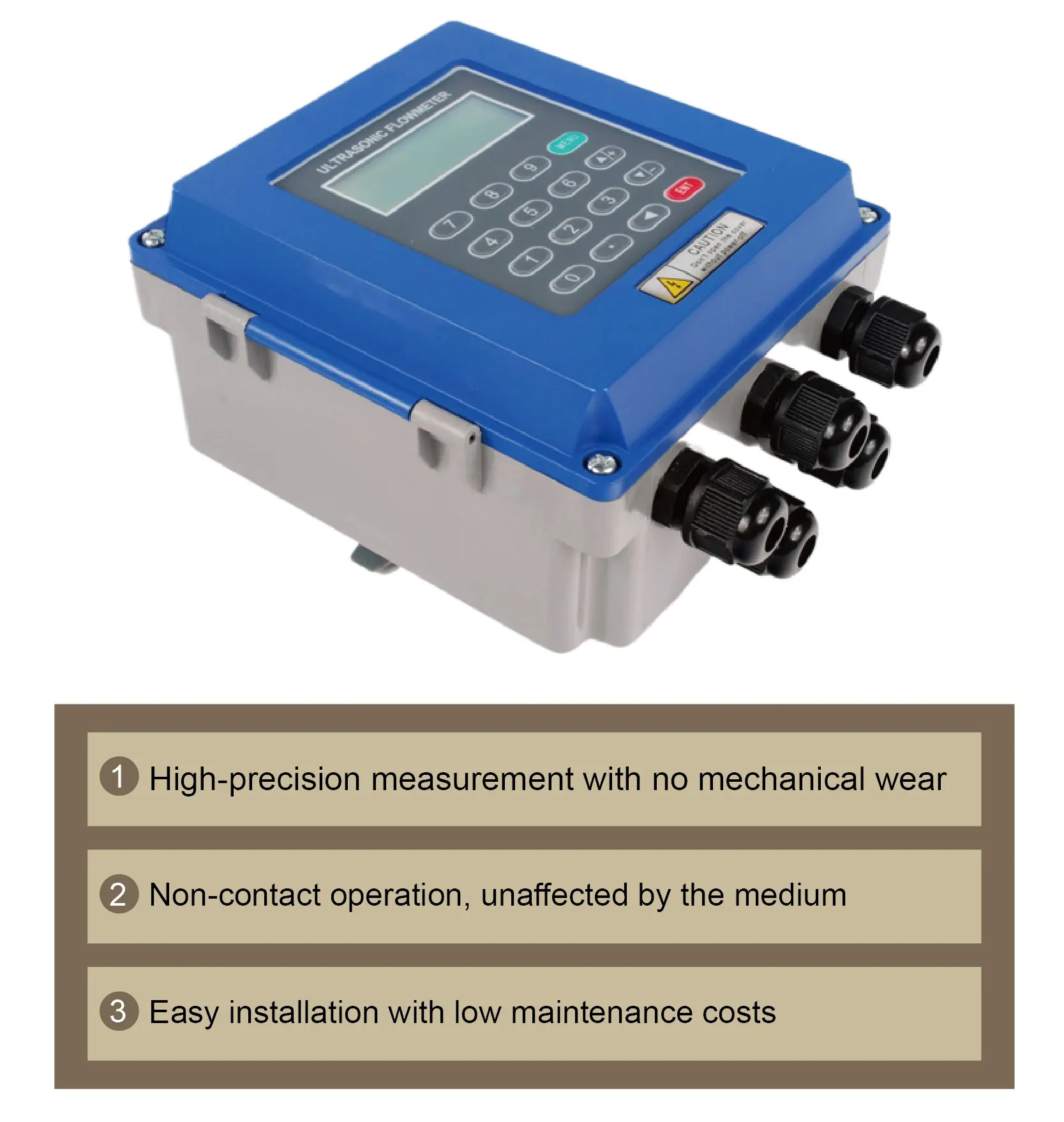

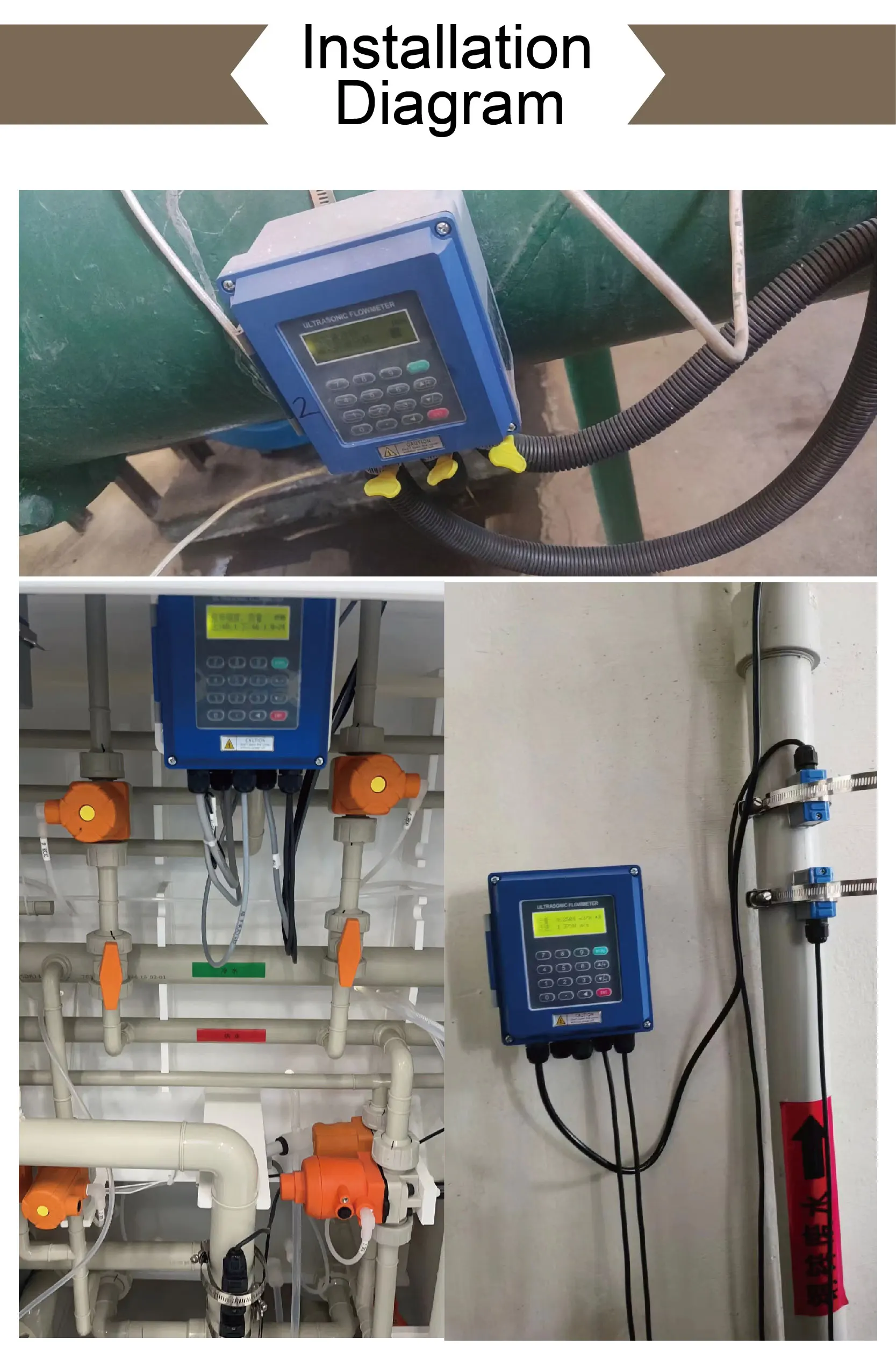

·The greatest advantage of the wall-mounted ultrasonic flowmeter is that it does not require pipe cutting for installation; it can measure flow directly inside the pipe using clamp-on transducers. However, compared to other in-line flowmeters, it may have some limitations in measurement
·The wall-mounted ultrasonic flowmeter is suitable for pipes made of PP,PVC, metal, or glass. However, it is not suitable for flow measurement in corrugated pipes or pipelines made of non-homogeneous materials
·Based on experience, in addition to strictly following the installation steps in the manual during setup, factors such as rust or dirt buildup inside the measured pipeline can also affect ultrasonic measurement accuracy

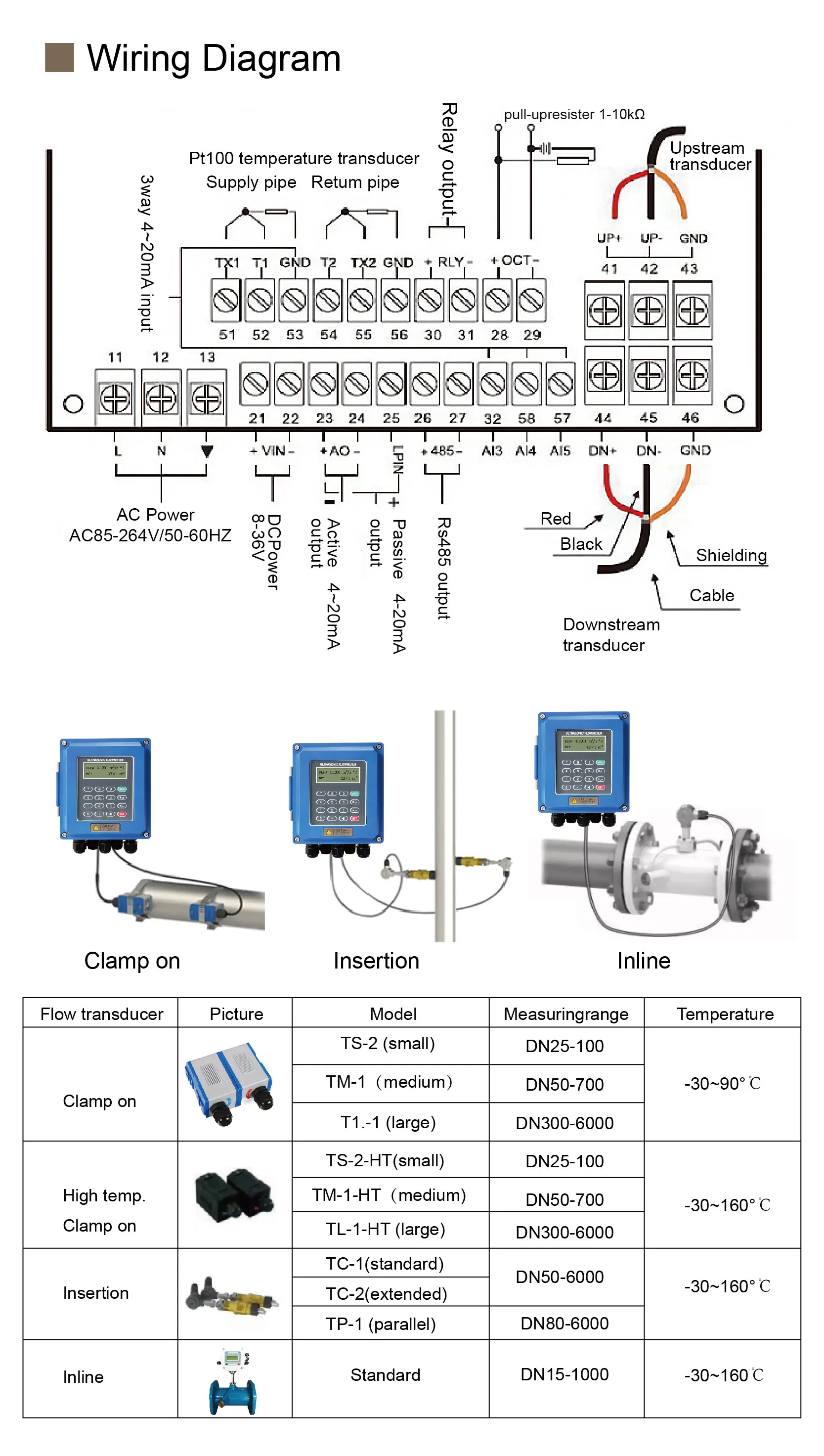

Optional transducer
◆ S-1 clamp-on type transducer, pipe size from DN25-100mm
◆ M-1 clamp-on type transducer, pipe size from DN50-1000mm
◆ L-1 clamp-on type transducer, pipe size from DN300-6000mm
Typical application
The wall-mounting flow meter can be applied to a wide range of pipe flow measurements. Applicable liquids include pure liquids as well as liquid with small quantity of tiny particles.
Examples are:
★Water (hot water, chilled water, city water, sea water, waste water, etc.);
★ Sewage with small particle content;
★ Oil (crude oil, lubricating oil, diesel oil, fuel oil, etc.);
★ Chemicals (alcohol, acids, etc.);
★ Plant effluent;
★ Beverage, liquid food;
★ Ultra-pure liquids;
★ Solvents and other liquids

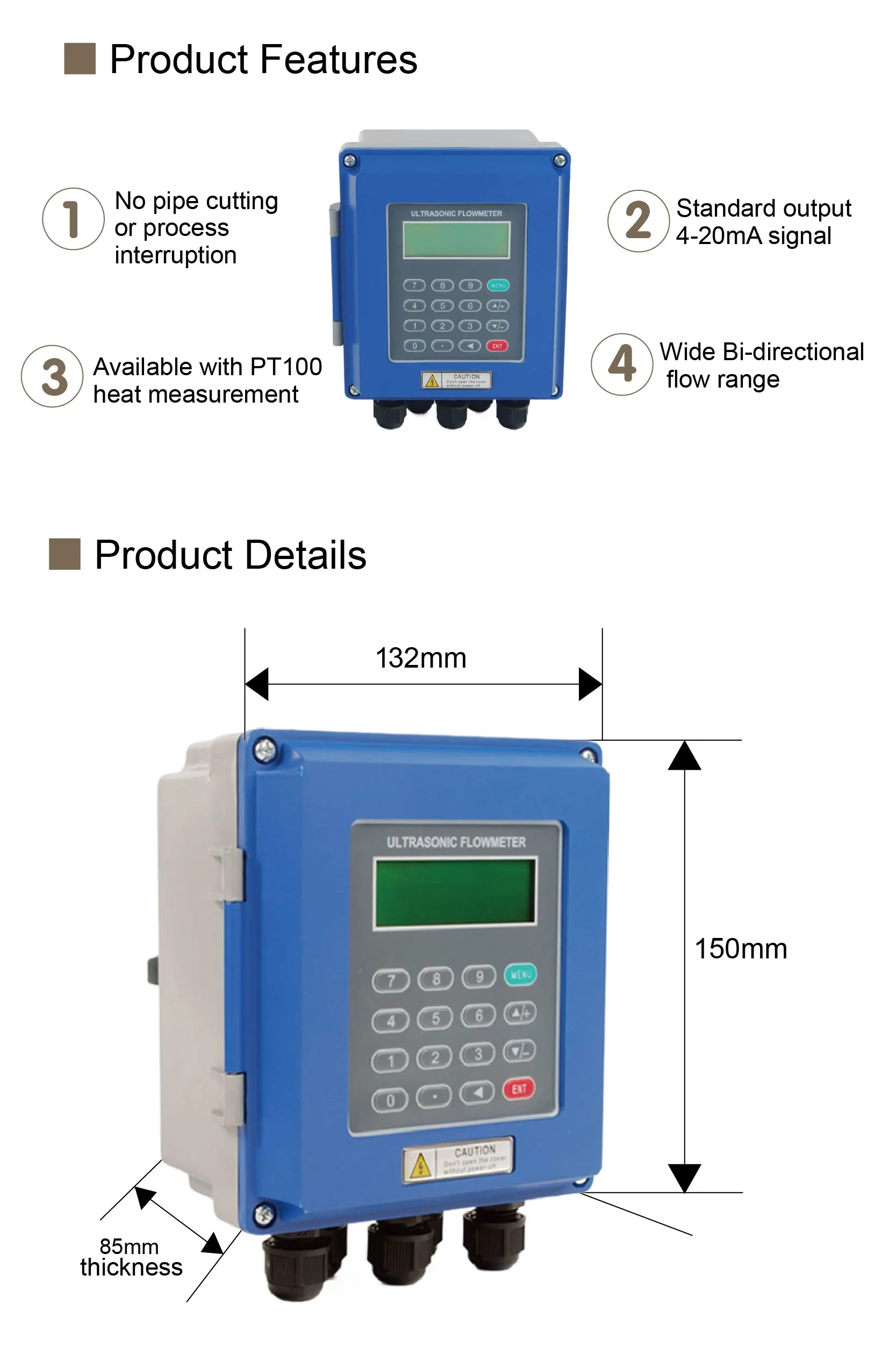

Specifications
Items | Specifications | |
Main unit | Accuracy | Better than ±1% |
Repeatability | Better than 0.2% | |
Principle | Transit-time measuring principle | |
Measurement Period | 500ms | |
Display | LCD with backlight,display accumulated flow/heat, instantaneous flow/heat, velocity, time etc. | |
Output | Analogue output: 4-20mA or 0-20mA current output. Impedance 0∼1kW. Accuracy 0.1%. | |
OCToutput:Frequencysignal (1~9999HZ) | ||
Relay output: over 20 source signal (no signal, reverse flow etc.) | ||
RS485 serial port | ||
Input | Three analogue input | |
Three-wire PT100 resistor input (optional) | ||
Other functions | Automatically record the totaliser data of the last 64 days / 64 months / 5 years; The power-on time and corresponding flow rate of the last 64 power on and off events. Allow manual or automatic flow loss compensation The instrument working status of the last 64 days | |
pipe | material | Steel, stainless steel, cast iron, cement pipe, copper, PVC, aluminum, FRP etc. Liner is allowed |
Size | 15-6000mm | |
Straightpipe section | In the upstream it must be beyond 10D, in the downstream it must be beyond 5D, in the upstream the length must be beyond 30D from the access of the pump. (D stands for pipe diameter) | |
Liquid | Types | Water, sea water, industrial sewage,acid & alkali liquid, alcohol, beer, all kinds of oils which can transmit ultrasonic single uniform liquid |
Temperature | Standard: -30˚C - 90˚C ，High-temperature：-30˚C - 160˚C | |
Turbidity | Less than 10000ppm, with a little bubble | |
Flow Direction | Bi-directional measuring, net flow/heat measuring | |
Environment | Temperature | Main Unit: -30˚C - 80˚C |
Transducer: -40℃-110℃, Temperature transducer: select on enquiry | ||
Humidity | Main Unit: 85% RH | |
Transducer: water-immersible, water depth less than 3m | ||
Cable | Twisted Pair Line, standard length of 20m, can be extended to 500m (not recommended); Contact the manufacturer for longer cable requirement. RS-485 interface, transmission distance up to 1000m | |
Power Supply | AC220V or DC24V | |
Power Consumption | Less than 1.5W | |
Protocols | MODBUS, M-BUS, Fuji extended protocol and other factory protocol |
FAQ
Q: What is the accuracy level of this flowmeter?
A: The flowmeter offers an accuracy level of ±1%.
Q: Is it possible to install this device outdoors?
A: Yes, with an IP65 protection level, it is suitable for outdoor environments.
Q: Can I customize the power supply options?
A: Yes, please contact us to discuss custom power requirements.
