Product Description
1. NOTE
Default Parameters
The fiber optic head and amplifier must be used together to function properly.
FX-551 Fiber Optic Amplifier
Power supply: DC 12–24V
Output: NPN
Delay functions: OFF/ON delay, one-shot/delay one-shot timer function
Fiber Optics
Fiber series: Diffuse reflection series, Through-beam series, Right-angle diffuse reflection, Right-angle through-beam
Fiber models: M3, M4, M6
2. Parameters
Parameter | Specification |
Model | FX-551 / NT-551 (NPN), NT-551P (PNP) |
Output Type | 1 output channel, wire type, with short-circuit protection |
Power Supply | 12–24V DC (±10%) |
Output Capacity | Max. 100mA (Main), Max. 20mA (When extension connected) |
Response Time Options | 25μs / 50μs / 100μs / 200μs / 800μs / 1.6ms |
Output Mode | LIGHT-ON / DARK-ON selectable |
Display | Dual 7-segment LED (red for current, green for threshold) |
Detection Range | 0–9999 (based on light intensity) |
Timer Functions | ON-delay, OFF-delay, One-shot, ON-delay one-shot |
Frequency Modes | F1–F4 (adjustable) |
Light Source | Red LED (4-element) |
Anti-interference | Built-in automatic interference prevention |
Ambient Light Resistance | Sunlight: up to 30,000 lux |
Operating Temperature | -10°C to +55°C (no freezing) |
Vibration Resistance | 10–55Hz, 1.5mm amplitude, 2h per axis (X/Y/Z) |
Power Consumption | Max. 300mW (at 24V) |
3. Features
Ultra-Fast Response (25μs)
Detects up to 20,000 objects per second—ideal for high-speed production lines.
Dual Digital Display
Real-time display of current detection value and threshold with red/green LEDs.
Adjustable Frequency (F1–F4)
Reduces mutual interference in multi-sensor setups.
Multi-Timer Functions
Includes ON-delay, OFF-delay, one-shot, and ON-delay one-shot timers.
Advanced Optical Design
Incorporates a parabolic reflector LED and optimized control algorithm for stable performance.
Transparent & Micro Object Detection
Accurately detects clear and tiny objects with high sensitivity.
4. Applications

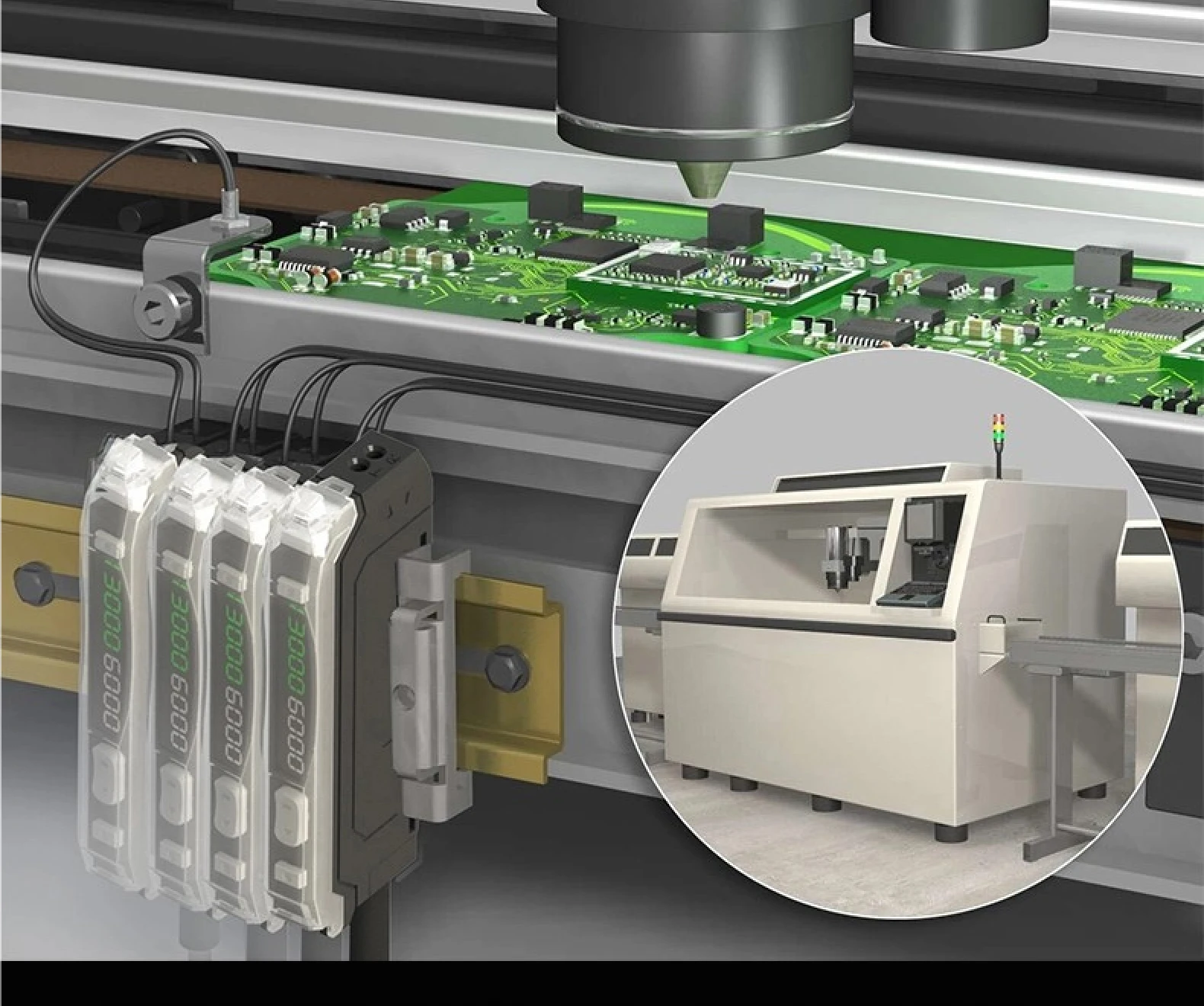

Ideal for high-speed production lines, automatic inspection systems, precision positioning, and transparent object detection in electronics, packaging, and automation industries.
5. FAQs
Q1: Can the amplifier work without a fiber optic sensor head?
A1: No. The amplifier must be used together with a compatible fiber optic sensor head to function.
Q2: What types of fiber optic heads are supported?
A2: The amplifier supports diffuse type, through-beam type, right-angle diffuse, and right-angle through-beam fiber sensor heads.
Q3: Can it detect transparent materials?
A3: Yes. It is equipped with fine light detection capabilities, allowing reliable detection of transparent or highly reflective objects.
