Product Description
1.NOTE
Please select the corresponding pressure range and thread size from the options on the page and place your order directly. If you require a custom pressure unit or connection type, please feel free to contact us. We can customize production according to your requirements.

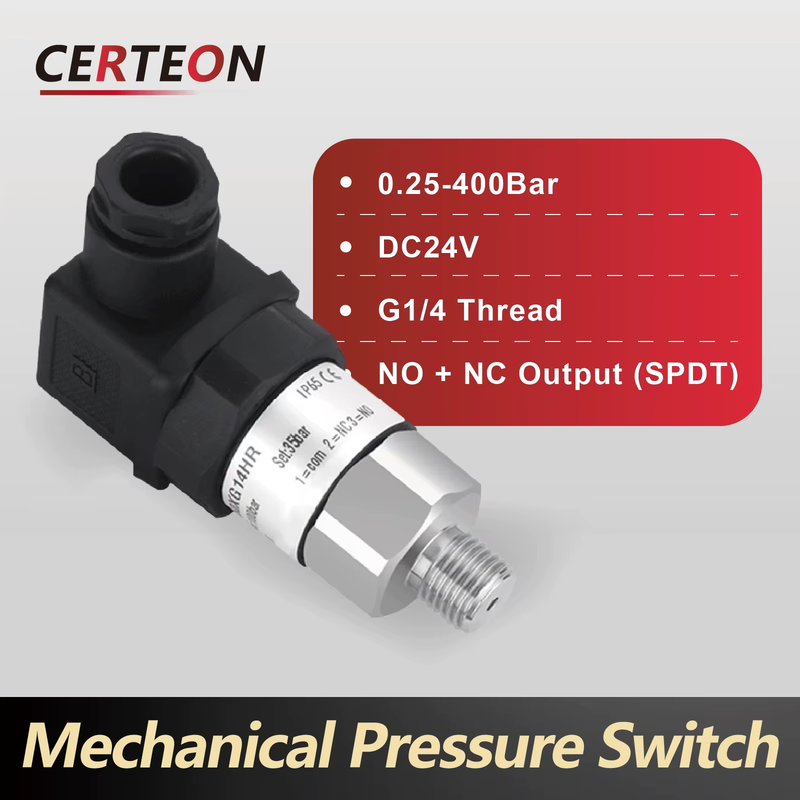

The default configuration includes:
· Pressure range: 0.25-400Bar
· SPDT output (Normally Open + Normally Closed)
· Thread connection: G1/4

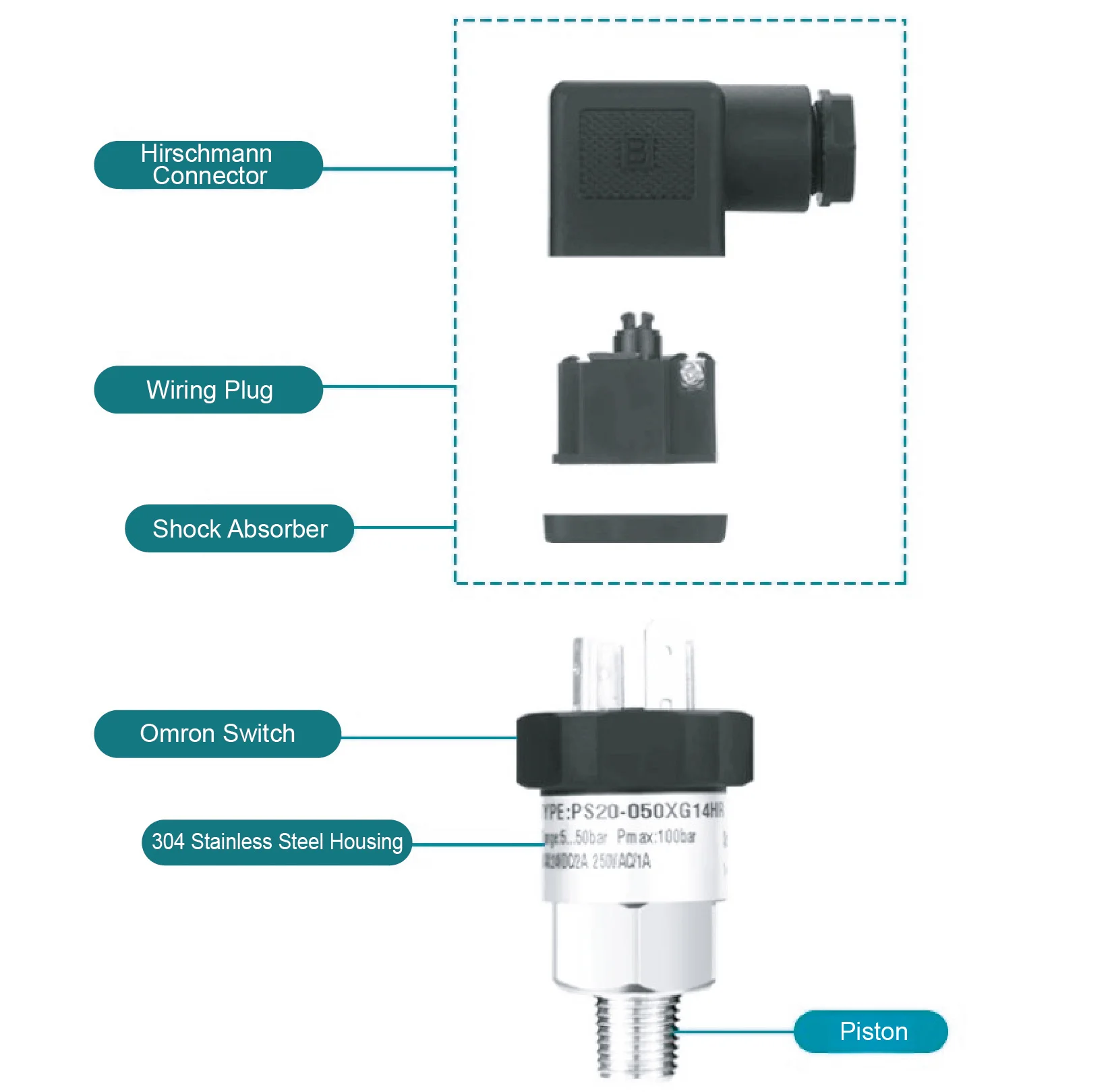

· Forged 304 stainless steel housing
· Hydraulic interface materia:SS304

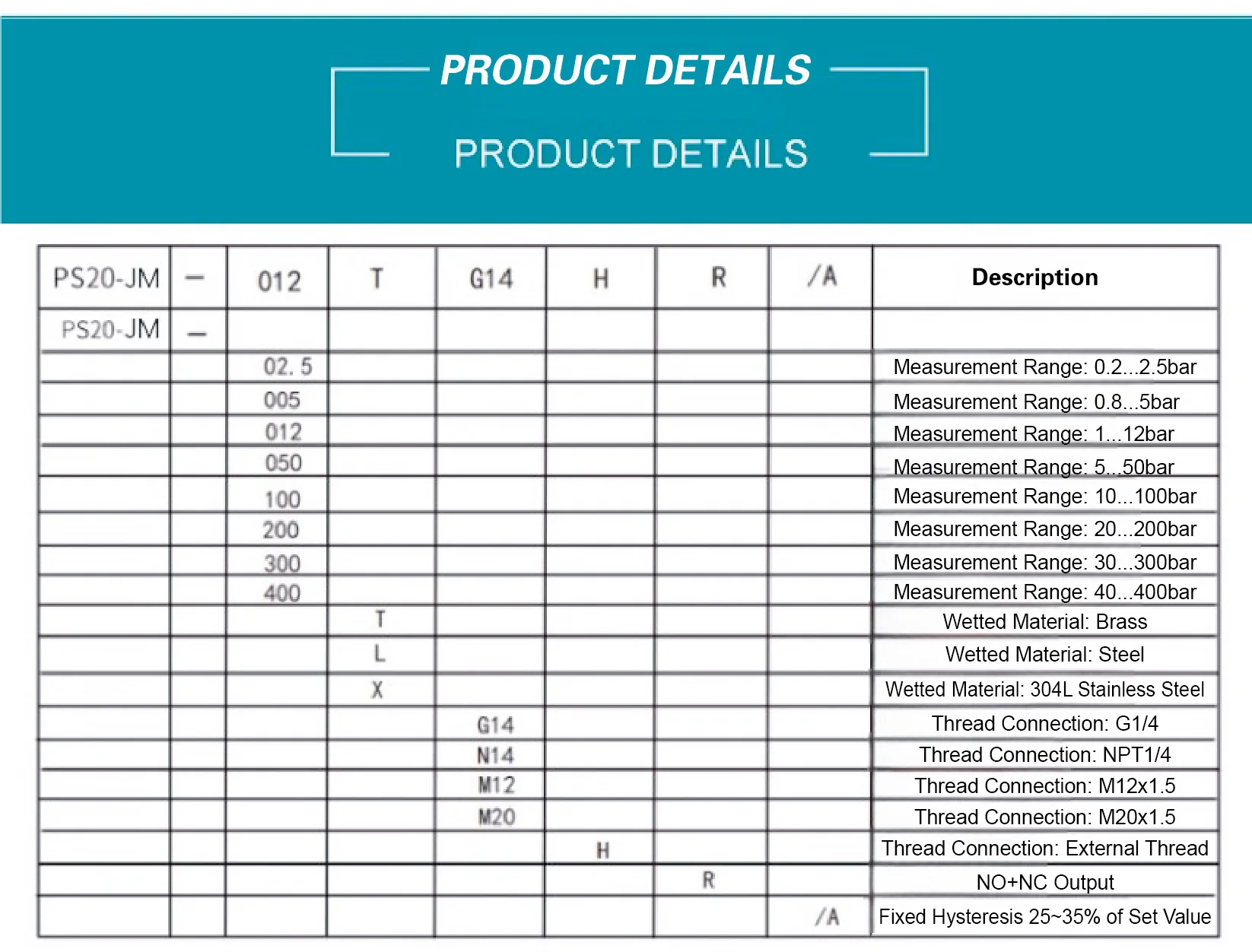

Optional configurations include:
· Alternative thread options (NPT1/4, M12*1.5, M20*1.5)
· Hydraulic interface material selection:Brass or Stainless steel.
If you have bulk purchase requirements, please contact us to receive a more competitive price!
2.Parameters

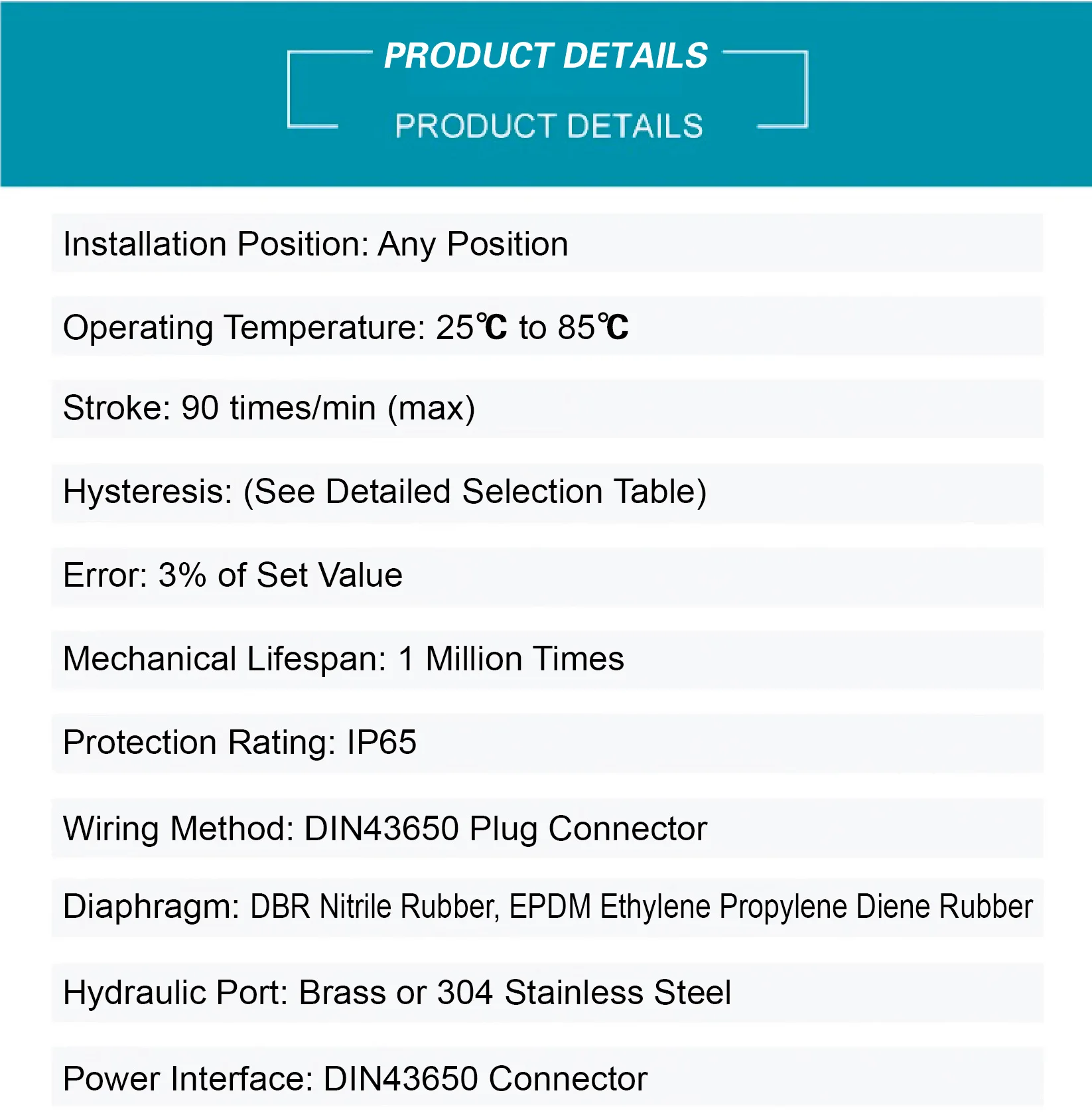

Specification | Details |
Pressure Range | 0.2-400 bar |
Hysteresis | 10~20% of set value |
Output Type | Normally Open + Normally Closed (SPDT) |
Operating Voltage | 24VDC ±20% / 230VAC ±15% |
Medium Temperature | 0-80°C |
Ambient Temperature | -25-80°C |
Service Life | 1,000,000 cycles |
Accuracy | 3% of set value |
Hydraulic Port | Brass or 304 stainless steel |
Protection Level | IP65 |
3.Features
High Durability:
Constructed with forged 304 stainless steel, featuring excellent wear resistance and durability, meeting national hardness standards.
Adjustable Action Points:

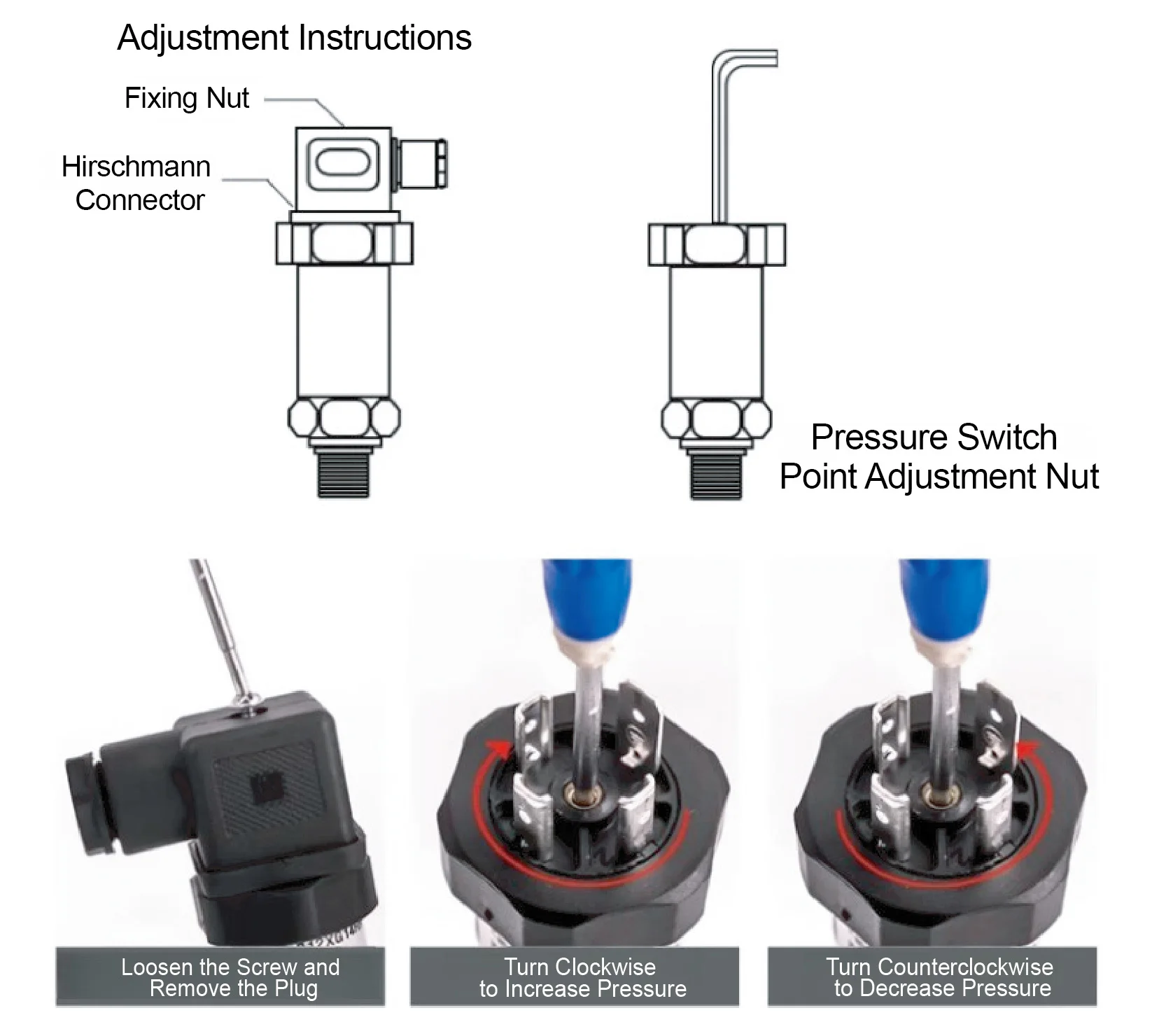

Pressure point adjustment enables precise control of equipment start/stop with high sensitivity and overload protection.
Reliable Connectivity:

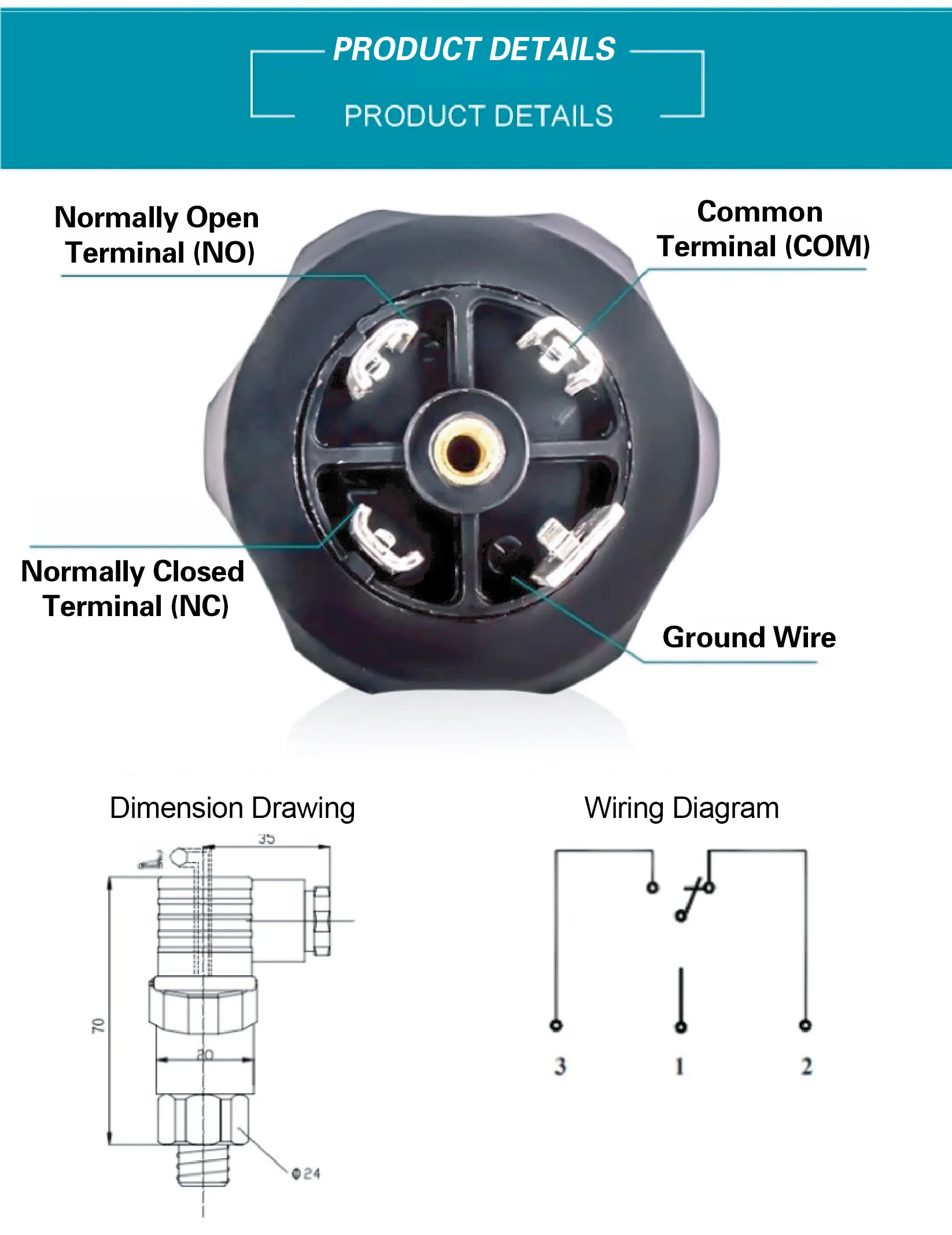

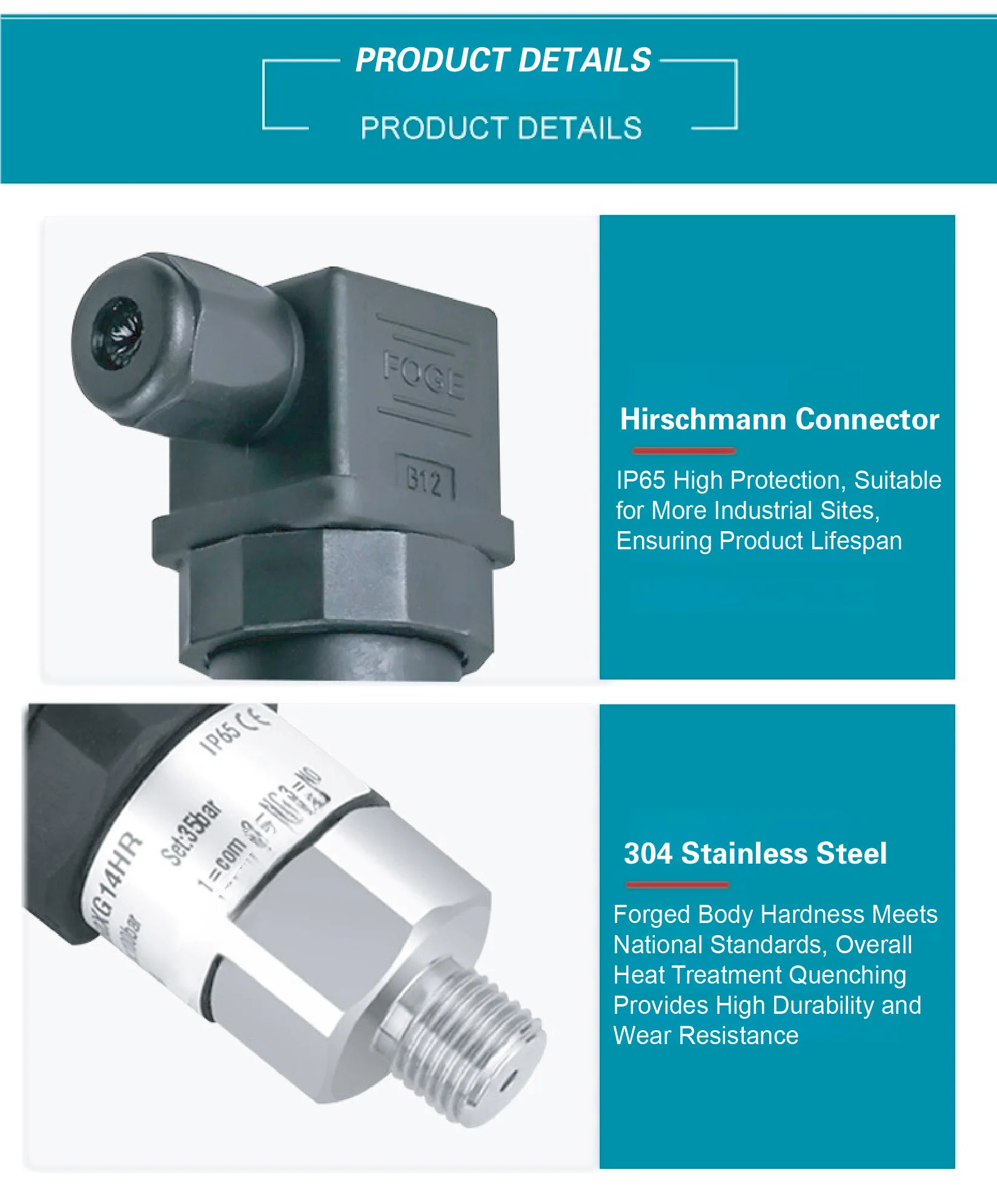

Equipped with a DIN-standard Hirschmann connector, providing IP65 protection, ensuring safety in harsh industrial environments.
Long Service Life:
Tested for 1,000,000 operational cycles, ensuring extended performance in high-demand applications.
4.Applications
Industrial Automation: Pressure monitoring and control in automated systems.
Hydraulic Systems: Suited for hydraulic circuits requiring precise pressure adjustments.
Pumps and Compressors: Ensures operational safety by managing start/stop points.
5.FAQs
Q1:What pressure range can this switch handle?
A1:The switch supports pressures between 0.2 and 400 bar, adjustable to meet various application needs.
Q2:Is it suitable for outdoor use?
A2:Yes, the IP65 protection ensures resistance to dust, water, and harsh conditions, making it suitable for outdoor installations.
Q3:What materials are available for the hydraulic port?
A3:The hydraulic port is available in brass or 304 stainless steel, depending on your preference.
