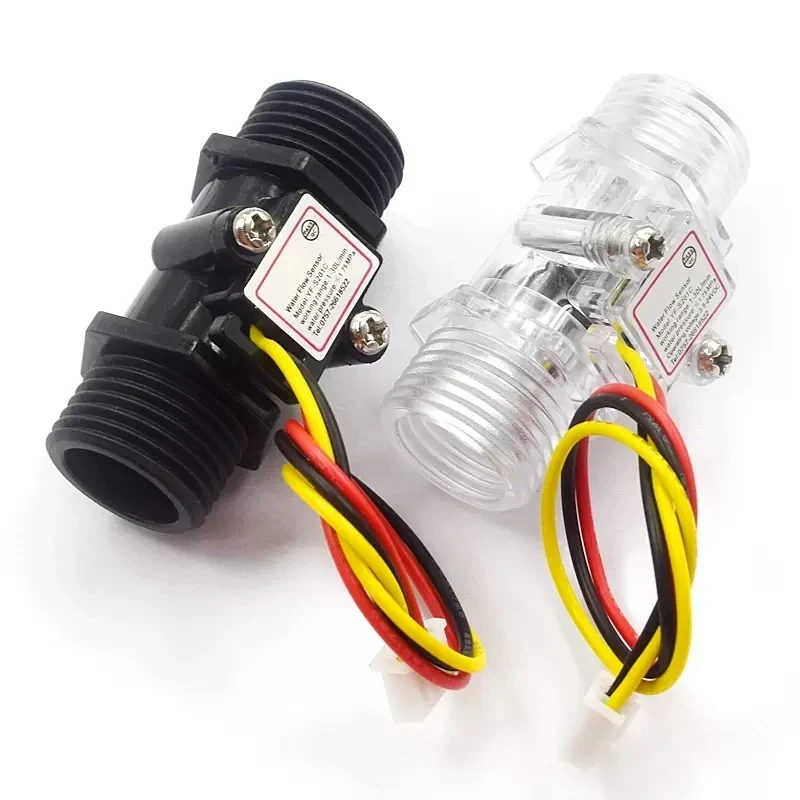

G1/2 Plastic Water Flow Sensor – Turbine Hall Flow Meter for Arduino
Product Description:
This G1/2 water flow sensor features a durable plastic valve body, an integrated rotor assembly, and a Hall effect sensor for precise water flow measurement. Designed for seamless integration with Arduino and other control systems, it is ideal for use in water heaters, vending machines, credit card-operated dispensers, and various flow measurement applications.
Constructed with a stainless steel impeller shaft for enhanced durability and wear resistance.
Innovative upper and lower sealing ring structure ensures a leak-proof performance.
For optimal accuracy, install vertically with no more than 5° inclination.
Suitable for media temperatures up to 120°C.
Specifications:
Material: Plastic / Monocrystalline
Color: Transparent
Working Voltage: DC 3.5–24V
Max Operating Current: 15mA (at 5V)
Load Capacity: ≤10mA (at 5V)
Working Temperature: ≤80°C
Pressure Tolerance: Up to 1.75MPa
Storage Temperature: -25°C to +80°C
Flow Range: 1–25 L/min
Flow Pulse Output: Q = L/min ±5% (5xQ)
Pulse Duty Cycle: 50% ±10%
Insulation Resistance: >100MΩ
External Thread Size: Approx. 1/2"
Interface Type: 1/2" tubing

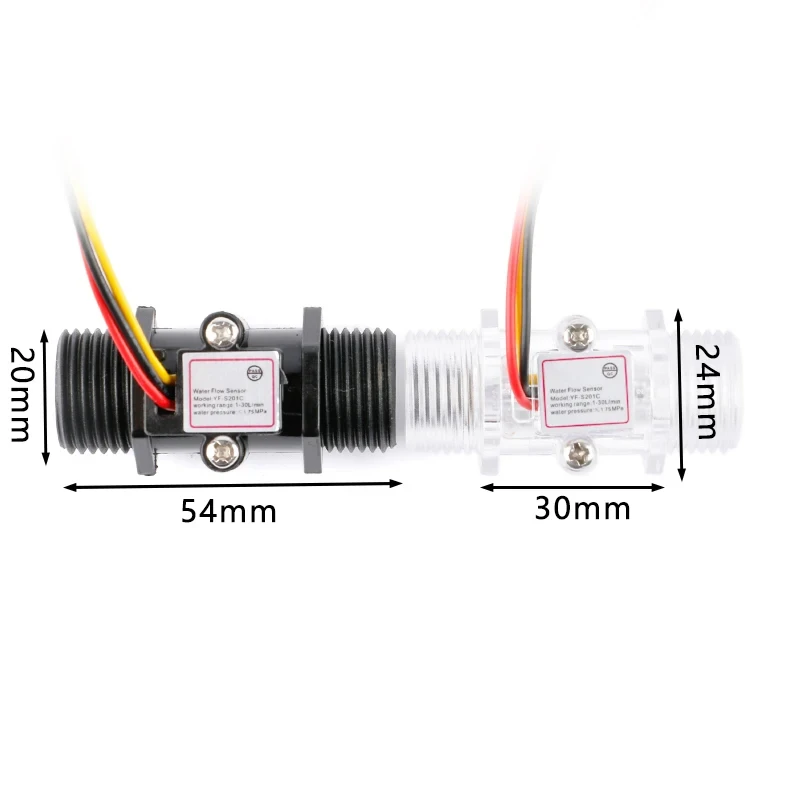

Dimensions: 54 x 29 mm (L x W)
Wiring: Red = Power (IN), Black = Ground (GND), Yellow = Signal Output (OUT)
Package Includes:
1 x G1/2" Water Flow Sensor with Transparent Enclosure
Note:
Manual measurement may cause a 0–3 cm variance.
Monitor settings may slightly affect the item's color appearance.
FAQs
Q1: Can this water flow sensor be used directly with Arduino boards?
A1: Yes, the sensor provides a pulse output signal compatible with Arduino digital input pins. You can easily read the flow rate using an interrupt-based code.
Q2: Is this flow sensor suitable for hot water applications?
A2: Yes, it can handle medium temperatures up to 80°C during operation and withstand storage temperatures up to 120°C, making it suitable for water heaters and similar devices.
