Product Description
NOTE

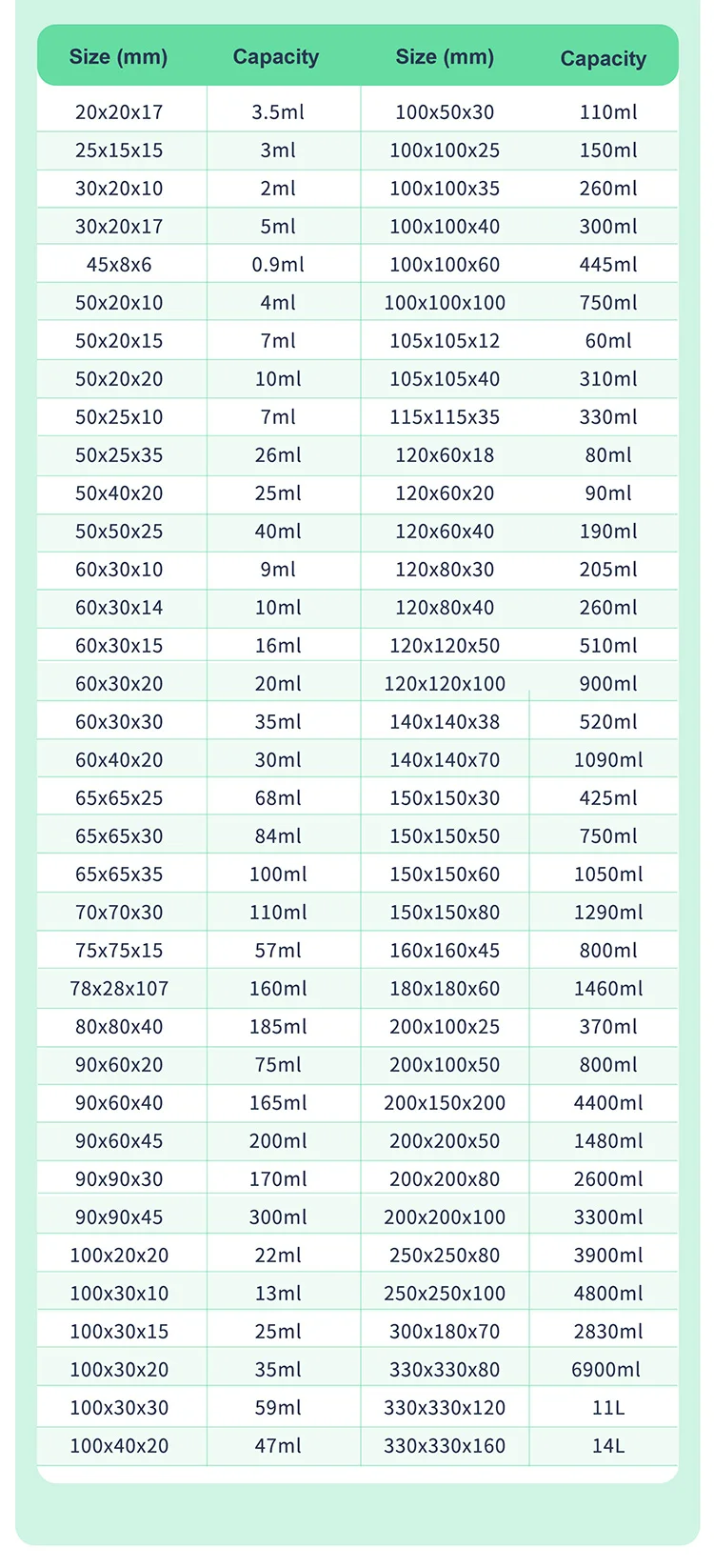

Length (mm): 20, 25, 30, 45, 50, 60, 65, 70, 78, 80, 85, 90, 100, 101, 105, 115, 120, 135, 140, 150, 155, 160, 180, 200, 250, 290, 300, 330, 340, 400, 526 (optional)
Width (mm): 15, 20, 22, 25, 30, 38, 40, 50, 60, 65, 70, 80, 85, 90, 100, 101, 105, 115, 120, 135, 140, 150, 155, 160, 180, 186, 200, 220, 250, 330 (optional)
Height (mm): 6, 10, 11, 12, 14, 15, 17, 20, 25, 30, 35, 38, 40, 45, 50, 60, 70, 80, 85, 100, 120, 160, 180, 200 (optional)
Due to page limitations, some sizes and configurations are not fully listed. Please contact us if needed.

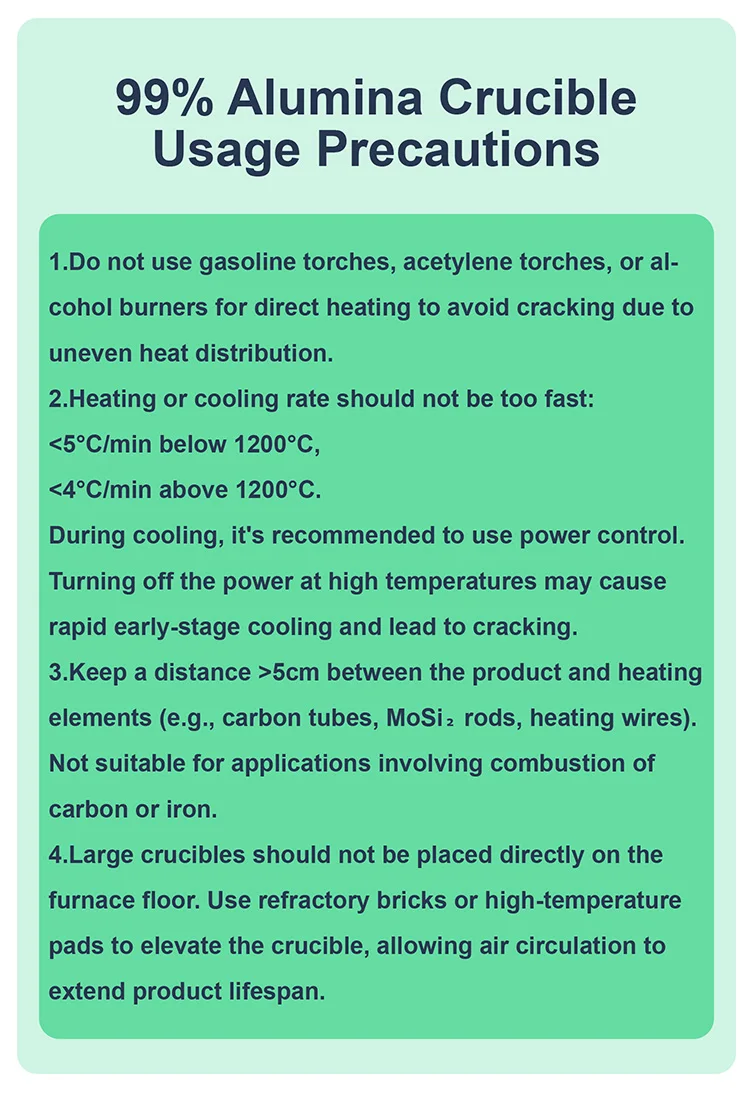

Precautions for Use
1、Avoid direct heating with gasoline, acetylene, or alcohol torches to prevent uneven heating and cracking.
2、Control heating/cooling rates:
Below 1200 °C: <5 °C/min
Above 1200 °C: <4 °C/min
Use controlled cooling; rapid cooling may cause cracks.
3、Keep >5 cm from heating elements; not for use with carbon or iron burning.
4、For large crucibles, avoid direct contact with furnace floor—use heat-resistant supports to allow airflow and extend service life.

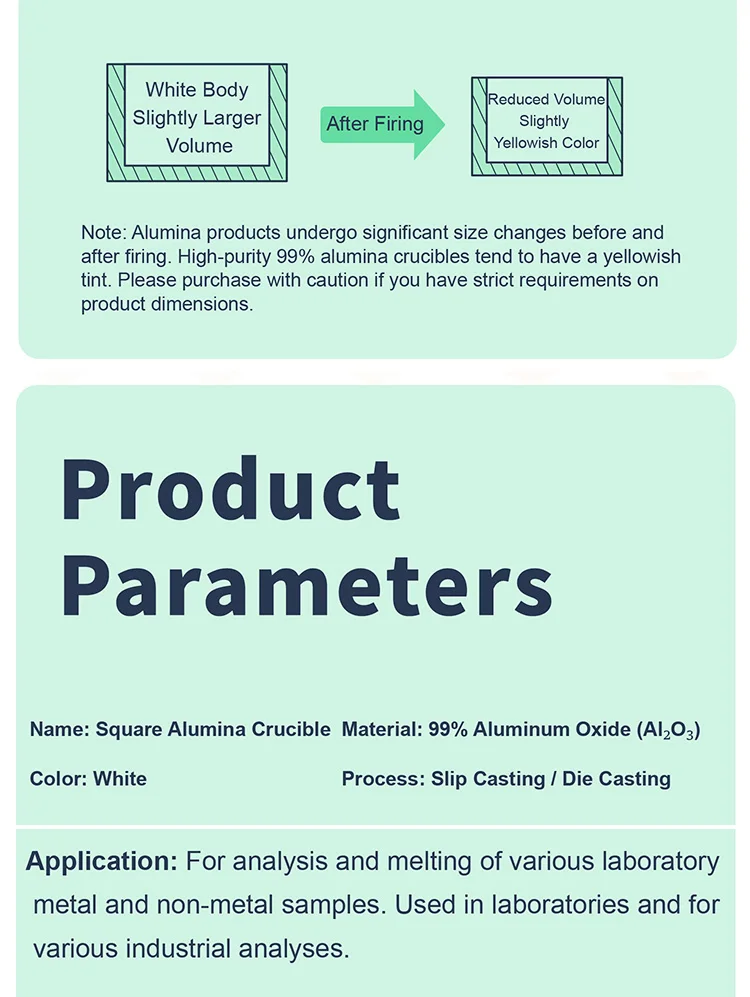

Parameters
Specification | Details |
Material | 99% Alumina |
Color | White (slightly yellowish for high purity) |
Shape | Square with lid |
Forming Process | Slip casting / Press forming |
Max. Working Temperature | ≤1600 °C |
Applications | Metal and non-metal sample analysis, melting, laboratory & industrial testing |
Features
High-Temperature Resistance– Withstands up to 1600 °C, suitable for demanding thermal environments.
High-Purity Material– Made from 99% alumina for excellent chemical stability and low contamination.

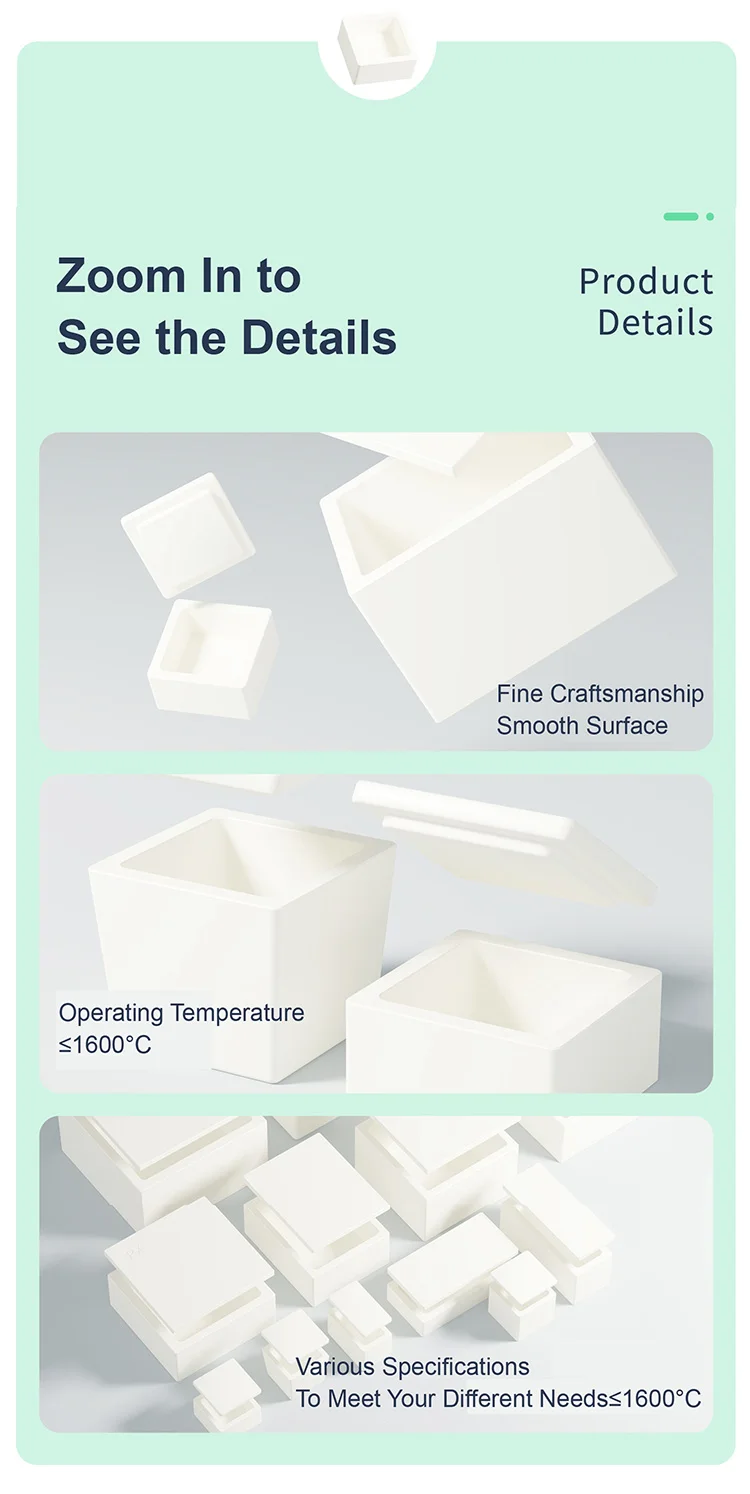

Fine Craftsmanship– Smooth surface and precise forming process ensure consistent performance.
Multiple Specifications– Available in various sizes to meet different experimental needs.
Durable Design– Optimized for repeated heating cycles, extending service life.
Applications
Suitable for laboratories, metallurgy, ceramics, glass, chemical analysis, and high-temperature material testing.
FAQs
Q1: Can I heat it directly with a gas torch?
A1: No. Direct heating with gasoline torch, acetylene torch, or alcohol lamp may cause thermal shock and cracking.
Q2: How fast can I heat or cool the crucible?
A2: Below 1200 °C, ≤5 °C/min; above 1200 °C, ≤4 °C/min to avoid cracking.
Q3: Can it be placed directly on the furnace bottom?
A3: For large crucibles, avoid direct contact; use alumina pads to allow airflow and prolong service life.
