MINI APM V3.3 Flight Controller Ardupilot RC Quadcopter Multicopter APM2.8 Air C

Product Description

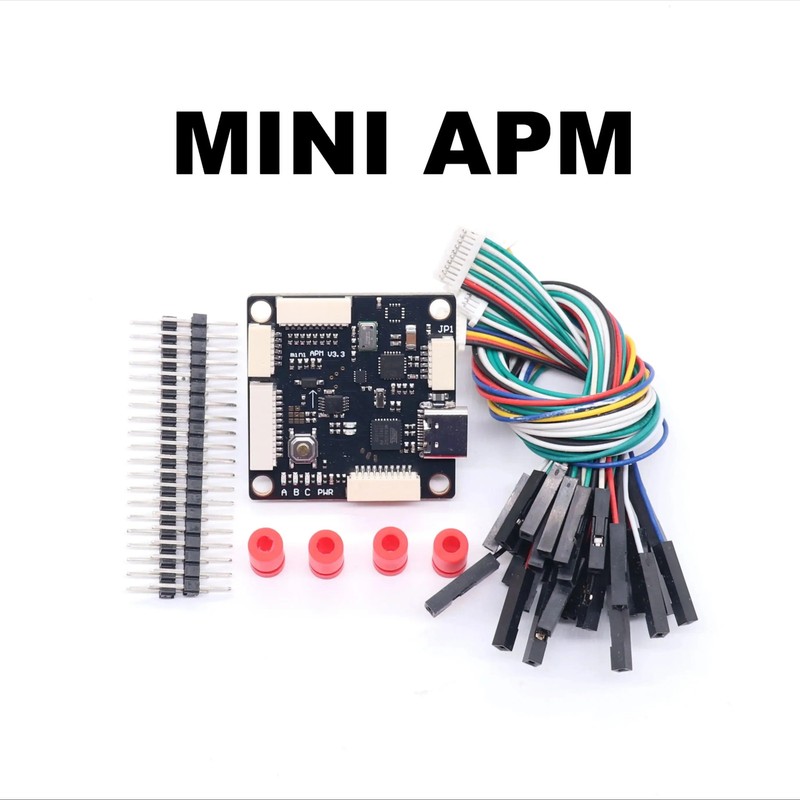

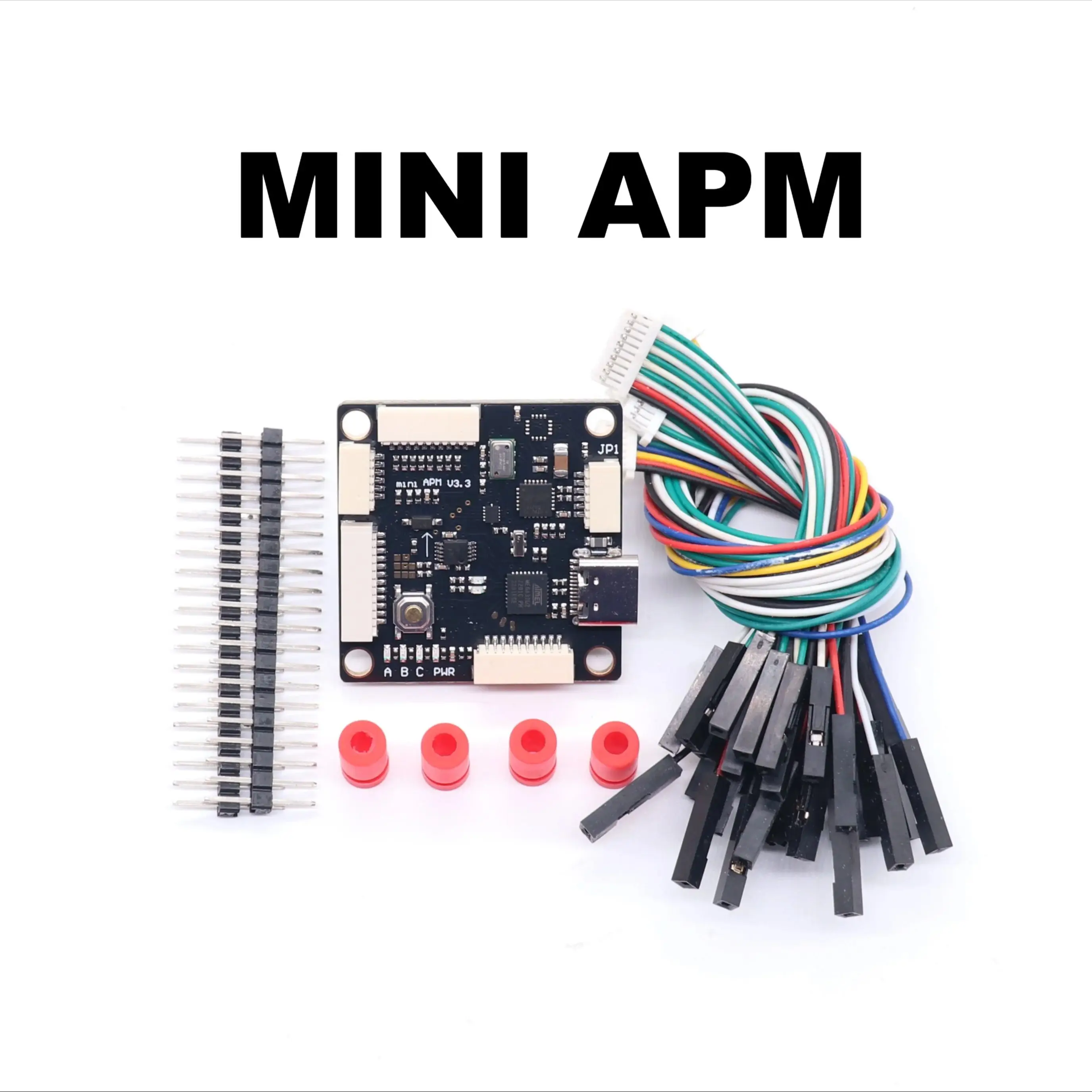

MINI APM Flight Control V3.3

Description:

APM is the ArduPilot Mega series control for short, is currently the highest cost-effective UAV autopilot products, by America 3DRobotics design.
This product is compatible with Arduino, and a portion of the first 4 letters used as product name, so you can see that this project is an open source project.

APM supports almost all visible model: conventional fixed wing, wing, helicopter, multi axle vehicle, vehicle and ship and many other models, complete functions and can be selected in the collocation of fitting case provides automatic return and automatic navigation point standard UAV autopilot for.
The mini version of the APM source control, the default does not contain the GPS module, GPS module supporting the use of customers before the standard version.
In addition, the flight control because many open source data, in principle does not provide specialized technical support, if you are a novice, you need to make sure you can finish the assembly debugging.

Interface: 8 output, 8 way output, GPS, digital +OSD, I2C (external Compass), voltage and current detection input, USB, power supply input
A0 -- A12 interface also has drawn in V3.3.
The function and the firmware and the same APM, and can be used in fixed wing and rotor.

• Product Name: Mini APM V3.3 Flight control

• Manufacturers number: MINI APM V3.3

• Motherboard size: 35x35mm board size, 30x30mm hole to hole.

• Hardware version: V3.3

• Support mode: fixed wing helicopter multi rotor

• Net weight: 20g

• Internal compass:Without

• 8CH pwm input, 8 motor output.

• 12 way AUX input and output.

• Full connection possibility, supports GPS, Extra compass, telemetry and power module.

Parameter:

• Main control chip: atmega2560

• USB chip: atmega32u2

• Barometer: MS5611

• USB port: TYPE-C
