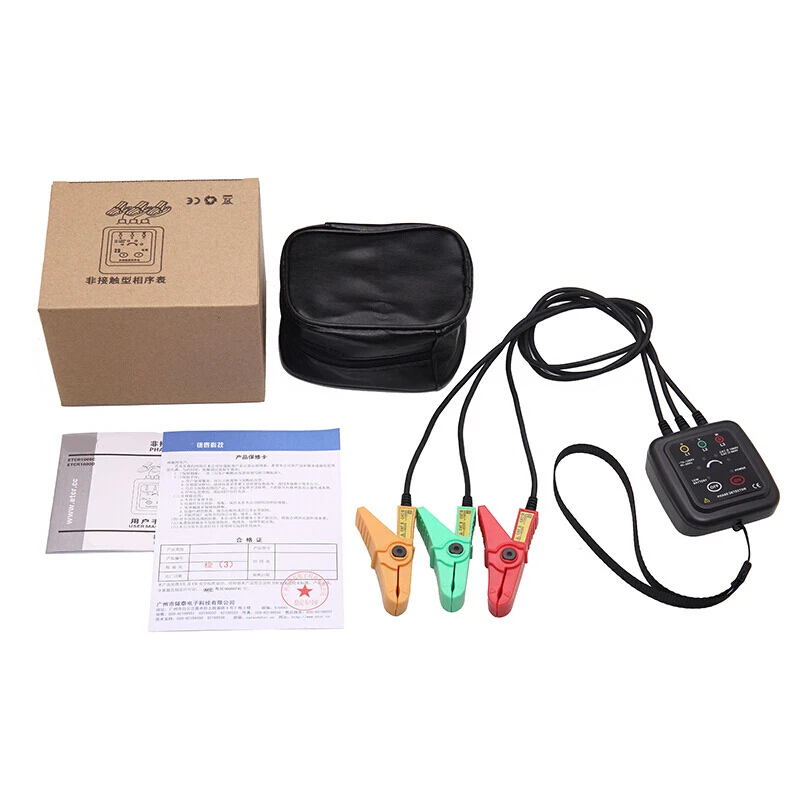

ETCR1000C non-contact phase detector large-diameter phase sequence table three-phase AC phase detector ETCR1000DETCR1000C non-contact phase detector large-diameter phase sequence table three-phase AC phase detector ETCR1000DModel: ETCR1000C/ETCR1000D
Clampable wire outer diameter size: ∅1.6mm~∅16mm/∅10mm~∅40mm
Functions: Phase detection (positive phase, reverse phase, missing phase), live wire detection, simple power detection, breakpoint positioning, line maintenance
Power supply: DC3V 2 AA alkaline dry batteries (LR6), continuous use time is about 70 hours
Active range: AC 70~1000V, 45~65Hz (sine wave continuous input)
LED display:
[Normal phase] The 4 phase detection lights light up in sequence in a clockwise direction;
[Reverse phase] The 4 phase detection lights light up in sequence in the counterclockwise direction;
[Live electricity] L1, L2, L3 lights within the voltage setting range;
[Lack of phase] L1 or L2 or L3 light does not light up:
[Open circuit] L1 or L2 or L3 light does not light up.
Beep:
[Positive phase] The instrument emits intermittent short beeps;
[Reverse phase] The instrument emits a continuous long beep.
Battery check: After turning on the power, the POWER indicator light is on; the LOW BATTERY light is on when the battery is low.
Magnetism: There are four magnets attached to the back of the instrument, which can be hung on the distribution box and can withstand a mass of 800g.
Automatic shutdown: The meter automatically shuts down after about 5 minutes of power on.
Instrument size: width, height and thickness 70mm X 75mmX 30mm
Clamp lead length: 0.6m
Working temperature and humidity: -10°C~55°C; below 80%rh
Storage temperature and humidity: - 20°C~60°C: below 90%rh
Maximum voltage measured: AC 1000V
Dielectric strength: 5.4kVrms
Maximum rated power: 300mVA
Suitable for safety regulations: EN61010-1: 2001, EN61010-031: 2002, pollution level 2, CAT III1000V, instant overvoltage 6000V
