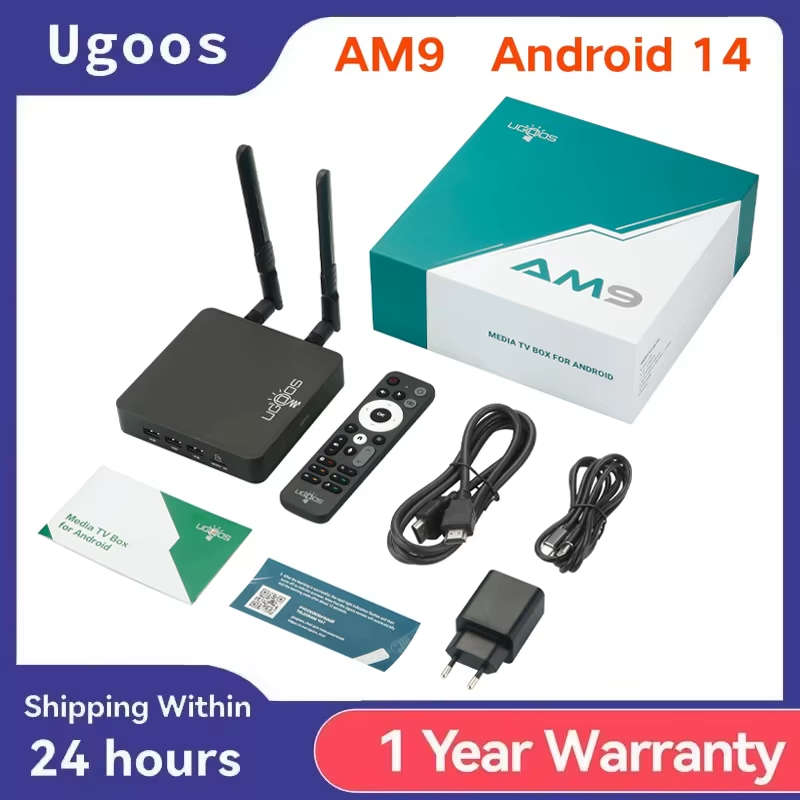

AM9 Smart TV Box 4GB 64GB Android 14 Amlogic S905X5 Wifi BT5.2 1000M 4K HDR Set

Operation System

Android 14.0

Language

Multi-Language support

CPU

Amlogic S905x5 Quad core ARMv9.0 Cortex-A510 CPU

GPU

Mali G310 V5

NPU

- Neural network accelerator (NNA) with Tensor programmable engine (TPU) architecture

- 512KB Internal RAM and SMMU address re-mapper

- Supports all major deep learning frameworks including Tensorflow, Tensorflow Lite, ONNX, Pytorch, Darknet, MxNet, and Caffe 4,3.2~4 TOPS

RAM

LPDDR4X 4GB

Storage Capacity (Flash)

64GB （EMMC）

WIFI

11a/b/g/n/ac/ax 2T2R IEEE802, Max: 1201 Mbps

Bluetooth

Bluetooth 5.2 Module

The Extended Storage

TF Card (SD2.X,SD3.X,SD4.X, eMMC ver5.0)

Power Supply

TYPE-C 12V/1.67A

HDR

Support

CEC

Support

Interfaces:

HDMI Output

Built-in HDMI 2.1b transmitter including both controller and PHY supporting eARC, CEC, ALLM,VRR, QMS, Dynamic HDR and HDCP 2.2/2.3, 4Kx2K@60fps max resolution output

USB Port

USB A HOST 3.0*3
USB TYPE-C OTG 2.0*1

Optical Output

1*SPDIF

Led Work Light

Support

Network

1*RJ45 1000M (1000M Ethernet Integrated IEEE 802.3 10/100/1000M Ethernet MAC with RGMII
interface)

Media Parameters:

Audio Containers

Supports MP3, AAC, WMA, RM, FLAC, Ogg Vorbis, Opus, SRS TruVolume, DTS Optional and programmable with 7.1/5.1 down-mixing

Video Output

Supports all standard SD/HD/FHD video output formats: 480i/p, 576i/p, 720p, 1080i/p and 4KX2K

Video CODEC

− H.266 VVC main 10@L5.2 up to 4Kx2K@120fps

− AV1 MP-10@L5.2 up to 4Kx2K@120fps

− VP9 Profile-2 up to 4Kx2K@120fps

− H.265 HEVC MP-10@L5.2 up to 4Kx2K@120fps

− AVS3-P2 Profile up to 4Kx2K@120fps

− H.264 AVC HP@L5.2 up to 4Kx2K@60fps

− MPEG-4 ASP@L5 up to 1080P@60fps (ISO-14496)

− WMV/VC-1 SP/MP/AP up to 1080P@60fps − AVS-P16(AVS+)/AVS-P2 JiZhun Profile up to 1080P@60fps

− MPEG-2 MP/HL up to 1080P@60fps (ISO-13818)

− MPEG-1 MP/HL up to 1080P@60fps (ISO-11172)

− Multiple language and multiple format sub-title video support

− MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918)

− Supports JPEG thumbnail, scaling, rotation and transition effects

Software Extension

Support Google Play & APK install

Other Parameters:

Remote Control

BT remote with Voice+Gyro

Humidity Environment

5%-90%(No condensation）

Certificate

CE, FCC

OEM Options

Ugoos AM9 available with 4G Lte module/SSD port for OEM orders

Package:

Dimensions

11.6X11.6x2.8 CM

Gift Box Size

15x16x9 CM
