MINIWARE TS1M Mini Soldering Station PD3.1 12V-28V 200W Max with T245/T210/T115 Handle Welding repair tool
Description

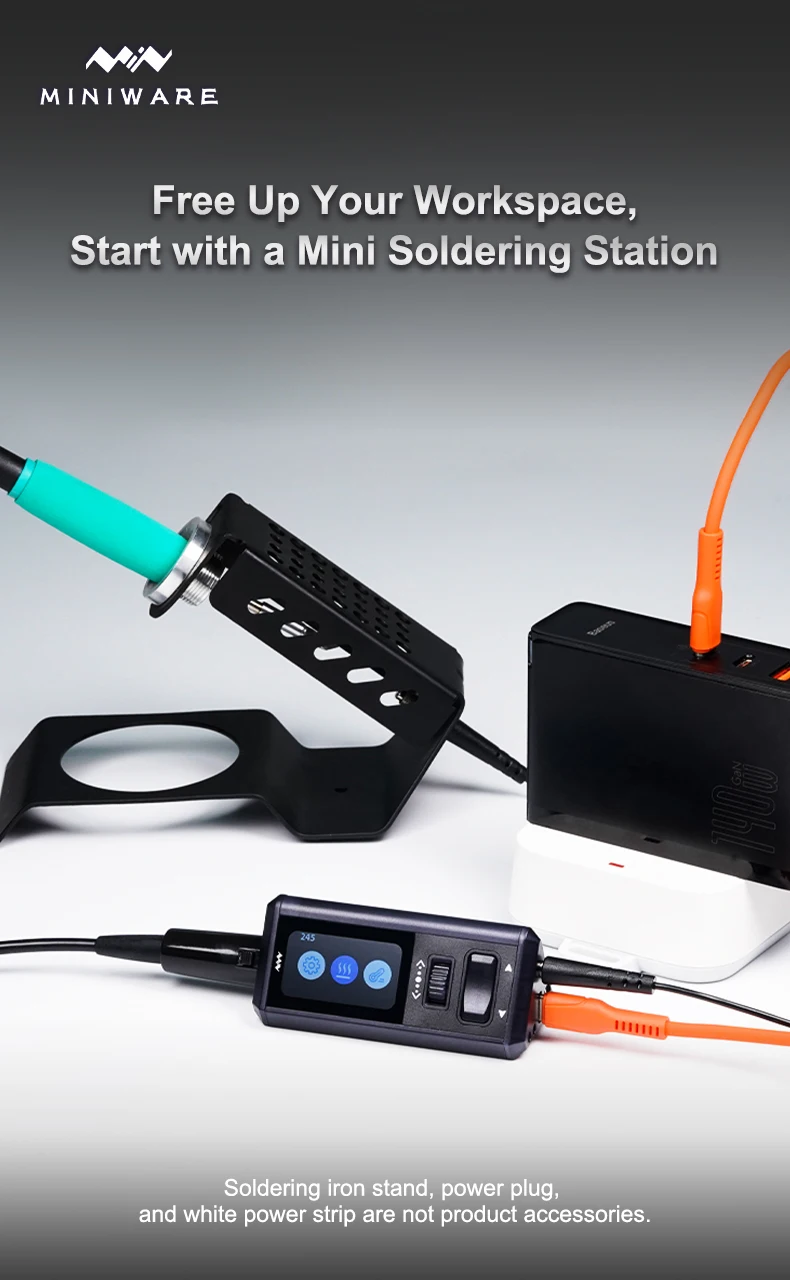

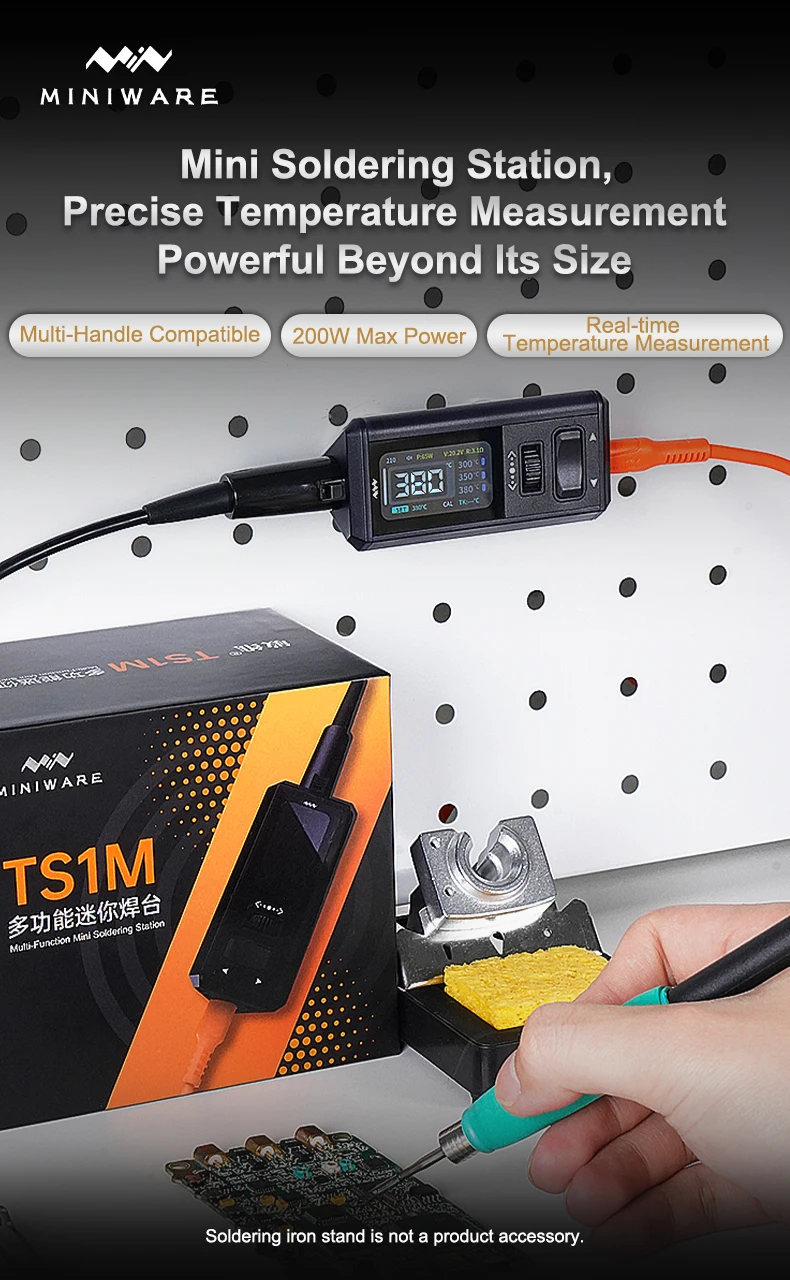

The MINIWARE TS1M multifunctional mini soldering station, developed by e-Design, delivers a powerful and
convenient soldering experience in a compact form.
The TS1M Multi-Function Mini Soldering Station supports dual power supply mode and is compatible with the PD
3.1 fast charging protocol (12-28V voltage, maximum 140W power); when using DC power supply, the maximum
power can be increased to 200W (12-28V). The temperature control range covers 100-450°C, which is suitable for

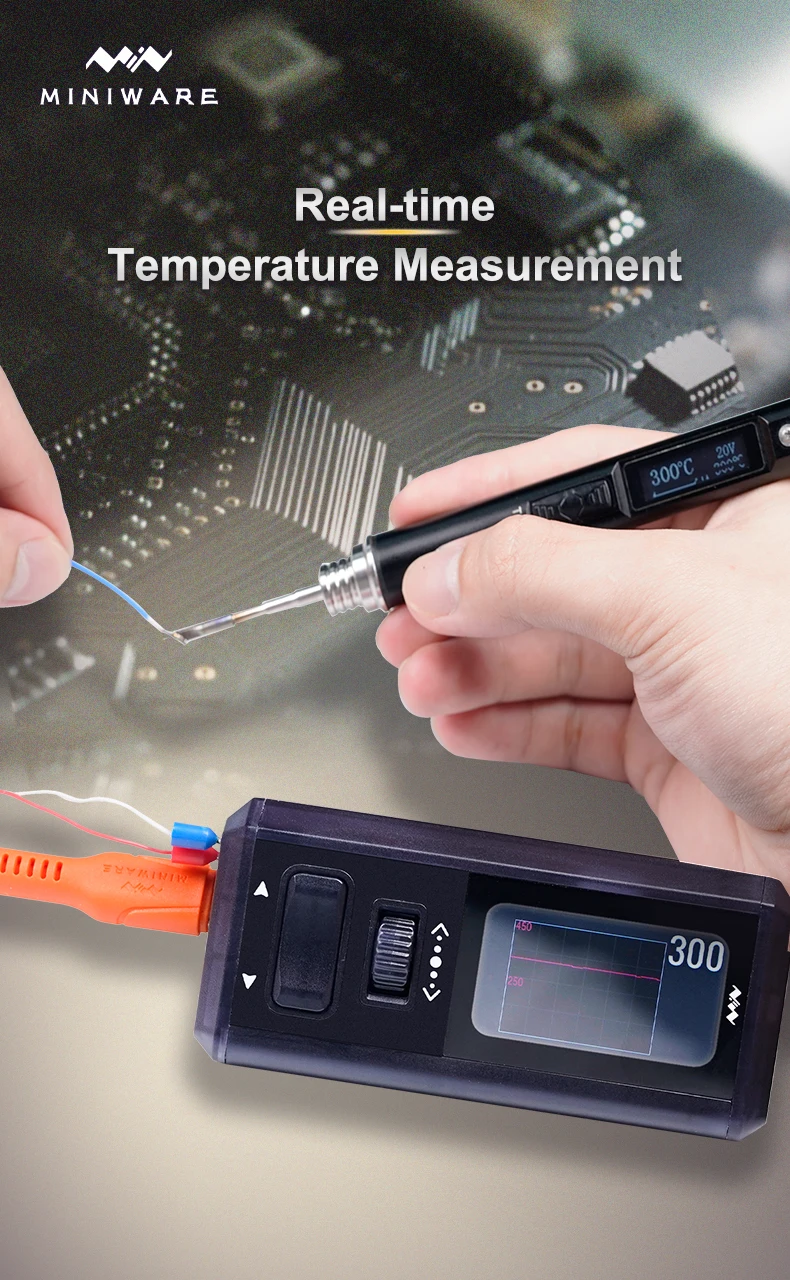

multiple soldering scenarios. The device supports external thermocouple temperature measurement function, further

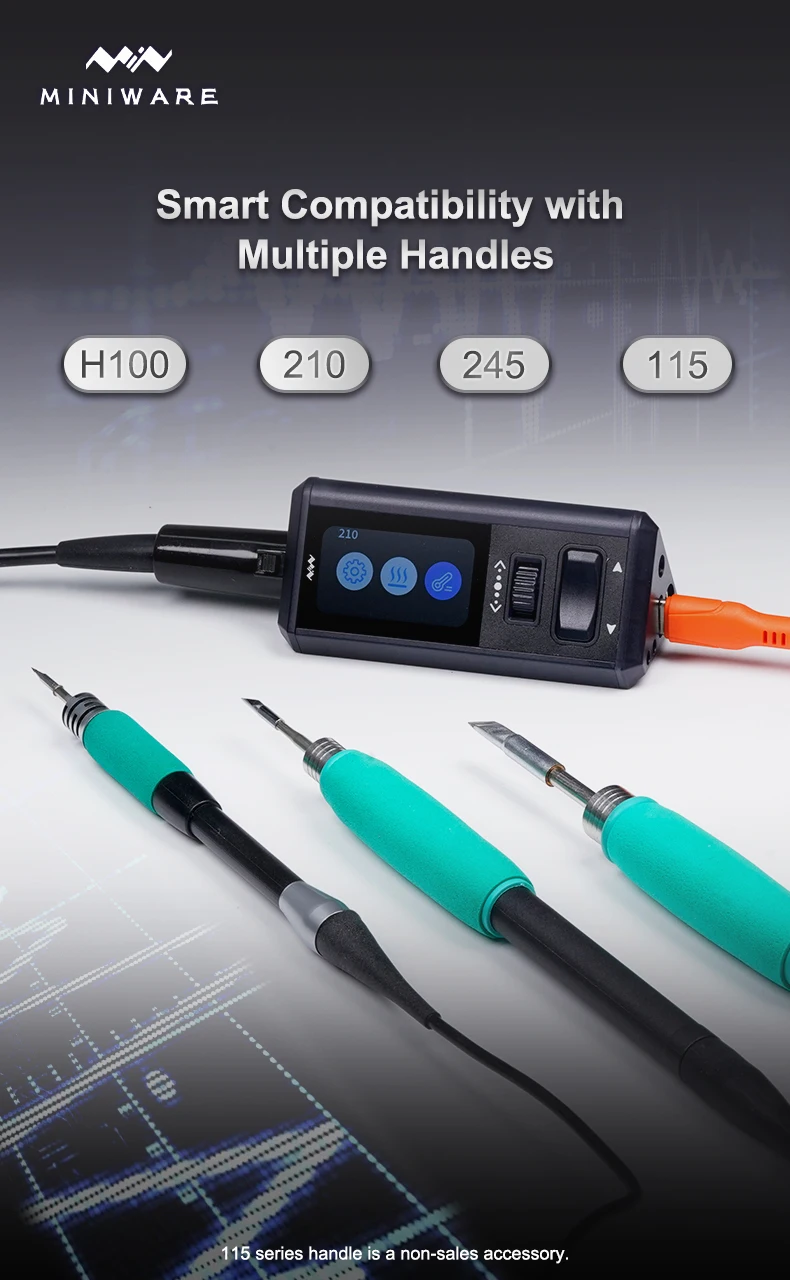

expanding the application scenarios of soldering and temperature monitoring. In addition, TS1M is compatible with
the 115 series(Not included, please purchase separately), 210 series, 245 series and MINIWARE digital handle series,
realizing one machine for multiple uses and meeting long-term use needs.
The triangular mini soldering station is more than just a tool — it embodies MINIWARE’s commitment to
innovation and design. Choosing the TS1M Multi-Functional Mini Soldering Station means choosing an efficient,
convenient, and personalized soldering experience.
【Key Features】

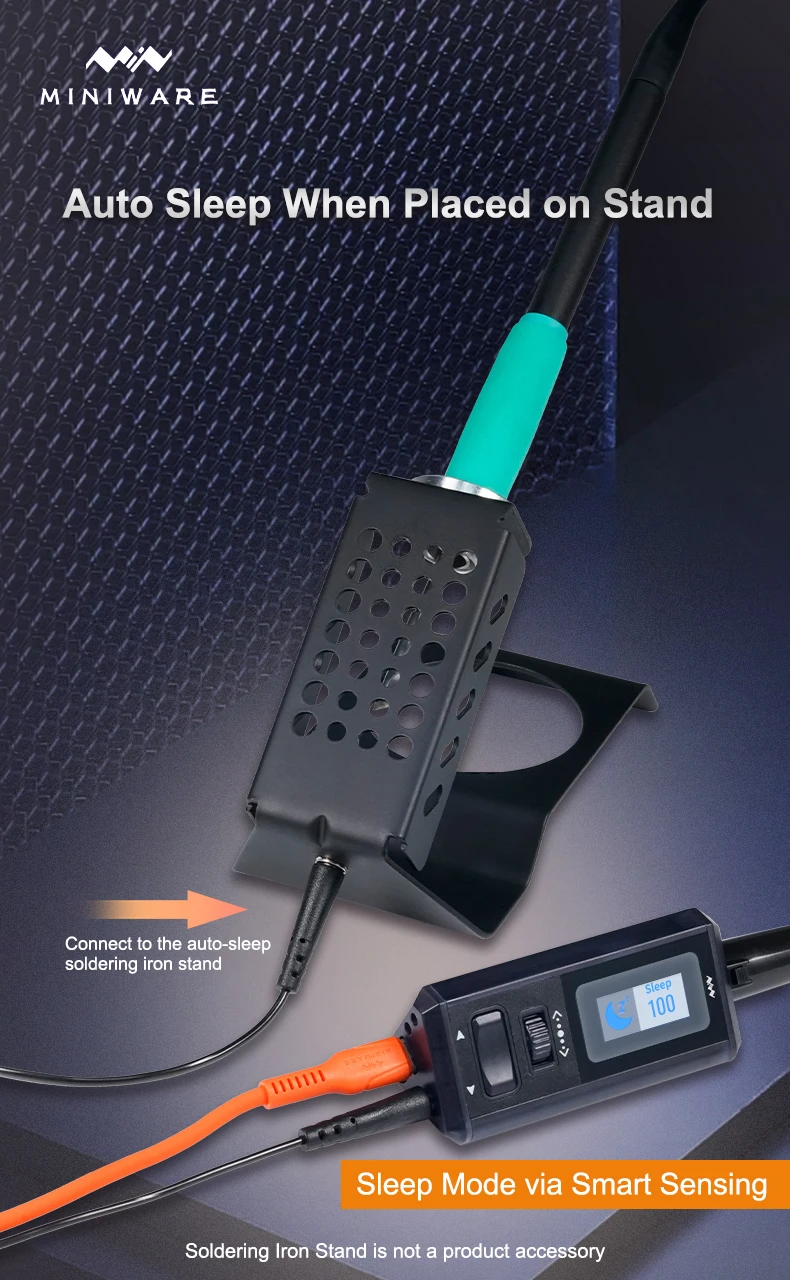

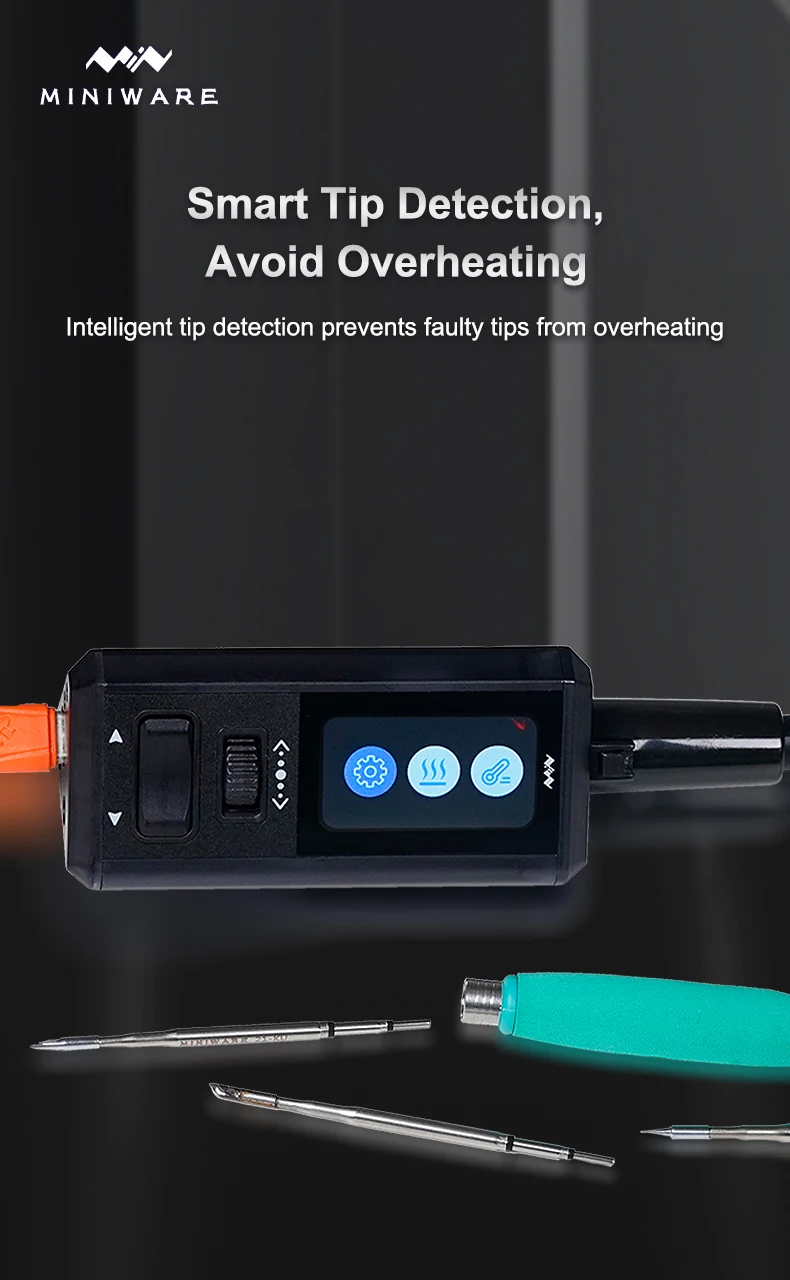

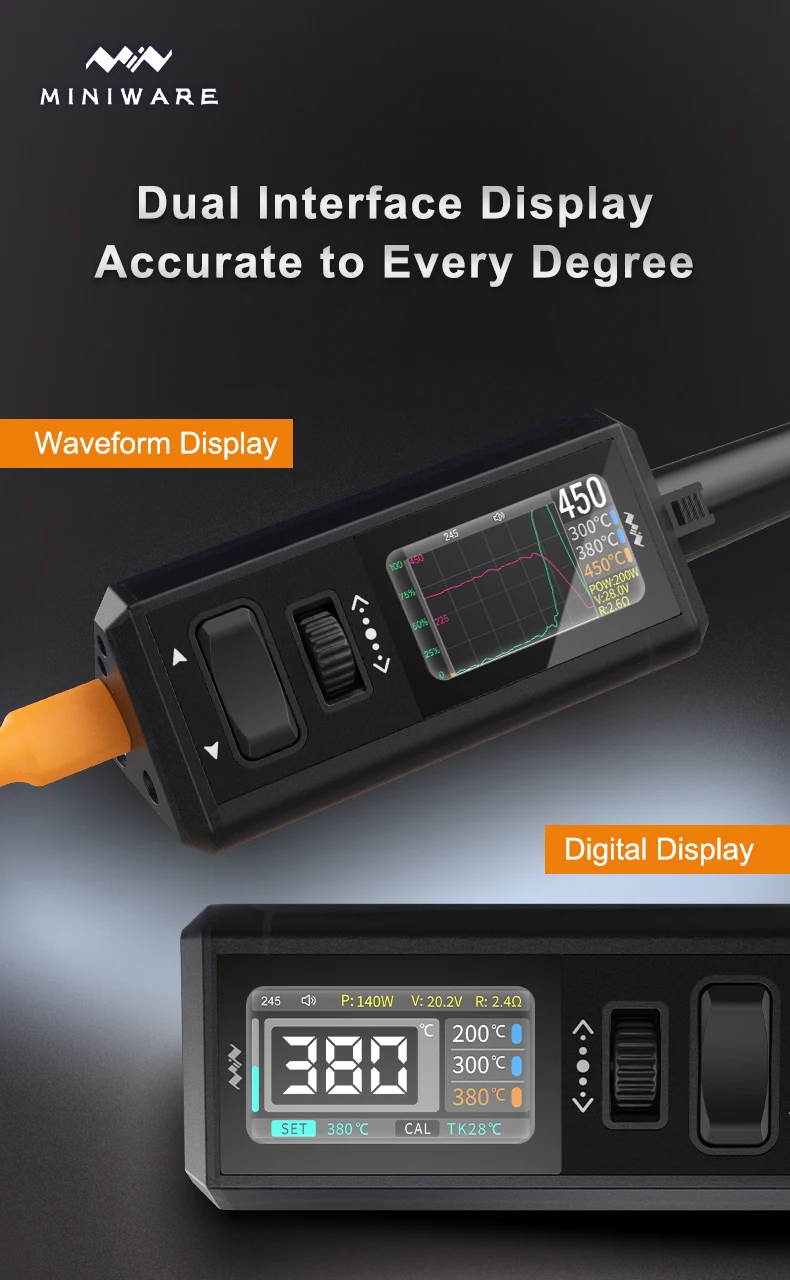

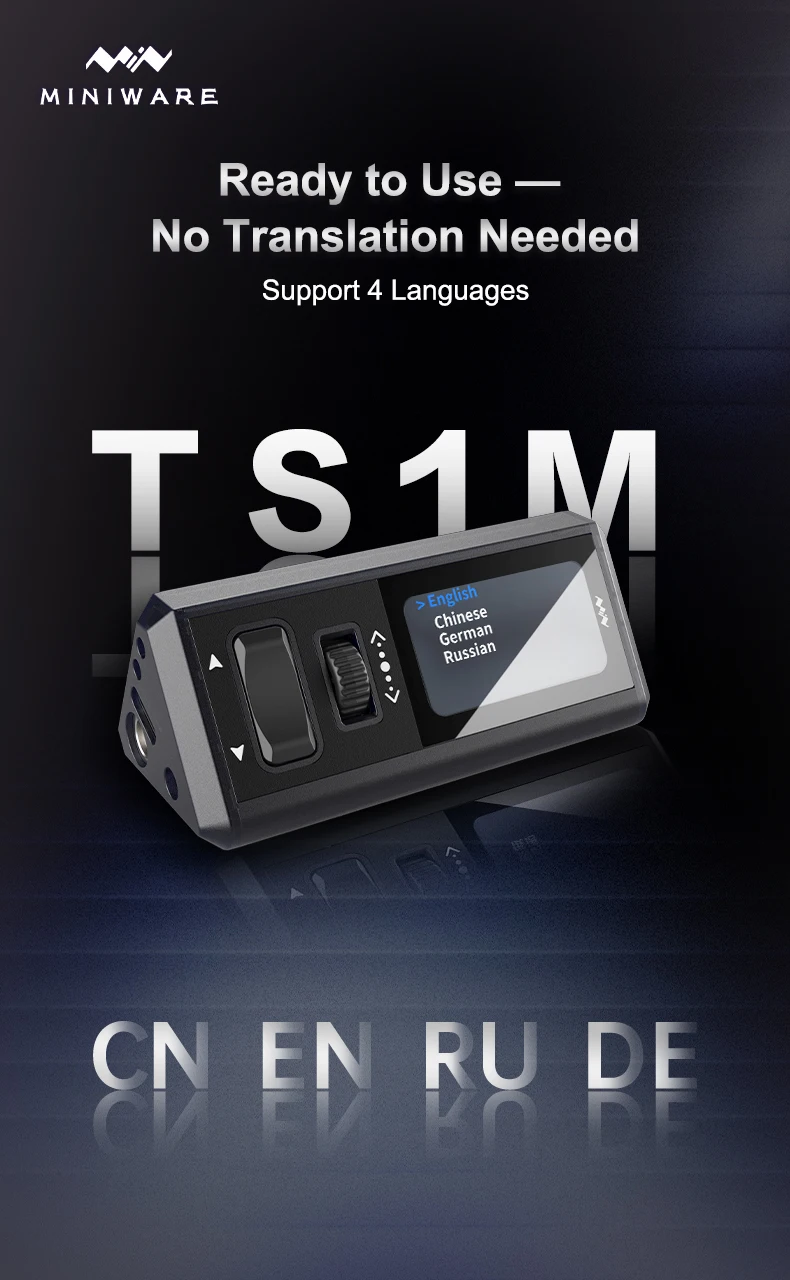

➢ 200W maximum power, 210 series handle melts solder in just 3 seconds (From room temperature to300℃)；➢ Compatible with PD protocol, supports DC power and LIPO battery；➢ Equipped with a temperature measurement function for real-time temperature monitoring；➢ Intelligent tip detection prevents faulty tips from overheating;➢ Dual interface display: waveform display and pure digital display;➢ 210 and 245 series soldering iron handles can be connected to the soldering iron stand via the sleep wire(Stand not included, purchase required) to enable the sleep function;➢ Compatible with 210 series 245 series and MINIWARE digital handle series;➢ Bottom expansion screw port for greater external connectivity options;➢ Multi-language display: Chinese, English, Russian, German;➢ Pocket-sized for easy storage and portability.

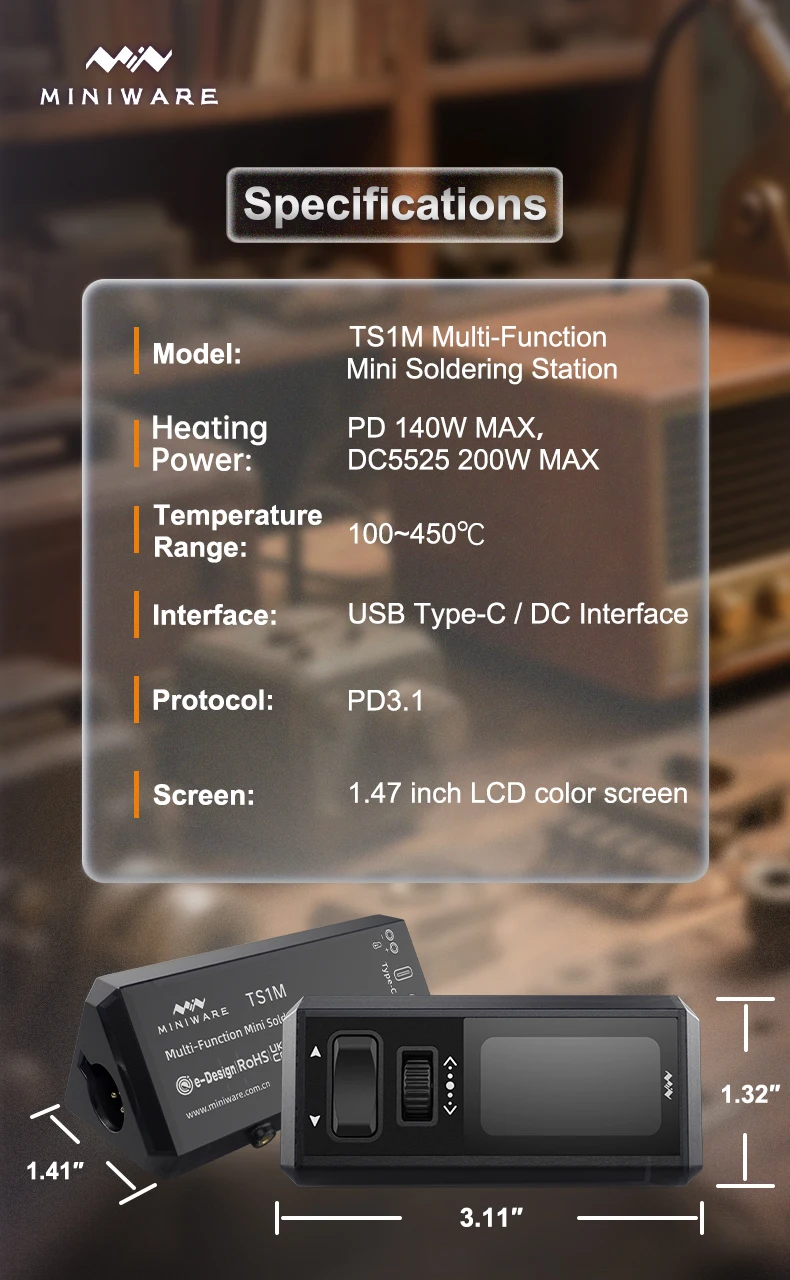

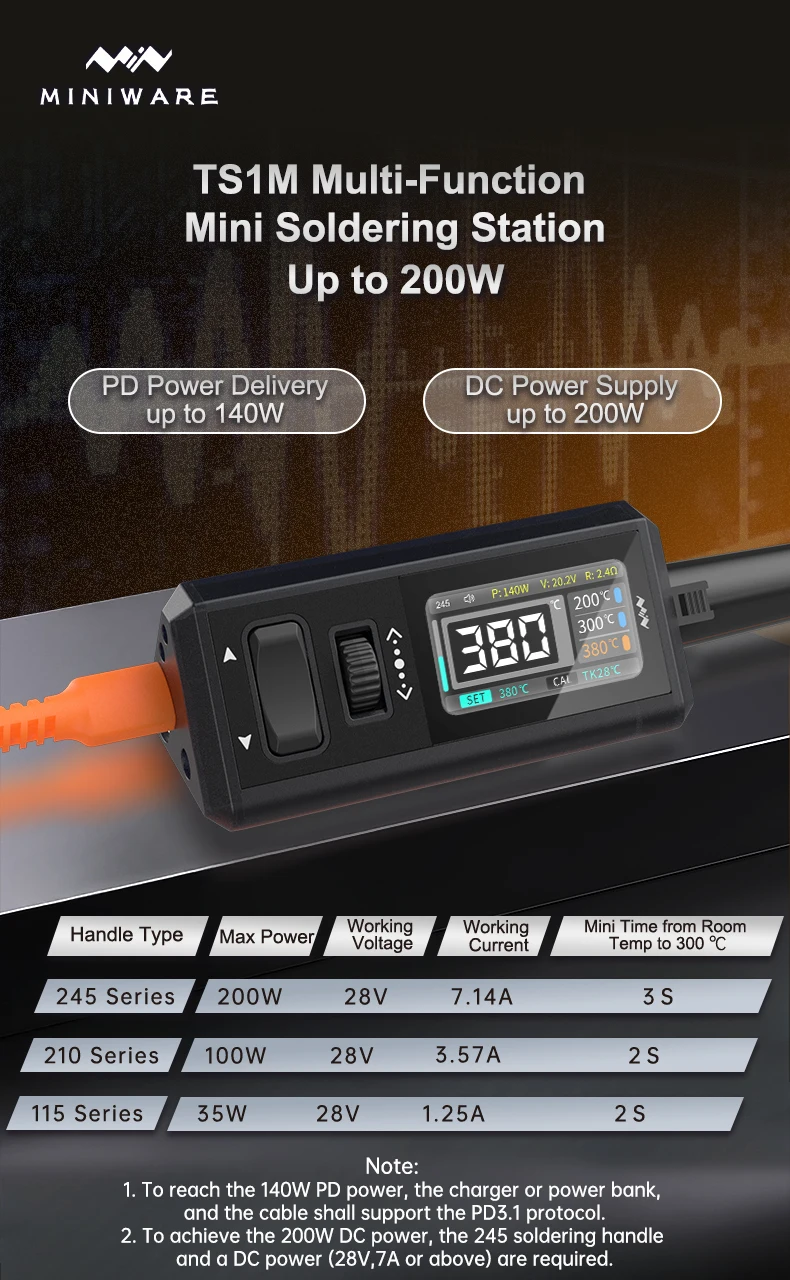

Specifications
| Parameters | 210 Series | 245 Series |
| Standard Soldering Tip | KU | K |
| Cable Length | 120cm | 120cm |

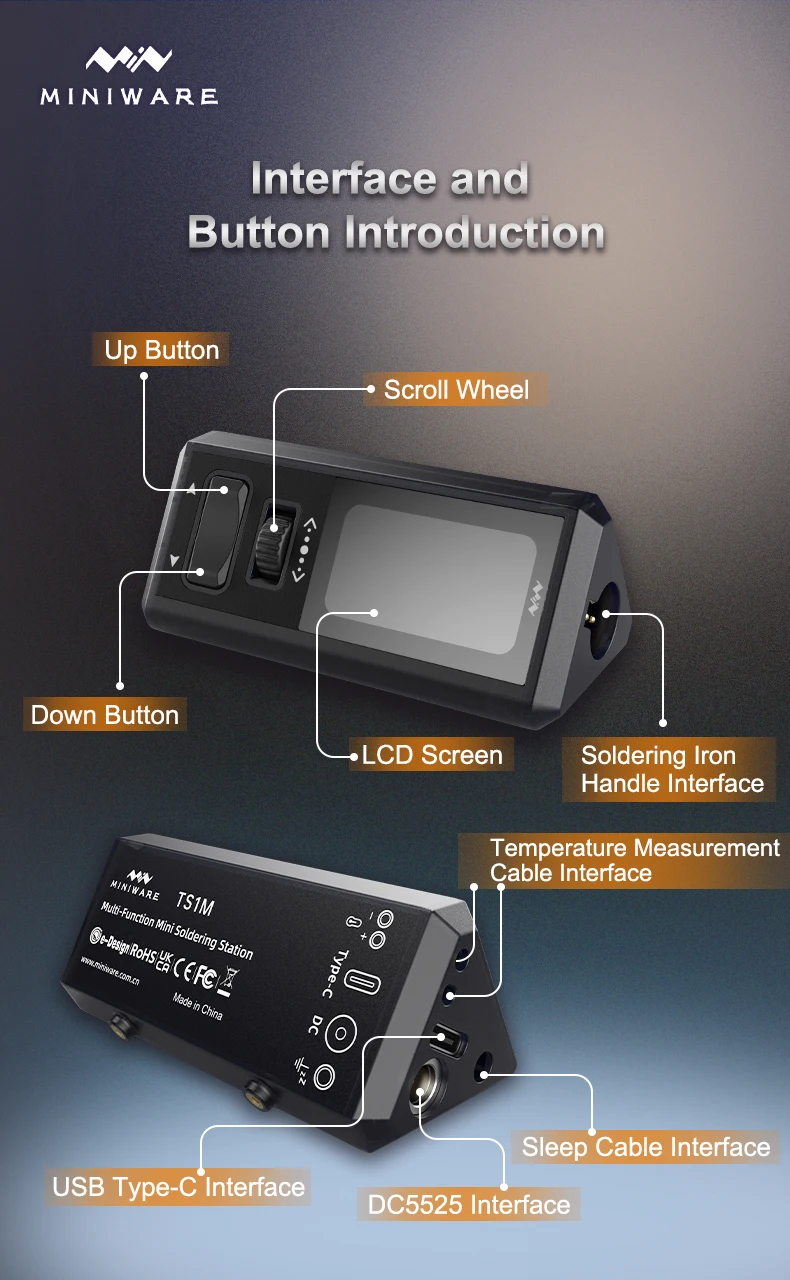

| Power Interface | USB-C PD3.1 / DC 5525 | USB-C PD3.1 / DC 5525 |
| Working Voltage | DC 12-28V / PD 12-28V | DC 12-28V / PD 12-28V |
| Max Power | 100W | 200W |
| Temperature Control Rane | 100-450℃ | 100-450℃ |
| Heating Time(To 300℃) | 2s | 3s |
Temperature Stability | ±3% | ±3% |
Ground Resistance | <2Ω | <2Ω |
| Other Functions | Auto calibration, Auto sleep, Firmware upgrade, etc. | Autocalibration, Auto sleep, Firmware upgrade, etc. |
Note:
⚫ Reminder: Do not connect DC and USB-C ports simultaneously;

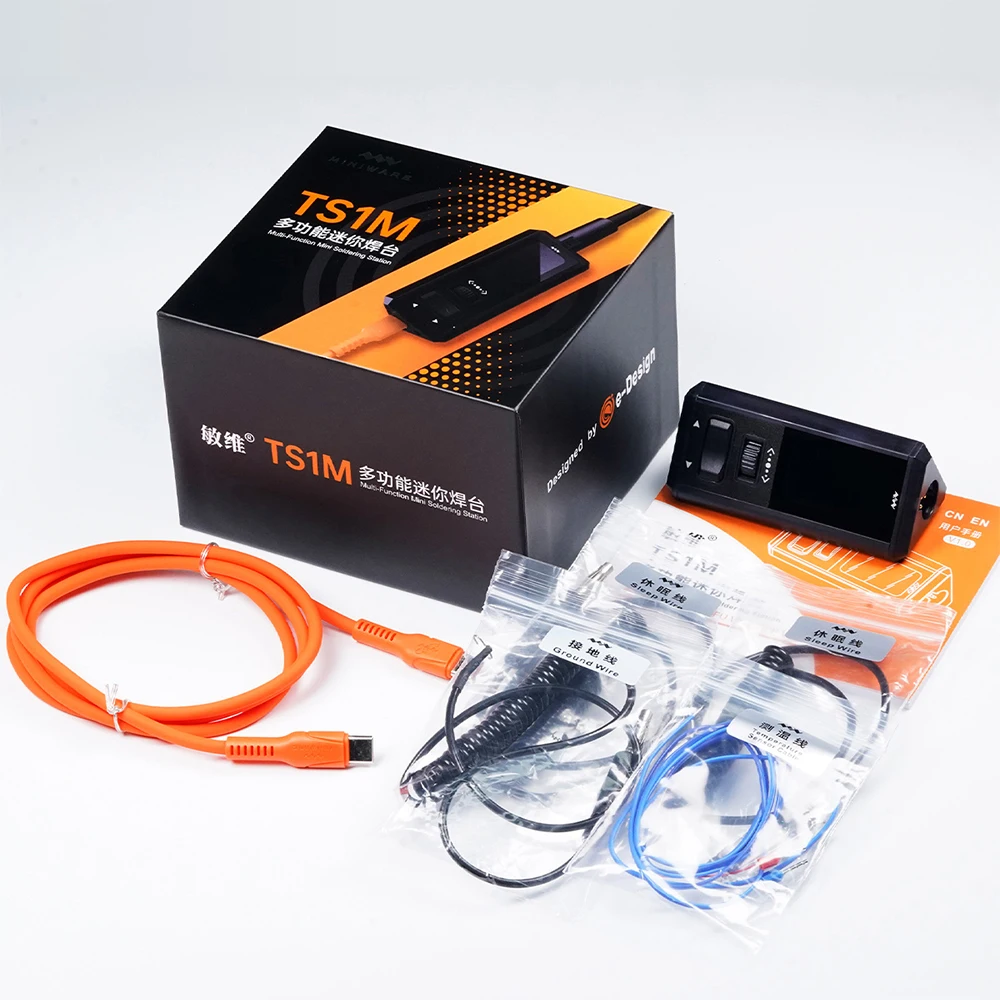

TS1M Packing list
1. TS1M Standard: | TS1M Controller x1 Temperature Sensor Cable x1 Sleep Wire x2 Ground Wire x1 USB-C to C Power Cable x1 User Manual x1 |
