Product Description

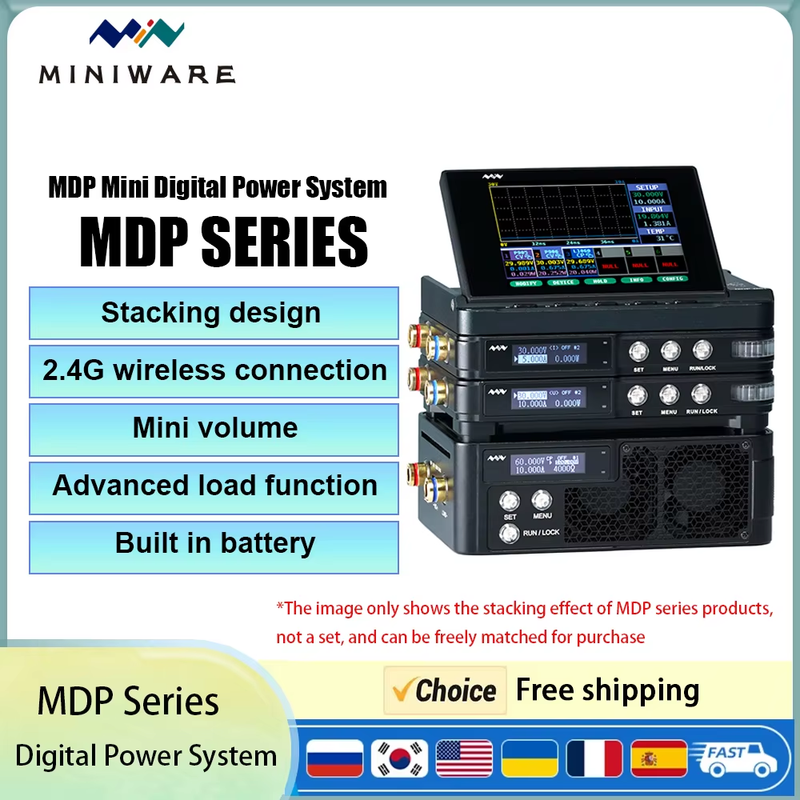

MDP Mini Digital Power System P906 L1060 M01
Product features
Stackable design of MDP series, miniaturized, convenient and easy to use;
2.4G wireless communication, realizing complex remote control and advanced functions through MDP display control module;
4 Working modes: constant current (CC), constant voltage (CV),constant resistance (CR) & constant power (CP);
5 Advanced functions: battery (capacity) test, internal resistance test, factory test, dynamic test & over-current protection test;
6 Major intelligent safety protections: over-voltage (OVP), under-voltage (UVP), over-current (OCP), over-power (OPP), over-temperature (OTP) & anti-reverse protection;
Intelligent fan/wind speed control, efficient heat dissipation, energy saving;
Better accuracy with 4mm three-purpose gold-plated standard input port, XT30 remote compensation input port;
Support programmable loading test
Product Model | MDP-L1060 |
Power input | DC 5V 2A |
Battery capacity | 650mAh |
Input Interface | USB TYPE-C |
Maximum load input voltage | 60V |
Maximum load input current | 10A |
Maximum load input power | 100W |
Safety protections | Over voltage protection (OVP), under voltage protection (UVP), over current protection (OCP), over power protection (OPP), over temperature protection (OTP), anti-reverse protectio |
Size | 112*66.5*35 (mm) |
Weight | 330g |
Working mode | CC, CV, CR, CP | ||
Mode | Range | Resolution (Device adjustment) | Resolution (Via display control module) |
CC | 15mA~10A | 1mA | 1mA |
CV | 0.1V~60V | 10mV | 1mV |
CR | 10mΩ~4KΩ | 10mΩ | 10mΩ |
CP | 3mW~100W | 10mW | 1mW |
Kindly Remind
Before use please read User Manual
[2.2] Power on/power off: Press and hold both SET and MENU Button
[8/] Firmware Upgrade: Press and hold both SET and RUN/LOCK Button to enter DFU mode
Warning: Do not connect any power input and output when updating the firmware! |
Bundle list
option:MDP-L1060 | 1.MDP-L1060*1 2.XT30 Female Connector*1 3.Input Cable (4.0mm Banana to Alligator)*2 4.User Manual*1 |
option:MDP-P906 | 1.MDP-P906 *1 2.0utput Cable *2 3.User Manual *1 |
option:MDP-M01 | 1.MDP-MO1*1 2.Power cable*1 3.Safety Instructions*1 |
Product details
MDP-L1060 DC Electronic Load

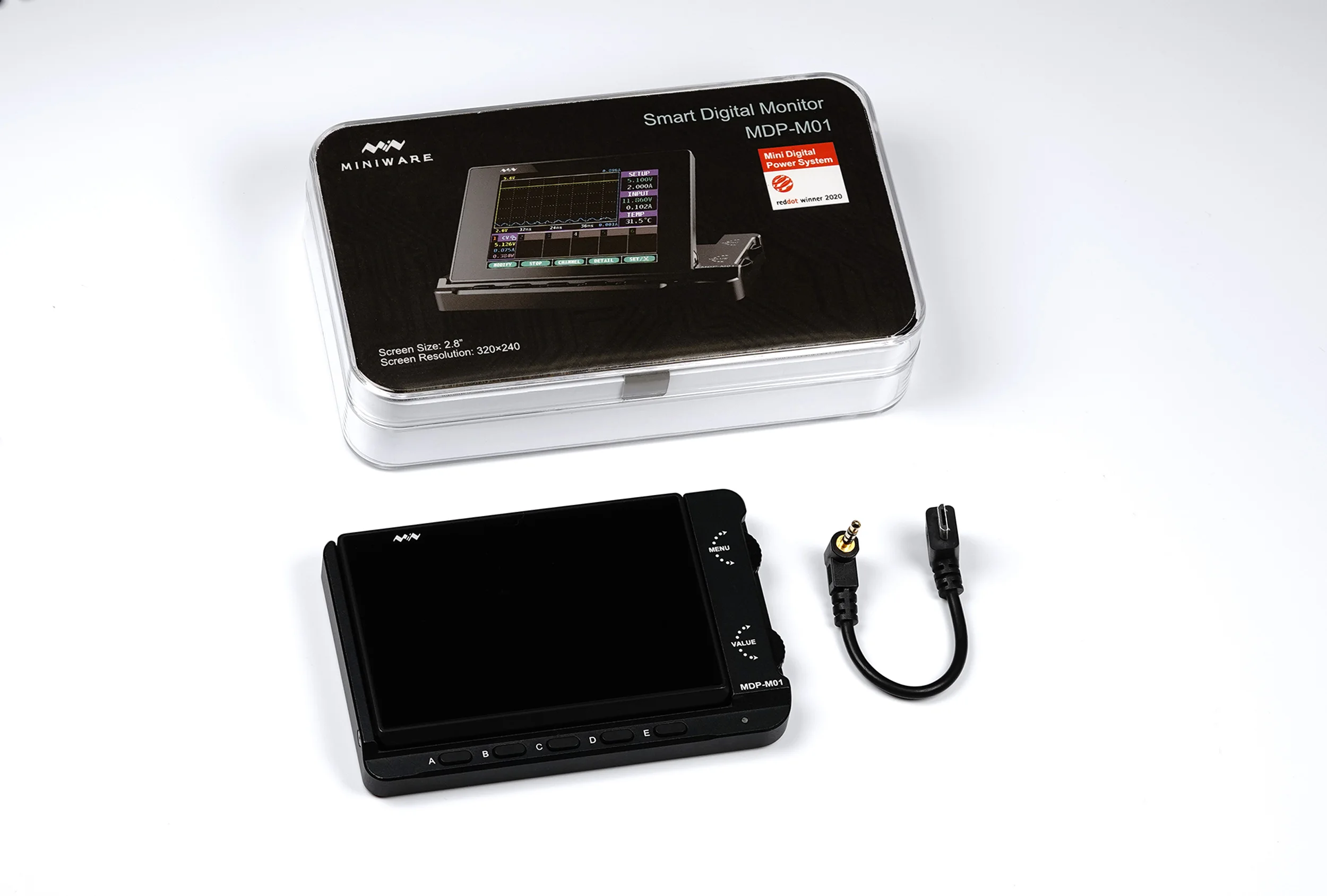

MDP-M01 Display Control Module

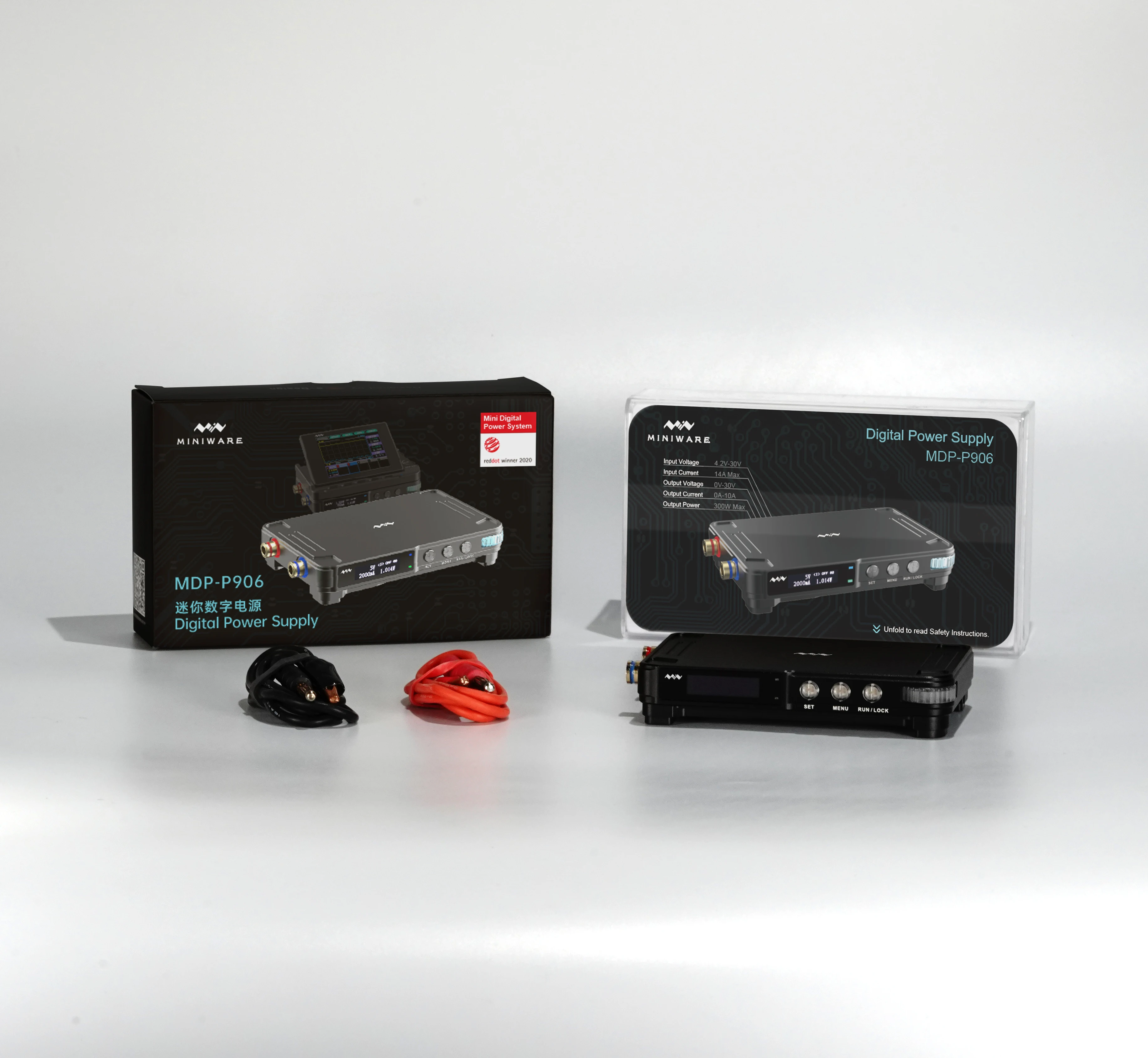

MDP-P906 Digital Power Supply
Real Photo
