Product Description

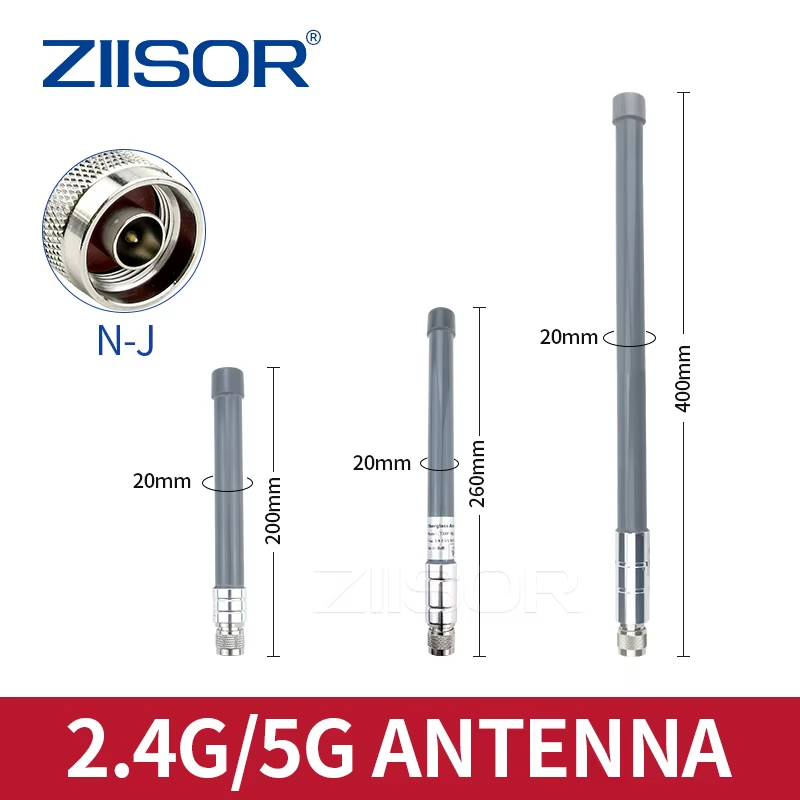

Outdoor 2.4GHz 5.8GHz Long Range Wifi Antenna Dual Band N Male SMA Glass Fiber 5G Antennas Wifi Extender for Hotspot 2.4 GHz
TXWF-BLG-18 | |||
MECHANICAL SPECIFICATIONS | ELECTRICAL SPECIFICATIONS | ||
Material | Fiberglass | Frequency | 2.4/5.8GHz |
Material of Radiator | PCB | Antenna Gain | 4dBi |
Connector Type | N-Male | Radiation type | Omnidirectional |
Antenna Colour | Gray | Polarization | Linear |
Overall Length | 180mm | Horizontal Beamwidth | 360Deg |
IP Rating | IP 67 | Vertical Beamwidth | 110Deg±3 Deg |
Wind Resistance | 60m/s | Nominal Impedance | 50Ω |
N.W | 80g | Max Input Power | 50W |
G.W | 125g | S.W.R. | ≤2.0 |
TXWF-BLG-26 | |||
MECHANICAL SPECIFICATIONS | ELECTRICAL SPECIFICATIONS | ||
Material | Fiberglass | Frequency | 2.4/5.8GHz |
Material of Radiator | PCB | Antenna Gain | 8dBi |
Connector Type | N-Male | Radiation type | Omnidirectional |
Antenna Colour | Gray | Polarization | Linear |
Overall Length | 260mm | Horizontal Beamwidth | 360Deg |
IP Rating | IP 67 | Vertical Beamwidth | 80 Deg±3 Deg |
Wind Resistance | 60m/s | Nominal Impedance | 50Ω |
N.W | 105g | Max Input Power | 50W |
G.W | 155g | S.W.R. | ≤2.0 |
TXWF-BLG-40 | |||
MECHANICAL SPECIFICATIONS | ELECTRICAL SPECIFICATIONS | ||
Material | Fiberglass | Frequency | 2.4/5.8GHz |
Material of Radiator | PCB | Antenna Gain | 9dBi |
Connector Type | N-Male | Radiation type | Omnidirectional |
Antenna Colour | Gray | Polarization | Linear |
Overall Length | 400mm | Horizontal Beamwidth | 360Deg |
IP Rating | IP 67 | Vertical Beamwidth | 100/75Deg±3 Deg |
Wind Resistance | 60m/s | Nominal Impedance | 50Ω |
N.W | 140g | Max Input Power | 50W |
G.W | 230g | S.W.R. | ≤2.0 |
Application: 2.4G/5GHz Wireless module/Router/WiFi Signal Enhancement
