Product Description
Please note before placing an order
For ZigBee Version, you need to prepare a Tuya Zigbee Gateway for this device, because ZigBee devices can not receive 2.4G wifi signals directly, it requires a gateway as hub to connect the device .
Features of Dry Contact Relay Switch
1. No Polarity Requirement
- Bidirectional conduction: Dry contacts are passive and do not carry voltage or current by themselves, allowing bidirectional current flow (AC or DC).
2. Electrical Isolation
- Safe isolation: Complete galvanic isolation between the relay coil (control side) and contacts (load side), preventing interference or voltage leakage.
3. High compatibility: Can be used in different voltage/current circuits as long as the contact ratings are met.
4. Passive Design
- No built-in power: Dry contacts do not supply power; they only switch externally provided current (unlike "wet contacts," which include a power source).
Why Our Dry Contact Module?
Unique Design, and works both low-voltage and high-voltage according to your different needs.
(Neutral wire is required.)
1. APP Remote Control
Turn on/off the devices from anywhere after connected the module to TuyaSmart/Smart Life APP.
2. Voice Control
Just need simple voice commands to trigger the dry contact through Alexa/Google Home Assistant,turn on/off the device .
3. Timing Function
With flexible timer setting, you can trigger connected devices on time while saving energy.
4. Relay Status Function
With Relay Status Function, you won't have to worry about power outages as you can set on/off/remember the last status of the smart dry contact as relay status.
5. Device Sharing
The switch can be shared to other family member who has Tuya Smart, or Smart life App Account. So that other people can control the switch via App as wel

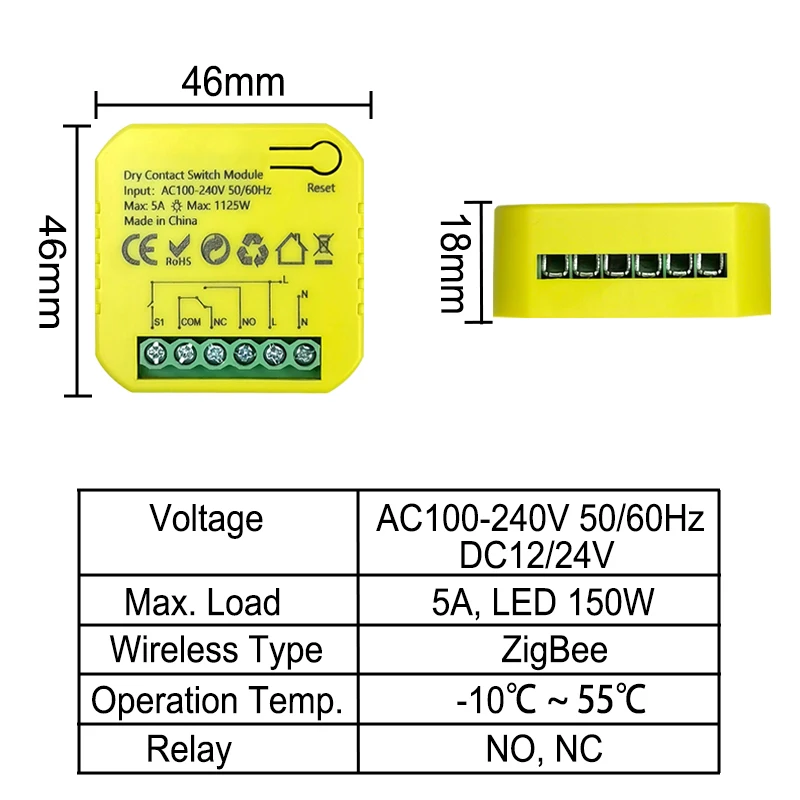

Speicifications
Product Type: ZigBee Switch Module
Relay: NO,NC
Inpute Voltage: AC100-240V
Working Voltage（COM）: AC100-240V;DC12V/24V
Max. Load: LED 150W, 5A
Wireless Protocol： ZigBee
Requirement： A Tuya Gateway
Operation Temp.: -10℃~ +55℃
Working Humidity: ≤90%
Dims (WxDxH): 46x46x18 mm
IP Rating: IP20
Warranty: 1 year
APP: TuyaSmart/ Smart Life

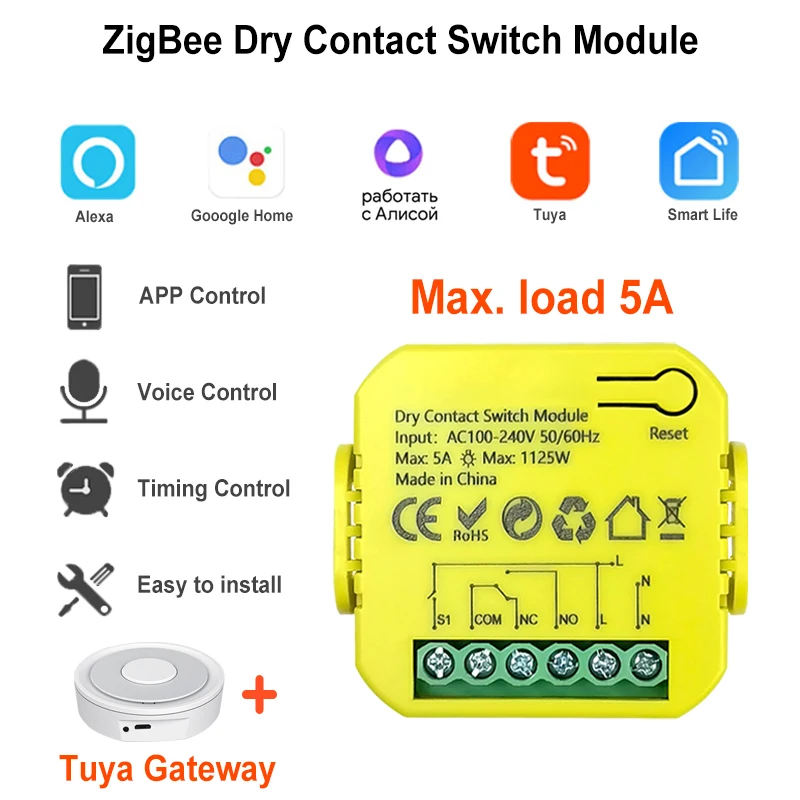

ZigBee wifi Dry Contact Switch Module
The maximum current allowed by the relay is 5A.

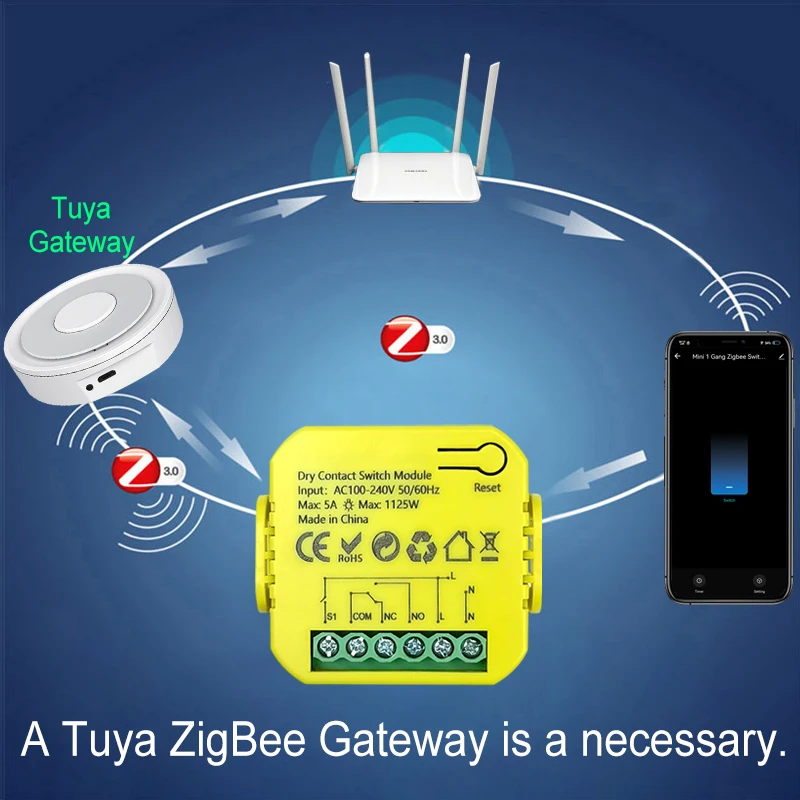

ZigBee version requires a tuya zigbee gateway.

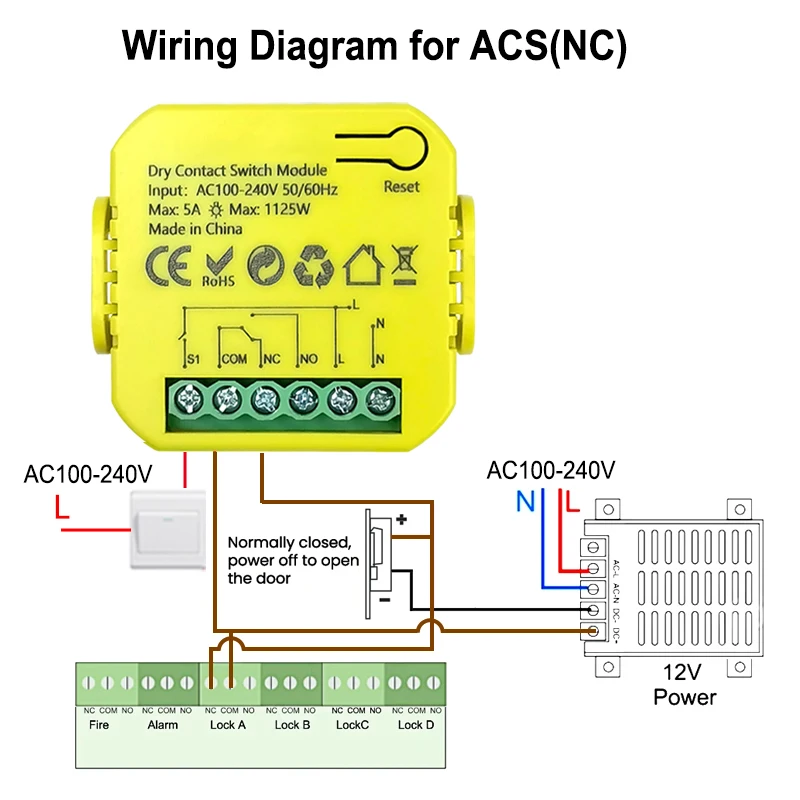

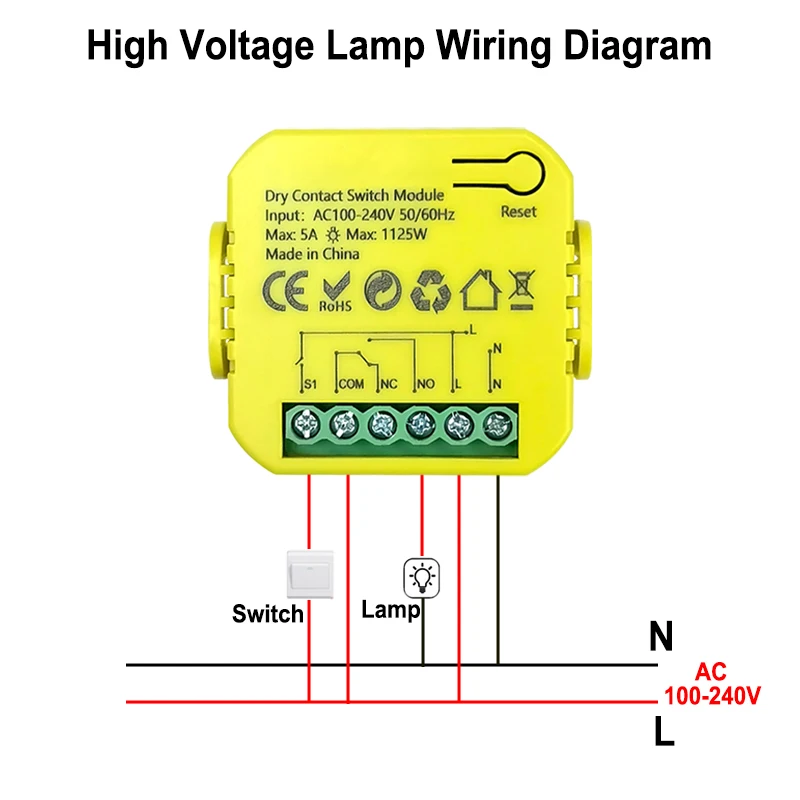

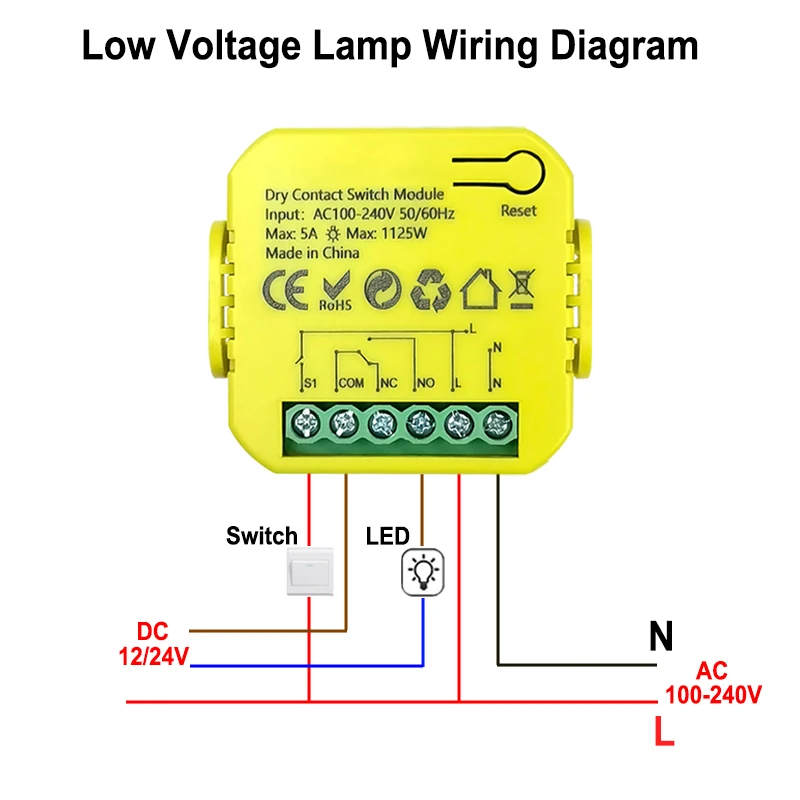

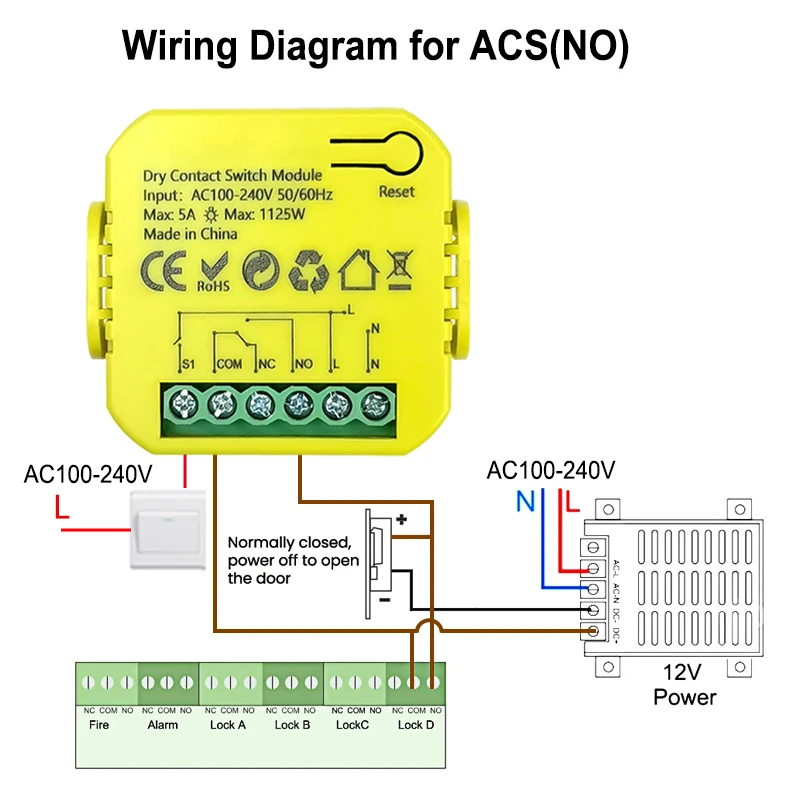

Wiring Diagram
Remote Control
Voice Control
The device supports Alexa, Google Home and Yandex Alice.

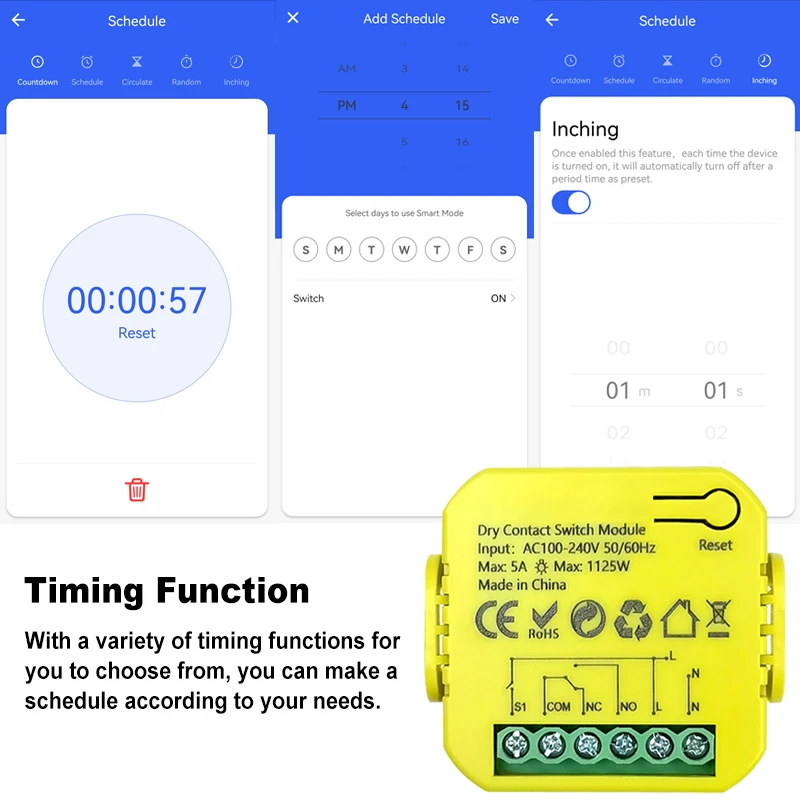

Count Down and Timing Function
Select Switch Type on App according to Your Switch Type.

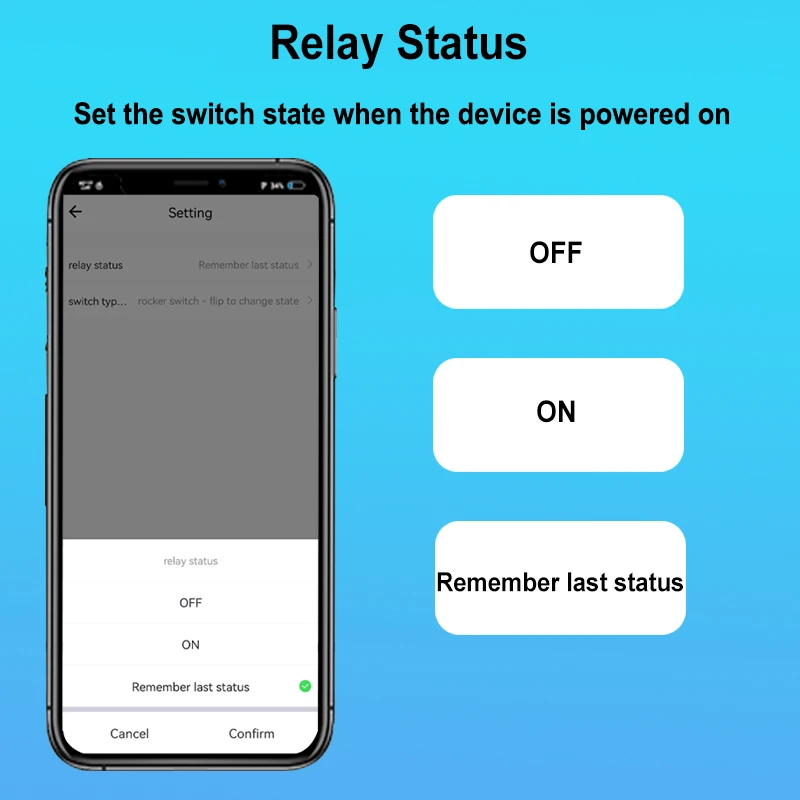

Memory Function
You can set the switch's state when the device is powered on, 3 options available
to choose.

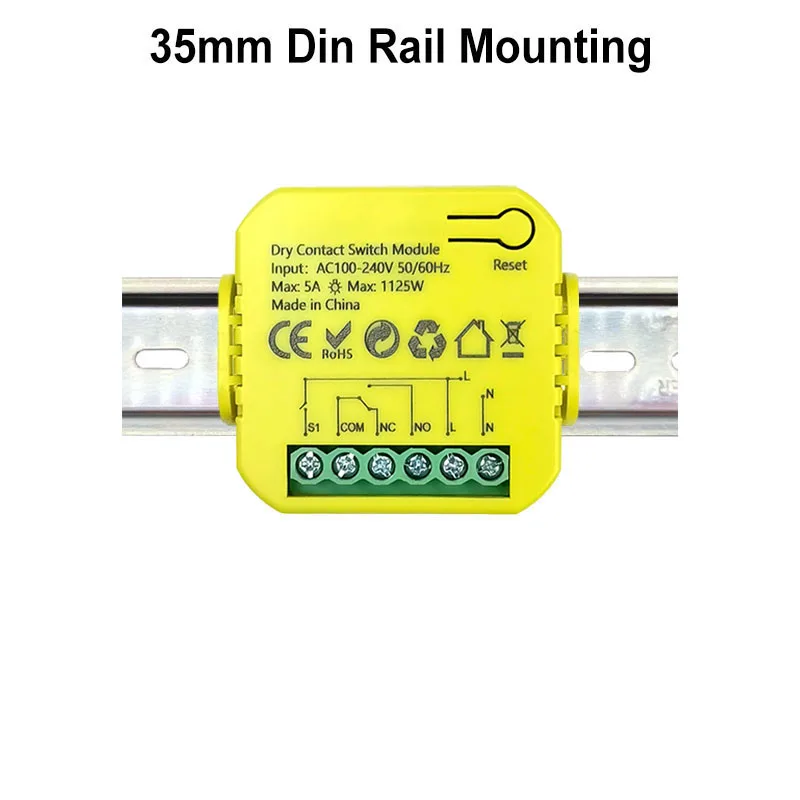

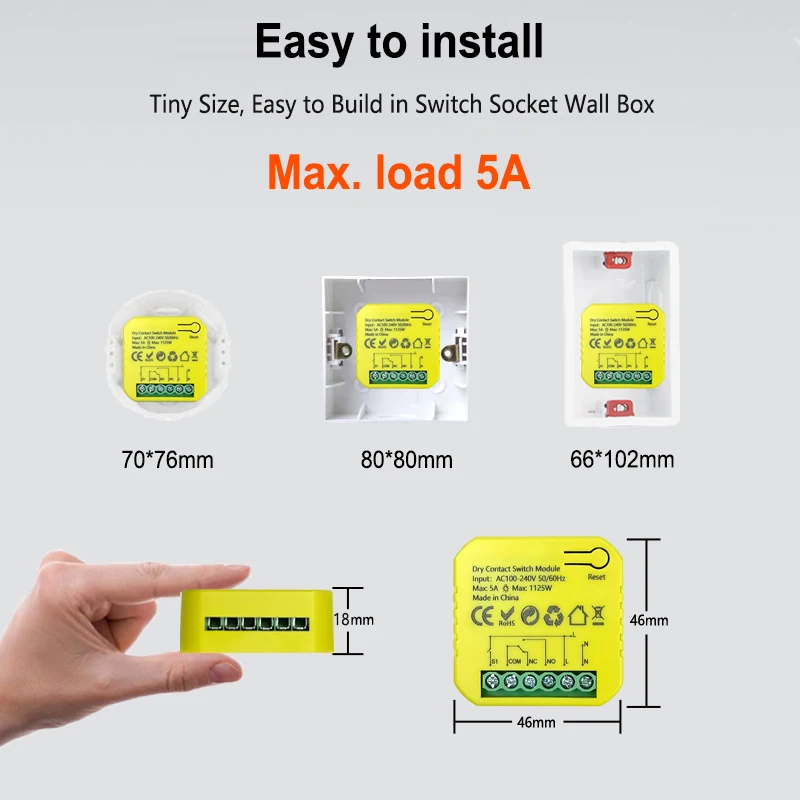

Easy to Install
Warm Tips:
1. The switch module terminal reserves the access of manual override function for the end-user to switch on/off.
Notes:
1) Both the adjustment on App and switch can overwrite each other, the last adjustment remains in memory.
2) The App control is synchronized with the manual switch.
2. Installation must be carried out by a qualified electrician in accordance with local regulations.
3. The power supply of the module Only Supports AC100-240V.
