Product Description
Note before Order
Do you have a Tuya Zigbee Gateway?
You need to prepare a Tuya Zigbee Gateway as Hub for this device, because it can not receive 2.4G wifi signals directly.
This device is not compatible with Home Assistant.
Inrush current exceeding 20 amp will turn off the device.
Please note Between A1, and A2, it's contact switch, never input 220V, otherwise it will be burned, please be sure to read and follow the wiring diagram we put in the user manual, the box cover or the product side.
We guarantee good quality, every product will be tested before delivery.
Function
●Program timer, can set 30 On/Off programs one day or per week.
●Count down time, from1 Min to 23 hours 59 Mins
●If the product is disconected from the network, the timer retains all programs set up by Mobile App and works according to the set programs.
●With memory function, When the product contact is in the close state, after the power failure, and then call, the product contacts still keep the close state.
●Also can controlled by buttons from terminal Al and A2.
●Can be share with 20 peoples by Mobile App.
●In the App can display: Today Ele (K Wh), Current Ele (mA),Current Power (W), Current Voltage (V),Total Ele (KWh)
●Over current protection function:If the load is greater than 20A,the product will cut off the load circuit automatically.

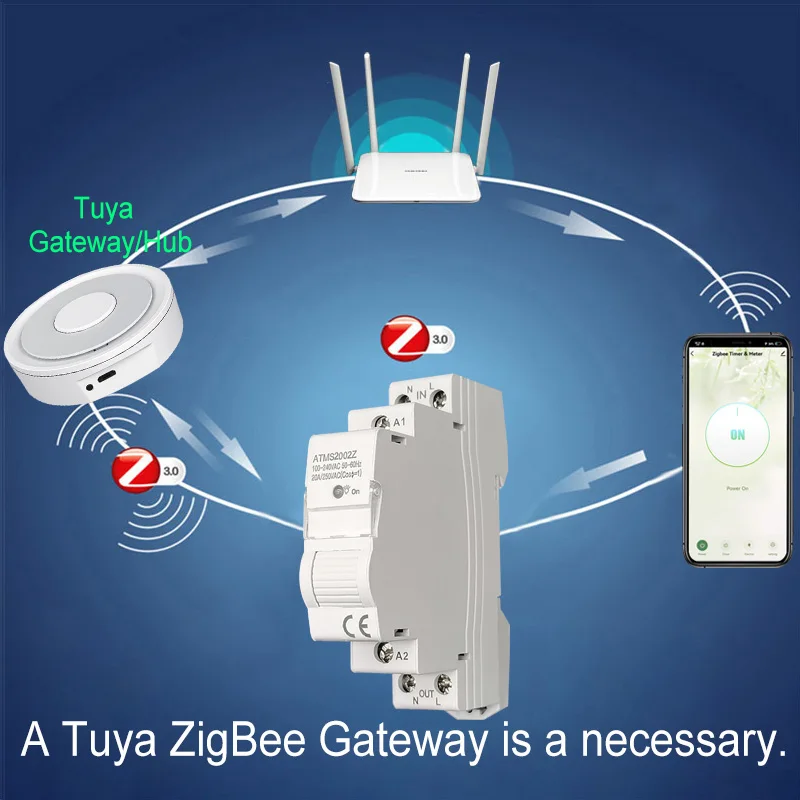

A ZigBee gateway is required for the circuit break
Over Current Protection
If the load current exceeds 20A,the breaker will cut off the circuit automatically.

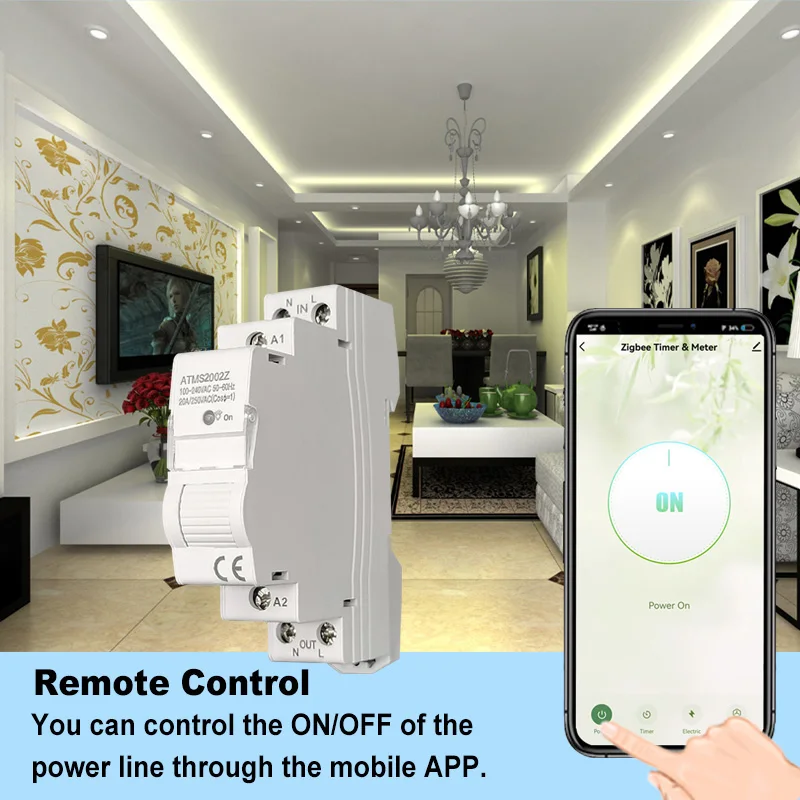

Remote Control
Searching and downloading the Tuya or Sarmt Life in APP store,then you can control the circuit breaker.
Timing Function
The power of the room will be automatically turned on and off according to your schedules.
3 relay status and 4 indicator modes
Real-time Monitoring
Real-time monitoring of circuit status and the statistics of daily power consumption .
Connection Diagrams
