Product Description
1.NOTE

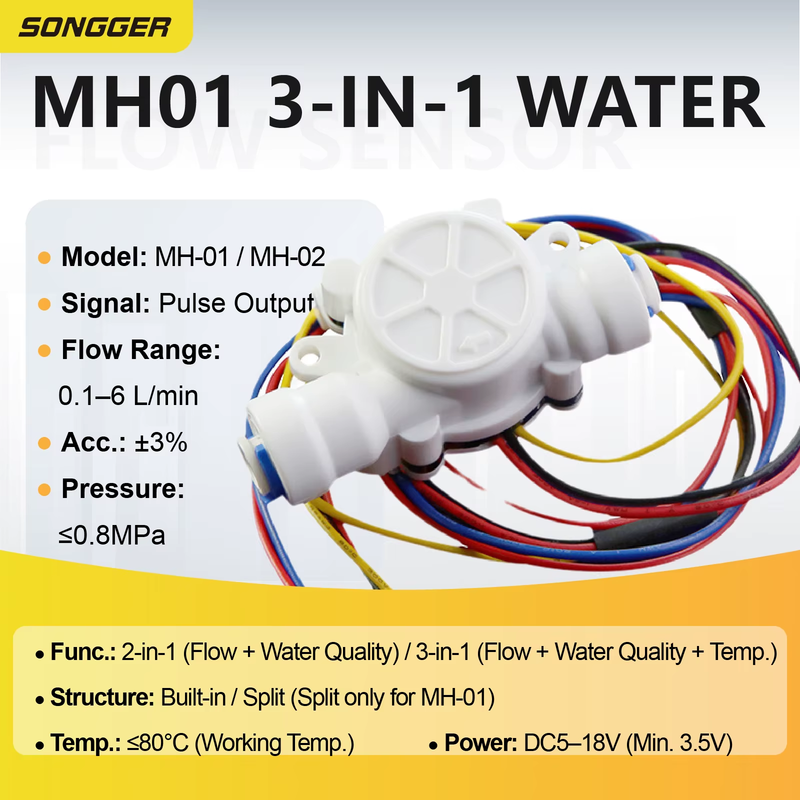

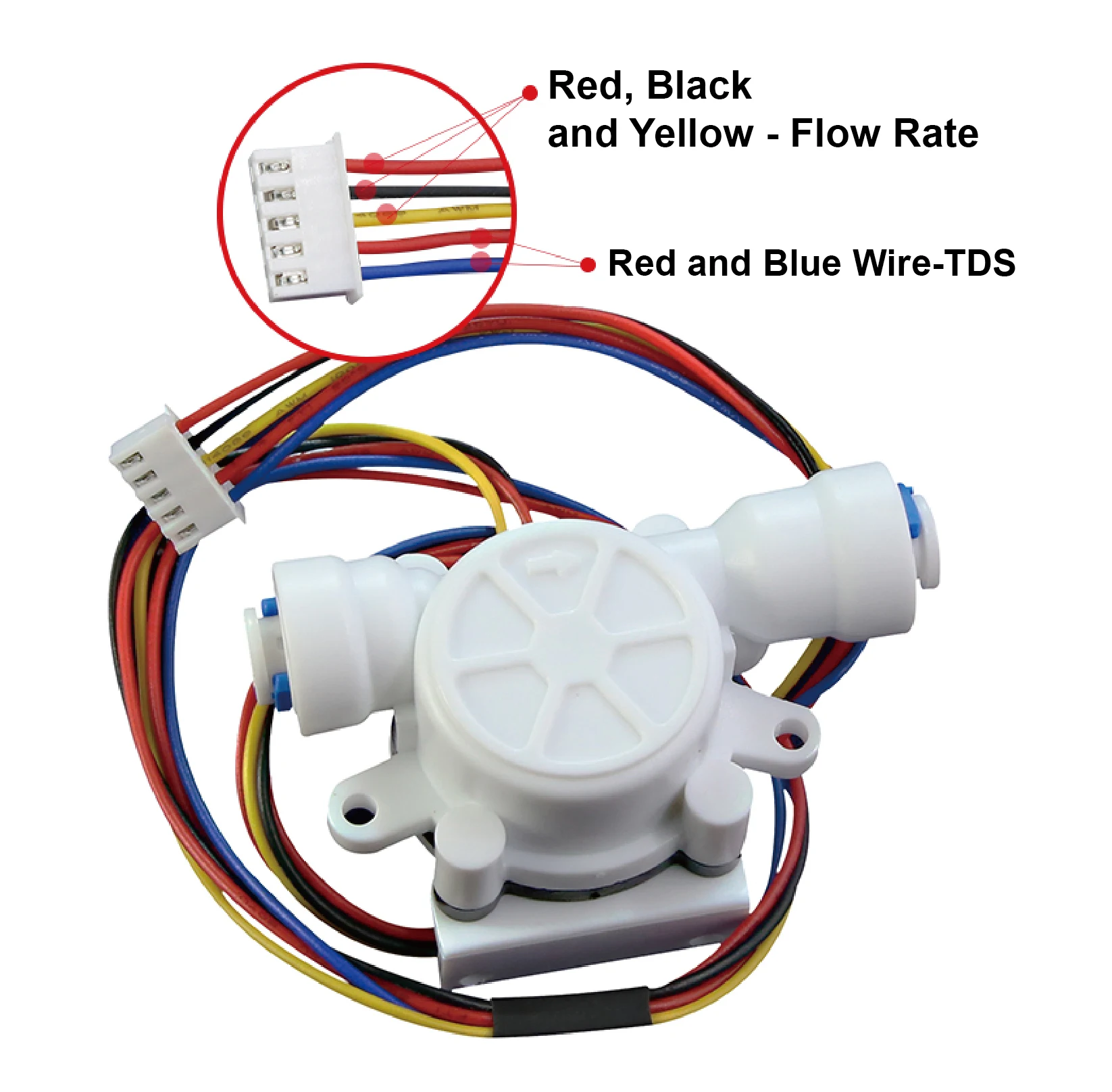

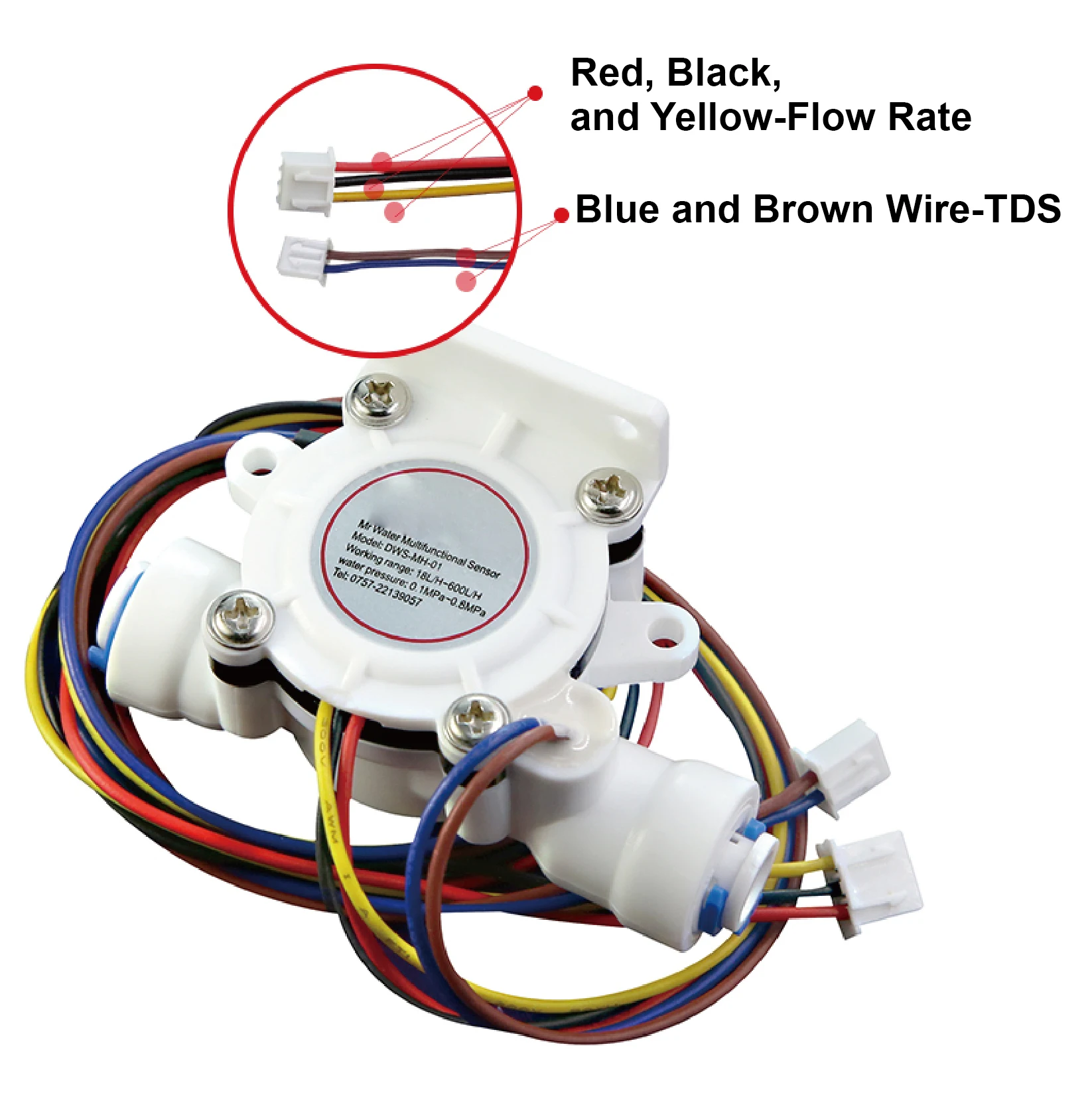

The MH-01 (2-in-1) model includes flow and TDS monitoring by default. It supports optional micro (1mm, 0.1–1L/min) or large bore (4mm, 0.3–3L/min) sizes, and can be configured with either integrated or split cable designs.

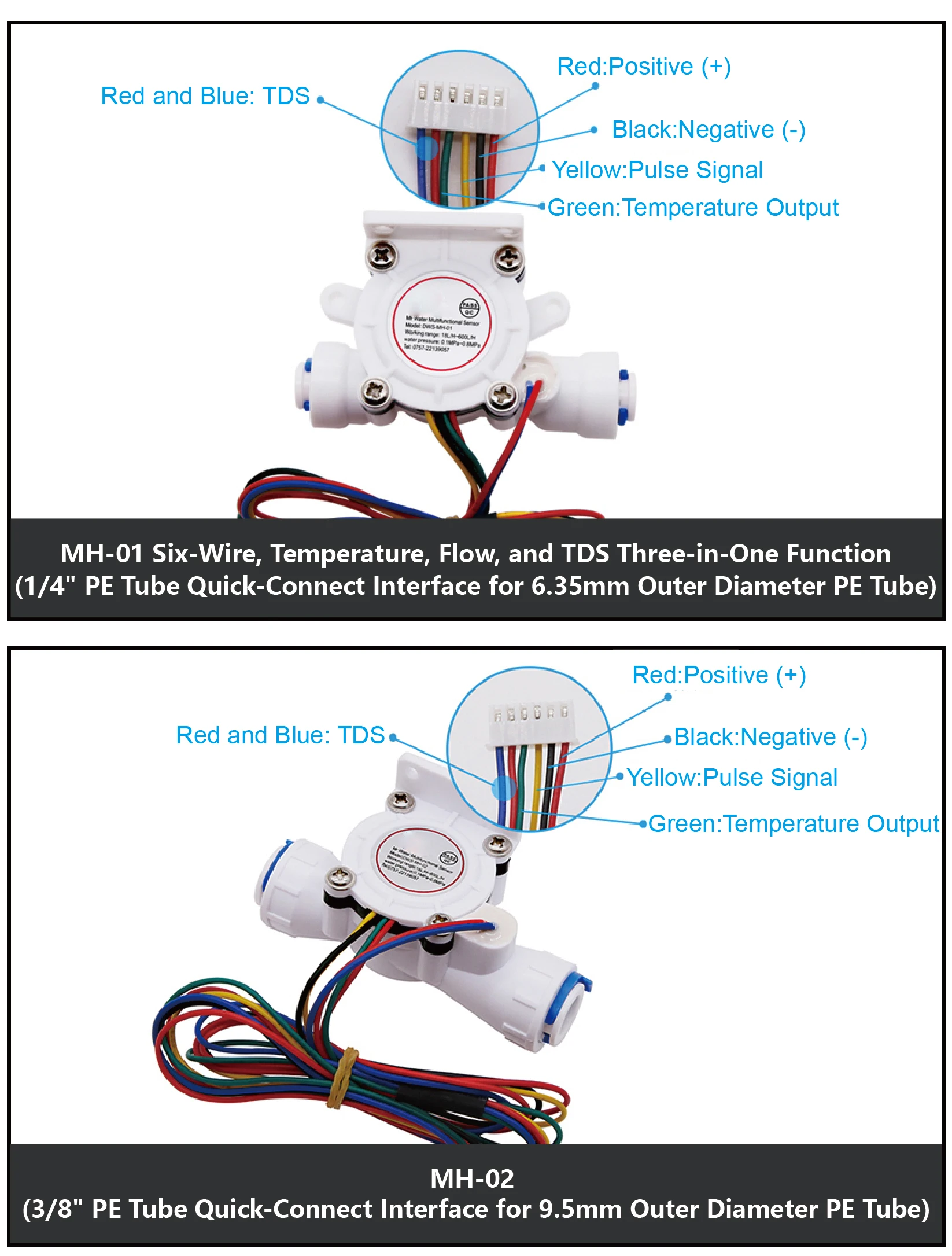

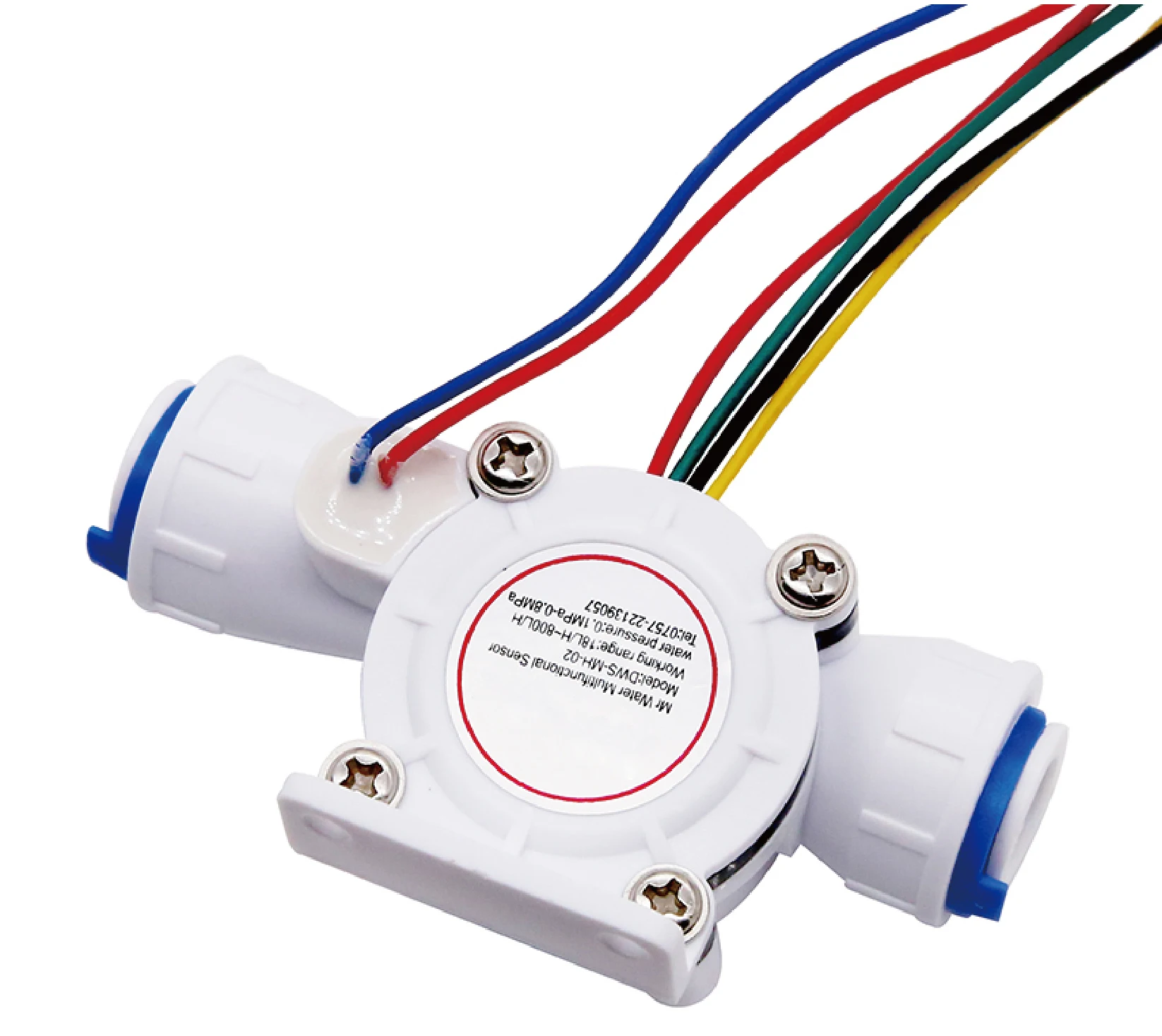

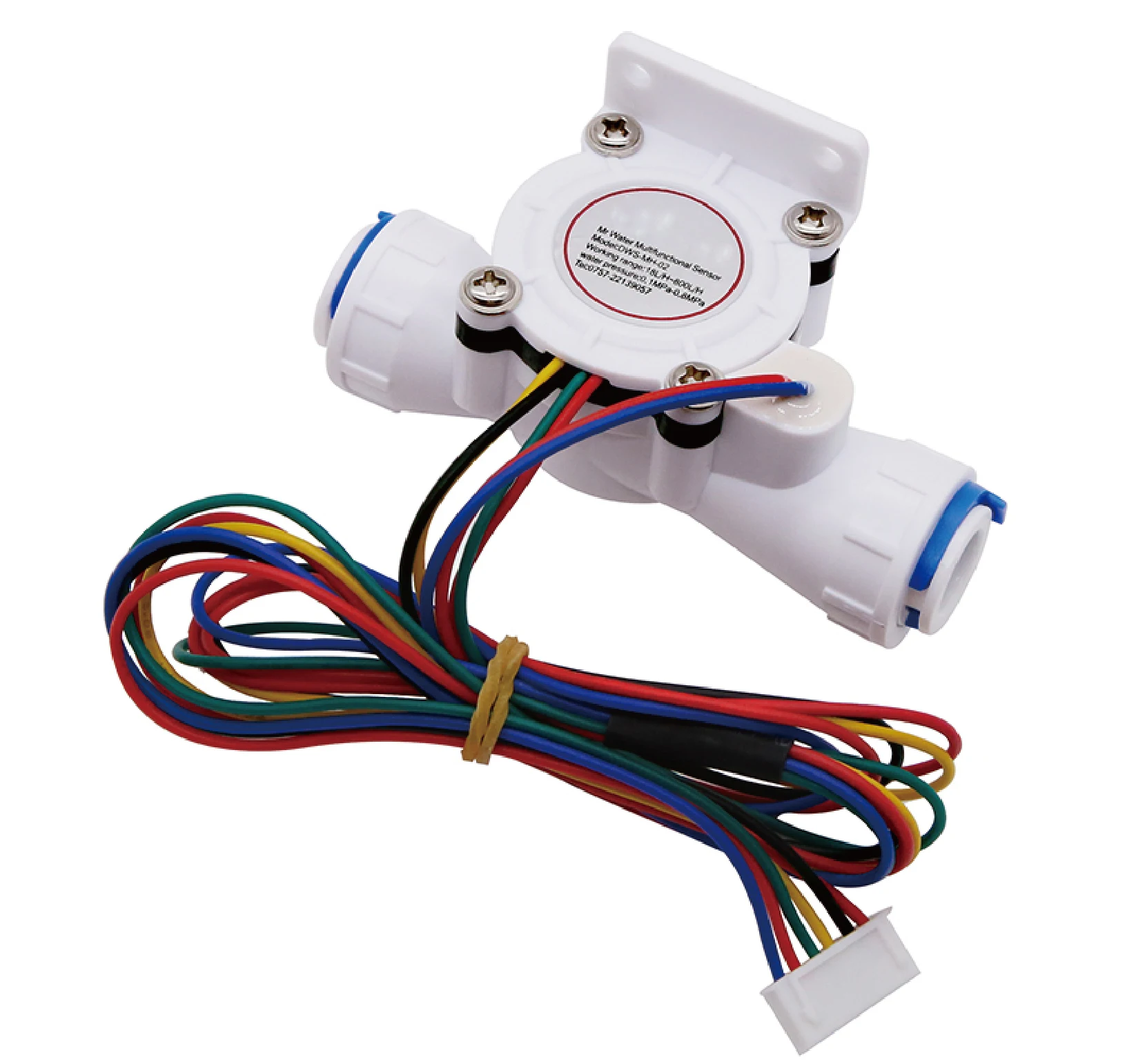

MH-01 (3-in-1) and MH-02 (3-in-1) models come with flow, TDS, and temperature sensing functions, using an integrated 6-wire cable only.
All models operate on DC 5–18V and offer ±3% flow detection accuracy. The standard MH-01 (2-in-1) does not include temperature sensing, but customization is available.
Some configurations may not be shown due to listing limitations. Please leave a note at checkout or contact us if you have specific requirements.
Feel free to reach out—we’re happy to help!

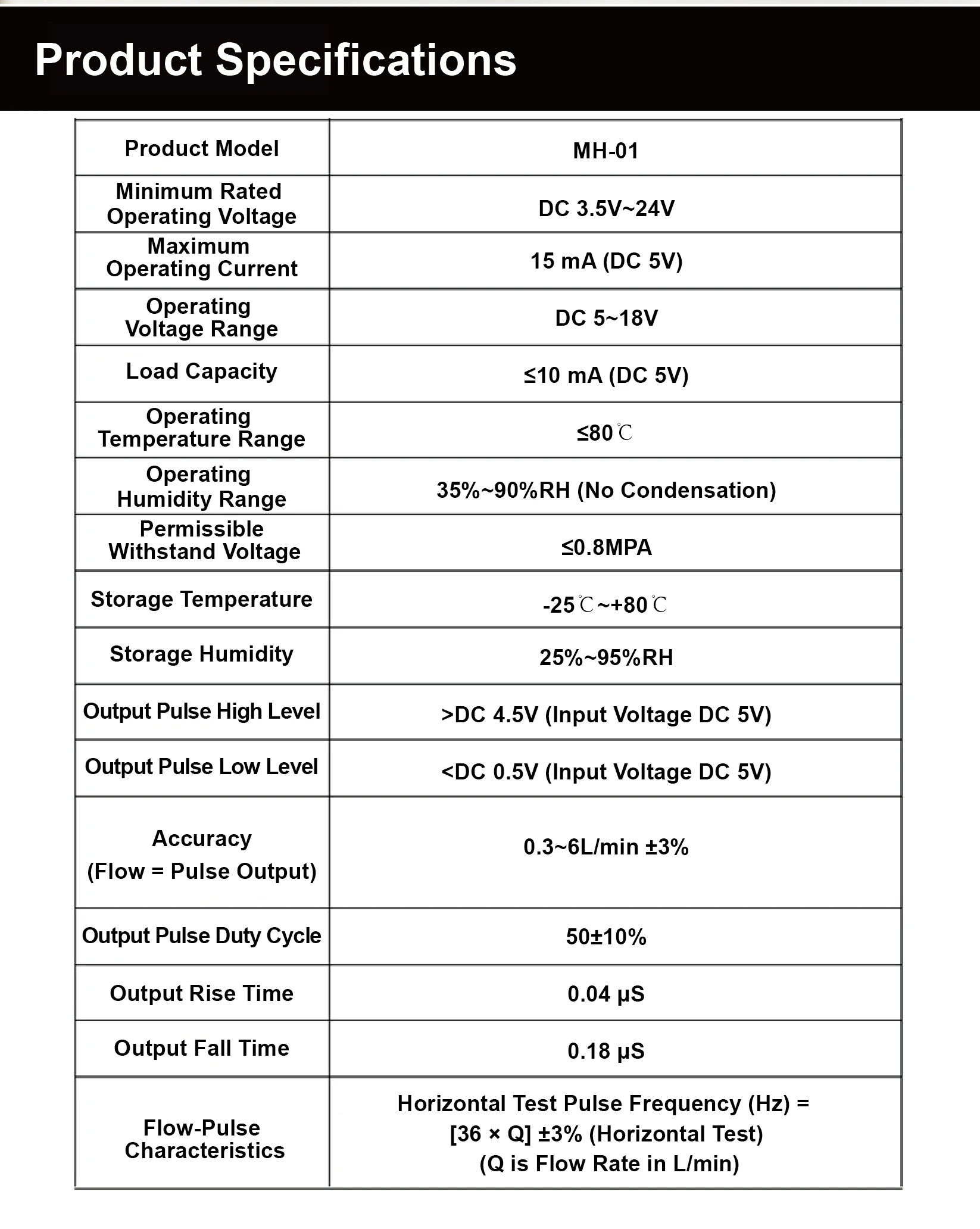

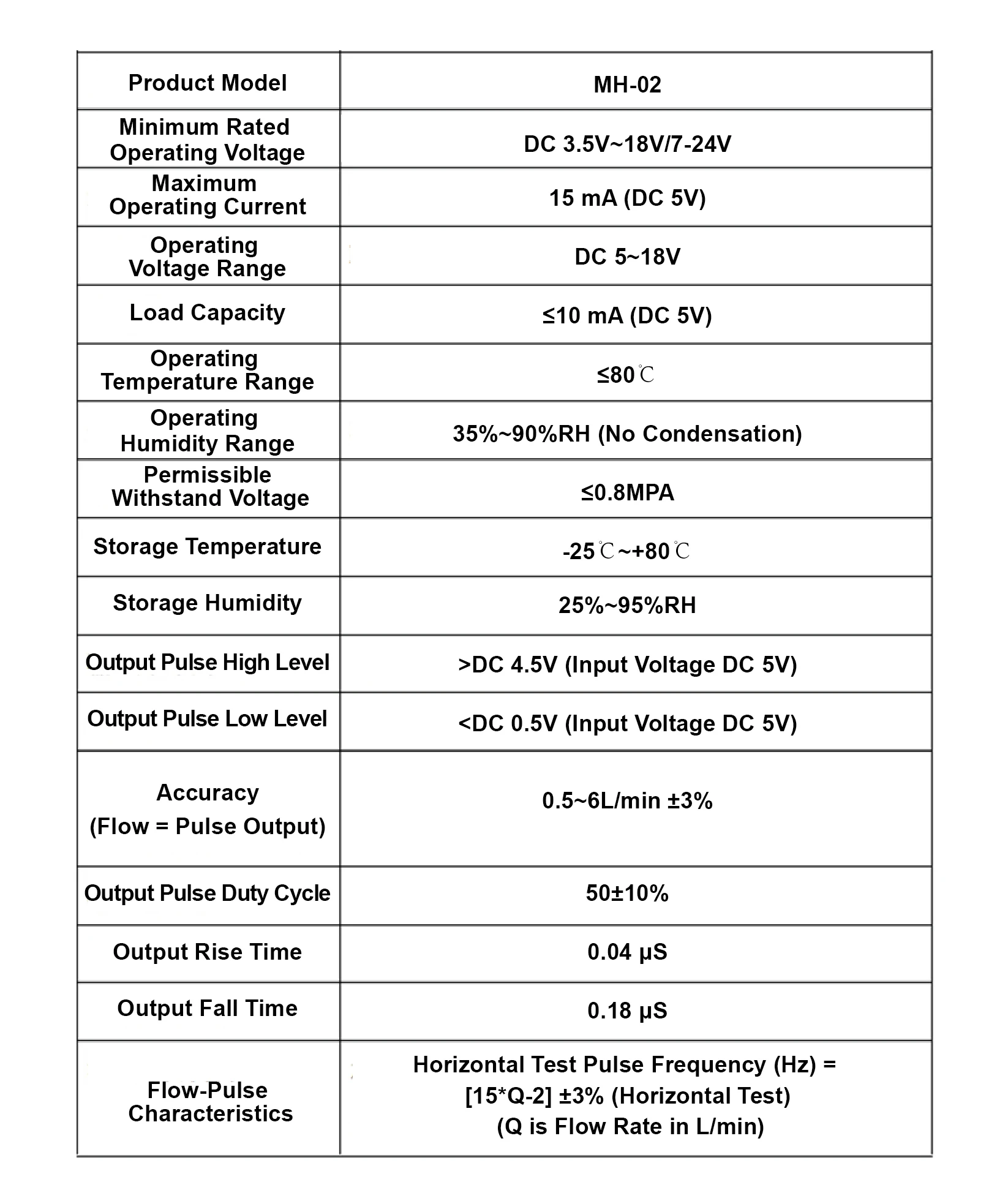

2. Parameters
Parameter | MH-01 (2-in-1) | MH-01 (3-in-1, 6-wire) | MH-02 (3-in-1) |
Function | Flow + TDS | Flow + TDS + Temperature | Flow + TDS + Temperature |
Cable Type | Integrated / Split | 6-wire Integrated Only | Integrated Only |

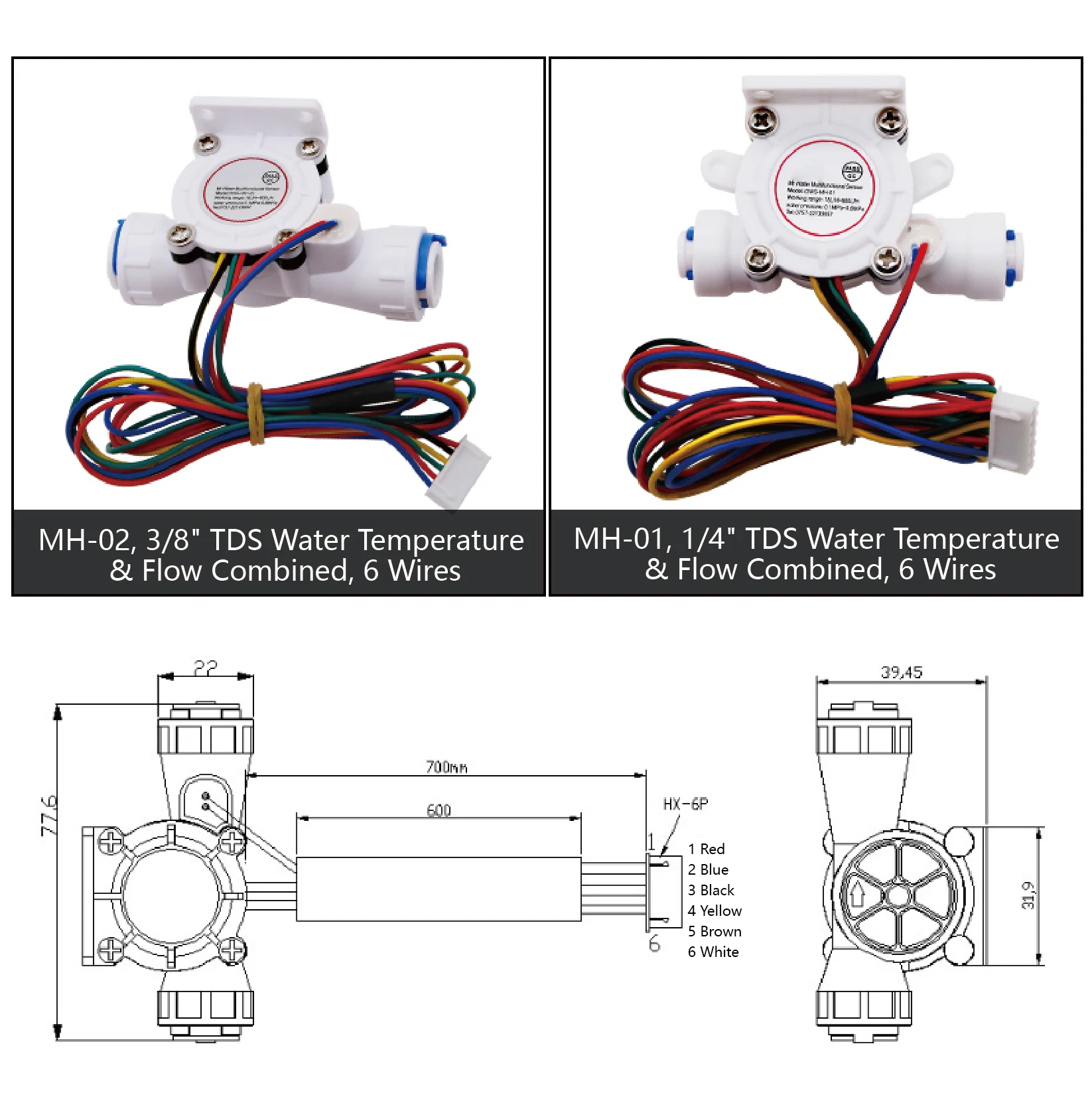

Bore Size | 4mm / 1mm | 4mm | 9.5mm |
Pipe Interface | 6.35mm PE pipe | 6.35mm PE pipe | 9.5mm PE pipe |
Operating Voltage | DC 5~18V | DC 5~18V | DC 5~18V / 7~24V |
Minimum Rated Voltage | DC 3.5V | DC 3.5V | DC 3.5V |
Max Working Current | 15mA (DC 5V) | 15mA (DC 5V) | 155mA (DC 5V) |
Load Capacity | ≤10mA | ≤10mA | ≤10mA |
Temperature Detection | No (customizable) | Yes | Yes |
Operating Temperature Range | ≤80°C | ≤80°C | ≤80°C |
Operating Humidity | 35%–90% RH (no frost) | 35%–90% RH (no frost) | 35%–90% RH (no frost) |
Storage Temperature | -25~+80°C | -25~+80°C | -25~+80°C |
Storage Humidity | 25%–95% RH | 25%–95% RH | 25%–95% RH |
Max Pressure | ≤0.8MPa | ≤0.8MPa | ≤0.8MPa |
Flow Detection Accuracy | 0.1~3L/min ±3% (see below) | 0.3~6L/min ±3% | 0.5~6L/min ±3% |
Flow Range Details | Large bore: 0.3–3L/min | 0.3–6L/min | 0.5–6L/min |
Pulse Output Duty Cycle | 50 ±10% | 50 ±10% | 50 ±10% |
Output Rise Time | 0.04μs | 0.04μs | 0.04μs |
Output Fall Time | 0.18μs | 0.18μs | 0.18μs |
Pulse Frequency Formula | Hz = 36 × Q + 3% (Q=L/min) | Hz = 36 × Q + 3% (Q=L/min) | Hz = 15 × Q - 2 + 3% (Q=L/min) |
3. Features
2-in-1 or 3-in-1 Functionality
Choose between basic (flow + TDS) or enhanced (flow + TDS + temperature) models for flexible use cases.
Customizable Design (2-in-1 Only)
Optional micro bore (1mm, 0.1–1L/min) or large bore (4mm, 0.3–3L/min), and integrated or split cable design — only available for the 2-in-1 version.

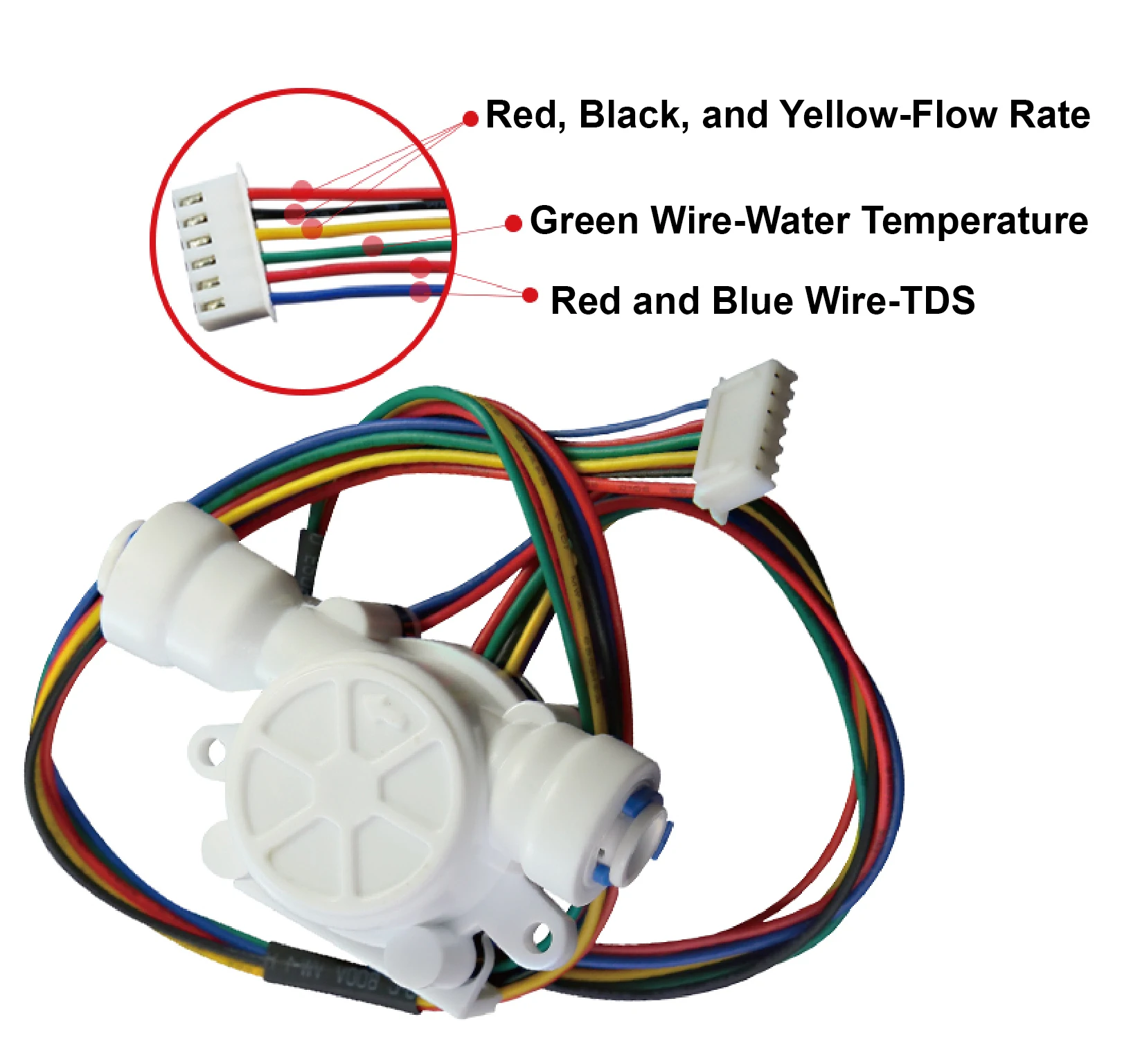

6-Wire Integrated Version for Full Monitoring
The 3-in-1 version comes with an integrated 6-wire structure, ideal for compact systems with full data feedback.
Precise & Stable Signal Output
±3% flow accuracy, clean pulse signal, and ultra-fast response for accurate real-time monitoring.
Optional Temperature Sensing (2-in-1 Custom)
The standard 2-in-1 model does not support temperature sensing, but customization is available on request.
4. Application
Smart RO Water Filtration Systems
Water Quality Monitoring in IoT Devices
Home & Industrial Water Purifiers
Lab-Grade Low-Flow Fluid Measurement
Precision Water Control in Smart Appliances
5. FAQs
Q1: Do all MH-01 sensors support temperature monitoring?
A1: No. Only the 3-in-1 version (with 6-wire integrated cable) supports temperature sensing. The standard 2-in-1 model supports flow and TDS only.
Q2: Which models offer split cable installation?
A2: Only the 2-in-1 version of MH-01 supports both integrated and split cable designs. The 3-in-1 versions (MH-01 & MH-02) come only with integrated cables.
