Product Description
1.NOTE
Due to page limitations, some configurations may not be listed. For customization, please contact us.

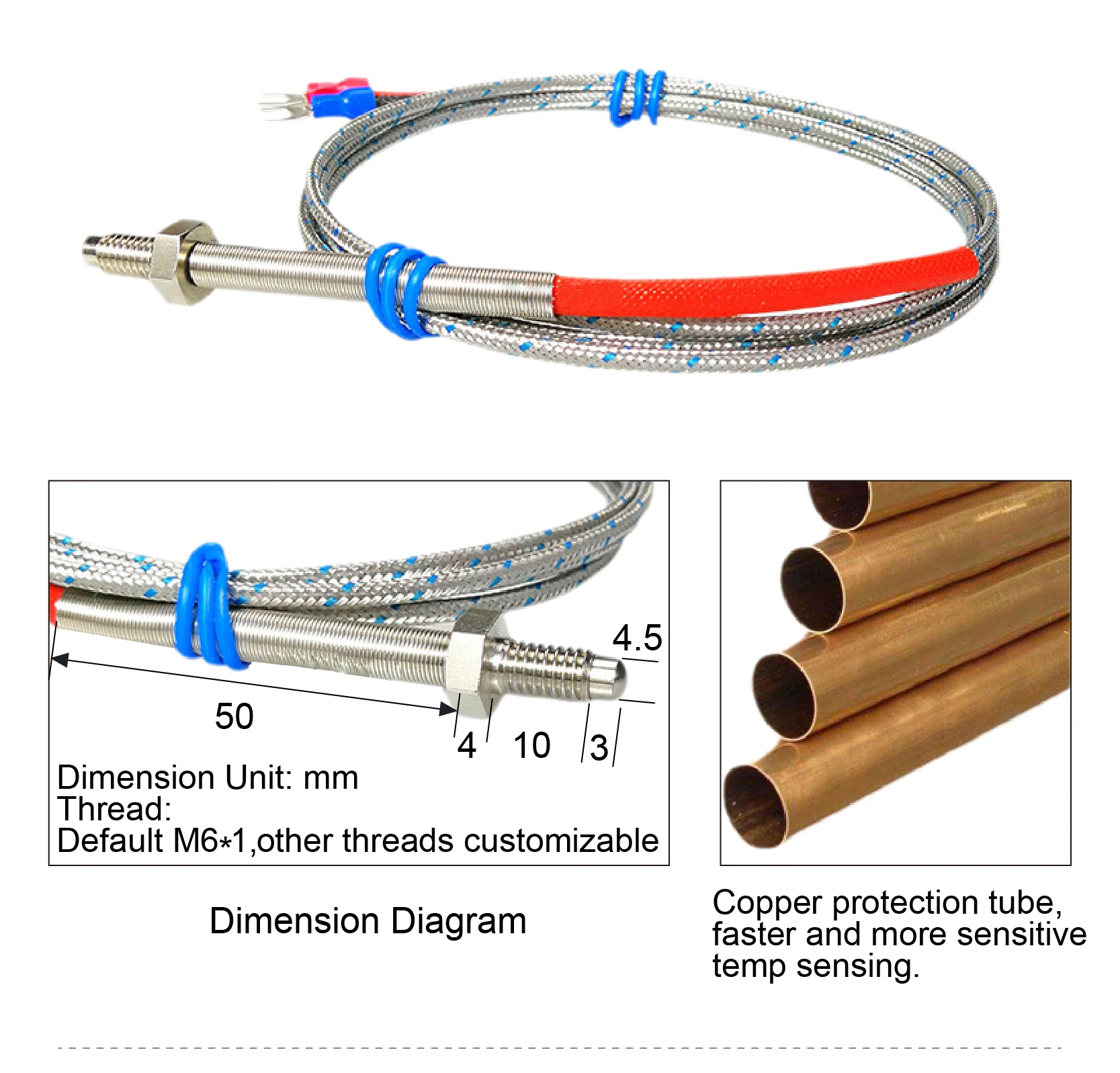

Default Parameters:
Index Number: K/E/PT100
Probe Diameter: 4.5mm
Probe Length: 3mm
Thread Length: 10mm
Thread Size: M6*1
U-type Terminal
Optional Parameters:
Index Number: K/E/PT100

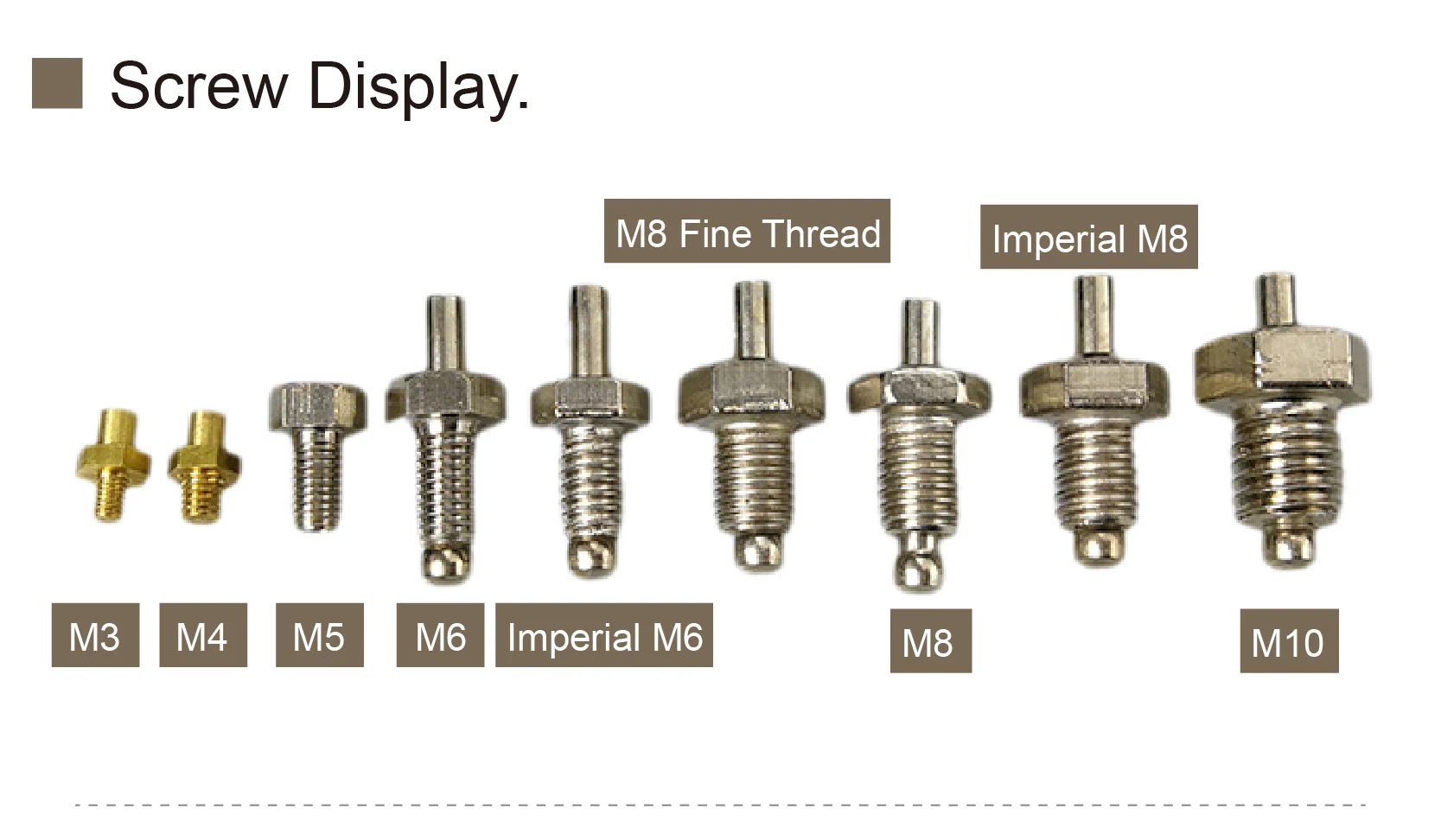

Thread Sizes: M8*1, M8*1.25, M10*1, M10*1.5
Terminal Types: Omega Yellow Plug, Premium Yellow Plug, Aviation Plug, Standard Yellow Plug
2.Parameters
Parameter | Description |
Type | K (default) / E / J / T / Pt100, etc. |
Model | WZPT-02 (Pt100) |
Screw Size | M61 (default) / M81.25 / M10*1.5 |
Temperature Range | 0-600°C (K) / 0-400°C (E) / -50~200°C (Pt100) |
Material | Copper screw for fast, sensitive response |
Grounding | Non-grounded (insulated, isolated type) |
Cable Length | 0.5m / 1m / 1.5m / 2m / 3m, customizable |

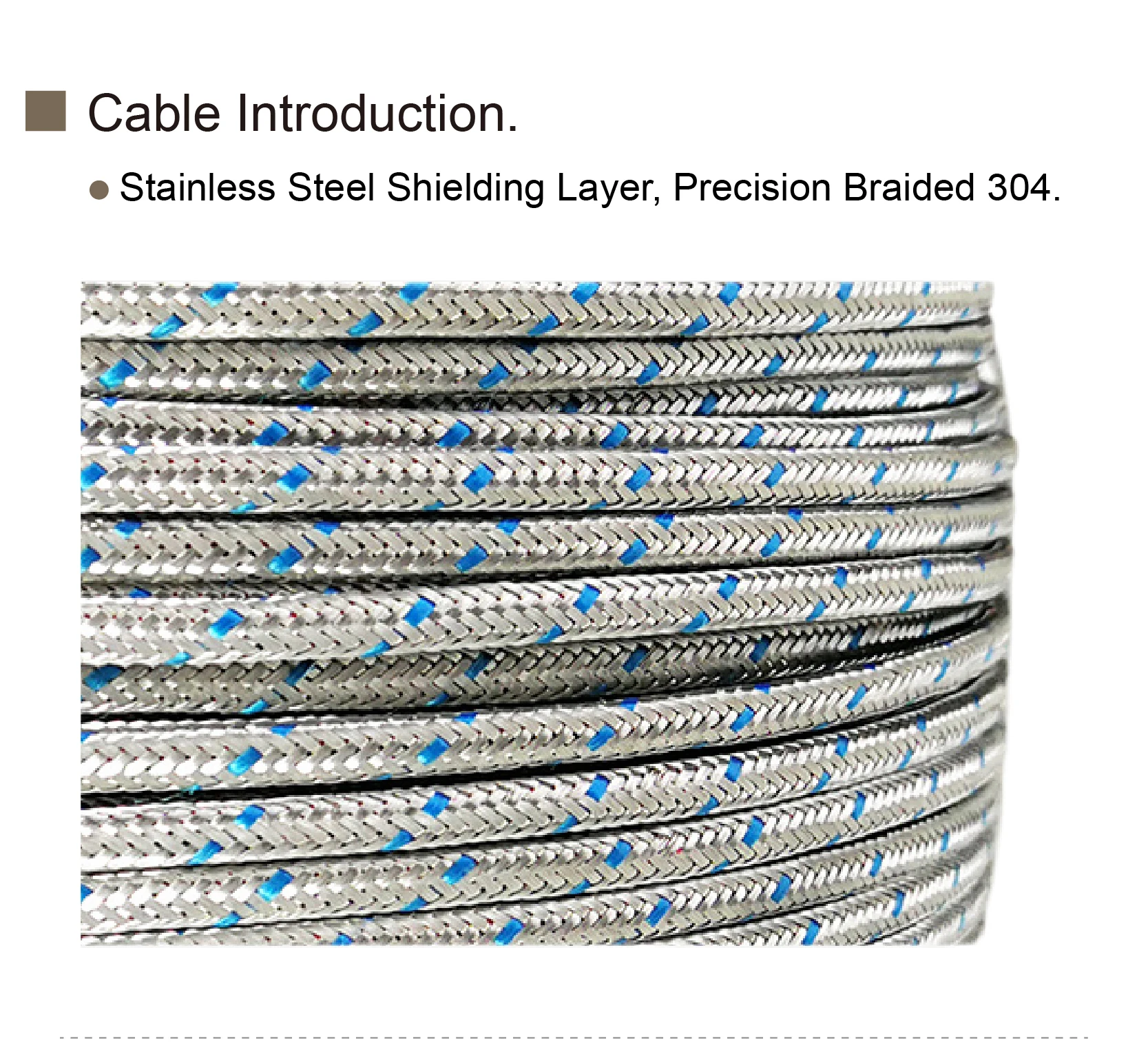

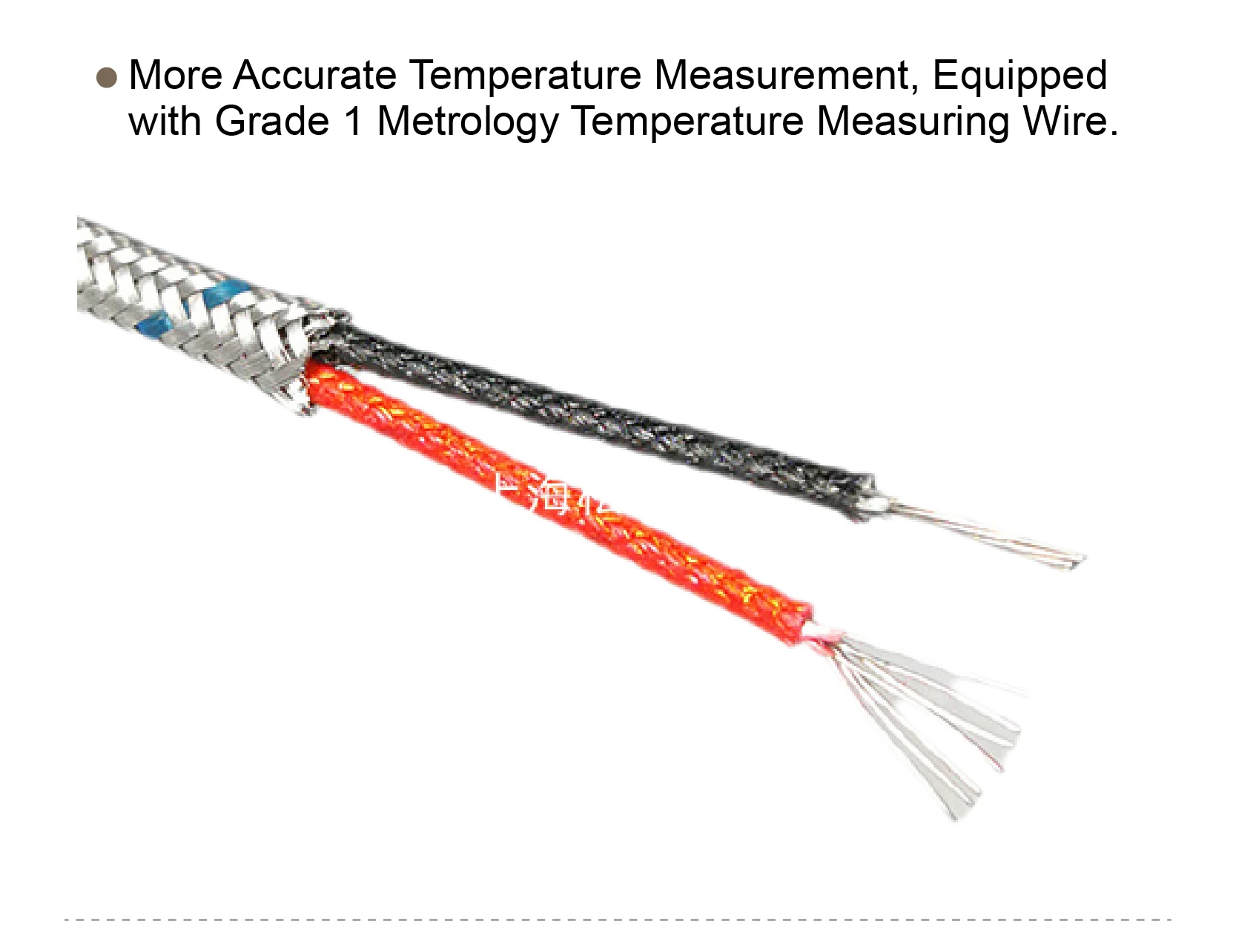

Cable Material | Precision 270.2mm shielded wires |
3.Features
High Temperature Resistance

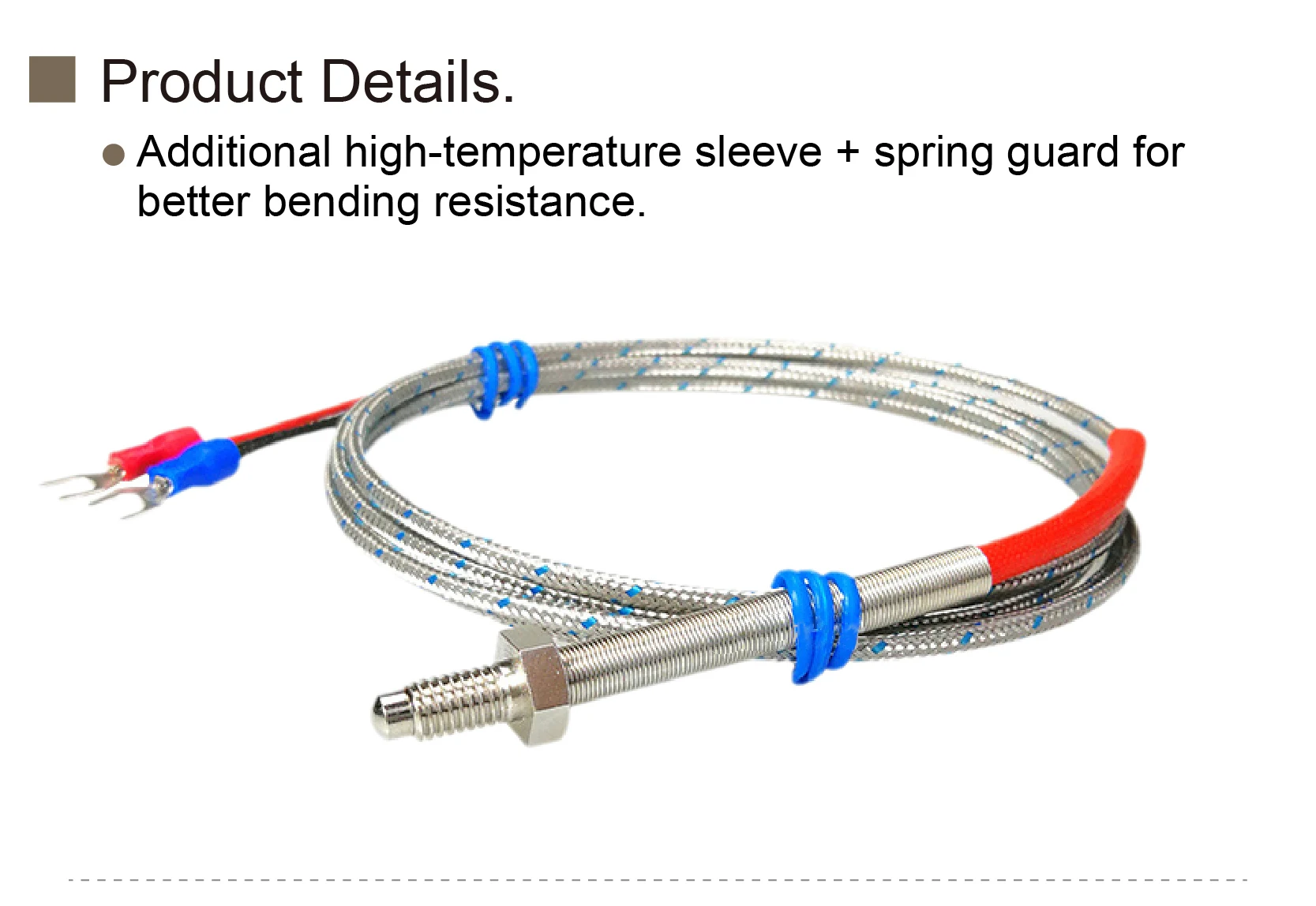

Equipped with a high-temperature sleeve and spring sheath for enhanced durability.
Customizable Lengths
Cable length options range from 0.5m to 100m, with customization available for specific needs.
Superior Sensitivity
Copper screw design ensures fast and accurate temperature readings.
Non-Grounded Design
Insulated and isolated for precise and stable measurements without external interference.
4.Applications
Industrial Machinery: Suitable for temperature monitoring in high-demand equipment.
Scientific Research: Accurate data collection in laboratory environments.
Manufacturing: Ensures product quality with reliable temperature control.
5.FAQs
What are the grounding options for this thermocouple?
This product is a non-grounded (insulated) type, designed for stable and interference-free measurements.
Can the cable length be customized?
Yes, we offer customizable cable lengths based on your requirements.
What are the default screw sizes available?
The default options are M61, M81.25, and M10*1.5. Other sizes can be made upon request.
