Product Description
1.NOTE

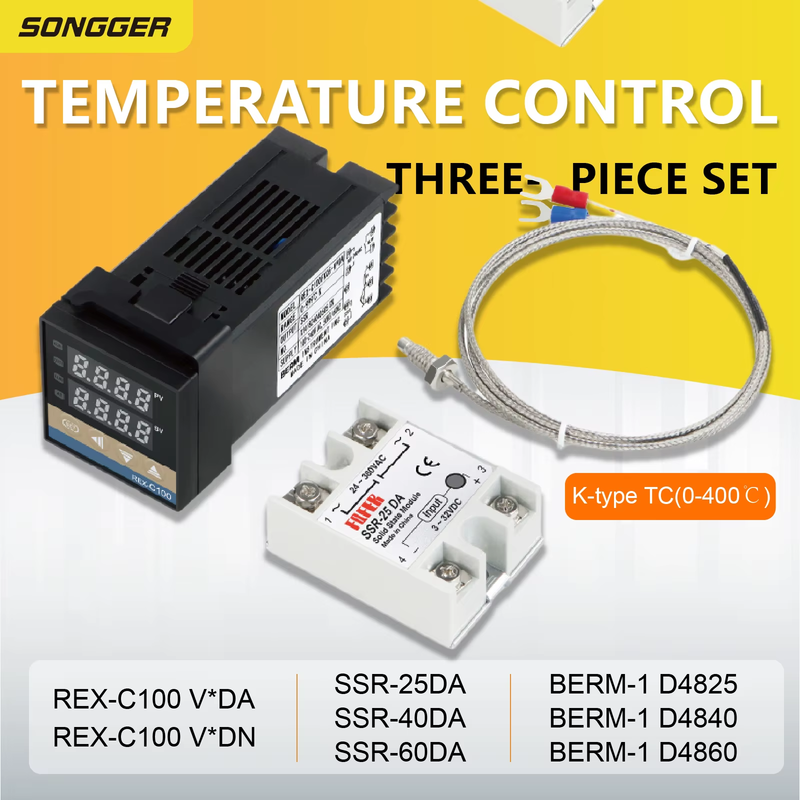

Temperature Controller + Thermocouple Probe + Solid-State Relay
Default Package Includes:
1Temperature Controller (DA or DN Option):
Default power supply: 100-240VAC.
REX-C100V*DA: Long shell with one alarm; dimensions: 48 x 48 x 107 mm.
REX-C100V*DN: Compact shell without alarm; dimensions: 48 x 48 x 86 mm.
Output: Solid-state output.
2、Thermocouple Probe:
Threaded K-type thermocouple probe.
Thread size: M6*1.25.
Cable length: 1 meter.
Temperature range: 0-400°C.
3、 Solid-State Relay:
SSR-25DA: Dimensions: 82 x 31 x 86 mm; inner hole diameter: 3.2 mm.
SSR-40DA: Dimensions: 63 x 46 x 24 mm; M4 threads.
SSR-60DA: Dimensions: 82 x 31 x 102 mm; inner hole diameter: 3.2 mm.
Customizable Parameters:
Digital Temperature Controller: Output type can be customized (solid-state, relay, or 4-20mA output).
Thermocouple Probe: Probe size, thread specifications, and cable length can be customized.
Solid-State Relay: Various types and sizes available (e.g.SSR-25DA/SSR-40DA/SSR-60DA/
BERM-1 D4825/BERM-1 D4840/BERM-1 D4860).
For customization or bulk purchases, please contact us.
2.Parameters
Specification | Details |
Thermostat Models | REX-C100V*DN (Compact, No Alarm) |
REX-C100V*DA (Long Shell, One Alarm) | |
Thermostat Dimensions | REX-C100V*DN: 48 x 48 x 86 mm |
REX-C100V*DA: 48 x 48 x 107 mm | |
Mounting Hole Size | 45 x 45 mm |
Power Supply | 100-240VAC |
Temperature Range | 0-400°C |
Probe Type | K-Type Thermocouple |
Probe Dimensions | M6*1.25, Cable Length: 1 m |
Load Voltage Range | 24-380VAC |
Resistive Load Current | 10A |
Inductive Load Current | 3A |
Solid-State Relay Types | BERM-1-D4840,single-phaseI-50, SSR-10DA/25DA/40DA/60DA/80DA |
3.Features
Two Thermostat Variants:
Compact REX-C100VDN (no alarm) and longer REX-C100VDA (with one alarm output) for flexible use cases.
High-Precision Temperature Measurement:
K-type thermocouple ensures accuracy within a range of 0-400°C.
Compact and Adaptable:
Small size, fast response time, and versatile compatibility for industrial or domestic settings.
Safety and Stability:
Enhanced sensitivity, robust build, and strong insulation ensure safe and reliable performance.
4.Applications
Industrial heating and cooling systems.
Manufacturing processes requiring accurate temperature monitoring.
Appliances or systems demanding reliable temperature control over extended periods.
5.FAQs
Q1: What is the difference between the REX-C100VDN and REX-C100VDA?
A1: REX-C100VDN is a compact model without alarms, while REX-C100VDA includes one alarm output and has a longer shell.
Q2: Is the system suitable for inductive loads?
A2: Yes, but ensure the inductive load does not exceed 3A.
Q3: How do I install the temperature probe?
A3: The screw-type probe (M6*1.25) is designed for easy and secure installation with a 1-meter cable for flexibility.
