Product Description
1.NOTE
Due to page limitations, some configurations may not be listed. Please contact us or leave a note during checkout for special requests.
Default Configuration Includes:

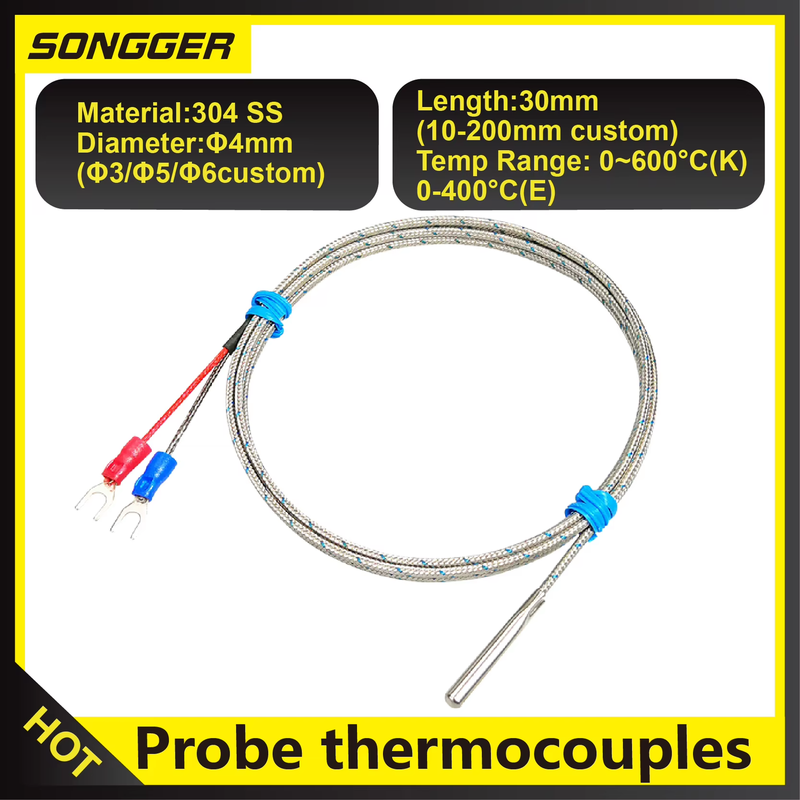

Temperature Range: 0–600°C (K-Type) / 0–400°C (E-Type)
Material: 304 Stainless Steel

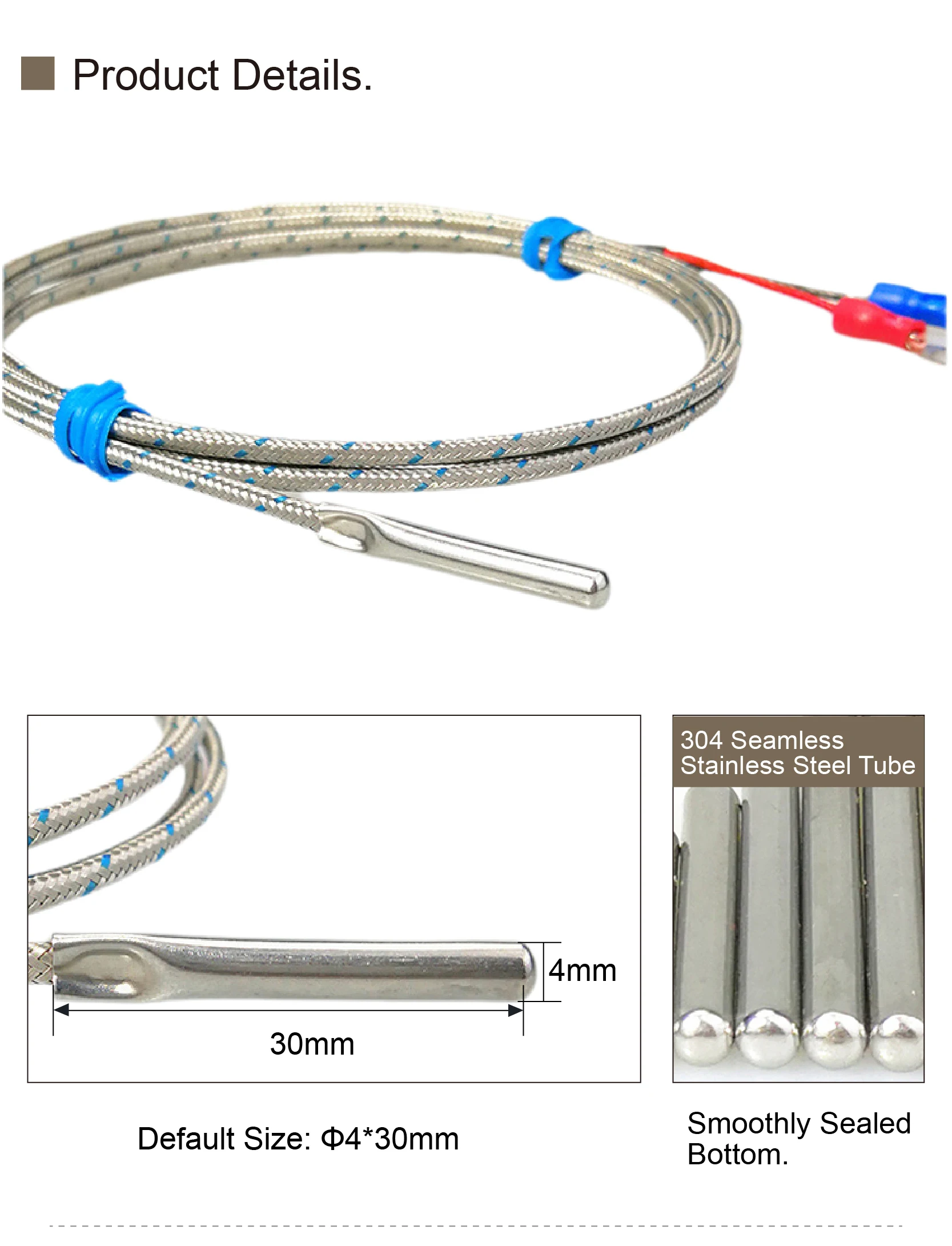

Probe Size: Φ4×30mm
Cable Length: 1–5m (Optional)
Cable Type: 2-core High-Temperature Shielded Cable
Terminal Connector: U-Type Terminal
Optional Configurations Include:
Sensor Type: Customizable to PT100 (Waterproof Option Available: -50-200°C)

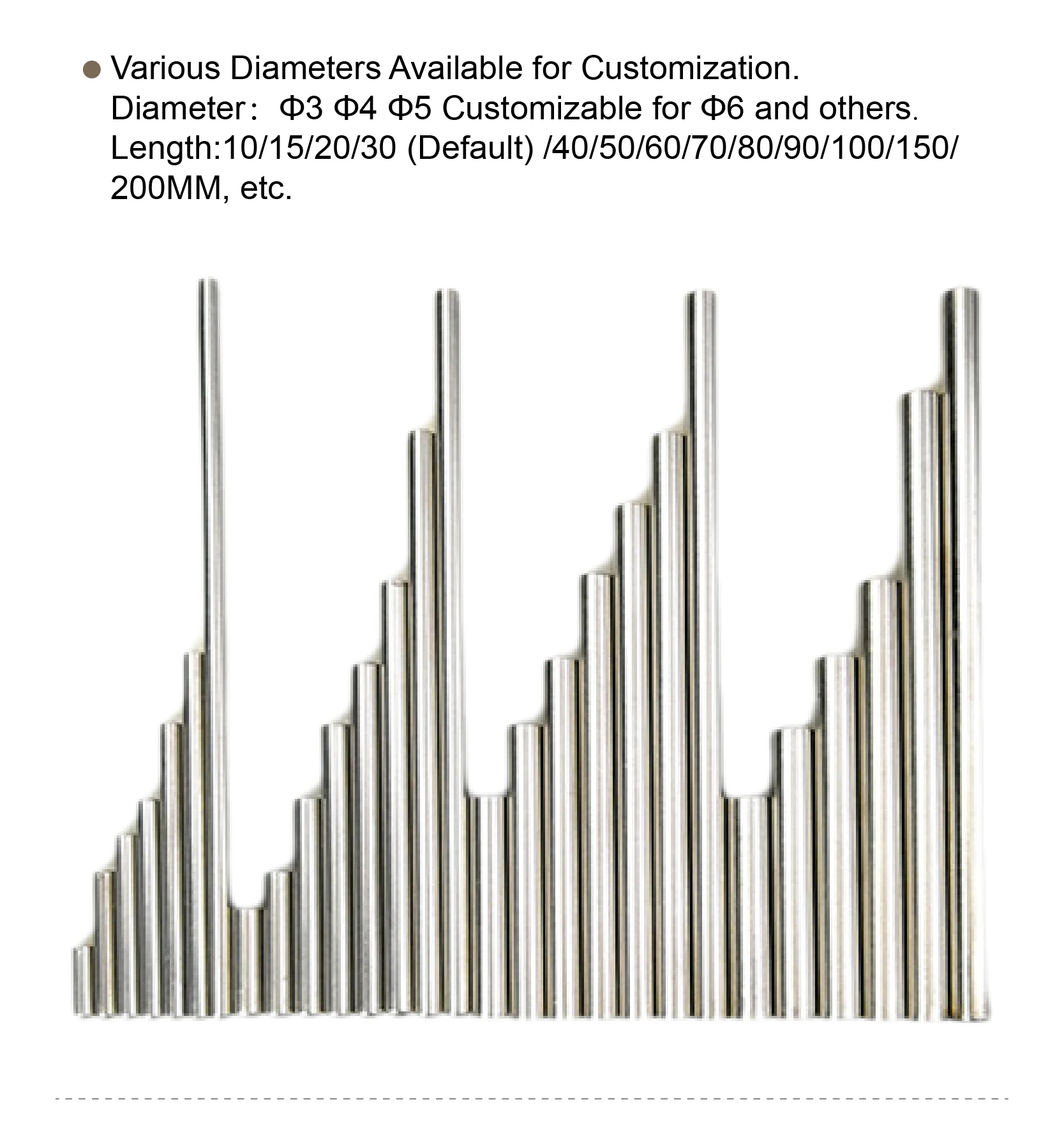

Probe Diameter: Customizable (e.g., Φ3mm, Φ4mm, Φ5mm, Φ6mm)
Probe Length: Customizable (e.g., 10mm, 50mm, 100mm, 200mm)
Cable Length: Customizable (e.g., 1m, 5m, 10m, 20m)
Terminal Connector: U-Type Terminal (Default), Aviation Plug, Pin Terminal (Customizable)
This probe is not waterproof by default. If a waterproof version is required, a PT100 waterproof model can be customized (-50°C to +200°C).

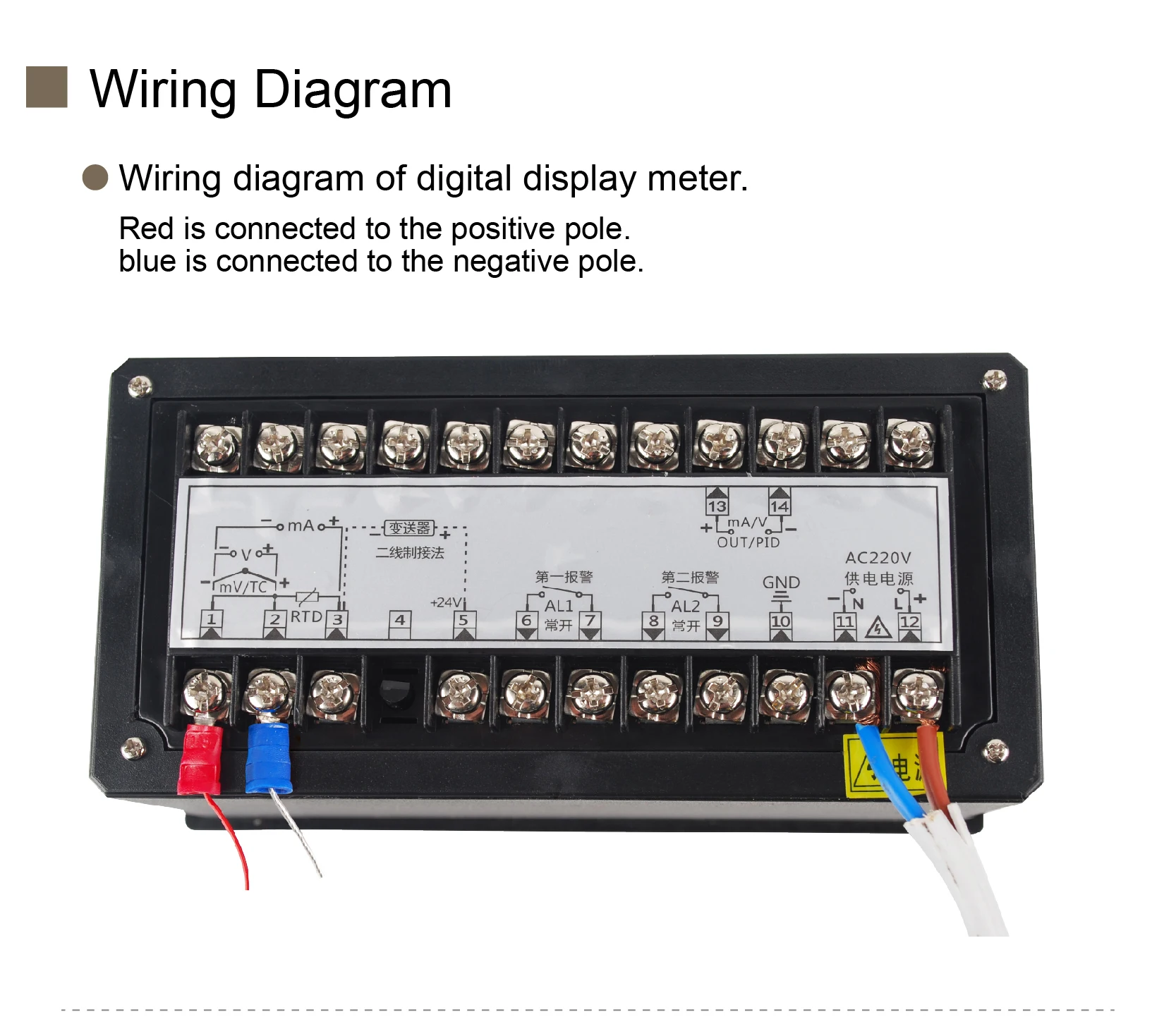

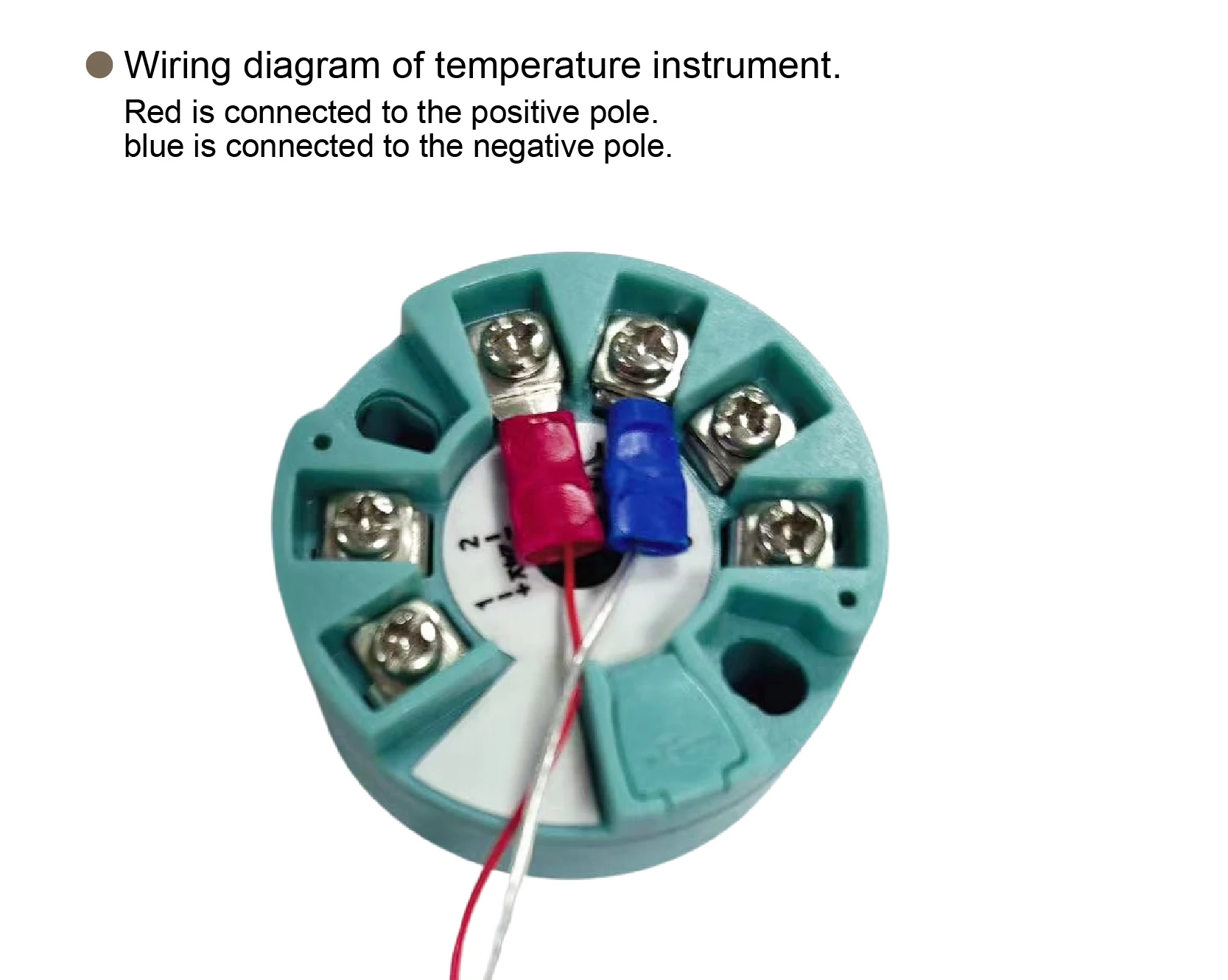

Ensure the sensor type matches your temperature controller input (e.g., a K-Type sensor must match a K-Type controller).

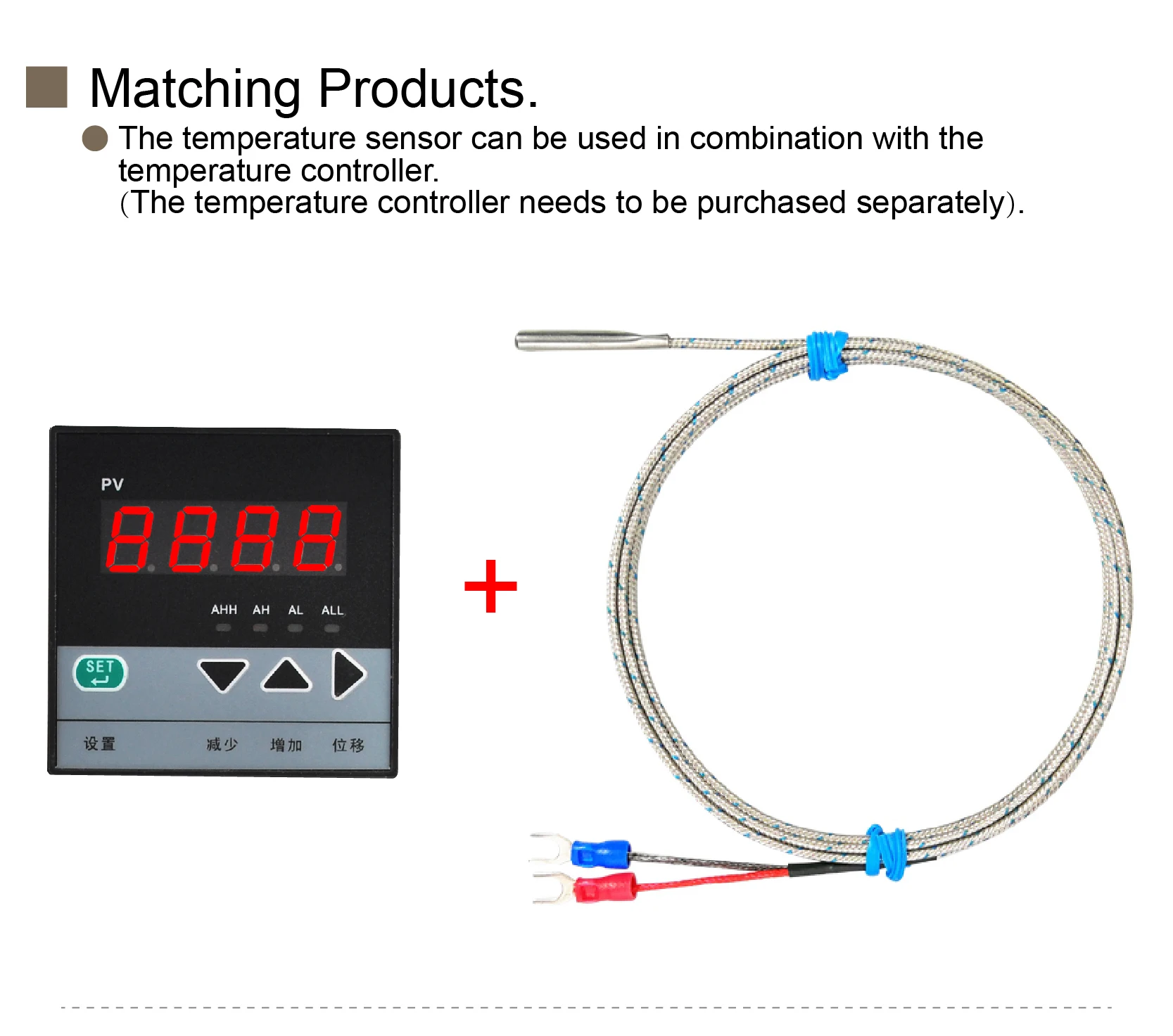

The default package includes only the sensor probe; temperature controllers must be purchased separately.
For customization, please contact us.
2.Parameters
Parameter | Specification (English) |
Type | K (Default) / E / J / T / PT100 |
Temperature Range | 0-600℃（K）/0-400℃（E）/-50-200℃（PT100） |
Probe Material | 304 Stainless Steel |
Probe Diameter | Φ4mm (Default) / Φ3mm / Φ5mm / Φ6mm |
Probe Length | 30mm(Default)/10-200mm (Customizable) |
Grounding | Non-grounded (Insulated) |

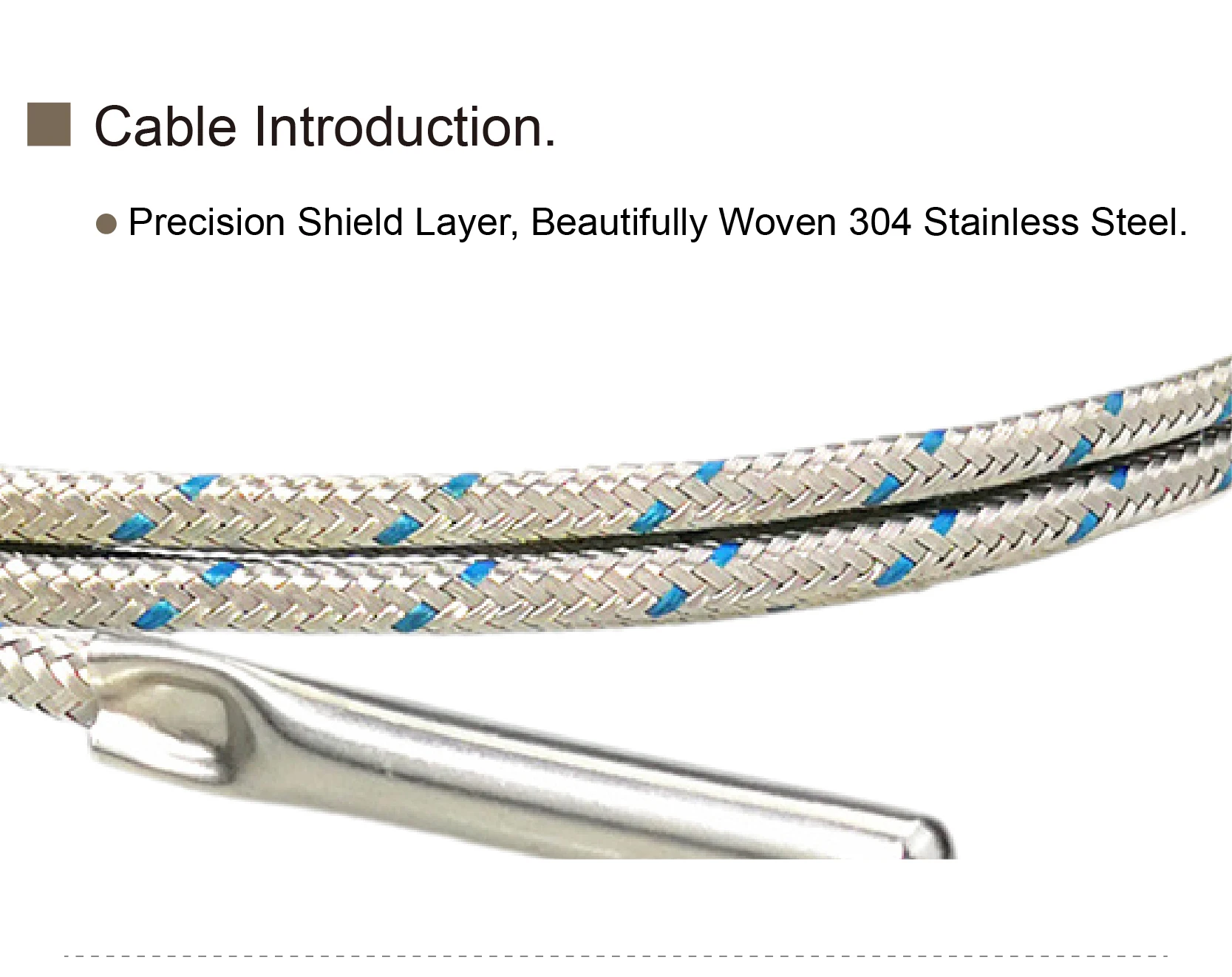

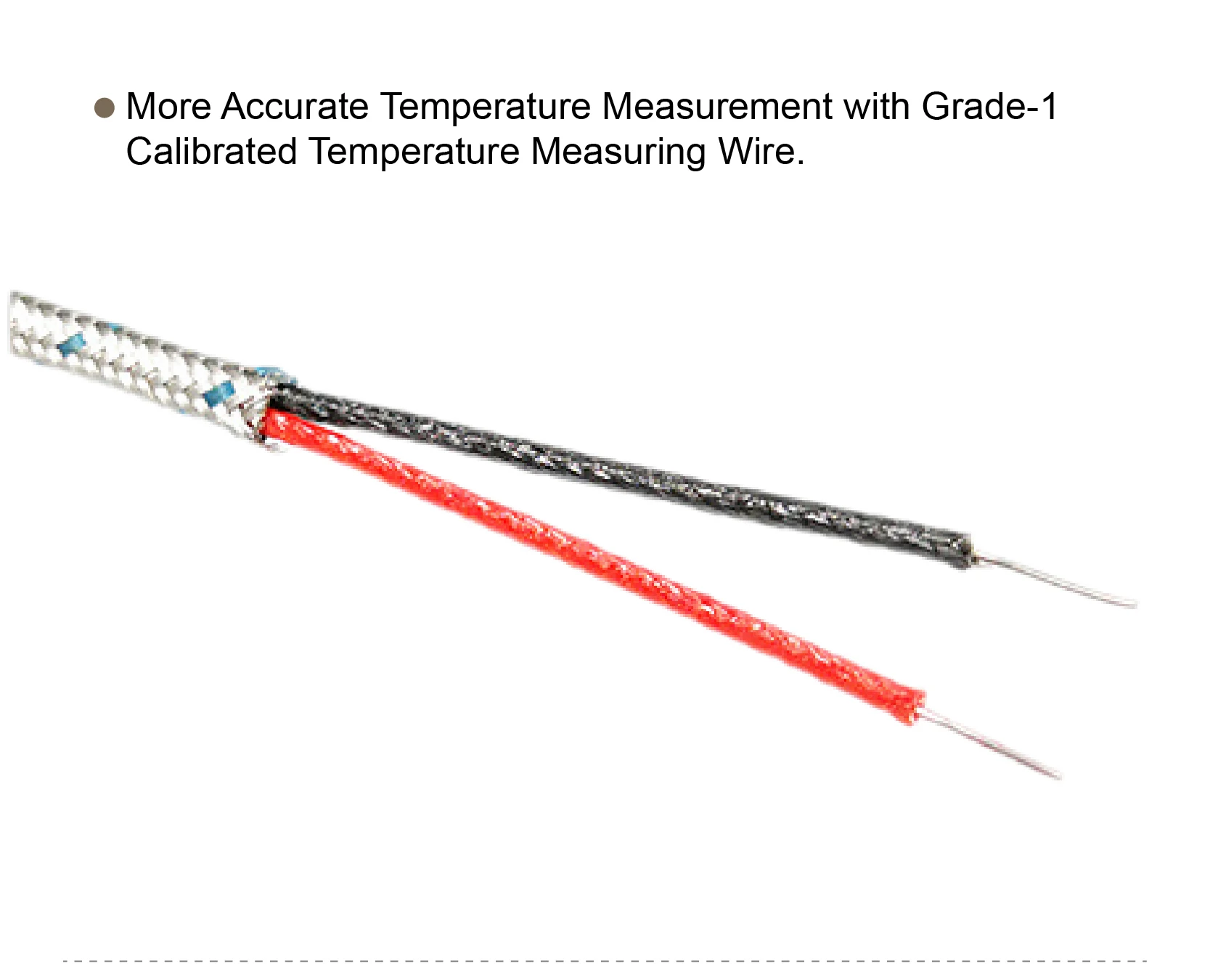

Wire Type | 2*0.4mm high-temperature shielded wire |
Wire Length | 0.5m / 1m / 1.5m / 2m / Customizable |
Connector Type | U-type (Default) / Customizable |
3.Features
Durable Stainless Steel Construction
Made from 304 stainless steel, ensuring durability and resistance to high temperatures and corrosion.

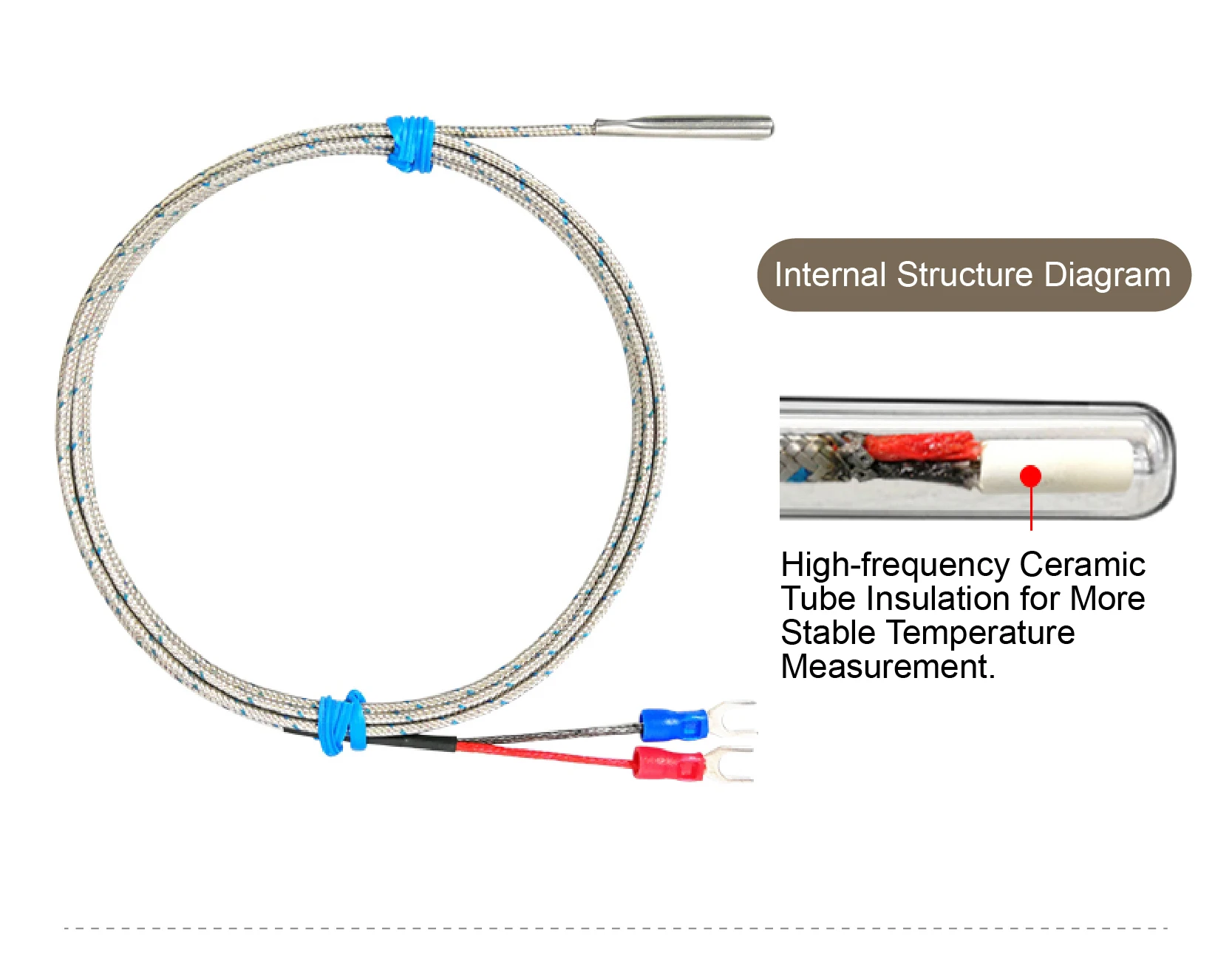

High-Frequency Ceramic Insulation
Ensures stable temperature readings without external interference.
Customizable Specifications
Probe diameter, length, and connector types can be tailored to fit specific application needs.
Non-Grounded Design
Provides accurate and stable temperature readings.

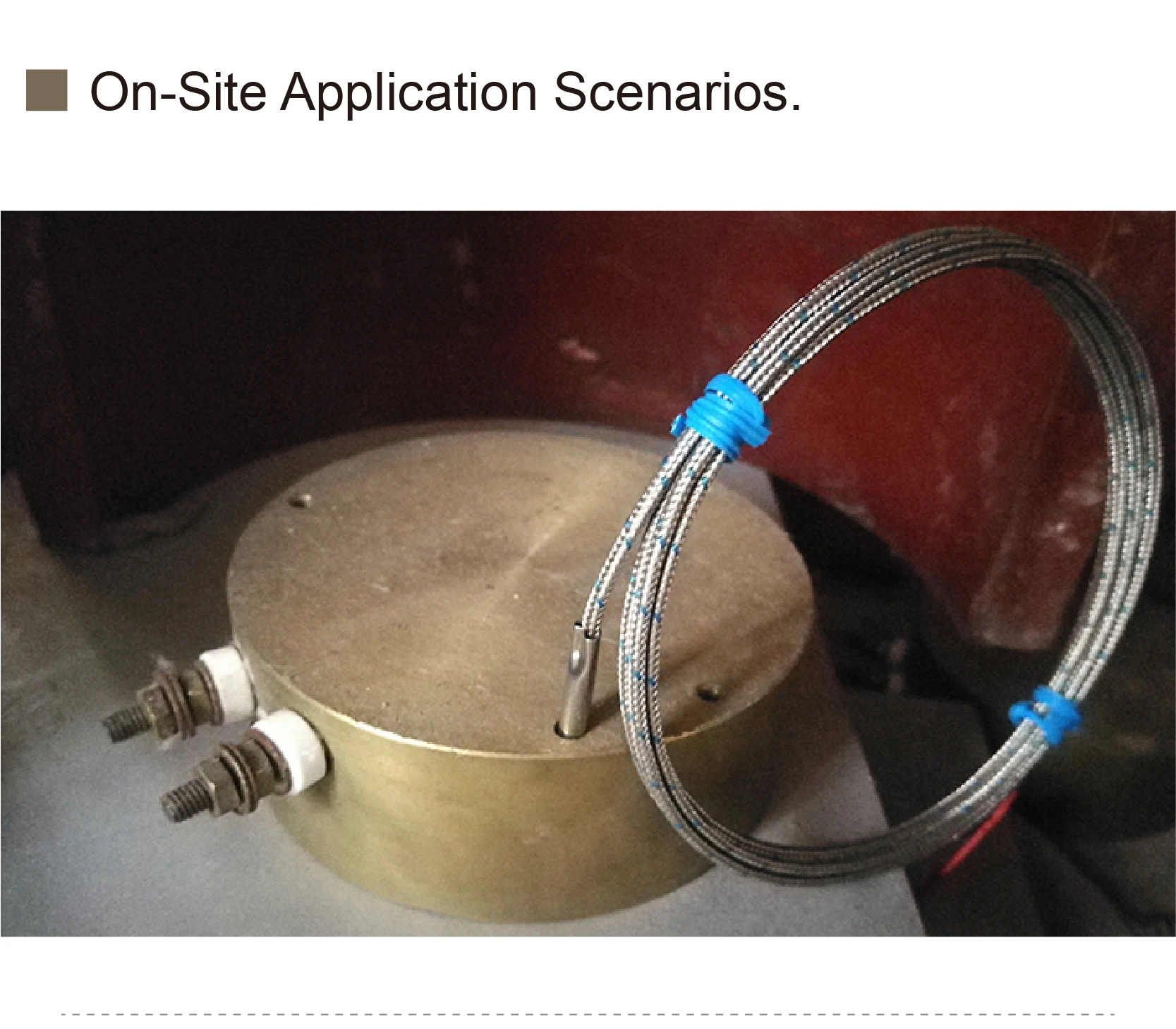

4. Applications
Industrial Temperature Measurement
Food Processing Equipment
HVAC Systems
Scientific Research
Automated Systems
5.FAQs
Q:Can the probe length and diameter be customized?
A:Yes, both the length and diameter of the probe can be customized based on your requirements.
Q:What is the maximum temperature range?
A:The maximum temperature range depends on the type: up to 600°C for K-type thermocouples.
Q:Is this thermocouple waterproof?
A:By default, it is not waterproof, but a waterproof version can be customized upon request.
