Product Description
1.NOTE
Due to listing space limitations, not all configuration options are displayed.
The default configuration includes:
Temperature unit: Celsius (°C)
Sensor: 1-meter NTC probe
Housing: ABS flame-retardant shell
Output capacity: Cooling (10A/250VAC), Heating (10A/250VAC)

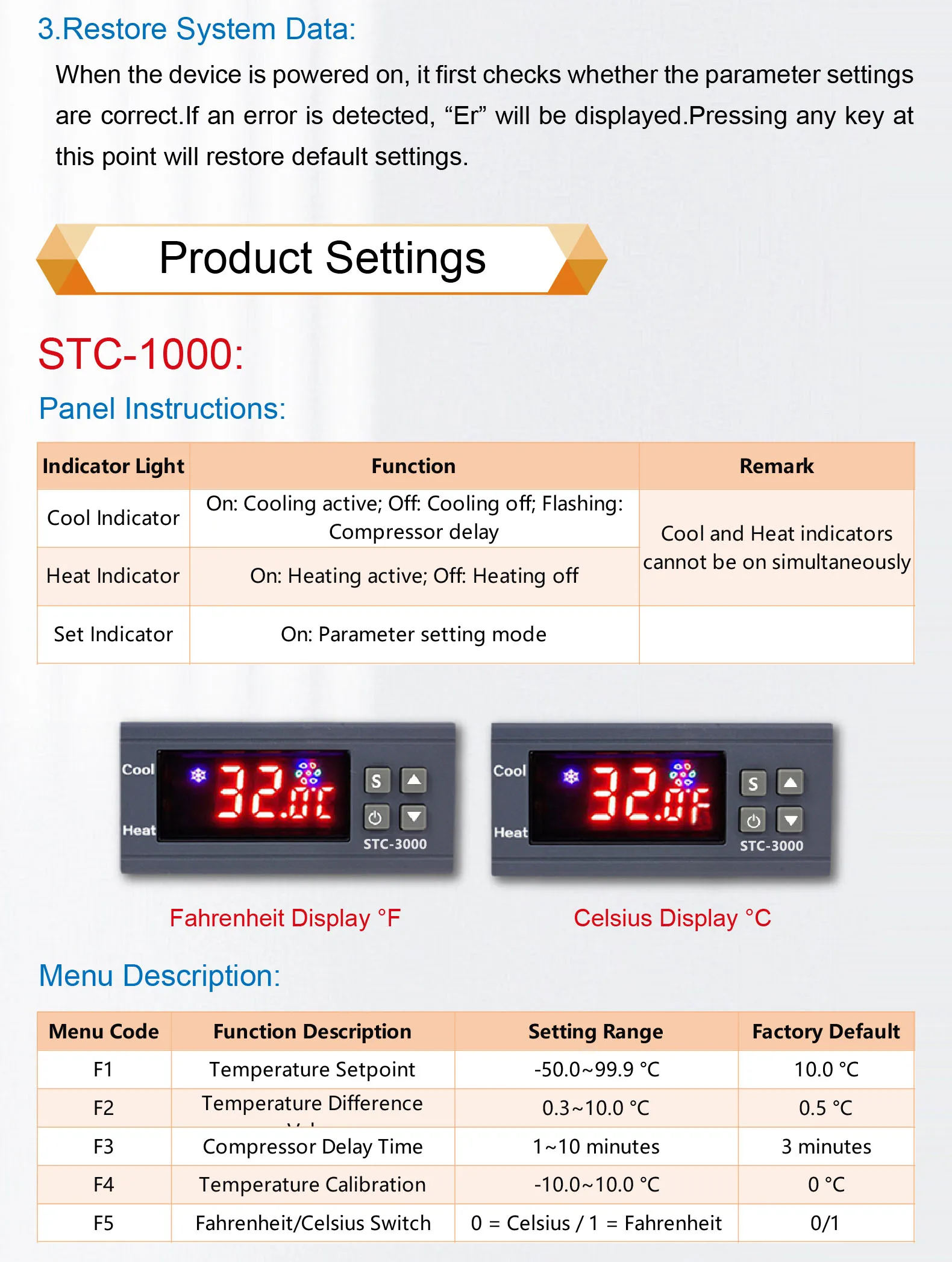

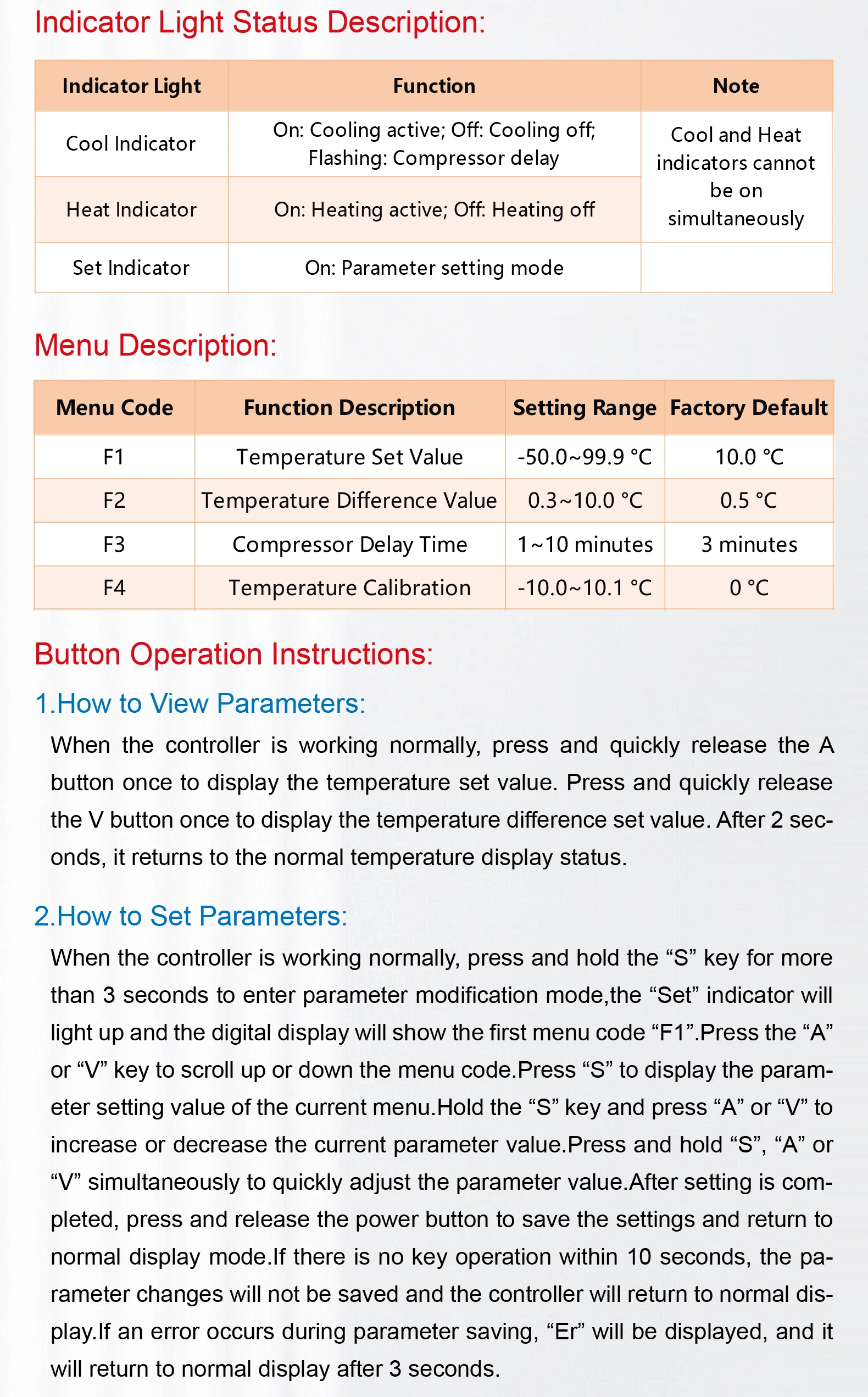

Factory settings:
F1 (Set Temperature): 10.0°C
F2 (Temperature Hysteresis): 0.5°C
F3 (Compressor Delay Time): 3 minutes
F4 (Temperature Calibration Offset): 0°C
STC-3000 only:
Includes F5 function to switch between Celsius (°C) and Fahrenheit (°F).
Special Requests:
For Fahrenheit display, temperature offset calibration, extended delay settings, or any other specific needs, please contact us.

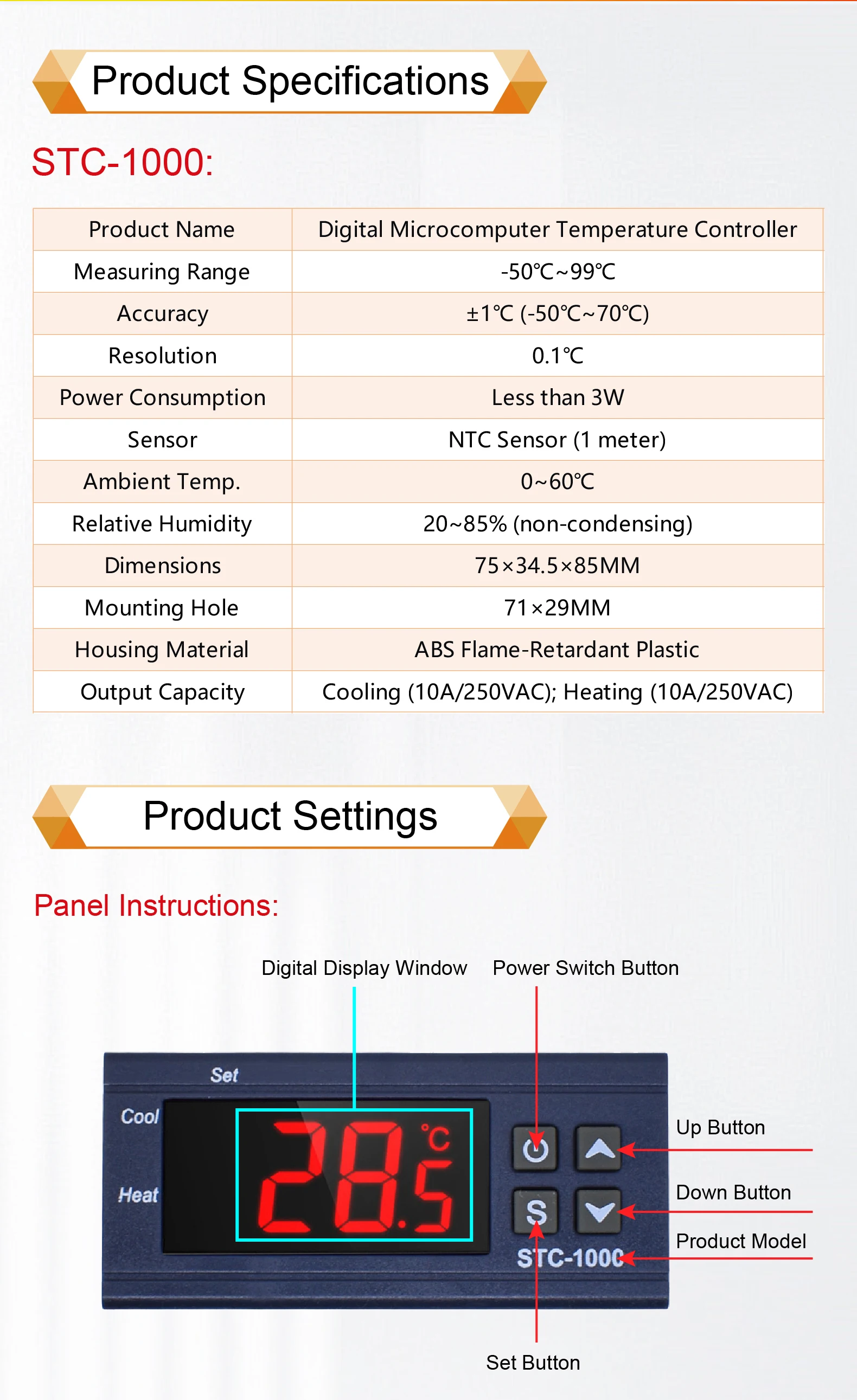

2. Parameters
Parameter | STC-1000 | STC-3000 |
Temperature Range | -50°C ~ 99°C | -50°C ~ 99°C |
Accuracy | ±1°C (-50°C to 70°C) | ±1°C (-50°C to 70°C) |
Resolution | 0.1°C | 0.1°C |
Power Consumption | < 3W | < 3W |
Sensor Type | NTC sensor (1 meter) | NTC sensor (1 meter) |
Ambient Temp Range | 0°C ~ 60°C | 0°C ~ 60°C |
Relative Humidity | 20%–85% (non-condensing) | 20%–85% (non-condensing) |

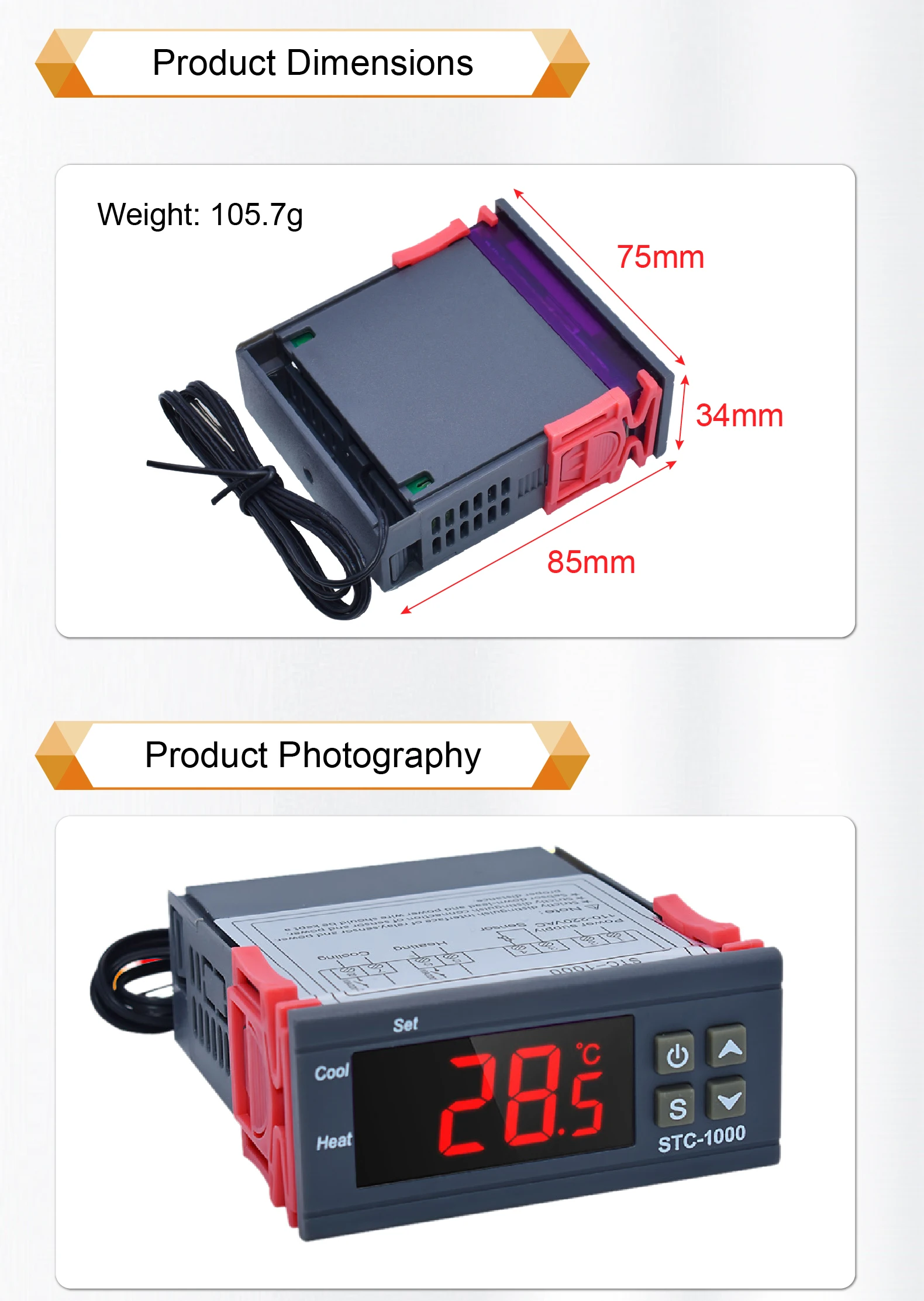

Product Size | 75 × 34.5 × 85 mm | 75 × 34.5 × 85 mm |
Mounting Cutout | 71 × 29 mm | 71 × 29 mm |
Housing Material | Flame-retardant ABS | Flame-retardant ABS |
Output Capacity | 10A/250VAC for both cooling & heating | 10A/250VAC for both cooling & heating |
Fahrenheit/Celsius Switch | Not available | Available (F5 Menu Option) |
3. Features
Accurate Digital Control
Ensures precise temperature monitoring with 0.1°C resolution.
Automatic Heating/Cooling Switch
Intelligent system switches modes based on current temperature.
Compressor Delay Protection
Extends compressor life and prevents frequent cycling.
Easy Parameter Setup
Intuitive button interface with 4/5 configurable menu items.
Dual Indicator Display
Real-time working status via LED indicators (Cool/Heat/Set).
Flame-Retardant ABS Housing
Durable, safe, and suitable for humid environments.
Temperature Calibration Function
Ensures accuracy in diverse applications.
Unit Switching (STC-3000 Only)
Supports °C and °F for global compatibility
4. Applications
Widely used in aquarium temperature control, egg incubation, greenhouse cultivation, hydroponics systems, and fish farming.
5. FAQs
Q1: Can I use this controller for both cooling and heating at the same time?
A1: No, the controller automatically switches between modes, and the Cool and Heat functions cannot operate simultaneously.

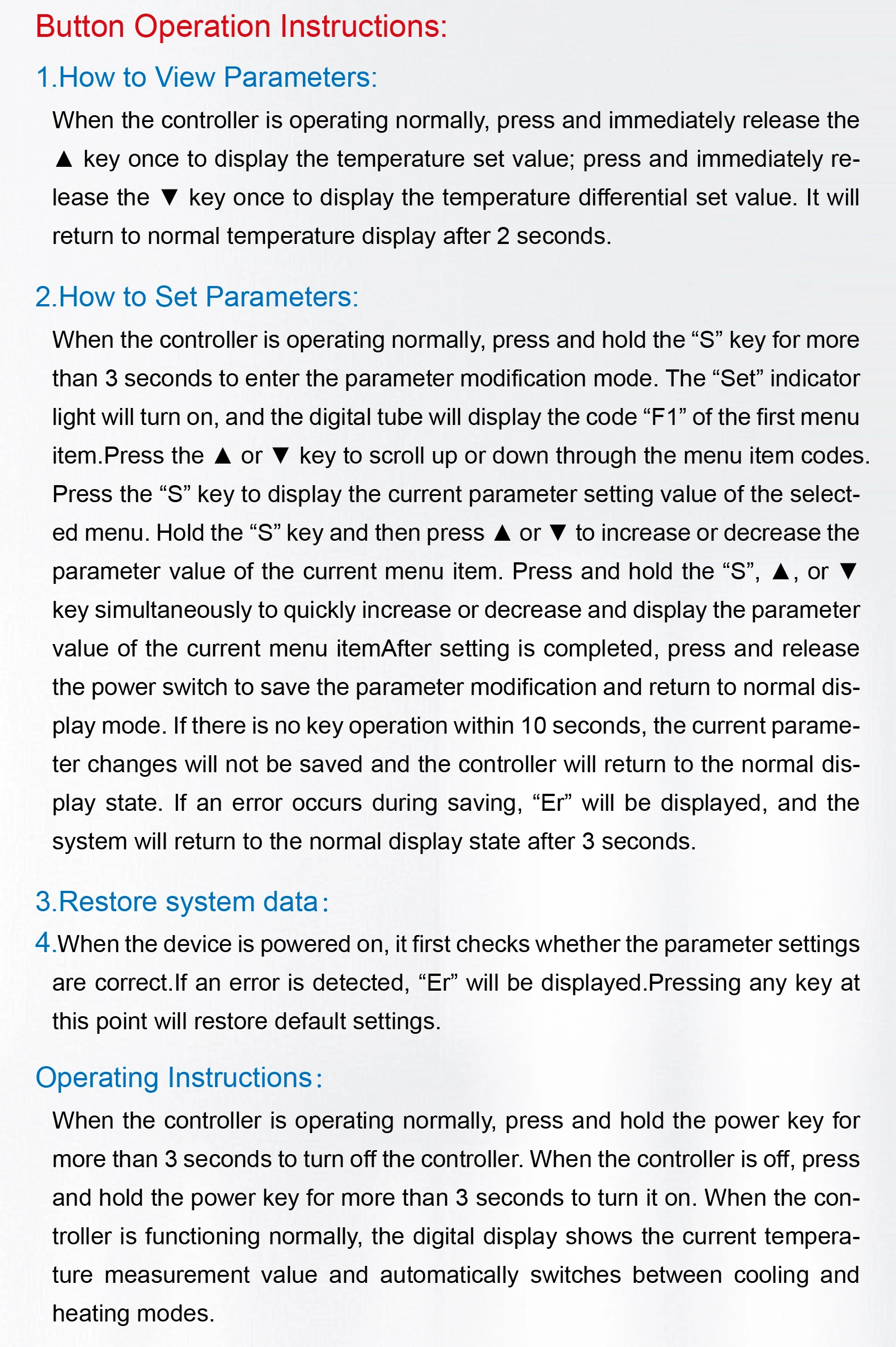

Q2: How do I reset the device to factory settings?
A2: If an error (“Er”) occurs during startup, press any key to restore factory settings.
Q3: Is the temperature unit adjustable?
A3: Only STC-3000 supports unit switching between °C and °F via the F5 menu.
