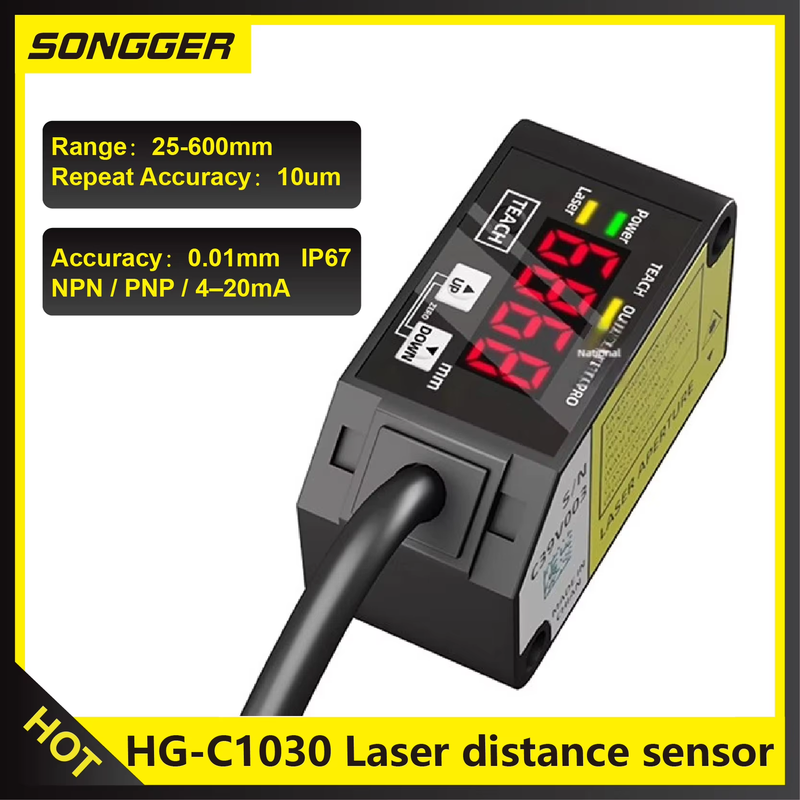

Product Description
1. NOTE
Default Parameters
Power Supply: DC 12–24V
Output: NPN + PNP, 0–5V, 4–20mA
Protection Rating: IP67
Response Time: Switchable between 1.5 ms / 5 ms / 10 ms
2.Parameters
Item | HG-C1030 | HG-C1050 | HG-C1100 | HG-C1200 | HG-C1400 |
Measurement Center Distance | 30mm | 50mm | 100mm | 200mm | 400mm |
Measurement Range | ±5mm | ±15mm | ±35mm | ±80mm | ±200mm |
Beam Diameter | Approx. φ50μm | Approx. φ70μm | Approx. φ120μm | Approx. φ300μm | Approx. φ500μm |
Repeat Accuracy | 10μm | 30μm | 70μm | 200μm | 300μm (200–400mm) |
Power Supply | 12-24VDC ±10% | ||||
Response Time | 1.5ms / 5ms / 10ms switchable | ||||
Protection Rating | IP67 | ||||
Output Type | NPN + PNP output / Analog voltage 0-5V / Analog current 4-20mA | ||||
Certifications | CE, UKCA, FDA, UL | ||||
Housing Material | Aluminum body + Acrylic front cover | ||||
Weight | Approx. 35g (sensor body) / 85g (with cable) |
3.Features
High Precision Across Five Ranges
Delivers accurate measurements from ±5mm up to ±200mm for a wide range of applications
Robust IP67 Protection
Dustproof, waterproof, vibration- and shock-resistant for long-term, reliable operation.
Flexible Dual Outputs
Supports both NPN/PNP switching outputs and analog outputs (0-5V, 4-20mA) for easy system integration.
Fast Response Time
Switchable between 1.5ms, 5ms, and 10ms for dynamic, high-speed industrial processes.
Ultra-Fine Laser Spot
Laser spot diameters as small as 50μm enable precise targeting of small components.
Temperature Compensation
Maintains stable performance even under fluctuating ambient temperatures.
4.Applications
Deflection measurement of ring-shaped material
Insertion depth detection of solenoid components
Height control for distribution heads
Plate thickness measurement
Component thickness measurement
Height adjustment of parallel link robots
5.FAQs
Q1: What is the maximum cable extension supported?
A1: The cable can be extended up to 10 meters when using a cable with 0.3mm² or larger cross-section.
Q2: Is the sensor suitable for outdoor applications?
A2: The sensor features IP67 protection and can withstand harsh industrial environments; however, it is recommended to avoid direct sunlight for optimal performance.
Q3: Can the sensor output be switched between light-on and dark-on modes?
A3: Yes, the output mode can be easily switched between light-on and dark-on according to specific application requirements.
