Product Description
1. NOTE
Default Configurations:
· C902:96*96mm | Cutout Size: 92*92mm
· C402: Panel Size: 48*96mm | Cutout Size:45*92mm
· C102:Panel Size: 50×50mm | Cutout Size: 45×45mm
· C702: Panel Size: 72×72mm | Cutout Size: 66×66mm
· Power Supply: 180V-240VAC, 50Hz
· Input:Universal signal input， K（Def）.
· Adjustable Temperature Range: 0-400°C (Maximum adjustable up to 1370°C)

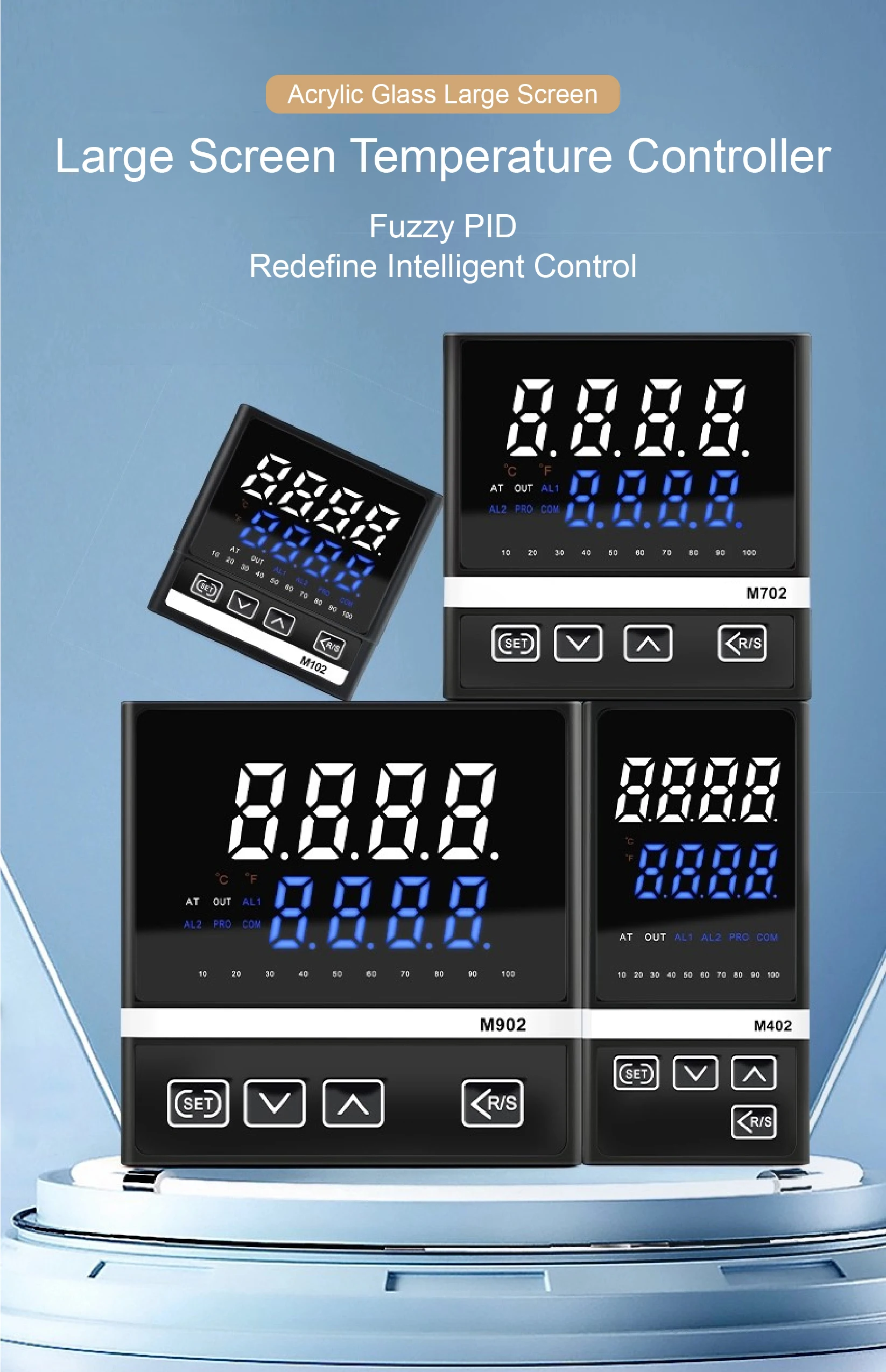

· Display: Dual Digital Displays (PV and SV)
· Relay Outputs: Dual Relay Outputs
Due to page limitations, some size configurations may not be listed.
Optional Features:
· Temperature Range:Maximum adjustable up to 1370°C

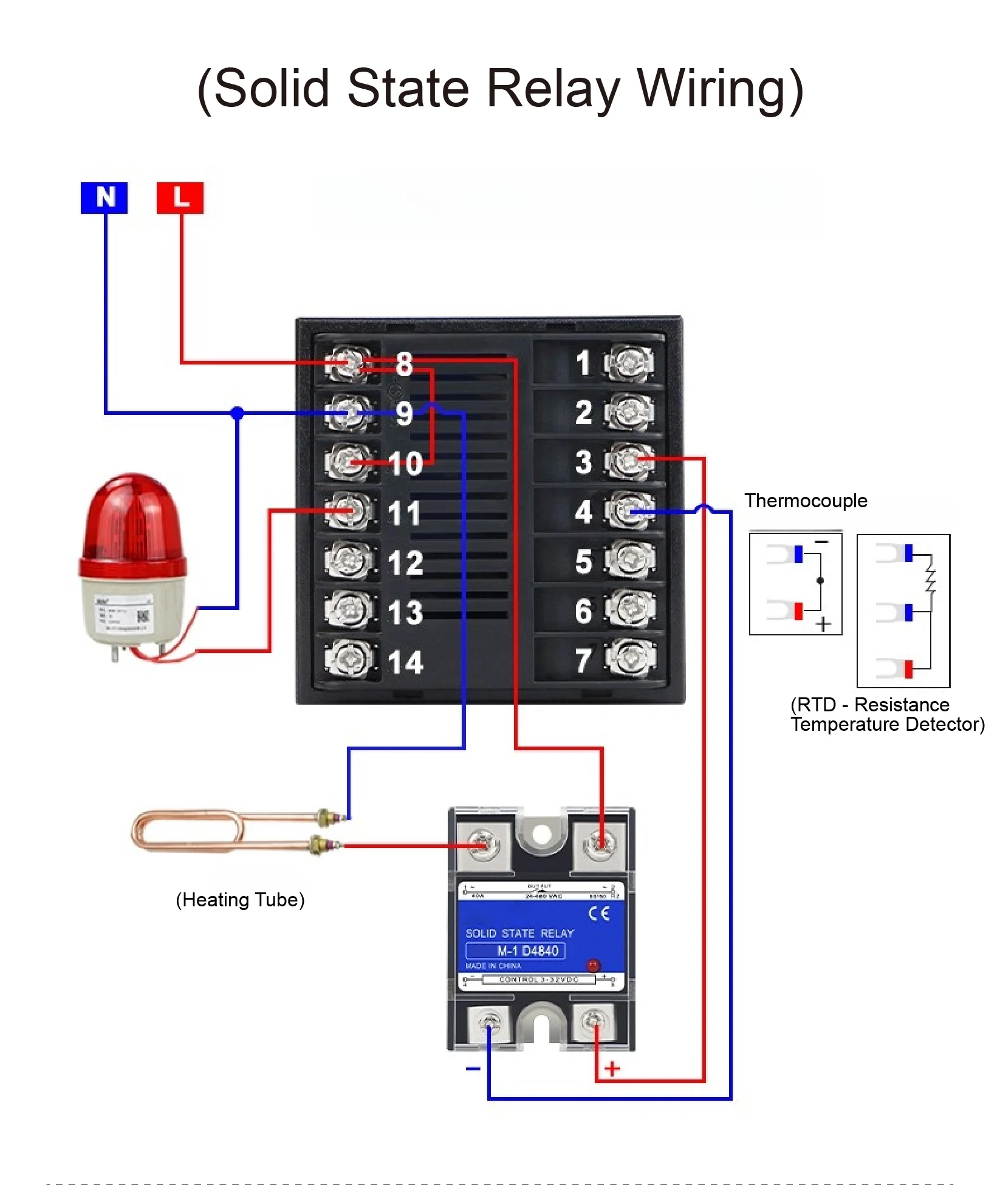

·Output: Relay/SSR/ Relay+SSR /4-20MA/RS485 /0-10V output
· 0-10V/SSR（Solid-State Output) cannot output simultaneously.
For customization, please feel free to contact us.
2.Parameters
Parameter | Specification |
Brand | CERTEON |
Product Name | Temperature Controller |
Model | C102:Panel Size: 50×50mm | Cutout Size: 45×45mm C702:Panel Size: 72×72mm | Cutout Size: 66×66mm C902:Panel Size: 96*96mm | Cutout Size: 92*92mm C402:Panel Size: 48*96mm | Cutout Size:45*92mm |
Alarm Range | Full range adjustable |
Rated Voltage | 180V-240VAC 50Hz |
Resolution | 1°C, 0.1°C (adjustable) |
Power Consumption | ≤5VA |
Measurement Accuracy | ±0.5%FS |

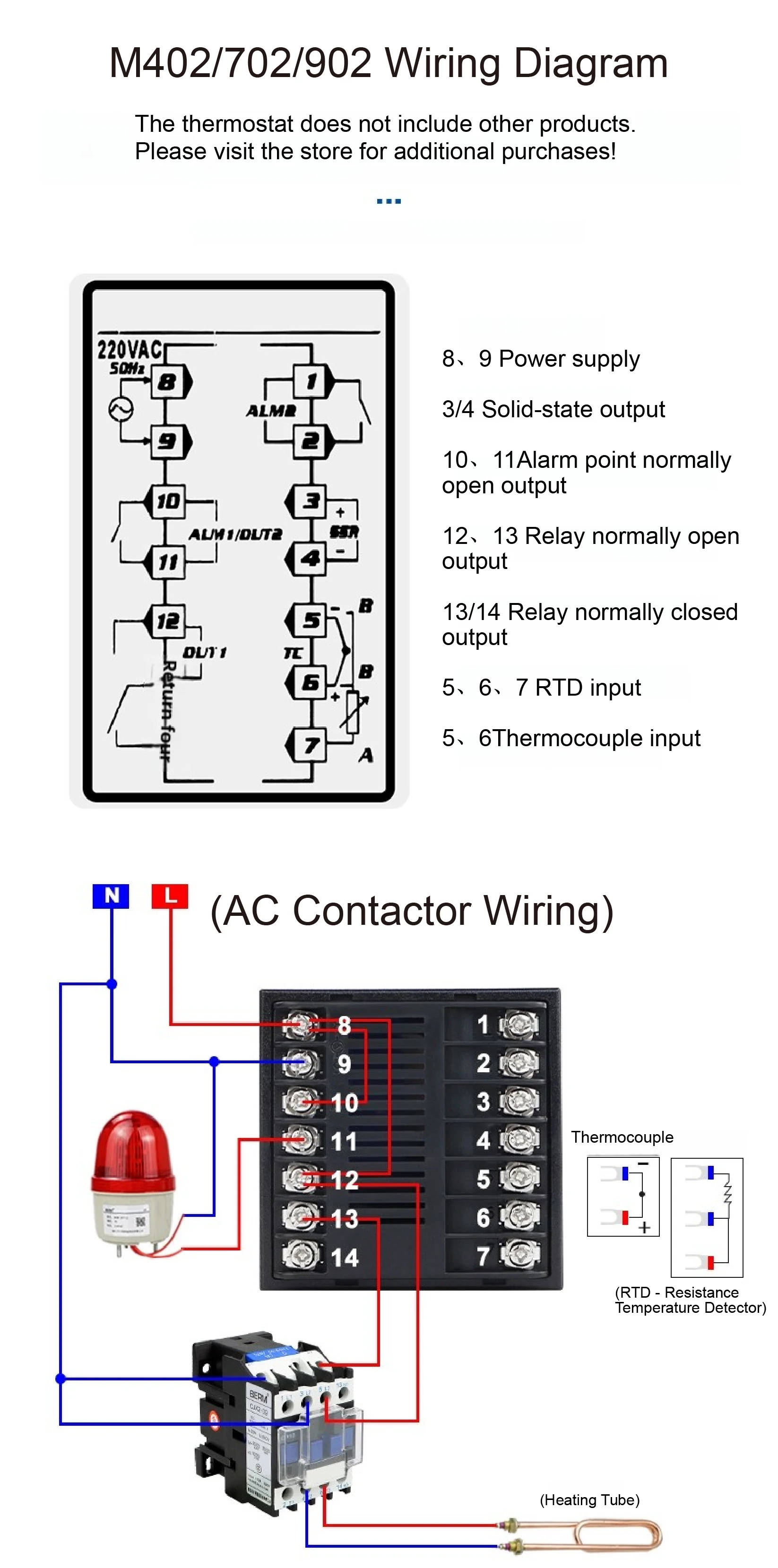

Relay Outputs | Two relay outputs |
Optional Outputs | 4-20mA output, RS485 signal output，0-10V |
Temperature Range | 0-400°C (Max adjustable to 1370°C) |
Memory Protection | Non-volatile memory |
3.Features

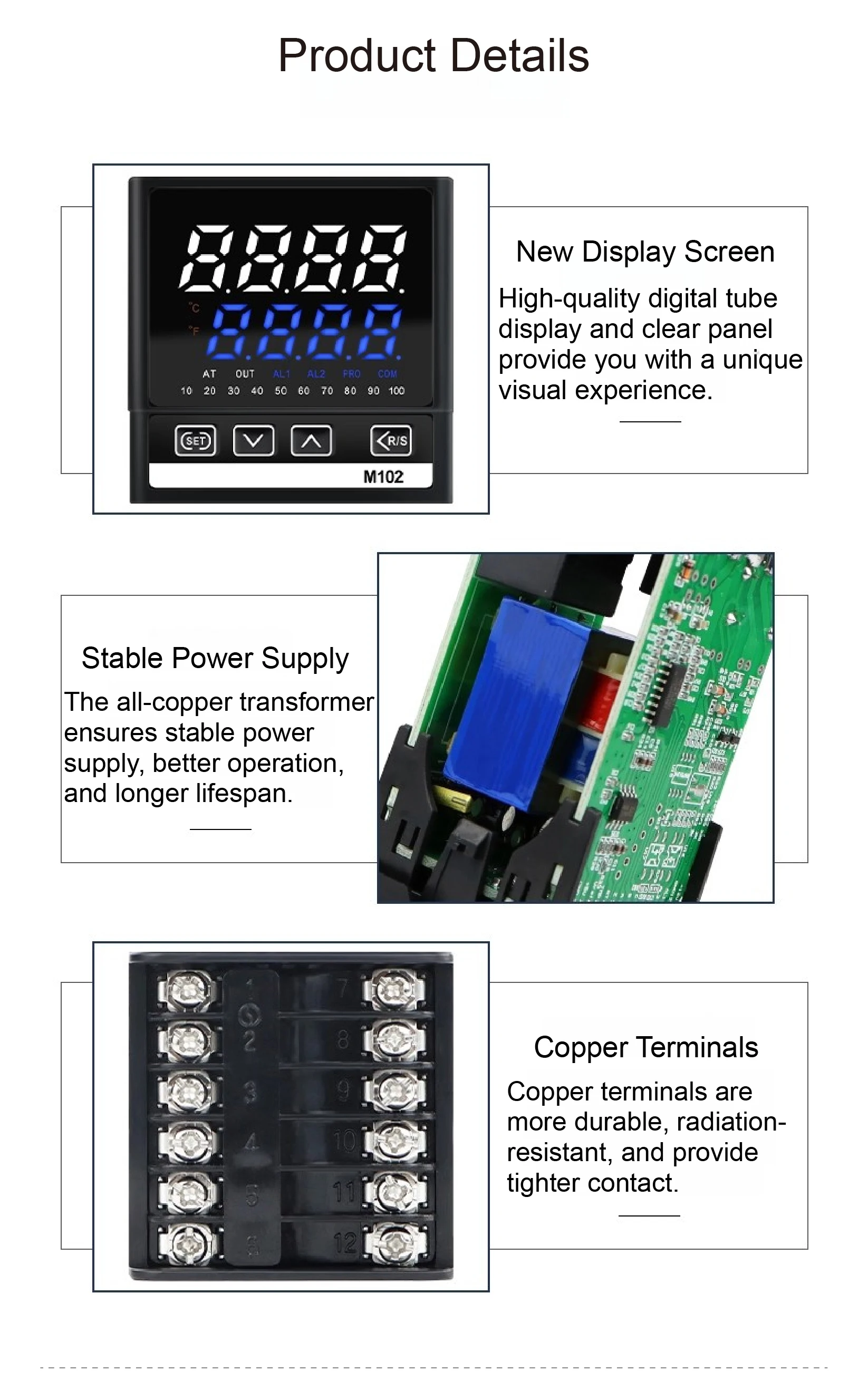

High-Definition Display：Clearly displays measurement and set values, with status indicators for various parameters.
Intelligent Chip：Optimized precision with advanced imported components for reliable performance.
Copper Transformer：Ensures consistent power supply and enhances durability.

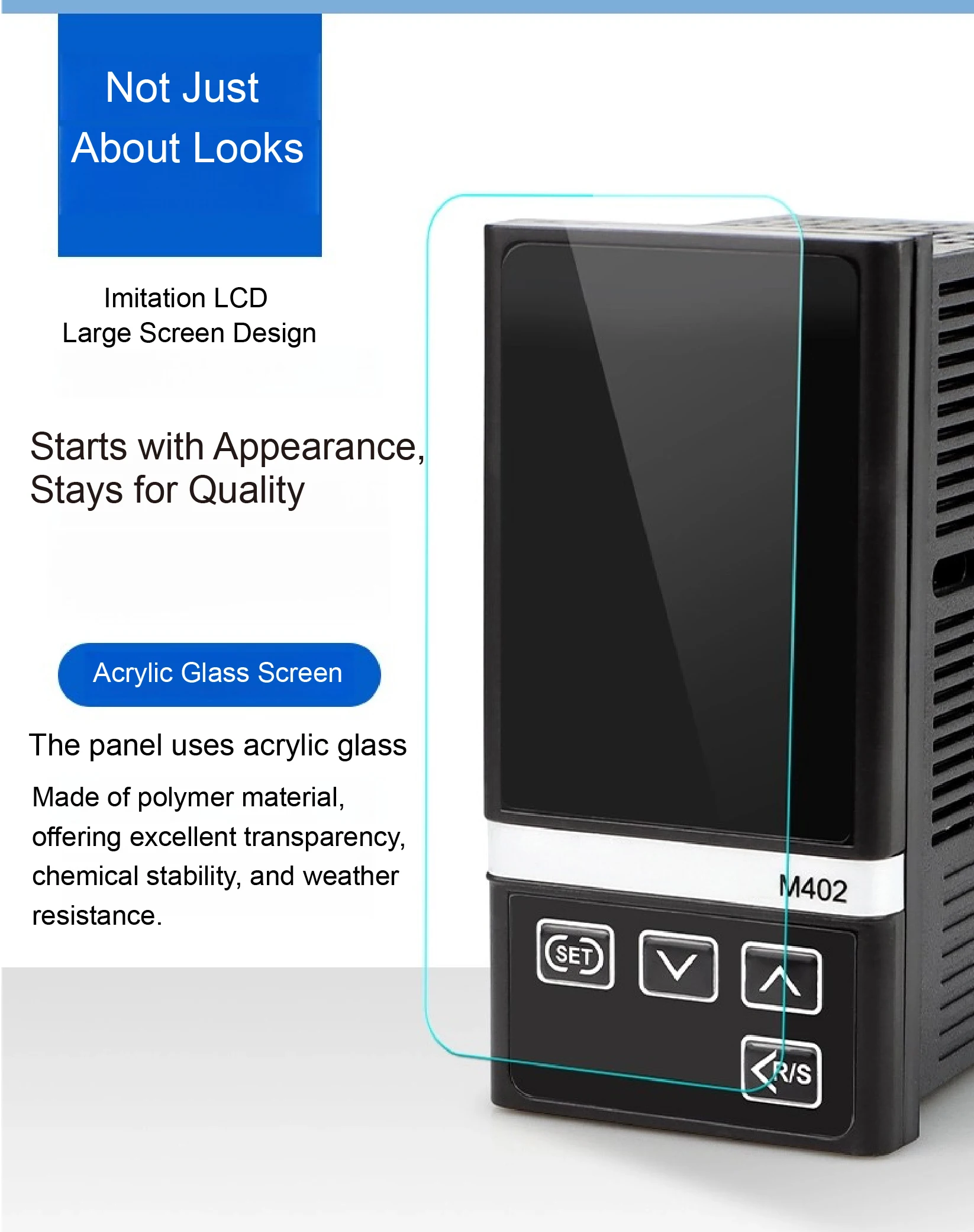

Panel Made from Durable Material：Made of organic glass and polymer material for transparency and chemical stability.
4.Applications
Industrial Control: Stable temperature management in industrial systems.
Chemical Industry: Precision temperature control in chemical processes.
Medical Sector: Reliable operation in medical equipment.
Agricultural Greenhouses: Optimal climate control for crop growth.
5.FAQs
Q1: Can the temperature range be adjusted beyond 400°C?
A1: Yes, the maximum adjustable range can reach up to 1370°C.
Q2: What panel sizes are available for this controller?
A2: The available sizes are 50×50mm, 72×72mm, 96×96mm, and 48×96mm.

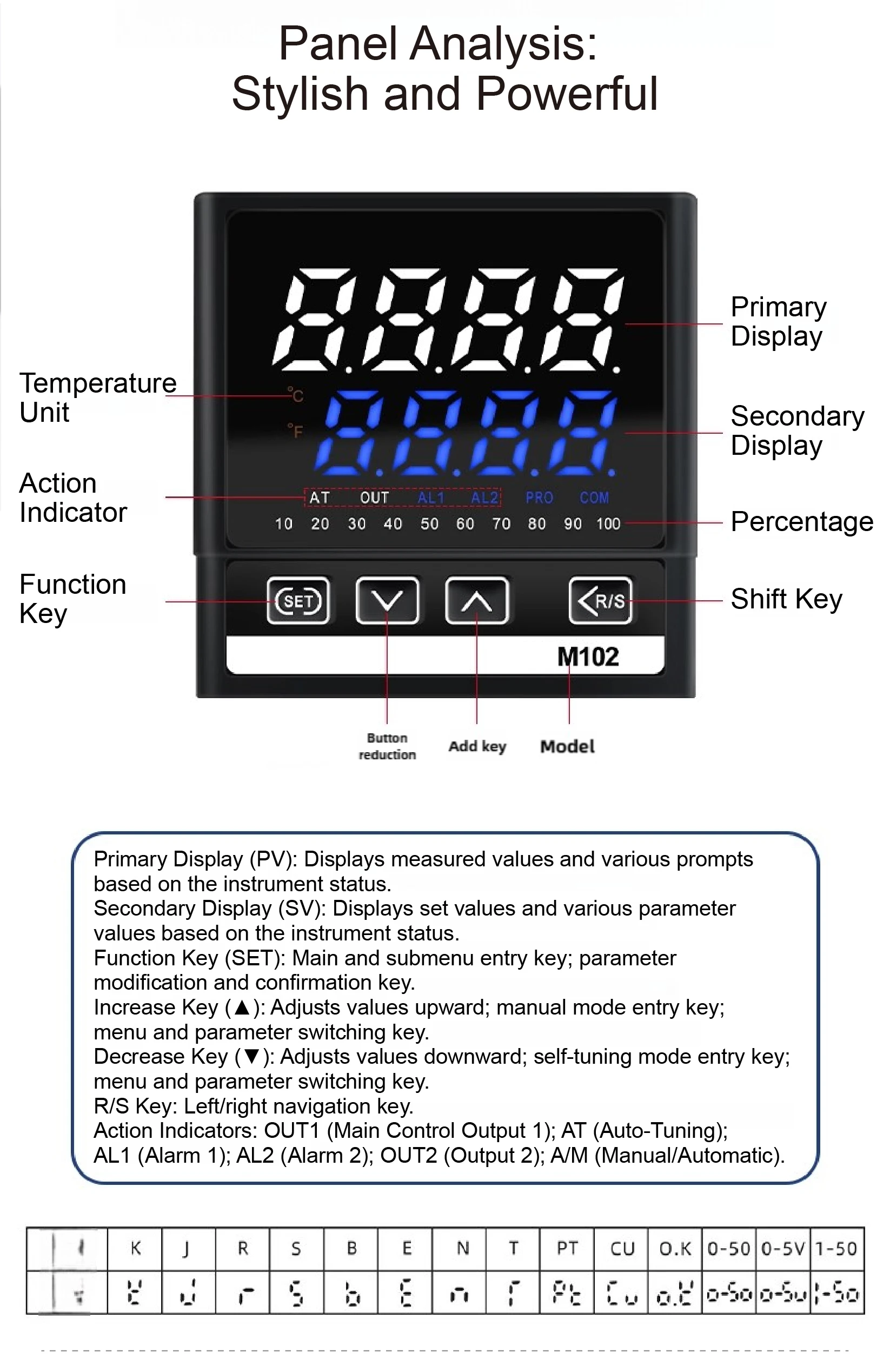

Q3: How does the dual display work?
A3: The PV display shows the measured temperature, while the SV display shows the set temperature, providing real-time monitoring.
Q4: Are communication outputs available?
A4: Yes, optional outputs include 4-20mA analog output and RS485, 0-10V communication signal.
