Product Description
1.NOTE

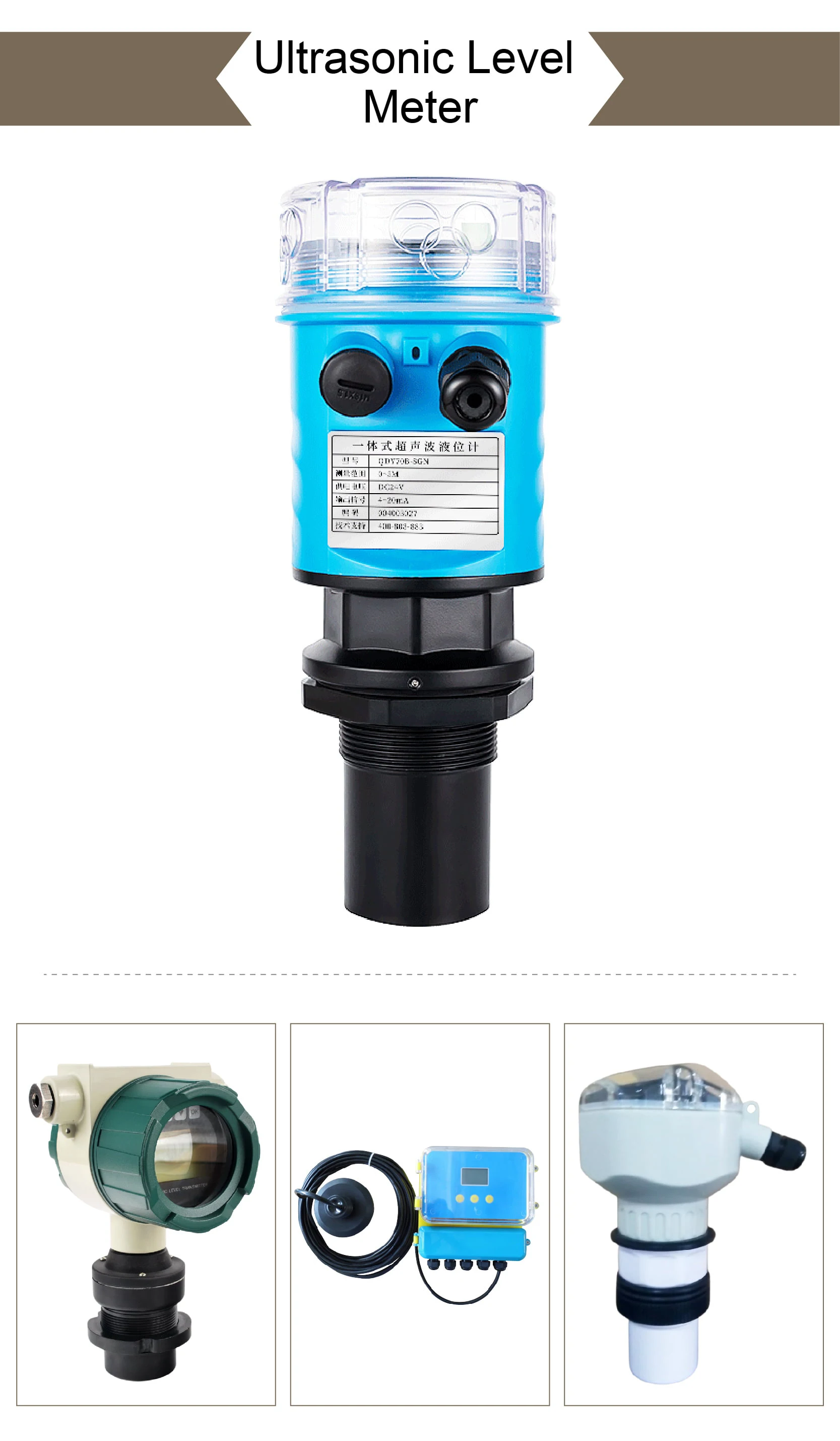

This level transmitter is ideal for standard water level measurements, storage tanks with pressure below 0.4MPa, and monitoring non-corrosive, non-volatile, and non-high-temperature liquids.

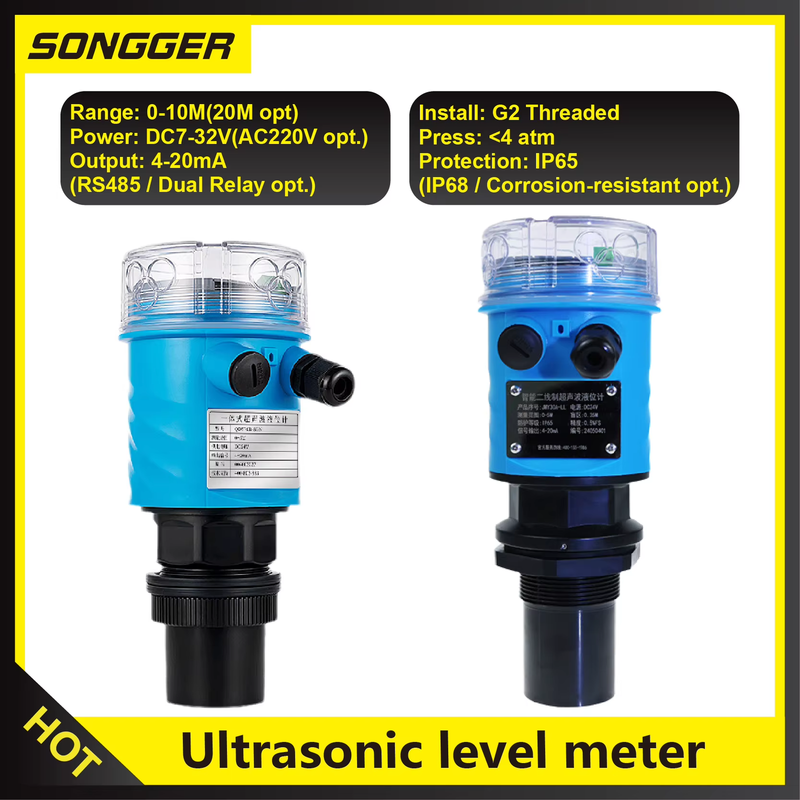

Default Configuration:
· Power Supply: DC24V, four-wire system
· Output Signal: 4-20mA + RS485 + 2 relay outputs
· Protection Rating: IP65 (probe)
· Display: LCD screen
· Measurement Range: Adjustable up to 0-10 meters
Optional Features:
· Power Supply: DC12V or AC220V
· Extended Range: Up to 25 meters
· Enhanced Protection: IP68 probe, corrosion-resistant probe
If you have specific customization requirements or bulk purchase needs, please feel free to contact us at any time!

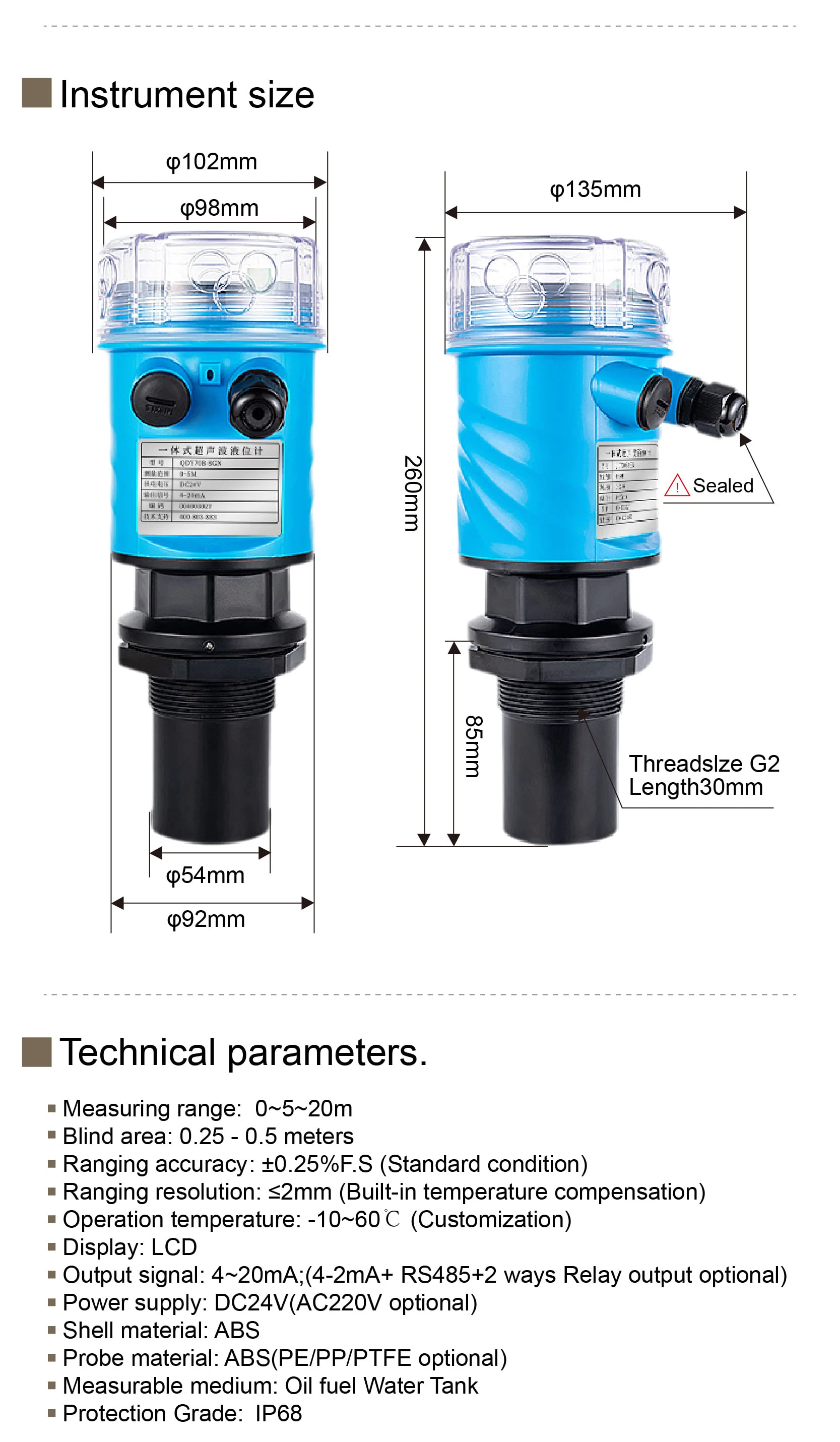

2.Parameters
Parameter | Details |
Measurement Range | 5m, 10m, 15m, 20m, 25m |
Dead Zone | 0.25m~0.6m |
Accuracy | 0.25%~0.5% |
Resolution | 1mm |
Pressure Resistance | ≤4 Atmospheres |
Display | LCD with level/distance display |
Analog Output | 4-20mA |
Digital Output | RS485/Modbus protocol |
Power Supply | DC12V, DC24V, AC220V |
Operating Temperature | -20°C to +60°C |
Protection Level | IP65/IP68 |

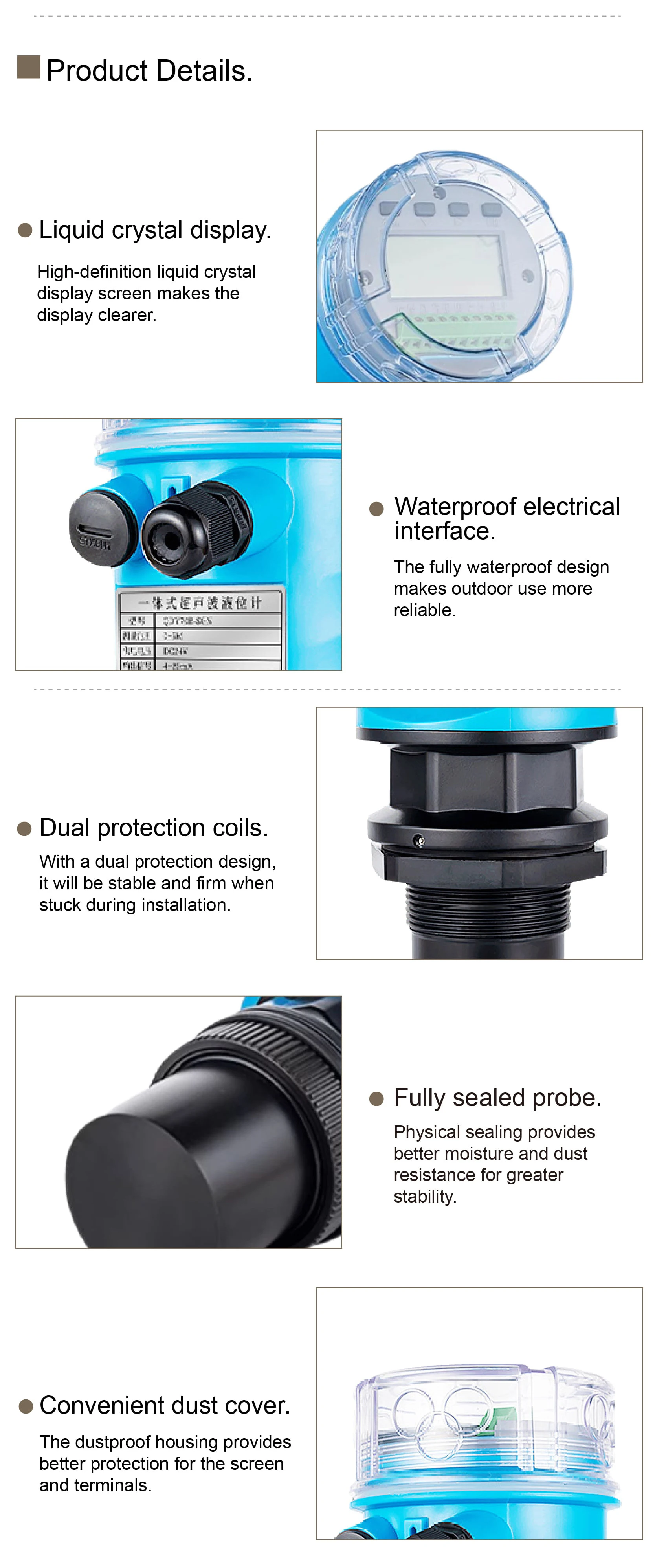

3.Features
Non-Contact Measurement
No need for probe immersion, avoiding sediment buildup or blockages.
Wide Medium Compatibility
Measures both liquid and solid materials for versatile applications.

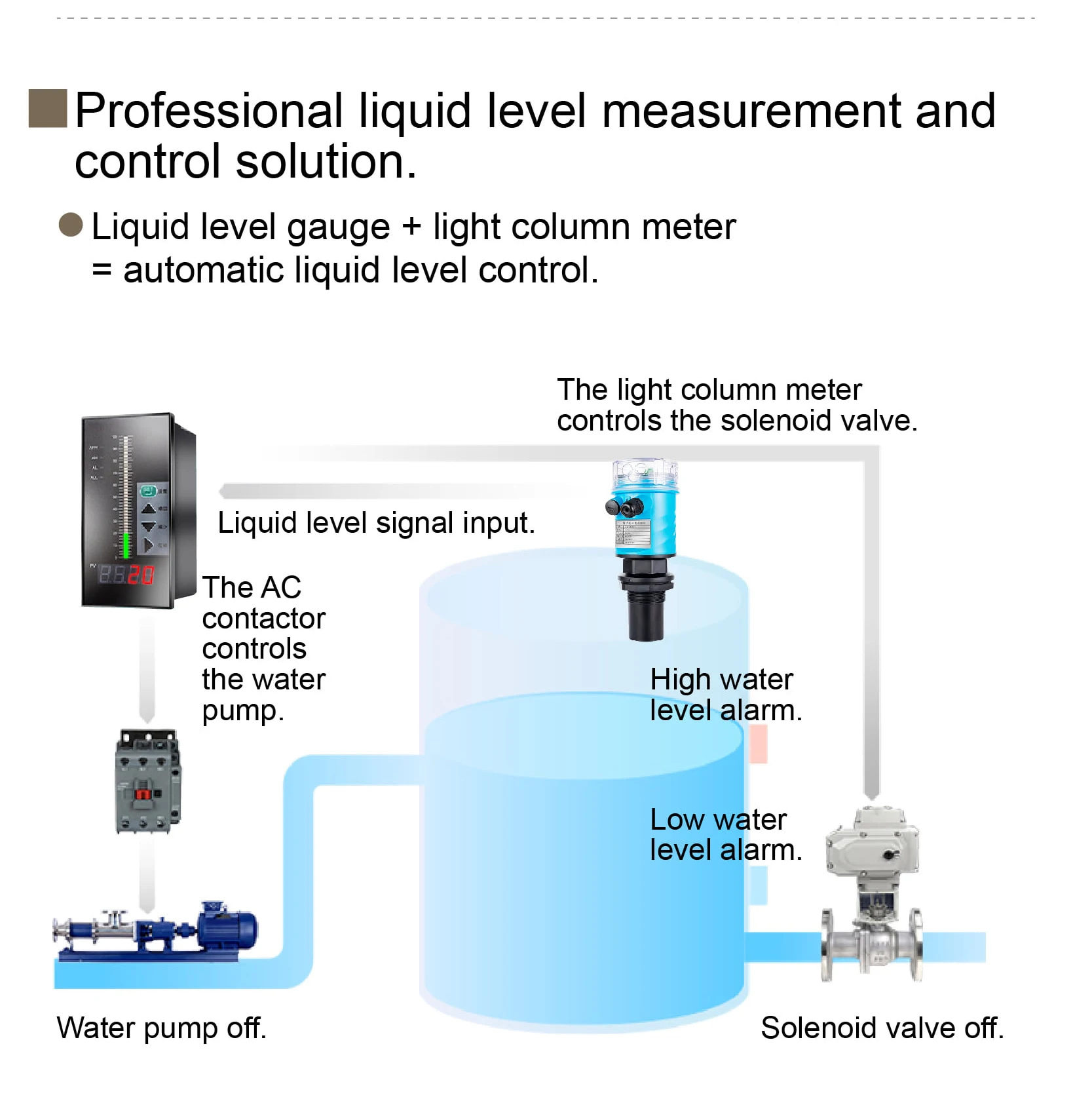

Real-Time Digital Monitoring
Features multi-output lines for synchronized control and real-time display.
Durable Waterproof Design
Includes ABS waterproof fittings and a fully sealed structure for long-lasting durability.

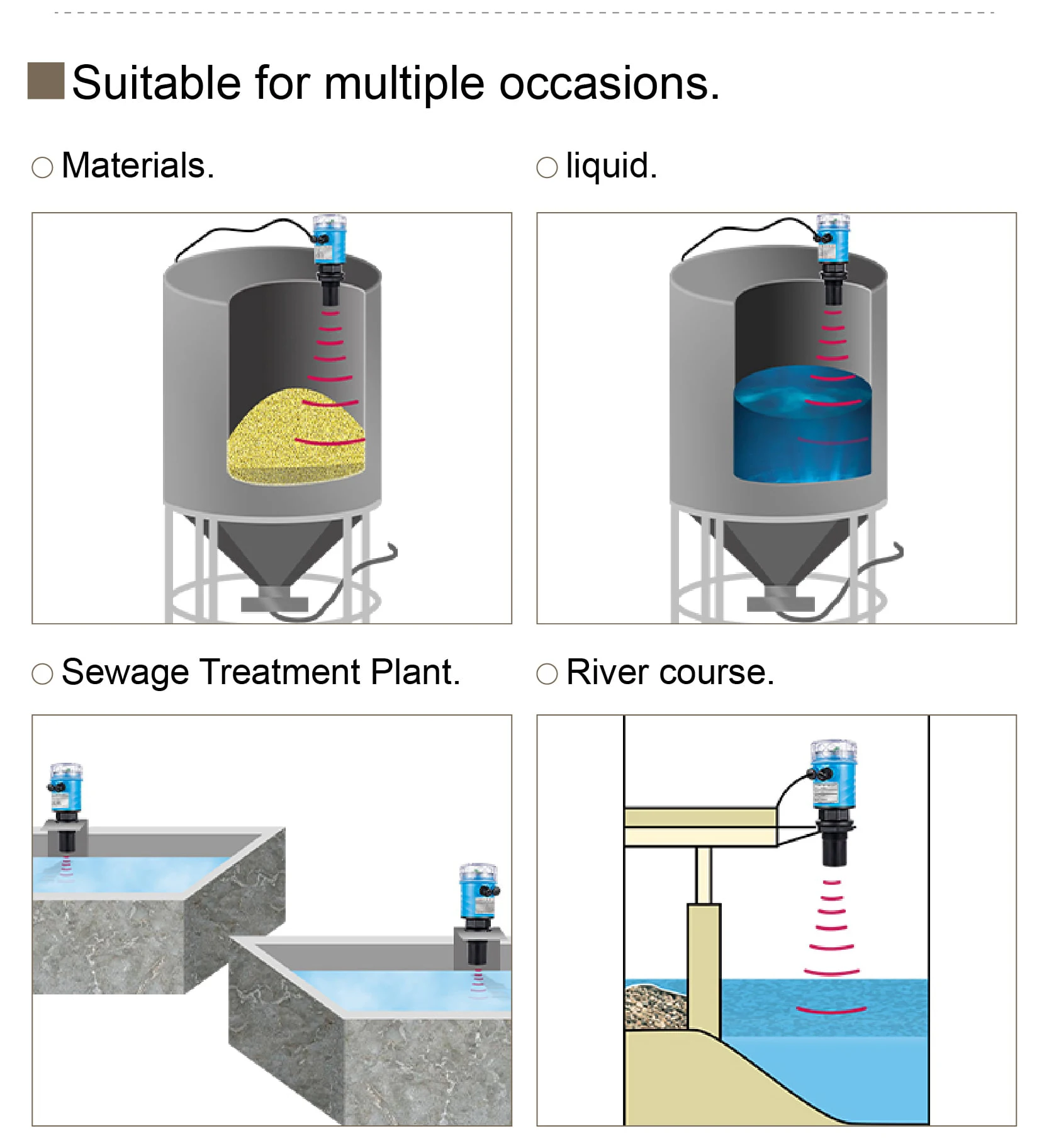

4.Applications
River Level Monitoring
Sewage Tank Level Measurement
Storage Reservoir Liquid Detection
Material Tank Measurement
5.FAQs
What is the maximum measurement range?
The device supports a range of up to 25m, customizable based on your requirements.
Is it suitable for high-temperature environments?
Yes, custom options for high-temperature resistance are available.

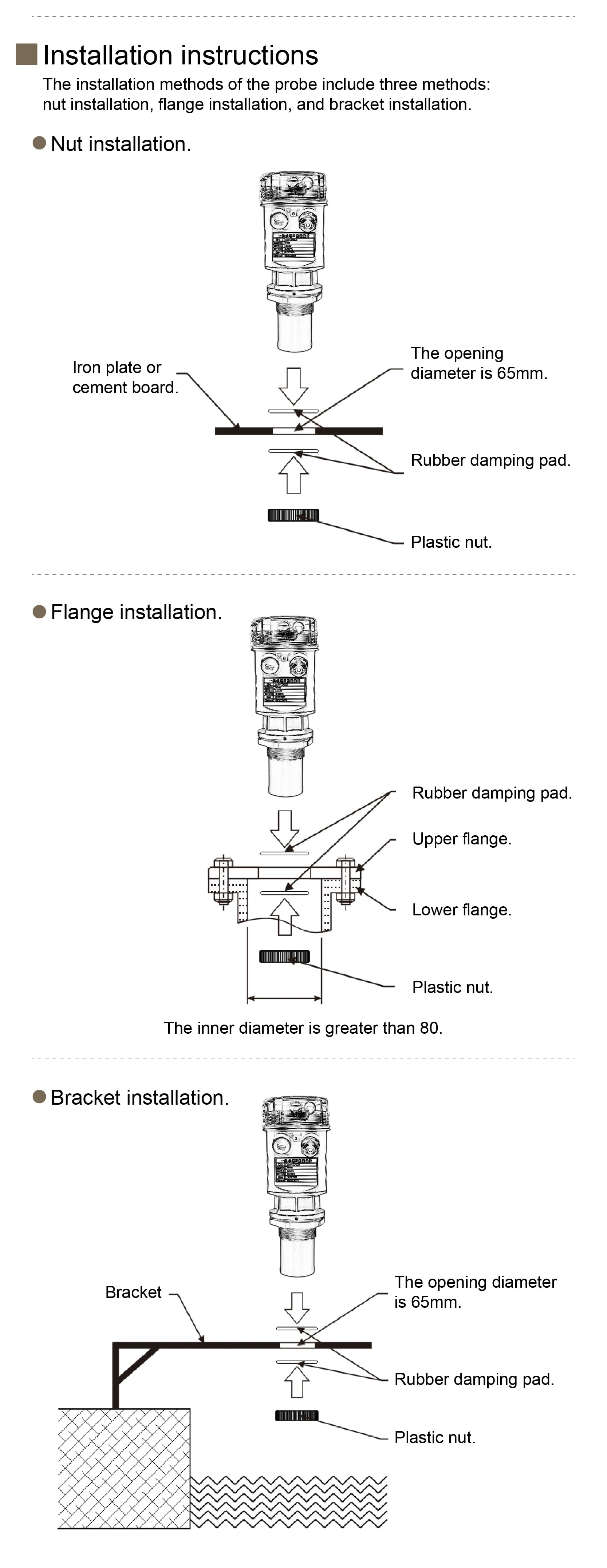

Does it require complex wiring?
No, it offers non-contact monitoring with straightforward installation.
