Product Description
1.NOTE:

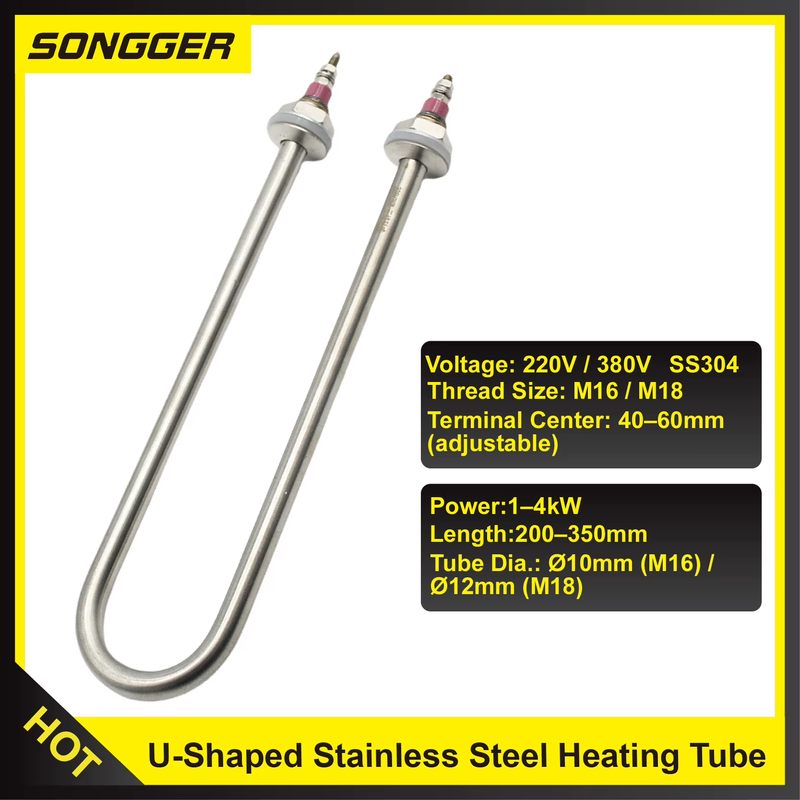

Due to listing limitations, some specifications might not be fully displayed. Please contact us or leave a message when placing the order if you have special requirements. The default configuration includes a 304 stainless steel U-type heating element with either M16 or M18 thread (stainless steel), suitable for 220V or 380V voltage options. The terminal spacing is adjustable between 40–60mm. The heating tube is not suitable for oil, acid-alkali, or chemical liquids. Do not use in hard water or high-salinity environments, as it may reduce lifespan. Custom designs available upon request.
2. Parameters
Voltage & Power | Thread Spec | Terminal Distance (H) | Tube Diameter | Tube Material | Thread Material | Length (L) |
220V 1KW | M16 | 40–60mm (adjustable) | 10mm | 304 stainless steel | Stainless steel | 200mm |
220V 1.5KW | M16 | 40–60mm (adjustable) | 10mm | 304 stainless steel | Stainless steel | 230mm |
220V / 380V 2KW | M16 | 40–60mm (adjustable) | 10mm | 304 stainless steel | Stainless steel | 250mm |
220V / 380V 3KW | M16 | 40–60mm (adjustable) | 10mm | 304 stainless steel | Stainless steel | 300mm |
220V 1.5KW | M18 | 40–60mm (adjustable) | 12mm | 304 stainless steel | Stainless steel | 200mm |
220V 2KW | M18 | 40–60mm (adjustable) | 12mm | 304 stainless steel | Stainless steel | 250mm |
220V / 380V 3KW | M18 | 40–60mm (adjustable) | 12mm | 304 stainless steel | Stainless steel | 300mm |
220V / 380V 4KW | M18 | 40–60mm (adjustable) | 12mm | 304 stainless steel | Stainless steel | 350mm |
3. Features
U-shaped Design for Efficient Heating
Enhances heat distribution and efficiency, ideal for water heating in commercial applications.
304 Stainless Steel Construction
Corrosion-resistant and built to last, suitable for prolonged use in humid environments.
Upgraded Stainless Steel Thread Base
Prevents rust in all water-contact areas, replacing previous iron-thread components.
Adjustable Terminal Distance (40–60mm)
Flexible mounting design fits various commercial heating units.
Custom Sizes Available
Tailored solutions available for specialized requirements—contact us for customization.
4. Applications
Ideal for water heating in commercial kitchen appliances such as steamers, water boilers, dishwashers, and industrial tanks.
5. FAQs
Q1: Can this heating tube be used to heat oil or chemicals?
A1: No. This product is designed for water heating only. Do not use it with oil, acidic or alkaline liquids, or cleaning agents.
Q2: How do I measure the thread size?
A2: Use a caliper or adjustable wrench to measure the diameter of the threaded head.
Q3: What if my installation space doesn’t match the standard length?
A3: Slight length differences are acceptable as long as it fits within the equipment. Custom lengths can also be provided upon request.
