Product Description

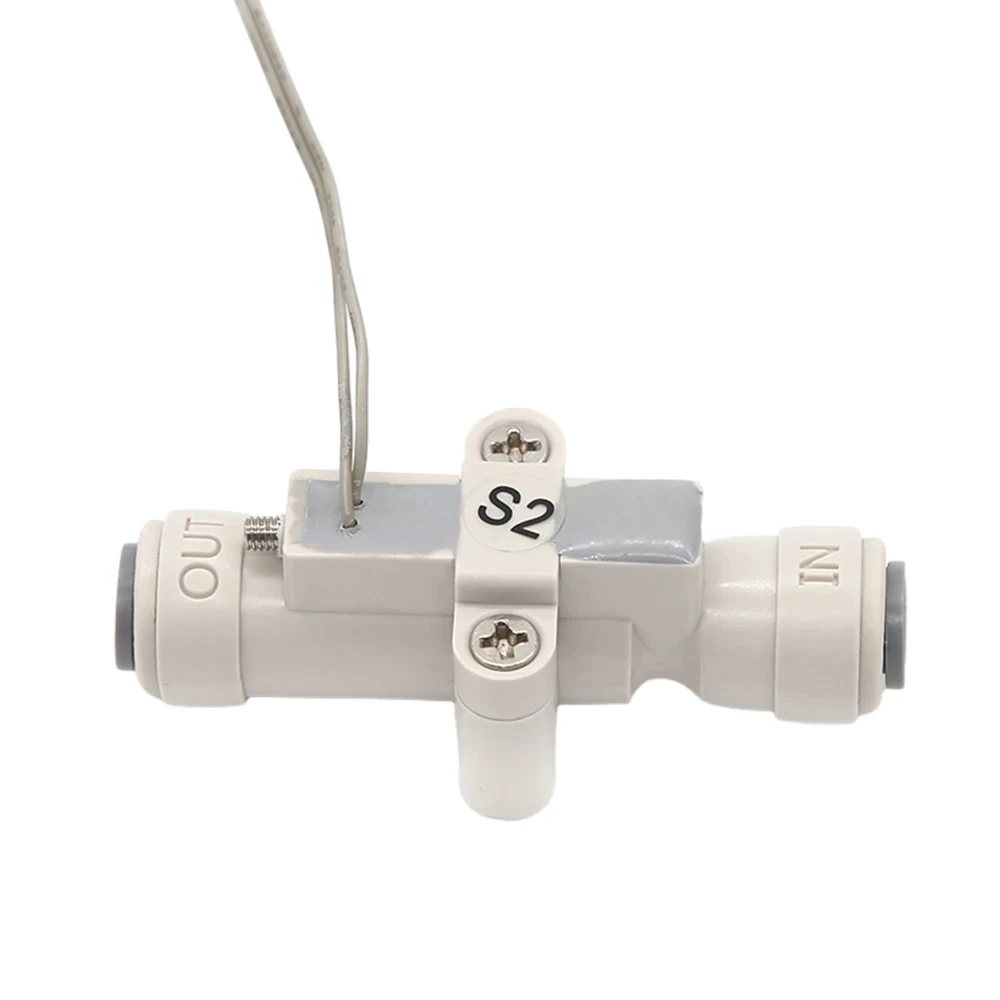

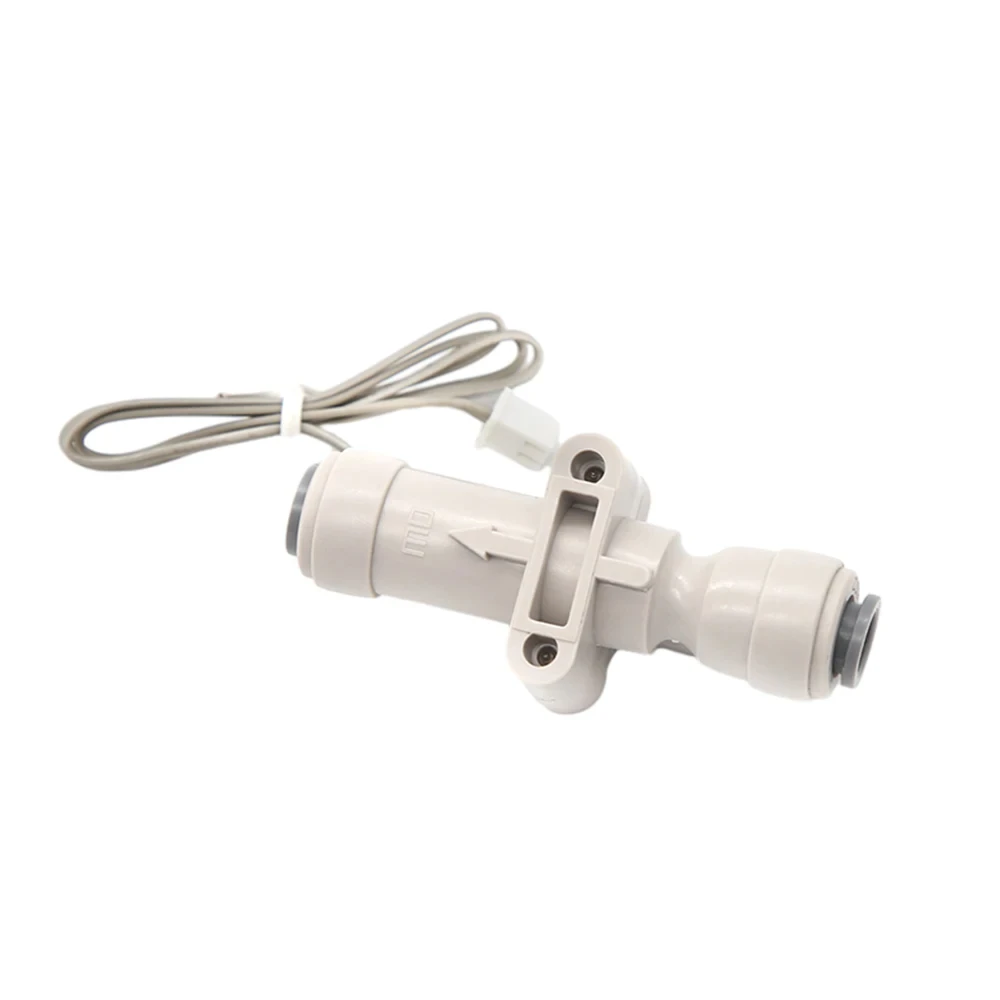

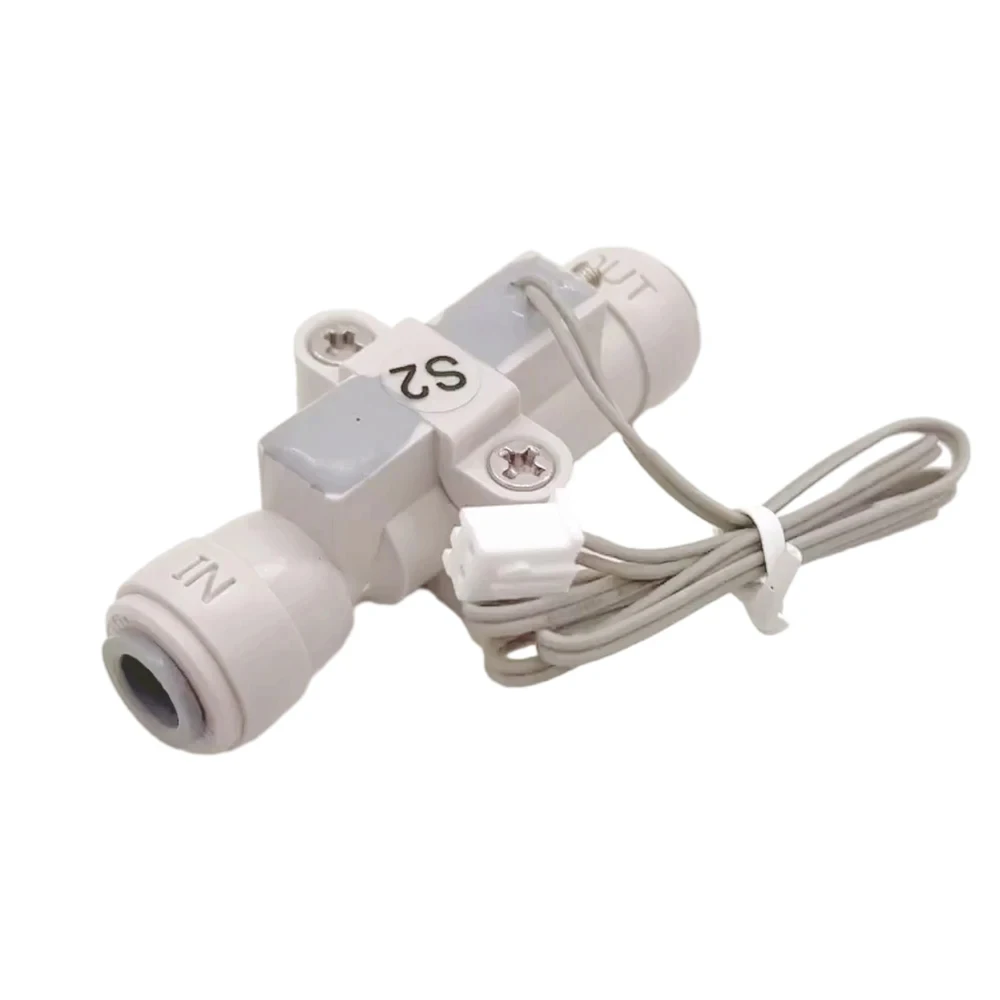

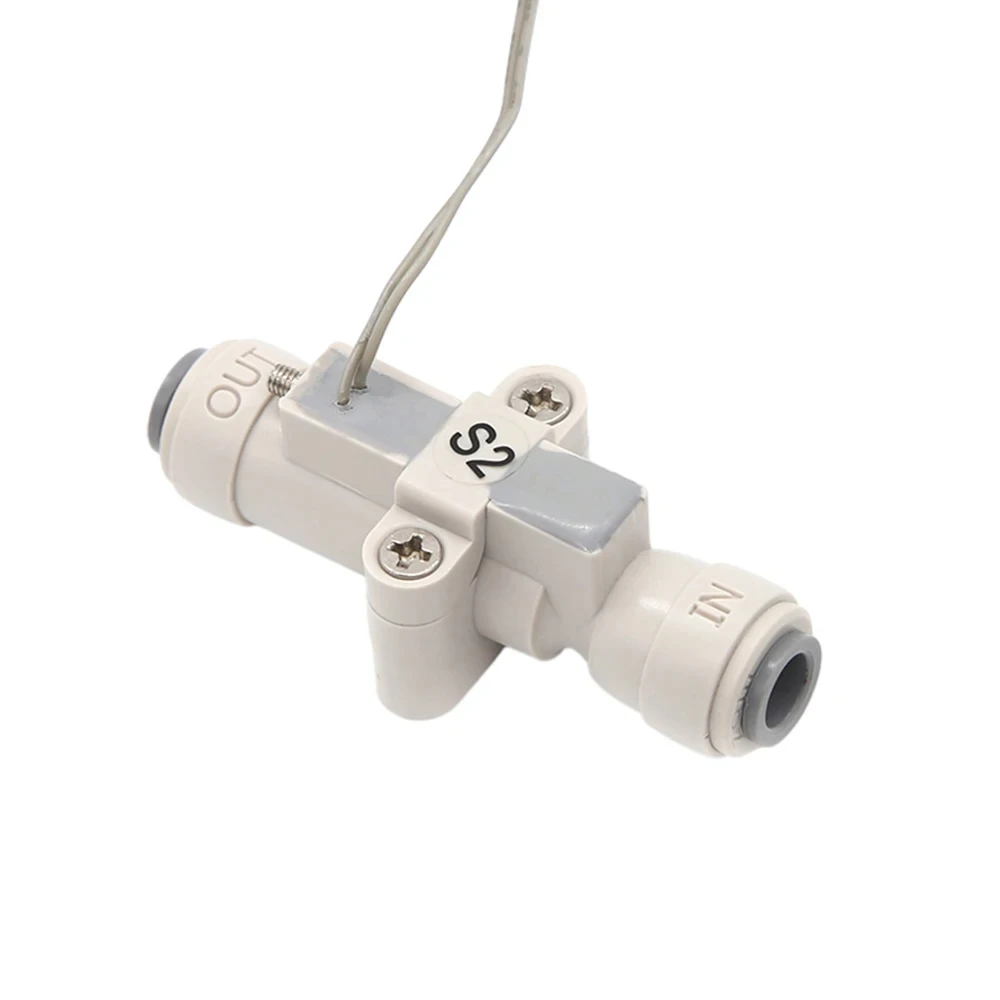

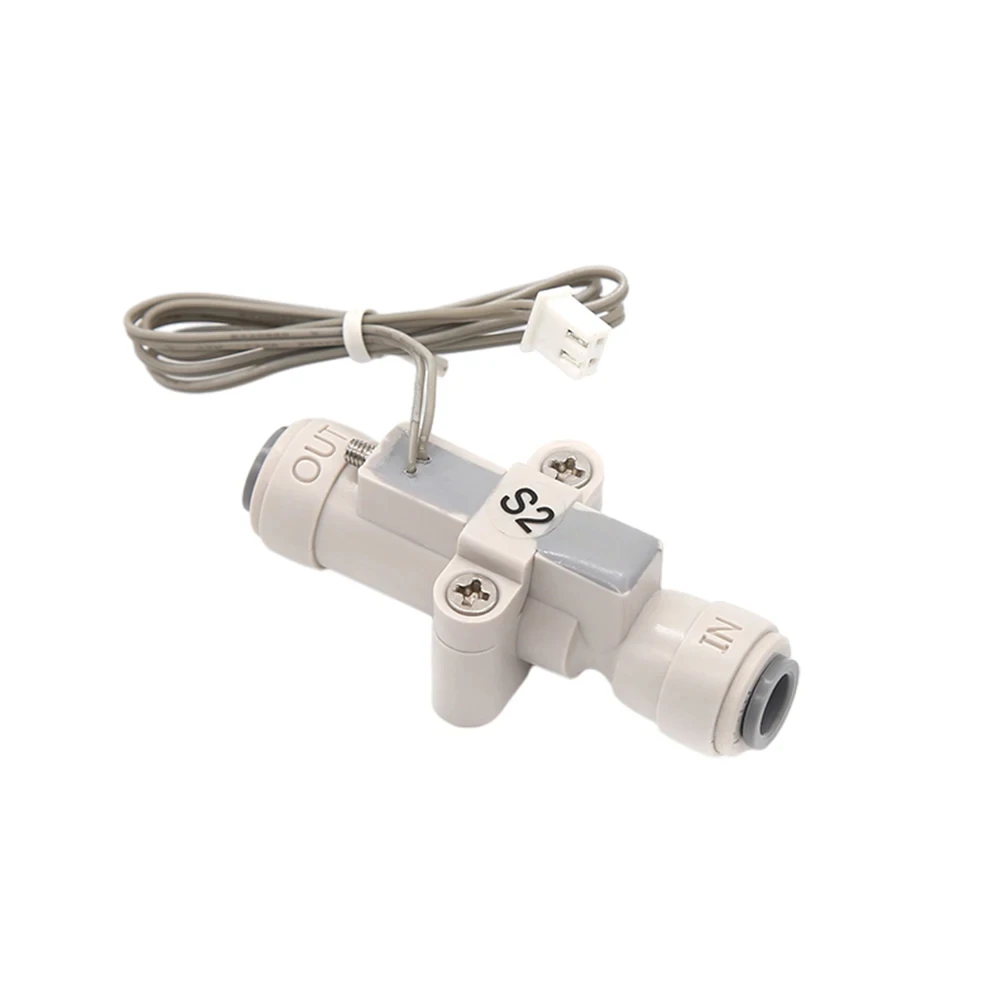

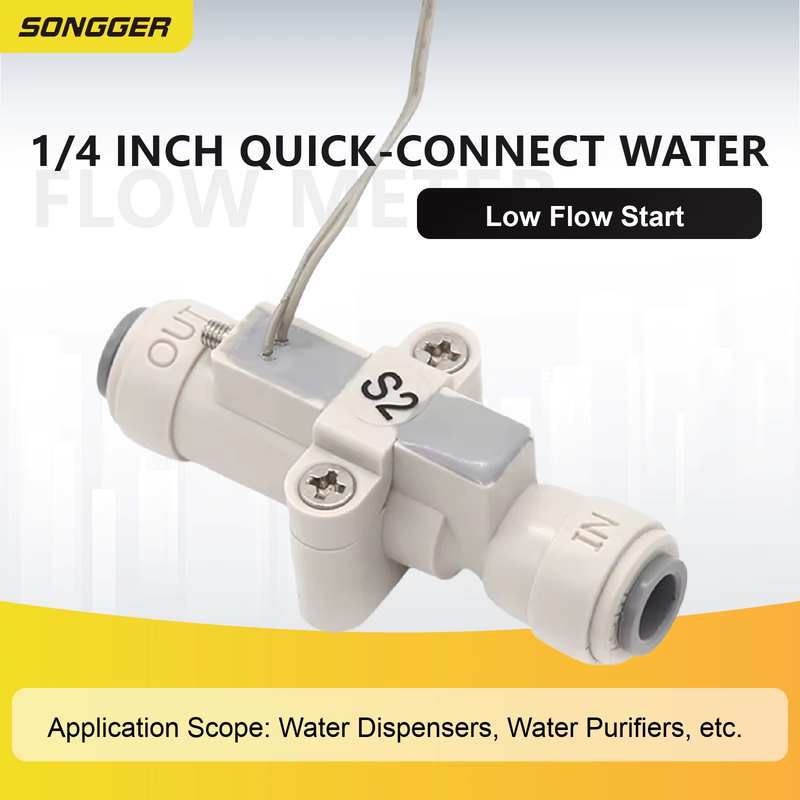

High Performance 1/4" Water Flow Switch – Normally Open Water Flow Sensor for Purifiers and Dispensers
Features:
Highly sensitive with excellent durability for long-term use.
Fast response time—activates in under one second.
Lightweight and compact design ensures stable and efficient performance.
Operates under low water pressure, easy to install, and safe to use.

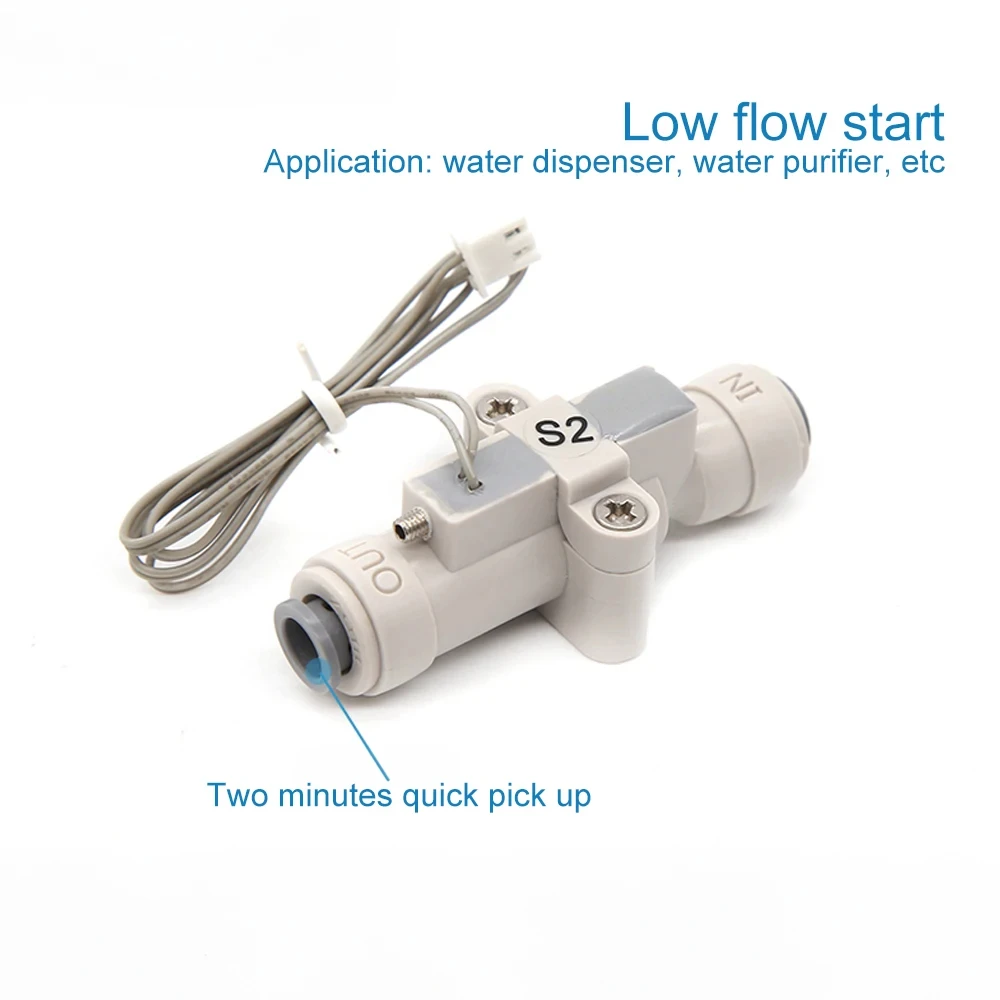

Versatile application: suitable for water dispensers, water purifiers, vending machines, and more.
Working Principle:
When water flows through the designated channel, it pushes an internal magnet. As the magnet moves toward the reed switch, the magnetic field triggers the switch to close the circuit. When the water stops, a spring pushes the magnet back, disrupting the magnetic field and opening the circuit.

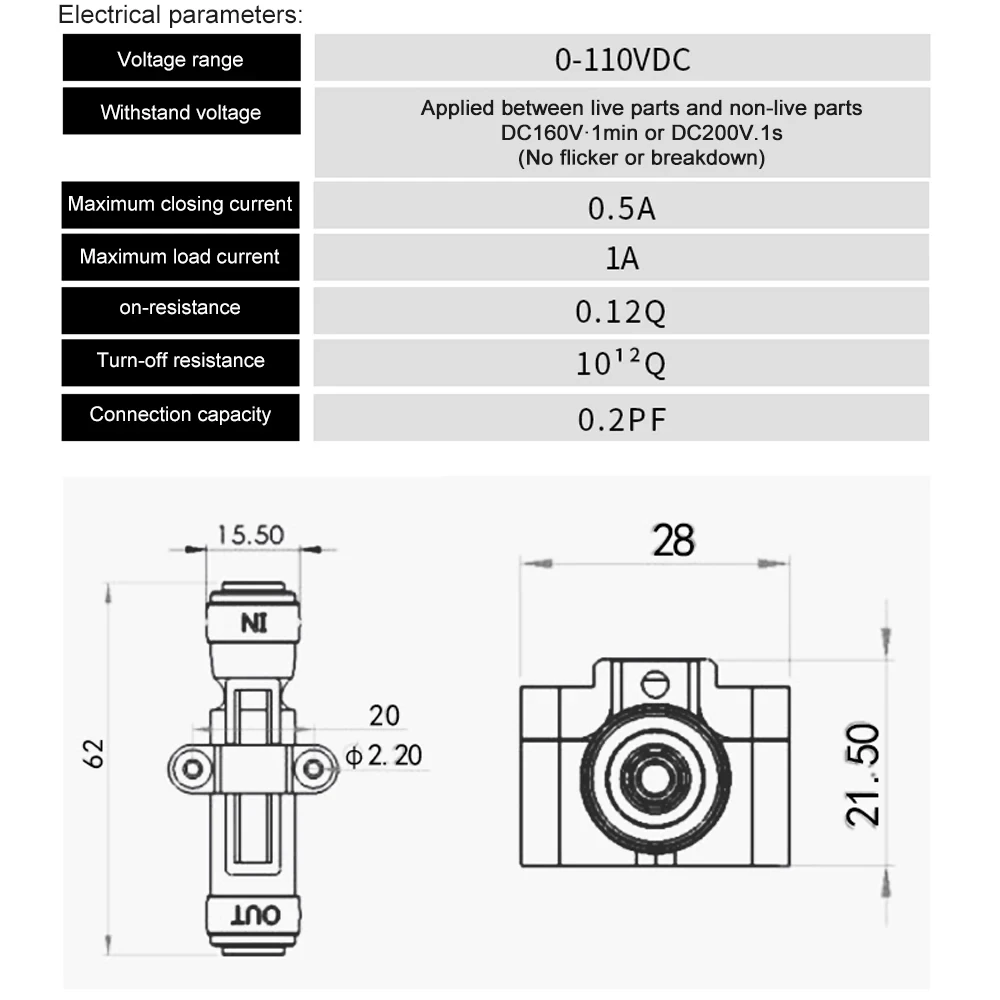

Specifications:
Model: ZJMFS-S2
Interface: 1/4" Quick Connect
Thread Size: G1/4
Start Flow Rate: <300ml/min (S2 Type)
Response Time: <1 second
Switch Type: Normally Open
Wire Length: 50cm
Connector Type: XH-2
Voltage Range: DC 0–110V
Max Closing Current: 0.5A
Max Load Current: 1A
Wire Strength: Withstands 20N for 10 seconds axially and vertically without damage
Water Pressure Resistance: 1.05MPa static pressure for 5 minutes without leakage or damage
Drop Test: Survives a 50cm drop on concrete from any direction without damage or malfunction
Environmental Conditions:
Water Quality: Turbidity <1, Fe+Co+Ni <0.3mg/L
Working Pressure: ≤0.8MPa
Water Temperature: 5–50°C
Humidity: <85%
Storage Temperature: -20–50°C
Package Includes:
1 x Water Flow Sensor
FAQs
Q1: Is this water flow switch suitable for low-pressure water systems, such as household water purifiers?
A1: Yes, the switch is designed to start at a very low flow rate (<300ml/min) and can operate under water pressure ≤0.8MPa, making it ideal for household water purifiers, dispensers, and similar low-pressure systems.
Q2: How should the switch be installed and connected? Is it easy to set up?
A2: The switch features a G1/4 quick-connect interface and comes with a 50cm wire pre-attached. Its lightweight design and simple structure ensure easy and secure installation without the need for special tools.
