Product Description
1. NOTE
Due to page limitations, some configurations may not be listed. Please contact us or leave a note during checkout for special requests.

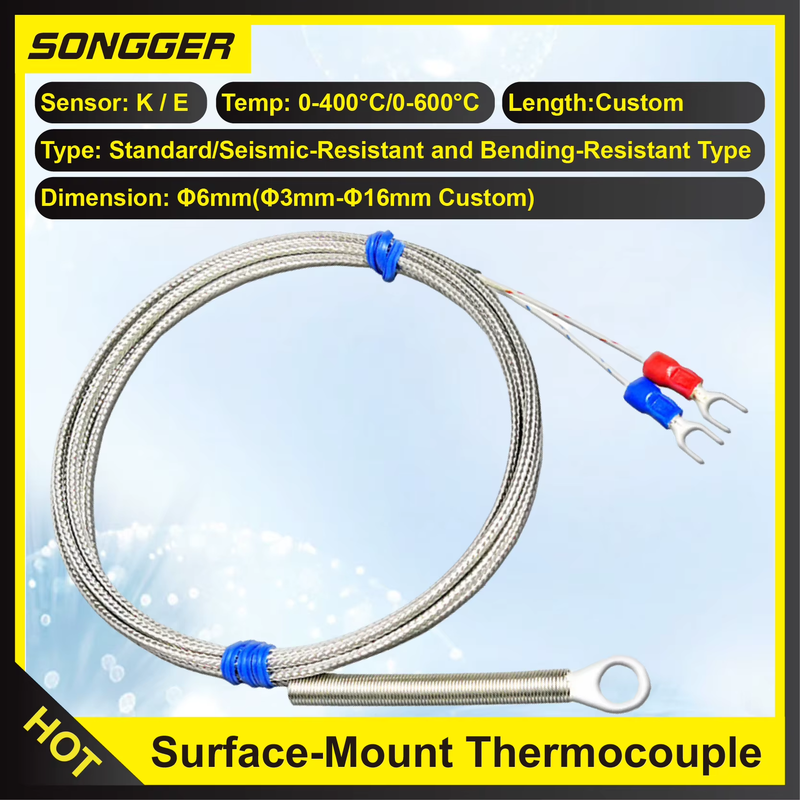

Default Configuration Includes:
Type: Standard / Seismic-Resistant & Bending-Resistant
Sensor Type: K, E
Temperature Range: 0–400°C / 0–600°C
Length: 1–10m (Optional: Φ3mm–Φ16mm)
Thickness: 0.6mm
Terminal Connector: U-type Terminal
Optional Configurations Include:
Sensor Type: K, E, J, T, PT100
Temperature Range: 0–600°C (K), 0–400°C (E), -50°C to +420°C (PT100)
Length: Customizable (e.g., 1m, 5m, 10m, 20m)
Probe Diameter: Customizable (Φ3mm–Φ16mm)
Terminal Connector: Optional Pin Terminal, Small Yellow Plug, etc.
Installation Method: Surface Mount / Fixed Installation / Threaded Connection
Important:
Ensure the temperature sensor matches the input type of your temperature controller.
Default package includes only the sensor probe; temperature controllers must be purchased separately.
Confirm your required temperature range and wire length before ordering.
For customization, please contact us.
2. PARAMETERS
Parameter | Details |
Brand | CERTEON |
Model | Patch Thermocouple |
Origin | China Mainland |
Wire Length | 0.5m, 1m, 1.5m, 2m, 3m, 4m, 5m, 10m (custom lengths available) |
Thermocouple Type | K (default), E, J, T, PT100, etc. |
Wire Material | K/E: 2-core high-temperature shielded wire (default). PT100: 3-core high-temperature shielded wire. Customization available for 2-core or 4-core wires. |
Temperature Range | 0-600℃ (K), 0-400℃ (E), -50~+420℃ (PT100) |
Probe Diameter | 6mm (default), available options: 3mm, 4mm，others |
Inner Hole Size | Φ3, Φ4, Φ5, Φ6 (default), Φ8, Φ10, Φ12, Φ14, Φ16 |
Patch Material | Copper (faster and more sensitive temperature response) |
Patch Thickness | 0.6mm |
Grounding | Default grounded (faster response), optional insulated type |
Terminal Type | U-type terminal (default), optional pin terminal, small yellow plug, etc. |
3. APPLICATIONS
Suitable for industrial equipment such as packaging machinery, especially in vibrating or moving environments (anti-vibration type).
Ideal for static environments (standard type).
Applicable in temperature monitoring for various industrial and commercial scenarios.
4. FEATURES
High Durability: Built with premium materials to ensure long-lasting performance.
Fast Temperature Response: Copper patch enhances measurement speed and sensitivity.
Customizable Options: Flexible configurations for various environments.
Precision Welding: Smooth soldering points ensure better accuracy and reliability.
5. FAQ
Q1: Can I customize the wire length or inner hole diameter?
Yes, we offer customization for wire lengths and inner hole diameters. Please contact us with your requirements.
Q2: Is the sensor compatible with all temperature controllers?
The sensor must match the input type of your temperature controller (e.g., PT100 sensor with PT100 controller). Compatibility is essential for accurate readings.
Q3: Does this product include a temperature controller?
No, the product includes only the sensor probe. Temperature controllers are sold separately.
Q4: What is the default grounding configuration?
The default configuration is grounded for faster response. Insulated versions are available upon request.
Let me know if additional edits or details are required!
