Product Description
1. NOTE
Due to page limitations, some configurations may not be listed. Please contact us or leave a note during checkout for special requests.
Default Configuration Includes:
Sensor Type: K / E / J / Pt100
Temperature Range: 0–600°C / 0–400°C / -210–2100°C / -50–200°C
Probe Size: 4.5×10mm
Thread Size: M6×1
Terminal Connector: 2-wire, U-Type Terminal
Optional Configurations Include:
Sensor Type: K, E, J, Pt100
Probe Length: Customizable (e.g., 50mm, 100mm, 200mm, 300mm)
Thread Size: M6×1, M8×1.25, M10×1.5 (Customizable)
Cable Length: Customizable (e.g., 1m, 5m, 10m, 20m)

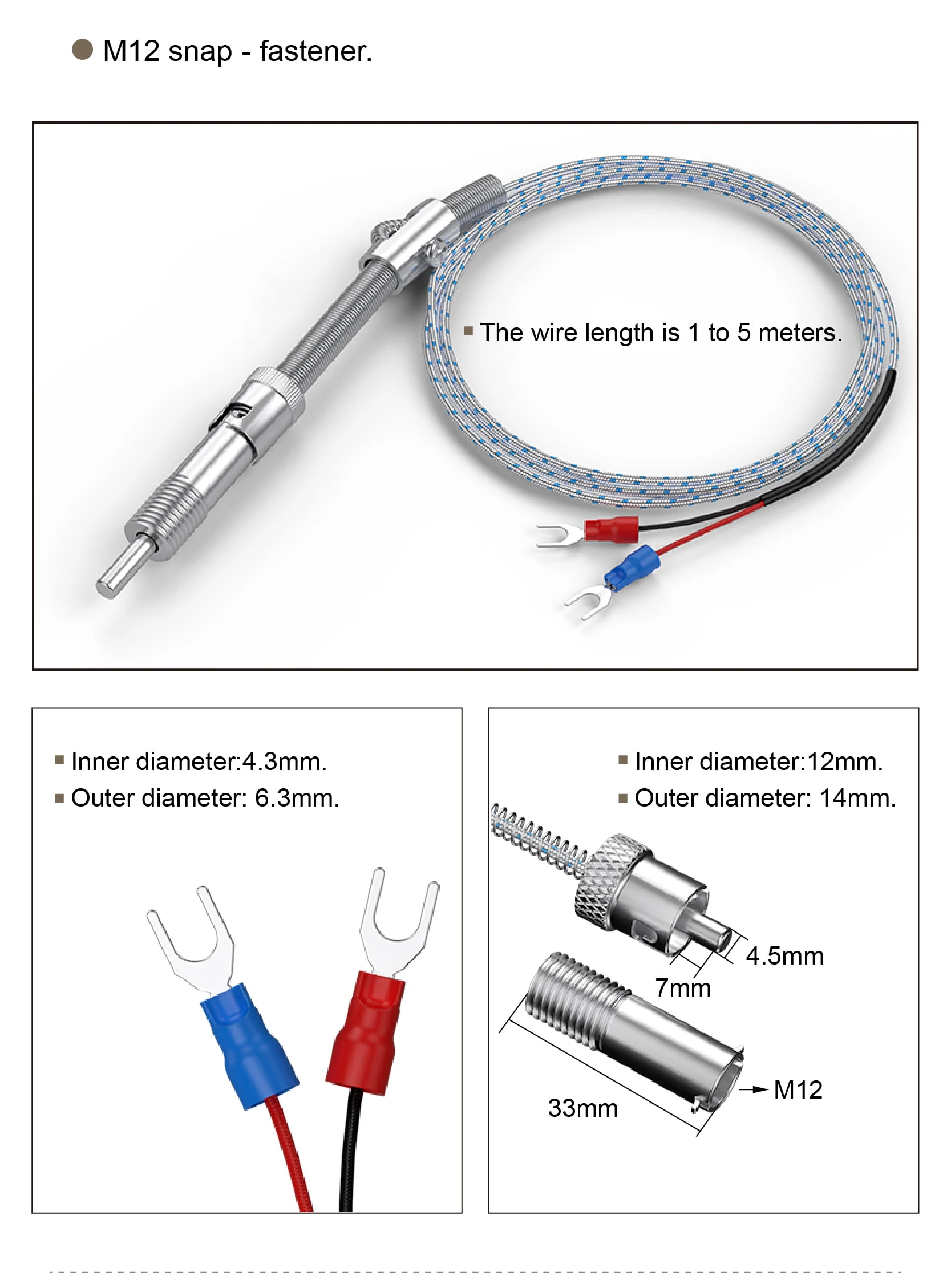

Terminal Connector: U-Type Terminal (Default), Aviation Plug, Pin Terminal
Ensure the sensor type matches your temperature controller input (e.g., a Pt100 sensor must match a Pt100 controller).

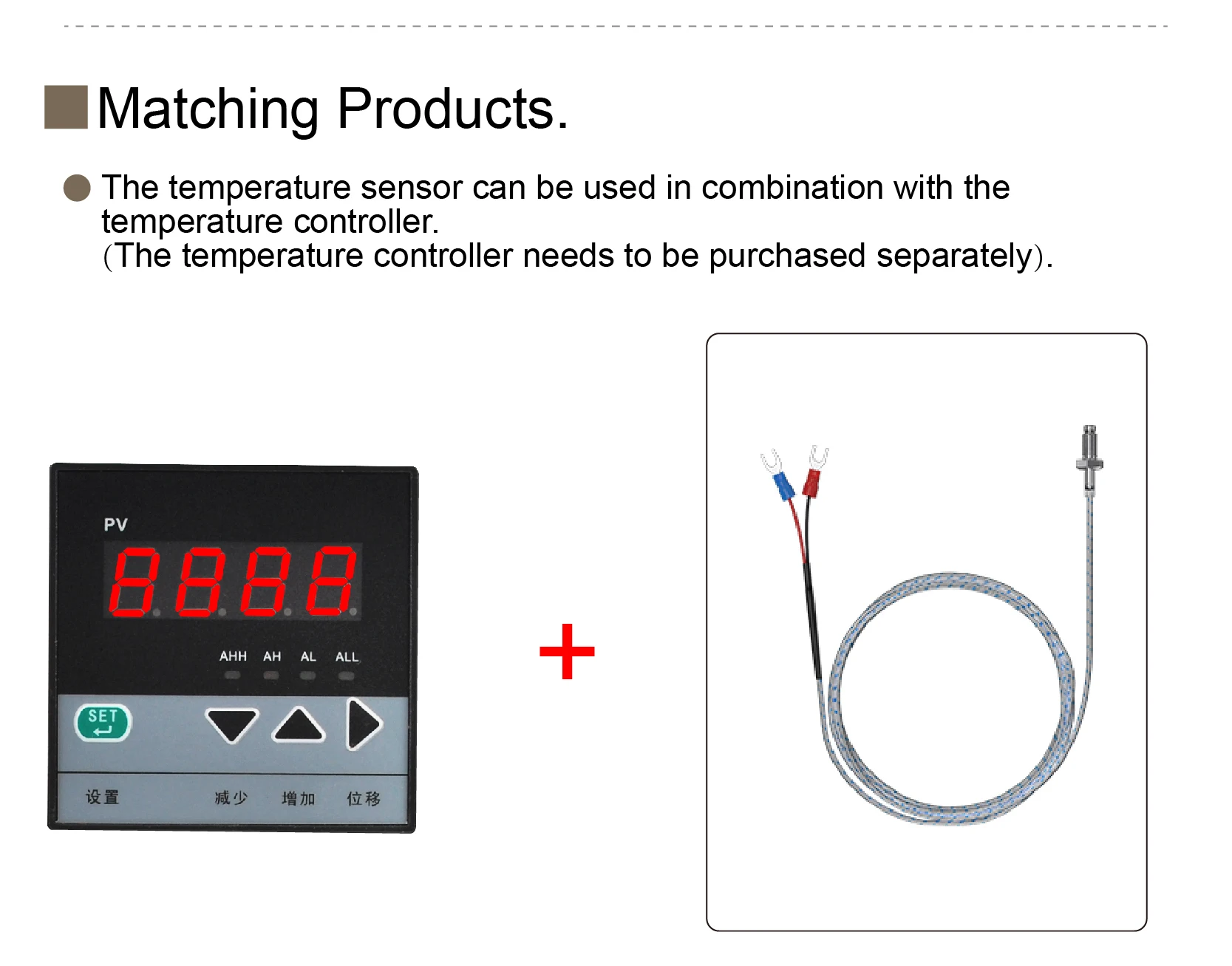

The default package includes only the sensor probe; temperature controllers must be purchased separately.
Confirm your required sensor type, temperature range, and cable length before placing an order.
For custom specifications or bulk purchases, please contact us.

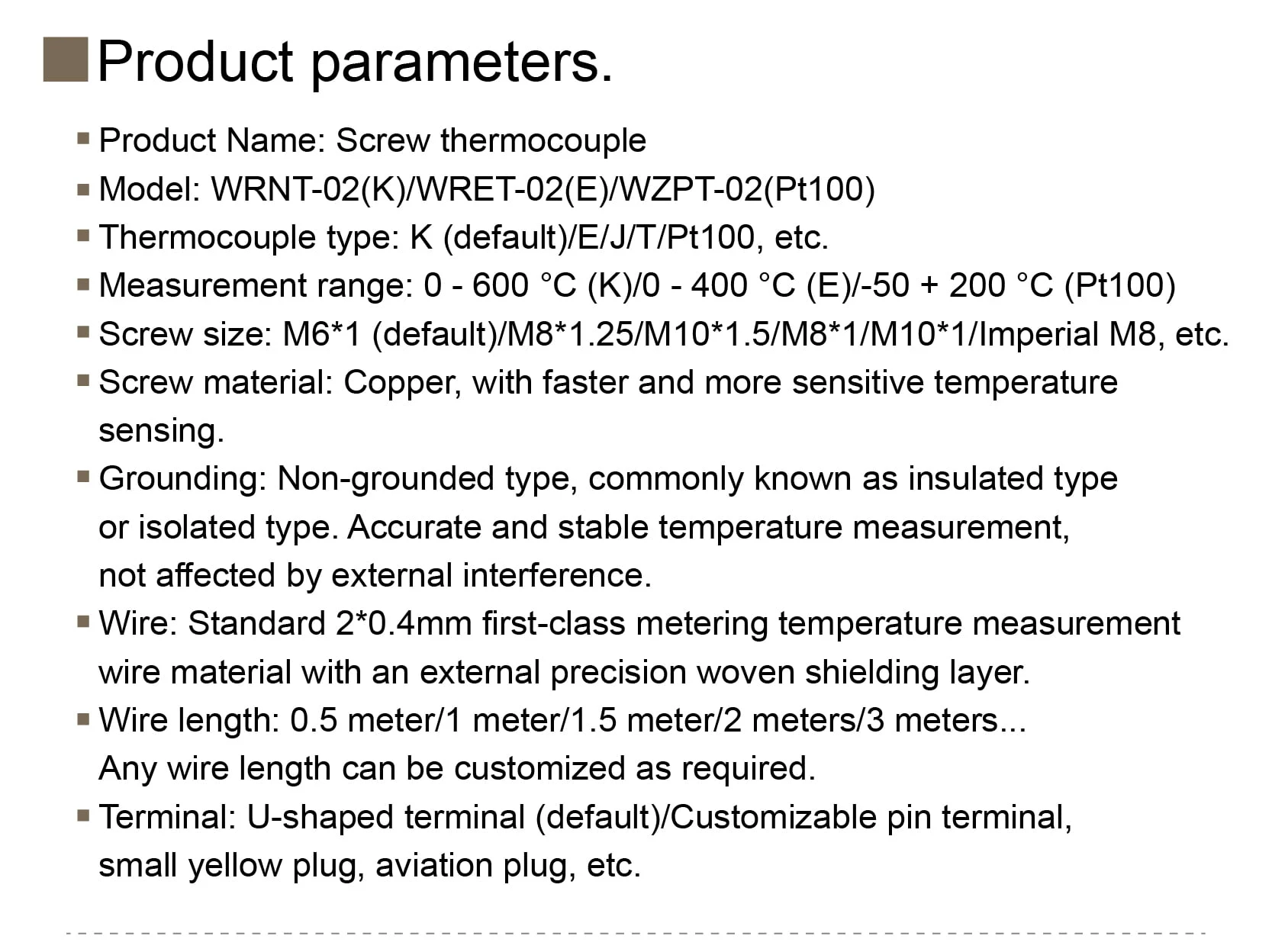

2. PARAMETERS
Parameter | Specification/Options |
Product Name | Screw Thermocouple |
Model | WRNT-02(K) / WRET-02(E) / WZPT-02(Pt100) |

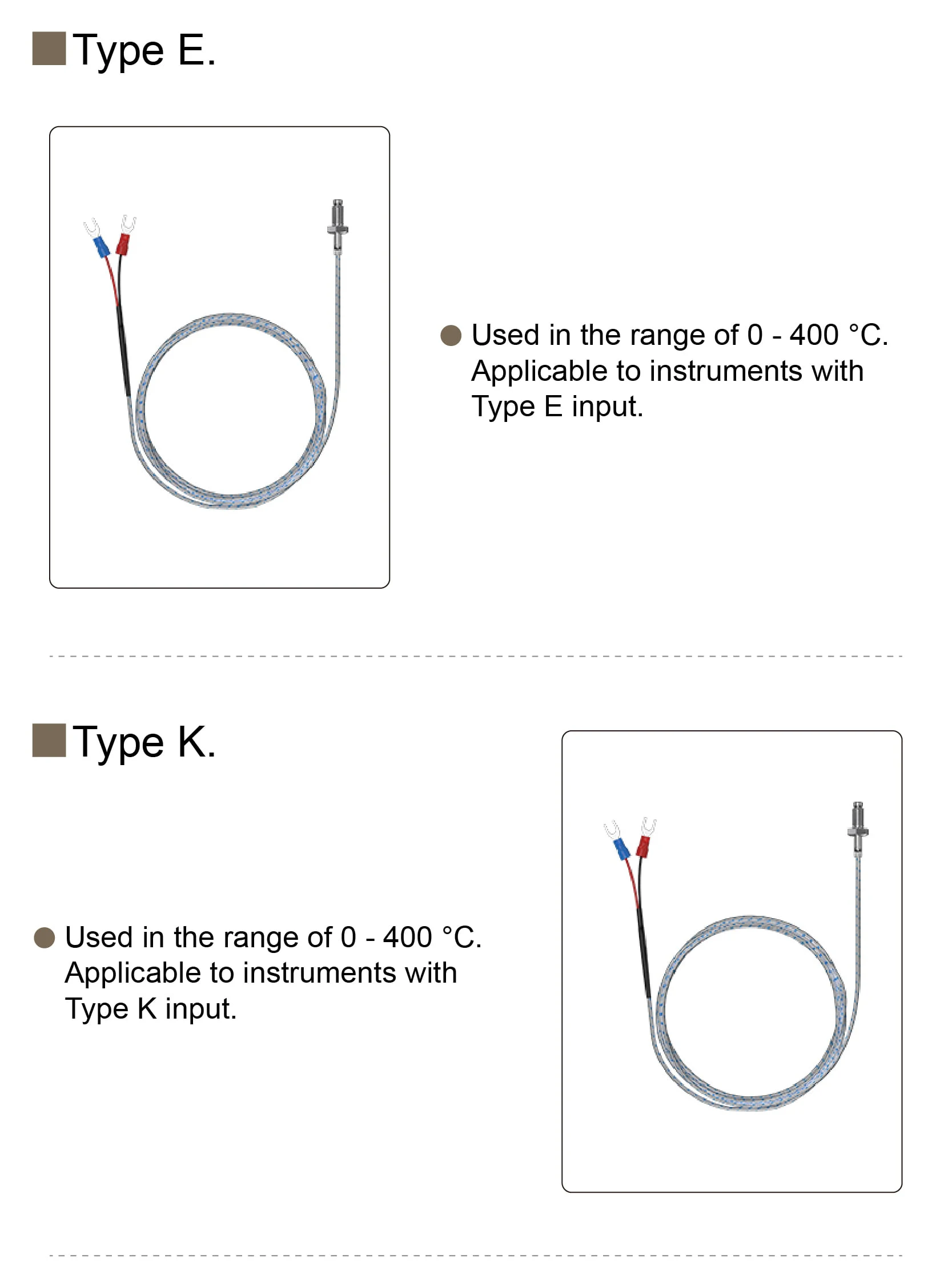

Graduation Type | K (default) / E / J / T / Pt100 |
Measurement Range | 0-600℃ (K) / 0-400℃ (E) / -50~200℃ (Pt100) |
Screw Size | M6*1 (default) / M8*1.25 / M10*1.5 / Imperial options |
Screw Material | Copper, faster and more sensitive temperature response |
Ground Type | Non-grounded (insulated, accurate, stable) |

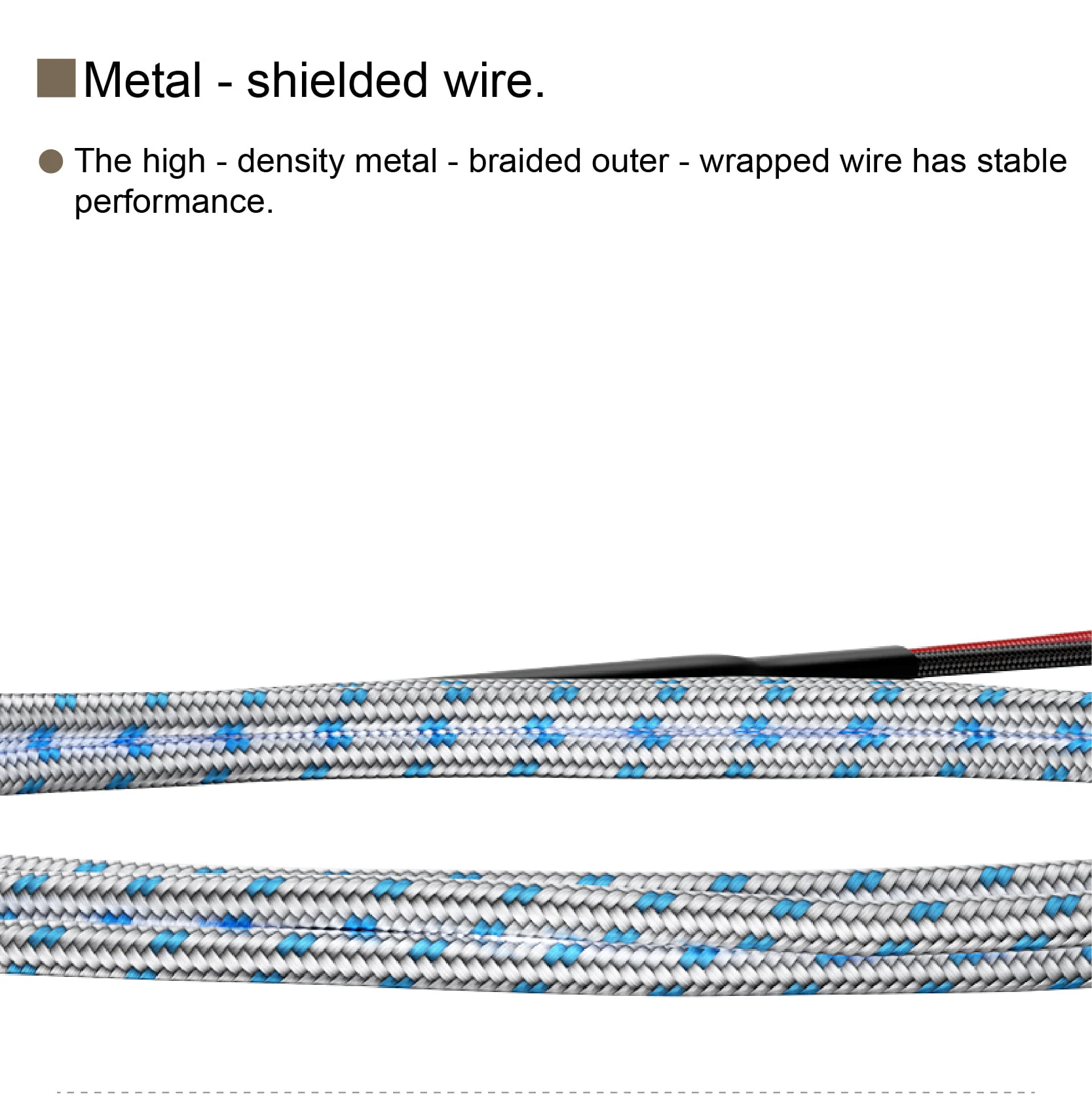

Wire Standard | 2*0.4mm Grade 1 thermocouple wire with braided shielding |
Wire Length | 0.5m/1m/1.5m/2m/3m (customizable) |

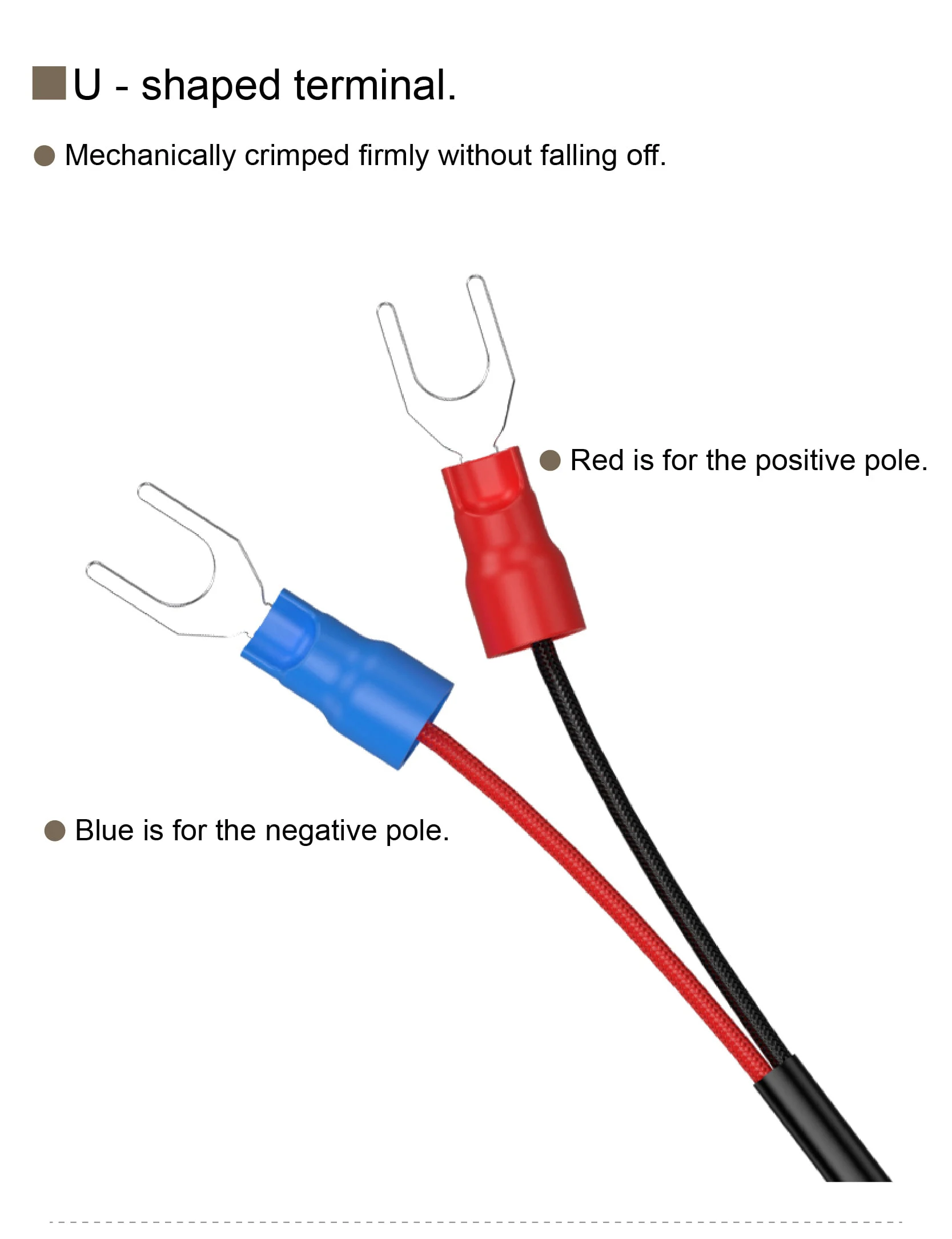

Terminal Options | U-shaped terminal (default) / plug pins, small plugs, aviation plugs, etc. |
3. APPLICATIONS
Widely used in industrial temperature monitoring for equipment, pipelines, and molds.
Compatible with temperature control instruments in manufacturing or testing.
Suitable for customized industrial applications, including high-accuracy and stable environments.
4. FEATURES
·Fast and sensitive temperature measurement with copper screw heads.
·High-frequency ceramic insulation for stable and interference-free measurements.
· Multiple wire and terminal options for flexible installation.
Durable and rust-resistant design for extended lifespan.
5. FAQ
Q1: What should I do if I need a custom wire length or terminal type?
A1: Contact us with your specific requirements; we offer custom solutions for wire length, terminal types, and screw sizes.
Q2: Can I use a PT100 sensor with a K-type instrument?
A2: No, ensure the sensor matches the input type of your temperature instrument (e.g., PT100 with PT100).
Q3: What makes the non-grounded design advantageous?
A3: Non-grounded designs provide stable, accurate measurements unaffected by external interference.
