Product Description
1.NOTE

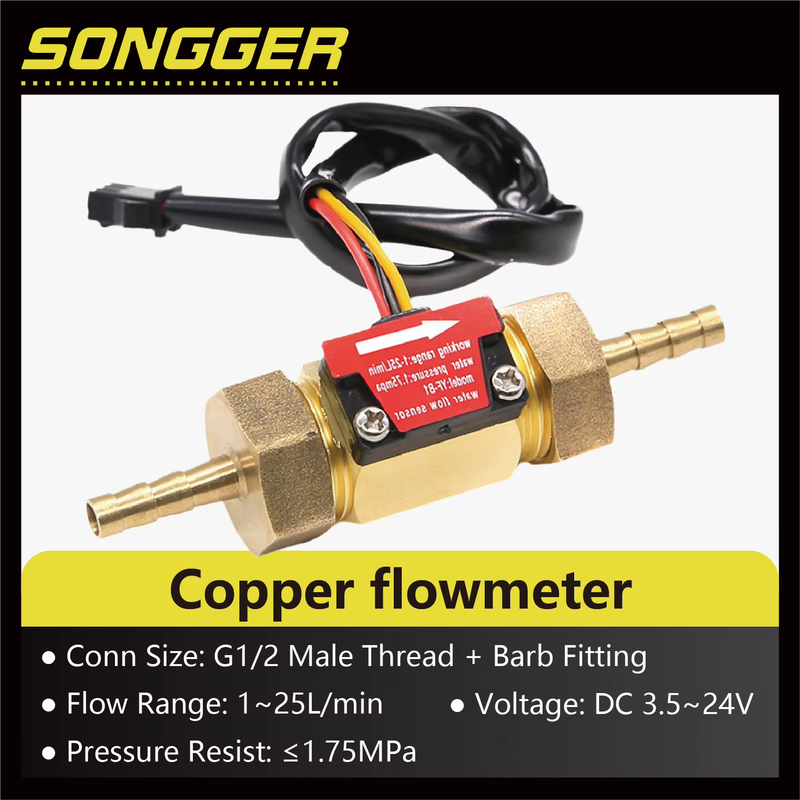

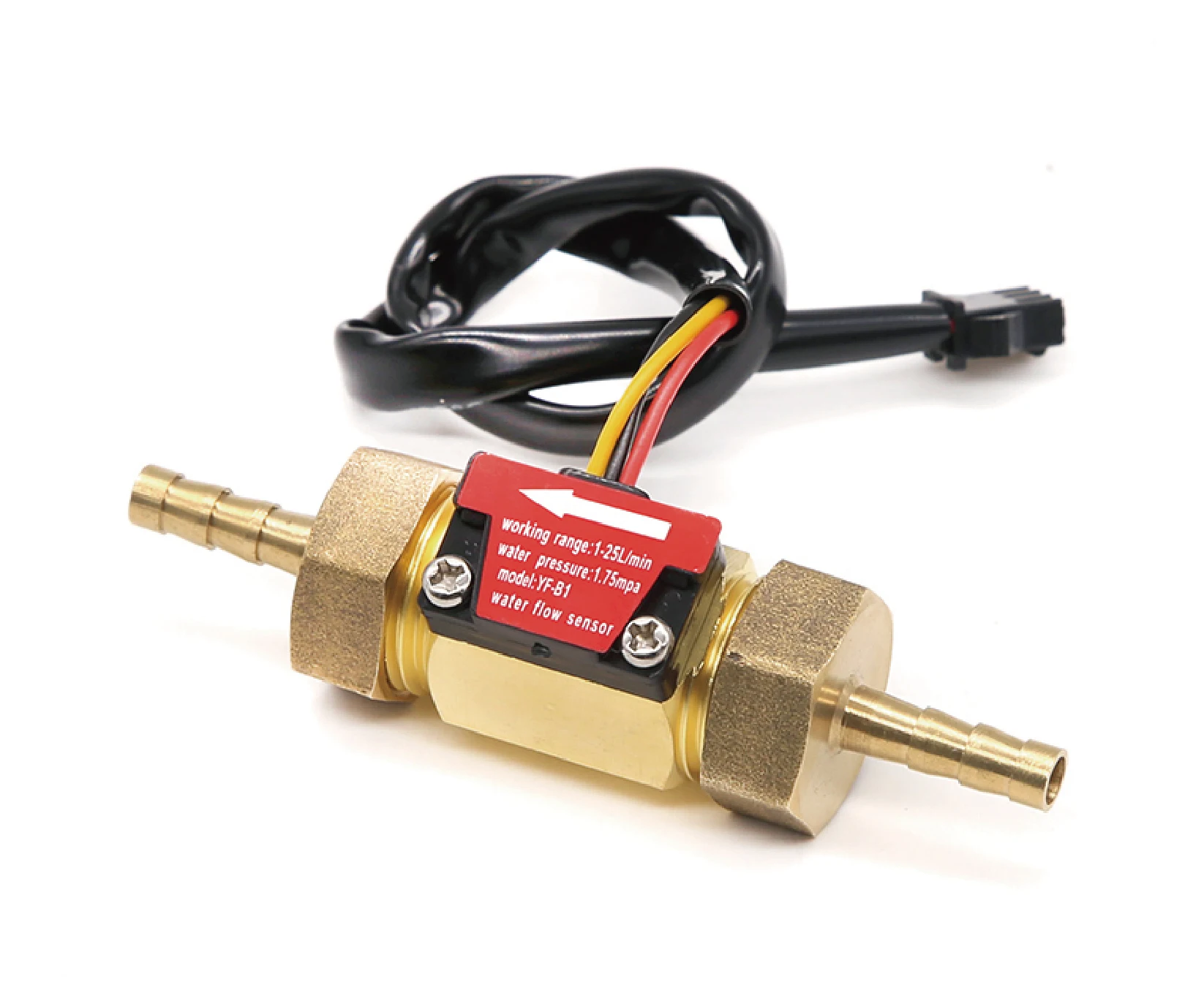

This Copper Flowmeter is designed for precise liquid flow measurement, ensuring stable performance in industrial and commercial applications.
Default Configuration Includes:

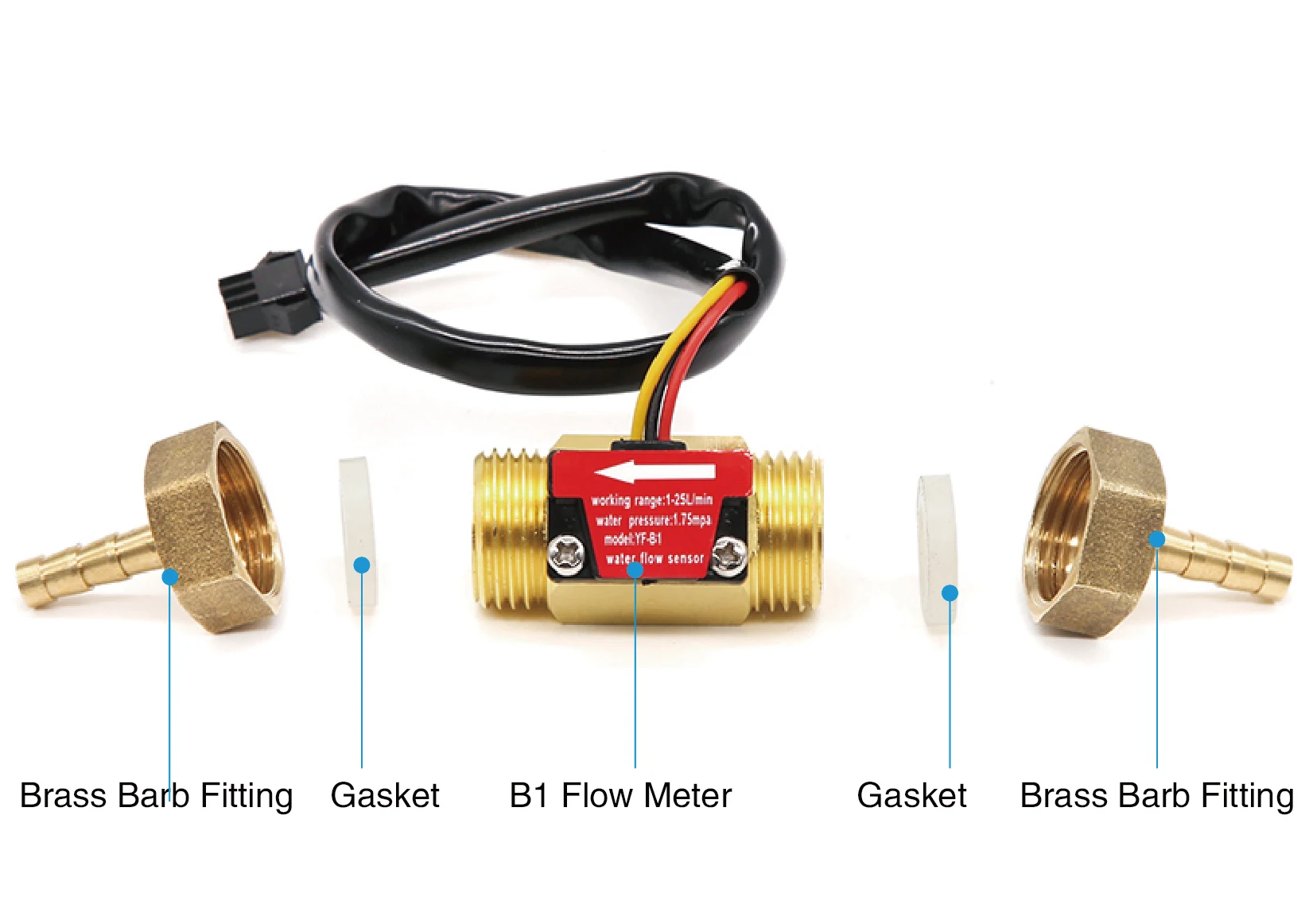

Connection Size: G1/2 Male Thread + 6mm/8mm/10mm/12mm/14mm Barb Fitting
Voltage: DC 3.5–24V
Flow Range: 1–25L/min
Pressure Resistance: ≤1.75MPa
Temp:＜80°C

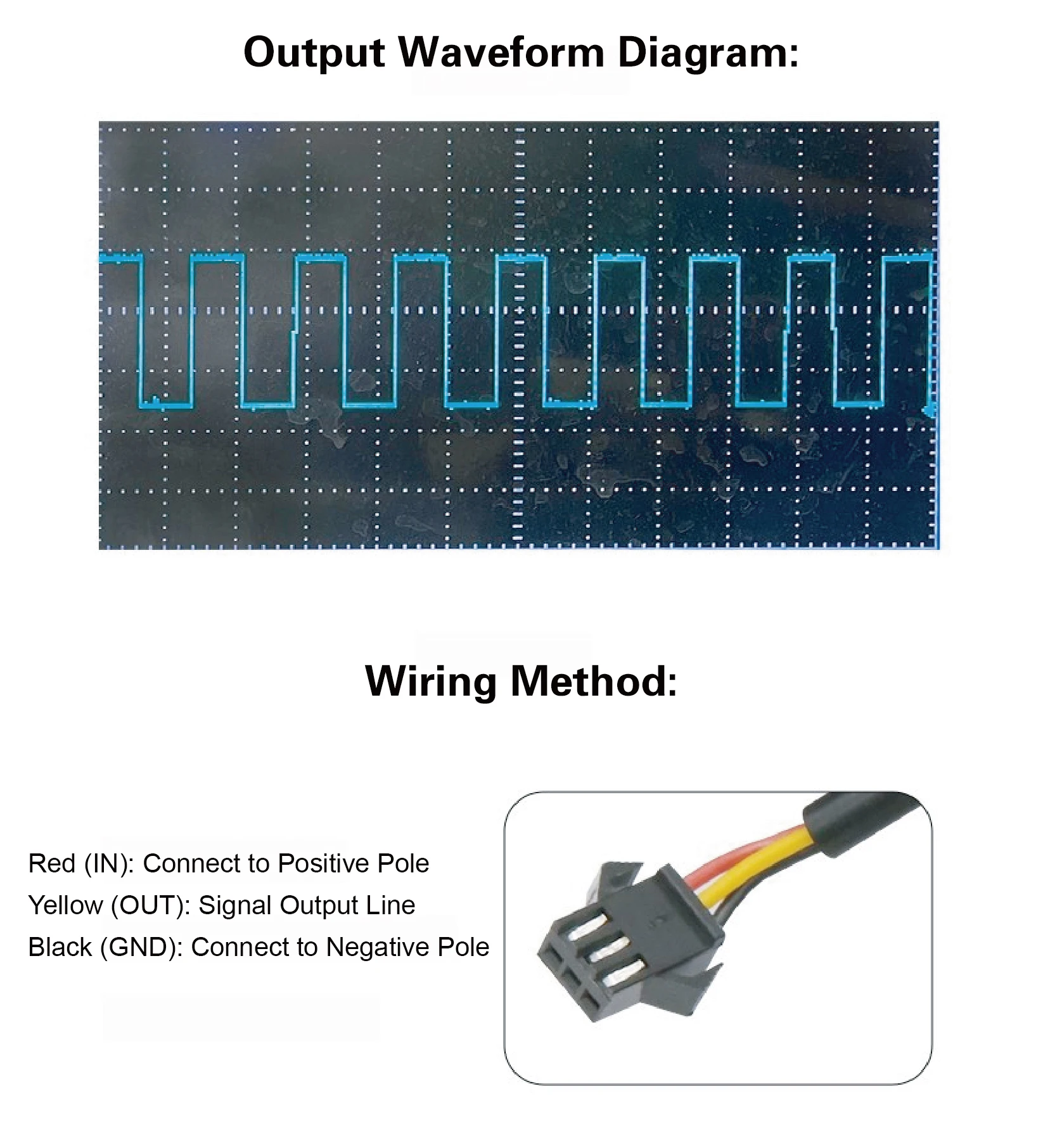

Output:Pulse output
Sensor Usage Guidelines:
Sensor Usage Notice: Install a filter at the water inlet to prevent debris. It is recommended to install the sensor indoors or inside equipment to avoid humidity, high temperatures, or harsh environments. Keep it away from vibrations and magnetic materials to ensure accuracy. Unauthorized disassembly is prohibited. If replacing another model, contact us for support with compatibility issues

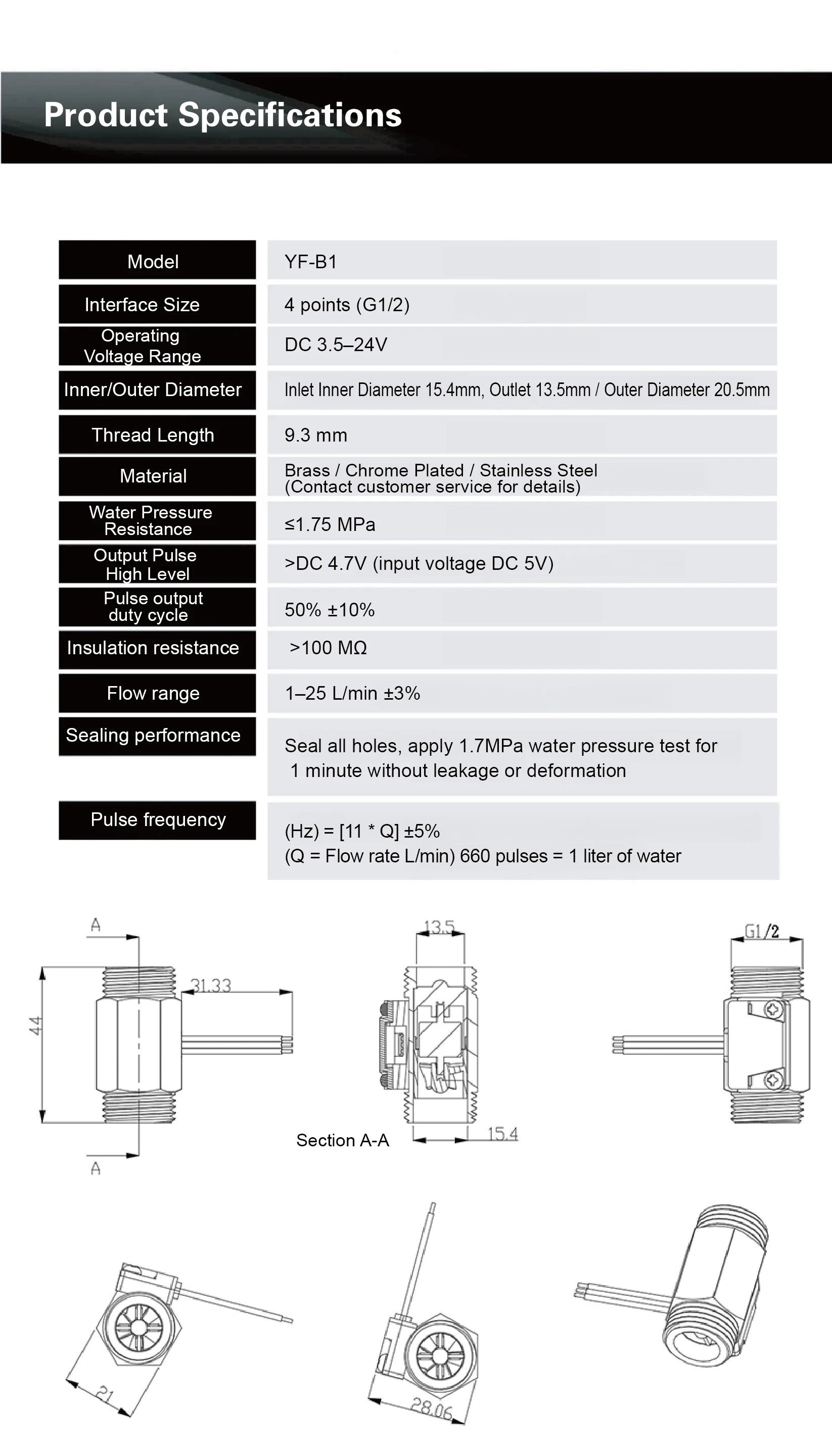

2.Parameters
Parameter | Specification |
Model | YF-B1 |
Thread Size | G1/2 (4 points) |
Operating Voltage Range | DC 3.5~24V |
Internal/External Diameter | Inlet: 15.4mm; Outlet: 13.5mm / External: 20.5mm |
Thread Length | 9.3mm |
Material | Brass/Chrome/Stainless Steel |
Water Pressure Resistance | ≤1.75 MPa |
Output Pulse High Level | > DC 4.7V (at DC 5V input) |
Output Pulse Duty Cycle | 50% ± 10% |
Insulation Resistance | >100 MΩ |
Flow Rate Range | 1~25 L/min ±3% |
Seal Test | 1.7 MPa water pressure for 1 min, no leakage or deformation |
Pulse Frequency | (Hz) = [11 × Q] ±5% (Q = flow in L/min) |
3.Features
High Durability:
Made of brass with chrome plating, ensuring resistance to wear and long service life.
Wide Voltage Compatibility:
Operates smoothly within a voltage range of DC 3.5~24V, adaptable to diverse systems.
Precise Measurement:
Offers high accuracy with flow rates from 1 to 25 L/min and minimal deviation.
Leak-Proof Design:
Undergoes 1.7 MPa pressure testing, ensuring no leaks or deformation.
Flexible Connections:

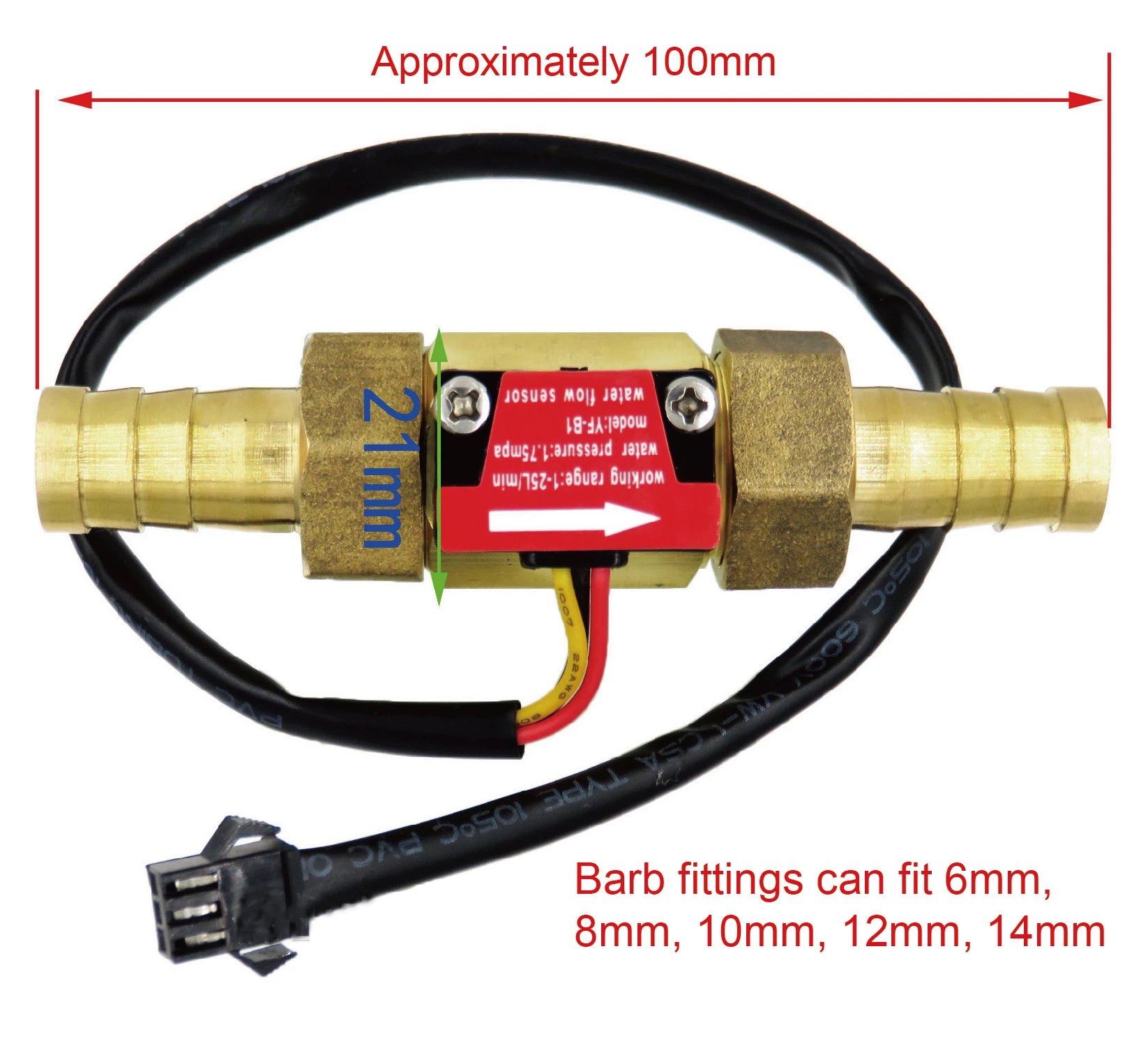

Compatible with multiple barb sizes (6mm, 8mm, 10mm, 12mm, 14mm) for easy installation.
4.Applications
Water heaters
Drinking systems
Liquid flow monitoring for industrial use
5.FAQs
Q: Is the YF-B1 sensor suitable for high-pressure systems?
A: Yes, it withstands pressures up to 1.75 MPa.
Q: What is the accuracy of flow measurement?
A: The flow rate measurement deviation is ±3% within 1 to 25 L/min.
Q: Which systems can it be installed in?
A: It is compatible with water heaters, drinking systems, and industrial liquid monitoring setups.
