Grade A 3.2V 20Ah 30Ah 32Ah LiFePO4 battery C40 C46 phosphate Cell for 12V 24V 4

Product Description

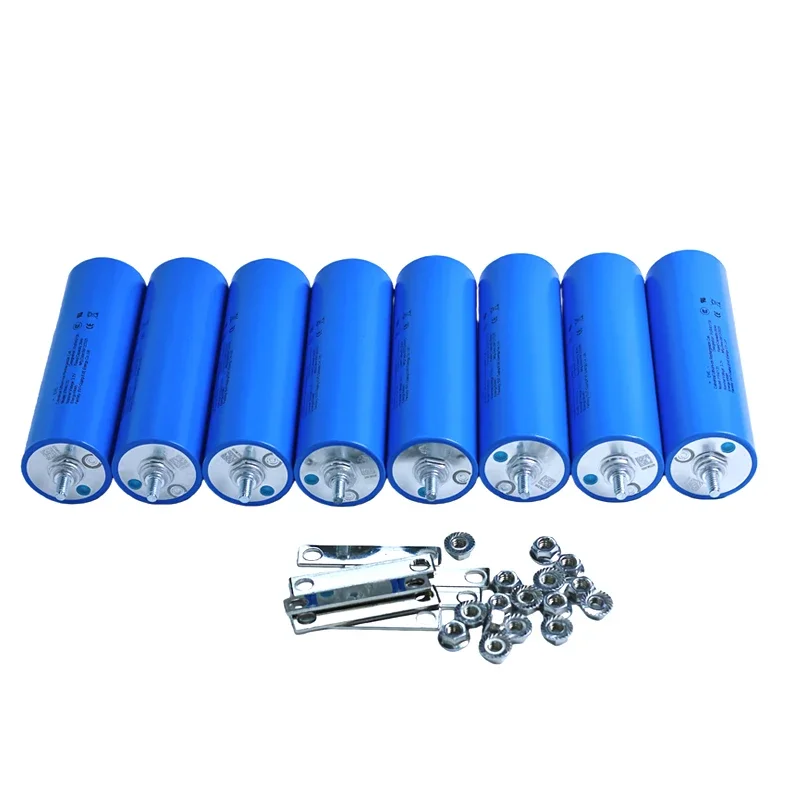

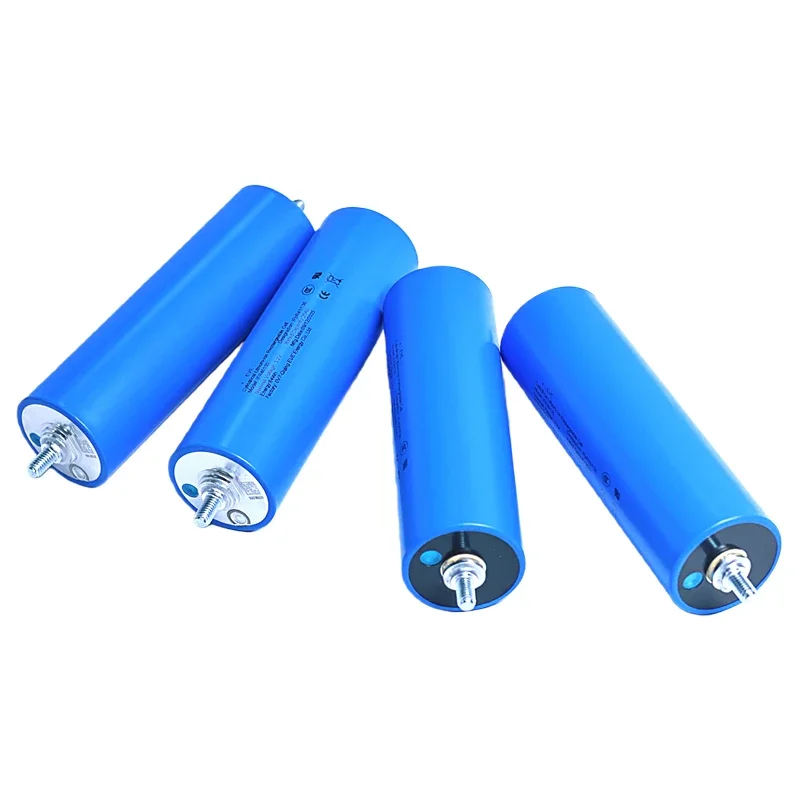

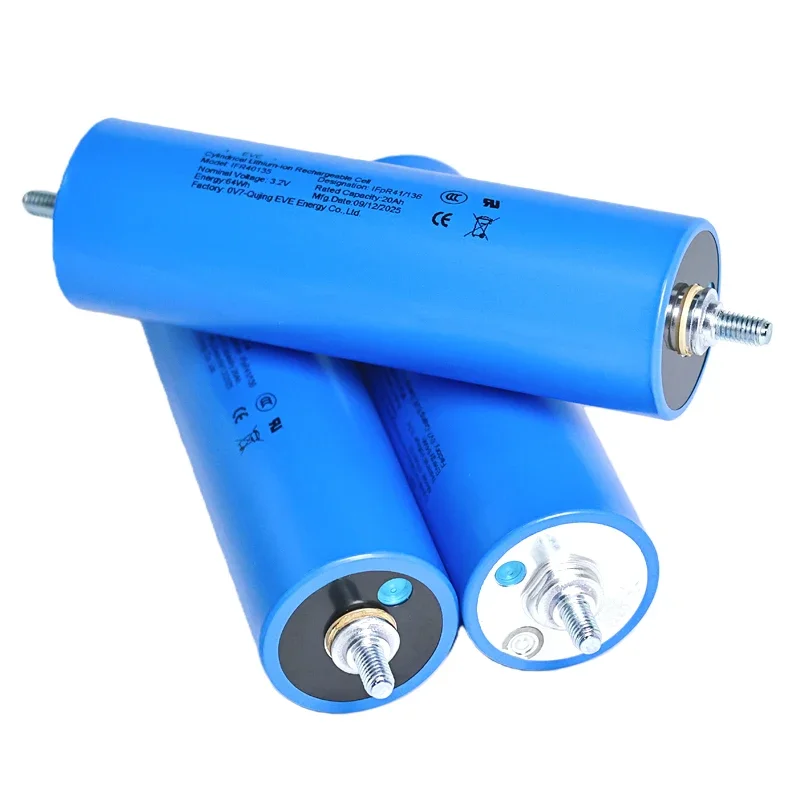

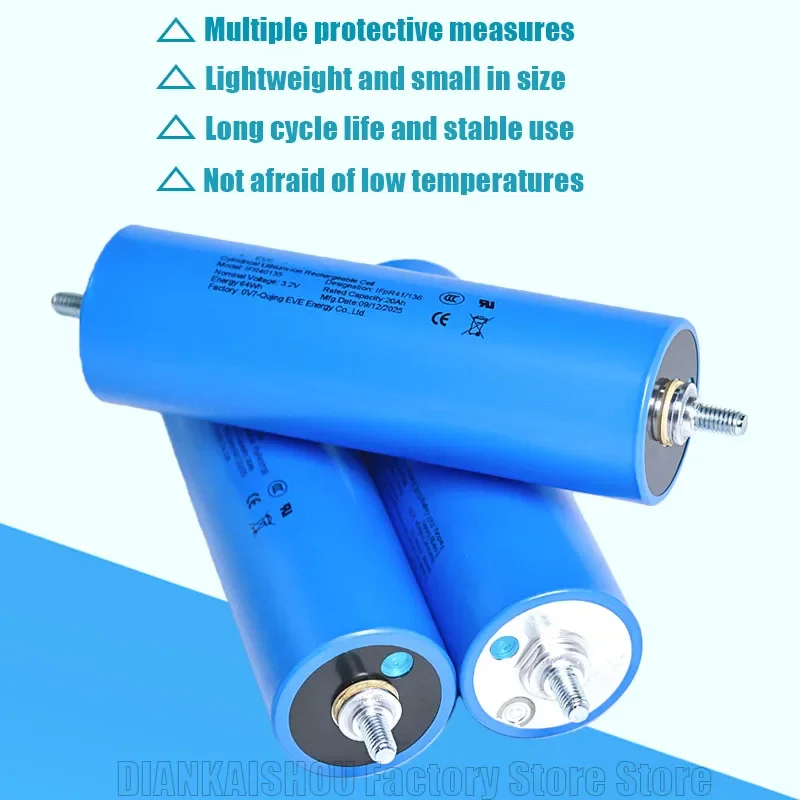

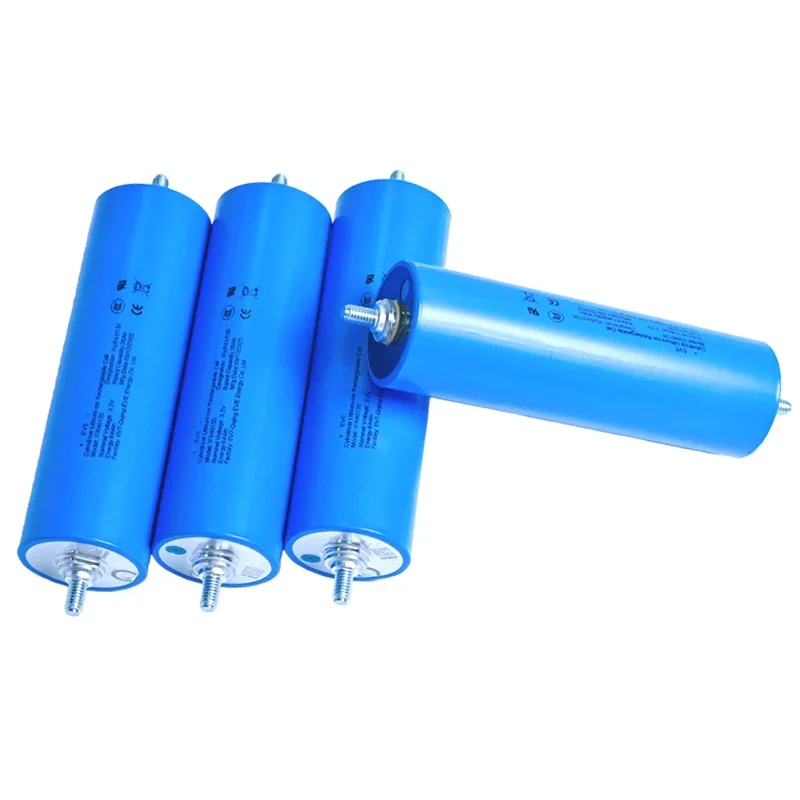

3.2V 20AH C40

Battery type: Lifepo4
Product Name: Lithium Iron Phosphate Battery
Model: 3.2V 20Ah 64Wh/VAh
Grade: A+
Nominal voltage: 3.2V
Rated capacity: 20Ah

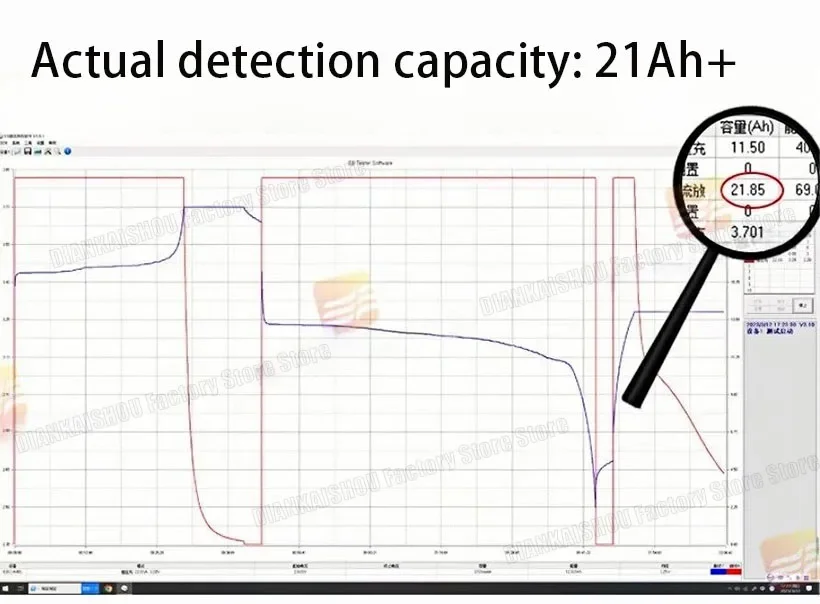

Actual capacity: 20-22Ah
Quality: 100% brand new
Shell material: Aluminum
Internal resistance: less than 0.3m Ω
Suggested constant current: 6A (0.3C)
Discharge cut-off voltage: 2.5V
Maximum charging voltage: 3.65V
Maximum continuous discharge current: 100A (5C)
Constant current: 60A (3C)
Charging method: CC/CV
Charging voltage: 3.65V
Cycle life: ≥ 4000 cycles (80% DOD)
Charging temperature: 0~60 ° C
Emission temperature: -20~60 ° C

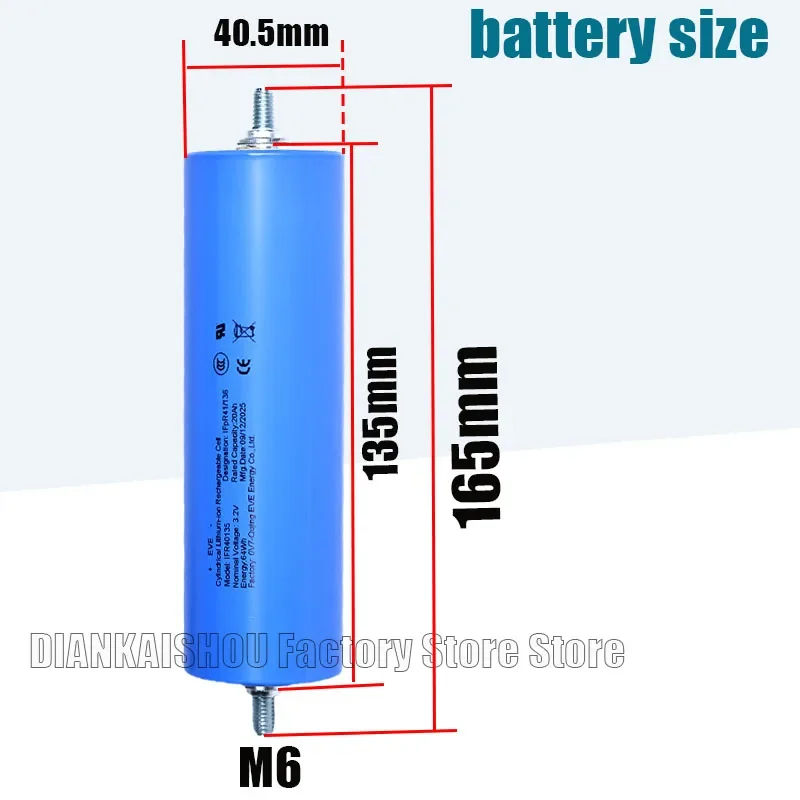

Size: 40.5 * 135 (± 2) millimeters
Total length: 40.5 * 160 (± 3) millimeters

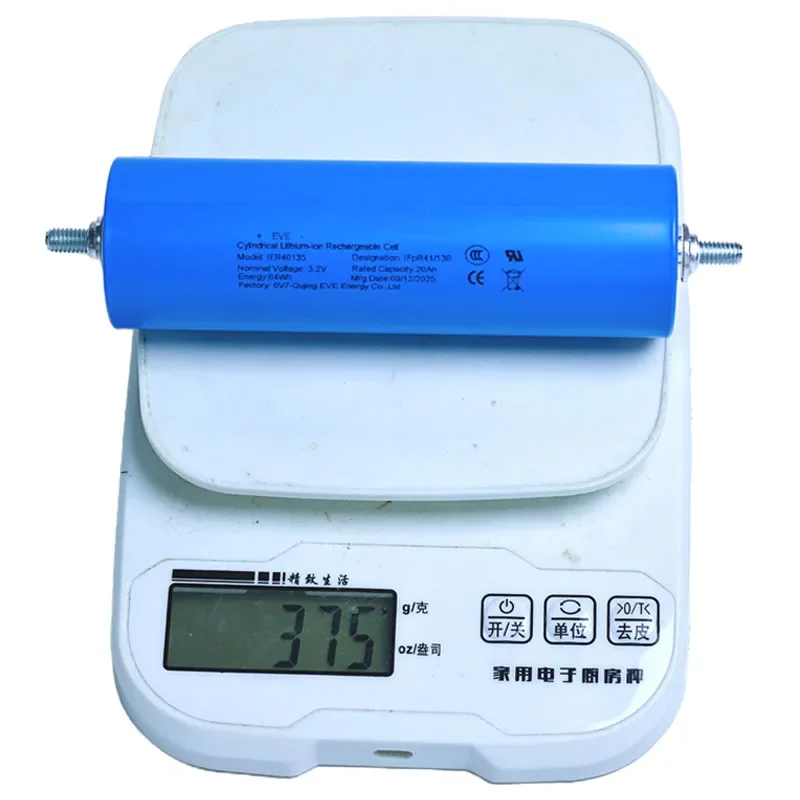

Battery weight: 0.371 ± 0.02 kilograms
Delivery List:
Type: M6 screw+copper sheet

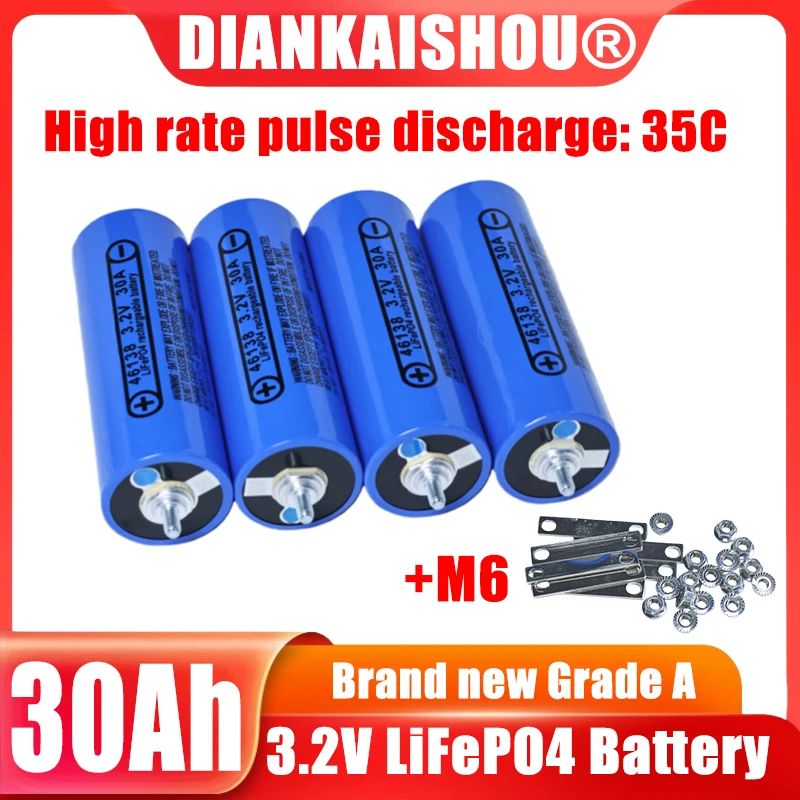

3.2V 30AH C46 6C

Battery type: Lifepo4
Product Name: Lithium Iron Phosphate Battery
Model: 3.2V 30Ah 64Wh/VAh
Grade: A+
Nominal voltage: 3.2V
Rated capacity: 30Ah
Actual capacity: 29-30Ah
Quality: 100% brand new
Shell material: Aluminum
Internal resistance: less than 0.8m Ω
Suggested constant current: 9A (0.3C)
Discharge cut-off voltage: 2.5V
Maximum charging voltage: 3.65V
Maximum continuous discharge current: 168A (6C)
High rate pulse discharge: 35C
Charging method: CC/CV
Charging voltage: 3.65V
Cycle life: ≥ 4000 cycles (80% DOD)
Charging temperature: 0~60 ° C
Emission temperature: -25~60 ° C
Size: 46.5 * 138 (± 2) millimeters
Total length: 46.5 * 170 (± 3) millimeters
Battery weight: 0.54 ± 0.01 kg
Delivery List:
Type: M6 screw+copper sheet

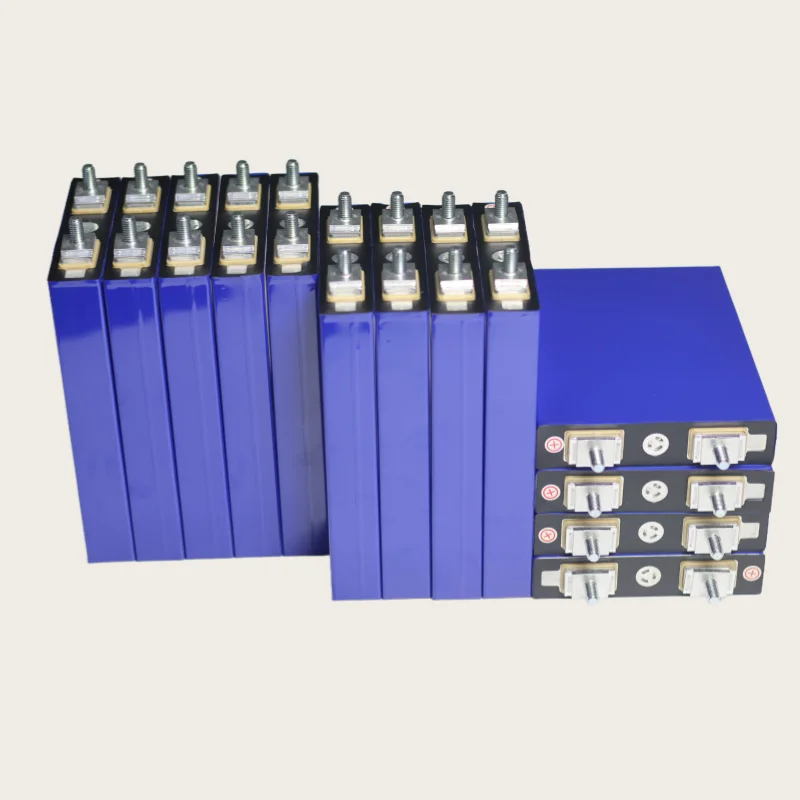

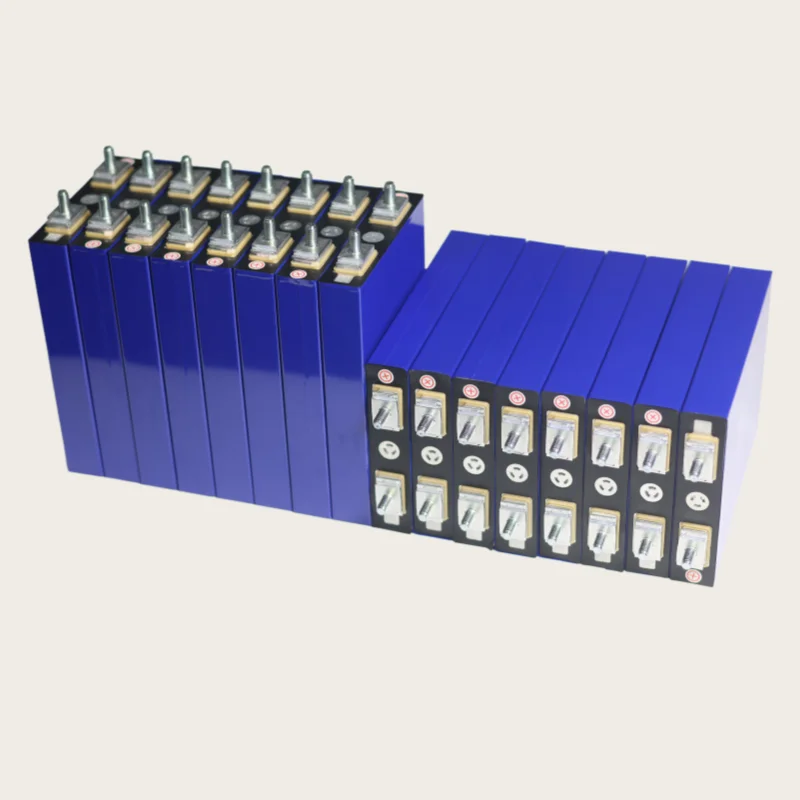

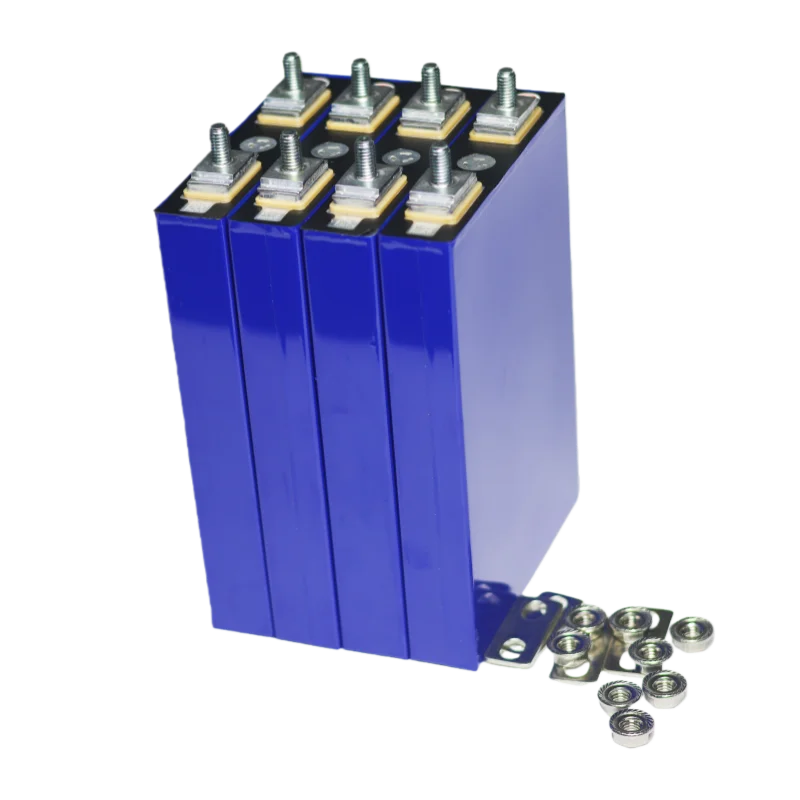

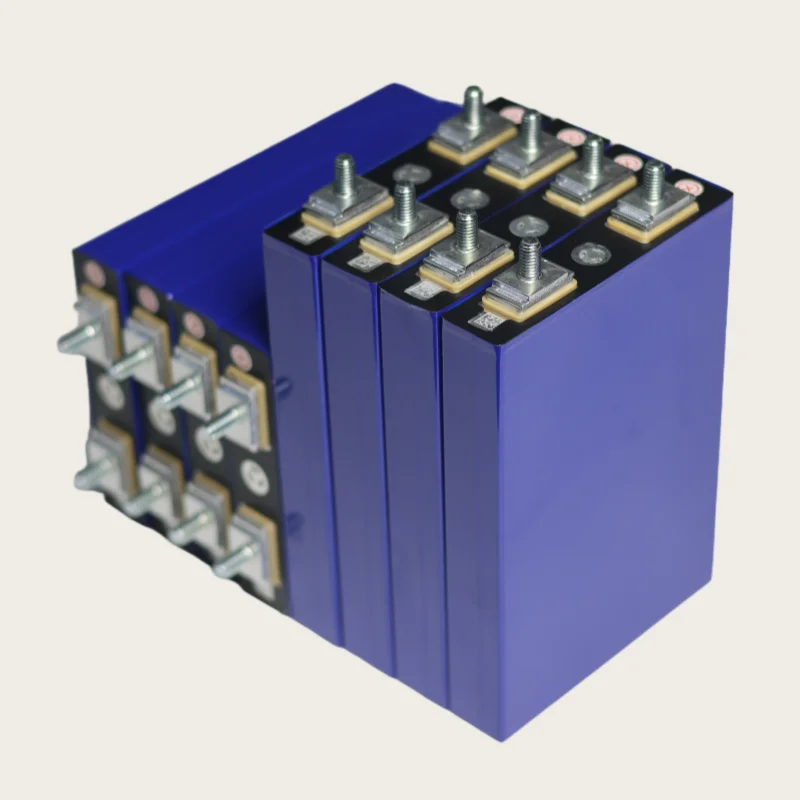

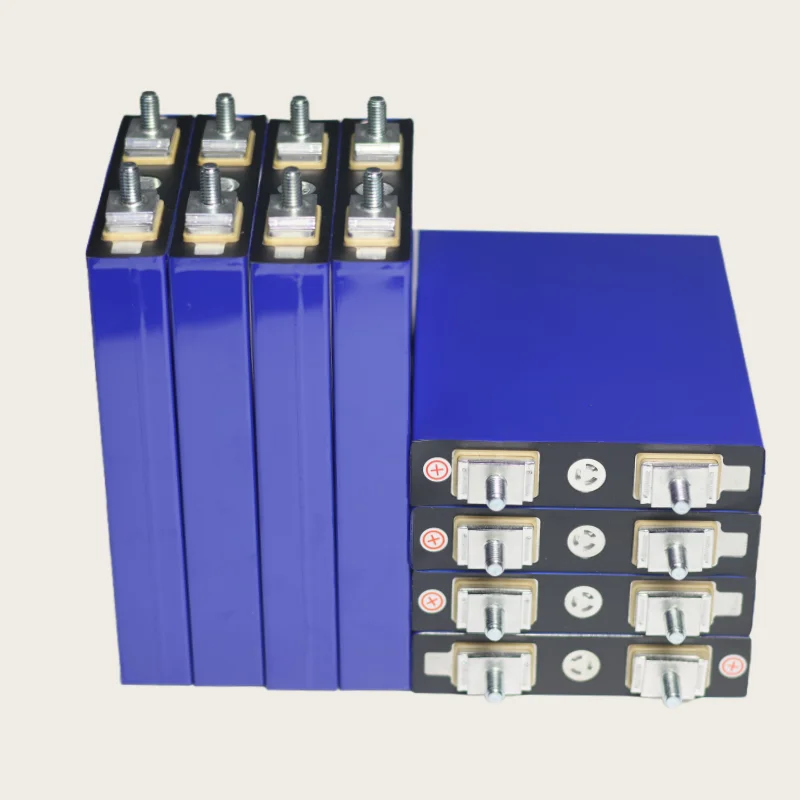

3.2V 32Ah

[Product specification]
Type: Brand new Grade A high magnification
Battery Model: 3.2V 32Ah
Battery Type: LiFePO4
Nominal voltage: 3.2V
Nominal capacity: 32000mAh
Cycle life: Over 4000 times (80%DOD)
Internal resistance: ＜2mΩ
Combination: It can be 4S 8s 12s 16s, etc.
Discharge current: 5~7C
Max Instantaneous Discharge Current: 7C
Maximum charging voltage: 3.65V
Charging current: 0.5C 16A (Max.)
Discharge cut-off voltage: 2.0V
Charging method: CCCV constant current and constant voltage
Charging temperature: 0 ~ 45 ℃
Discharge temperature: -20~60 ℃
Weight: 630(±10)g
Size: 145*100*20mm
Applications:
Electric vehicle, Electric Bicycle, Tricycle, scooter, golf trolley, cart, wheelchairs, Medical instrument, Solar supply system,solar panel, energy storage, electric tools, power tools, instruments, LED lighting devices, RC toys, inverter, household appliances and emergent device area, etc.
Shipping list:
3.2V 32Ah LiFepo4 Battery
M6 Screw
Copper sheet
