Product Description
BSIDE OT3 Handheld Digital Oscilloscope 3.2” TFT LCD Scope Tester, 10MHz/48MSa/s,Potable Automotive Auto/Nomal/Single Trigger
This product is a practical and cost-effective handheld oscilloscope launched by the BSIDE brand for the electronic maintenance industry and the development and education industry.

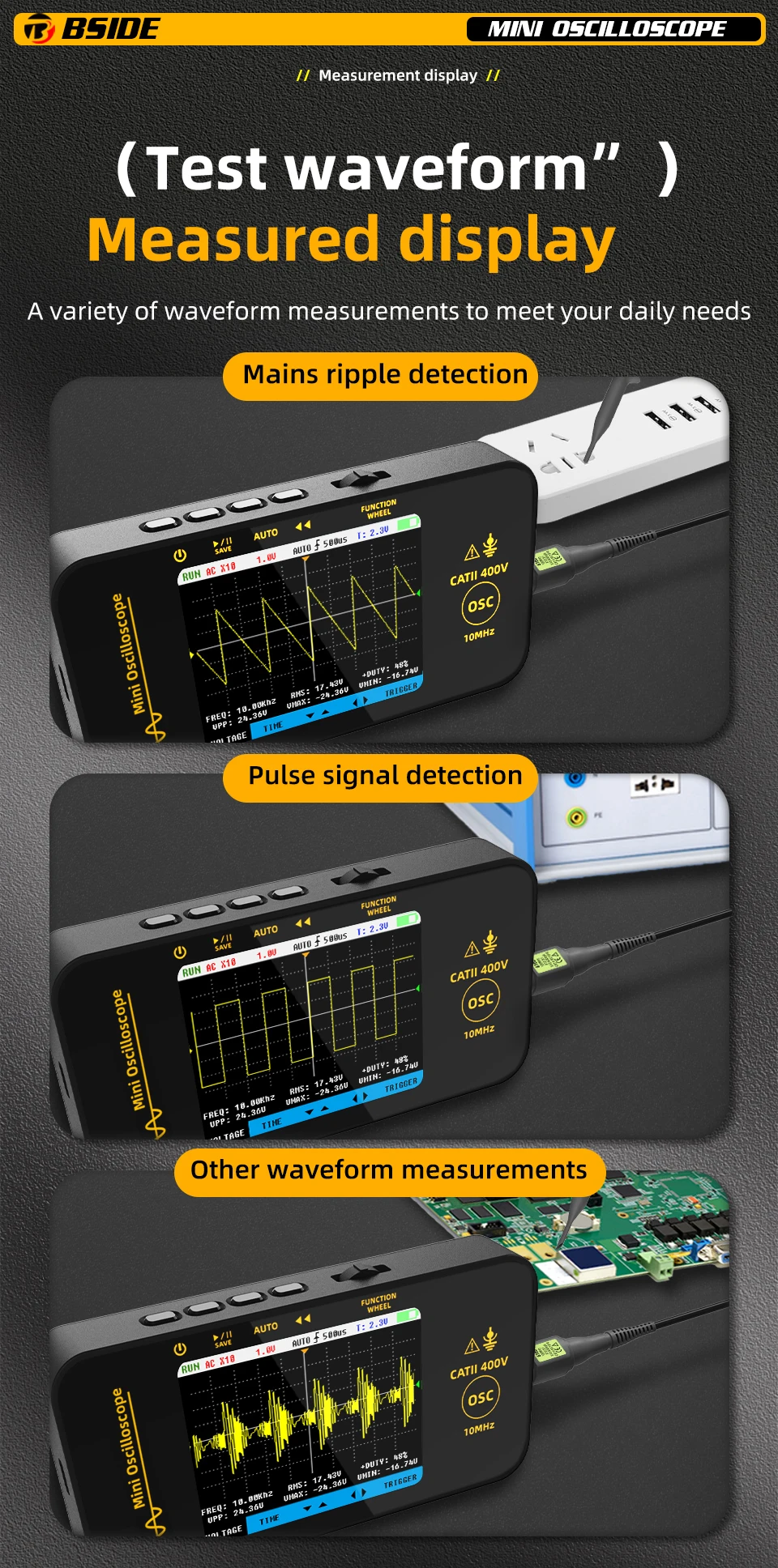

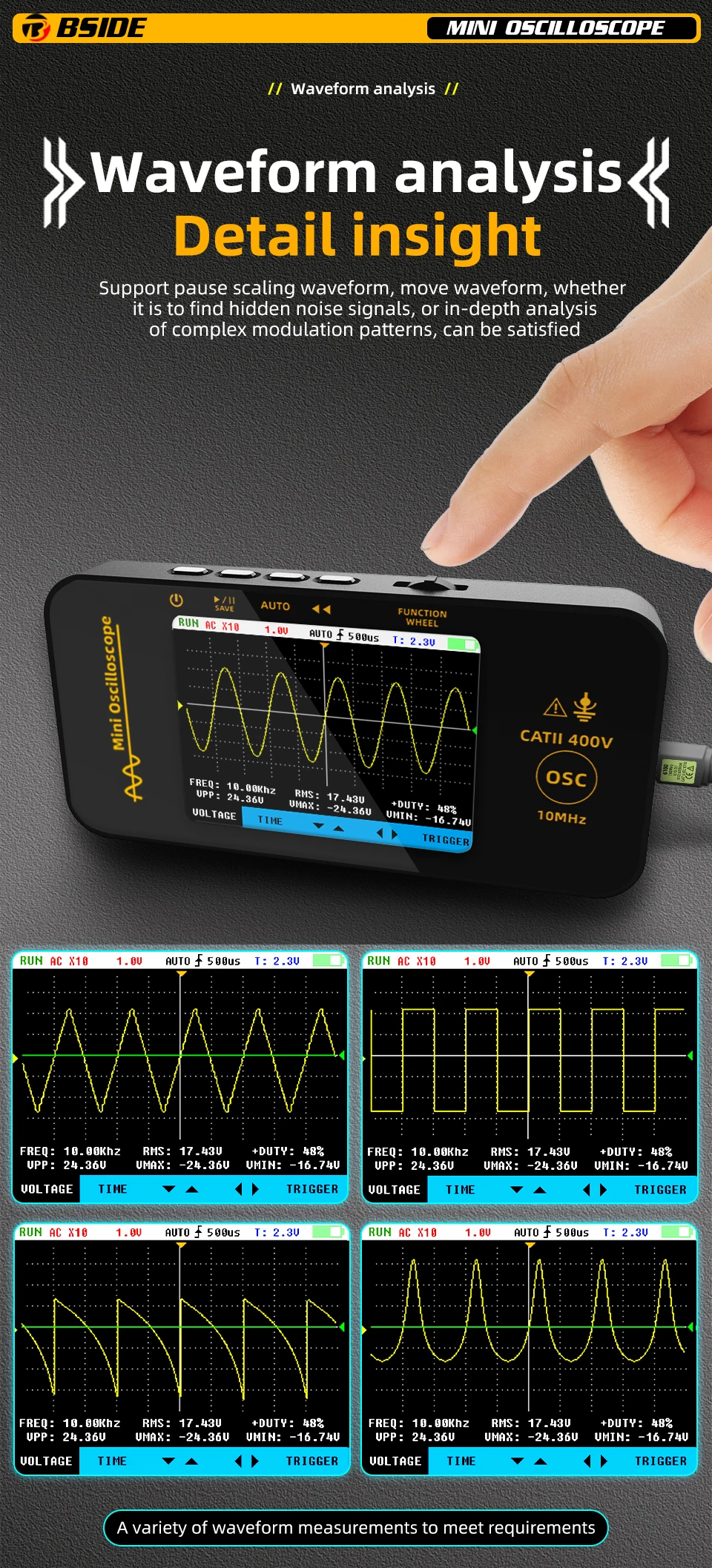

This oscilloscope has a real-time sampling rate of 48MS/s, 10MHz bandwidth, and complete triggering function (single, normal, auto). It can be used freely for both periodic analog signals and non periodic digital signals, and can measure up to ± 400V voltage with an efficient one click AUTO, which can display the measured waveform without complicated adjustments.
Equipped with a 3.2-inch 320*240 resolution HD LCD screen and a built-in 1800mAh high-quality lithium battery, it can be used for about 7 hours when fully charged.

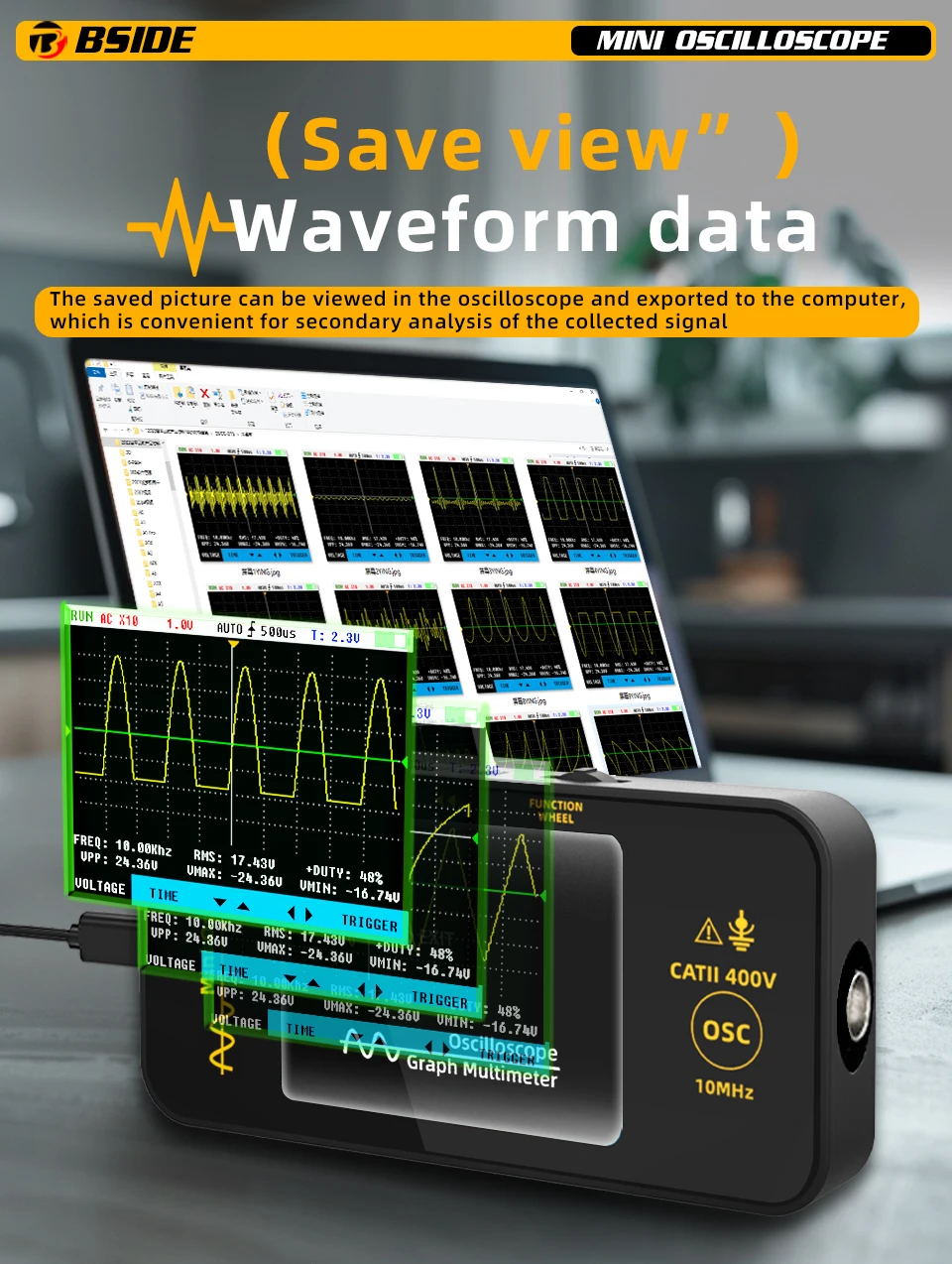

[Data Storage and Export]: The data of this graphic oscilloscope meter can be saved and exported to your flash drive, computer, PC, etc.

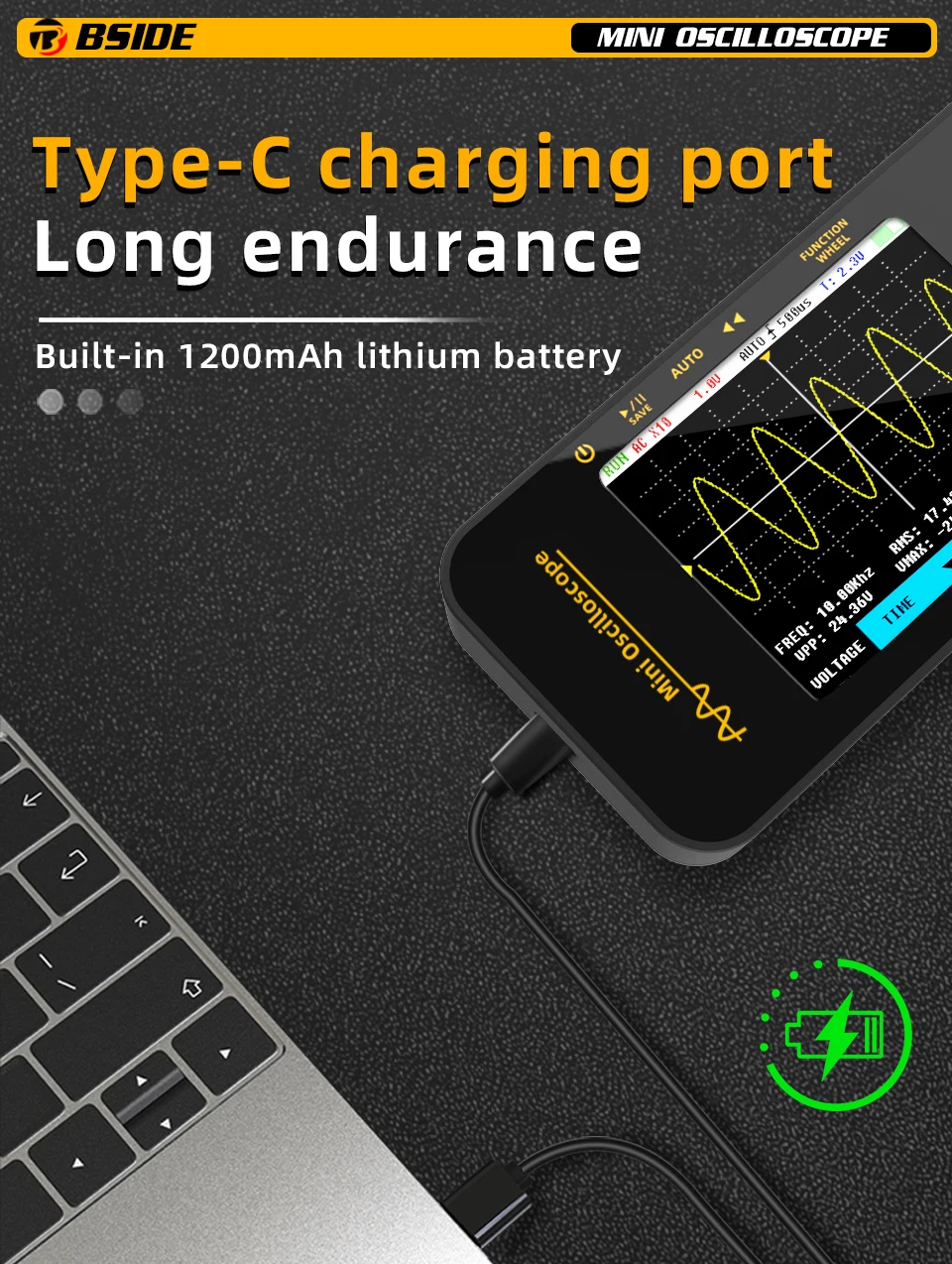

[Rechargeable]: The handheld oscilloscope comes with a rechargeable battery and charging cable, ensuring that you never have to worry about running out of power during the measurement.
[Carrying case]: The digital oscilloscope comes with a high-quality EVA carrying case, which is perfect for use on the go.

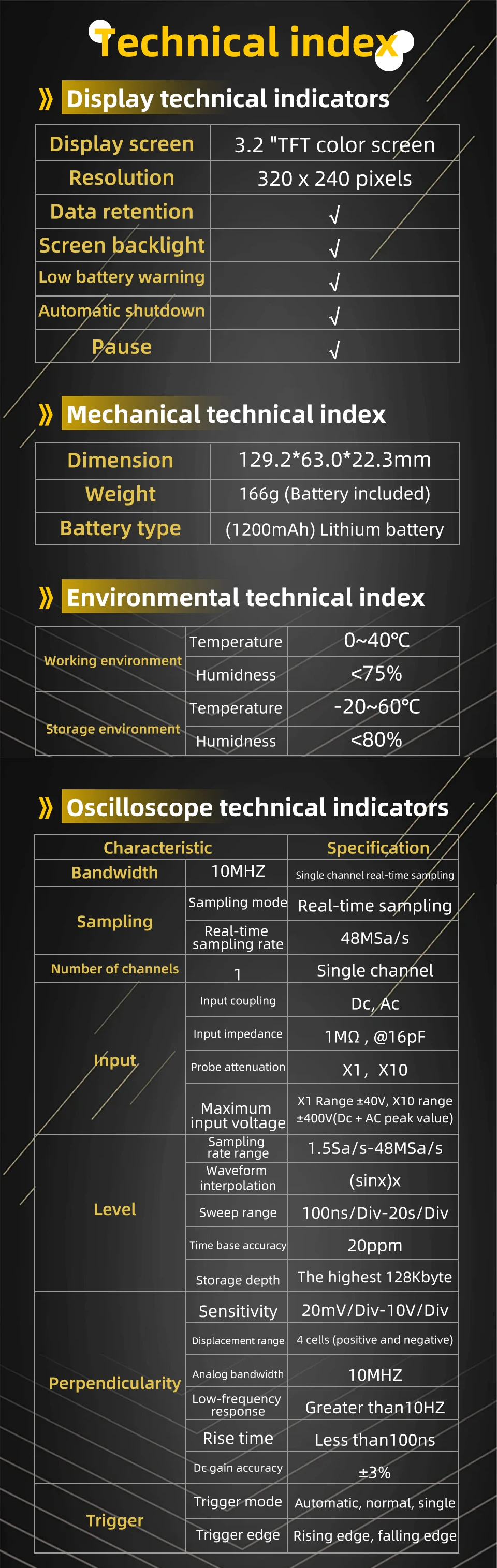

Specification:
Screen size: 3.2 inches
Bandwidth: 10MHz
Real-time scan rate: 48MSa/s
Input impedance: 1MΩ
Maximum input voltage: ×1 range±40V, ×10 range±400V (DC+AC peak)
Horizontal seconds range: 100ns/div -20s/div
Vertical sensitivity: 20mV/div -10V/div
Trigger mode: automatic/normal/one-time
Coupling mode: AC/DC
USB charging: 5V/1A
Power supply: 1200mA

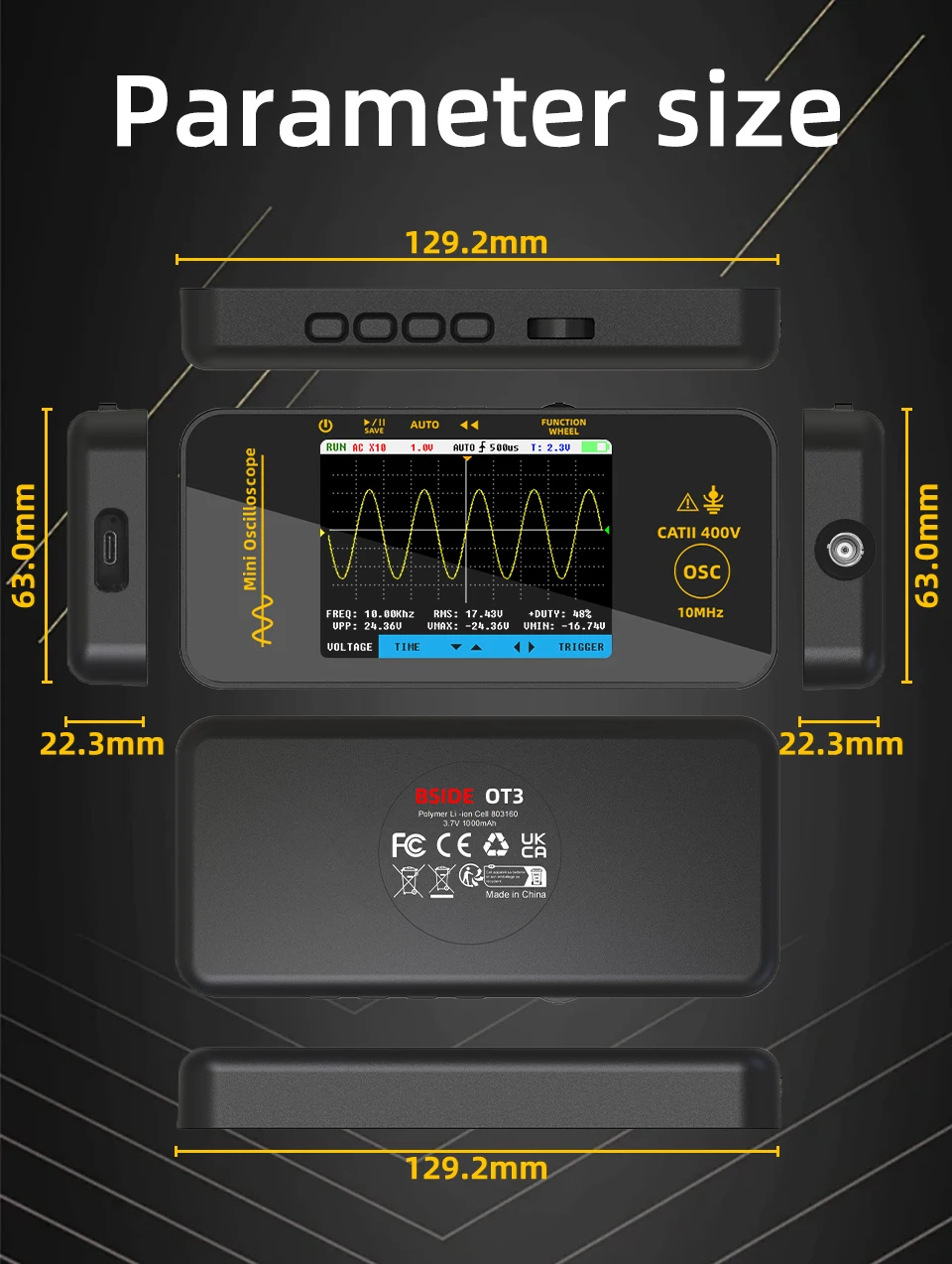

Size: 13x6.3x2.3cm
Weight: 143g

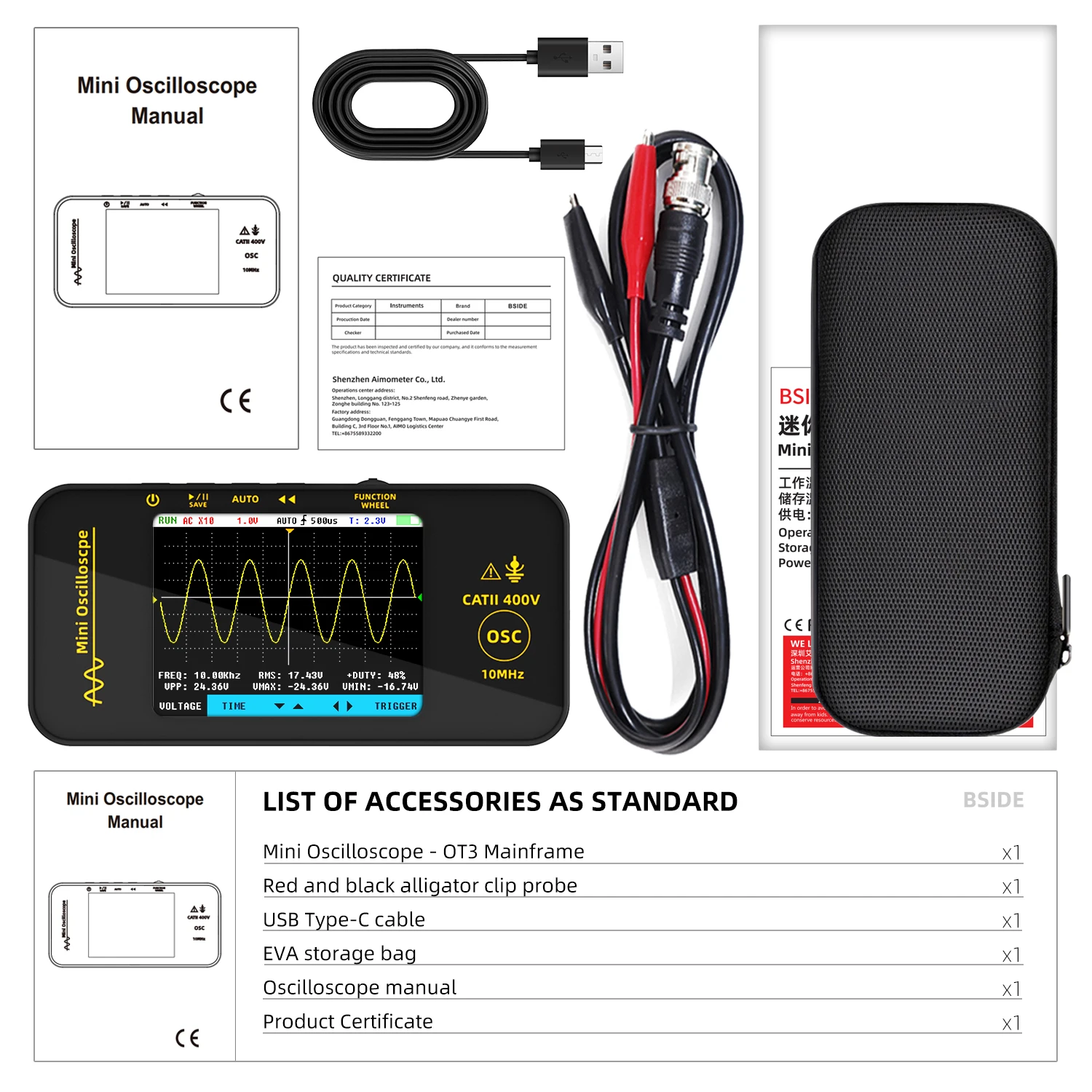

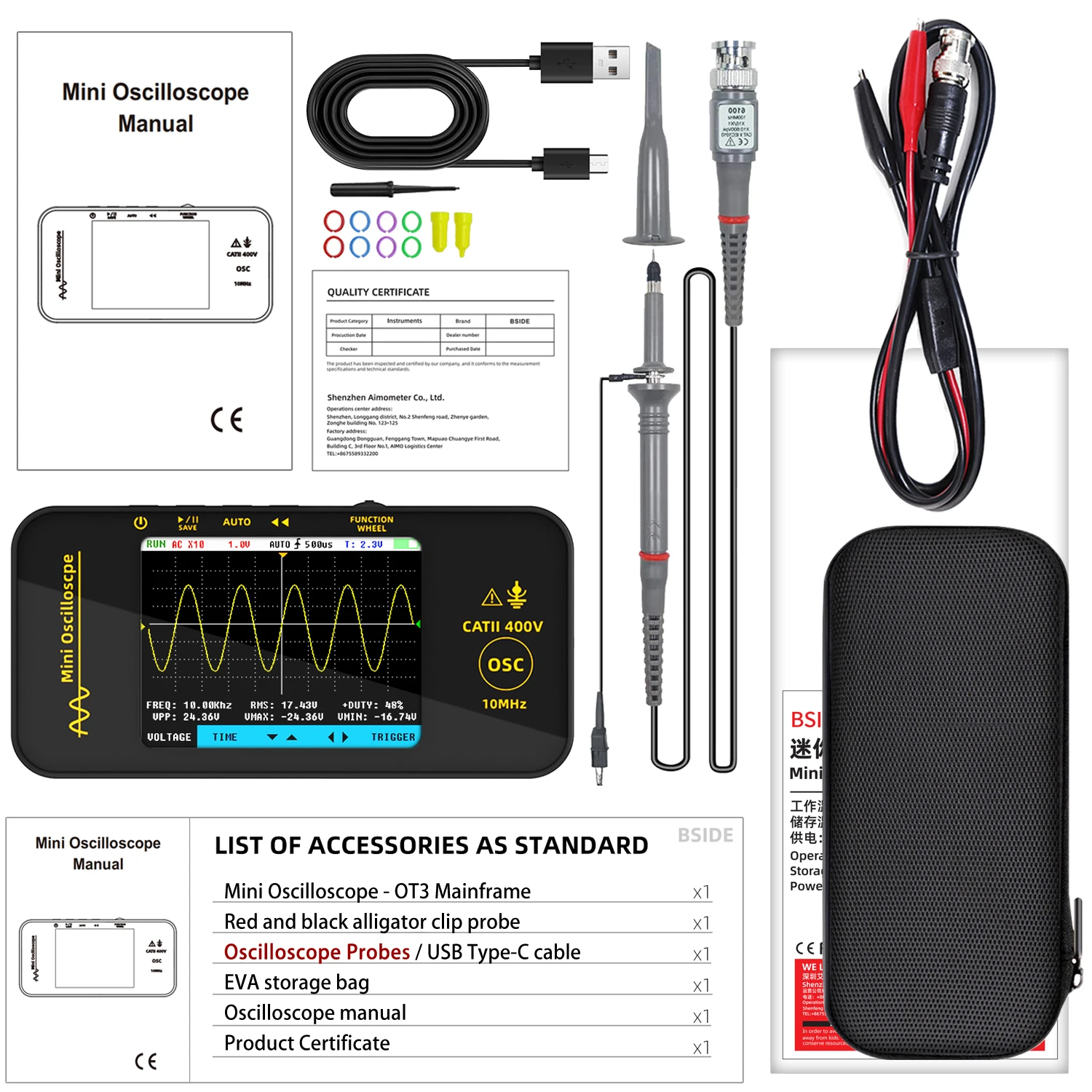

Package includes:
1* OT3 oscilloscope.
1* Crocodile Clip Probe.
1* Oscilloscope Probe(Optional).
1* Quality EVA bag.
1* Charging cable.
1* Certificate of Conformity (12 months).
1* User Manual.
1* Color box.
