Product Description
Product Introduction :
BSIDE O2 is the latest Dual-channel touch-screen oscilloscope signal generator from BSIDE brand.
With comprehensive functions and high practicality, targeting people in the maintenance and R&D industries.
This device has two major functions: oscilloscope and signal generator. The oscilloscope adopts FPGA+MCU+ADC hardware architecture.
It has a sampling rate of 250MS/s, an analog bandwidth of 50Mhz, a built-in high-voltage protection module, and supports a maximum peak voltage measurement of ±400V; supports waveform screenshots. Save and view to facilitate secondary analysis.
Inside Set up a DDS function signal generator, which can output 12 kinds of function signals. The maximum output of the signal generator is 2MHz, with a step of 1Hz; output frequency, amplitude, and duty cycle Adjustable.
It uses a 3.98-inch touch display and a built-in 3000mAh rechargeable lithium battery with a standby time of up to 7 hours.
With small size，Provide users with more and stronger practical functions, while also having good portability.
Oscilloscope:
Channel：Dual channel.
Analog bandwidth：50MHz.
Real-time sample rate：250MSa/s.
Storage depth：Up to 128kByte.
Input mpedance：1MΩ.
Time base range：10ns/div - 20s/div.
Vertical sensitivity：10mv/div - 20v/div.
Time base accuracy：20ppm.
Maximum measured voltage：±400V.
Probe：1x/10x.
Bandwidth limitSupport 20MHz limit.
Trigger mode：AUTO/Normal/Single.
Trigger type：Rising edge, Falling edge.
Waveform display mode：XY/YT/Scroll.
Coupling method：AC/DC.
Measured data：Period, frequency, peak-to-peak value, maximum value, minimum value, Average value, effective value, amplitude, duty cycle, pulse width.
Math alculations：1+2、1-2、1*2、1/2、-1、-2、|1|、|2|、FFT.
Save waveform screenshot：Yes.
Export waveform images from computer：Yes.
Signal Generator:
Channel：Single channel.
Frequency：0-2MHz（Sine wave: 10MHz, other waveforms 5MHz）
Amplitude：0.1V-3.0V.
Square wave duty cycle0-99%.
Signal type：sinusoidal wave, square wave, sawtooth wave, half wave, full wave, positive step wave, negative step wave, DC signal, exponential rise, exponential fall, multi-audio, and sync pulse.
Basic Parameters.
Screen size & resolution：3.98 Inch (480*272 pixels).
Screen material：Surface tempered glassSurface tempered glass + touch screen made of glass GLASS + TFT color screen.
Backlight brightness can be set：30%/50%/80%/100%.
Power supply：TYPE-C（5V/2A）
Battery：4000mAh lithium battery.
Language：English/Chinese.
Product size：about 170x81x24mm.
Product net weight：about 268g.

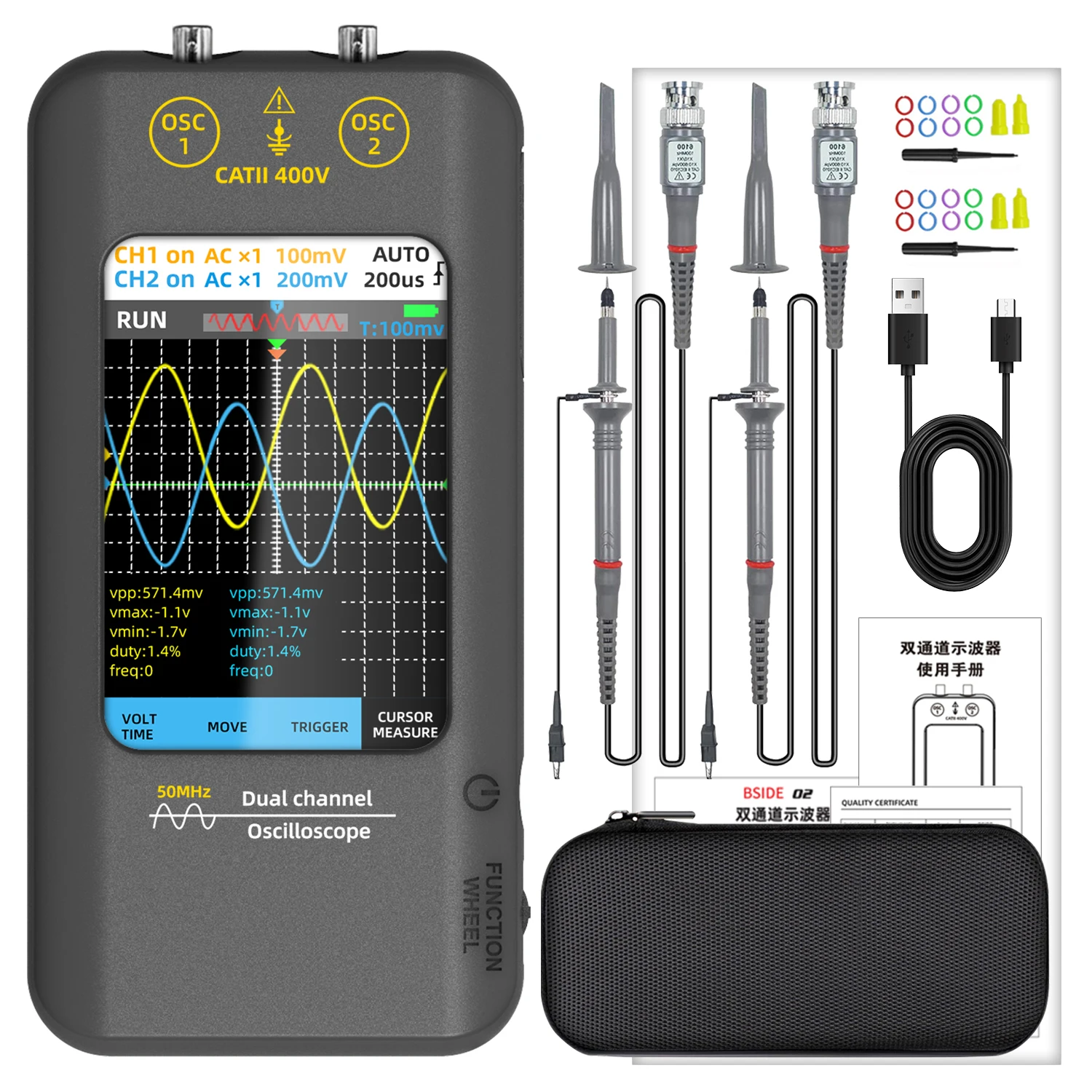

Package Inclusions:
O2 Products * 1
Oscilloscope probes * 1
Oscilloscope probes * 1（optional）
Oscilloscope probes accessories * 1
USB Data cable * 1
Carrying cloth bag * 1
Product Manual * 1
12 months warranty card * 1
Color box * 1
