Product Description
Features:

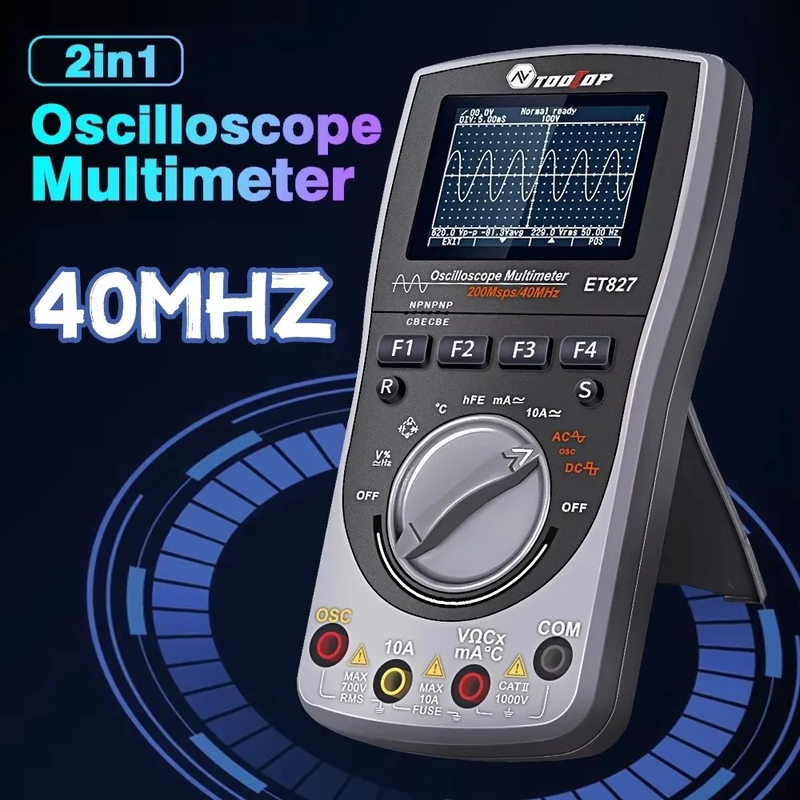

Digital Oscilloscope
40MHz Bandwidth and 200MHz real time sampling rate, Three trigger modes: Auto, Normal and Single,Waveform saving,Auto measure
Ture-RMS Multimeter
Equipment with dedicated chip, 6000-count display high precision,DC/AC Current Voltage Resistance Frequency Diode ,TransistorTemperatureTest
Specifications:
Display: 240*160 LCD
Display area: 60mm X 40mm
Backlight: Black screen with white backlight
Impedance: 10MΩ
Battery: AA 5th battery*3 (not included)
Auto shutdown: No operation for 15 minutes
Storage: 100 set data,50 waveforms
Size: 83mm X160mmX32mm
Weight: 210g(No battery)
Use environment: 0 ℃~+40 ℃;<75%RH
Storage environment: - 10 ℃~+60 ℃;<90%RH
Oscilloscope Function:
Analog bandwidth: 40MHz
Maximum real-time sampling rate:200Msps
Vertical resolution: 8bits
Number of channels: 1
Input impedance: 10MΩ
Nonlinearity: ±1 bit
Coupling mode: AC/DC
Scan Mode:Auto/normal/single
Vertical sensitivity range: 500mV/div ～ 200V/div
Vertical amplitude accuracy: ±(5%+ 0.2div)
Auto Zero Reference: During DC Measurement
Cursor measurement function: dV,dt
Trigger slope selection: Rising edge /falling edge
Automatic measurement accuracy: ±(5%+0.2diy)
Division: Vertical±6.0,level 24.0
Timebase range: 12.5ns/div ~10s/div
Time base accuracy: ±(0.01%+0.1diy)
Auto Setup: Time base and vertical amplitude
Automatic measurement function: Vp-p,Vavg, Vrms
Waveform highest measurable voltage: 700V
Multimeter Function:
FEATURES RANGE UNCERTAINTY
DC voltage 600mV ~ 1000V ±(0.75%rdg+10dgt)
AC voltage 600mV ~ 750V(TRMS) ±(1.0%rdg+10dgt)
DC current 60mA ~ 500mA; 6A ~ 10A ±(1.2%rdg+10dgt)
AC current 60mA ~ 500mA; 6A ~ 10A(TRMS) ±(1.5%rdg+10dgt)
Resistance 600.0Ω~60.00MΩ ±(1.0%rdg+5dgt)
Capacitance 9.999nF～99.99mF ±(2%rdg+10dgt)
Frequency 9.999Hz~9.999MHz ±(1.0%rdg+5dgt)
Temperature -20℃ ~ 250℃ ±(2%rdg+10dgt)
Transistor: hFE
Diode: open circuit voltage is 3V,the maximum test current is 2mA
On-off test: Judgement resistance: about 50Ω
Fuse: 500mA/250V10A/250V
Package List:
1 x ET827 Multimeter Oscilloscope
1 x One Pair Test Pens
1 x English User Manaul
