Product Description
Features:
- Dual-integral A/D conversion core, superior performance smart multimeter, supports overload protection

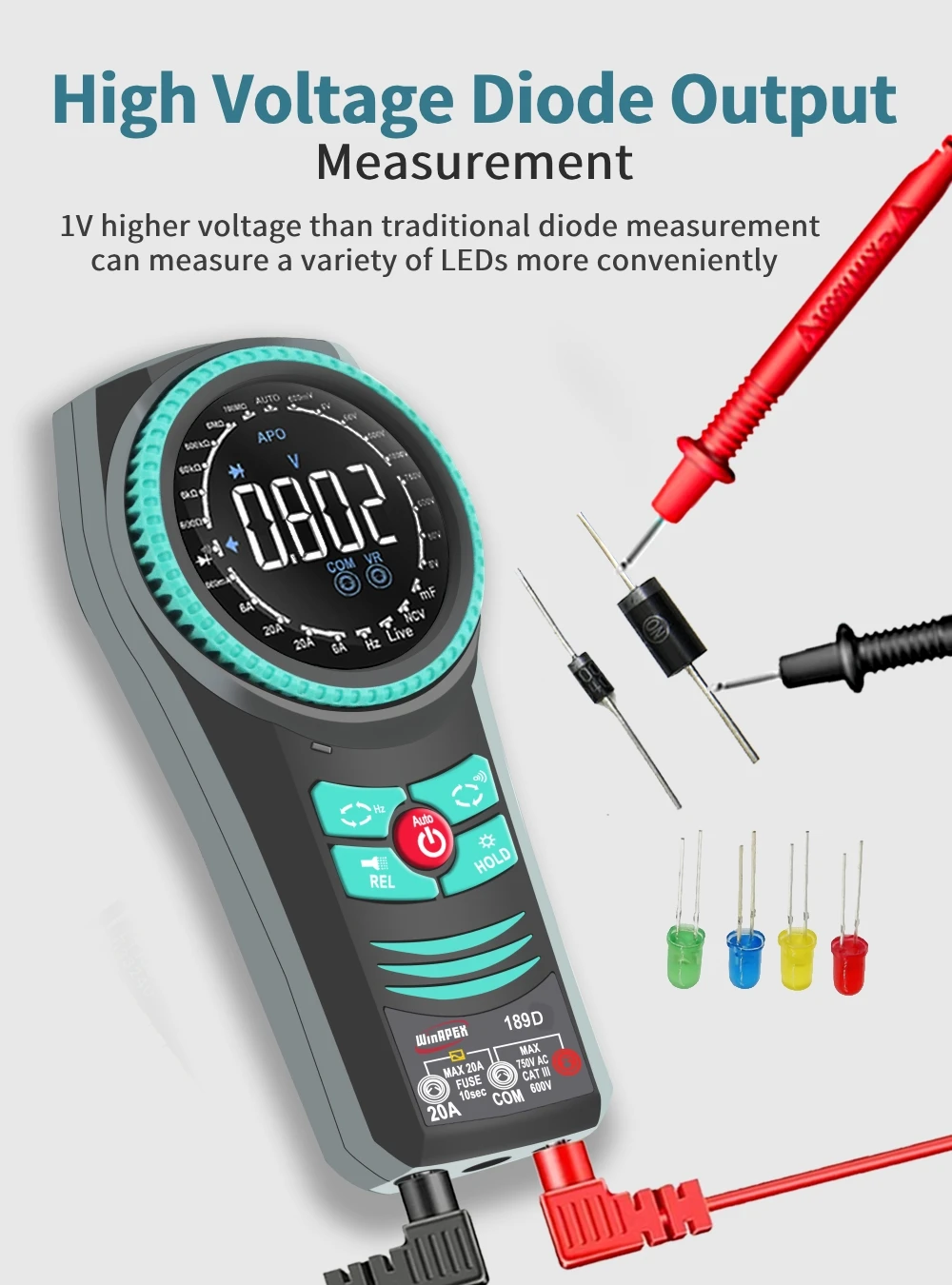

- High-voltage diode output measurement. Provides 1V higher voltage than traditional diode measurement, allowing maintenance personnel to measure a variety of LEDs more conveniently

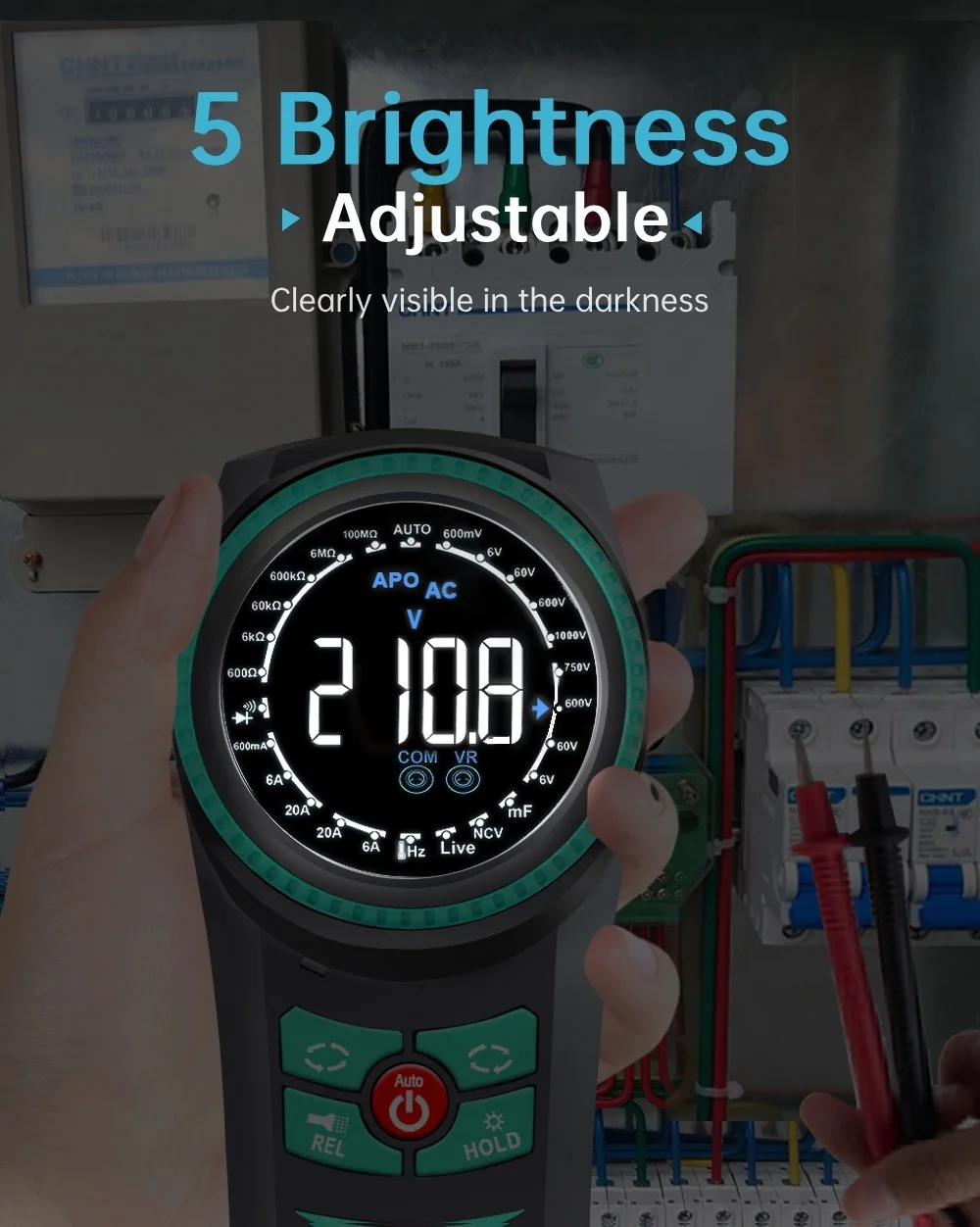

- Ultra-bright color screen, 5-level adjustable backlight, clear reading

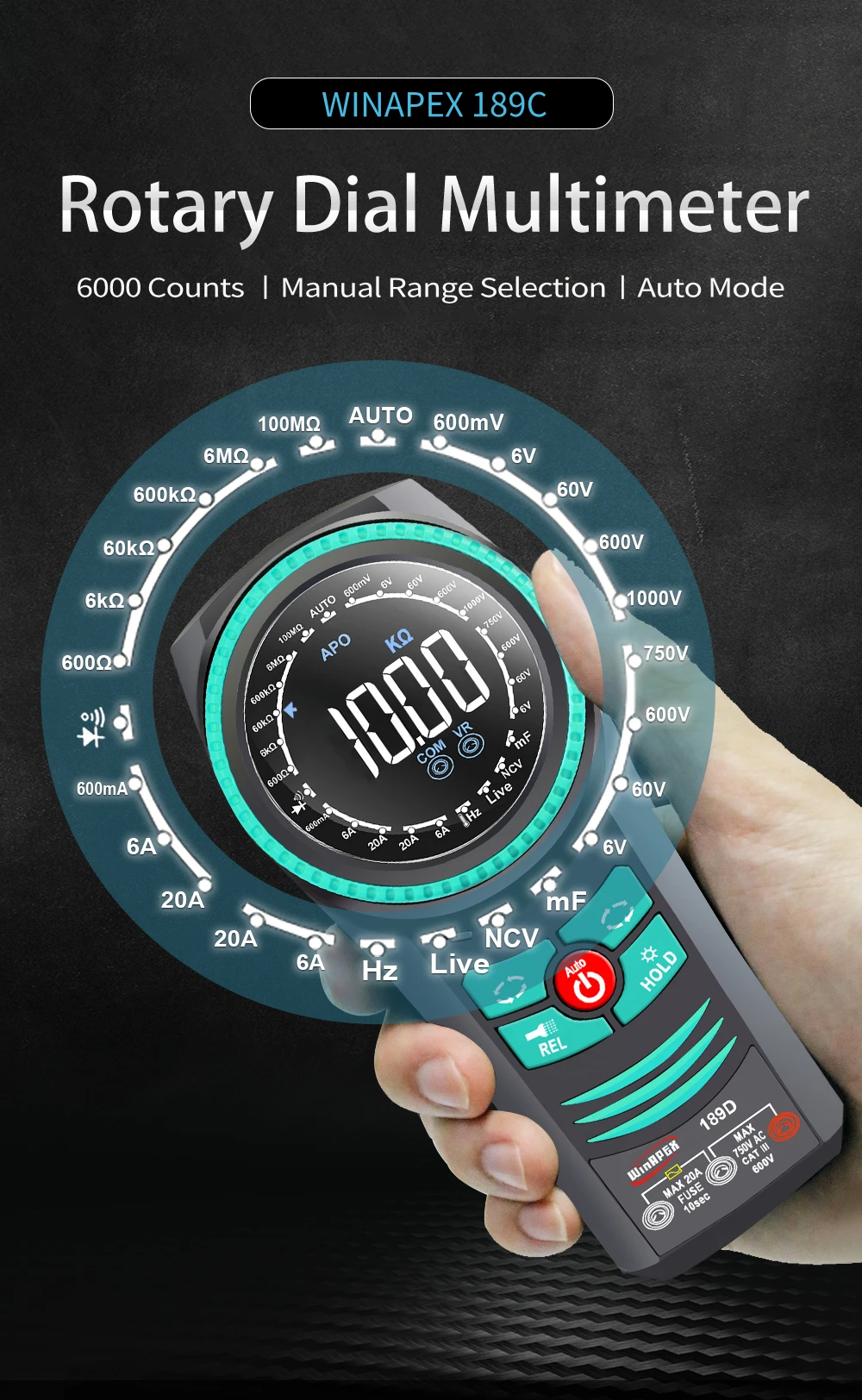

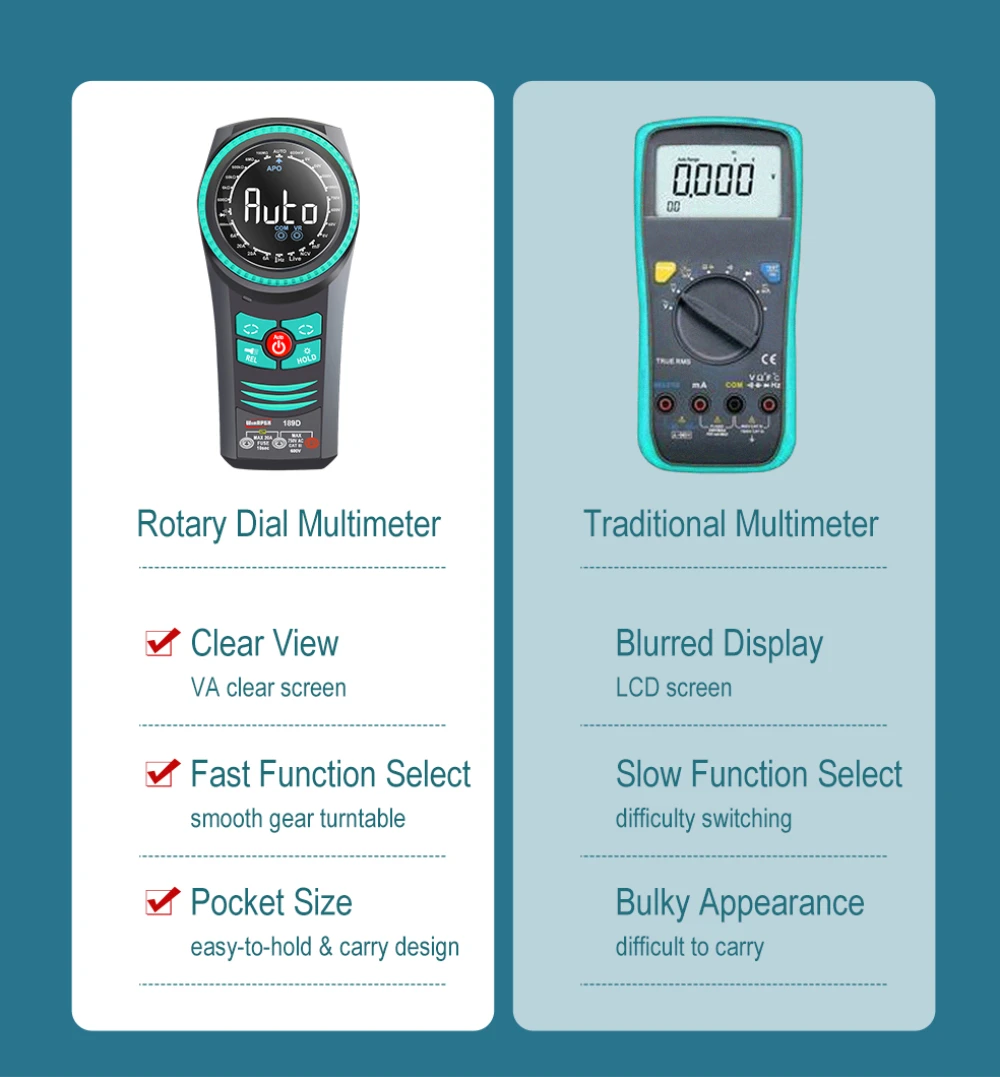

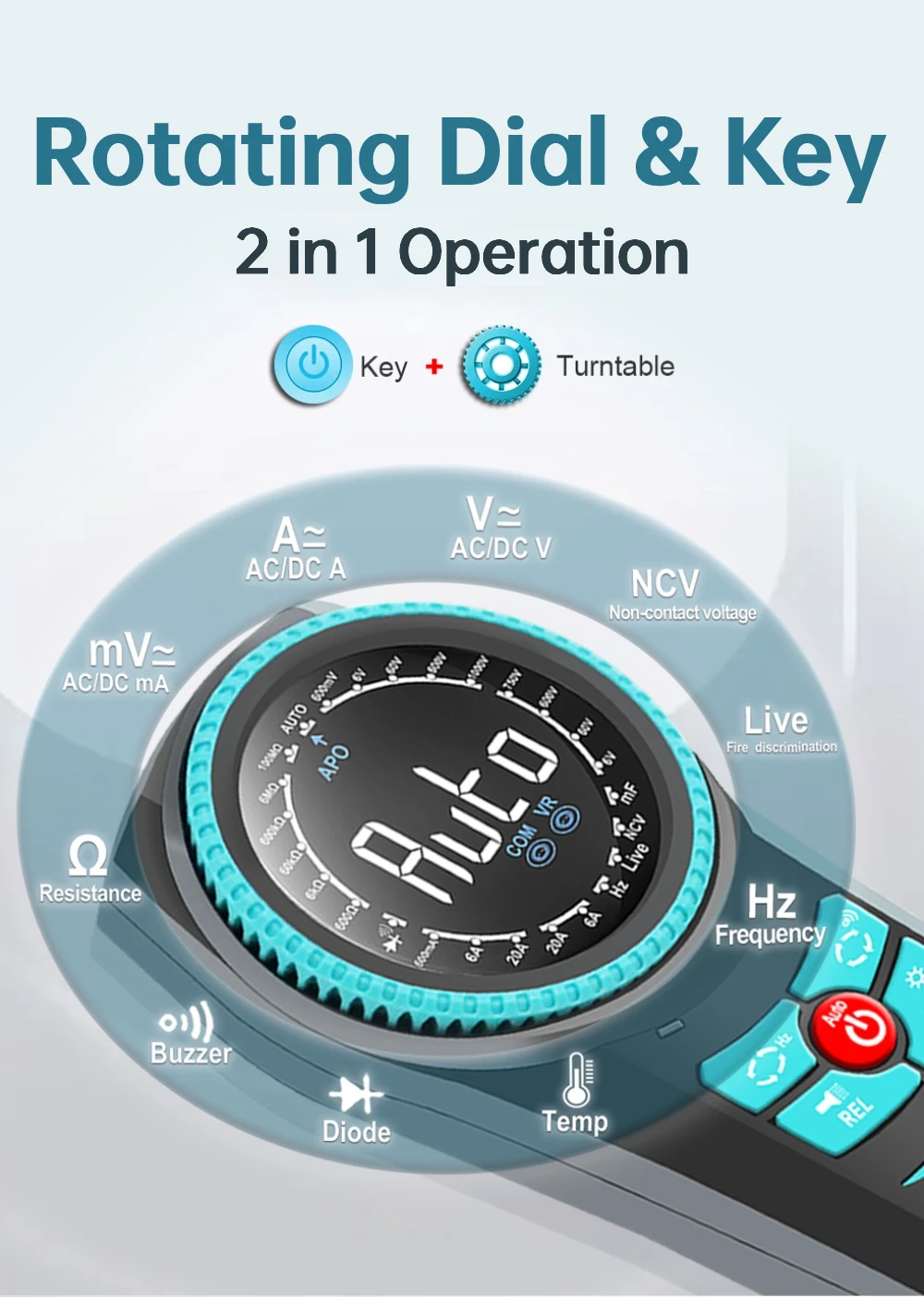

- Handheld turntable, using LCD turntable instead of traditional turntable, thumb gently rotates the gear to easily adjust the measurement function of each level, and supports key switching

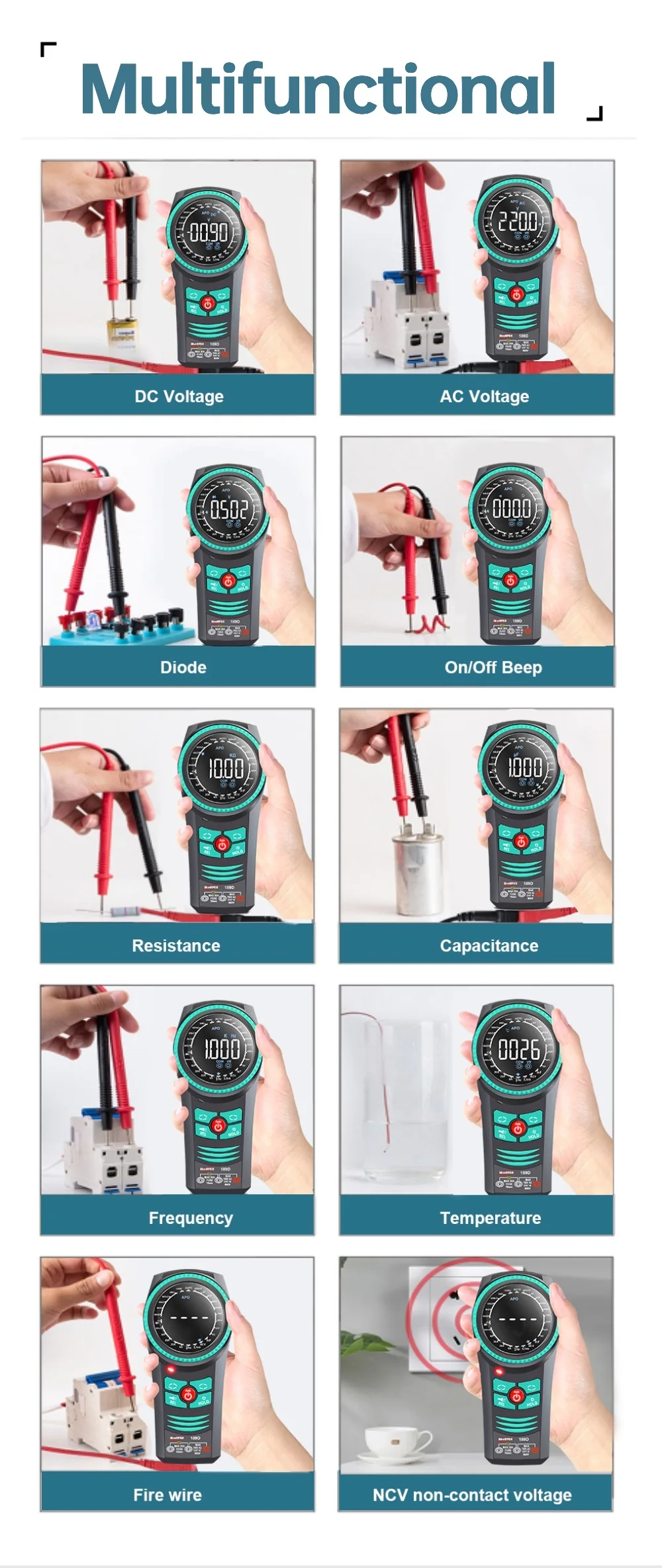

- 6000 Counts True RMS Multimeter: measure DC voltage and AC true effective value, DC current and AC current, resistance, capacitance, frequency, temperature, diode, on-off, automatic identification test
Specifications:
Name: Smart Rotary Dial Multimeter
Display mode: High brightness color screen display
Maximum display: 5999 (3 5/6) bit automatic polarity display
Measurement method: Dual integration A/D conversion
Sampling rate: approximately 3 times per second
Over range display: the highest bit displays "OL~"
Low voltage display: supported
Working environment: (0~40) ℃, relative humidity<80%
Power supply: 2 * 1.5V AA batteries (not included)

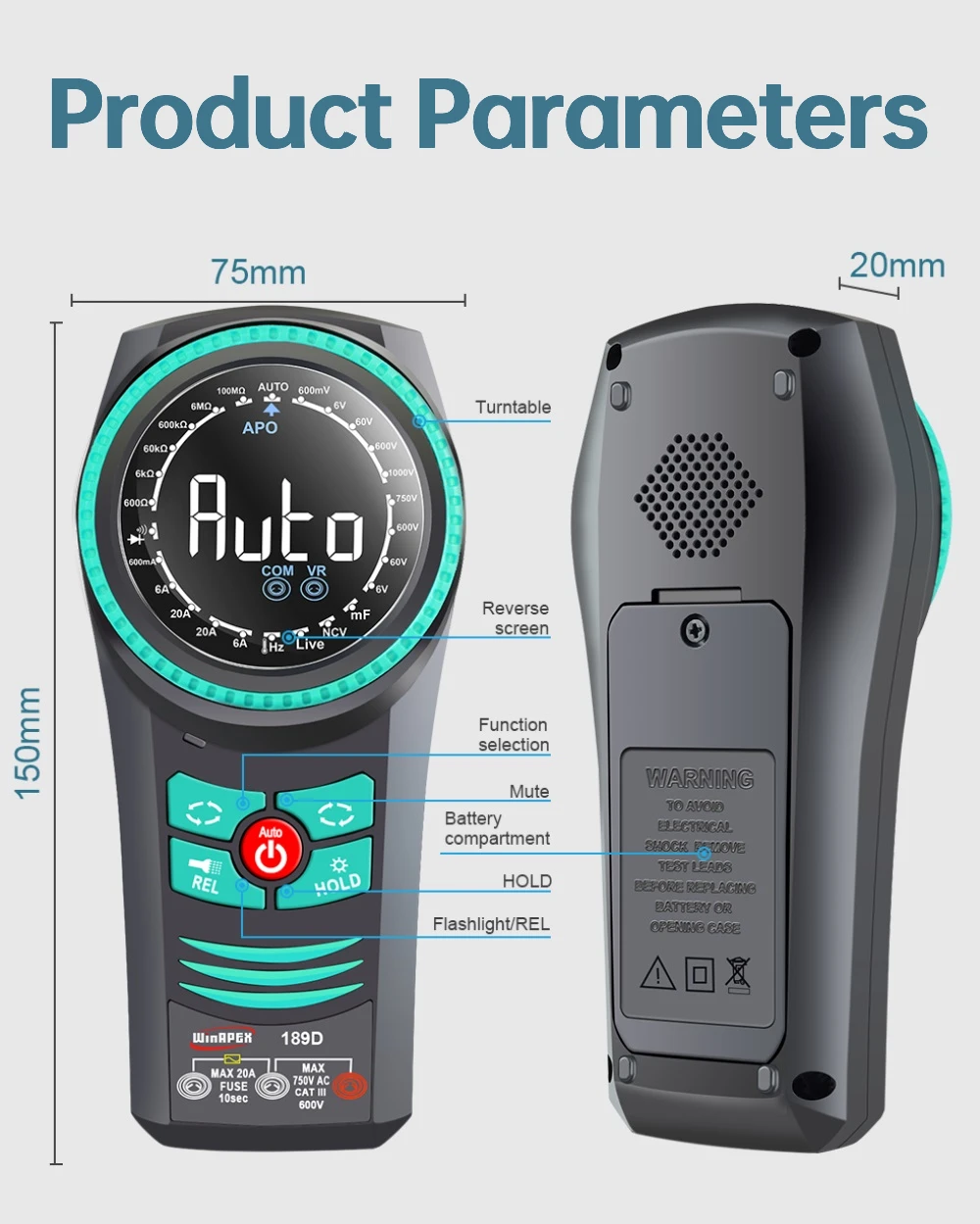

Size: 153X70X33 mm (length X width X height)
Weight: Approximately 200g

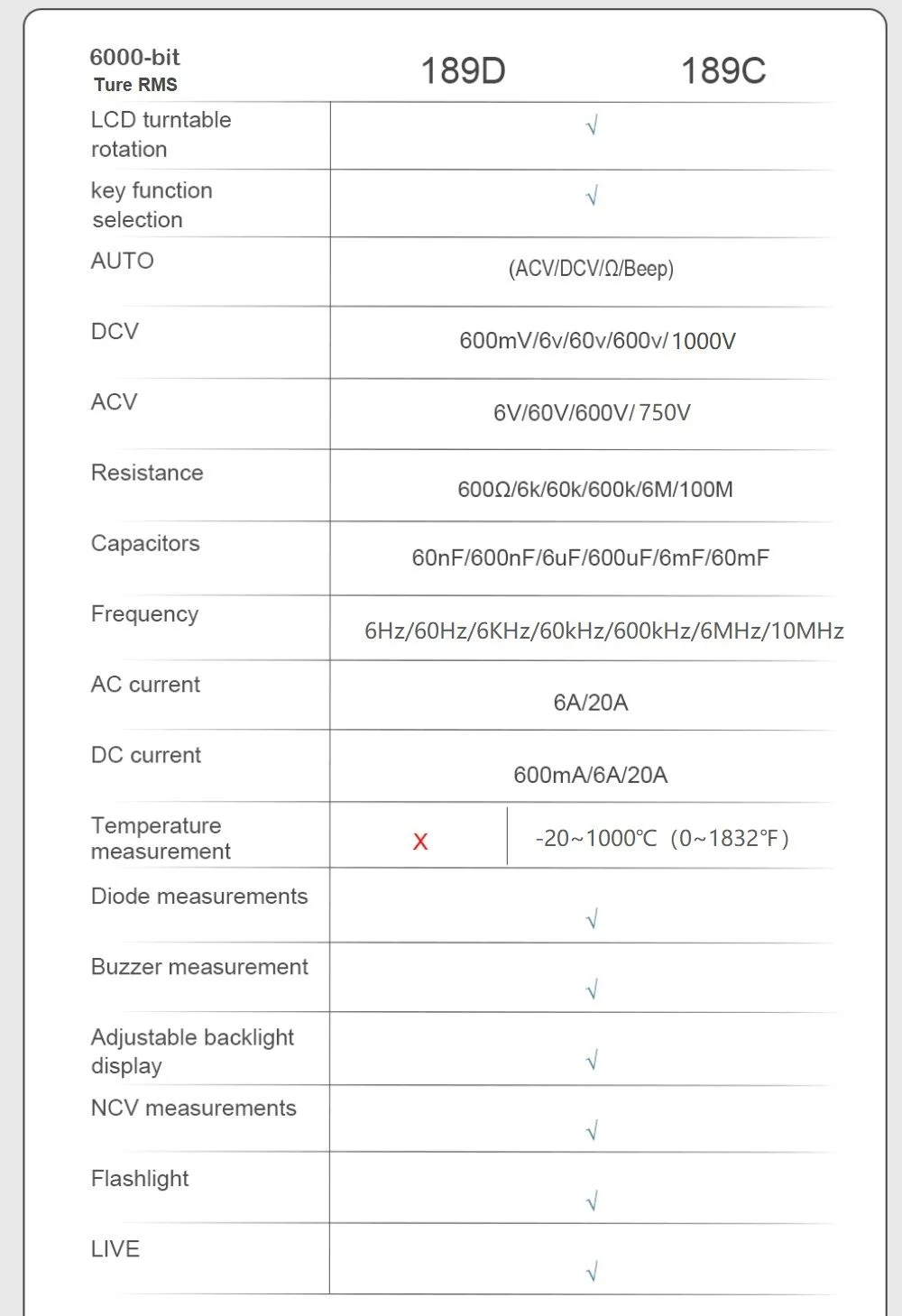

True RMS
LCD turntable rotation
key function selection

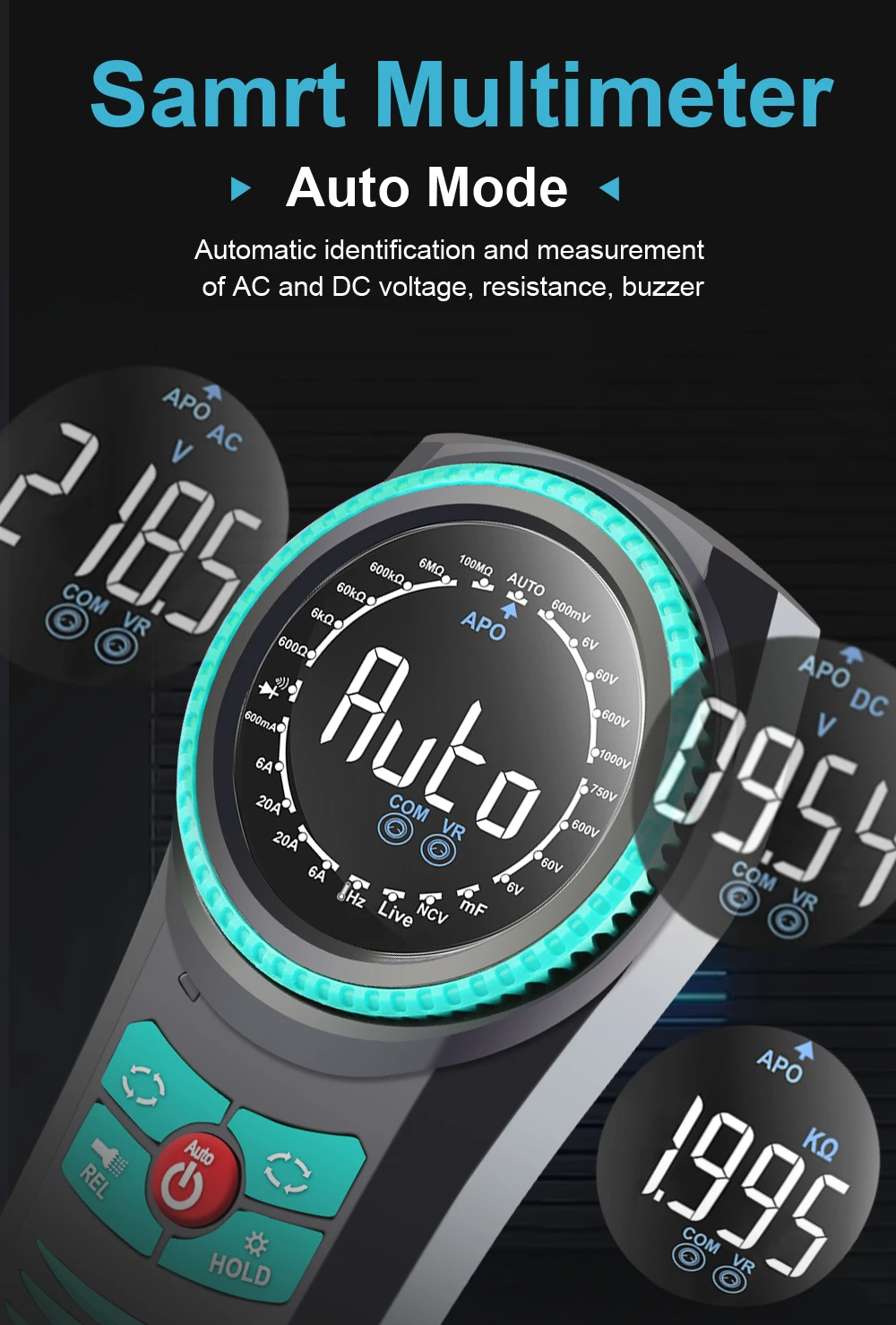

AUTO(ACV/DCV/Ω/Beep)
DC Voltage:600mv/6v/60v/600v/1000V
AC Voltage:6V/60V/600V/750V
AC current: 6A/20A
DC current:600mA/6A/20A
Resistance:600Ω/6kΩ/60kΩ/600kΩ/6MΩ/100MΩ
Capacitors:60nF/600nF/6uF/600uF/6mF/60mF
Frequency:6Hz/60Hz/6KHz/60kHz/600kHz/6MHz/10MHz
Temperature measurement:-20~1000℃（0~1832℉）
Diode and Continuity: display diode forward voltage drop; Open circuit voltage about 4.2V,The buzzer long sounds,test the resistance of two points less than(50±20)Ω
Buzzer measurement
Adjustable backlight display

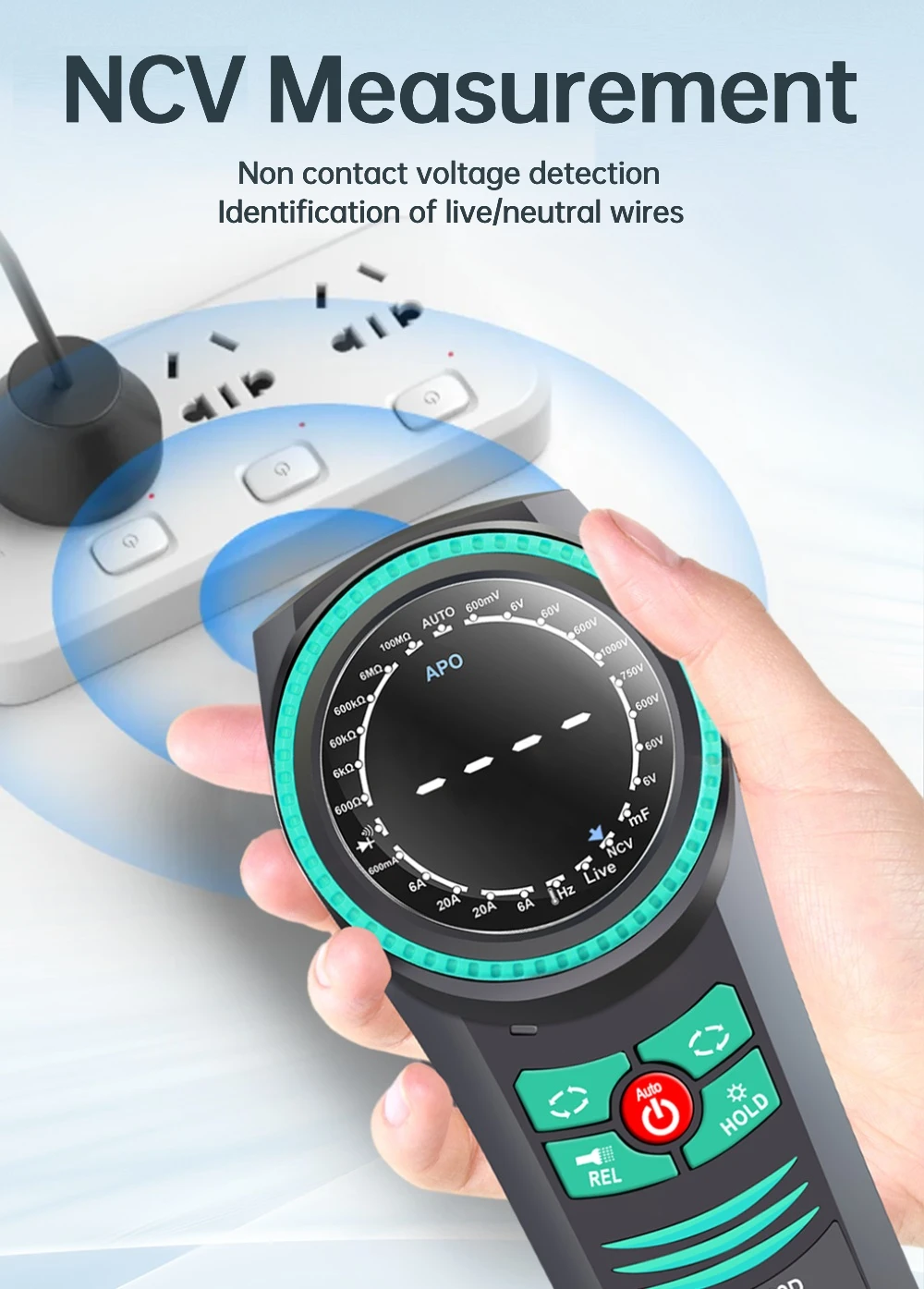

NCV measurements
Flashlight
live/null wires identification

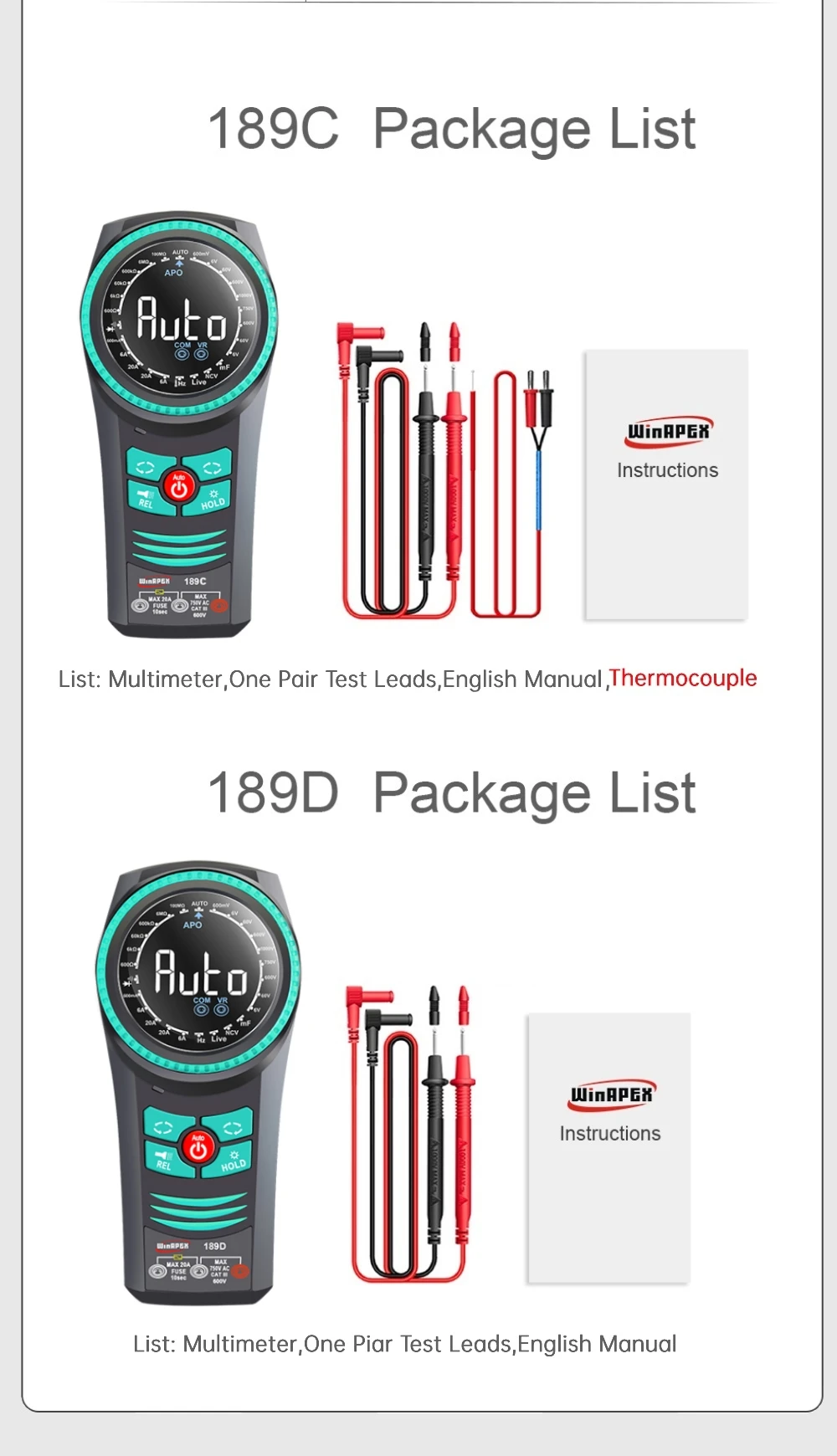

Package List:
1 x Multimeter
1 x Test leads
1 x English User Manual
1 x Thermocouple (only for 189C)
