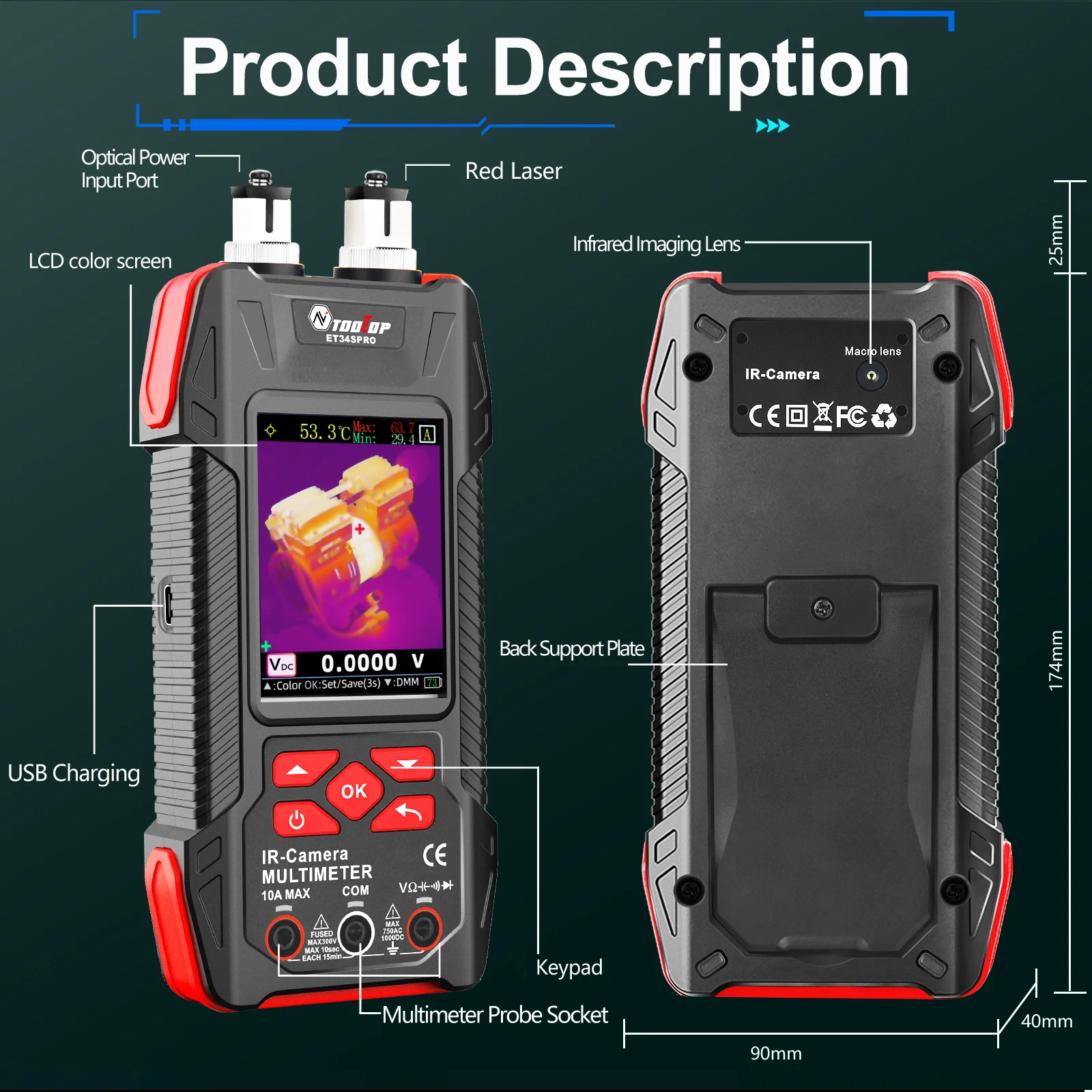

Product Description

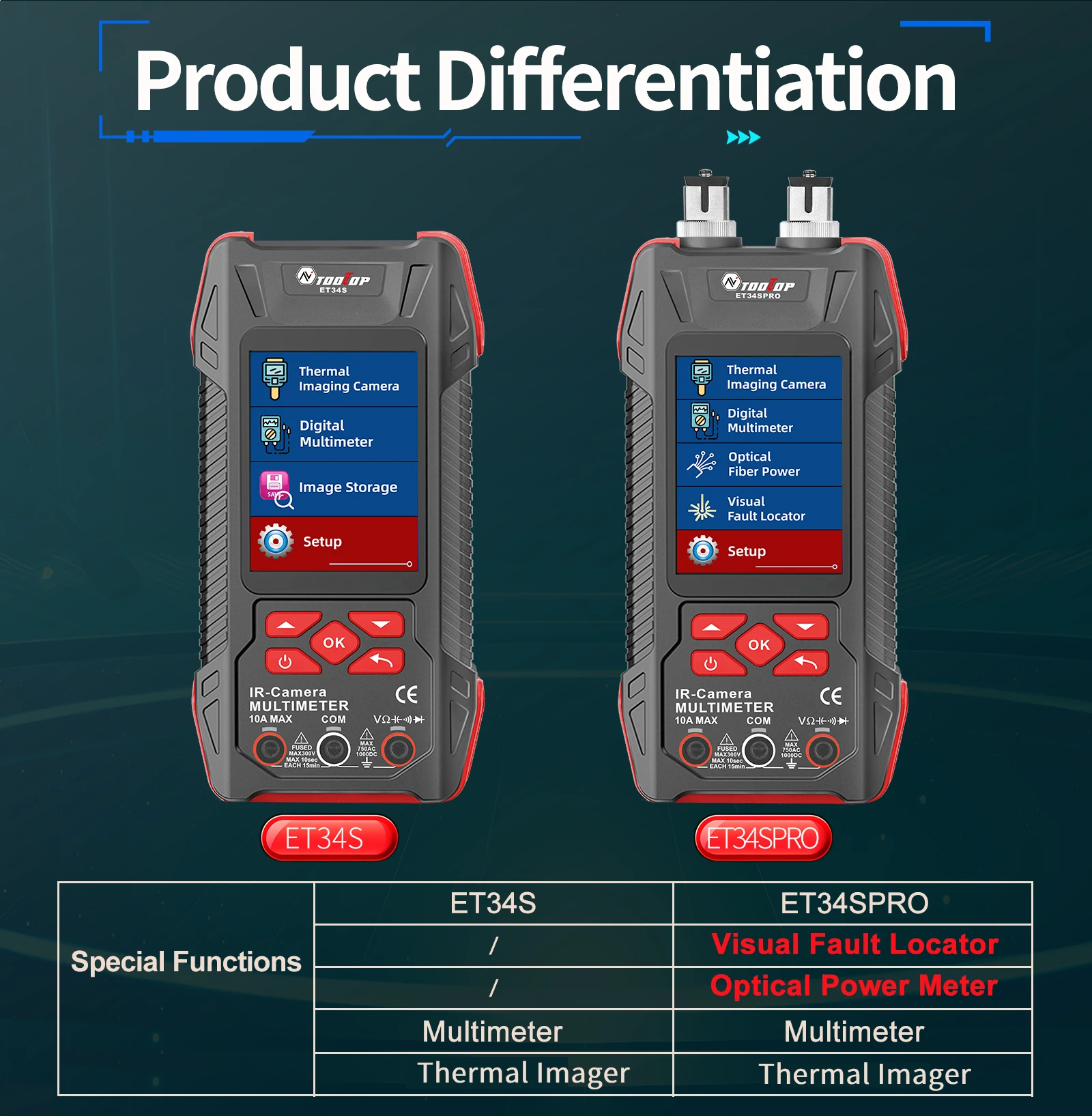

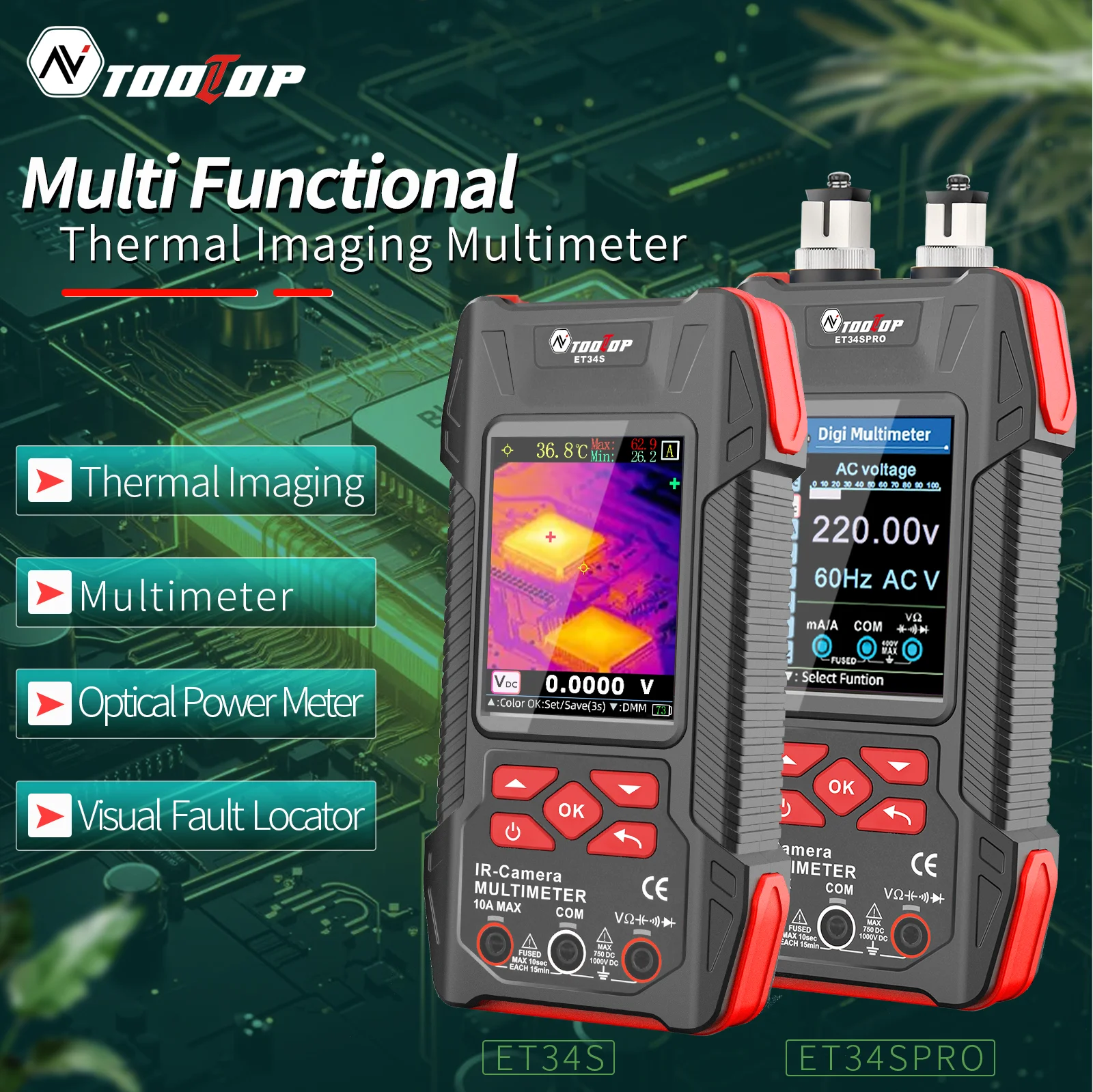

ET34S: Thermal Camera + Multimeter
ET34SPRO: Thermal Camera + Multimeter + Optical Power Meter + Visual Fault Locator

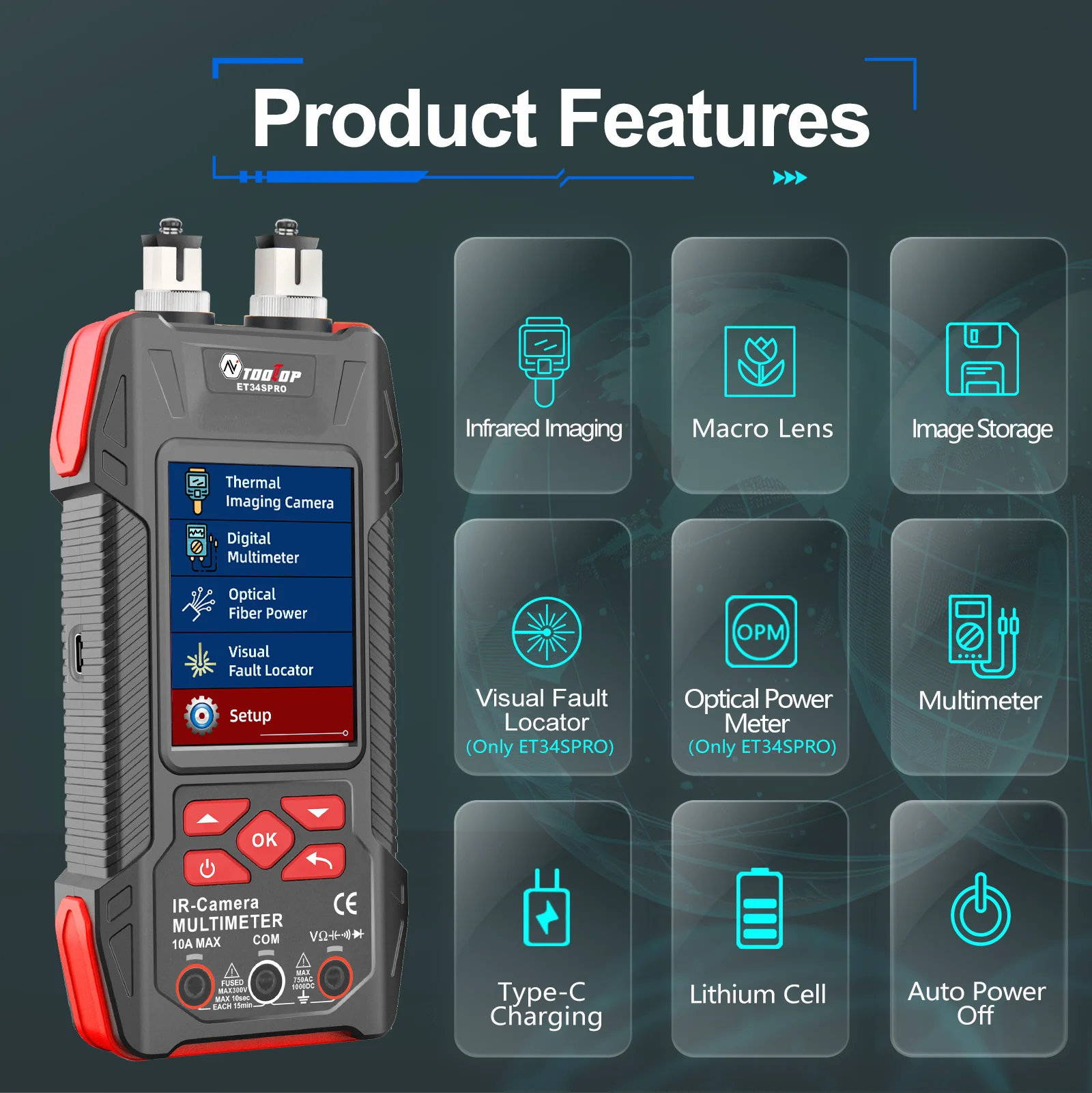

Features:
ISR 240×240 thermal camera and fully functional 60,000-count multimeter can operate synchronously to enhance electrical fault detection efficiency

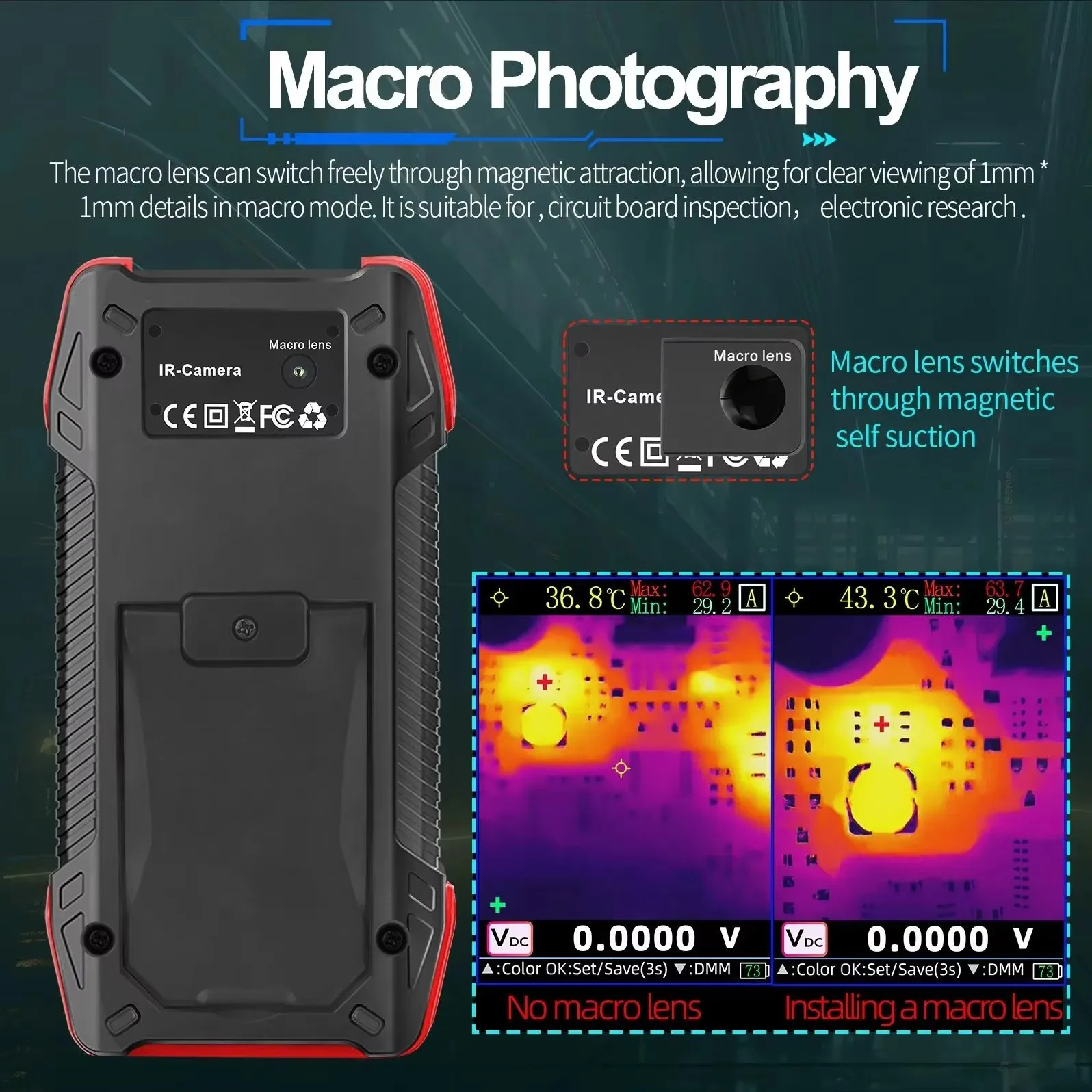

Equipped with macro lens, able to detect as small as 1mm components ,quickly scan equipment hot spots, for PCB circuit repair.
Optical power detection and red light positioning functions, designed for fiber optic network maintenance(only for ET34SPRO)

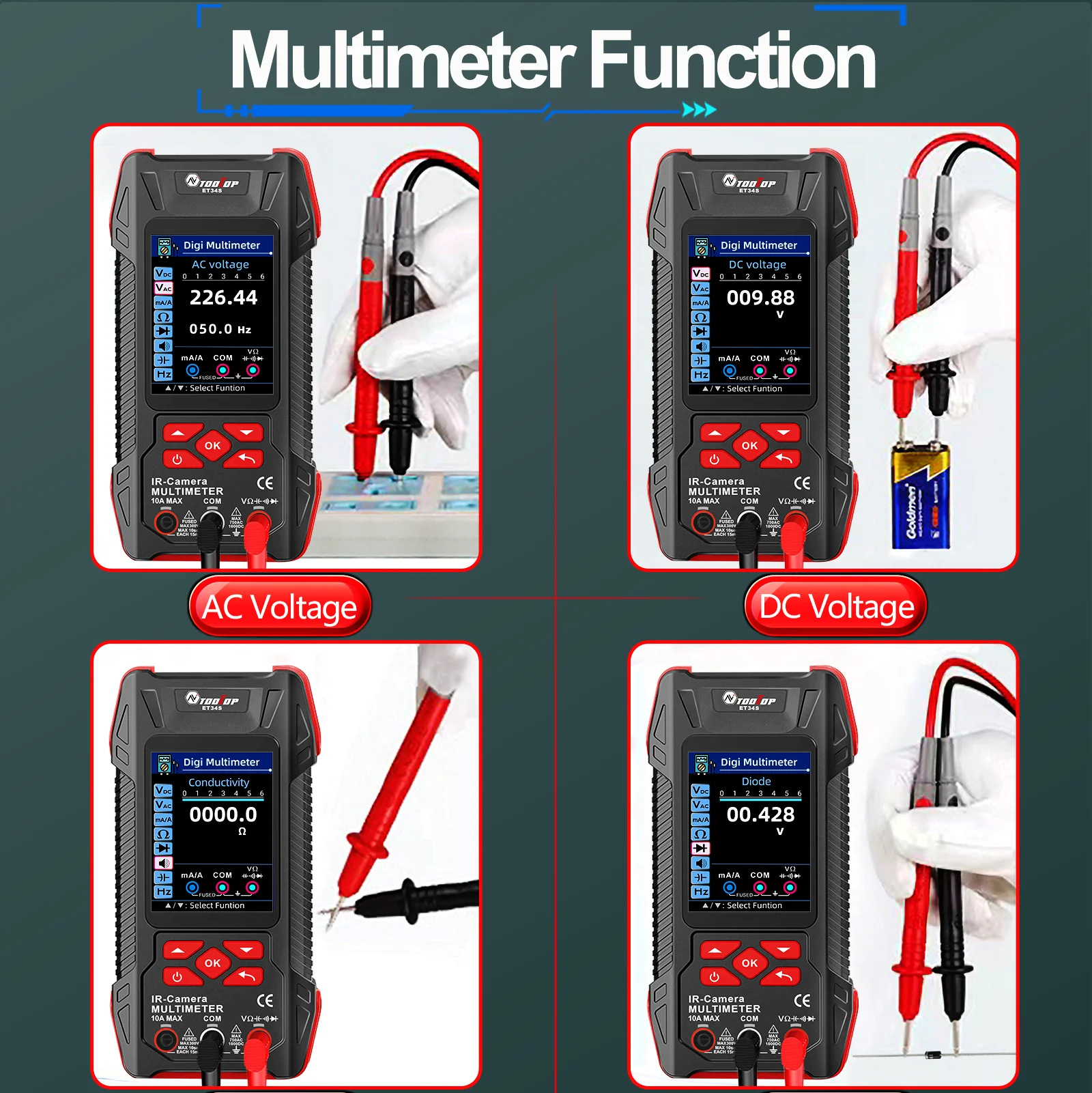

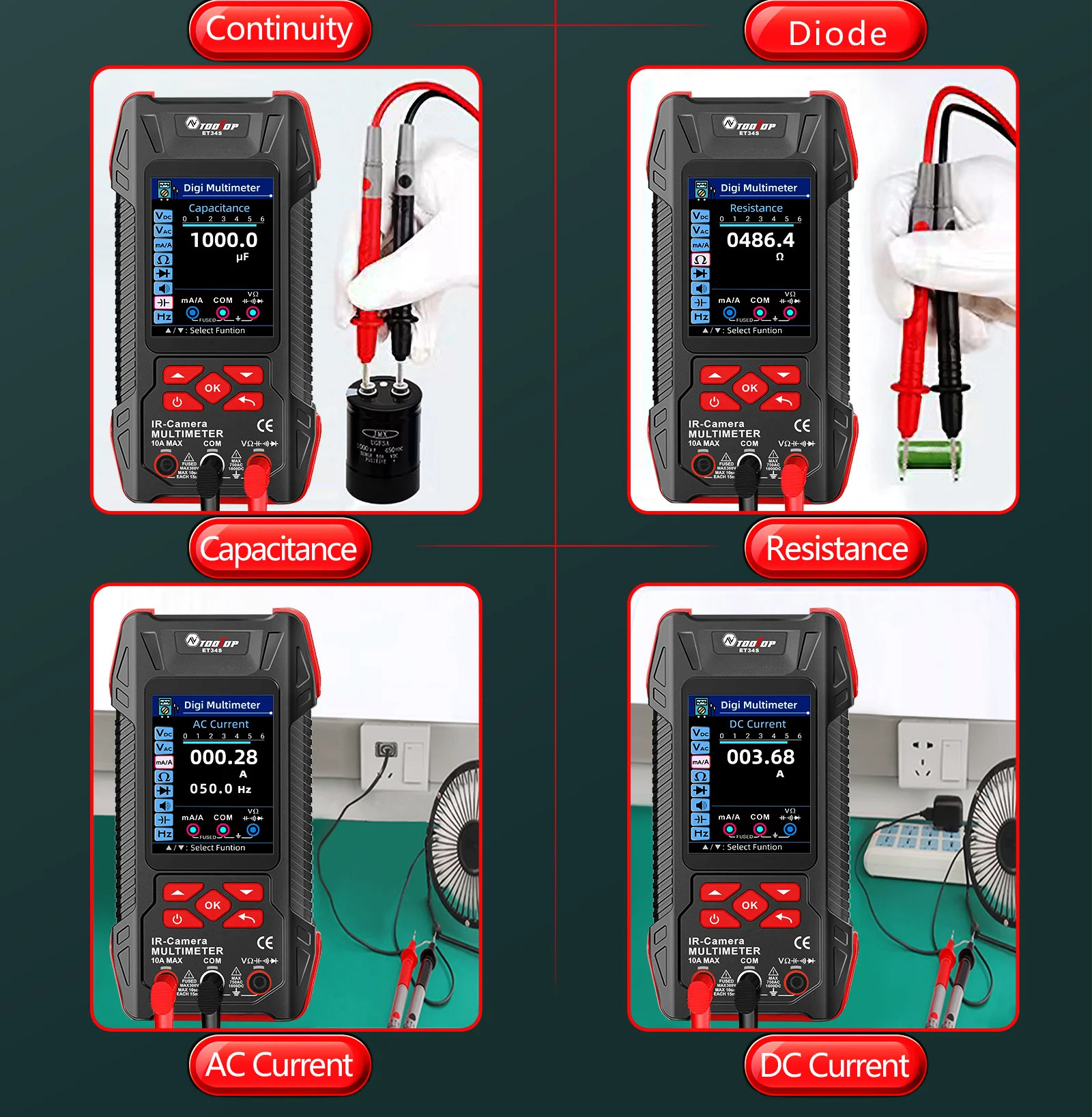

60000 counts high-precision multimeter, AC DC voltage and current, resistance, capacitance, frequency, diode,buzzer measurement

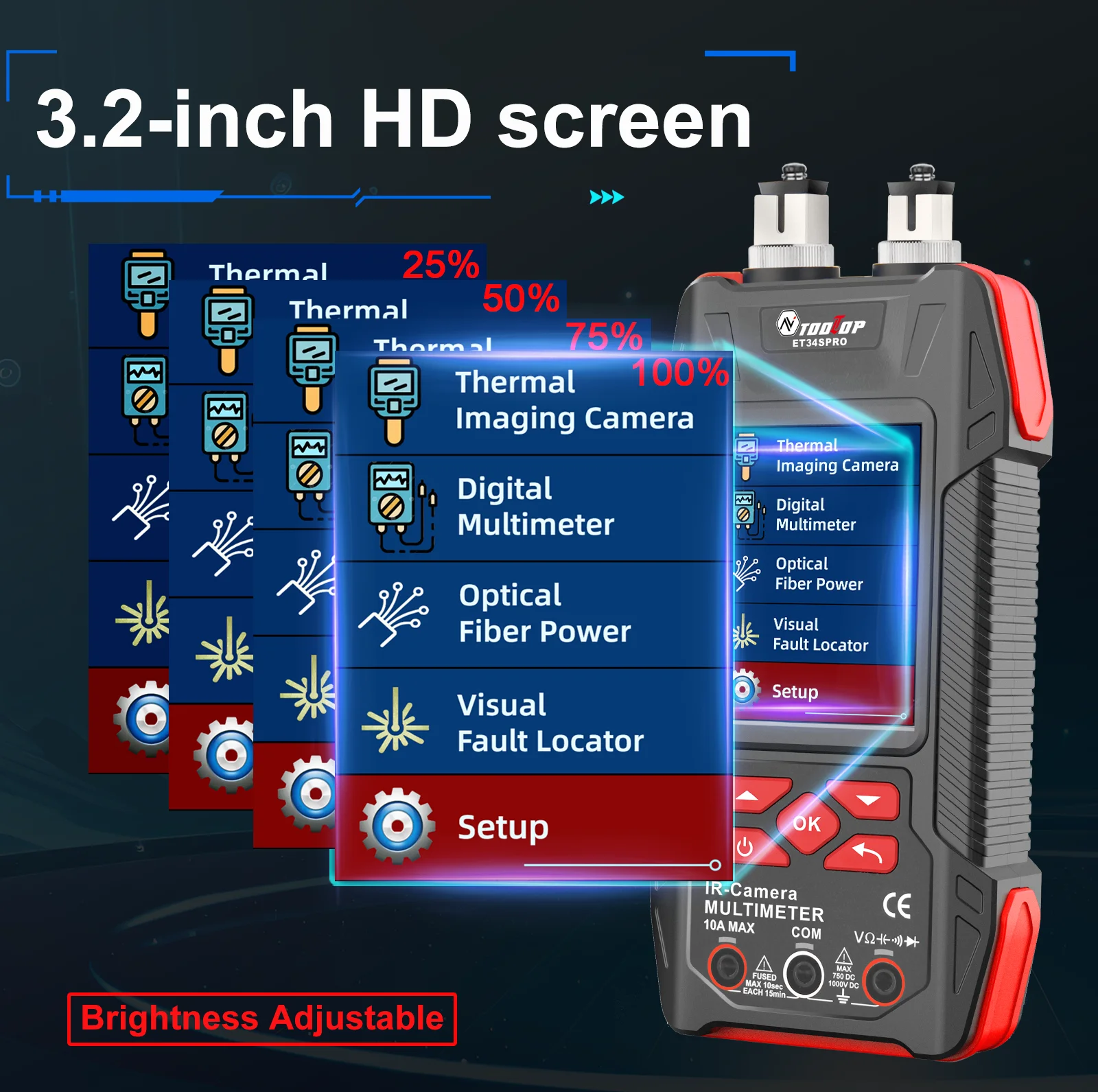

3.2-inch large color screen with 240×320 resolution and adjustable brightness.

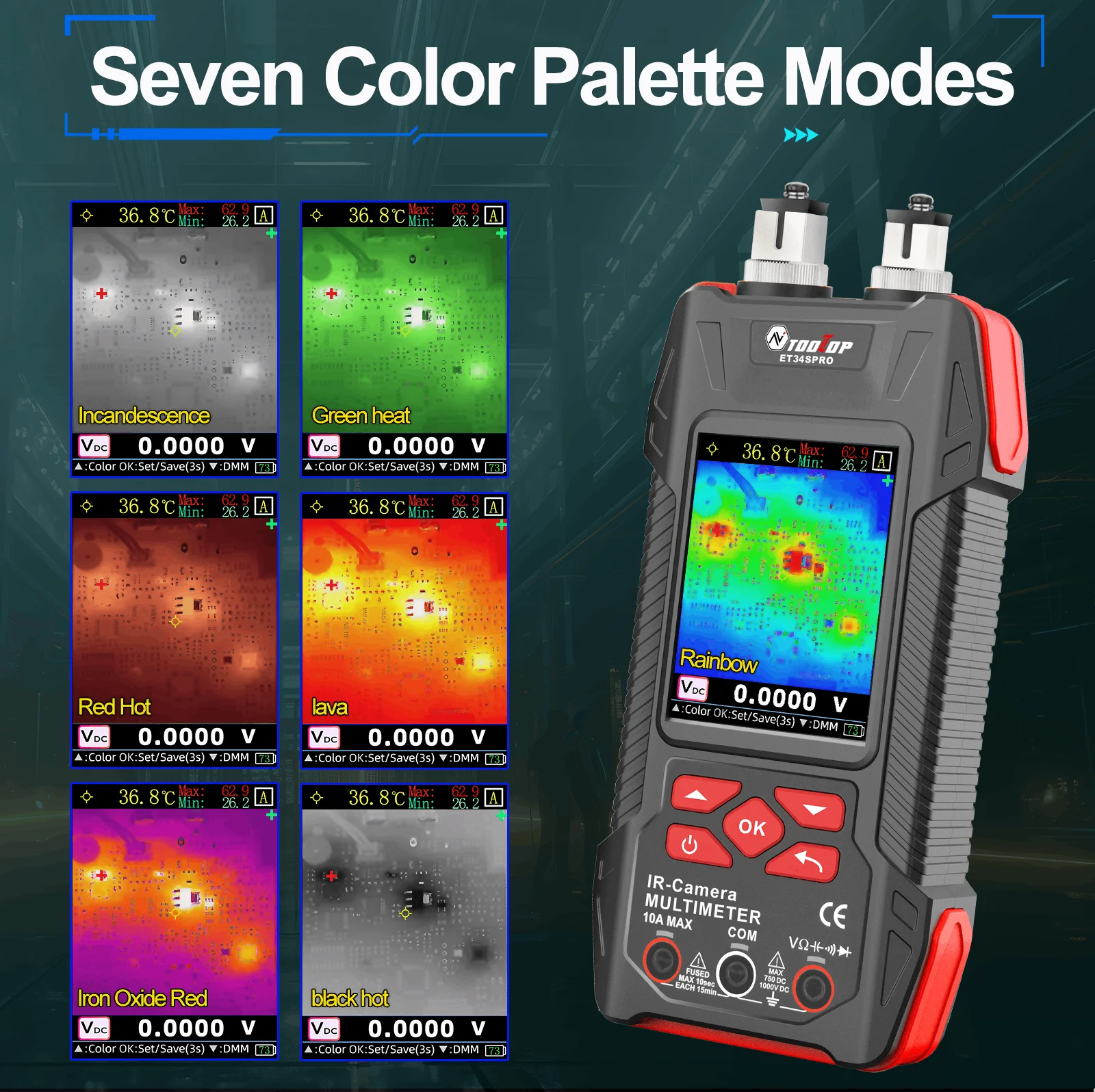

7 color modes (Iron Red, Lava, Rainbow, Green Hot, Red Hot, White Hot, Black Hot) for versatile visual needs.
Built in 1500mAh rechargeable battery, providing around 6 hours of continuous use suitable for long-term use in industrial environments.
Specifications:

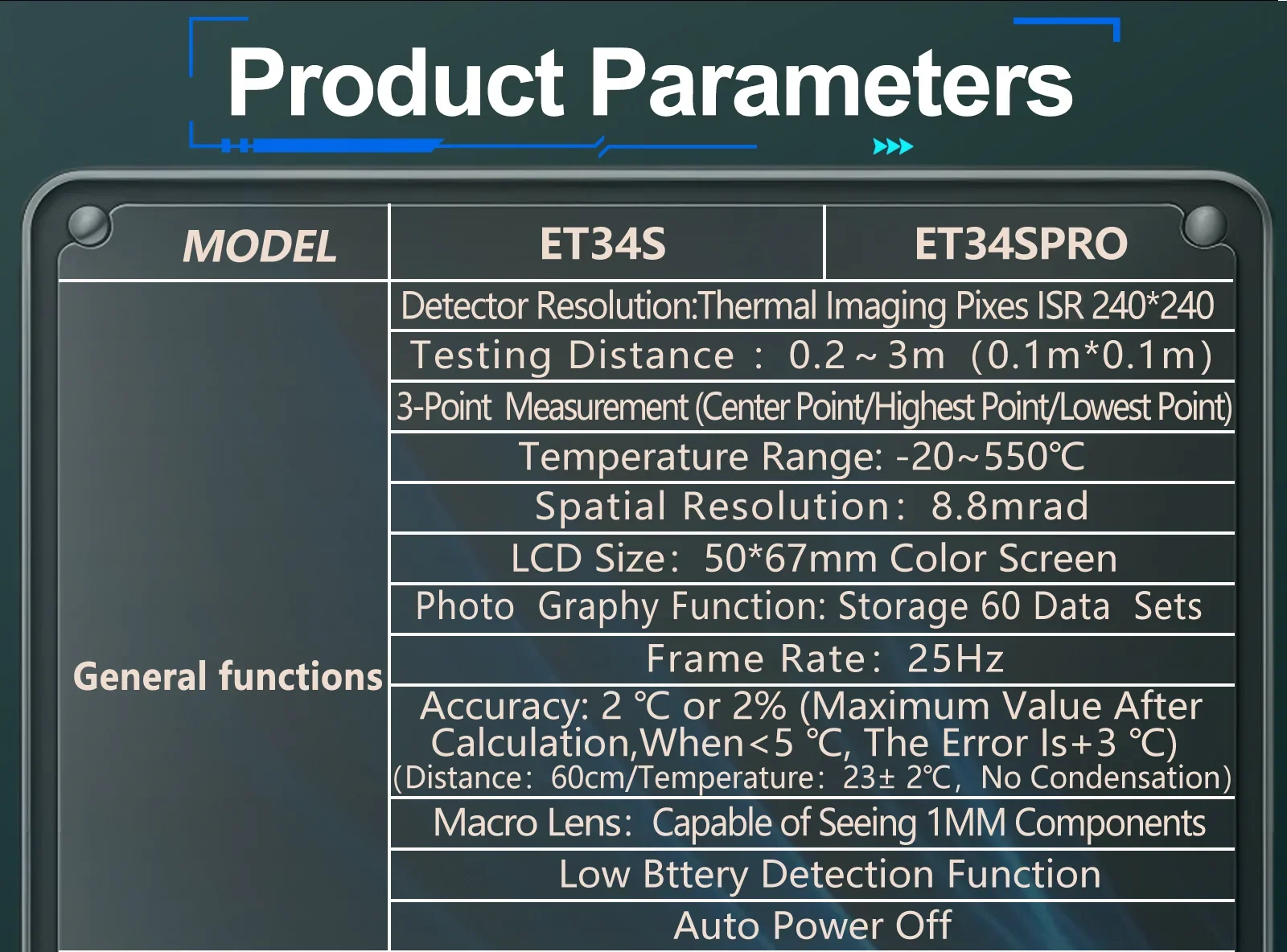

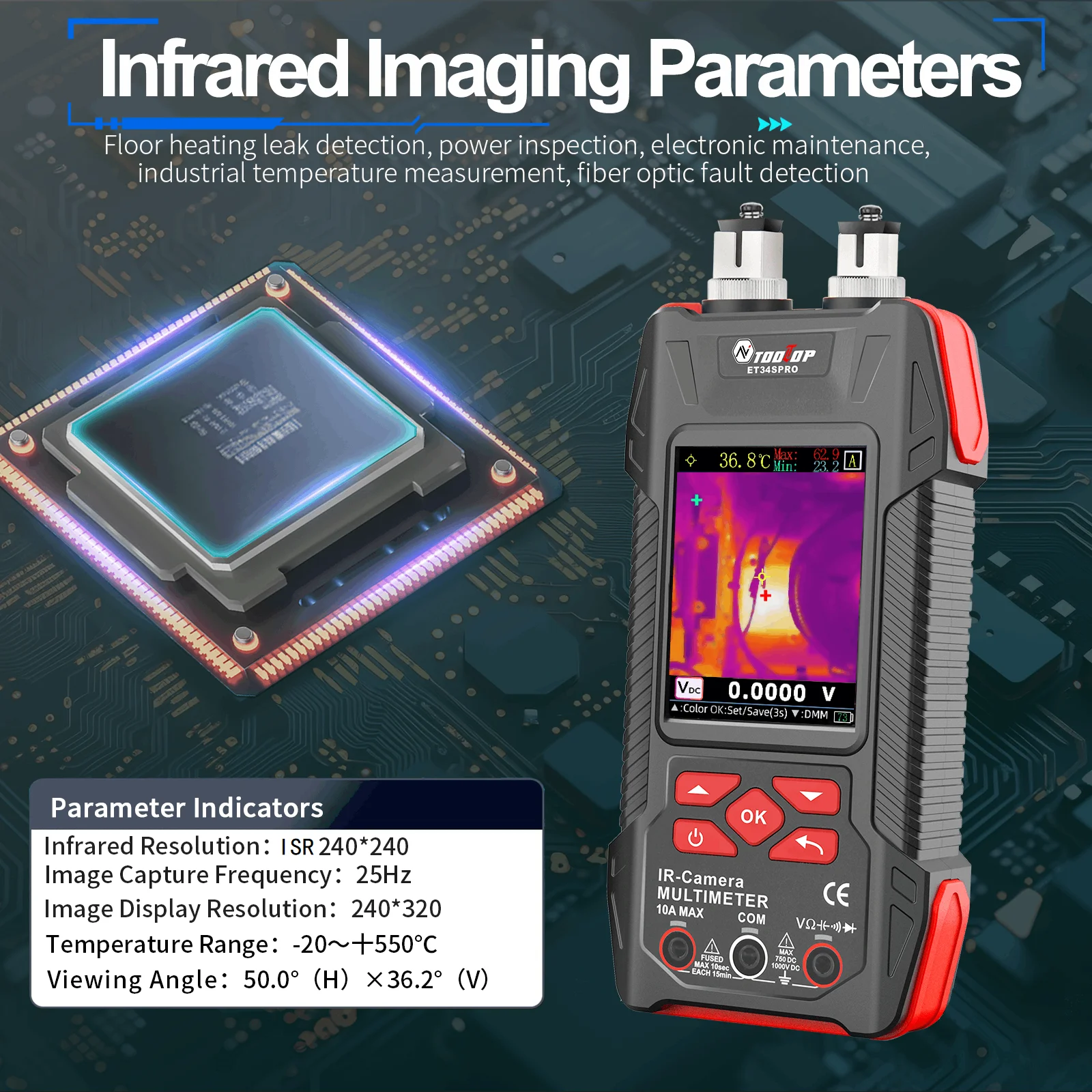

Thermal Camera Parameter
Thermal lmaging Pixels: IRS 240*240
Testing Distance :0.2~3m(0.1m*0.1m)

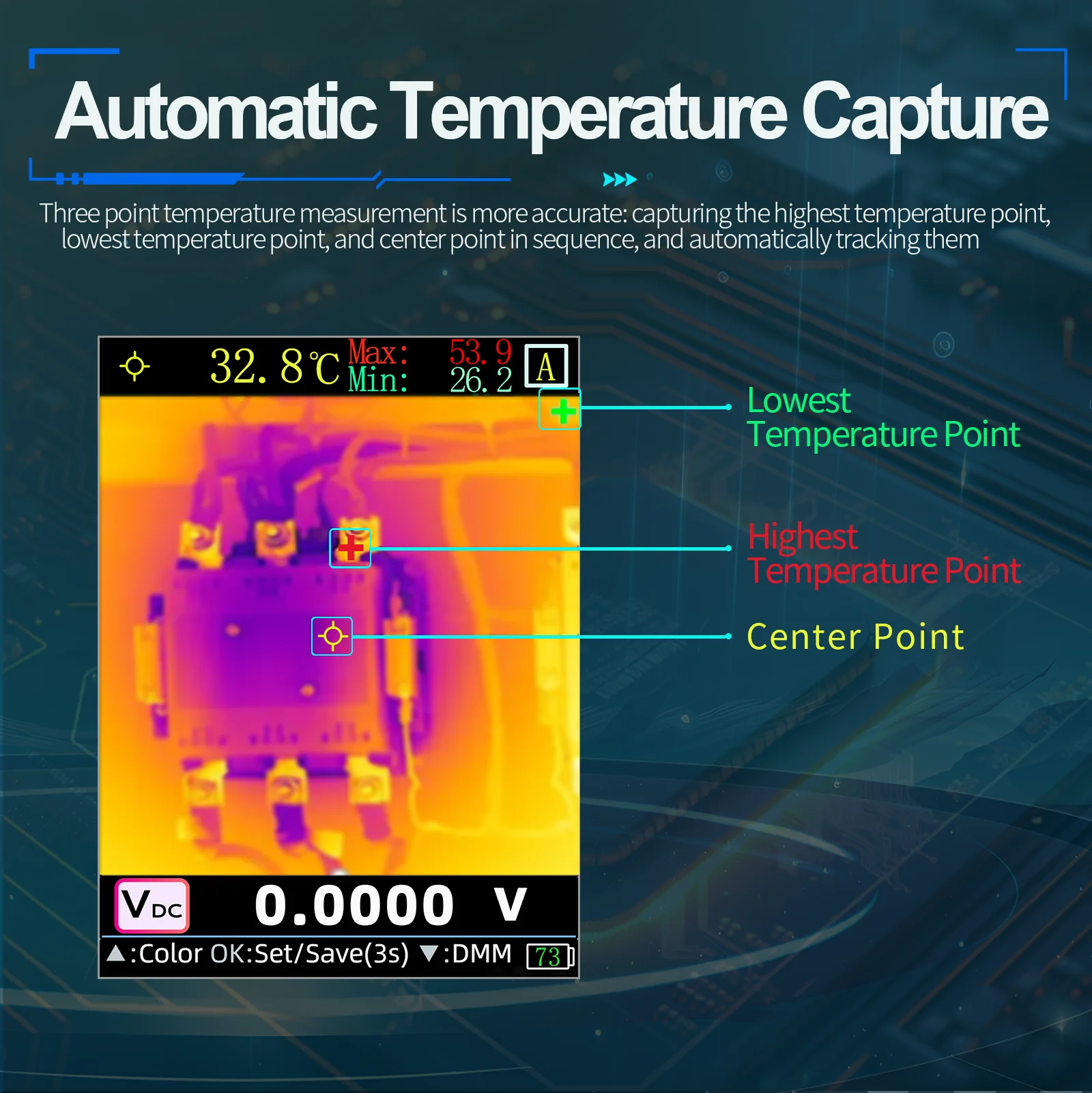

3-Point Measurement : Center Point/Highest Point/Lowest Point
Temperature Range:-20~550°C
Frame Rate:25Hz
Spatial Resolution:8.8mrad
Accuracy: 2 ℃ or 2%(Take the maximum value after calculation. When<5 ℃,the Error is +3℃)
Macro Lens: Capable of Seeing 1MM Components
Photo Storage : 60 Data Sets

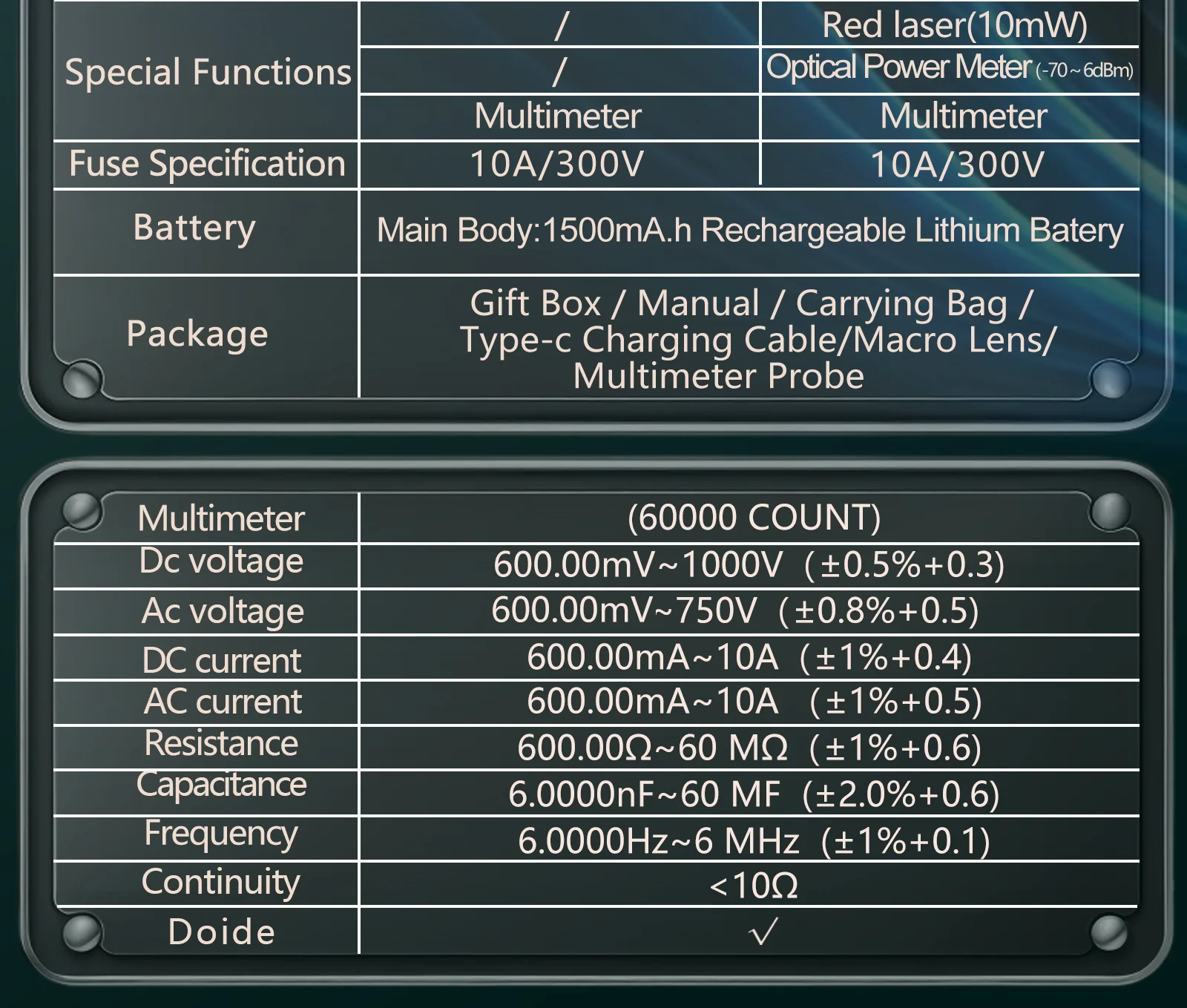

Multimeter Parameter
Display: 60000 COUNT
DC voltage: 600.00mV~1000V(±0.5%+0.3)
Ac voltage: 600.00mV~750V(±0.8%+0.5)
DC current: 600.00mA~10A(±1%+0.4)
AC current: 600.00mA~10A(±1%+0.5)
Resistance: 600.00Ω~60 MΩ(±1%+0.6)
Capacitance: 6.0000nF~60 MF(±2.0%+0.6)
Frequency: 6.0000Hz~6 MHz(±1%+0.1)
Continuity: <10Ω Buzzer
Diode: support
Fuse: 10A/300V
Special Functions(only for ET34SPRO)

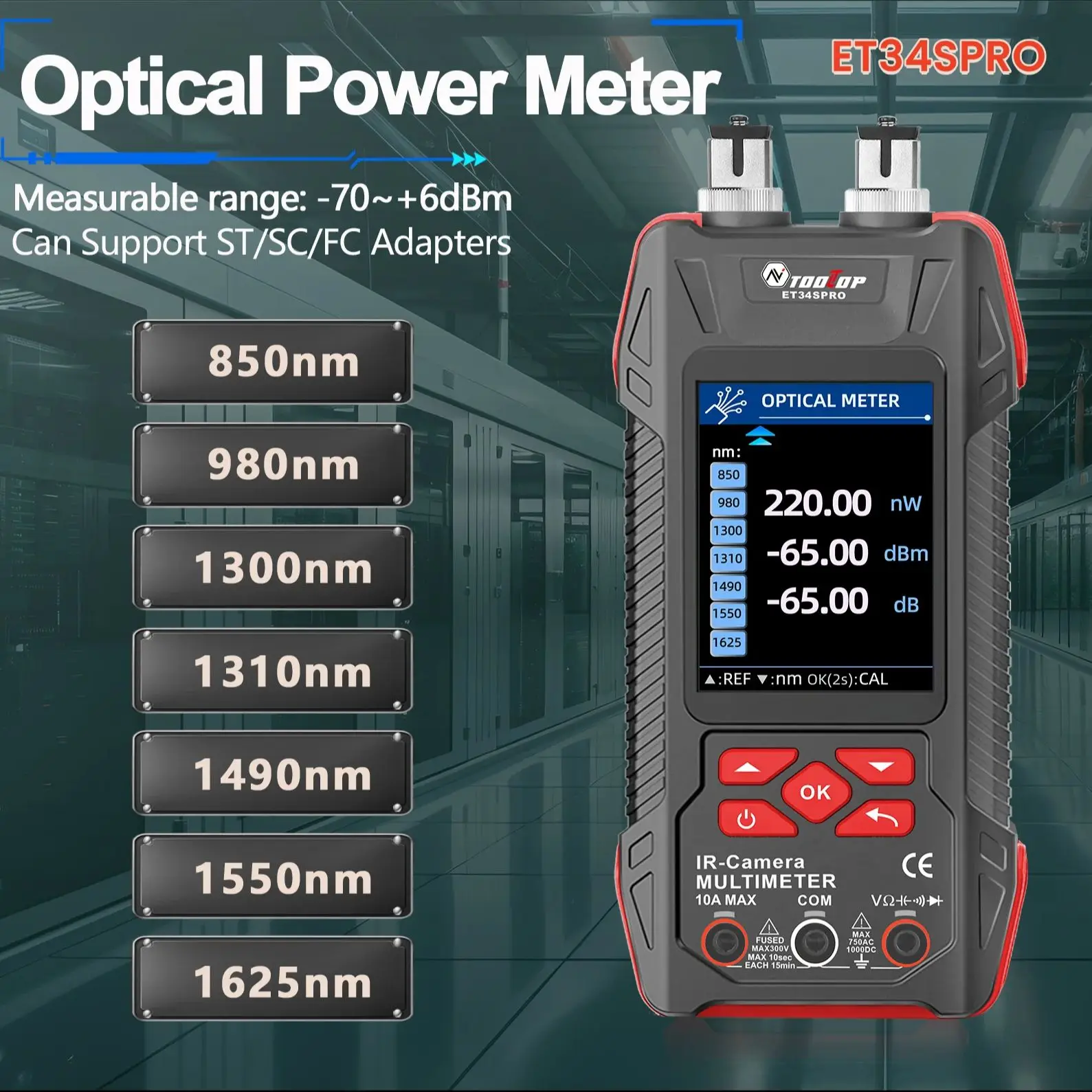

Optical Power Meter: mW/uW/nW/-70.00~6.00 dBm

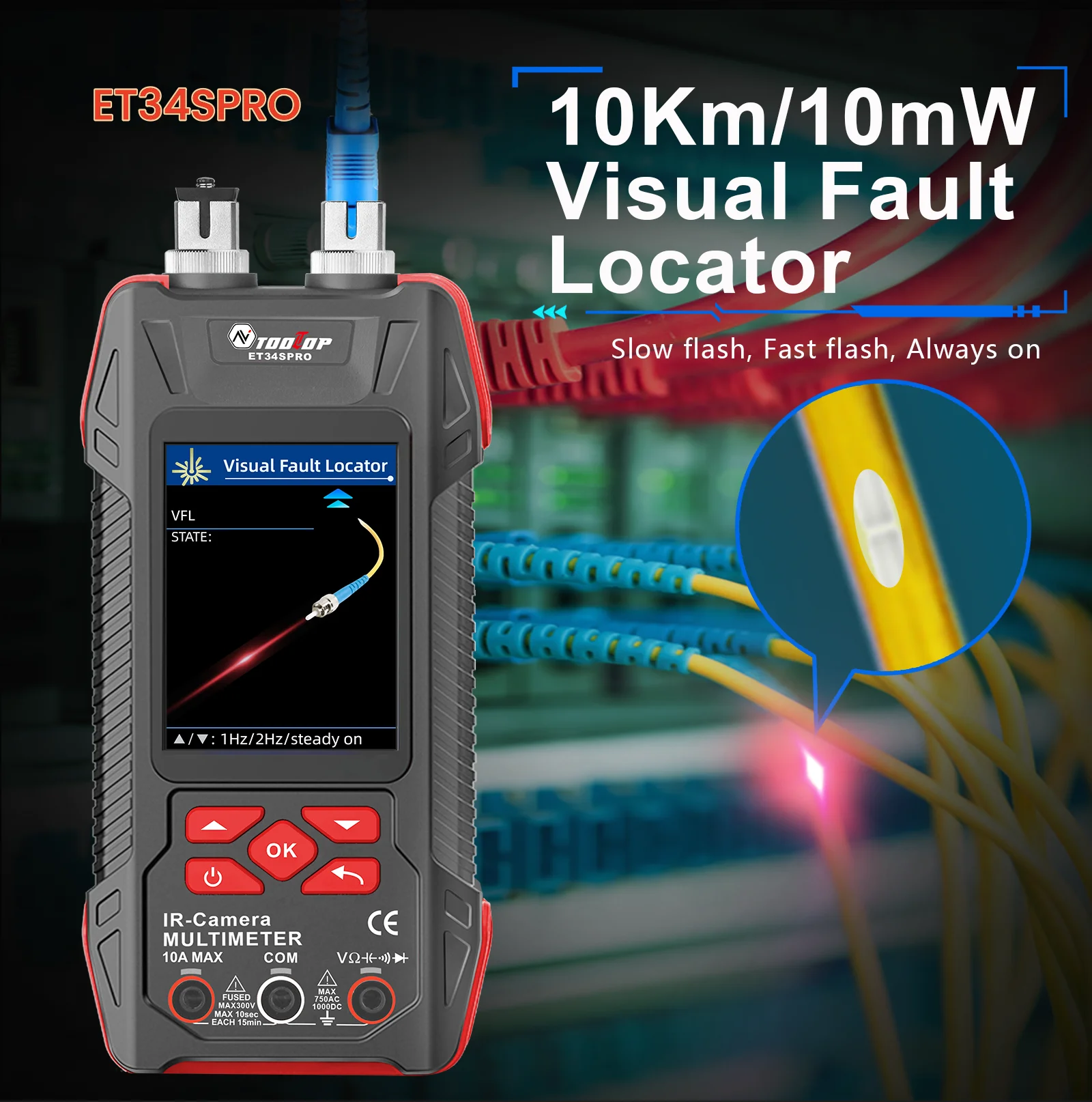

Visual Fault Locator(VFL):10wm, about 10kM, ON/ 1Hz/2Hz/OFF
Other Parameter
Screen: 3.2 Inches color screen, resolution 240*320

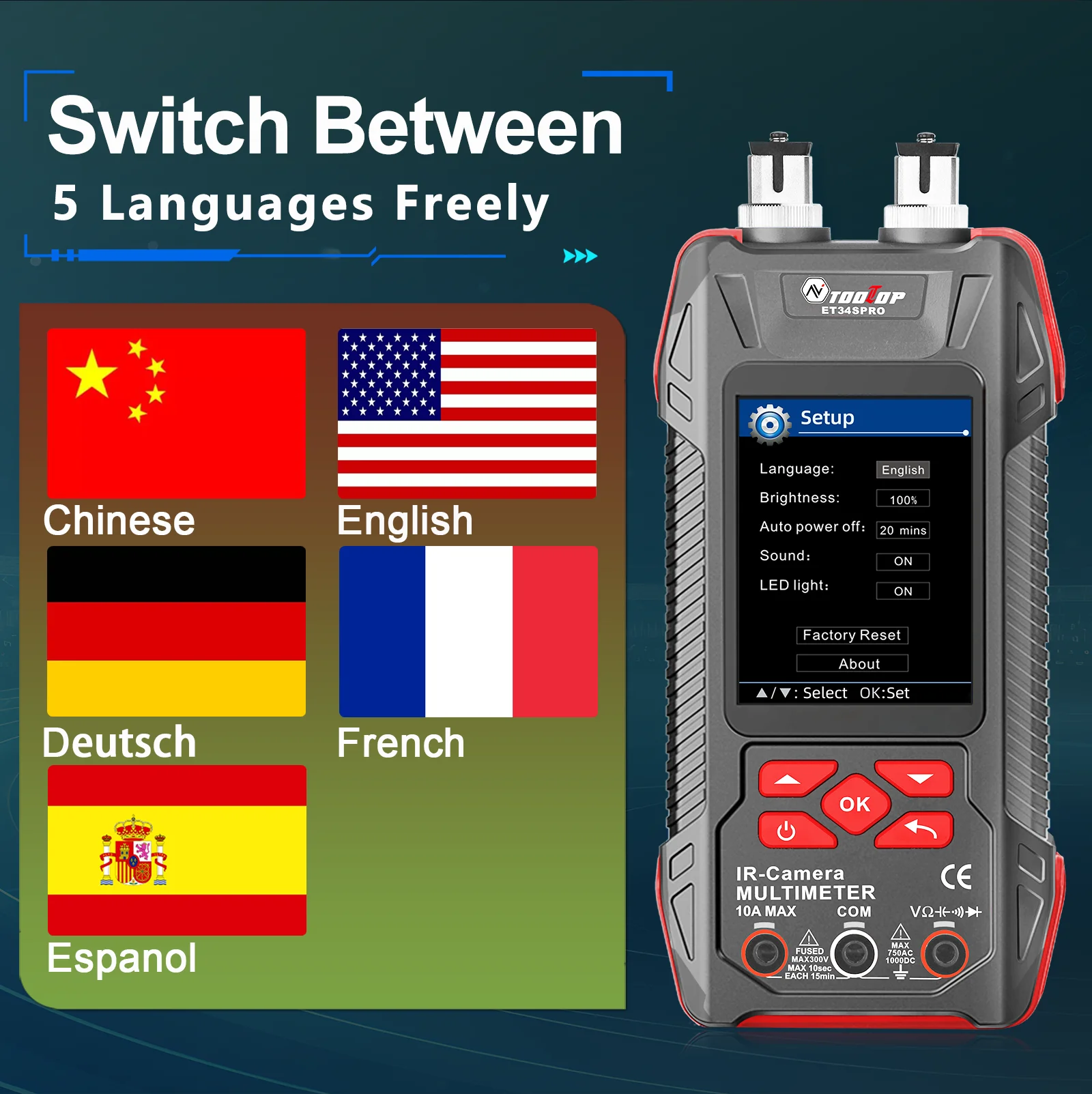

Languages: Chinese, English, German, French, Spanish
Battery: Built-in 1500mA.H rechargeable lithium battery (with protection circuit)
Power: 5V/2A/10W or higher required; (charger not included)
Low Battery Detection Function: support
Auto Power Off: support

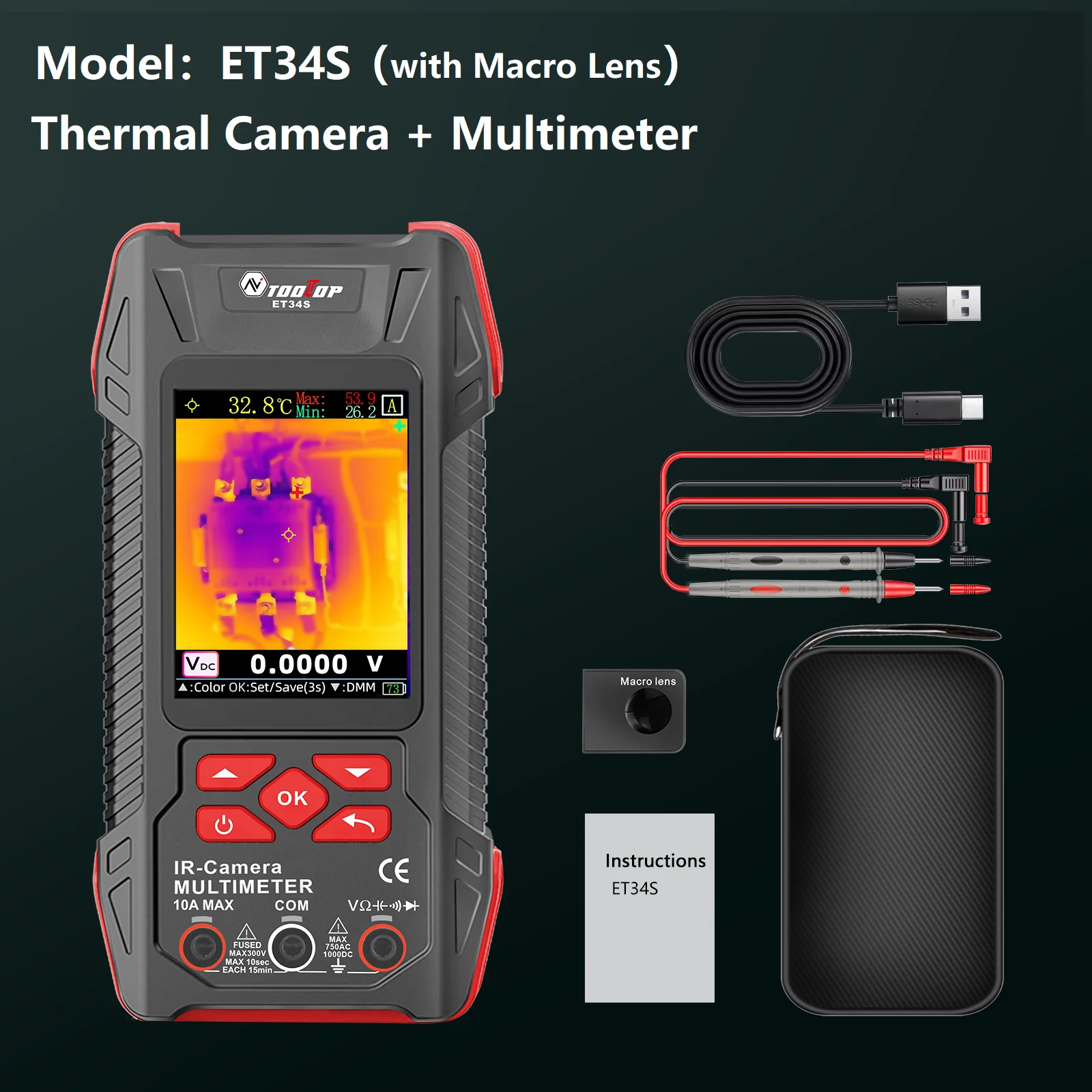

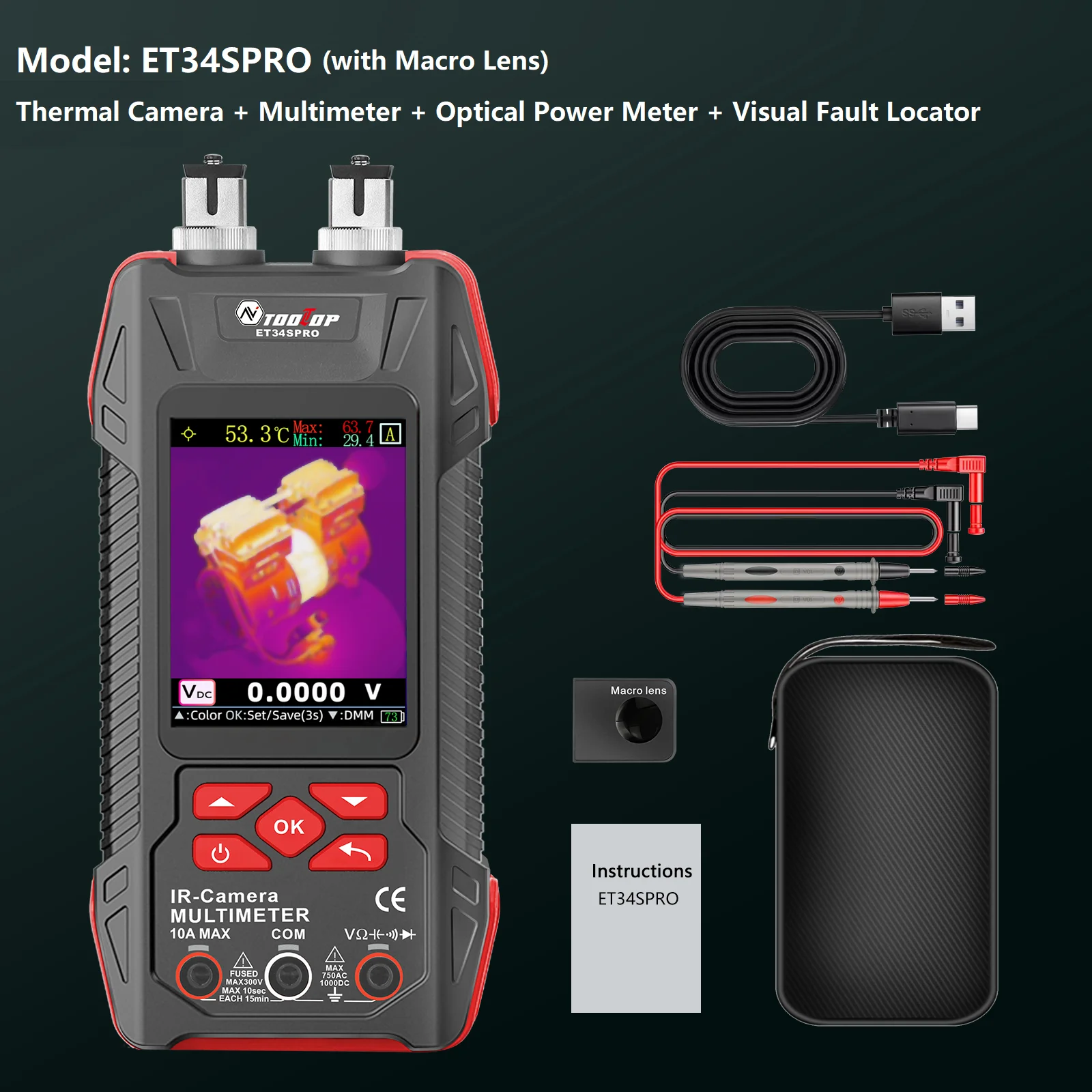

Package List:
1x Multifunctional Thermal Camera
1x Macro Lens（Magnetic）
1x Multimeter Test Leads
1x USB Charging Cable
1x English Manual
1x Storage Bag
