Product Description
Note:
The recommended distance for visible light fusion effect is 1m-5m. Please do not use it too close as it will exceed the range of Offset adjustment
In order to correct non-uniformity, a mechanical control calibration plate is installed in front of the thermal imaging detector, which will be calibrated every 10 seconds to ensure more accurate measurements. Usually, there is a pause of about 1-2 seconds, which is caused by the thermal imaging detector calibration . This is a normal phenomenon, please don't worry
Features:
256*192 infrared thermal camera + 1080P Visible light Camera 2 in 1
Super IR image technology enhancement, improves image details, and enhances resolution to 512x384
PC software supports real-time imaging transmission and storage data analysis
Laser positioning indication function can quickly locate and detect targets
Supports photo and video recording
Built-in 2600mAhlithium battery and 8G memory. Support 11 kinds language display.
Supports visible light fusion, single infrared or single visible light and other imaging modes, 9 color palettes
Specifications:
Model: ET693C
Sensor Resolution : 256*192
SUPER IR: 512x384
Screen size: 2.8 inch
Working band :8~14um
Pixel size :12um
Frame rate : 25 Hz
NETD : 50mK@25℃
Field of view :42°x56°
Lenses :3.2mm F1.1
Temperature measurement range :-20℃~550℃
Temperature measurement accuracy:±2℃ or ±2% of reading, whichever is greater
Temperature compensation: Support distance compensation within 5 meters
Color palette: iron, White hot, Black hot, Rainbow, Red hot, High contrast, Lava, Arctic, Coldest
Visible light Resolution: 1080P
Visible light Field of view: 55°x83°

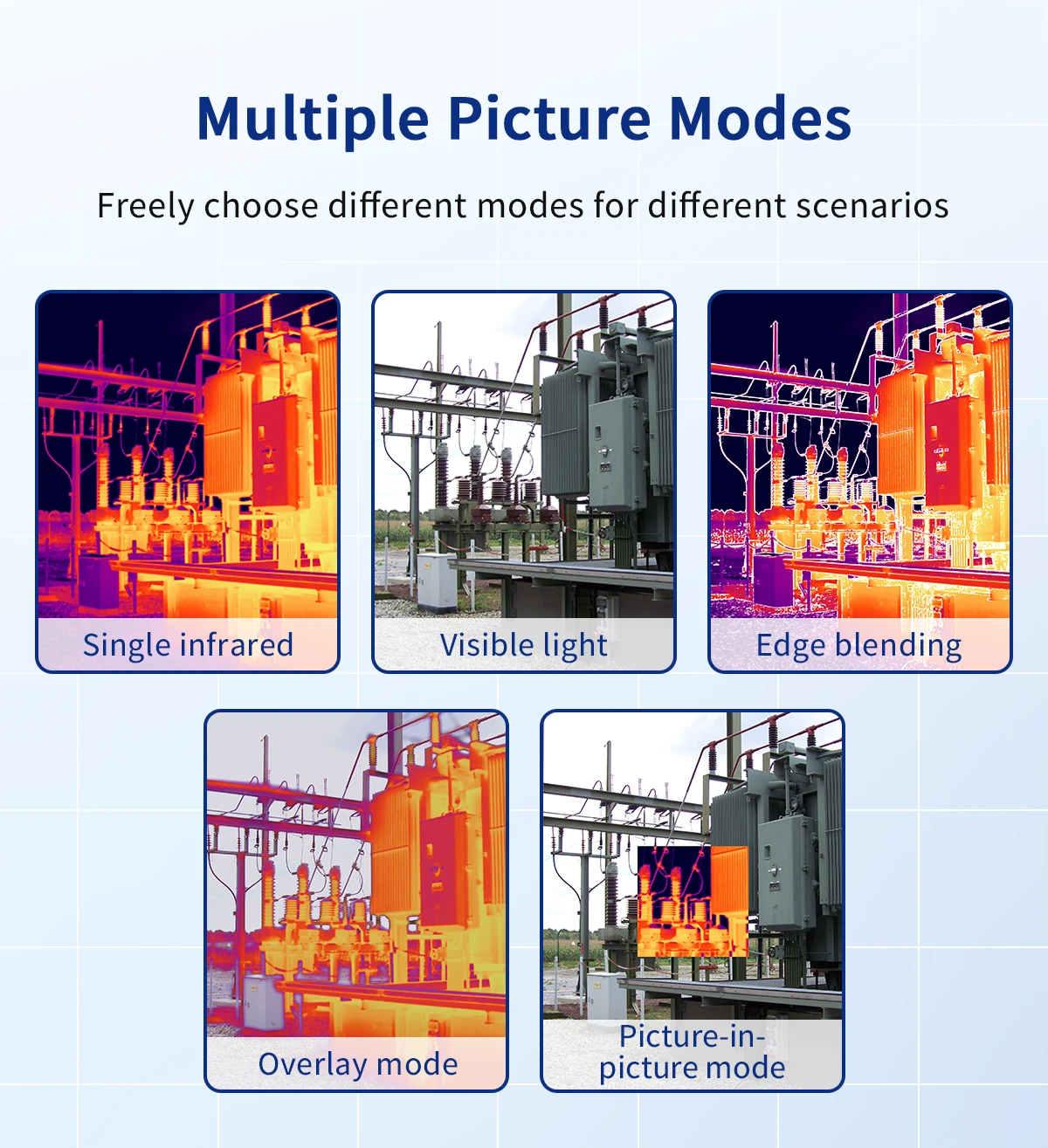

Image mode: Outline fusion, overlay fusion, picture-in-picture, single infrared, single visible light
Fusion mode working distance: about 1m~5m
Fusion adjustment: 0~100%
Offset adjustment: Adjust the fusion offset between thermal and visible images
Language: English, French, Spanish, Portuguese, German, Polish, Russian, Arabic, Japanese, Korean and Chinese
Interface: USB Type-C
Laser pointer: Support
LED: Support
Enlarger lens: Optional support
Battery: 2600mAh lithium battery
Working hours: A fully charged battery can be used for approximately 4 hours
Image storage mode: JPG
Video format: MP4
Capacity: 8G built-in memory, actual usable storage 6.19G, can store more than20,000 pictures
Operating temperature:-10℃~+60℃
Storage temperature:-40℃~+85℃
Package List:
1 x Thermal Camera
1 x English user manual
1 x Type-C data cable
1 x Packing Box
1 x Lanyard
