Product Description

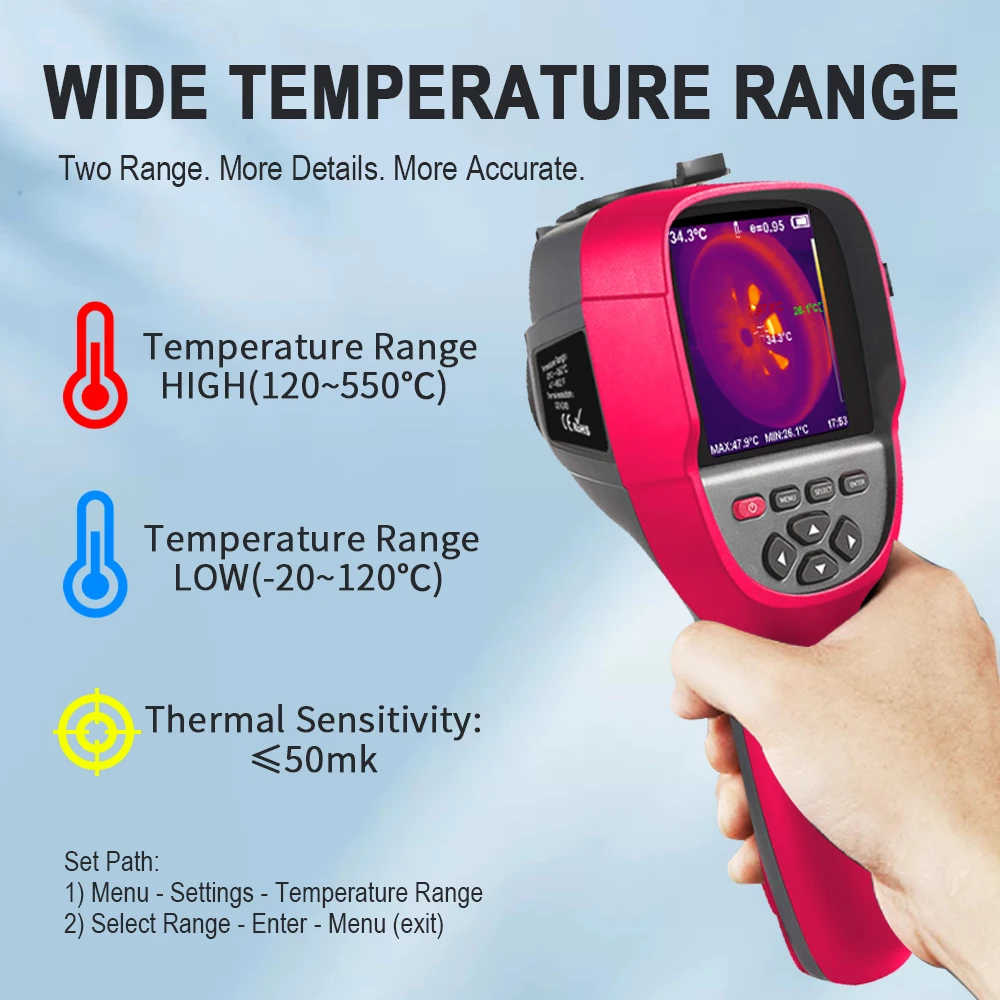

Note: This device has 2 temperature measurement ranges, low temperature range (-20°C~120°C) and high temperature range (120°C~550°C). When measuring temperature, please choose the correct measurement range according to the actual situation to avoid Temperature measurement error
Descriptions:

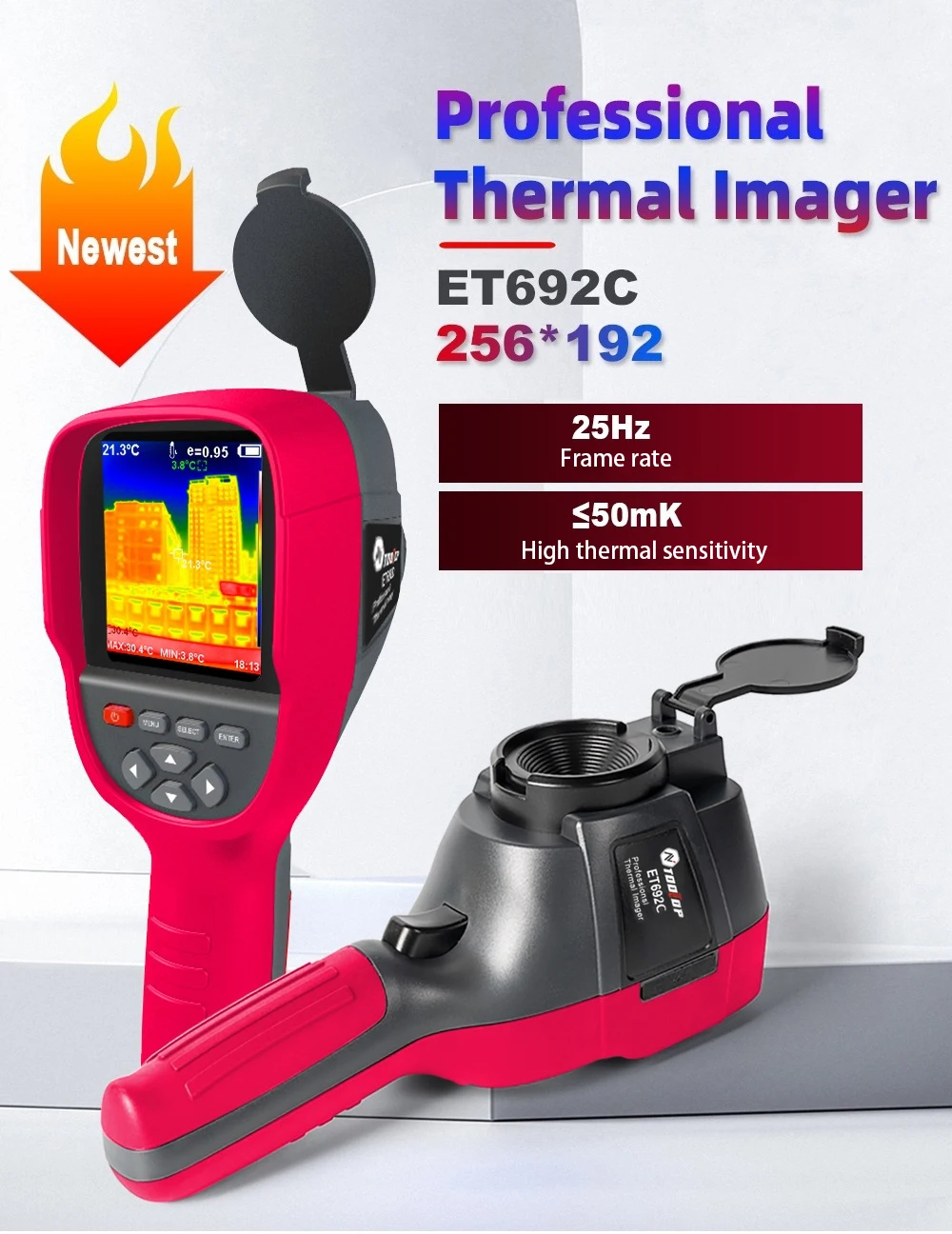

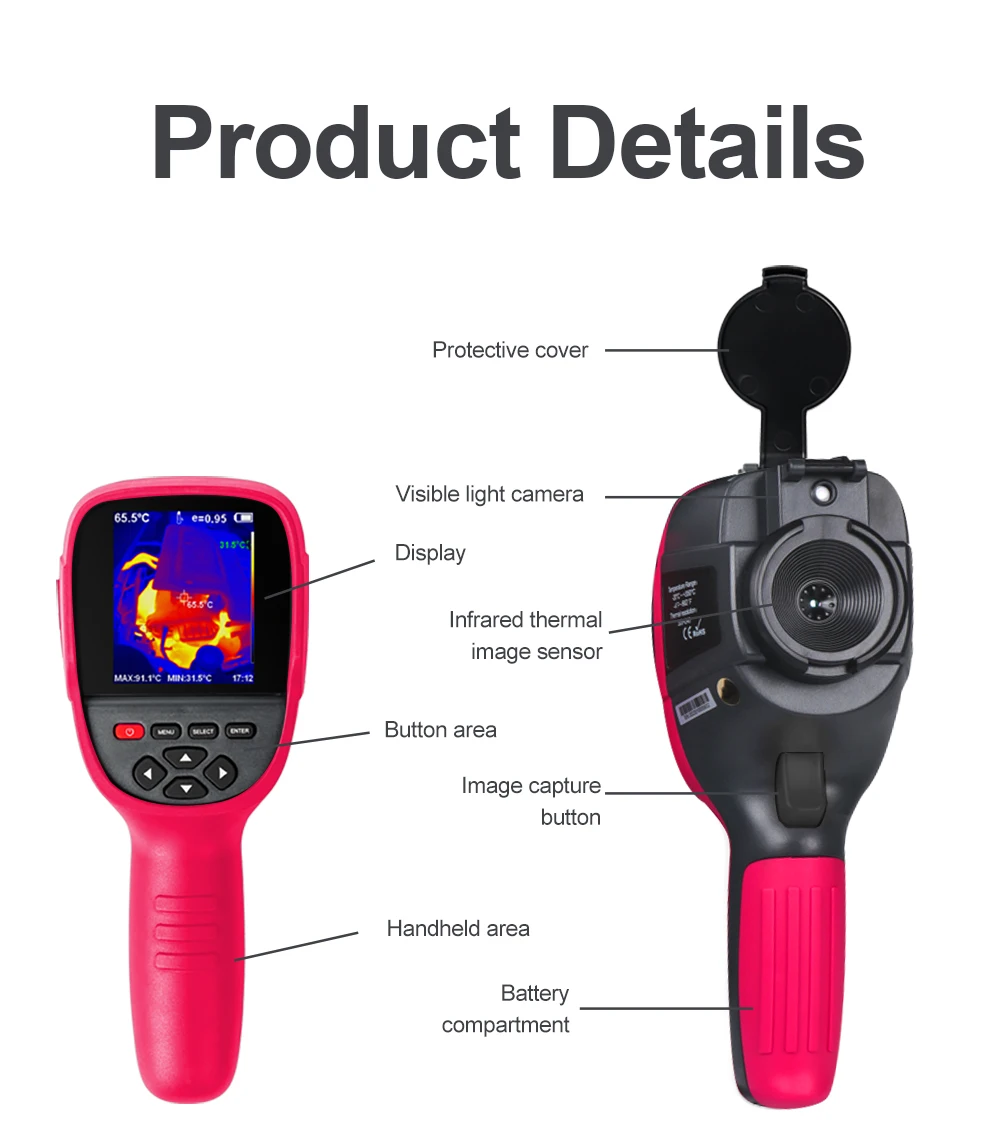

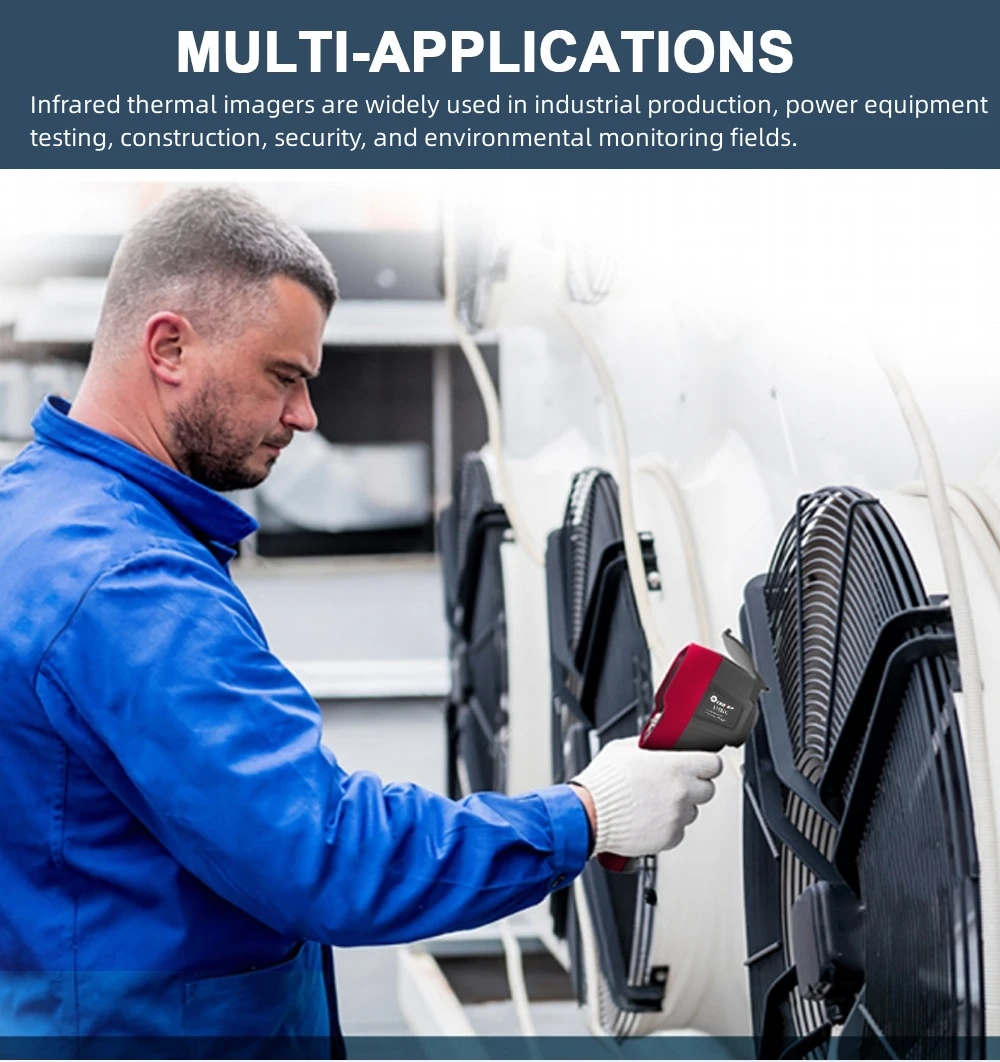

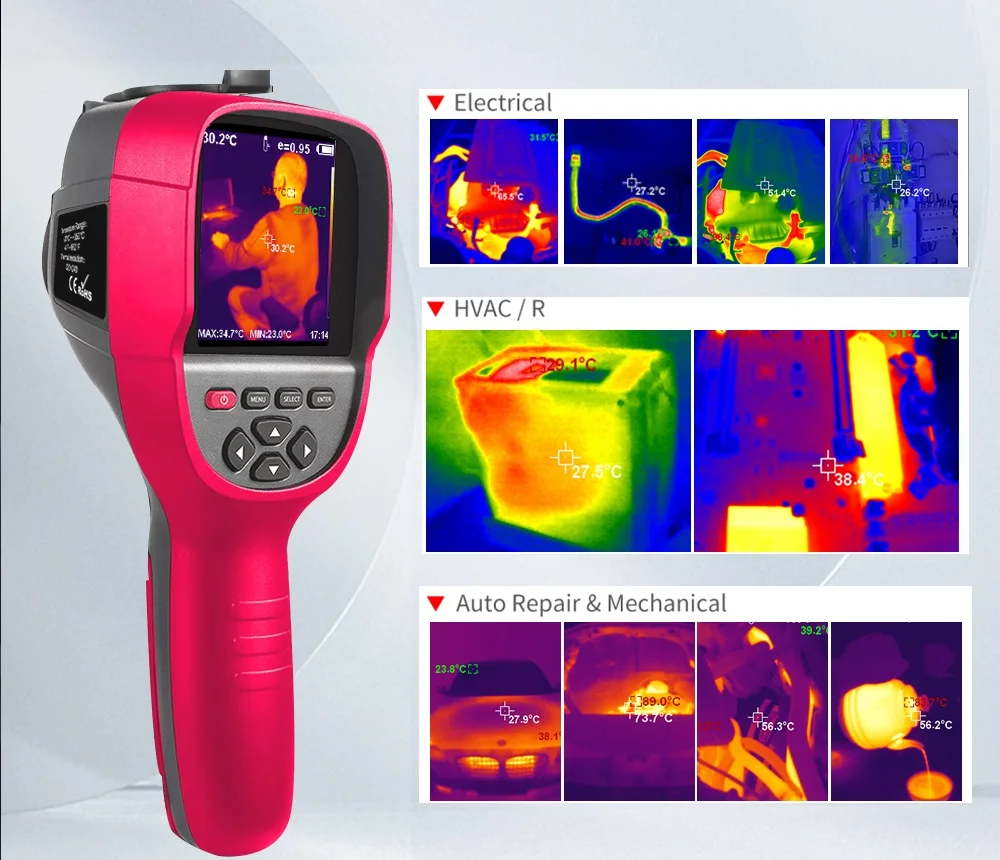

ET692C infrared thermal imager combines surface temperature measurement and real-time thermal images.There is no need to measure each component one by one like a traditional infrared thermometer. Potential problems can be clearly displayed on the color display, and the center point measurement cursor can quickly and accurately locate and measure the temperature of the target object. For added visibility, the product is equipped with a visible light camera. Both thermal and visible light images can be saved to the device, and the images can be read via USB or saved to a computer for report generation and printing. This product is small in size, easy to operate and has strong functions. It is an ideal choice for electric power, electronic manufacturing, industrial testing and other fields.
Features:
[Professional infrared sensor]: Clearer 256*192 infrared resolution, with 25Hz high frame rate images refreshing can easily capture subtle temperature changes

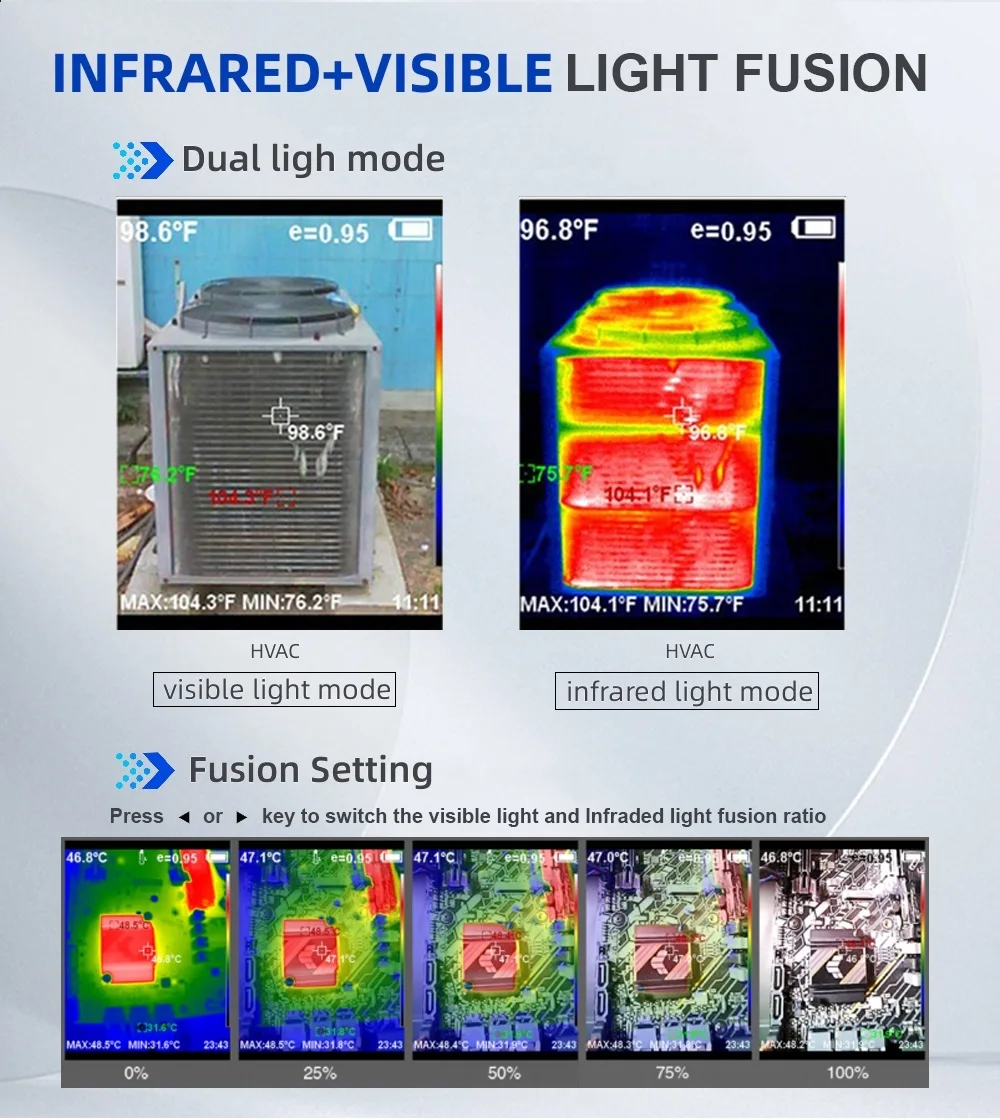

[Dual display modes]: Innovative infrared mode and visible light mode, the fusion rate can be manually adjusted(0%,25%,50%75%,100%), allowing you to freely control the visual effects

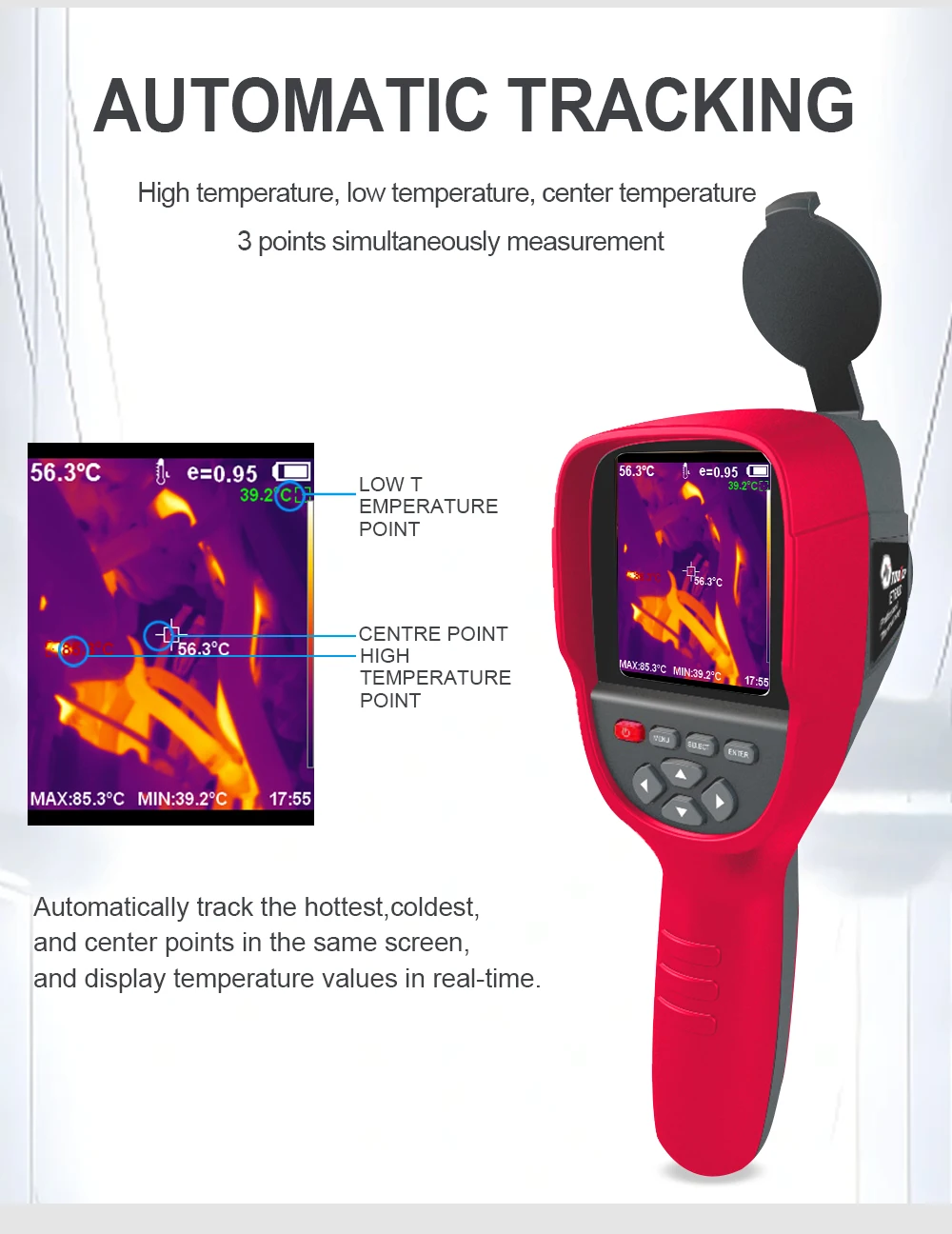

[Real-time measurement]: hot,cold and center temperature auto tracking ,with -20℃ to +550℃/-40℉ to +1022℉ measurement ranges, support ℃ and ℉ switch.
[Adjustable emissivity]:The emissivity coefficient can be adjusted as needed, ranging from 0.01 to 1.0, to improve the accuracy of measurements of semi-reflective surface objects.

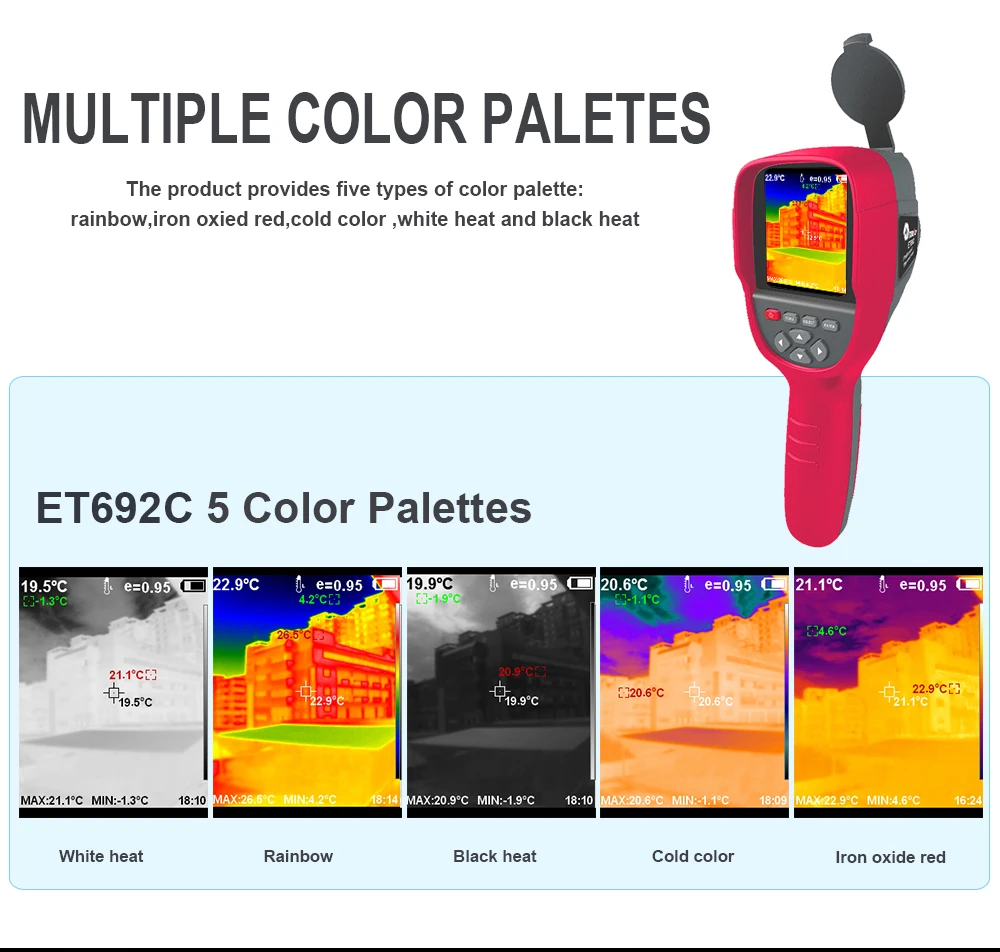

[5 imaging modes design]:rainbow, iron oxide red, cold color, black & white, white & black five imaging modes can be select
[4 languages]: support Chinese/English/German/Italian , time and date setting
[Photo & Video Recording ] Built-in 6.6G storage space, supports taking photos and video recording, allowing you to store and access data anytime andanywhere

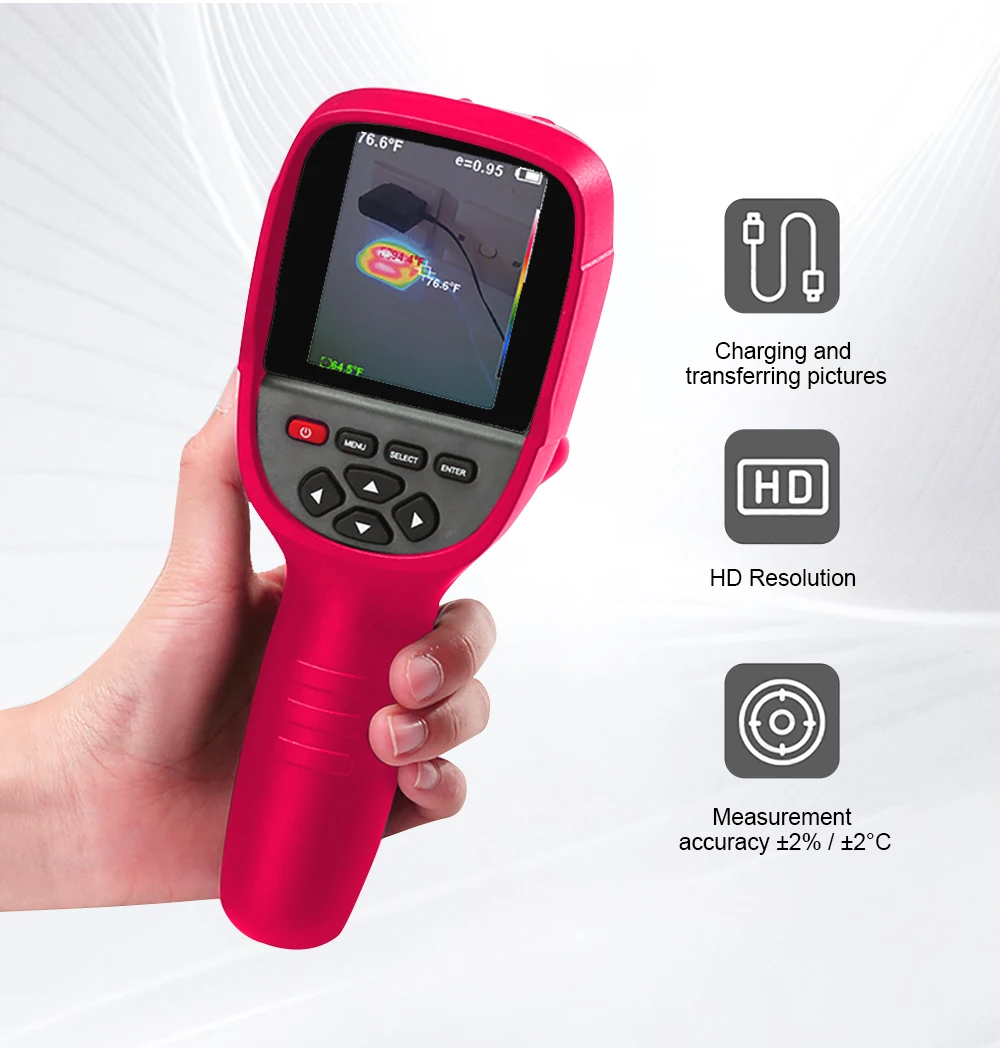

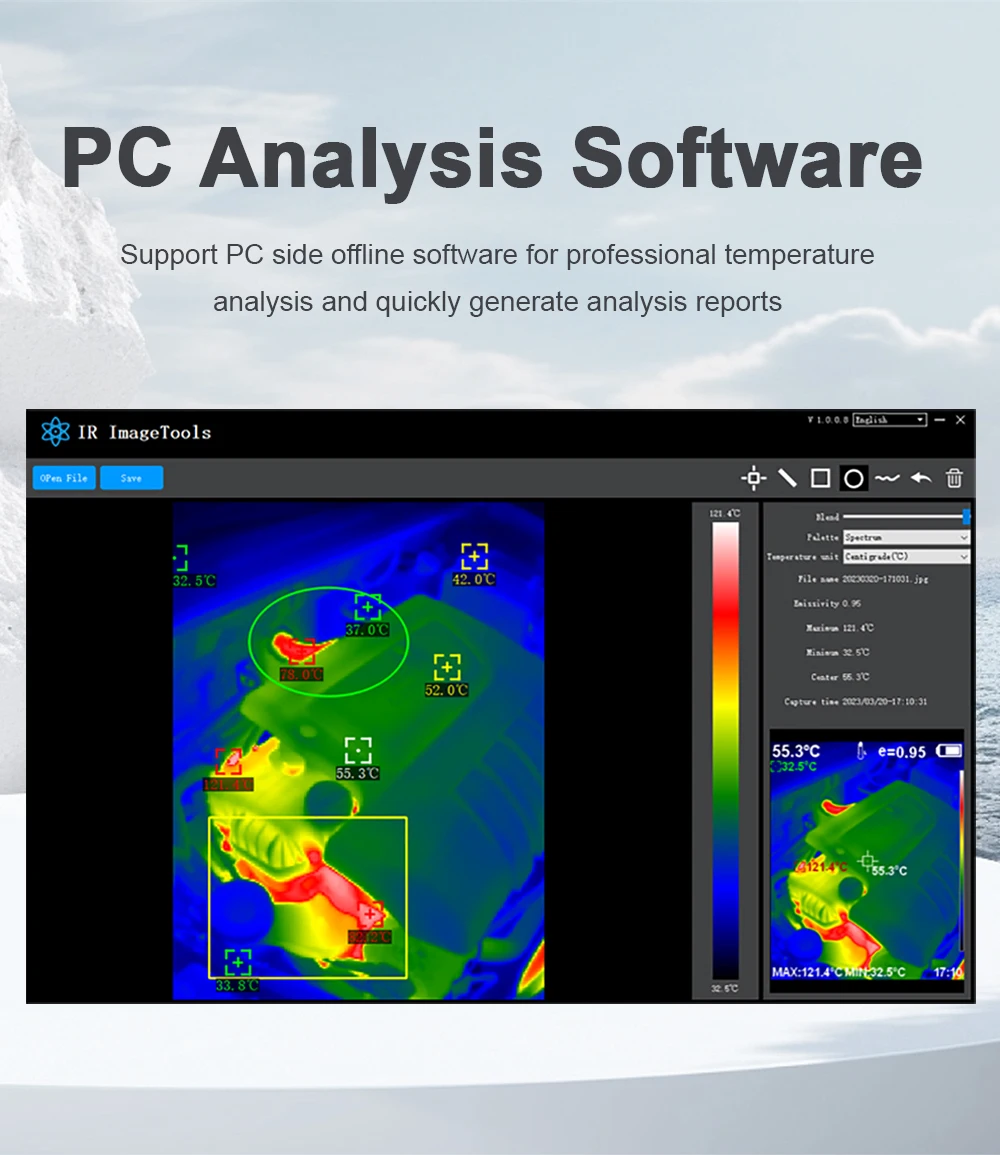

[PC Analysis]: Data can be easily transferred to the computer through Type-C cable, compatible with WinXP, Win7, Win8, and Win10 systems, and supports offline data analysis.

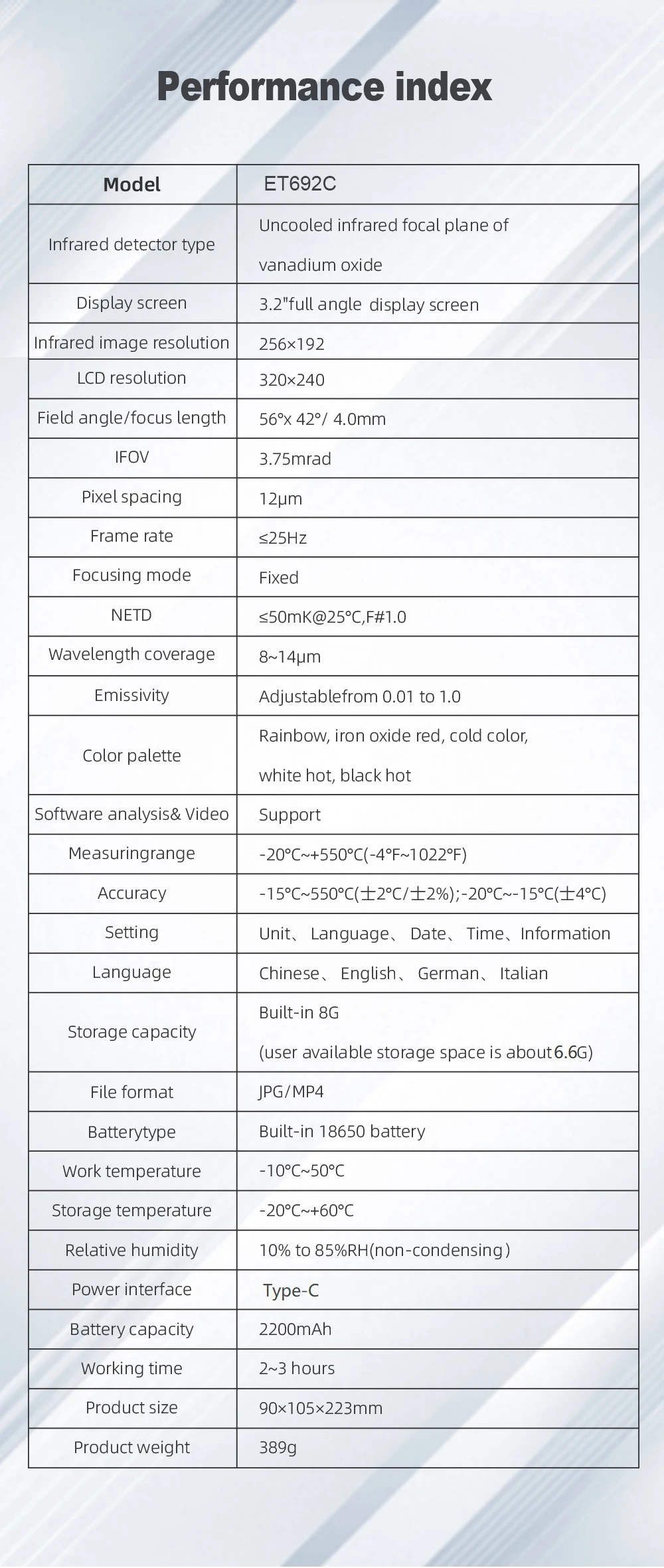

Specification
Model:ET692C
Infrared detector type: Uncooled infrared focal plane of vanadium oxide

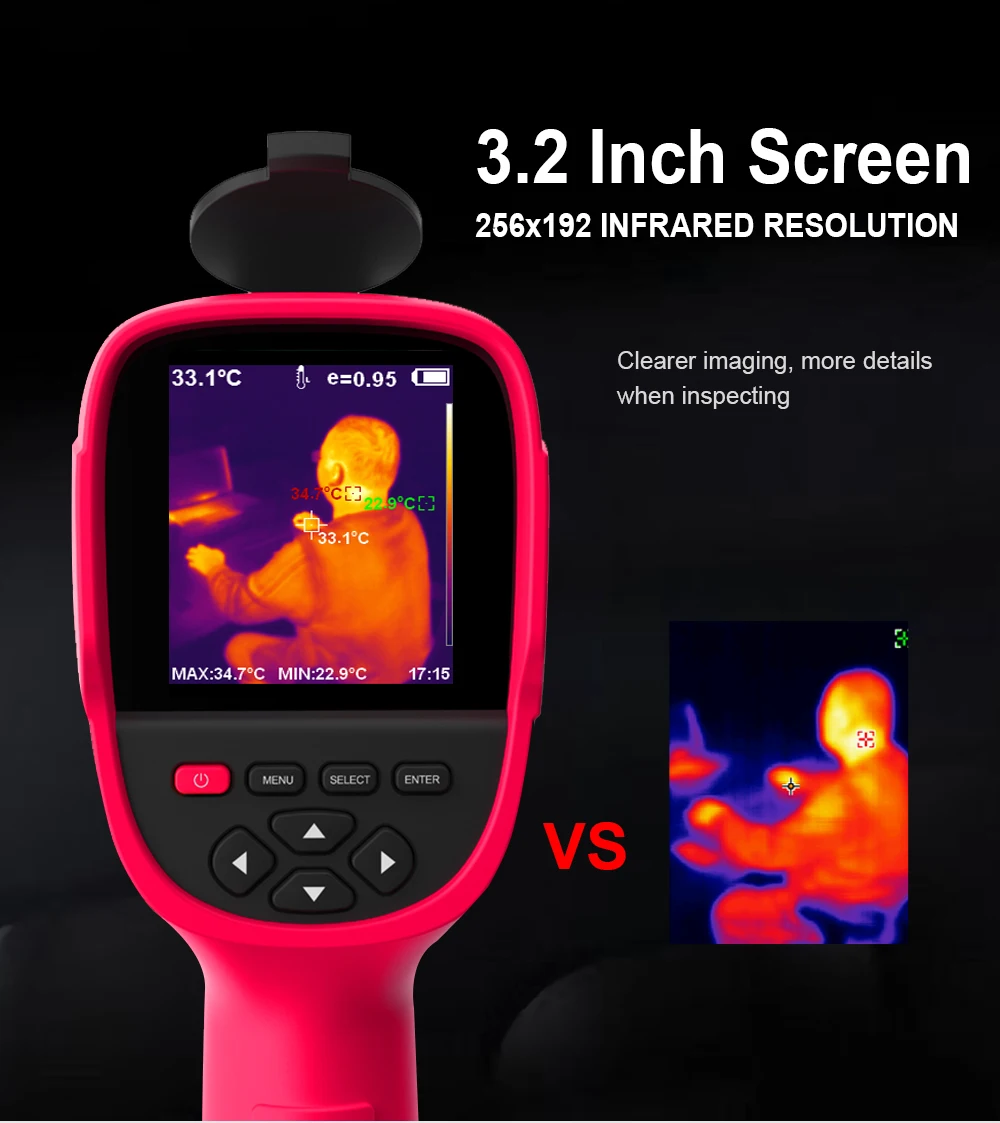

Display screen:3.2Inches
Infrared image resolution:256x192
LCD resolution:320x240
Field angle/focus length:56°x42°/ 4.0mm
IFOV:3.75mrad
Pixel spacing:12um
Frame rate:≤25Hz
Focusing mode:Fixed
NETD:<50mK@25℃,F#1.0
Wavelength coverage:8~14um
lmage displaymode: Infrared/visible light/dual light fusion
Emissivity:Adjustable from 0.01 to 1.0
Color palette:Rainbow, iron oxide red, cold color,white hot, black hot
Software analysis& Video:Support

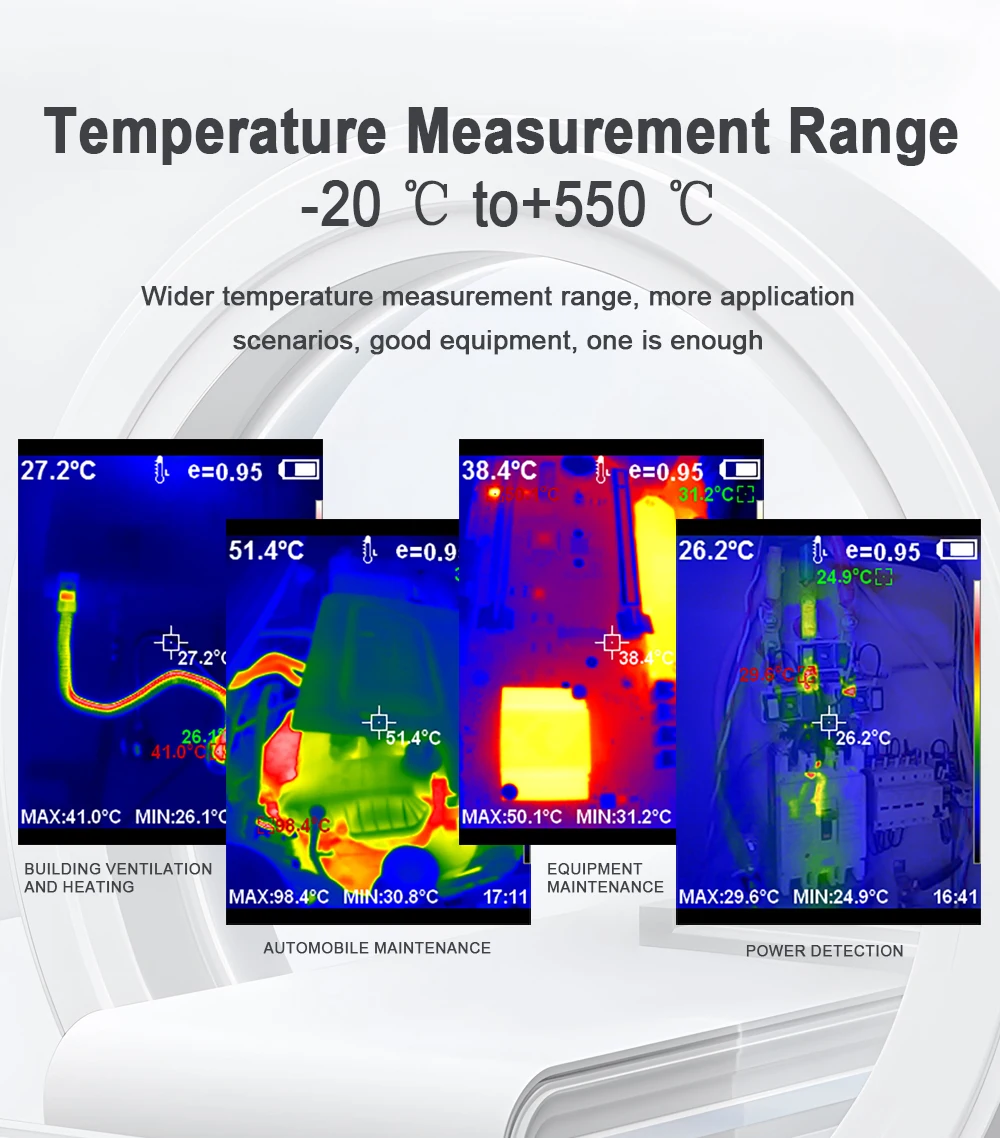

Measuring range:-20℃~+550℃(-4℉~1022℉)
Accuracy:-15℃~550℃(士2℃/士2%);-20℃~-15℃(士4℃)
Setting:Unit, Language,Date, Time,Information
Language:Chinese,English,German, Italian
Storage capacity:Built-in 8G(user available storage space is about 6.6G)
File format:JPG/MP4

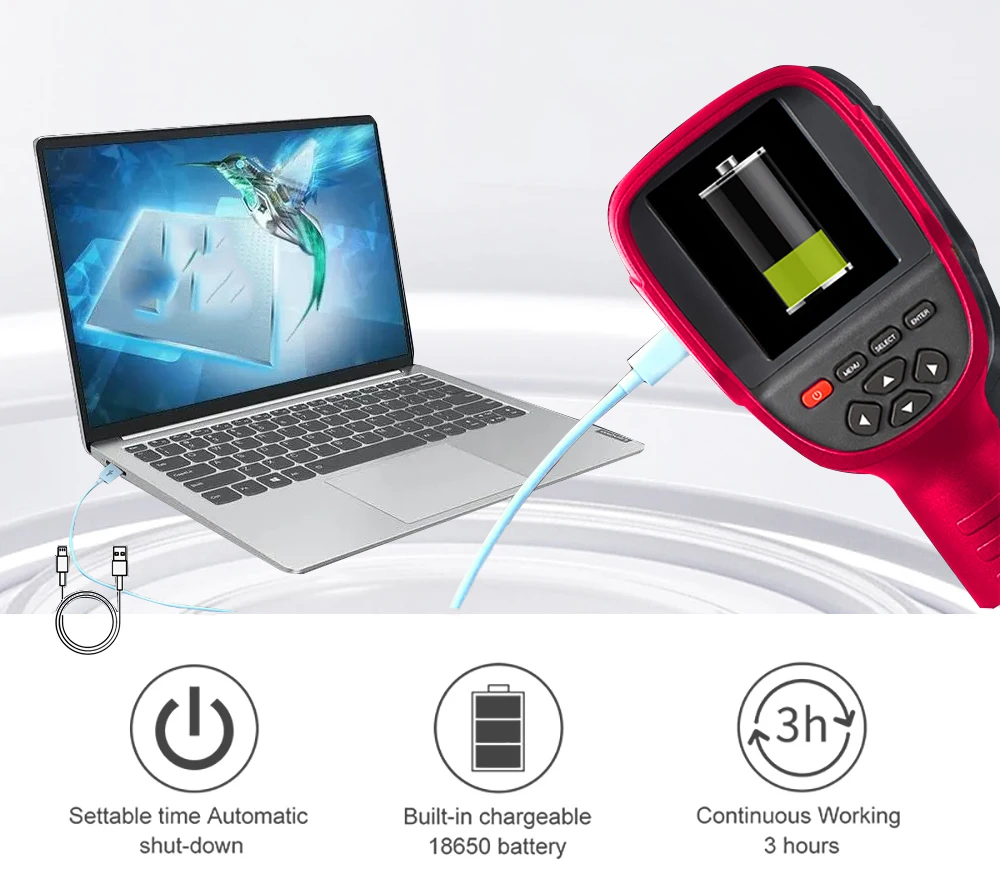

Battery type:Built-in 18650 battery
Work temperature:-10℃~50℃
Storage temperature:-20℃~+60℃
Relative humidity:10% to 85%RH
Power interface:Type-C
Battery capacity:2200mAh
Working time:2~3hours

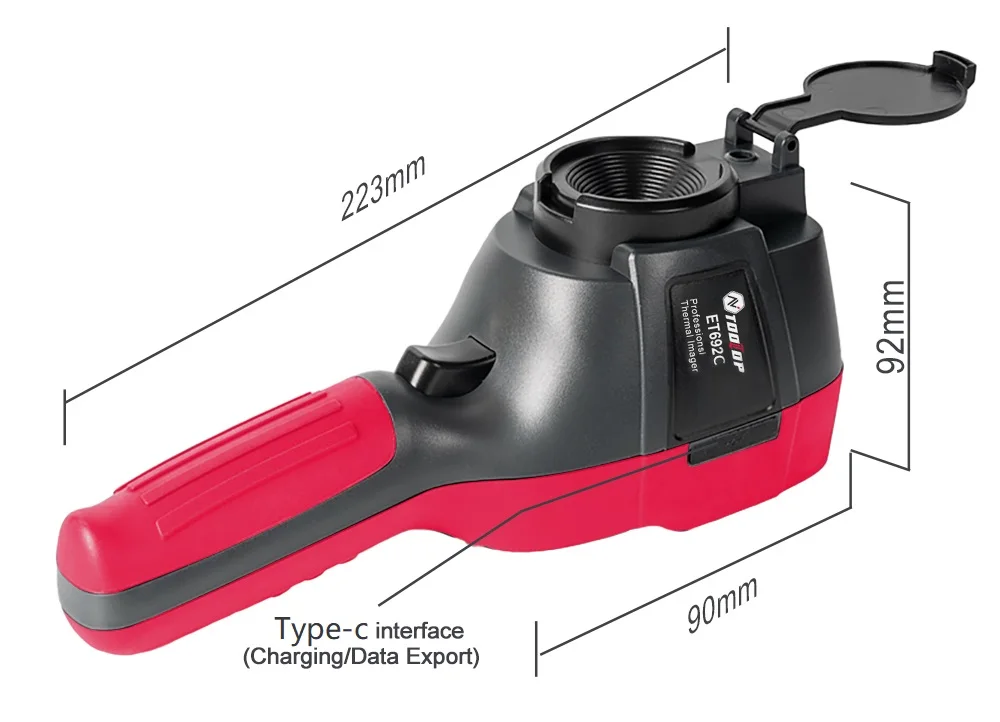

Product size:90x105x223mm
Product weigh:389g

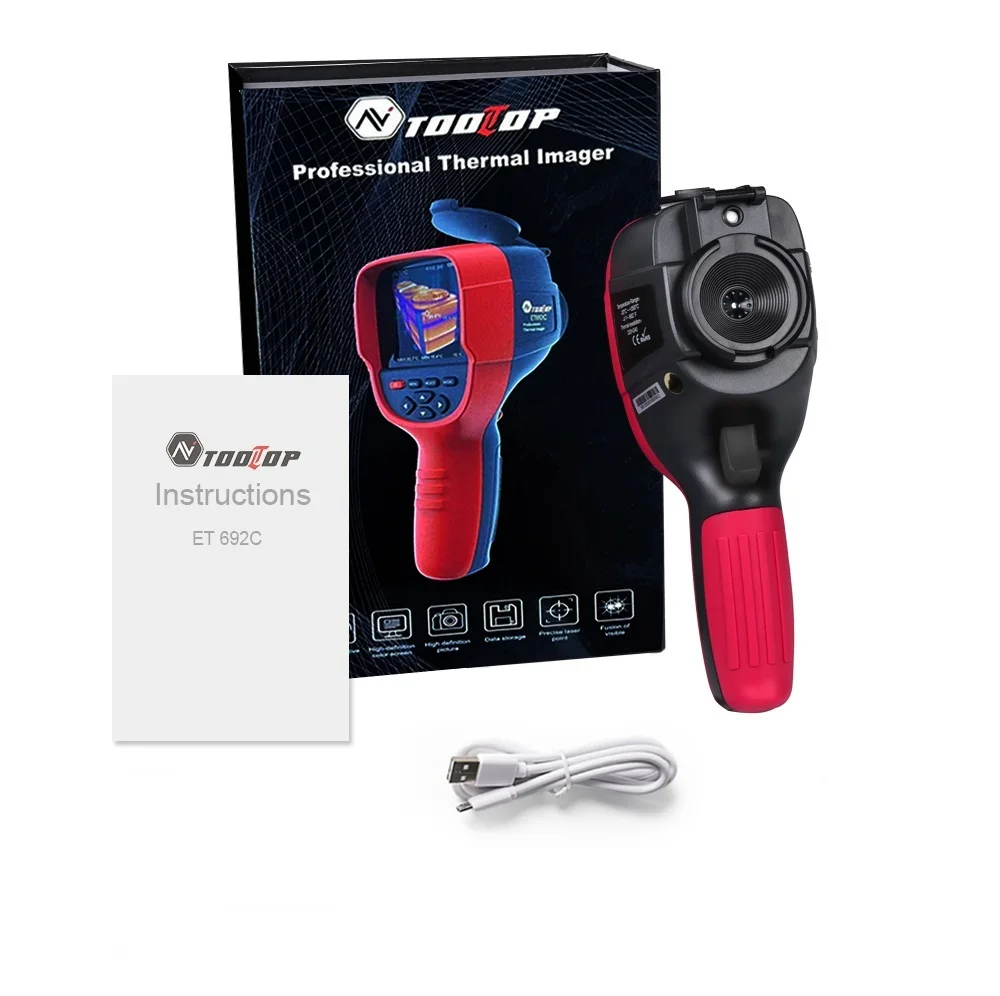

Package List
1 x ET692C 256*192 Thermal Imager
1 x Type-C Cable
1 x English User Manual
1 x Box
