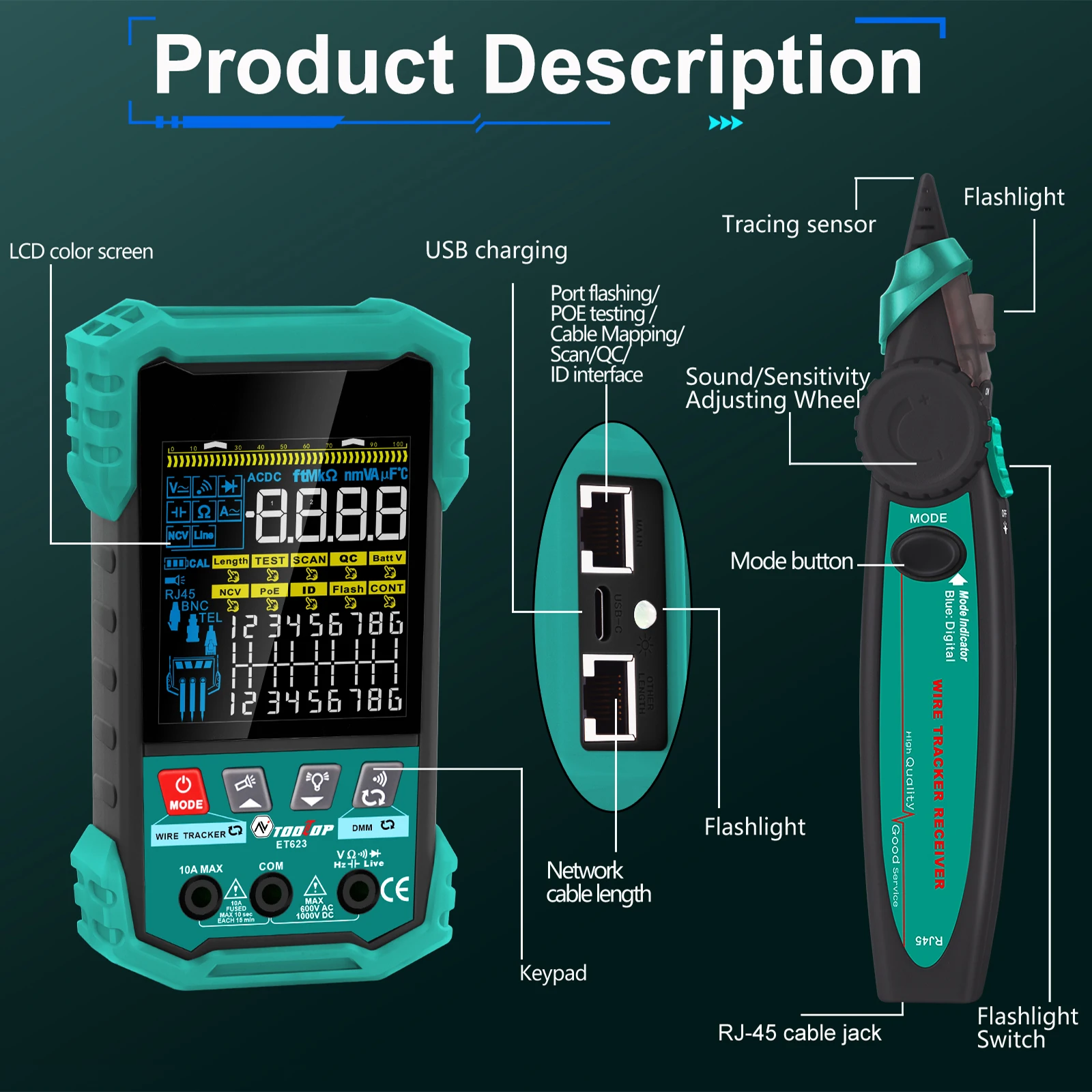

Product Description

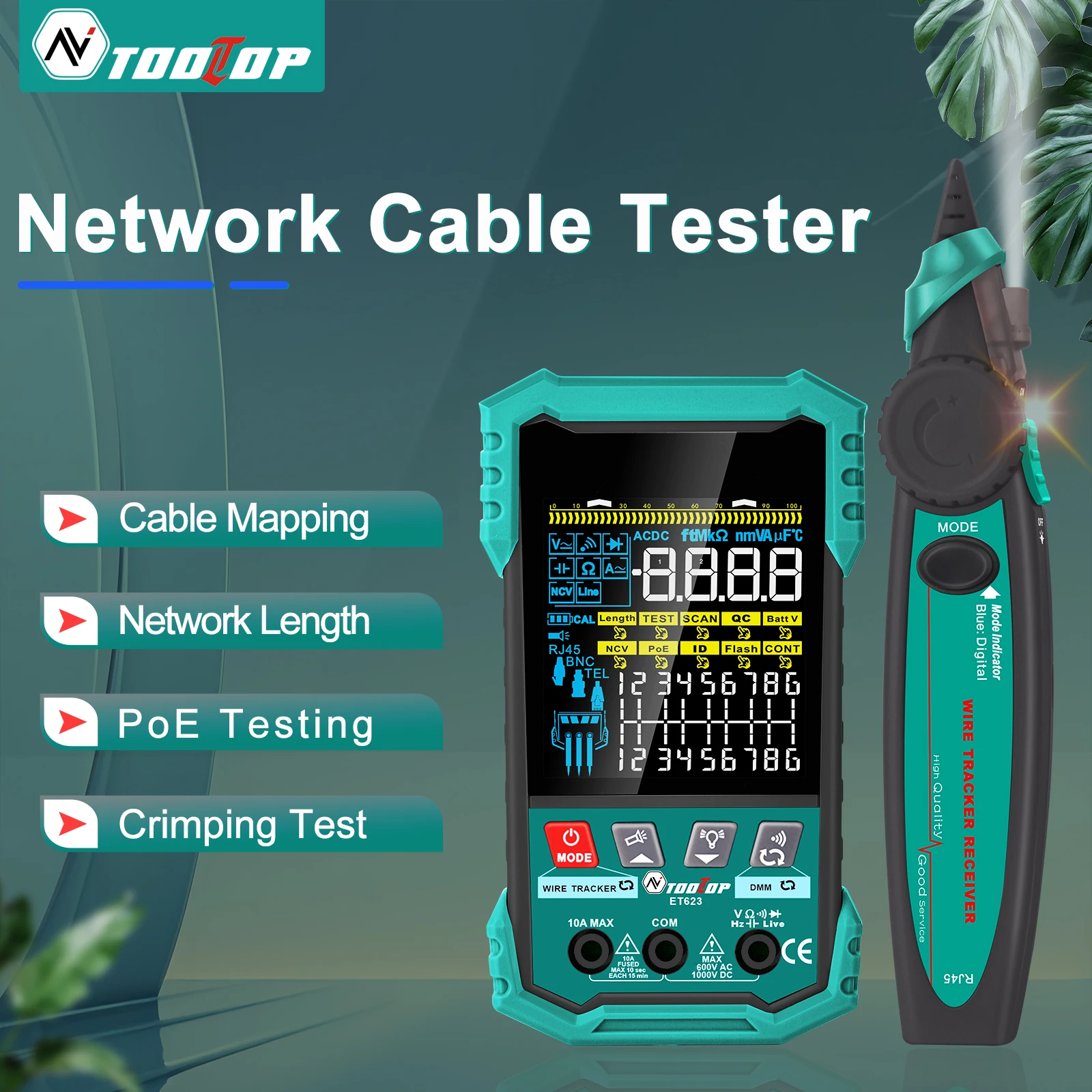

ET623：Network Cable Tester + Multimeter 2 in 1
ET622：Network Cable Tester
Features:

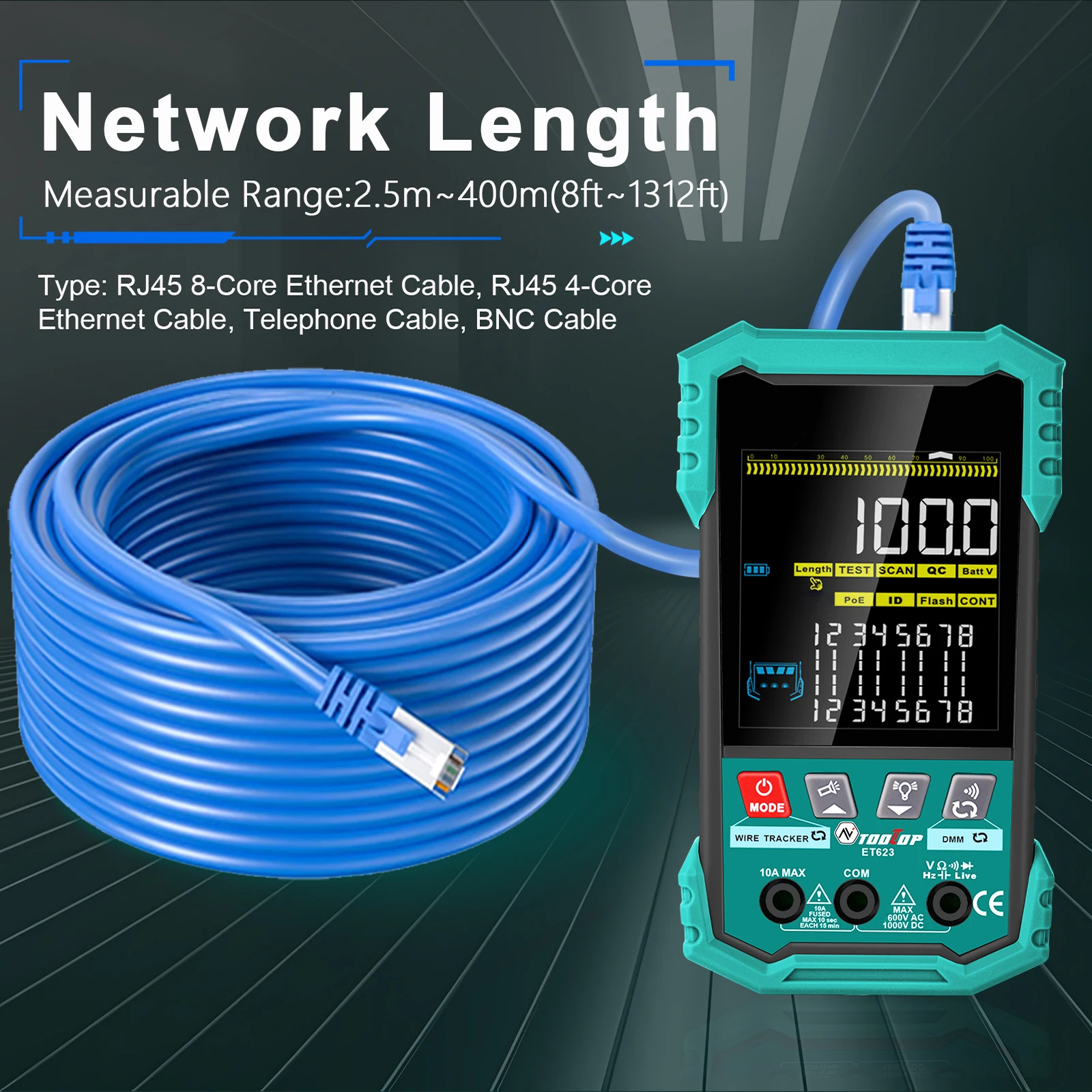

1.2.5-400M network cable length measurement (applicable to RJ45 8-core or 4-core network cable, telephone line, BNC video cable)

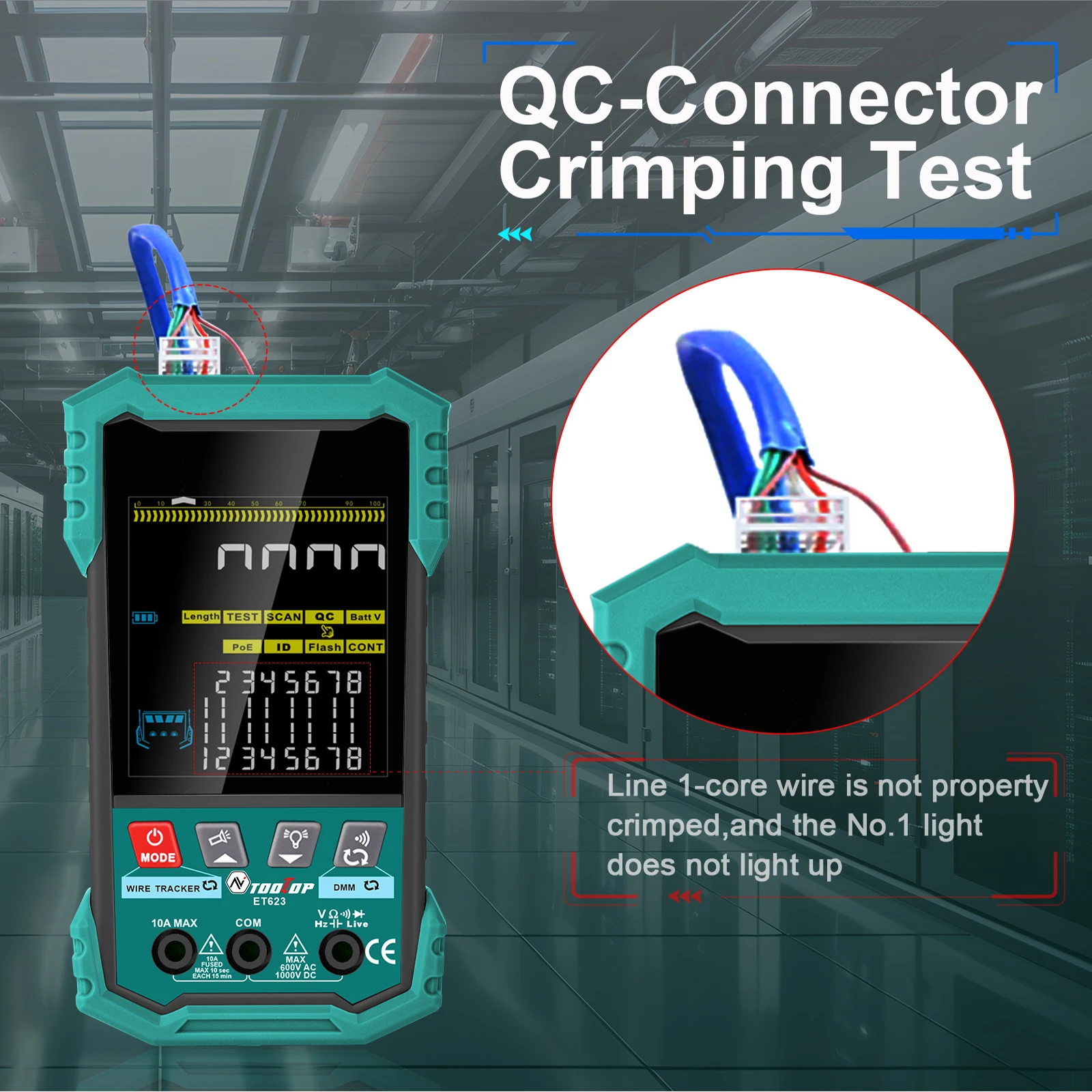

2. Crystal head crimping test to determine whether the network cable is crimped and connected

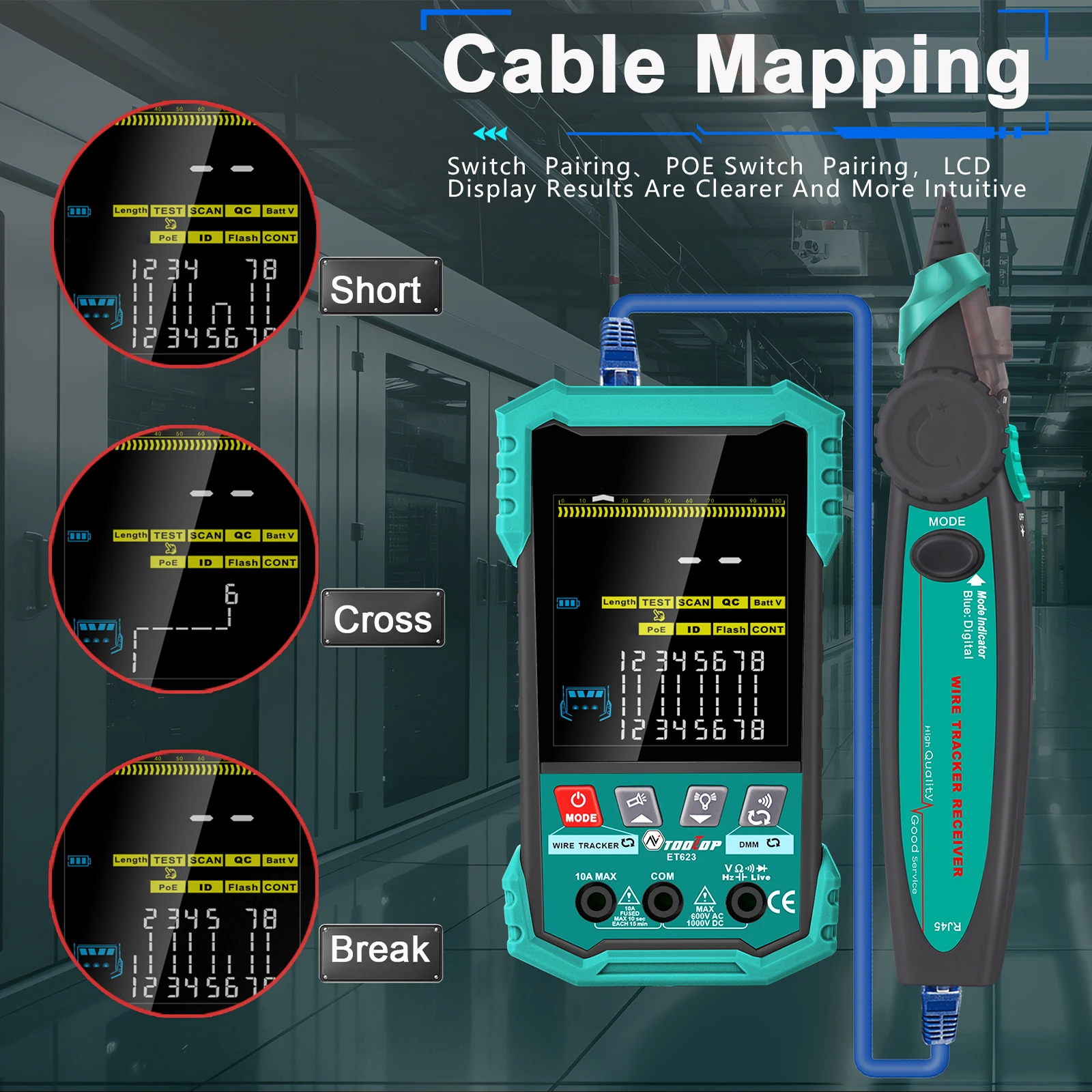

3. Cable mapping function can test the open circuit, crossover, short circuit, etc. of the network cable

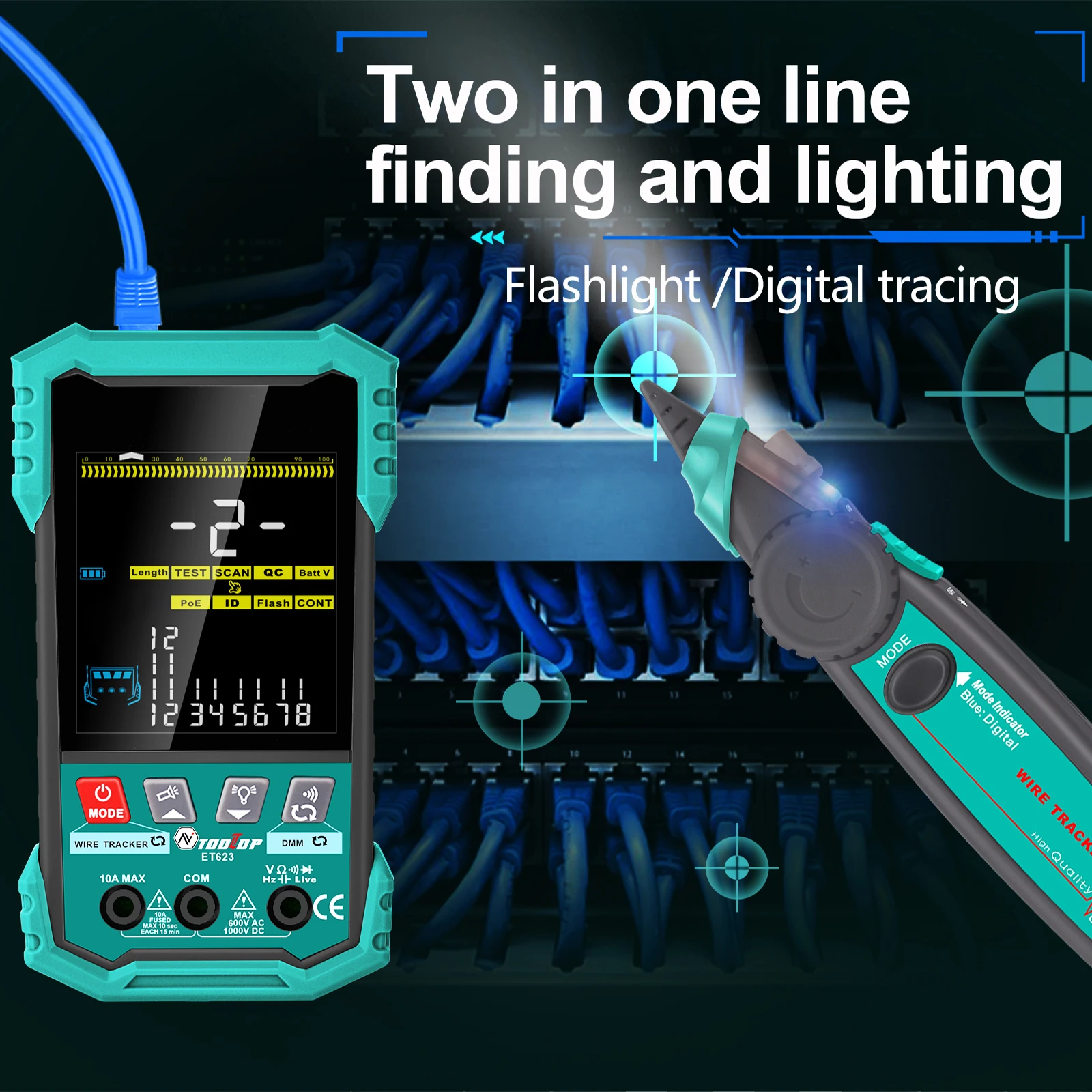

4. Noise-free digital line search, quickly find the target line, with sensitivity adjustable

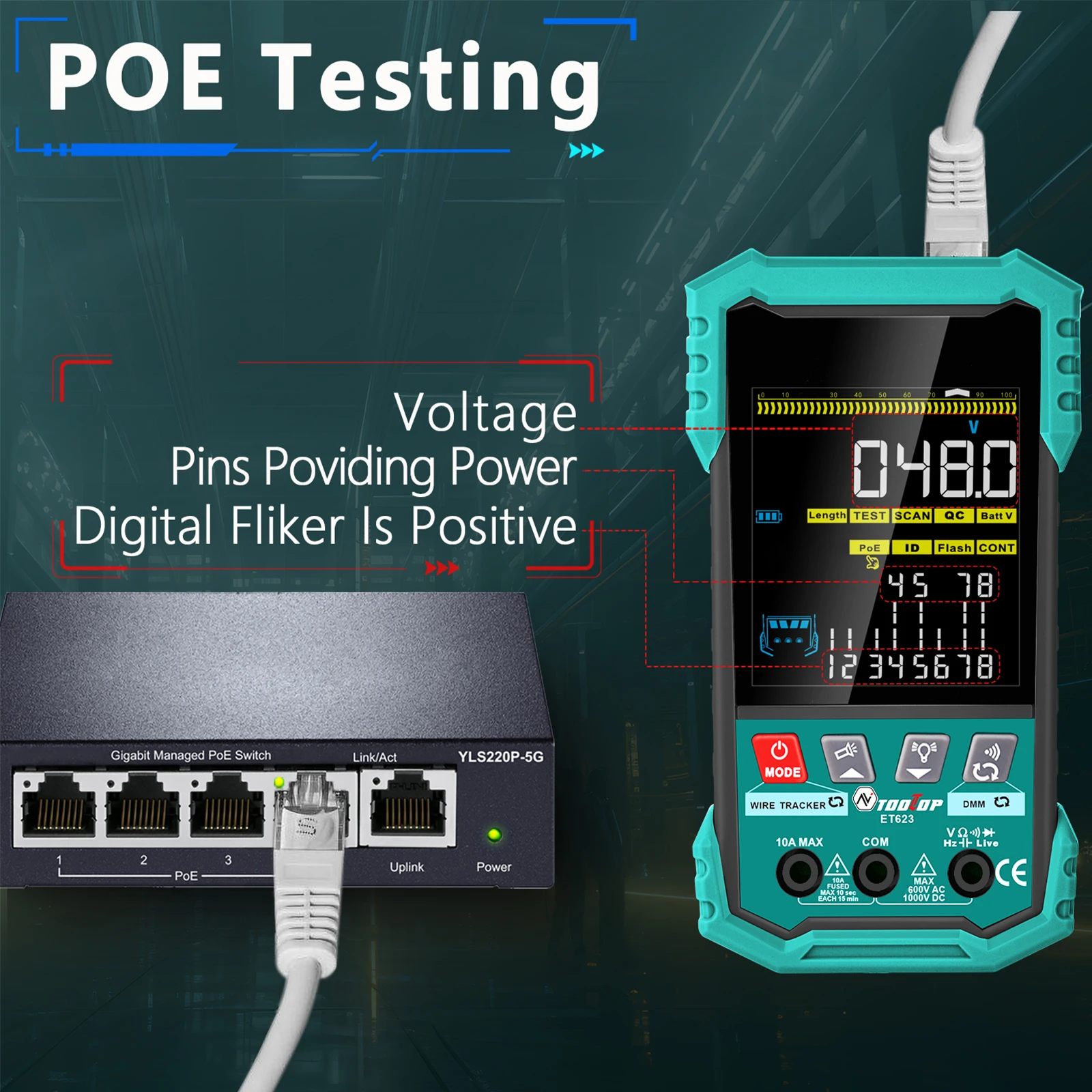

5. POE test, polarity judgment and voltage value display, applicable to standard, non-standard/IEE802.3AF/AT

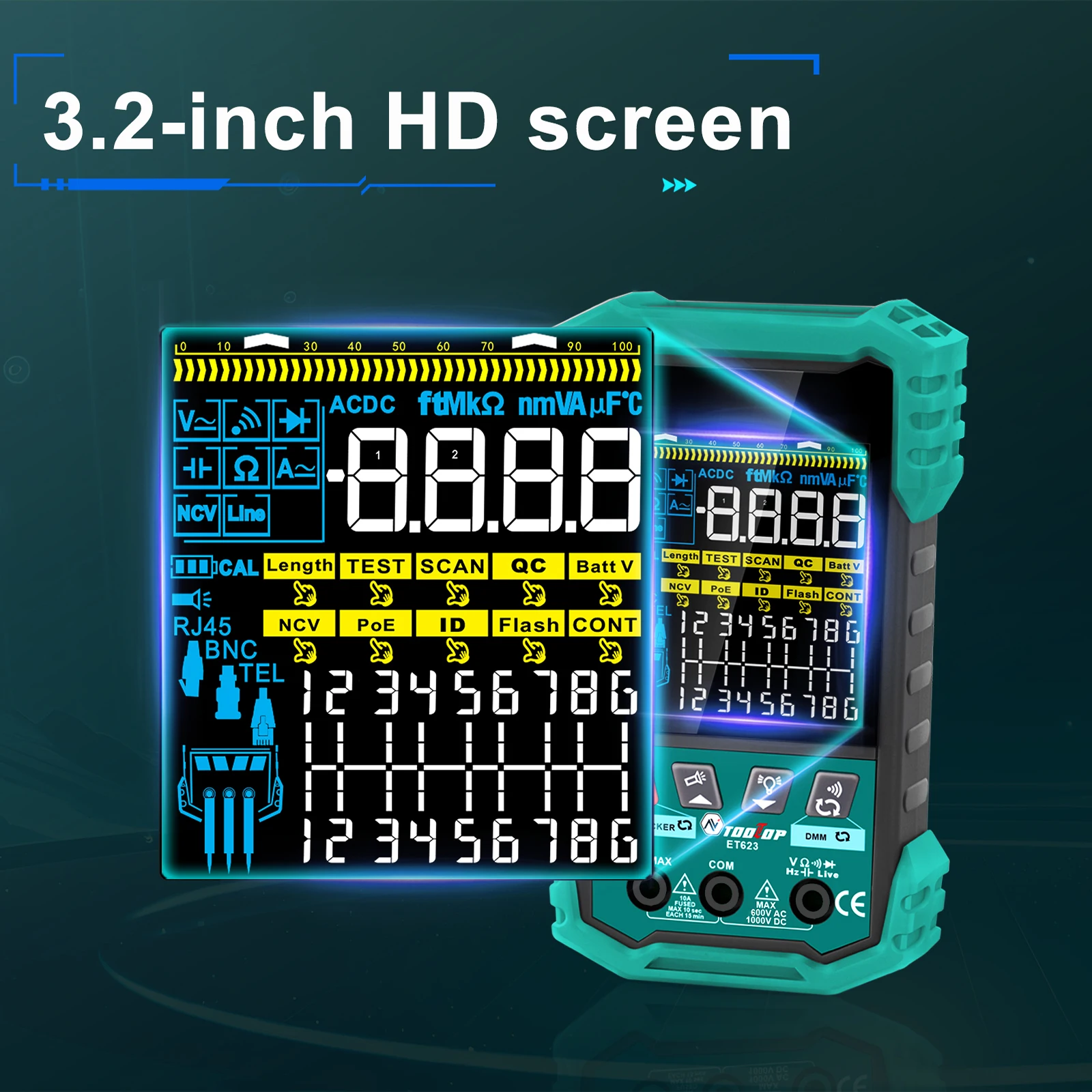

6. 3.2-inch color LCD display, clearer input indication
7. The model ET623 comes with multi-function multimeter function
8. The host uses lithium battery for power supply, which is more environmentally friendly

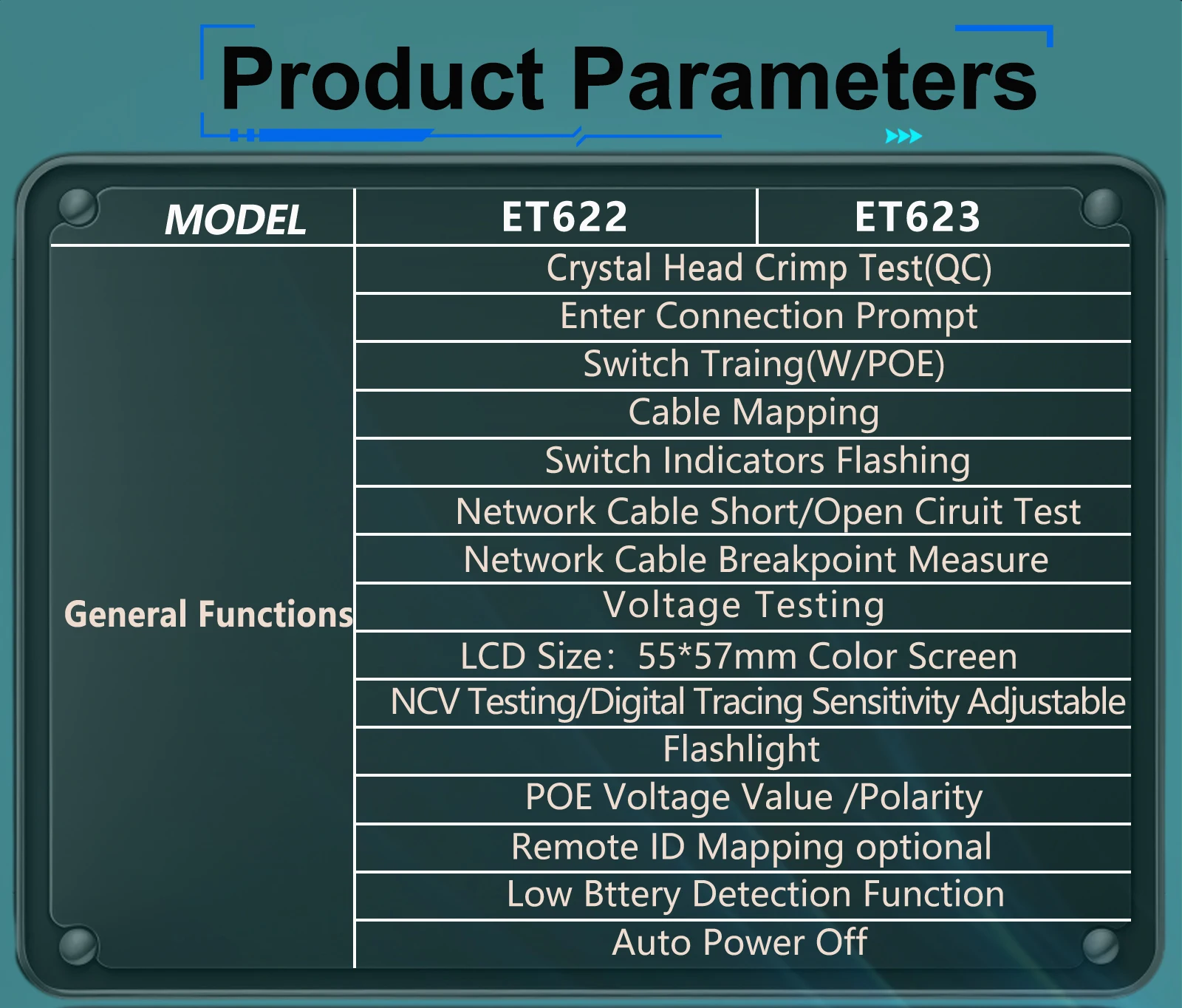

Specifications:
Network Cable Tester
Digital Tracing: Digital mode (ET622) , Digital and vibration(ET623)
Network Cable length: 2.5~400m
Length Accuracy：2% ±1m
Crystal Head Crimp Test(QC)：Support

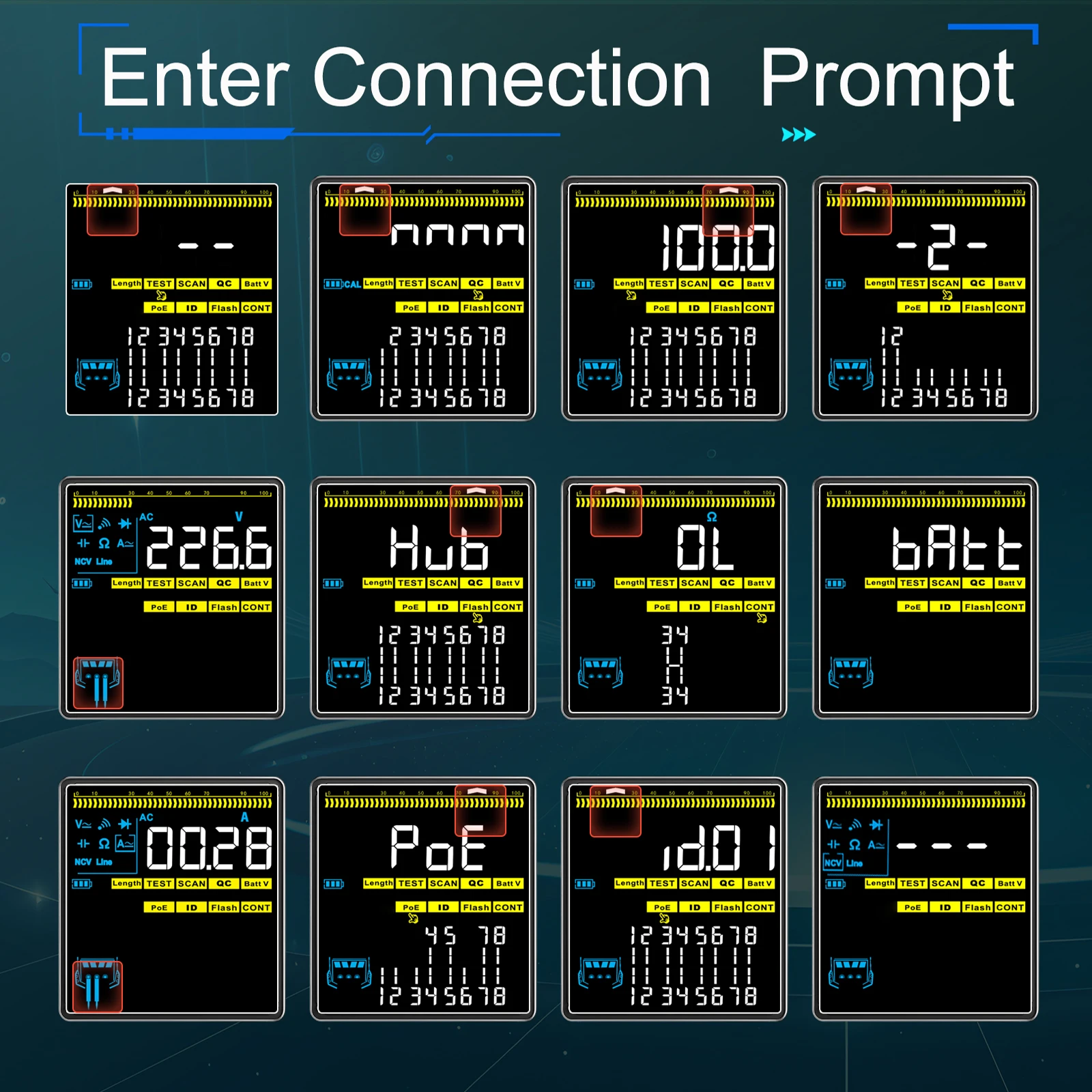

Enter Connection Prompt ：Support
Switch Tracing (with POE)：Support
Cable Mapping ：Normal/Open/Short/Cross

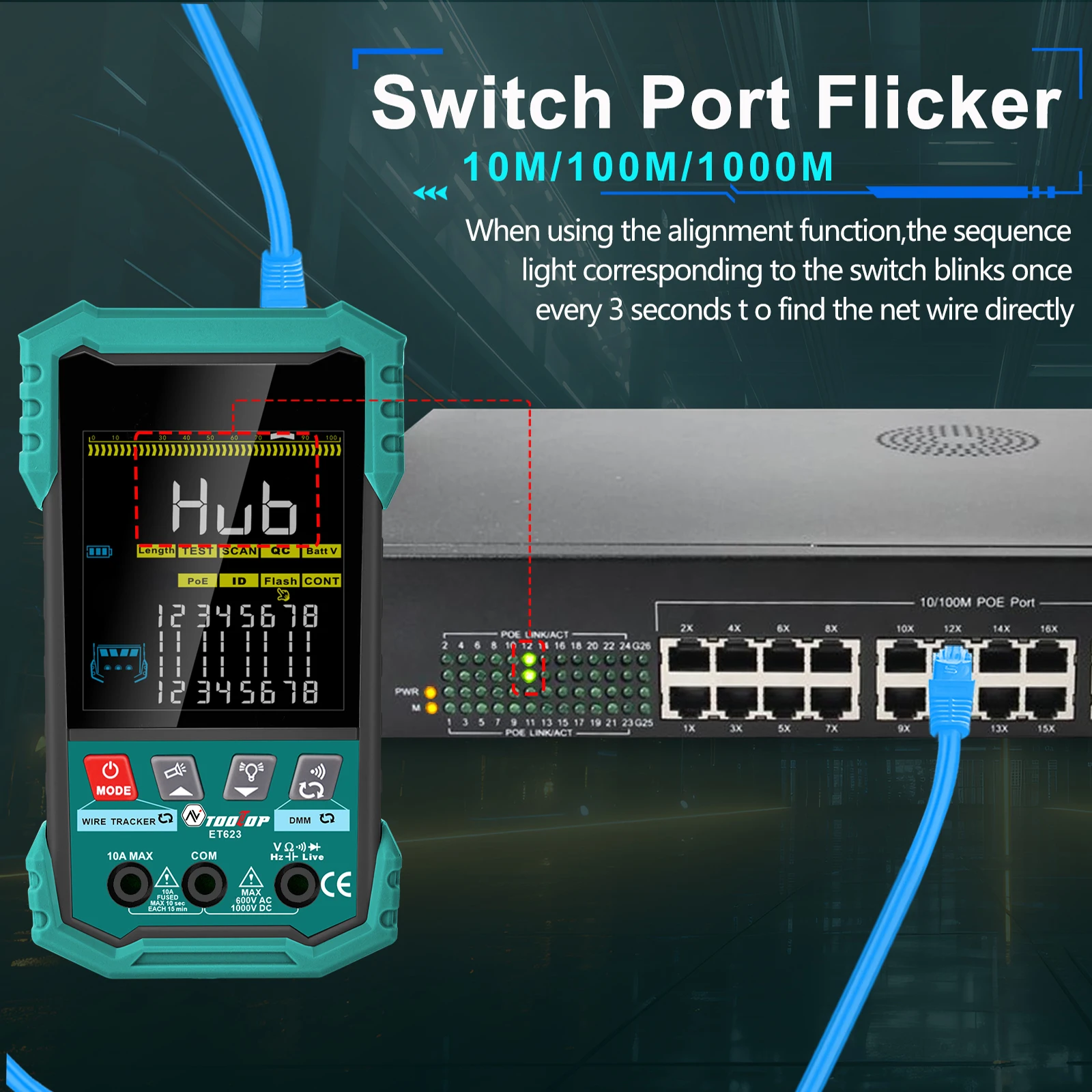

Switch Flash: 10/100/1000 Mbps
Breakpoint Measurement: Supported
Voltage (battery) test：
ET622：1~60V(±2% or 0.5V)
ET623：Multimeter measurement

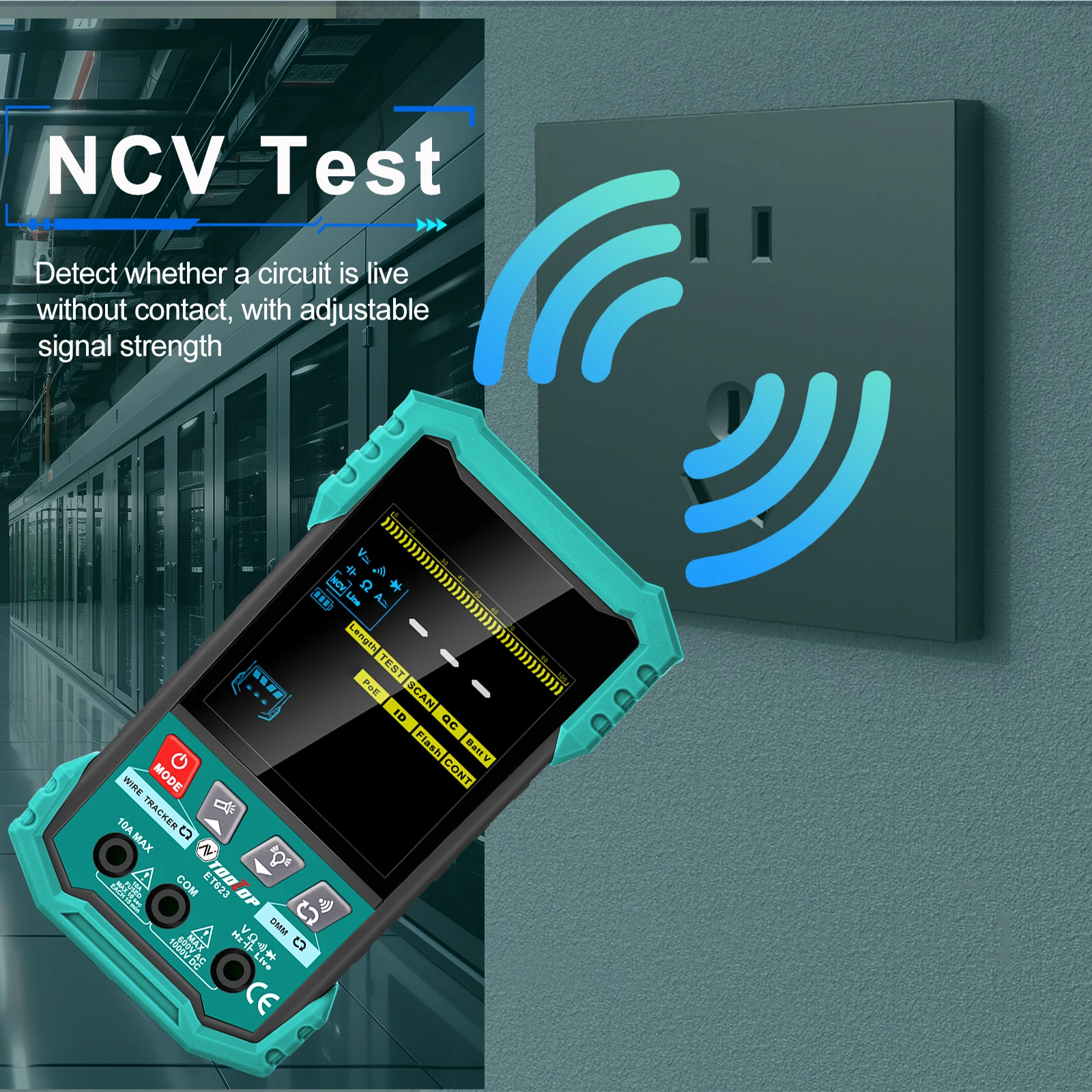

NCV Testing Sensitivity ：Adjustable
Digital Tracing Sensitivity ：Adjustable
Flashlight lighting: support
POE Test: Voltage/polarity

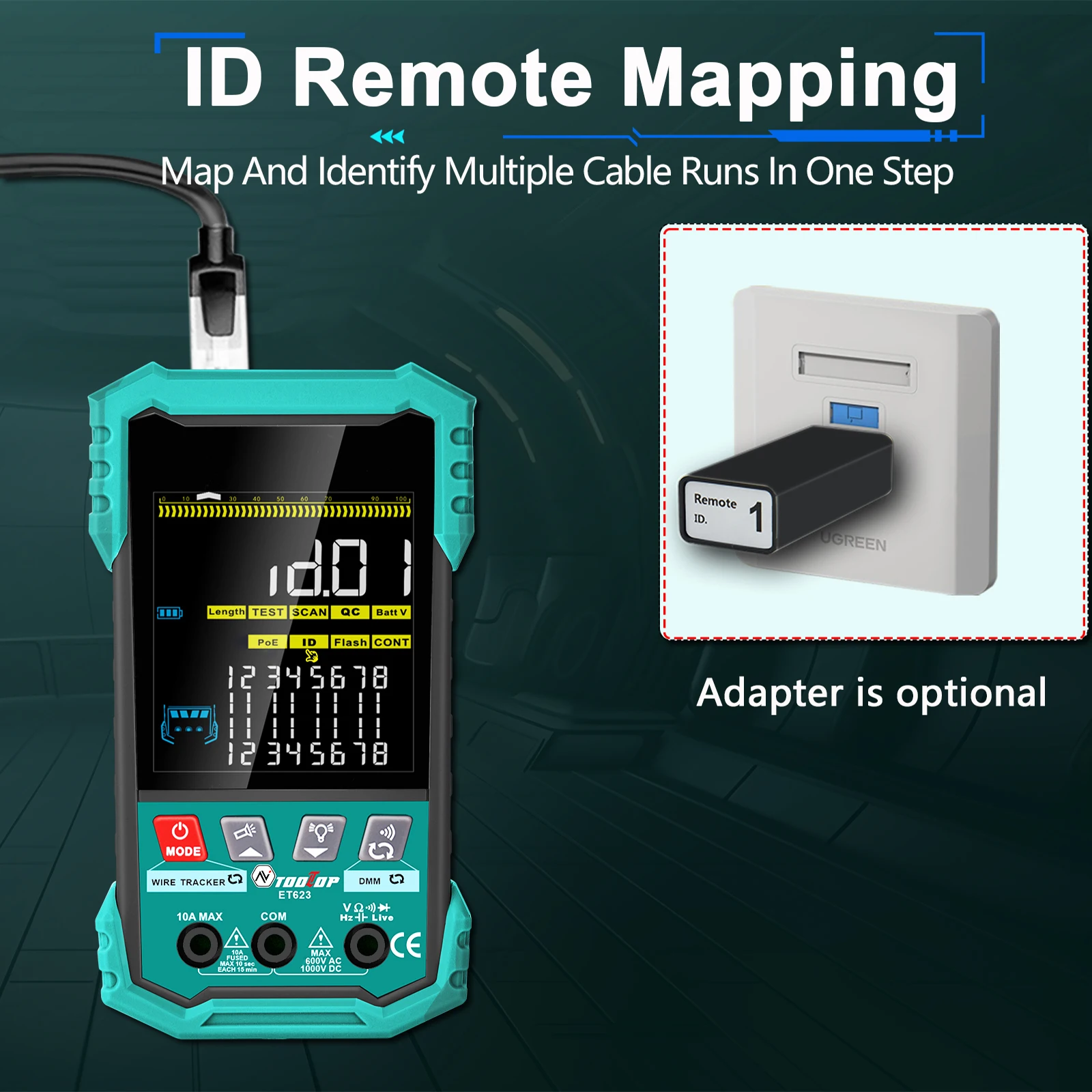

Remote ID mapping: optional
Low battery detection function: support
Auto Power Off: Support
Power supply: 1250mAh (Host) rechargeable lithium battery(included)/ 1*9V(receiver)battery (NOT INCLUDED)
LCD Size: 55*57mm Color Screen
Size: Host 136 * 80 * 30mm / Receiver 185 * 35 * 27mm

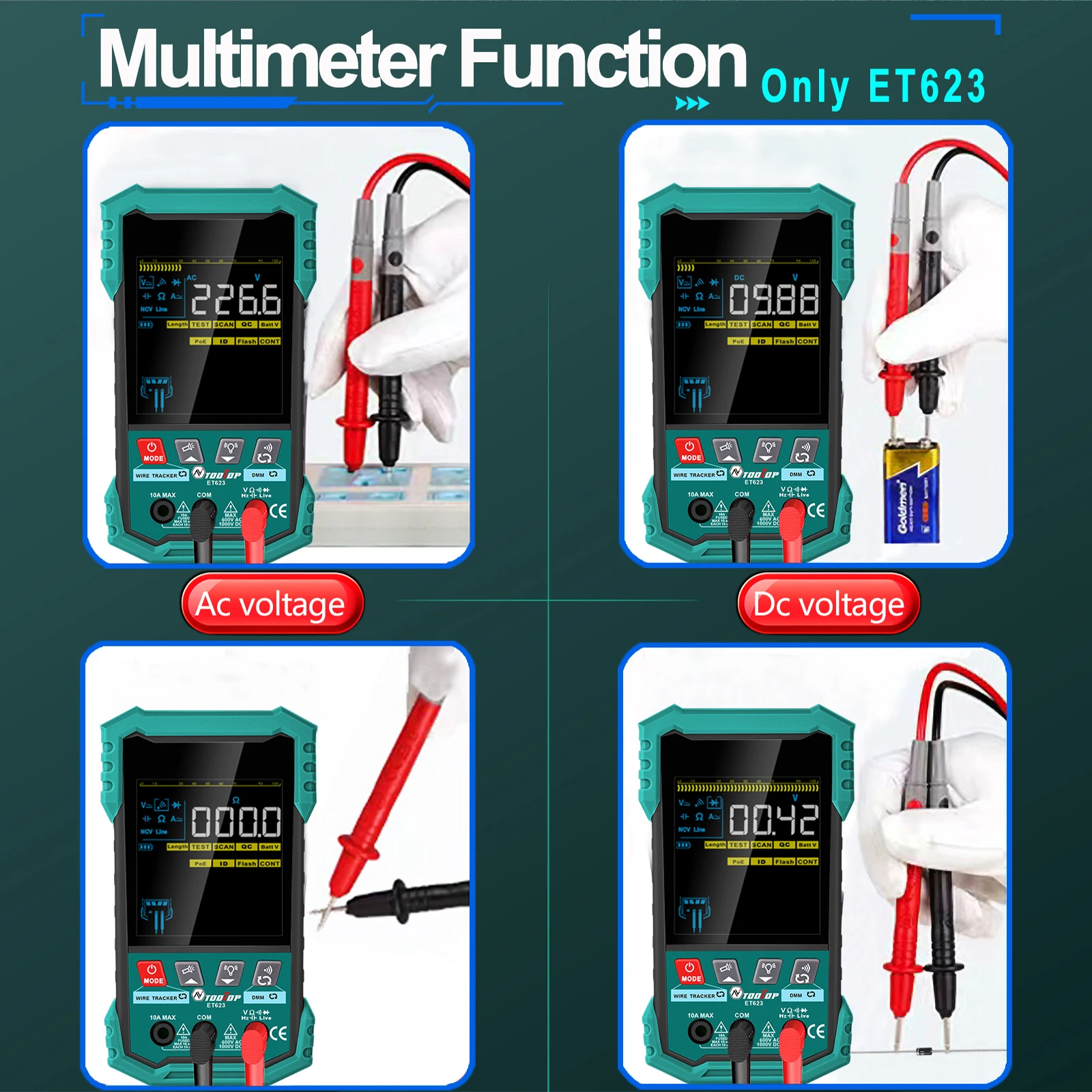

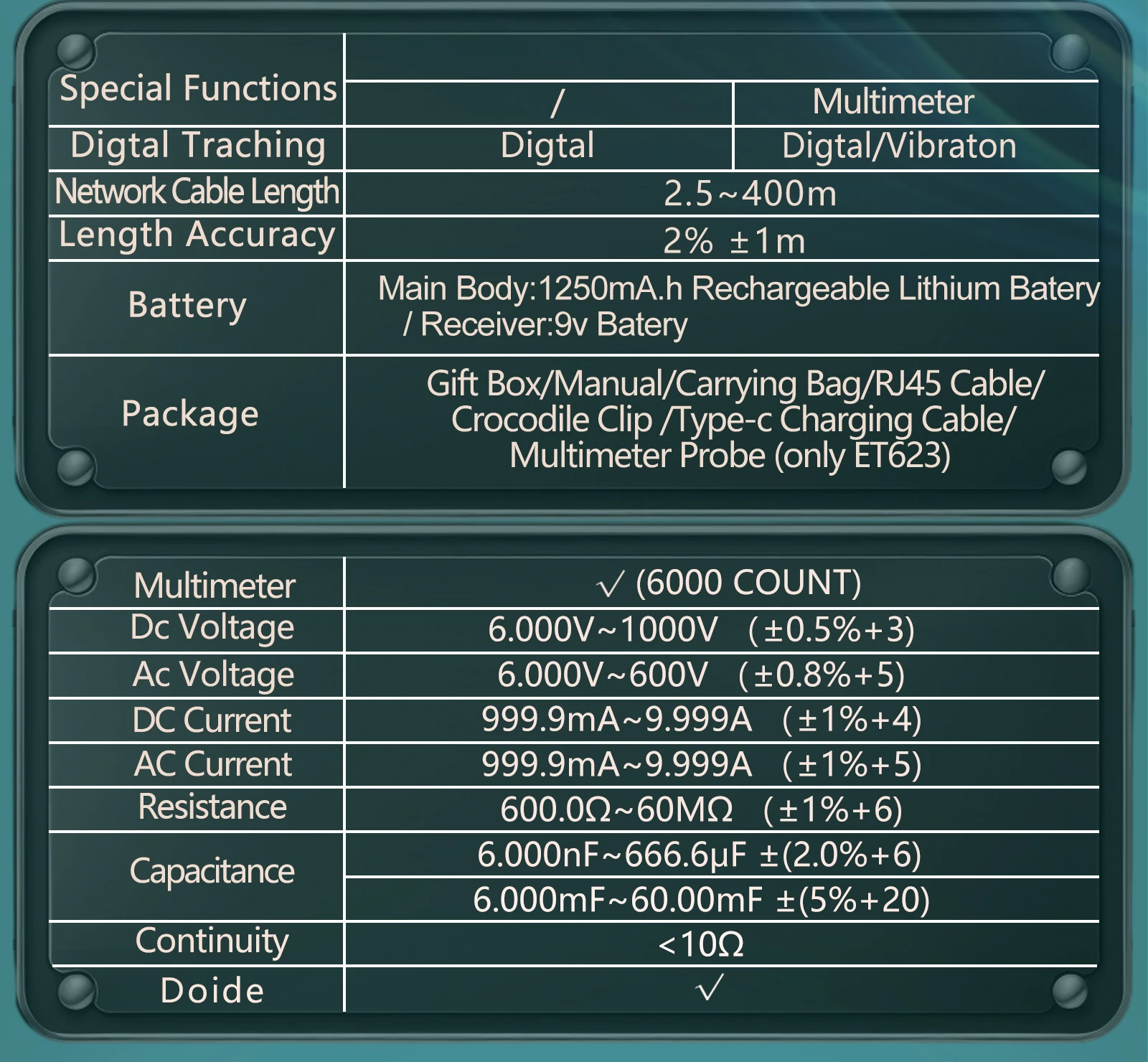

Multimeter【only for ET623】
Multimeter: 6000 counts
DC Voltage: 600.00mV~1000V (±0.5%+0.3)
AC Voltage: 6V~600V (±1%+3)
DC Current: 999.9mA~9.999A(±1.2%+3)
AC Current: 999.9mA~9.999A(±1.5%+3)

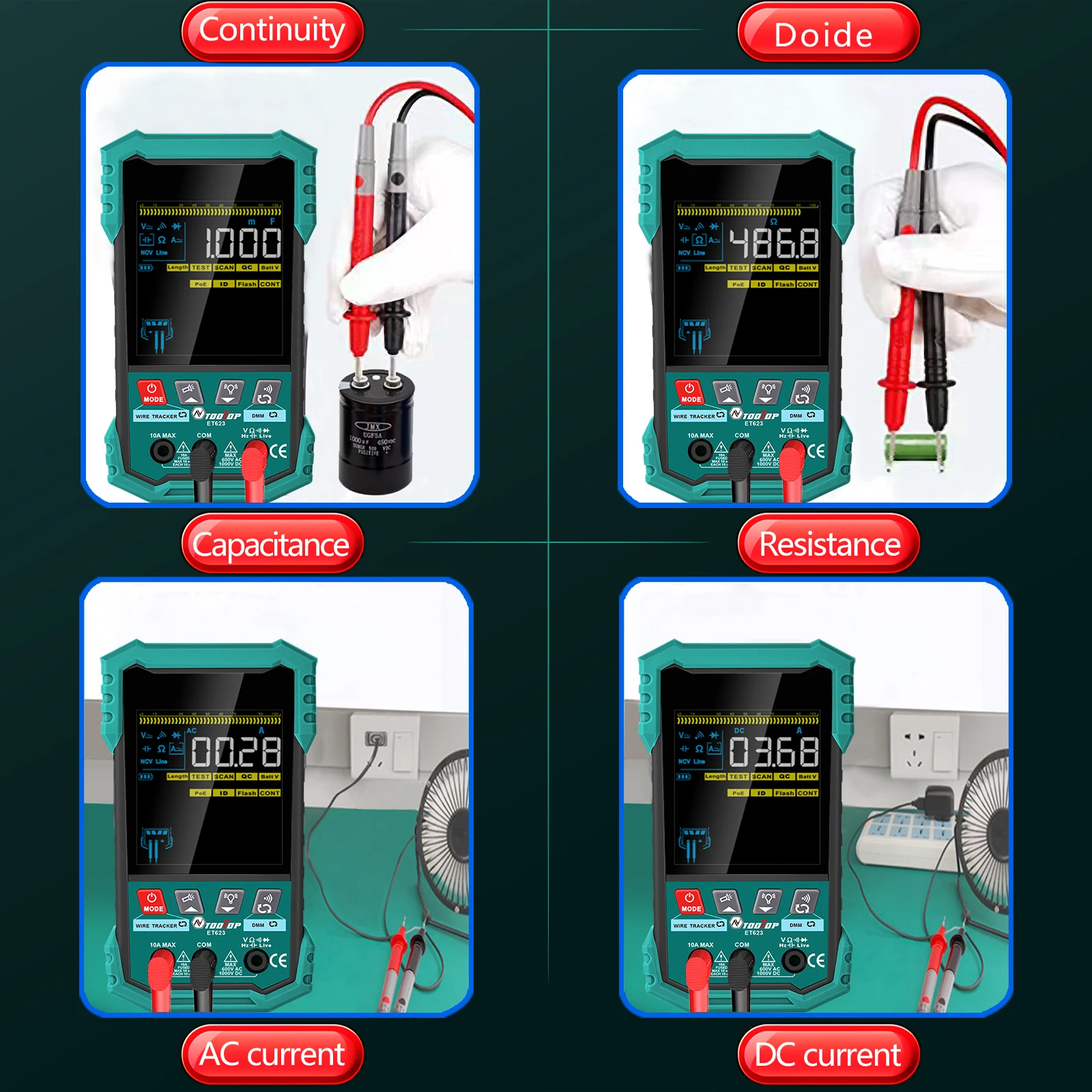

Resistance: 600.0Ω~60.00MΩ (±1.5%+5)
Capacitance: 6.000nF~666.6μF (±2.0%+6)
6.000mF-60.00mF(±5%+20)
Continuity: ＜10Ω ，buzzer sounds
Diode: support

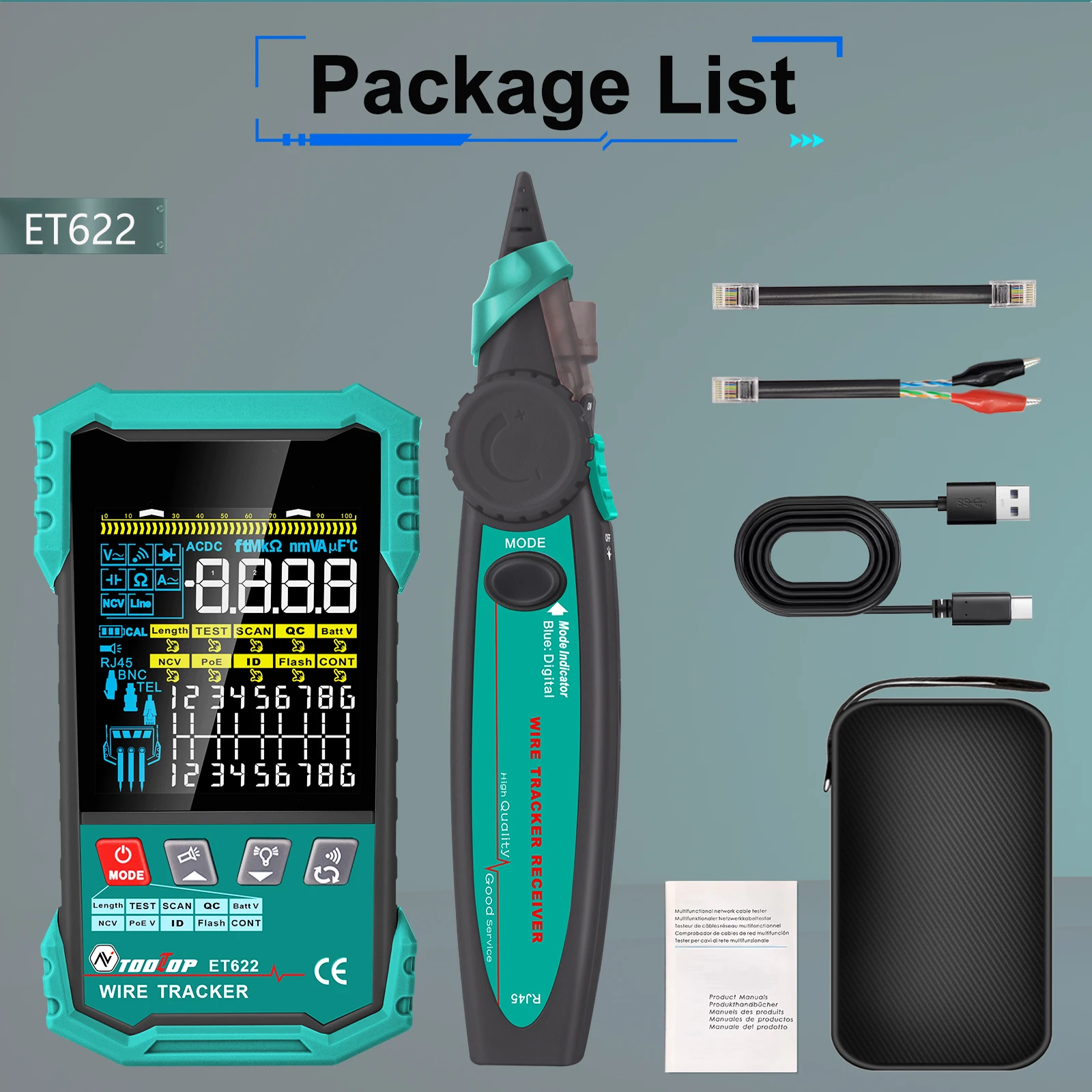

ET622 Package List:
1 x Network Cable Tester
1 x Receiver
1 x USB Cable
1 x RJ45 Cable
1 x Crocodile Clip
1 x English User Manual
1 x Storage Box

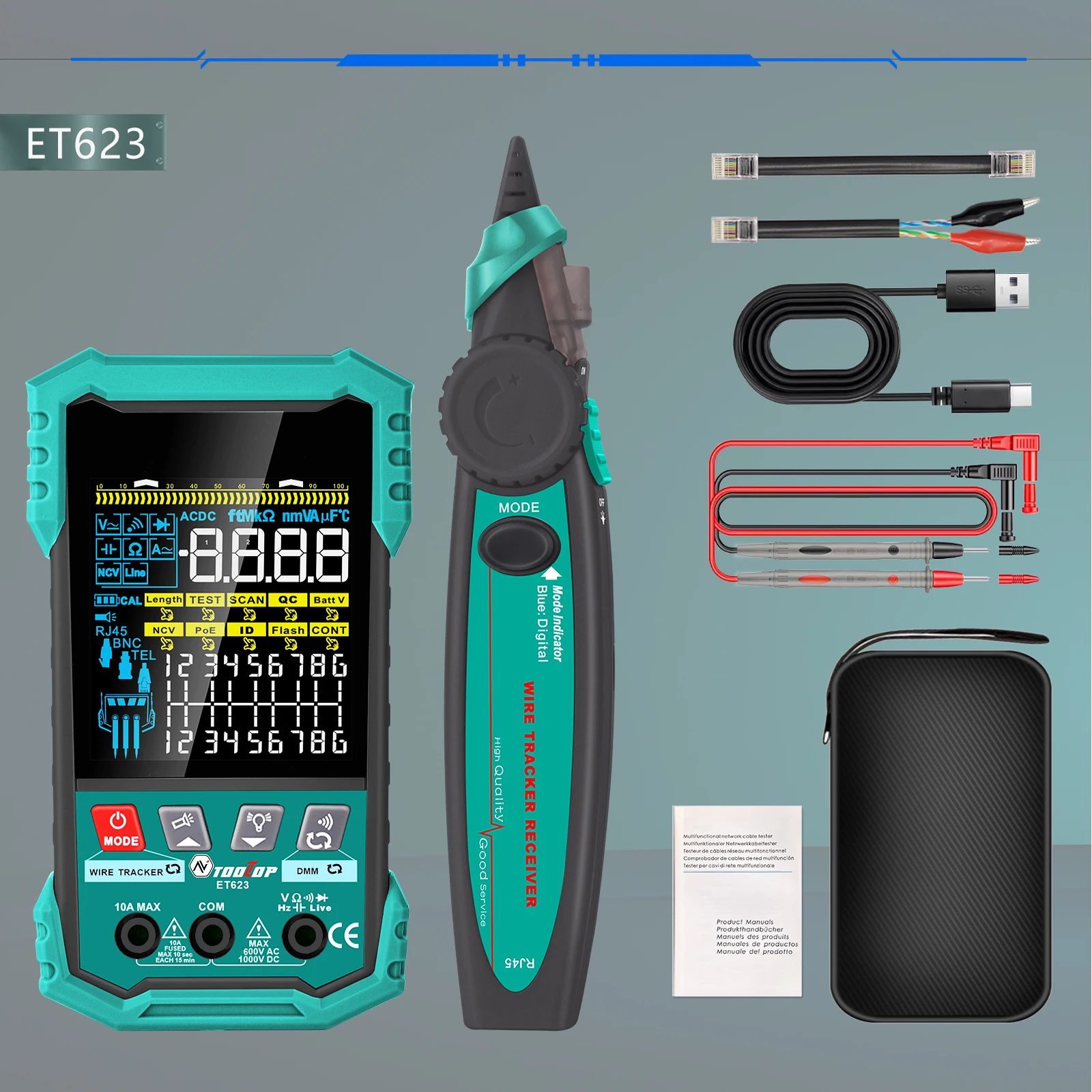

ET623 Package List:
1 x Network Cable Tester
1 x Receiver
1 x USB Cable
1 x RJ45 Cable
1 x Crocodile Clip
1 x English User Manual
1 x Storage Box
1 x Multimeter Test Leads

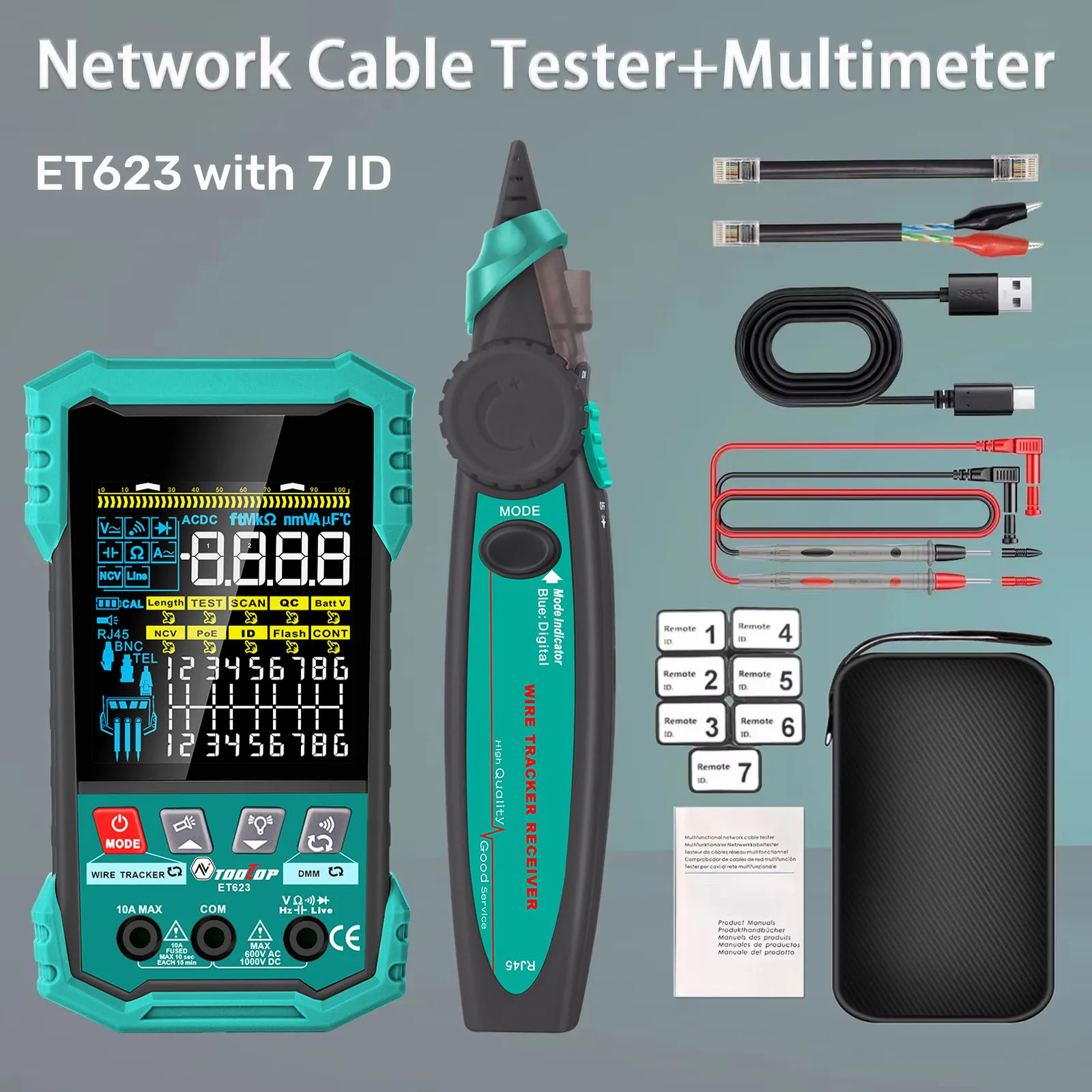

ET623 with 7 ID Package List:
1 x Network Cable Tester
1 x Receiver
1 x USB Cable
1 x RJ45 Cable
1 x Crocodile Clip
1 x English User Manual
1 x Storage Box
1 x Multimeter Test Leads
7 x Remote ID
