Product Description
3204B Product Description
I.Product Name in Package: SmallRig Advanced V-Mount Battery Mount Plate with Adjustable Arm 3204B
II.Product Name in Marketing: SmallRig Advanced V-Mount Battery Mount Plate with Adjustable Arm 3204B
III.Key Features
1. Standard V-mount, compatible with most V-mount batteries;

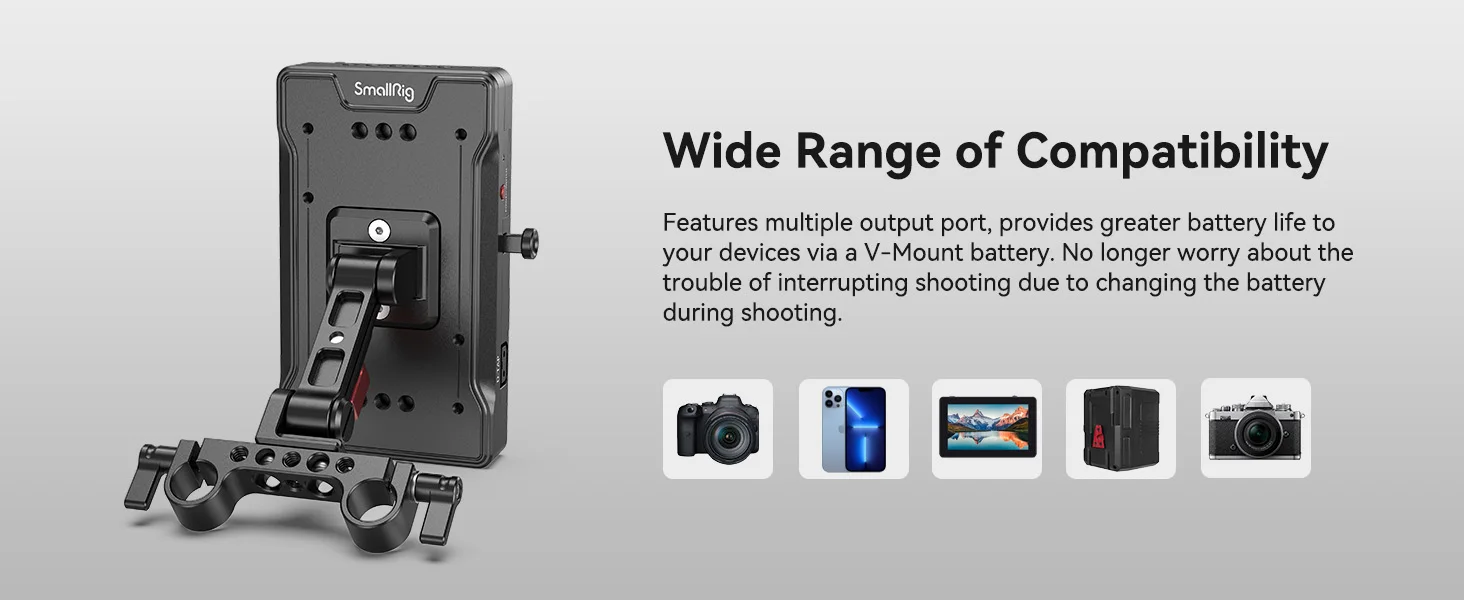

2. PD protocol compatible USB-C input / output (65W Max.) port and QC protocol compatible USB-A output (36W Max.) port for powering cell phones, image transmitters, etc.;
3. D-Tap (14.8V x 1) and DC (8V x 1 / 12V x 2) power port;

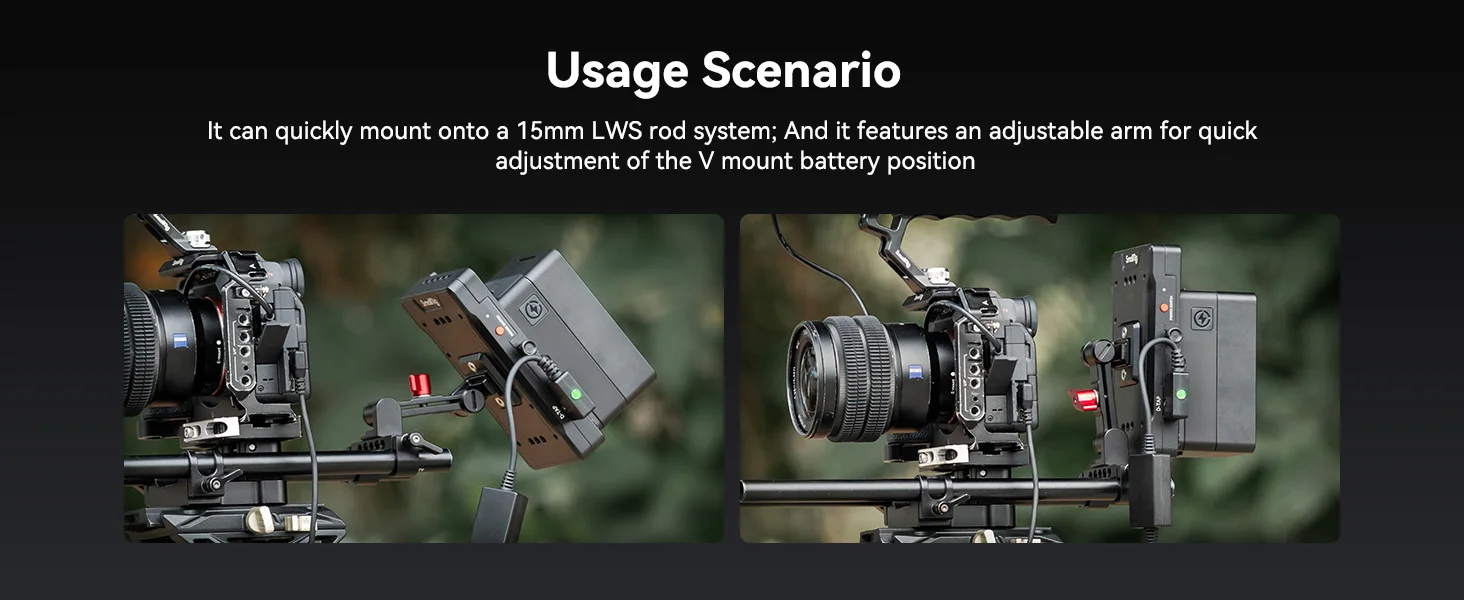

4. Quickly mounts onto 15mm LWS rod system;

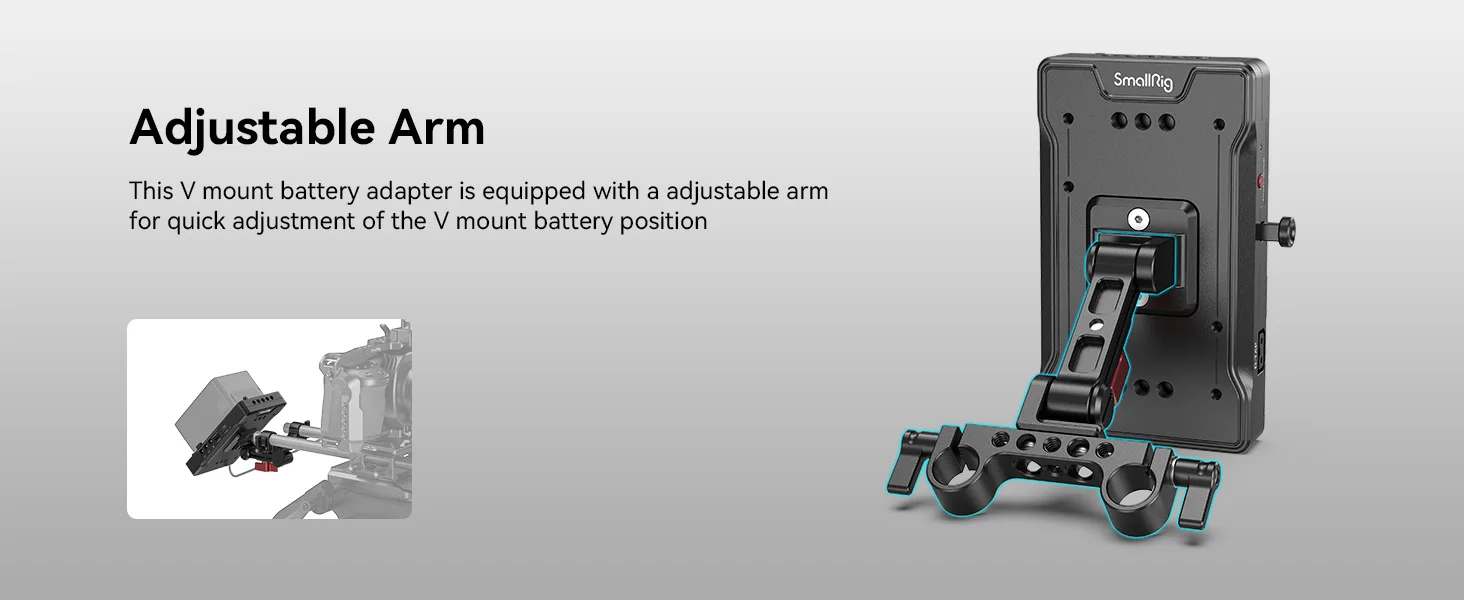

5. Quickly repositions the V-mount battery.
IV.Description
SmallRig Advanced V-Mount Battery Mount Plate with Adjustable Arm 3204B can quickly mount onto 15mm LWS rod system. This item features a standard V-mount, compatible with most V-mount batteries on the market, six 1/4"-20 threaded holes and ten M4 threaded holes on the back, five 1/4"-20 threaded holes on the top and bottom, which support dual rod clamp and many other accessories. It comes with a PD protocol compatible USB-C input / output (65W Max.) port and a QC protocol compatible USB-A output (36W Max.) port for fast charging/discharging; a D-Tap input / output (14.8V) port; and three DC output ports (DC5521 8V x 1 / DC5525 12V x 2). The power indicator light and charging/discharging indicator light indicate working status and fast / slow charging mode; the power on / off button can simultaneously control multiple ports. Besides, the aluminum alloy plate has comfortable texture, with wonderful heat dissipation performance and durability.
V.Compatibility
V-Mount Battery
VI.Certification
Quality Inspection Report / FCC / UKCA / CE / RoHS / ISED
VII.In the Box
Advanced V-Mount Battery Adapter Plate x 1
Dual Rod Clamp with Adjustable Arm x 1
Hex Spanner x 2
Screw x 2
User Manual x 1
VIII.Specifications
Battery Compatibility V-Mount Battery
Dual Rod Diameter 15mm (for 15mm LWS rod system)
Battery Voltage 11.0V~16.8V
Battery Rated Capacity 3500mAh~20000mAh / 14.8V
Cut-off Voltage 11.0V
Input Voltage (Max.) 16.8V
Working Power (Max.) ≤ battery power (subject to battery capacity)
Total Maximum Power Discharging: 271W (Max.)
D-Tap Rated Input / Output Current 5A
D-Tap Input / Output Current (Max.) 10A (subject to power adapter)
D-Tap Input Voltage 11.0V~16.8V
USB-A Output Power 36W (Max.)
USB-A Output Protocol QC2.0 / QC3.0 / AFC / DCP-1.5A / APPLE-2.4A
USB-C Input Power 65W (Max.)
USB-C Output Power 65W (Max.)
USB-C Input / Output Protocol PD3.0 / QC2.0 / QC3.0 / PPS / AFC / DCP-1.5A / APPLE-2.4A
DC1 Output 8.0V / 3A (Max.)
DC2 Output 12V / 3A (Max.)
DC3 Output 12V / 3A (Max.)
DC Overcurrent Protection ≥4.1A
Material(s) Aluminum Alloy
IX.Functions Description
Charging / Discharging Indicator Light USB-C charging;
orange light—slow charging / discharging, ice blue light—fast charging / discharging
Power Indicator Light Light on—powered on; light off—powered off;
light flashing—working temperature exceeds 65℃
Power on / off Button Power on—tap the button; power off—long press the button for 2 seconds;
D-Tap, USB-A and DC output unavailable after powering-off;
D-Tap input and USB-C input/output available after powering-off
Note:
Product weight and dimensions may have measurement errors.
Warning:
Do not use it in a damp environment to avoid short circuits;
When the indicator light keeps blinking, it means the working temperature exceeds 65℃. Please suspend its use.
Please do not drop the product, or use it under high temperatures or when a short circuit occurs.
X.Related Products
3579, 3580, 3581, 3202B, 3203B, 3497, 3498, 3499, 4252, 4253
XI.Specifications
Product Weight: 399±5g
Product Dimensions: 14.2cm×15cm×9.3cm
Package Weight: 517g±5g
Package Dimensions: 17.1cm×13.3cm×8.3cm
