Product Description
1. Two autonomous power supply and control systems facilitate simultaneous charging for two V-mount batteries
2. Incorporated intelligent charging circuit maximizes battery lifespan
3. Stringent testing standards and diverse certifications ensure the utmost safety and stability
4. Compatible with the majority of V-mount batteries available on the market

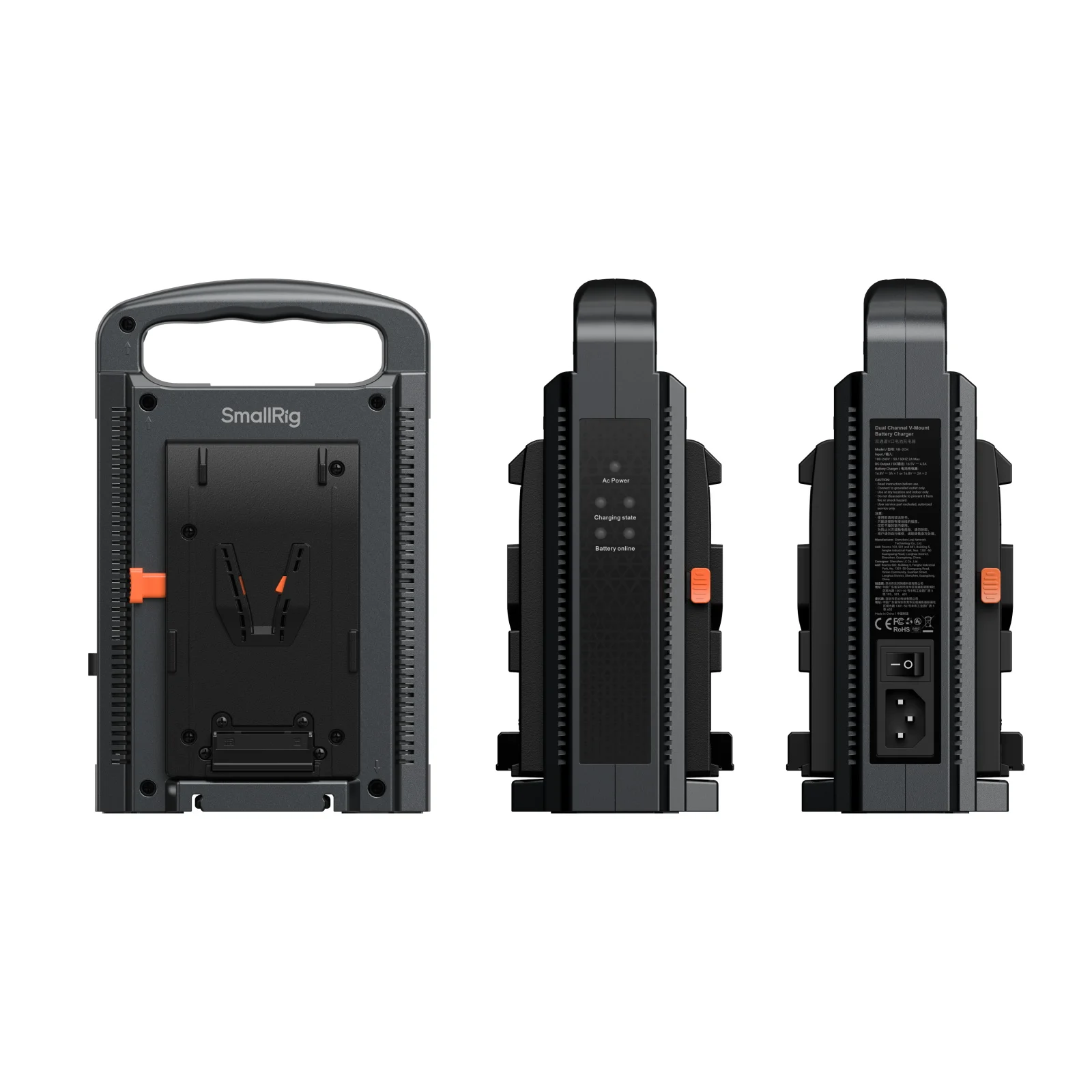

5. Featuring multiple operational indicator lights for convenient tracking of battery charging status
6. The innovative, eye-catching color palette and premium-quality texture
7. Equipped with a comfortable handle on top and a foldable bottom stand for easy portability and convenience of use
SmallRig Dual Channel V-Mount Battery Chargerutilizes two autonomous power and control systems, enabling simultaneous charging of two V-mount batteries for enhanced efficiency. Equipped with an intelligent charging circuit, this charger maximizes battery lifespan protection. It has undergone rigorous reliability tests including circuit inspections, drop tests, and high/low-temperature environment assessments. Additionally, it holds international certifications such as 3C, FCC, and CE, ensuring safety and reliability for your peace of mind. The charger supports SmallRig V-mount batteries as well as the majority of V-mount batteries on the market. On its side, you will find several operational indicator lights, such as power, charging status, and battery installation indicators, facilitating real-time monitoring of the battery's charging progress. This charger has innovative color matching in appearance, and the surface material has been spray-painted, which greatly increases its luster and texture. Finally, the charger features a comfortable handle on top for easy portability, while the foldable support stand at the bottom ensures stable and convenient operation, making it the ideal charging companion for V-mount batteries. Compatibility:The majority of V-mount batteries available on the market (except YINCHEM Blade series)In the BoxSmallRig Dual Channel V-Mount Battery Charger x 1Charging Cable (A to C) x 1Operating Guideline x 1User Manual x 1 Warranty Card x 1SpecificationsInput：AC 100-240V 50 / 60Hz 2A MaxCharging Voltage：DC 16.8VCharging Current One battery:3.0ATwo batteries:2.0ACharging Termination Current：80mAOperating Temperature:0℃ to 40℃ / 32°F to 104°FStorage Temperature:-10℃ to 50℃ / 14°F to 122°FDimensions:141.0 x 100.1 x 224.3mm / 5.5 x 3.9 x 8.8inWeight:1.05kg / 2.3lbsMaterial:PCNote:1.The weight/dimensions are measured manually on the actual product. We appreciate your understanding in case of any discrepanciesLED Indicator Lights
Indicator Light Type | Indicator | Status |
AC Power | Red light on | Charger power activated |
Red light off | No AC power connected or switch not turned on |
Charging state | Red light on | Battery charging, battery level is below 85% |

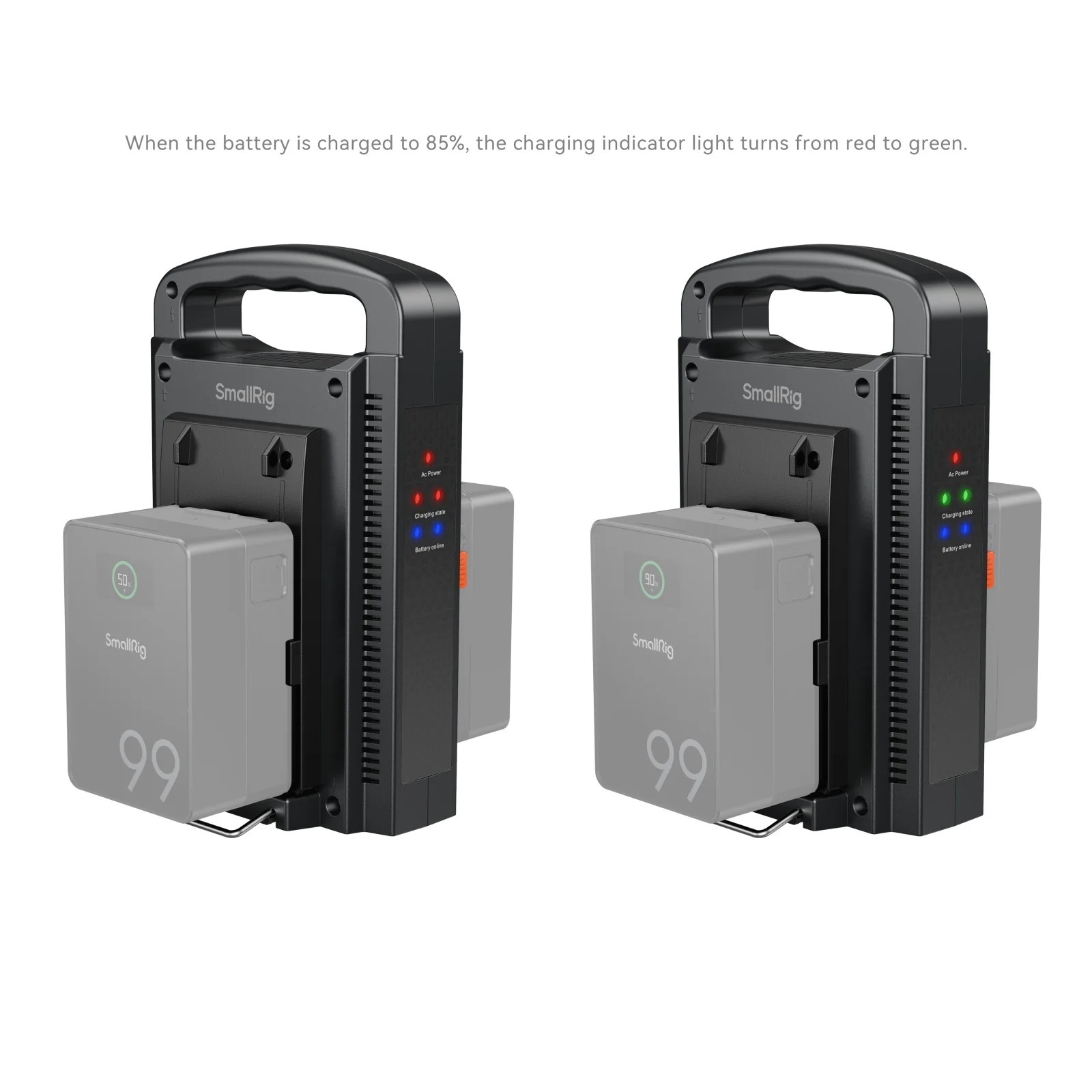

Green light on | Battery charged to 85% |
Green light off | Battery charged to 100% |
Red light flashing | Short circuit or overload |
Battery online | Blue light on | Battery has good connection with the charger |
Blue light off | Poor connection between battery and charger or low battery voltage |
Blue light flashing | Battery voltage below 10.6V |

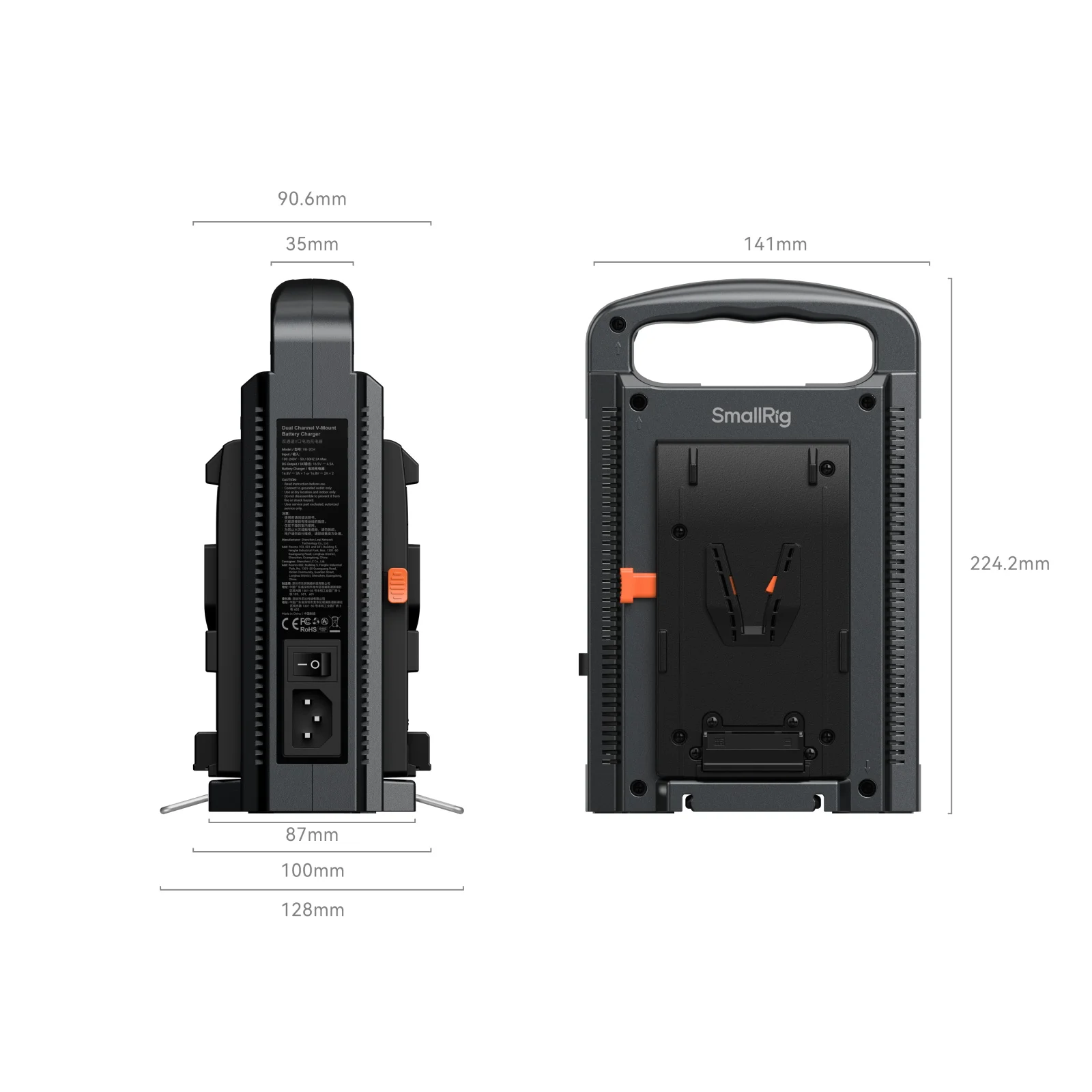

Product Weight: (including charging cable): 1050g ± 10g / 37 ± o.2ozProduct Dimensions: 224.28× 140.98 × 100.07 mm / 8.83 x 5.55 x 3.93 inPackage Weight: 1331g ± 10g / 47 ± o.2ozPackage Dimensions: 270 × 205 × 110 mm / 10.6 x 8 x 4.33 in
