Product Description
I. Product Name:

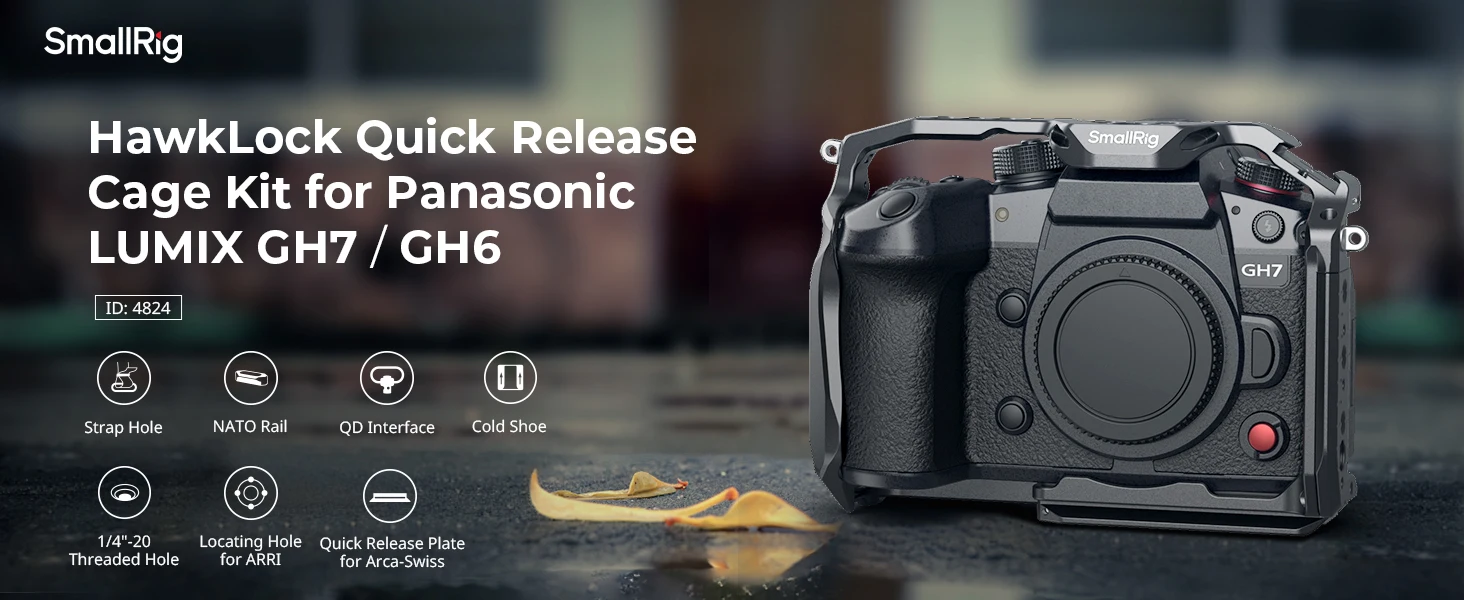

Product Name in Package: SmallRig HawkLock Quick Release Cage for Panasonic LUMIX GH7 / GH6 4824
Product Name in Marketing: SmallRig HawkLock Quick Release Cage for Panasonic LUMIX GH7 / GH6 4824
II. Key Features:
1.Self-developed quick release design, stable and unshakeable, one push to load,release to lock, improve the disassembly efficiency
2.Compatible with the traditional cold shoe, NATO clamp, Arca-Swiss clamp, save money, save worry

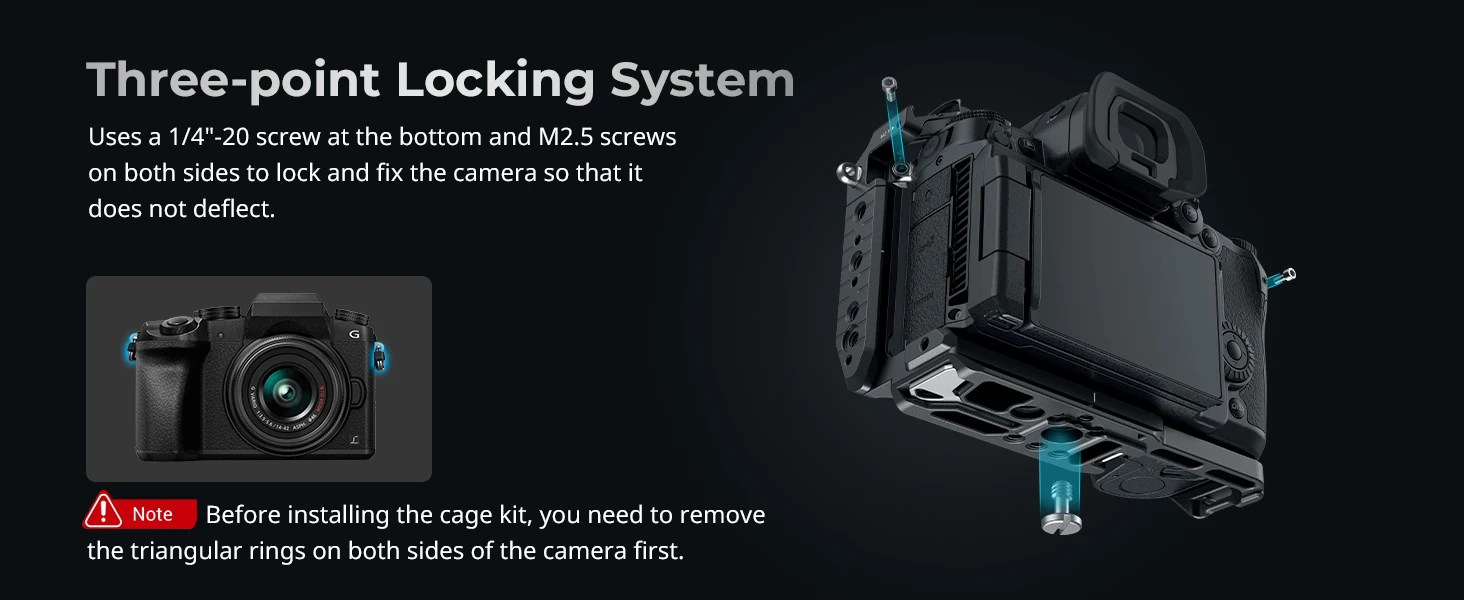

3.Triple-point locking: fixes camera via one bottom one 1/4"-20 screw and the two M2.5 screws on both sides

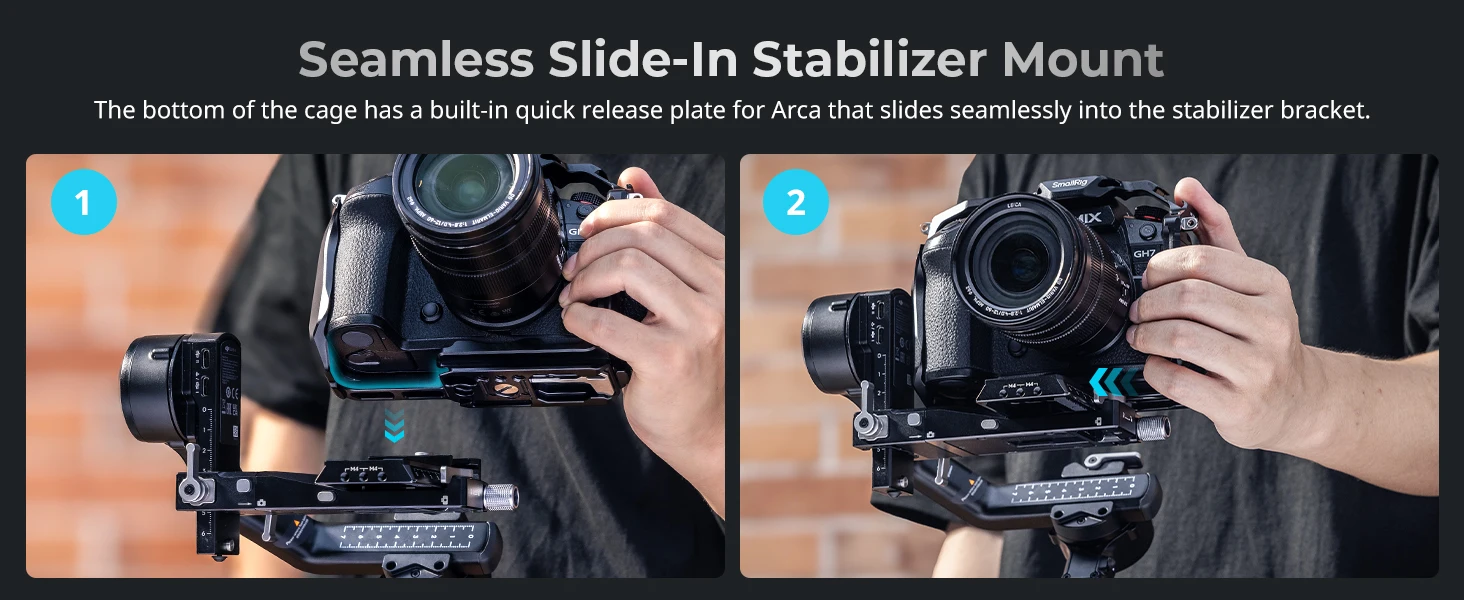

4.Arca-Swiss quick release plate on the bottom for quick switching between tripod, stabilizer (DJI RS 2 / RSC 2 / RS 3 / RS 3 Pro / RS 4 / RS 4 Pro) and handheld shooting

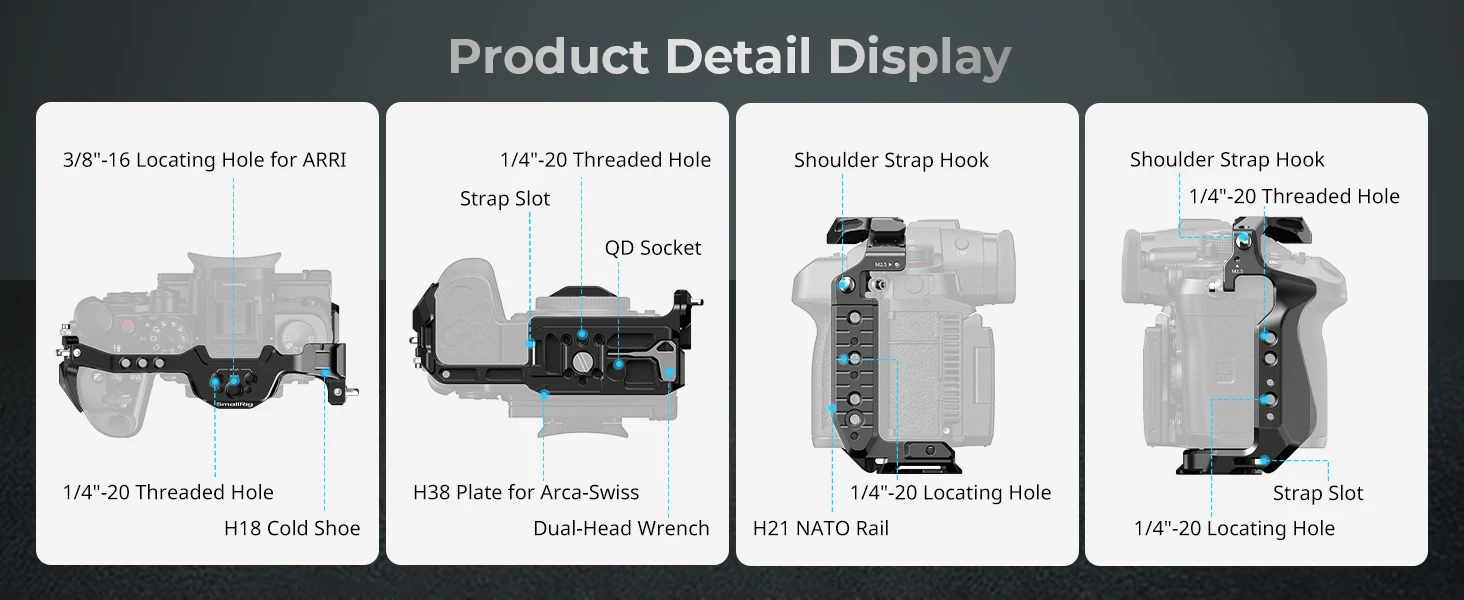

5.Multiple mounting points: 1/4"-20 threaded holes, ARRI 3/8" -16 locating holes, cold shoe mounts, NATO rail and QD socket support handles, microphones, LED lights, monitors, etc.
III. Product Description

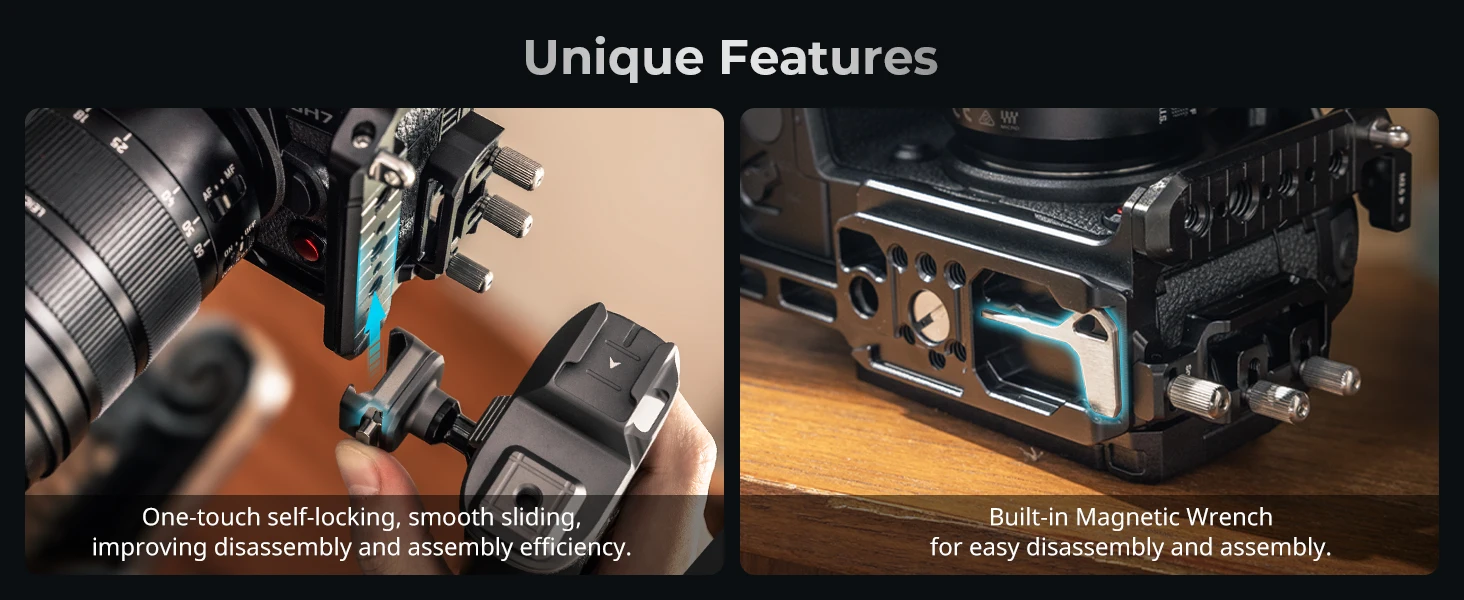

SmallRig HawkLock Quick Release Cage for Panasonic LUMIX GH7 / GH6 4824 is designed to provide accessory mounts and protect camera. The patented self-developed quick-release structure (named HawkLock) covers cold shoe, NATO rail and arca swiss, which is used with HawkLock eco-accessories to realize solid and no false position, one push to load,release to lock, and improve the disassembly efficiency. It lock camera via one 1/4"-20 screw and the two M2.5 screws on both sides. Built-in all-round protective spacers prevent the camera from being scratched. The cage gives access to interfaces, dials, buttons or battery door. 1/4"-20 threaded holes, ARRI 3/8" -16 locating holes and HawkLock cold shoe mounts support top handle 3765, side handle 2093, monitor mount 2903, microphones, LED lights, monitors, etc. Bottom QD socket support QD shoulder strap. HawkLock Arca-Swiss quick release plate at the bottom is compatible with DJI RS 2 / RSC 2 / RS 3 / RS 3 Pro / RS 4 / RS 4 Pro. Strap holes on the sides and bottom of the cage allow attaching such accessories as hand strap PAC2456 . Besides, the cage comes with a built-in magnetic spanner that facilitate disassembly and assembly.
Designer: Tracy Joy
Notes:
1.To use the side locks you need to remove the triangle split rings on both sides of the camera first.
2.This cage is compatible with Panasonic DMW-XLR1 / XLR2, recommended to use [SmallRig Top Handle for Sony XLR-K1M / K2M / K3M and Panasonic DMW-XLR1 / XLR2 3082], please remove the cable clamp at the bottom of the XLR before using 3082.
IV. Compatibility
Panasonic LUMIX GH7
Panasonic LUMIX GH6
V. In the Box:
1 x Cage

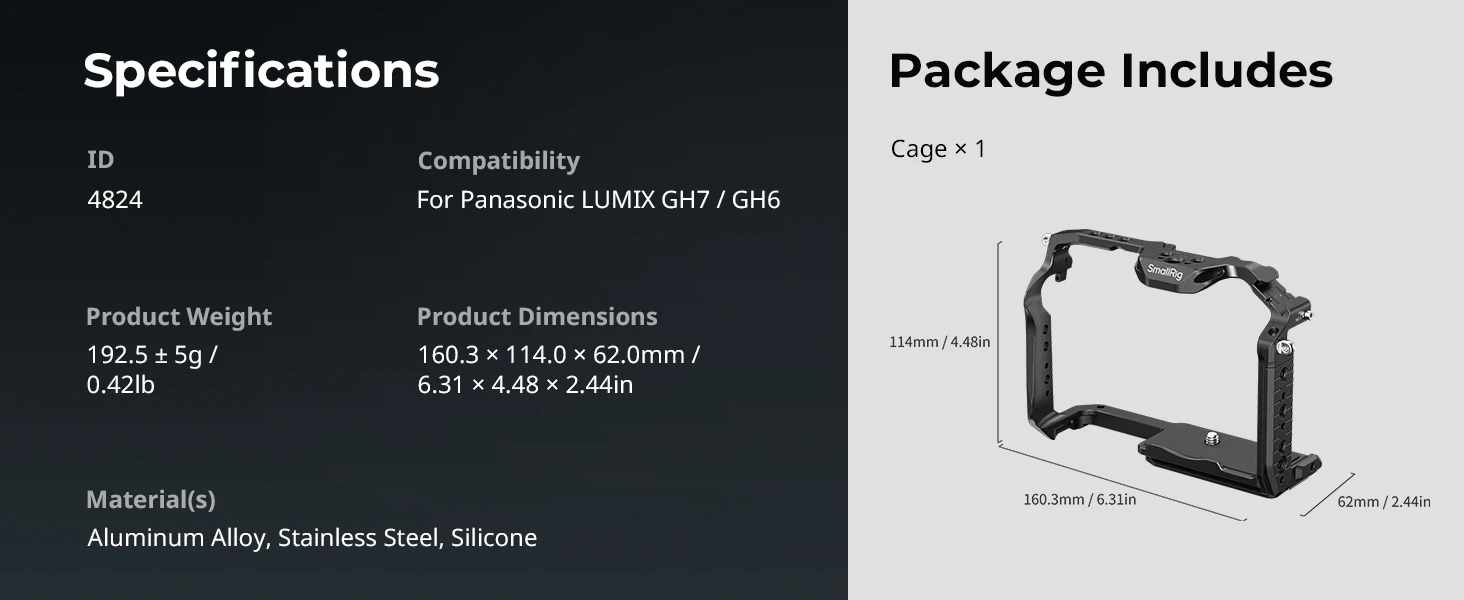

VI. Specifications
Product Dimensions: 160.3 × 114 × 62mm
Package Dimensions: 180 × 129.5 × 75mm
Product Weight: 192.5±5g
Package Weight: 273.5±5g
Material(s): Aluminum Alloy, Stainless Steel, Silicone
VII. Related Products
4825，3765，4485，4487，4486，4500，4491，4488，4489，4490
I. Product Name:

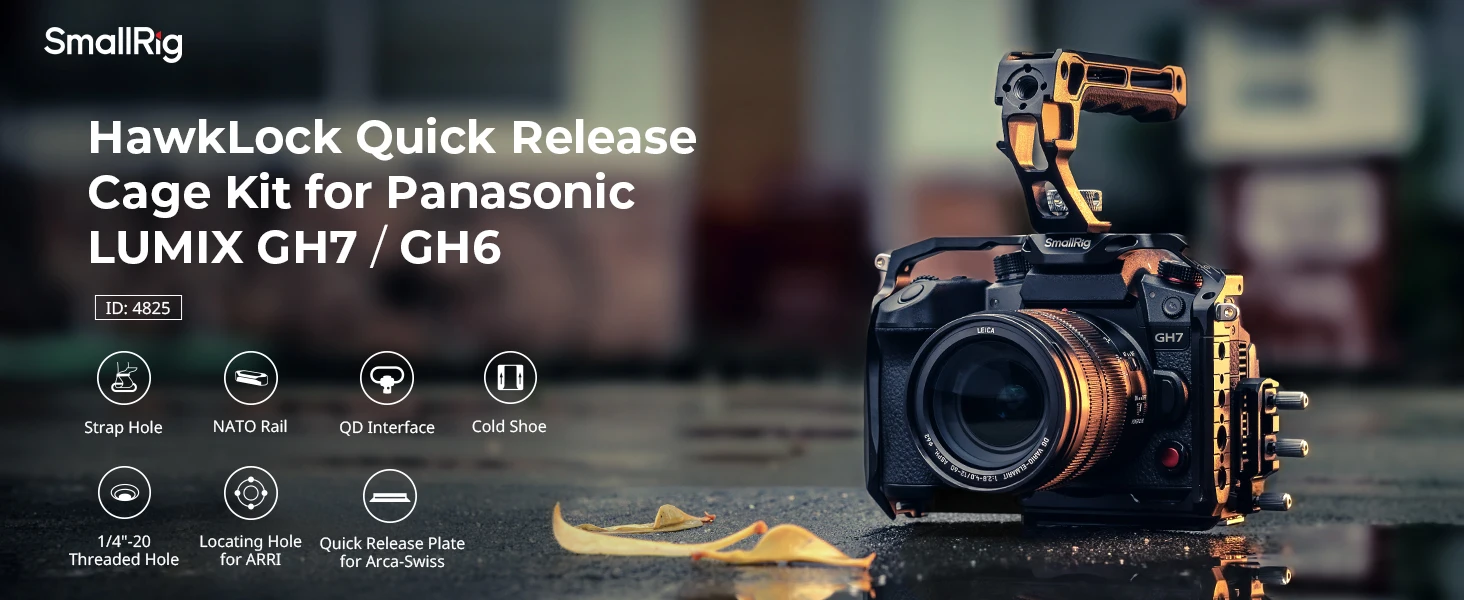

Product Name in Package: SmallRig HawkLock Quick Release Cage Kit for Panasonic LUMIX GH7 / GH6 4825
Product Name in Marketing: SmallRig HawkLock Quick Release Cage Kit for Panasonic LUMIX GH7 / GH6 4825
II. Key Features:
1.Self-developed quick release design, stable and unshakeable, one push to load,release to lock, improve the disassembly efficiency
2.Compatible with the traditional cold shoe, NATO clamp, Arca-Swiss clamp, save money, save worry
3.Portable handheld kit for easy low-angle shot
4.HDMI&USB-C cable clamp protects interfaces and ensures stable signal transmission
5.Multiple mounting points: 1/4"-20 threaded holes, ARRI 3/8" -16 locating holes, cold shoe mounts, NATO rails and QD socket support handles, microphones, LED lights, monitors, etc.
III. Product Description
SmallRig HawkLock Quick Release Cage Kit for Panasonic LUMIX GH7 / GH6 4825 is designed to facilitate low-angle shot and protect camera, while offering a wide range accessory mounts. It includes a cage, a HDMI&USB-C cable clamp and a top handle. The patented self-developed quick-release structure (named HawkLock) covers cold shoe, NATO rail and arca swiss, which is used with HawkLock eco-accessories to realize solid and no false position, one push to load,release to lock, and improve the disassembly efficiency. The top handle feels comfortable and enables easy carrying and at low-angle shot. 1/4"-20 threaded holes, ARRI 3/8" -16 locating holes, cold shoes and NATO rails and QD socket support monitor mount 2294, microphones, LED lights, monitor mount 2903B, NATO accessories. The HDMI cable clamp, mounted onto the left side of the cage via one 1/4"-20 screw, prevents deflection and fixes cables with a thumbscrew to protect interfaces and ensure stable signal transmission. In addition, holes on both sides of the cage allow attaching hand straps. The cage comes with built-in magnetic flat-head screwdriver & hex spanner for easy disassembly and assembly.
Designer: Tracy Joy
cage installation notes：
1.To use the side locks you need to remove the triangle split rings on both sides of the camera first.

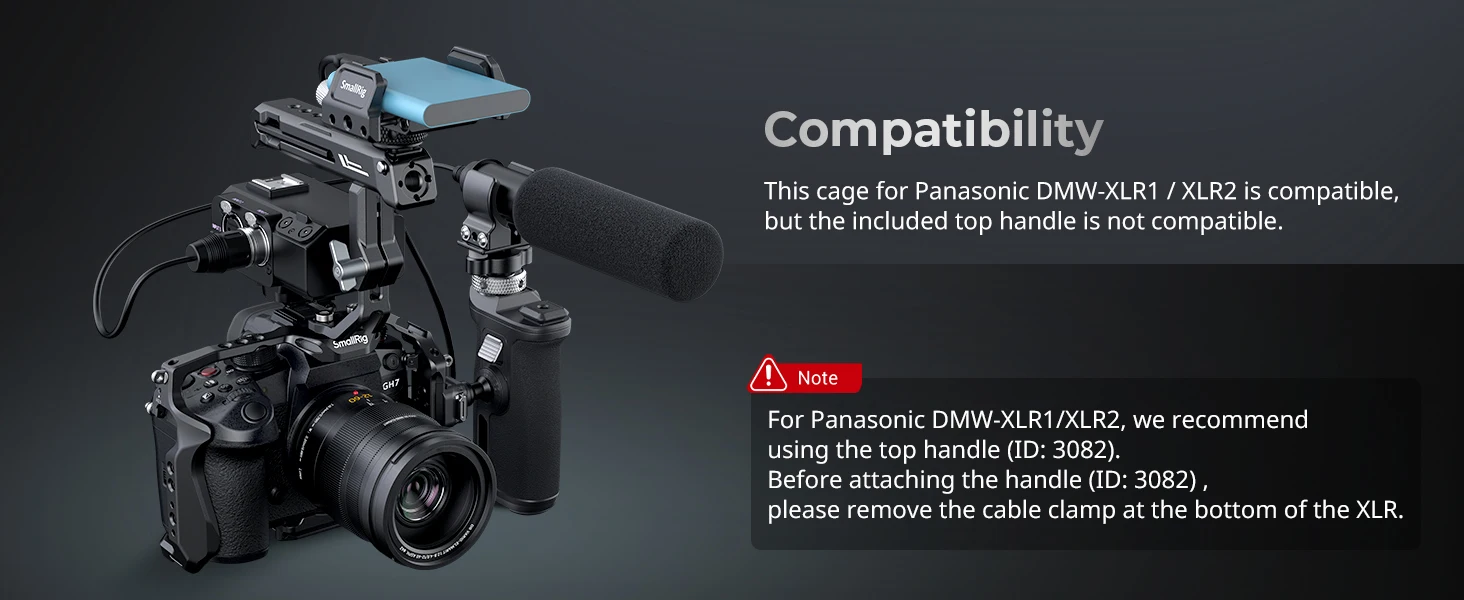

2.This cage is compatible with Panasonic DMW-XLR1 / XLR2, but the top handle in the kit is not. If you need to use Panasonic DMW-XLR1 / XLR2, we recommend you to use [SmallRig Top Handle for Sony XLR-K1M / K2M / K3M and Panasonic DMW-XLR1 / XLR2 3082]. Please remove the cable clamp on the bottom of the XLR before using the 3082.

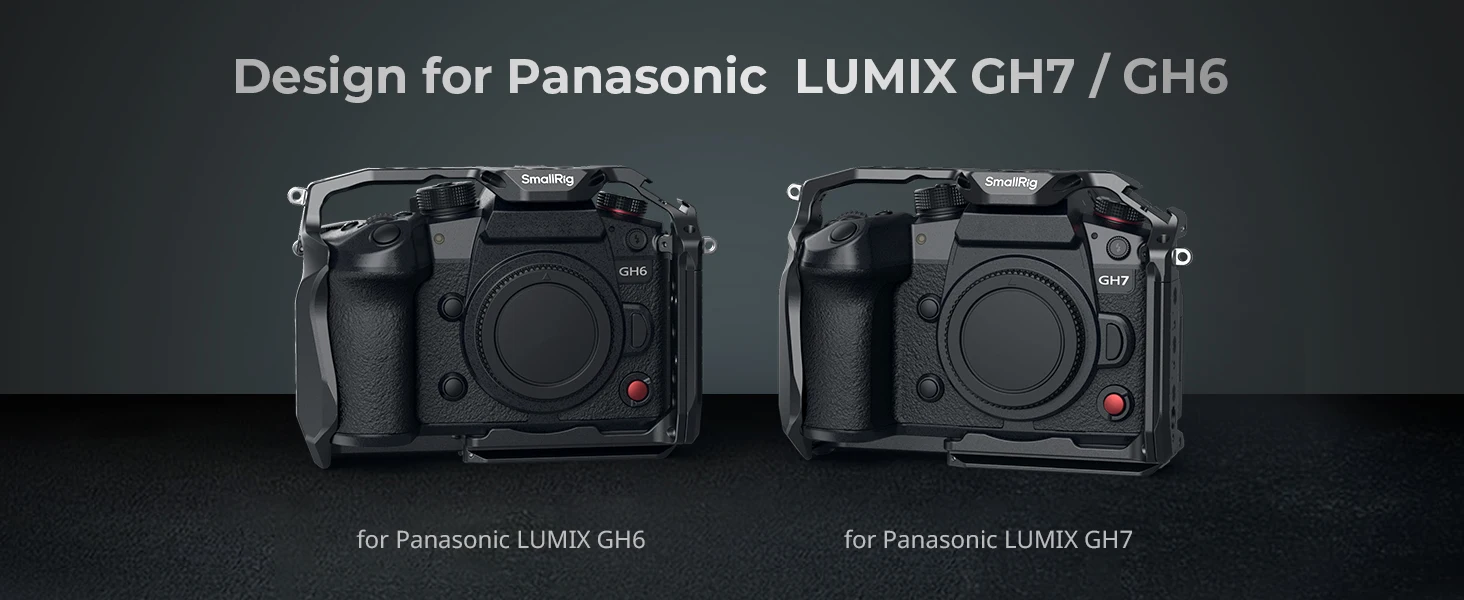

IV. Compatibility
Panasonic LUMIX GH7
Panasonic LUMIX GH6
V. In the Box:
1 x Cage
1 x HDMI&USB-C Cable Clamp
1 x Top Handle
1 x Hex Spanner

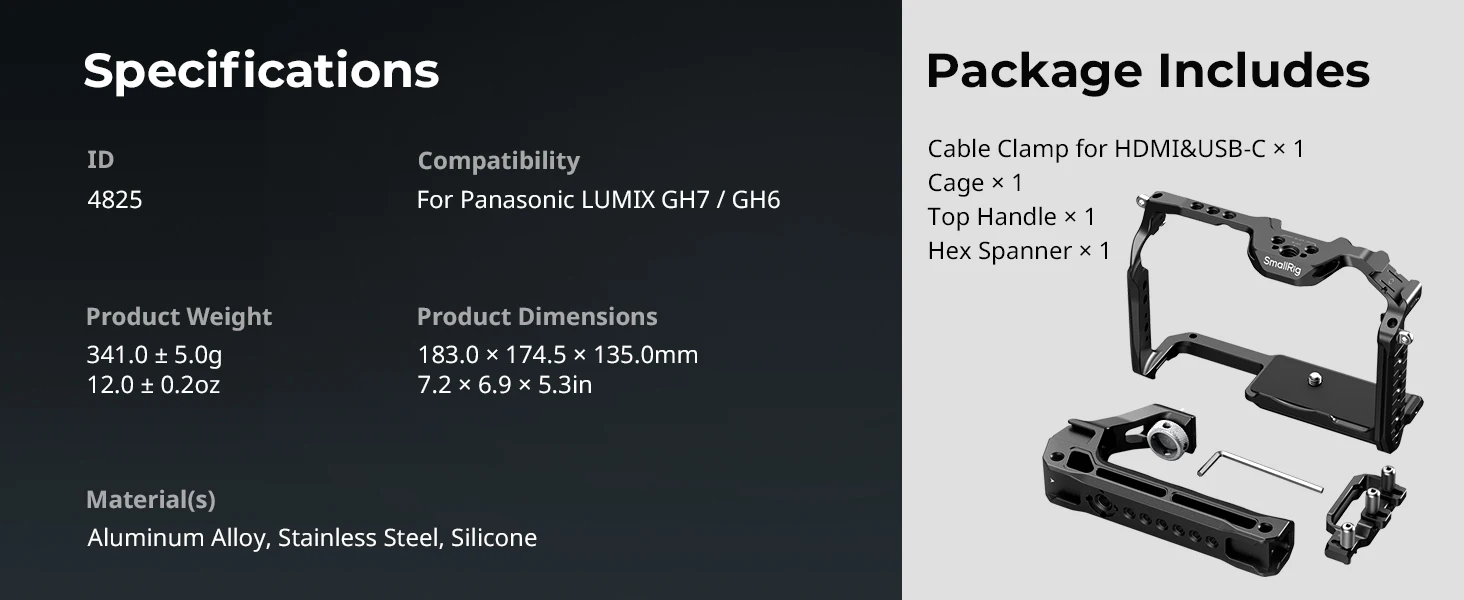

VI. Specifications
Product Dimensions: 183 × 174.5 × 135mm
Package Dimensions: 180 × 129.5 × 75mm
Product Weight: 341±5g
Package Weight: 438±5g
Material(s): Aluminum Alloy, Stainless Steel, Silicone
VII. Related Products
4824，4485，4487，4486，4500，4491，4488,4489，4490
