Name: PAC-12 HF Shortwave GP Antenna 7MHz-50MHz JPC12 100W Multi Band Outdoor Antenna
Brand: Prime Living
SKU: H-168102362994
Price: 394.99 CAD
Availability: InStock

Product Description

PAC-12 HF Shortwave GP Antenna 7MHz-50MHz JPC12 100W Multi Band Outdoor Antenna For CB Radio HF Transceiver

PAC-12 HF Shortwave GP Antenna 7MHz-50MHz JPC12 100W Multi Band Outdoor Antenna For CB Radio HF TransceiverPAC-12 7MHz-50MHz HF Shortwave GP Antenna 100W Multi Band Outdoor Antenna For Ham Radio

The new PAC-12 base replaces the original ppr tube with a carbon fiber tube, making the entire antenna look more graded (without feeders)

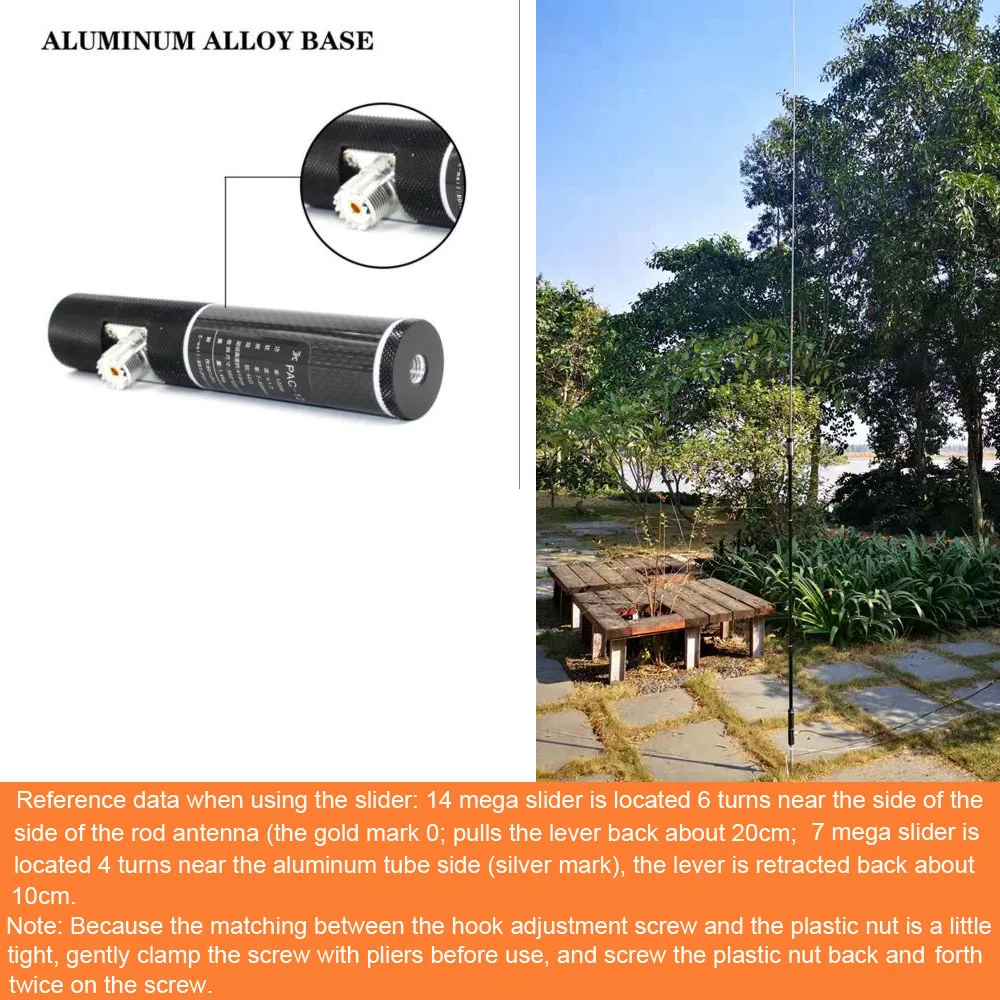

Note: Because the matching between the hook adjustment screw and the plastic nut is a little tight, gently clamp the screw with pliers before use, and screw the plastic nut back and forth twice on the screw.The coil bobbin is made by die-cutting. The material is nylon, non-ppr pipe is made by hand. The strength is very high. The coil is now wound with 1.0mm 304 stainless steel wire, which has higher strength and overcomes the deformation of tinned copper wire. The weakness is that all the screws are made of stainless steel screws, and the vibrator aluminum tube is sandblasted and oxidized into black. Note that it is not a simple aluminum rod and two screws. This is an aluminum tube. Even if it is erected horizontally, the sag is very high. Small, not as drooping as an aluminum rod is very serious. The base is oxidized to black, and the custom 2.5 m stainless steel rod antenna is used for higher strength and the communication efficiency is greatly improved.Antenna characteristics:1- Light weight, small size and easy to carry2- can work easily in multiple bands3- Easy to set up and fast, one person can be set up in 3 minutes
4- Very suitable for field stand, business trip or balcony erection5- The coil bobbin is made by die-cutting. It is made of non-manual car. The material is nylon. The strength is very high. The coil is wound with 1.0mm stainless steel wire.
6- All screws are made of stainless steel screws7- Aluminum tube blasted into black, the base is oxidized to black, very beautiful and graded8- Customized 2.5 m stainless steel rod antenna

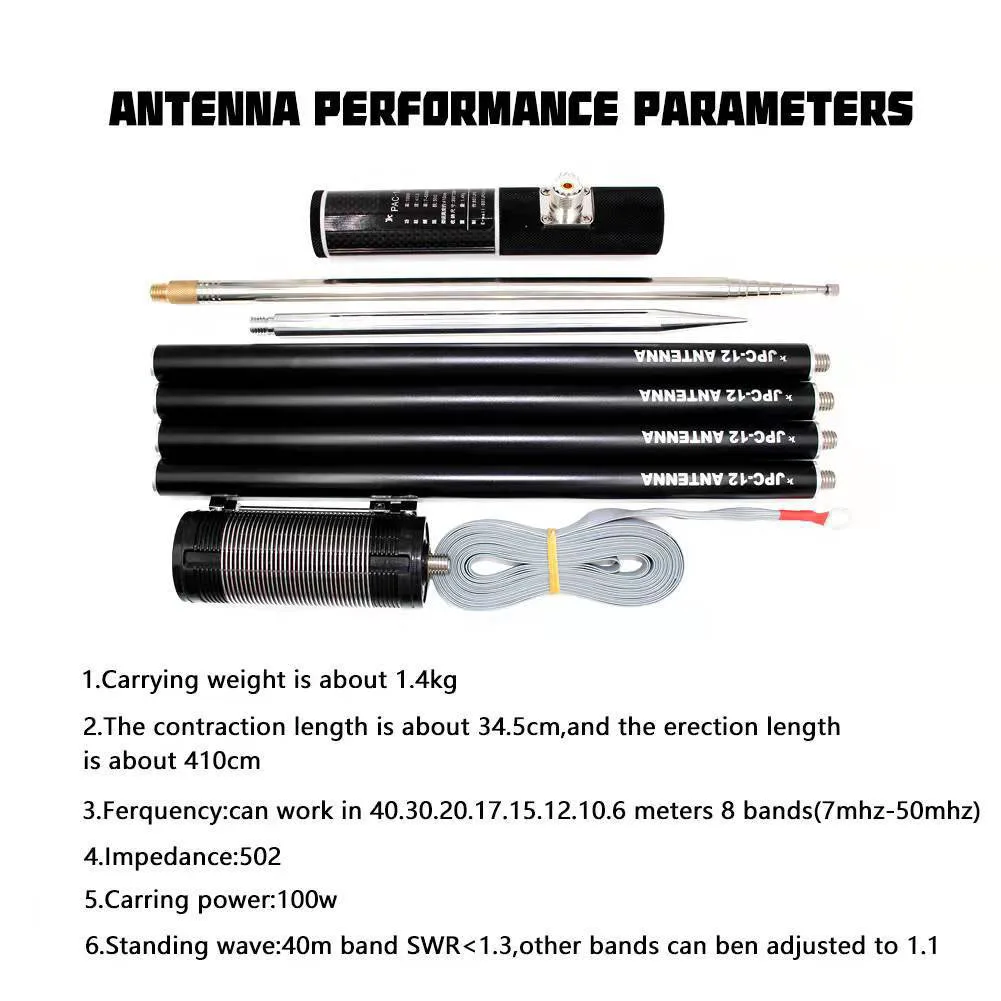

Antenna performance parameters:

1. Carrying weight is about 1.4Kg

2. The length of the contraction is about 34.5cm, and the length of the erection is about 410cm.

3. Frequency: can work in 8 bands of 40.30.20.17.15.12.10.6 meters (7Mhz-50Mhz)

4. Impedance: 50Ω

5. Carrying power: 100W

6. Standing wave: 40m band SWR<1.3, other bands can be adjusted to 1.1

PAC-12 HF Shortwave GP Antenna 7MHz-50MHz JPC12 100W Multi Band Outdoor Antenna

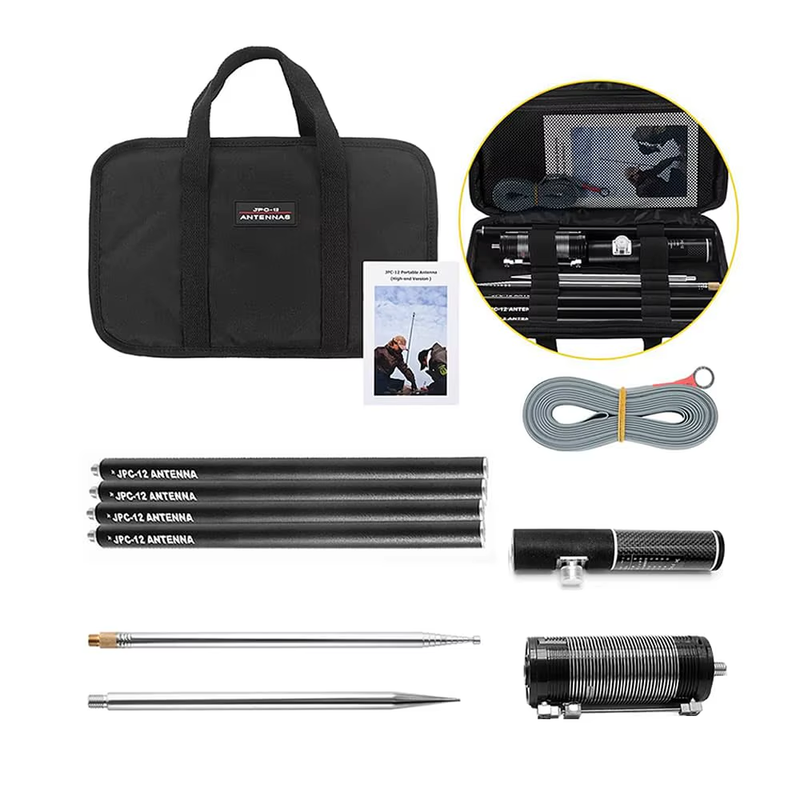

Packing List:

1. One aluminum alloy base (anodized to black)

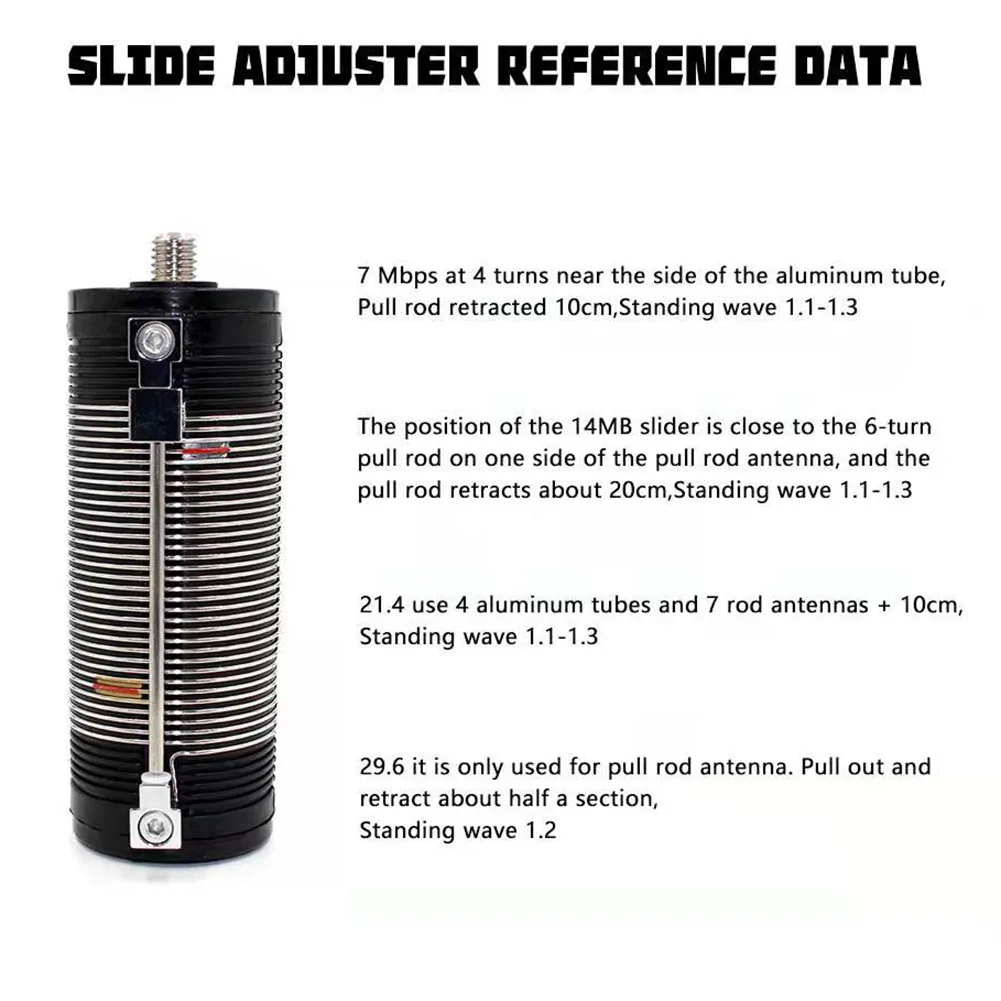

2. Multi-band additive coil (40m - 10m, material: nylon, Note: Adding coil for mold opening and making non-manufacturing)

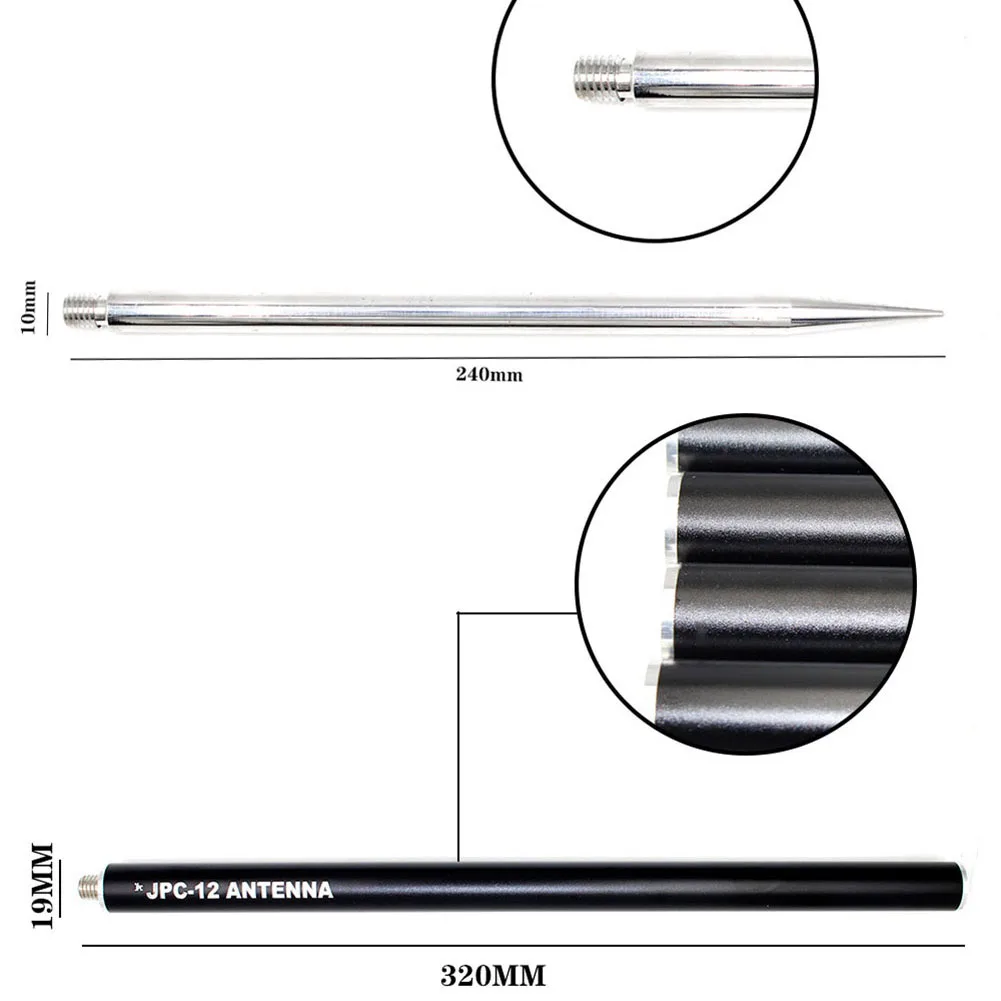

3. One ground anchor, size 10×240mm (not plated to maintain good grounding)

4. Alumina tubes 4 (black), size 19 × 320mm (anode sandblasting oxidation)

5. Top 2.5 m stainless steel rod antenna 1 (customized thickened)

6. One cable with 2.5mm plug (adjustable band)

7. 1 set of hooked screws for adjusting the band

8. One network of 10 strands of ground wire (use it as needed to tear open, generally tear 3 strands)

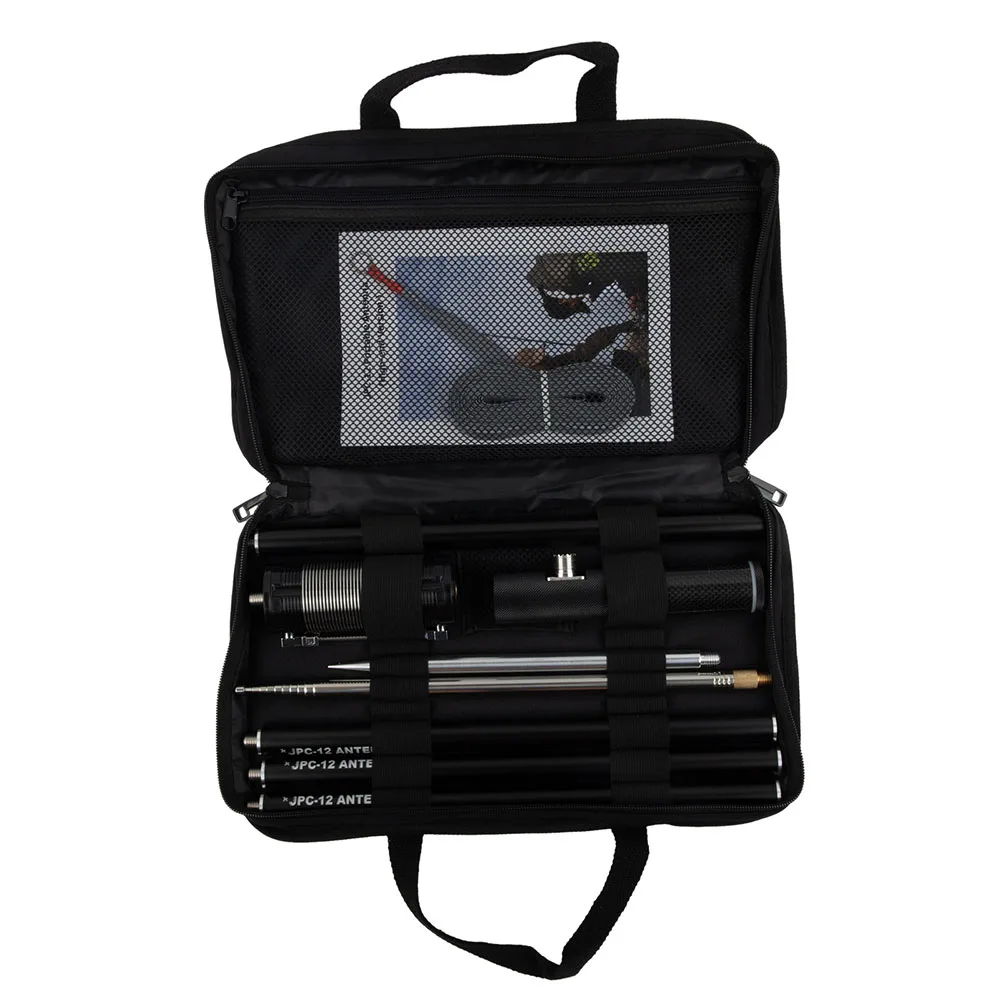

9. Special cloth package

Because the antenna is simple to set up and also saves energy, it is not equipped with paper instructions.
